Basic Information
Safety and Productivity Advantages
- AC motor with high transmission efficiency, maintenance-free without carbon brushes.
- Low center of gravity design for superior stability and smooth operation.
- Small minimum turning radius ensuring excellent steering performance in tight spaces.
- Advanced AC variable speed technology for enhanced reliability.
- Integrated control of both walking and lifting speeds.
- Equipped with a shock-absorbing device to significantly reduce operational noise.
- Sideway moving battery system for easy replacement and maintenance.
- Integrated electrical system for clean, beautiful, and easy-to-maintain wiring.
- Environmentally friendly maintenance-free lead-acid battery.
- Programmable control technology with built-in fault diagnostic functions.
- Emergency brake function and low-voltage protection for improved safety.
Technical Specifications
| Specification |
Unit |
TB110S-16/25/30 |
TB115S-16/25 |
| Load capacity |
kg |
1000 |
2000 |
| Lifting height |
m |
1.6m / 2m / 2.5m |
1.6m / 2.5m |
| Wheel base |
mm |
1146.5 |
| Overall length |
mm |
1785 |
| Overall width |
mm |
800 |
| Turning radius |
mm |
1380 |
| Driving motor |
kW |
0.75 |
| Battery capacity |
V/Ah |
24/80 |
| Service brake |
- |
Electromagnetic |

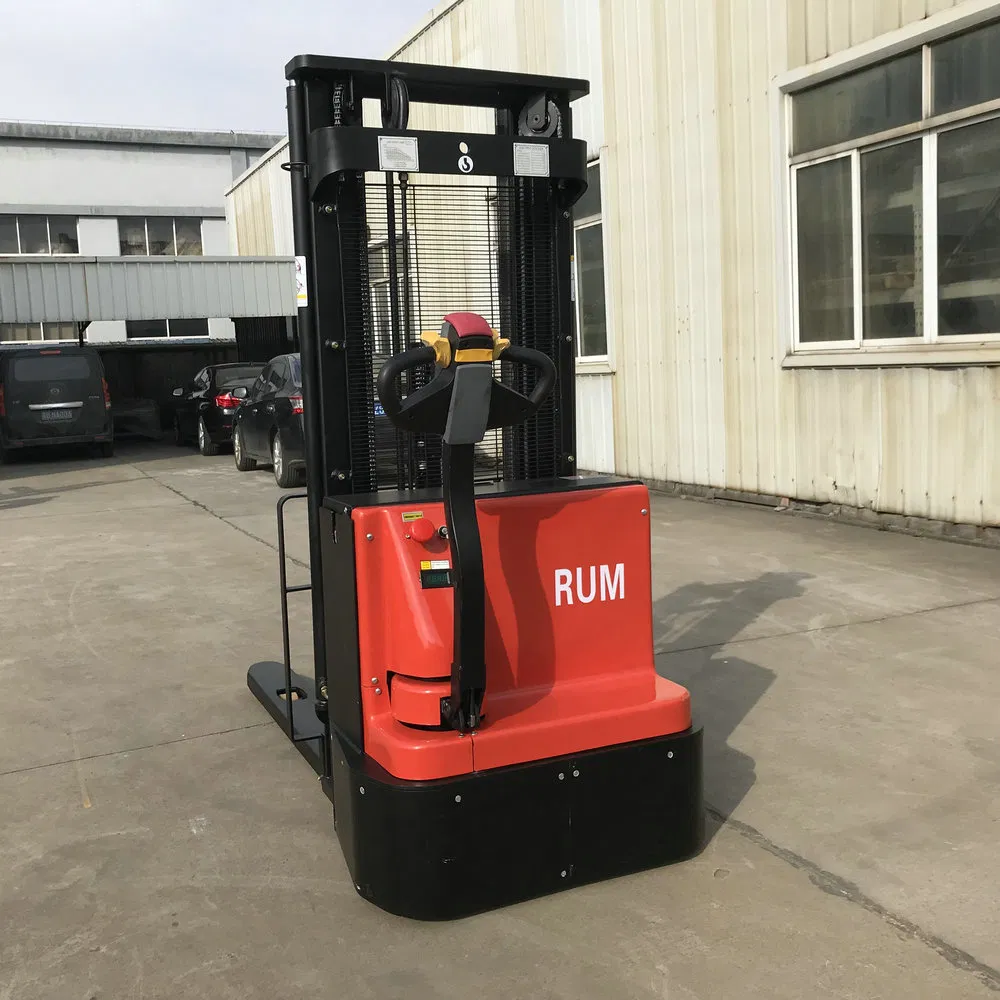

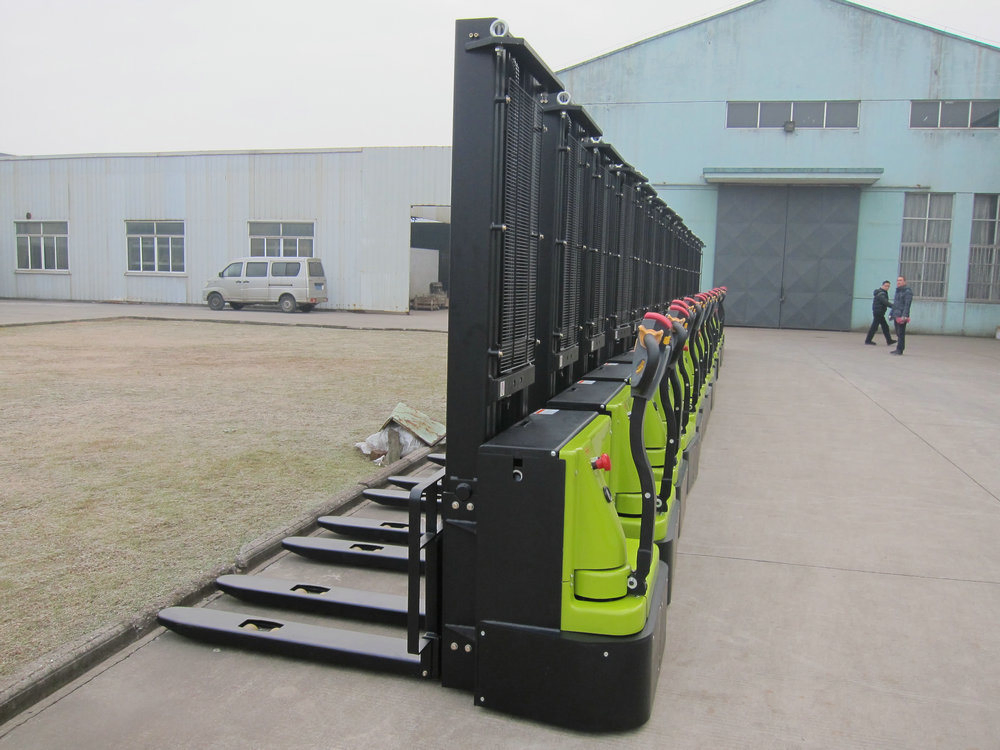

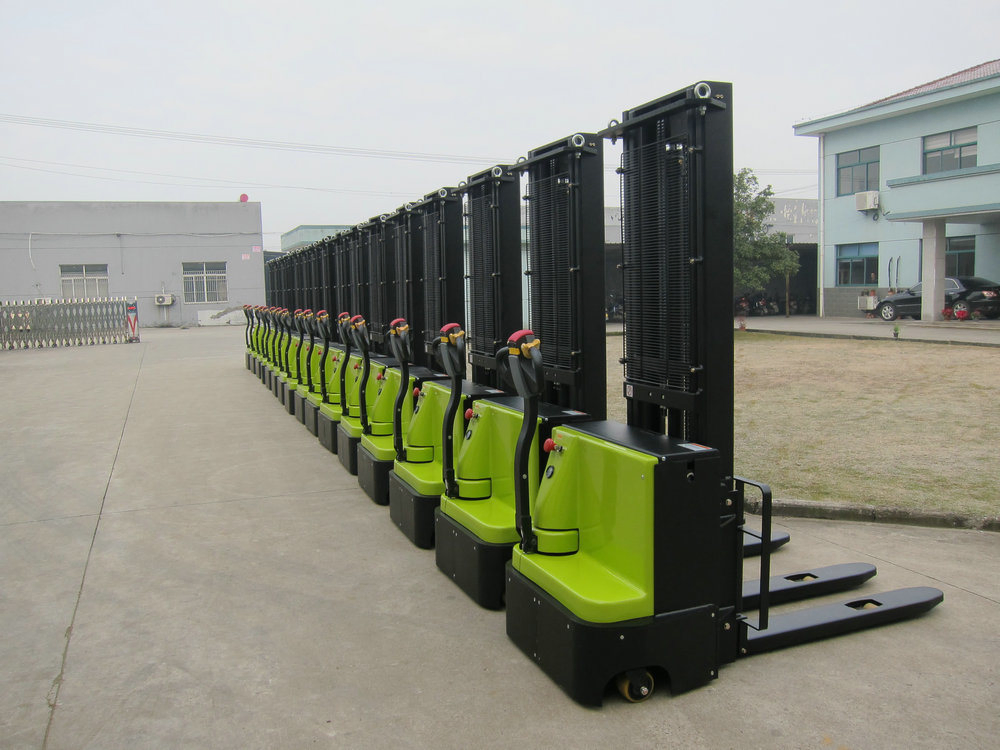

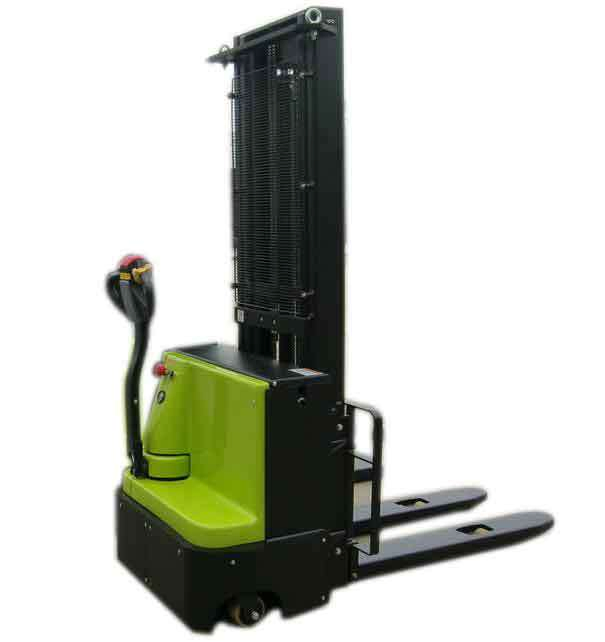

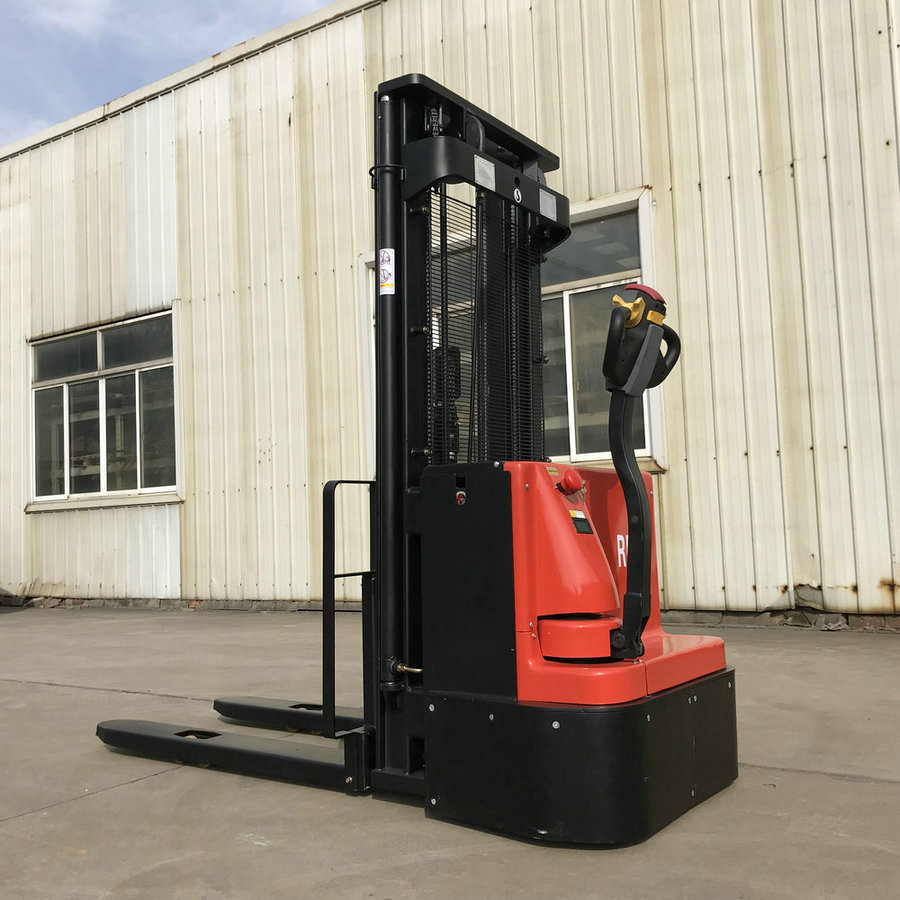

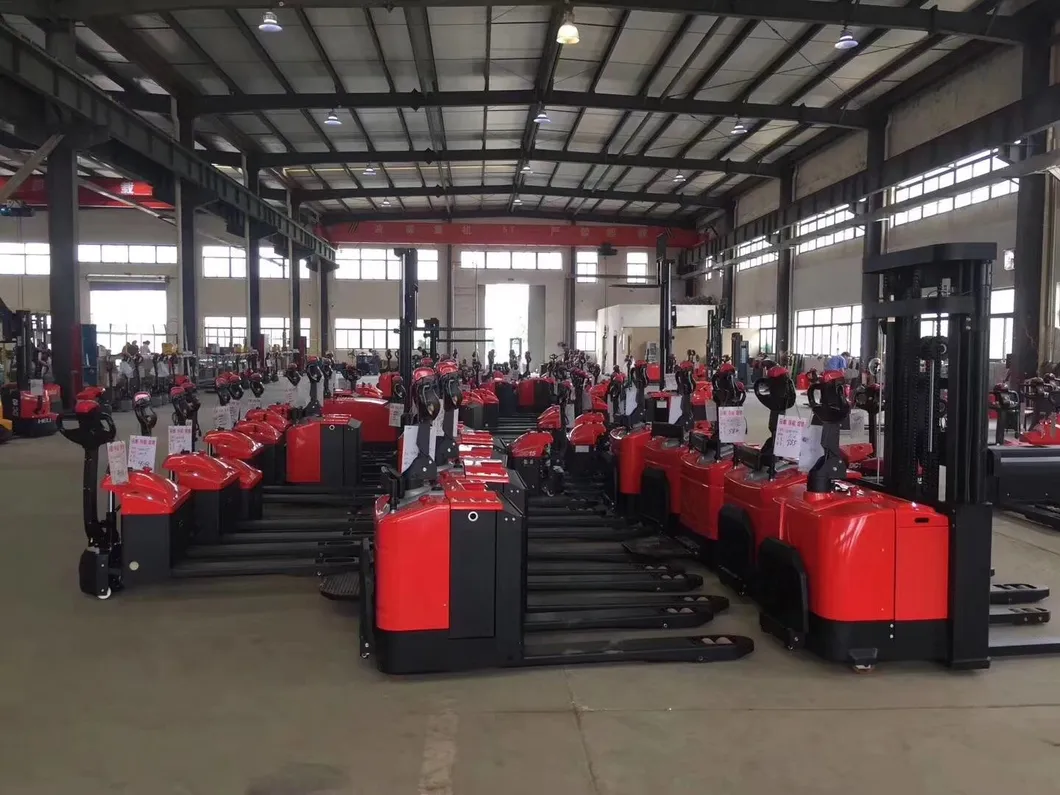

Product Gallery
Frequently Asked Questions
How long is the warranty for the electric stacker?
The warranty period is 24 months or 2500 hours for the whole machine from the on-board time.
What is the typical delivery time?
Usually, the production time is 15-20 days after receiving the advance payment. Standard products may be available in stock for immediate delivery.
How long is the continuous working time and charging time?
Continuous working time is around 4-6 hours depending on battery volume. Charging takes approximately 5 hours using an intelligent charger that stops once full.
What is the expected lifespan of the battery?
The equipment uses DIN standard batteries (Germany technology), which can typically operate for up to 6 years without issues.
Can you provide customized OEM or ODM products?
Yes, customized products are available based on your request. Both OEM and ODM services are accepted for non-standard requirements.
What are the charger specifications available?
Charger voltages can be 110V, 220V, 240V, 380V, or 415V (1 or 3 phases, 50/60HZ) with power plugs matching USA/UK/Australia/European standards.
