10kw Generator Turbine System for Offshore Platform

Customization:	Available
Warranty:	2years
Output Type:	AC Three Phase

Basic Information

Model NO.

AH-10kW

Number of Blade

Three Blade

Rotating Shaft

Horizontal

Blade Stress Way

Lift Force

Power Range

10-100kW

Phase

Three Phase

Certification

CE

System Name

10kw Generator Turbine System

Technology

Pitch Control

Rated Power

10kw

Rotor Diameter

7.78m

Package

Plywood Box

HS Code

85023100

Capacity

1000 Sets Per Year

Product Features

1

Leading Pitch Controlled Technology Exactly regulation based on rotor speed. Soft regulation decreases impact from wind speed changes, resulting in lower failure rates and longer service life.

2

High Efficiency Performance Generates 30% more electricity than normal turbines. Low start-up wind speed (2m/s) and stable output even when wind exceeds rated speeds.

3

Dual Protection System Combines double degree pitch control with our unique ASP (Automatic Safety Protection) system to monitor wind speed and voltage automatically.

4

Streamline Design & Easy Install Aerodynamic tail vane design increases wind-finding ability by 30%. Easy to install without heavy equipment like cranes; ideal for islands and mountains.

Technical Parameters

AH-10000w Pitch Controlled Wind Generator Specs
Wind rotor diameter (m)	7.78m
Blade material and quantity	Fiber glass reinforced * 3
Rated power / max power (w)	10000/12000
Rated wind speed (m/s)	12
Rated rotate speed (rpm)	180
Working wind speed (m/s)	3-30
Startup wind speed (m/s)	2.5
Survived wind speed (m/s)	60
Working voltage (v)	DC500v / AC220V
Battery voltage / capacity	12*42=500/100 (v, ah)
Speed regulation method	Pitch-controlled
Stop method	Manual brake + Pitch-controlled
Generator style	Three phase, permanent magnet
Wind turbine weight (kg)	550
Tower height / weight (m/kg)	12 / 1500

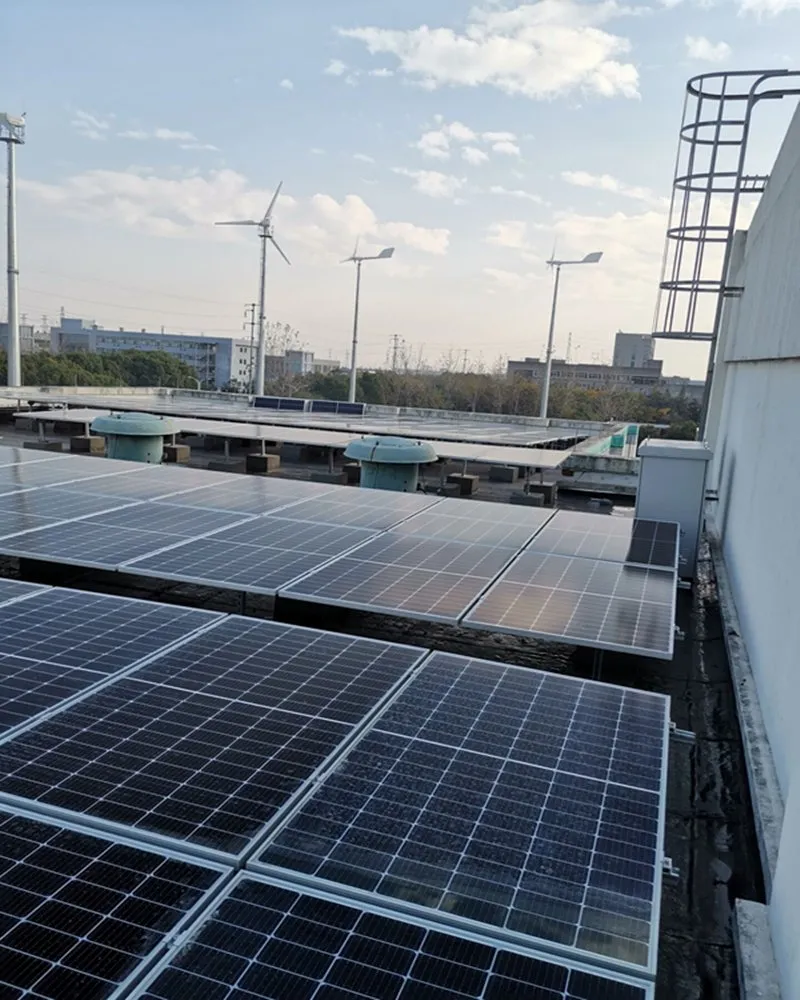

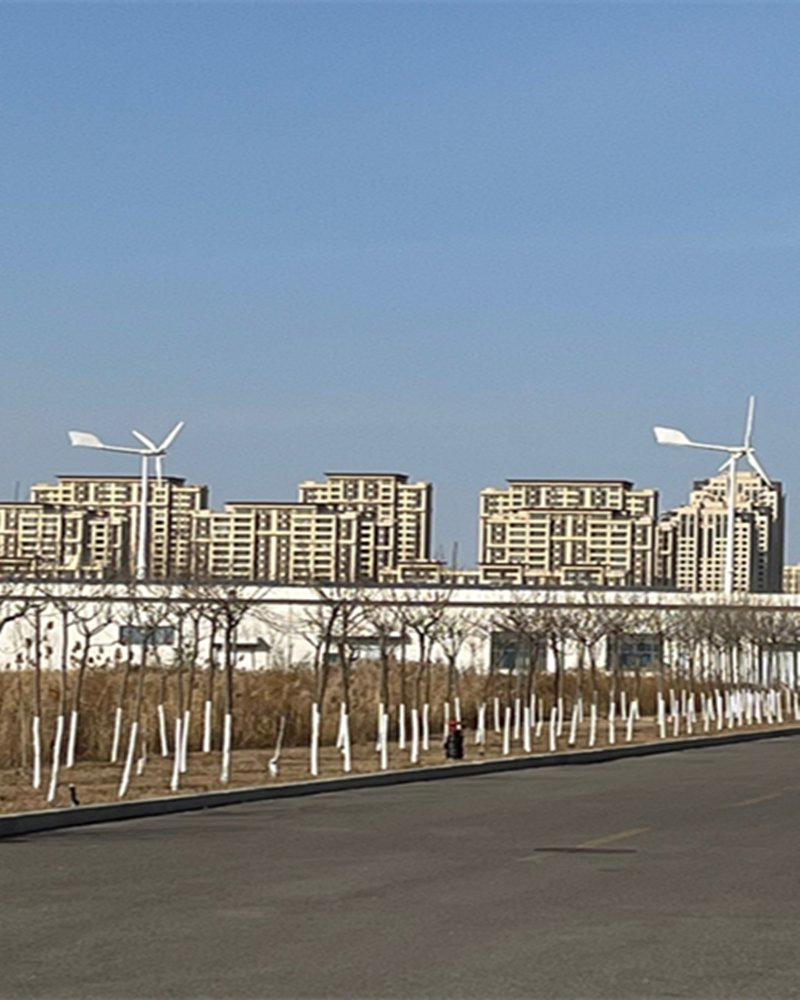

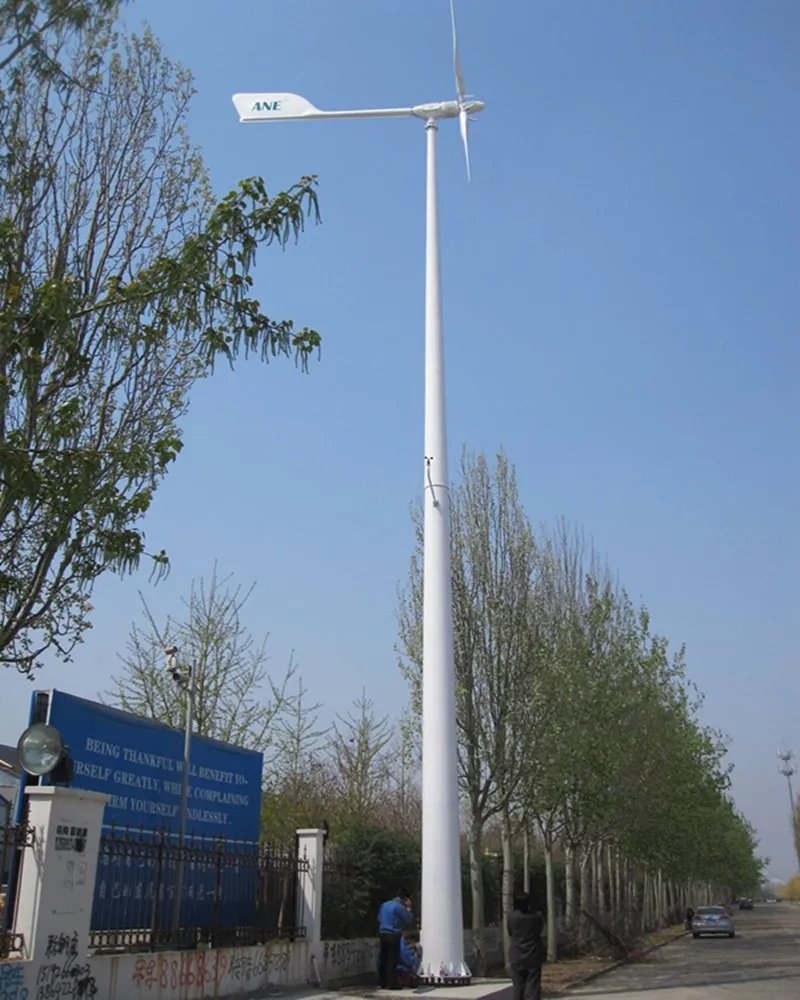

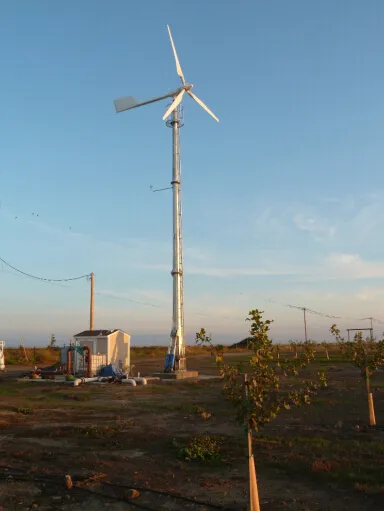

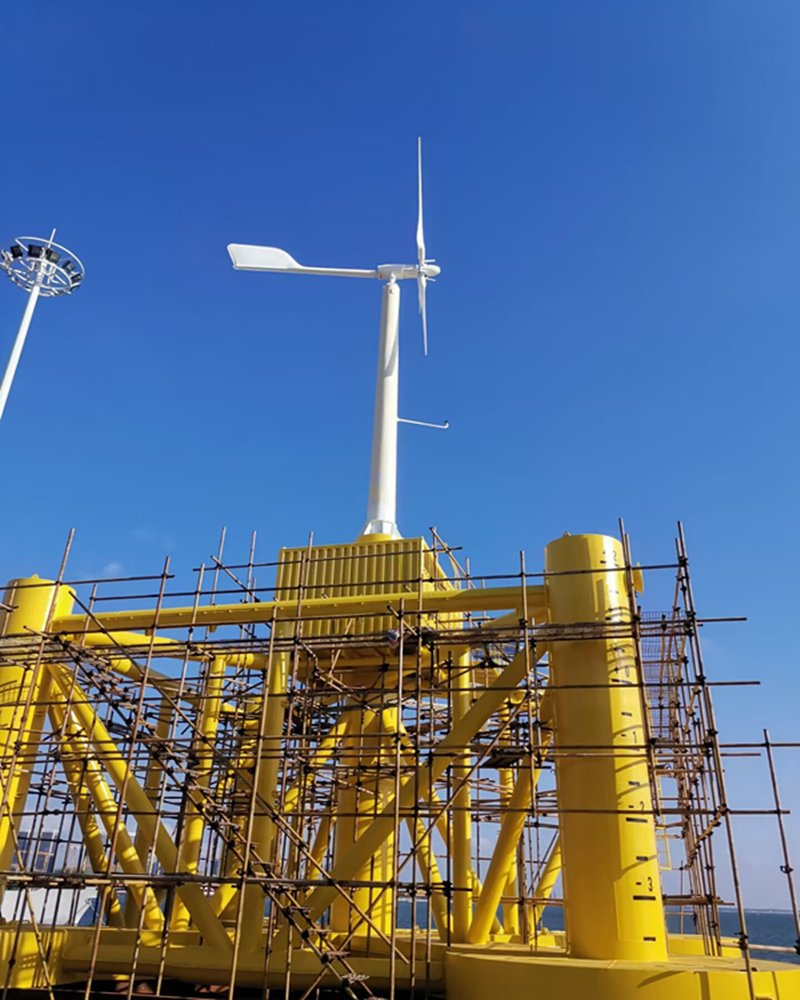

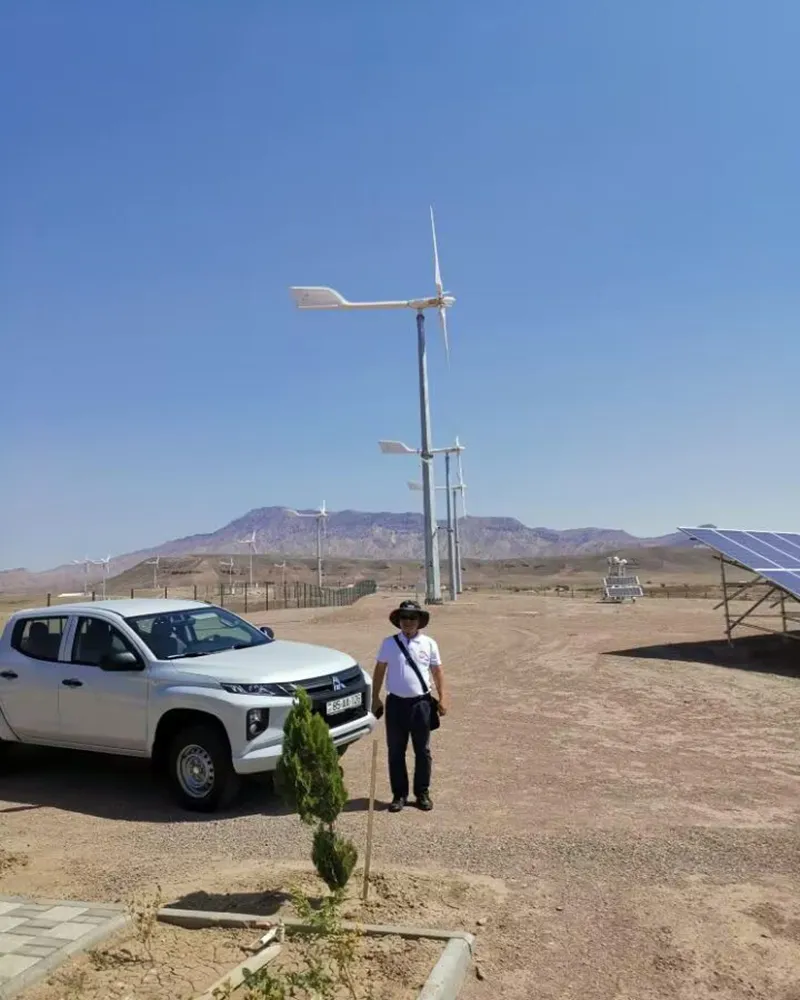

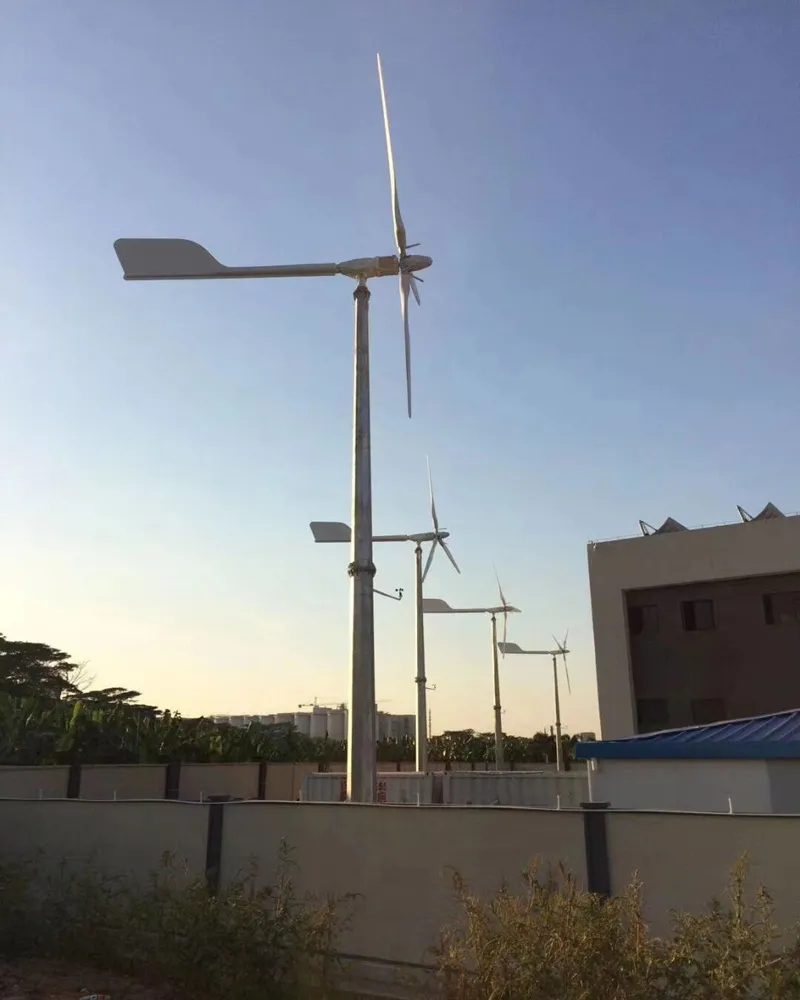

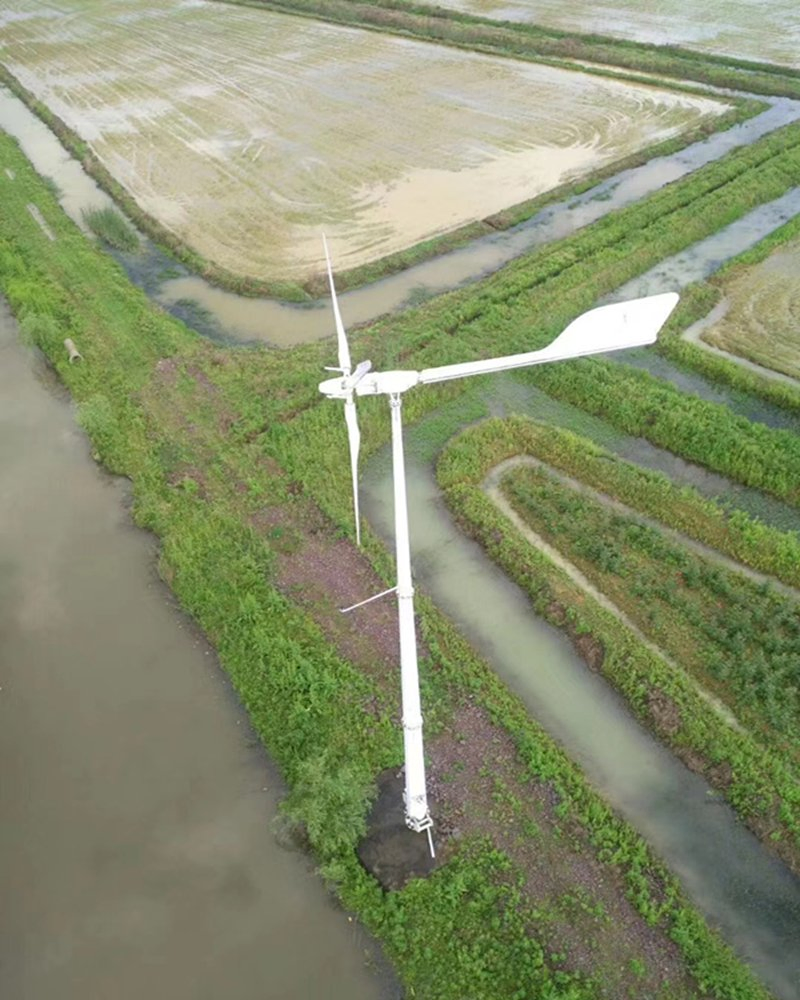

Product Gallery

10kw Generator Turbine System for Offshore Platform

Frequently Asked Questions

What is the advantage of centrifugal pitch control?

Centrifugal pitch control allows for precise regulation based on rotor speed. It provides a softer response to wind speed changes, which reduces mechanical stress and significantly extends the service life of the turbine.

Why does this turbine generate 30% more electricity?

The system features a lower start-up wind speed (2.5m/s) and uses pitch-controlled blades to maintain optimal angles. This ensures maximum efficiency at low speeds and stable output at high wind speeds.

How does the Automatic Safety Protection (ASP) system work?

The ASP system is a patented technology that monitors wind speed and voltage. If thresholds are exceeded, it automatically shuts down the turbine. It will restart once wind speeds drop below 25m/s, allowing for unmanned operation.

Can this turbine be installed in remote areas?

Yes, the tilt-up tower design and lightweight components allow for installation without heavy cranes, making it ideal for islands, mountain areas, and frontier sentries.

What are the primary applications for the AH-10kW?

It is perfect for micro-net power stations, on-grid systems, wind-solar hybrid setups, GSM base stations, and offshore platform lighting systems.

What is the survived wind speed for this model?

The AH-10kW is designed to survive wind speeds of up to 60m/s, ensuring durability during extreme weather conditions.
