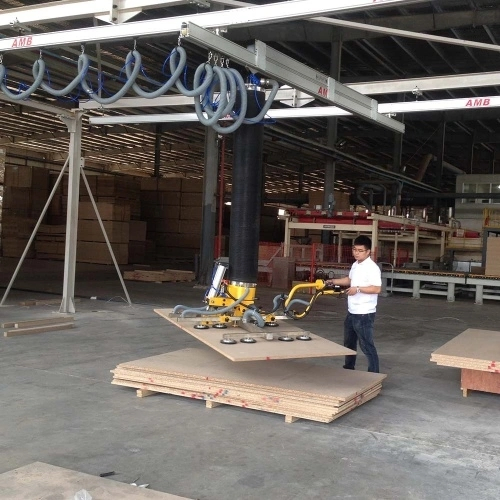

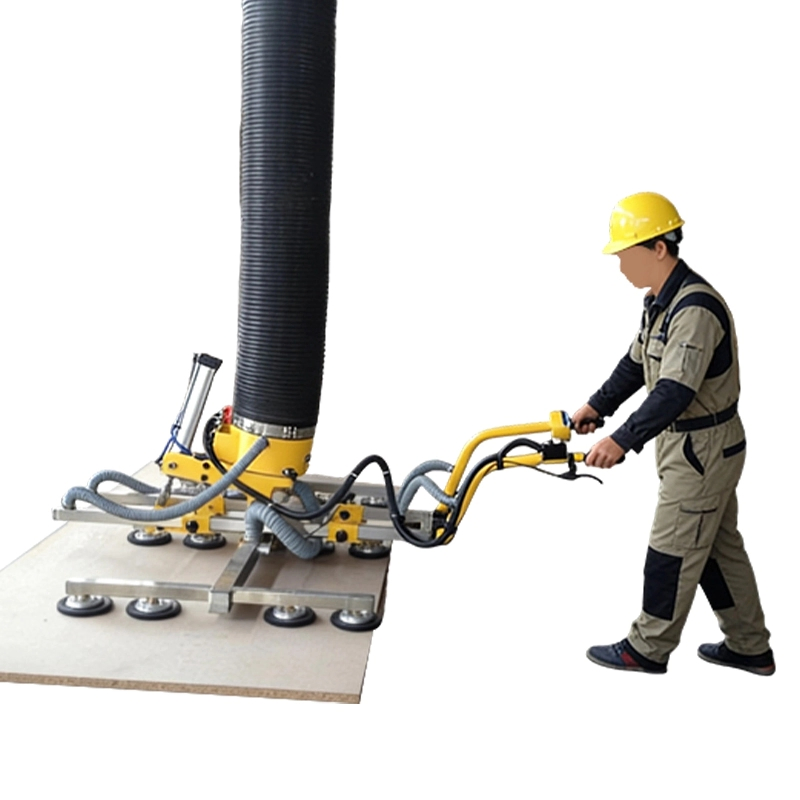

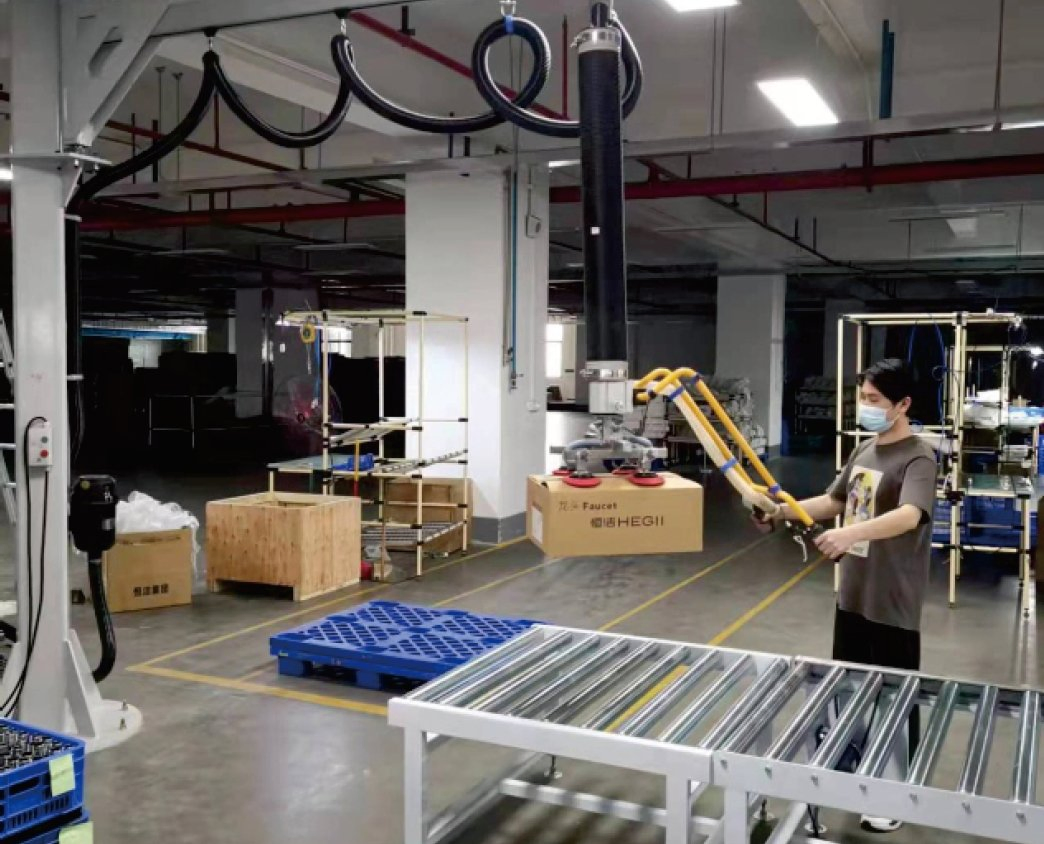

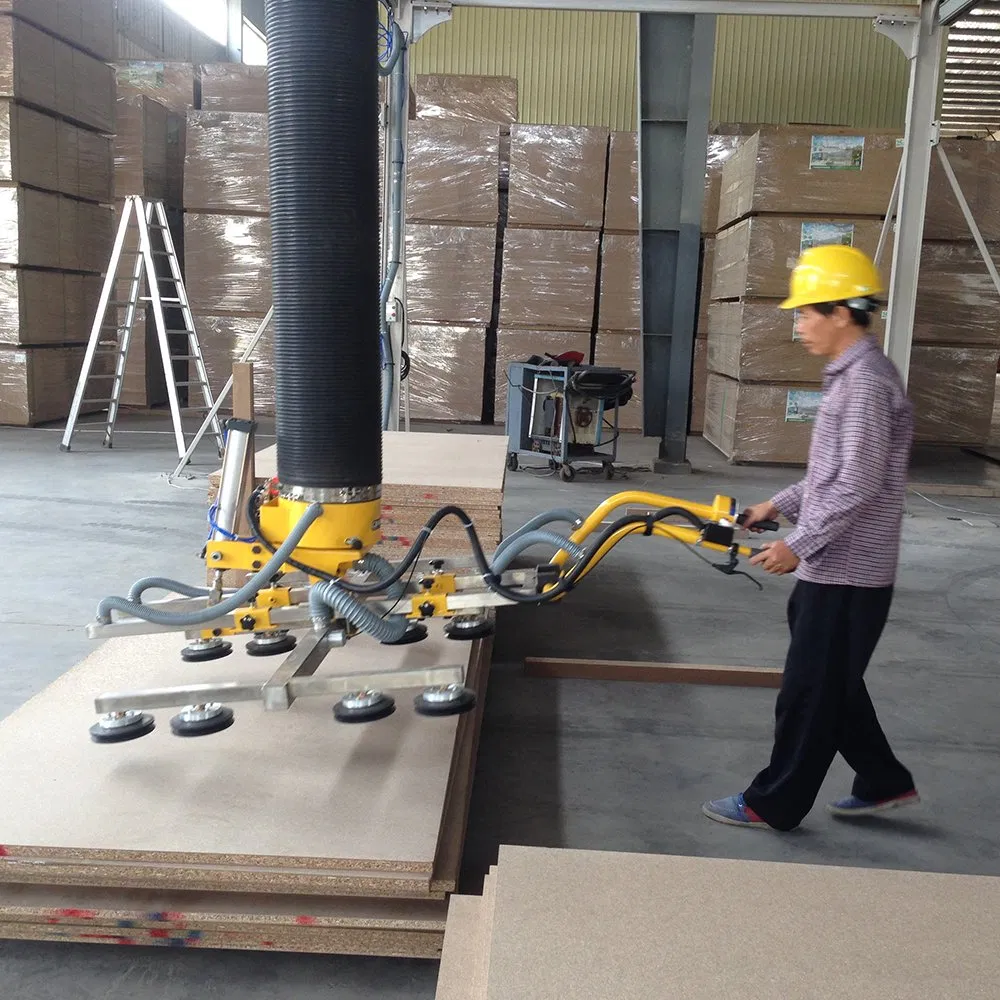

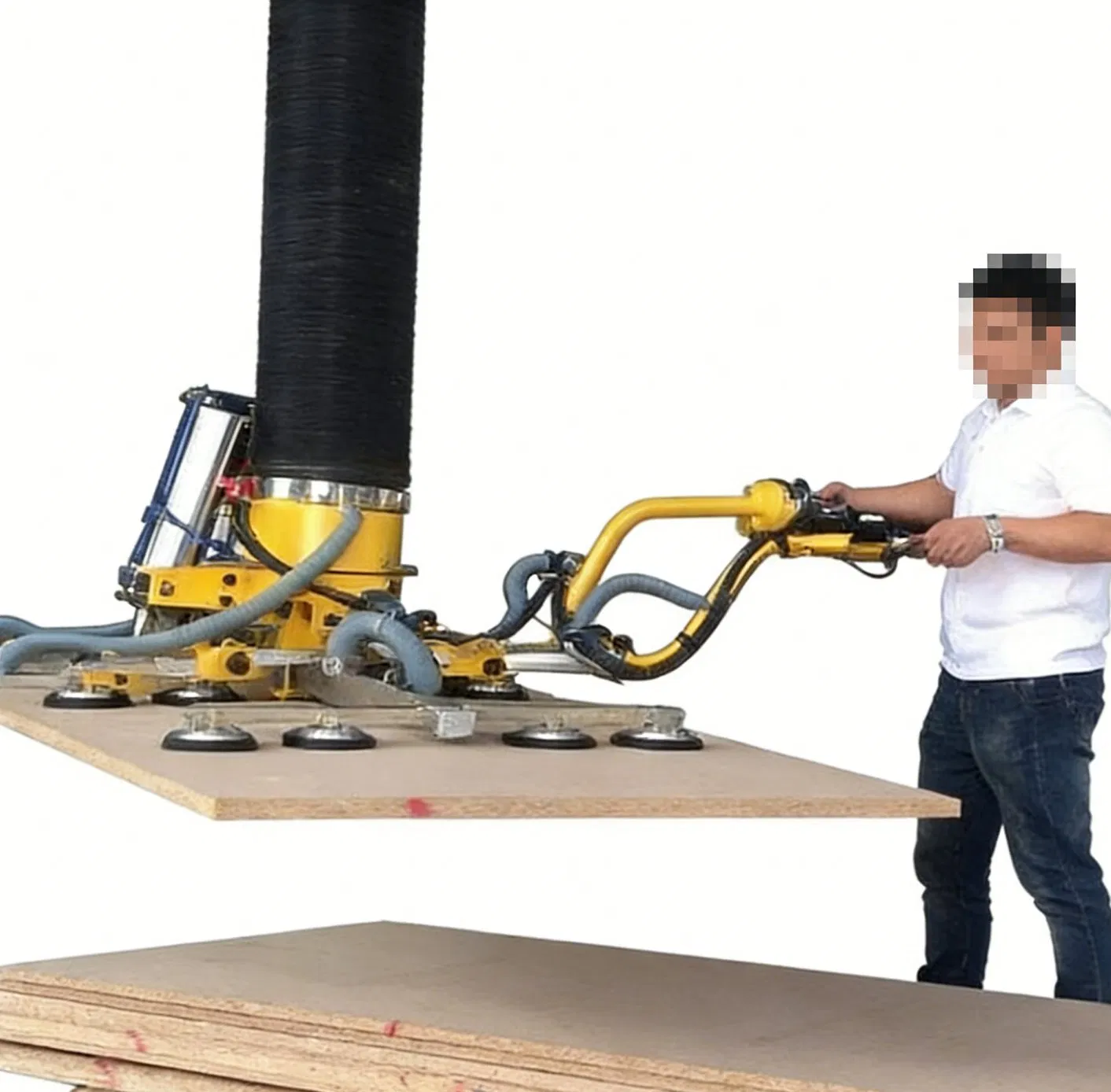

The patent-pending VSL-200 series single-pillar tube lifter utilizes cutting-edge technology. It features a self-supporting design with a robust column, eliminating the need for complex overhead rails. All controls are integrated into the ergonomic handle, allowing for precise and effortless operation. This design enables you to control the lifting and releasing actions with unparalleled sensitivity, allowing for smooth and accurate placement of loads, even at maximum capacity.
Without the constraints of a complex overhead system, the VSL's lifting height is highly adaptable, reaching up to 2500mm. Its compact footprint allows for navigating through narrow aisles and moving materials from low pallets to high shelving. Additionally, the installation process is extremely simple, taking only about 15 minutes from receipt to operation.
| Model NO. | VSL-200 |
| Max. Lifting Capacity | 120 kg |
| Lifting Height | 1700mm / 2500mm |
| Lifting Speed | 0.8 m/s |
| Motor Power | 4.0 Kw / Total Power 5.0 Kw |
| Operating Voltage | 380V, 3-Phase |
| Construction Material | Powder-Coated Steel |
| Sensitivity Level | Adjustable (4 Presets) |
| Overall Dimensions | 2200 x 860 x 440 mm |
| Operating Temperature | -20ºC ~ +45ºC |
| Suction Cup Type | Sf/Dh/H Series for Cartons |
| Safety Settings | 4-digit customizable password |
The VSL-200 series tube lifter offers precise positioning and handling capabilities for a wide range of industries:
