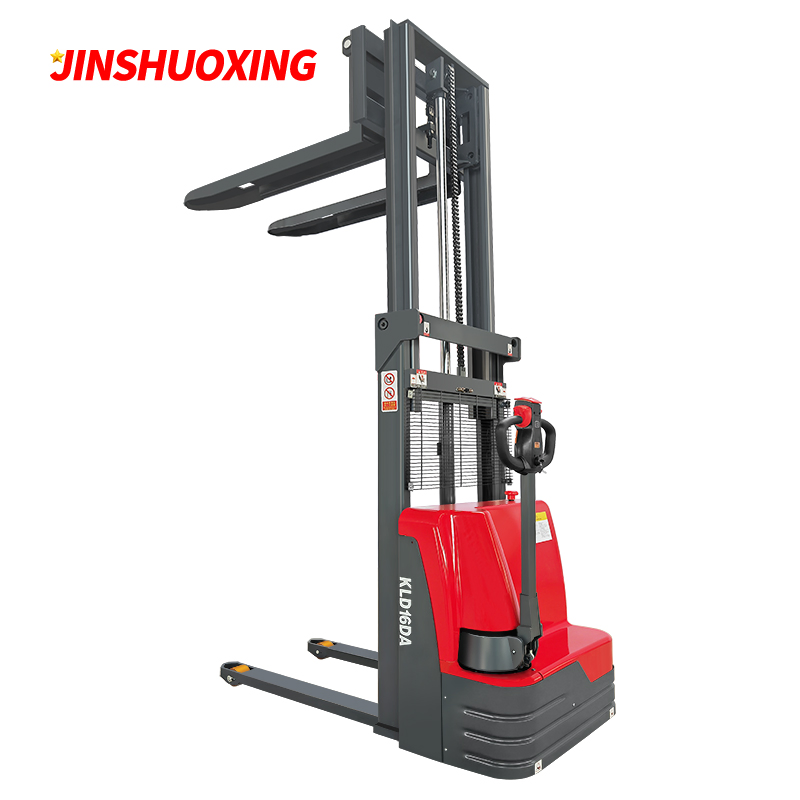

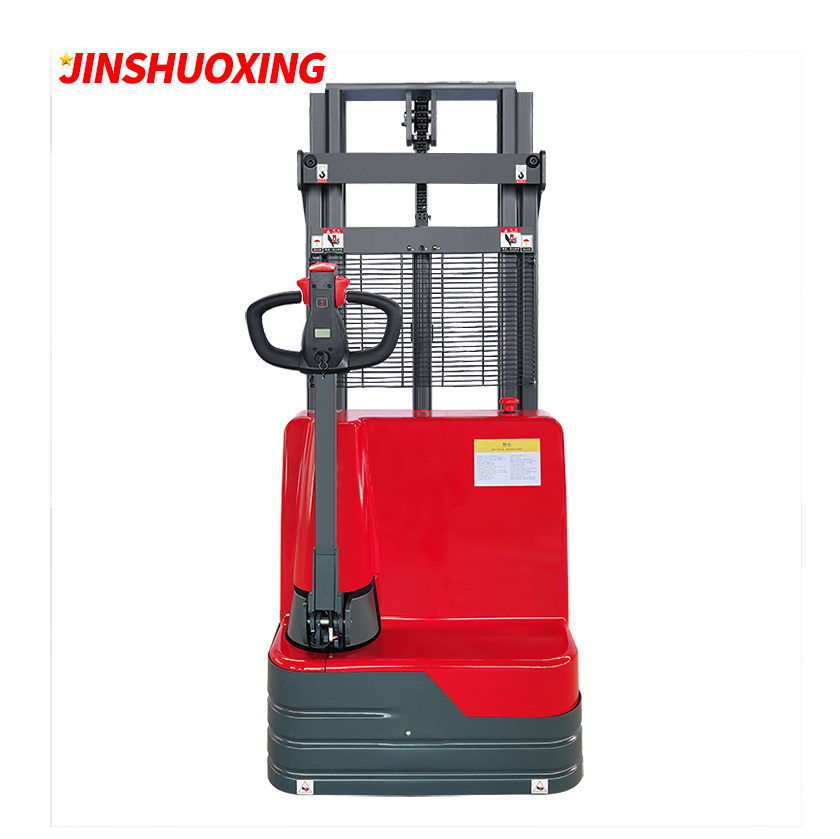

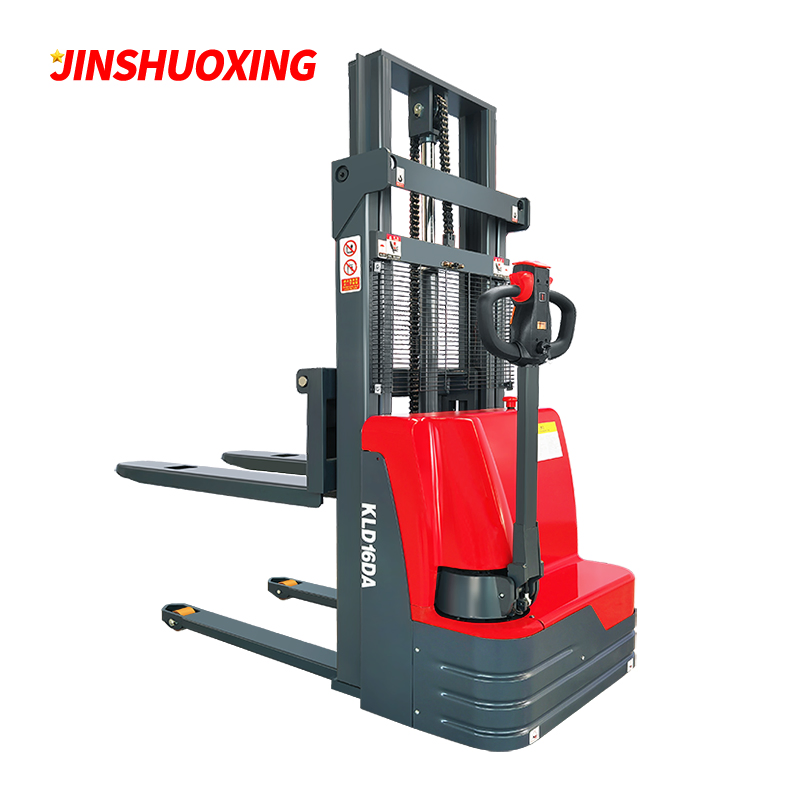

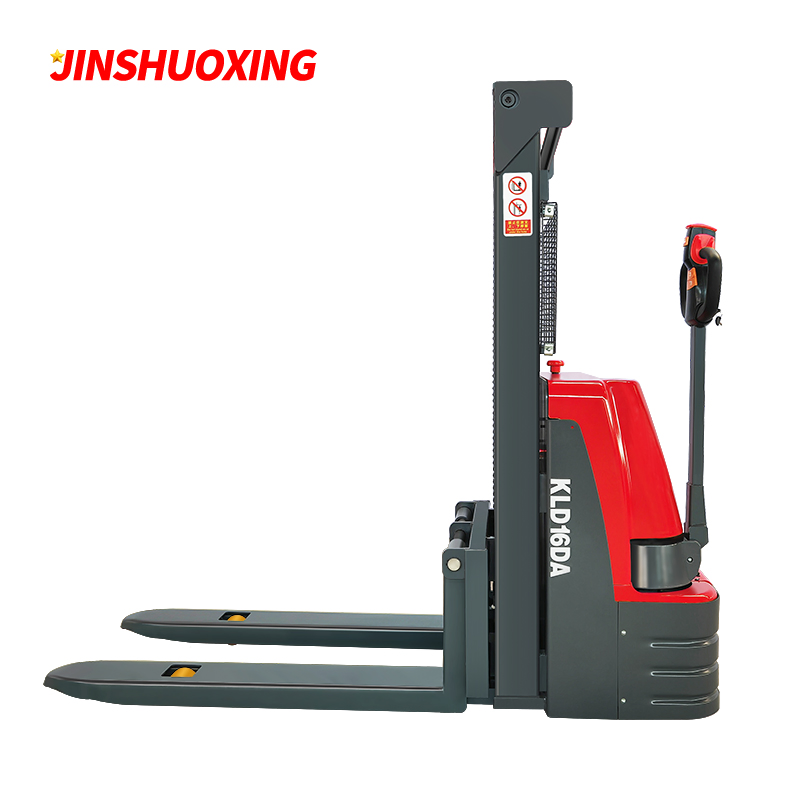

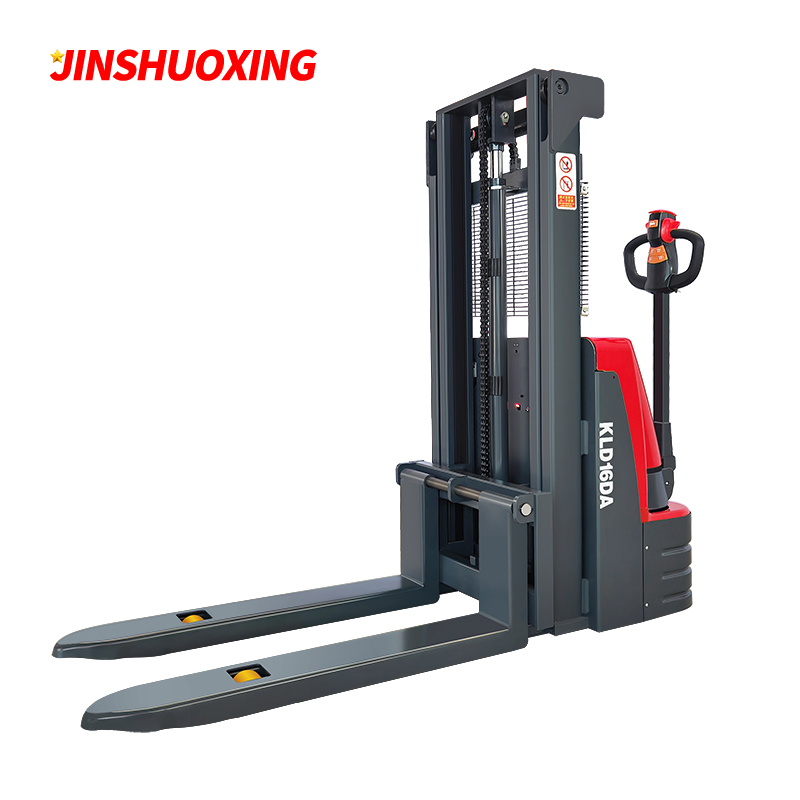

1.5 Ton 1.6 Ton Mini Fully Electric Forklift Electric Pallet Stacker

After-sales Service: 1 Year
Warranty: 1 Year
Cab Location: Standing on The Ground

Product Description

Basic Information
Model NO.
KLD16DA
Type
Stacker
Power
DC Motor
Load Capacity
1T - 5T
Fuel
Electric
Lift Height
1600-3500mm
Battery Type
Maintenance Free
Voltage
24V
Wheel Material
PU
Fork Length
1150mm
Product Highlights
  • Electric lifting and electric walking for high efficiency.
  • Sleeve type forks with adjustable outer width for versatility.
  • National standard 1244 plate composite chain replaces traditional roller chains.
  • Equipped with ALBRIGHT contactor and AMP waterproof power connector.
  • Detachable hoarding makes maintenance and service more convenient.

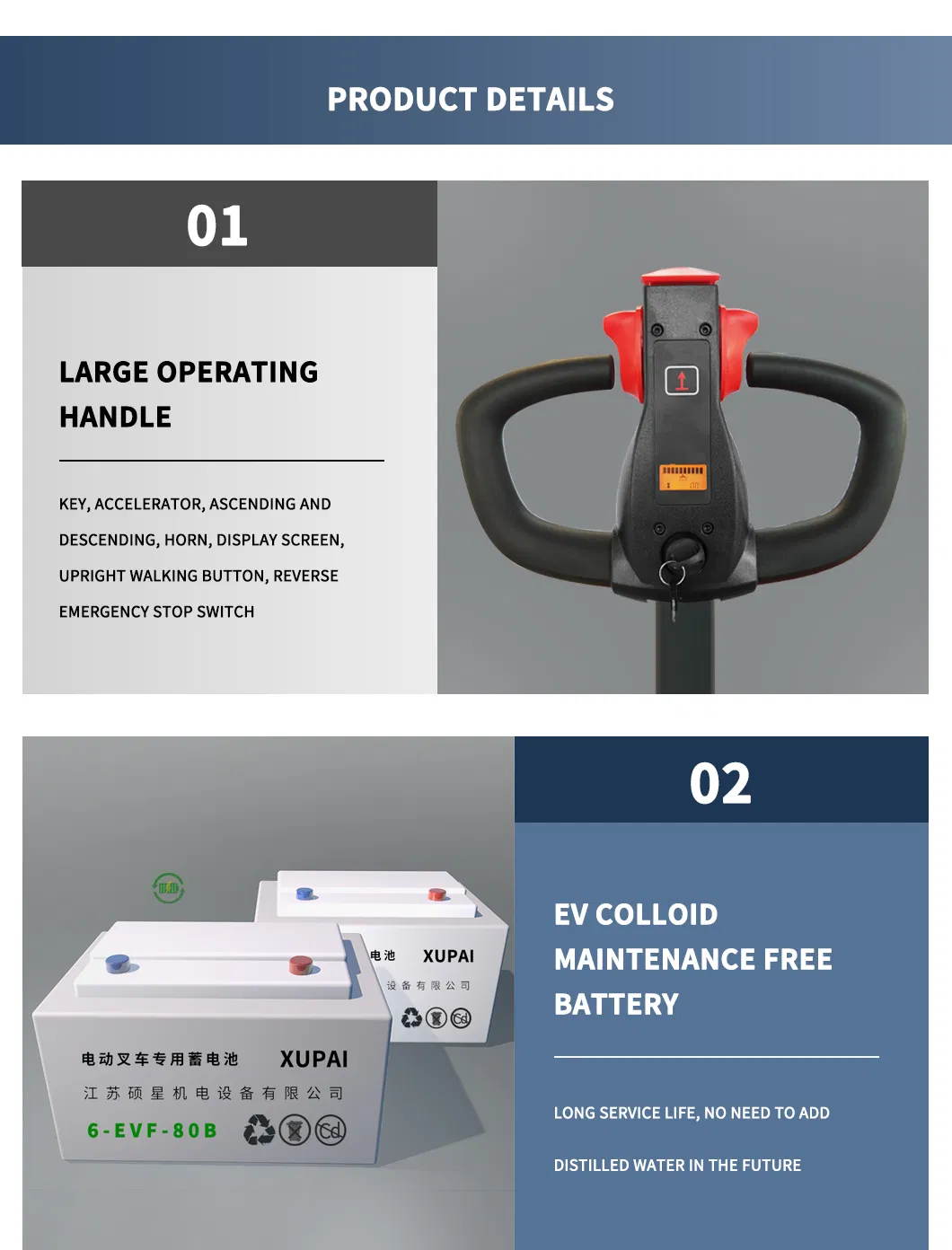

  • Multi-function operating handle designed for user convenience.
  • Multiple braking functions: power-off, regenerative, reverse connection, and anti-slip on slopes.
  • Intelligent charger with automatic power-off functionality.
Electric Forklift Overview
Technical Specifications
Model: KLD16DA
Performance Maximum load capacity kg 1600
Load center mm 600
Driving speed (load/unload) km/h 4.8 / 5.2
Lifting speed (load/unload) mm/s 81 / 121
Weight (with battery) kg ≈550
Dimensions Overall length (with fork) mm 1896
Overall width mm 800
Fork length mm 1150
Turning radius mm 1540
Aisle width (1000*1200 pallet) mm 2415
Mast Configurations
Mast Type Max Lifting Height (mm) Height Closed (mm) Height Open (mm)
Single Mast 1600 2090 2090
Duplex Mast 2000 1480 2460
Duplex Mast 2500 1730 2960
Duplex Mast 3000 1980 3460
Duplex Mast 3500 2230 3960
Product Gallery

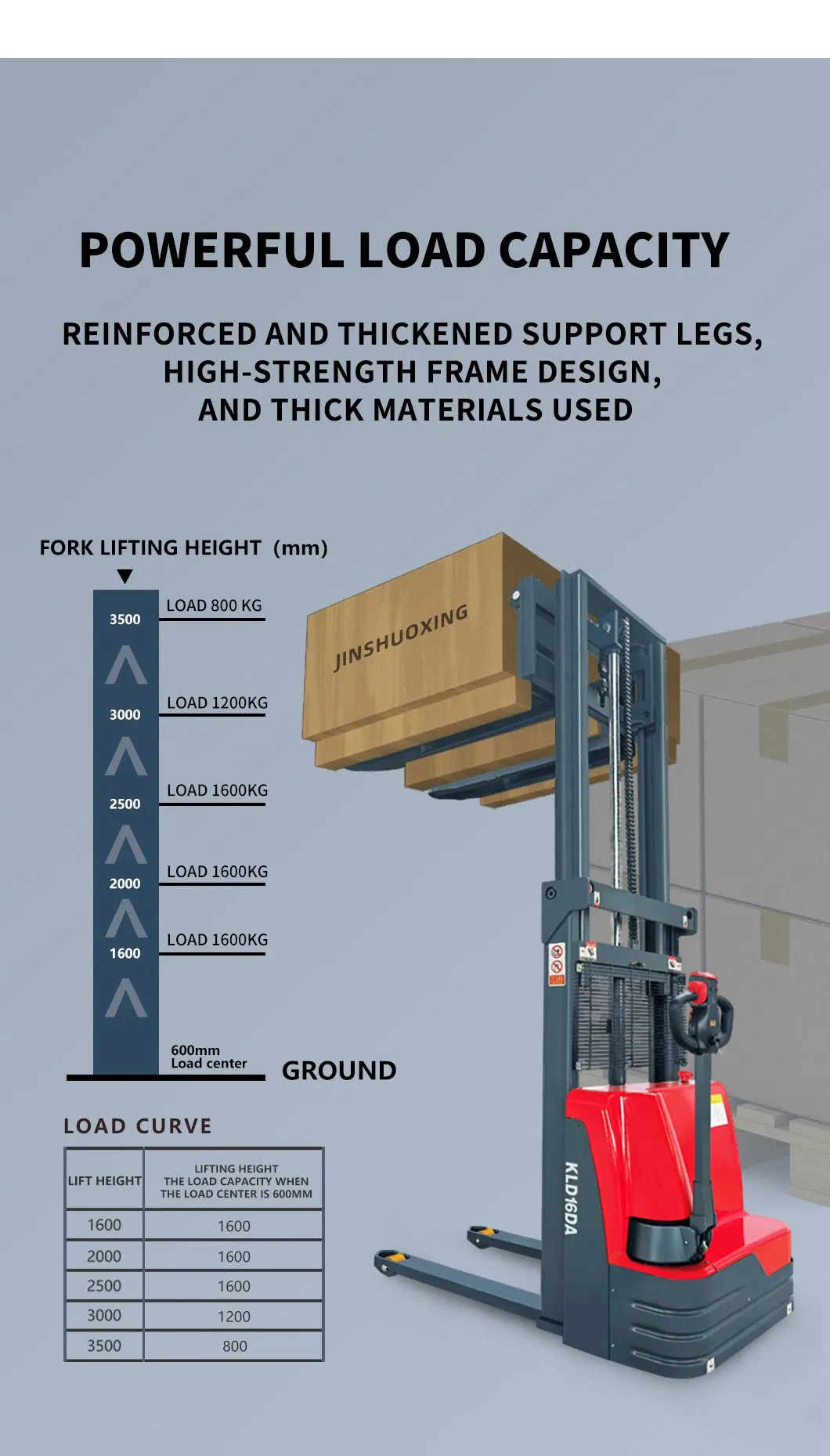

Stacker Detail 1
Stacker Detail 2

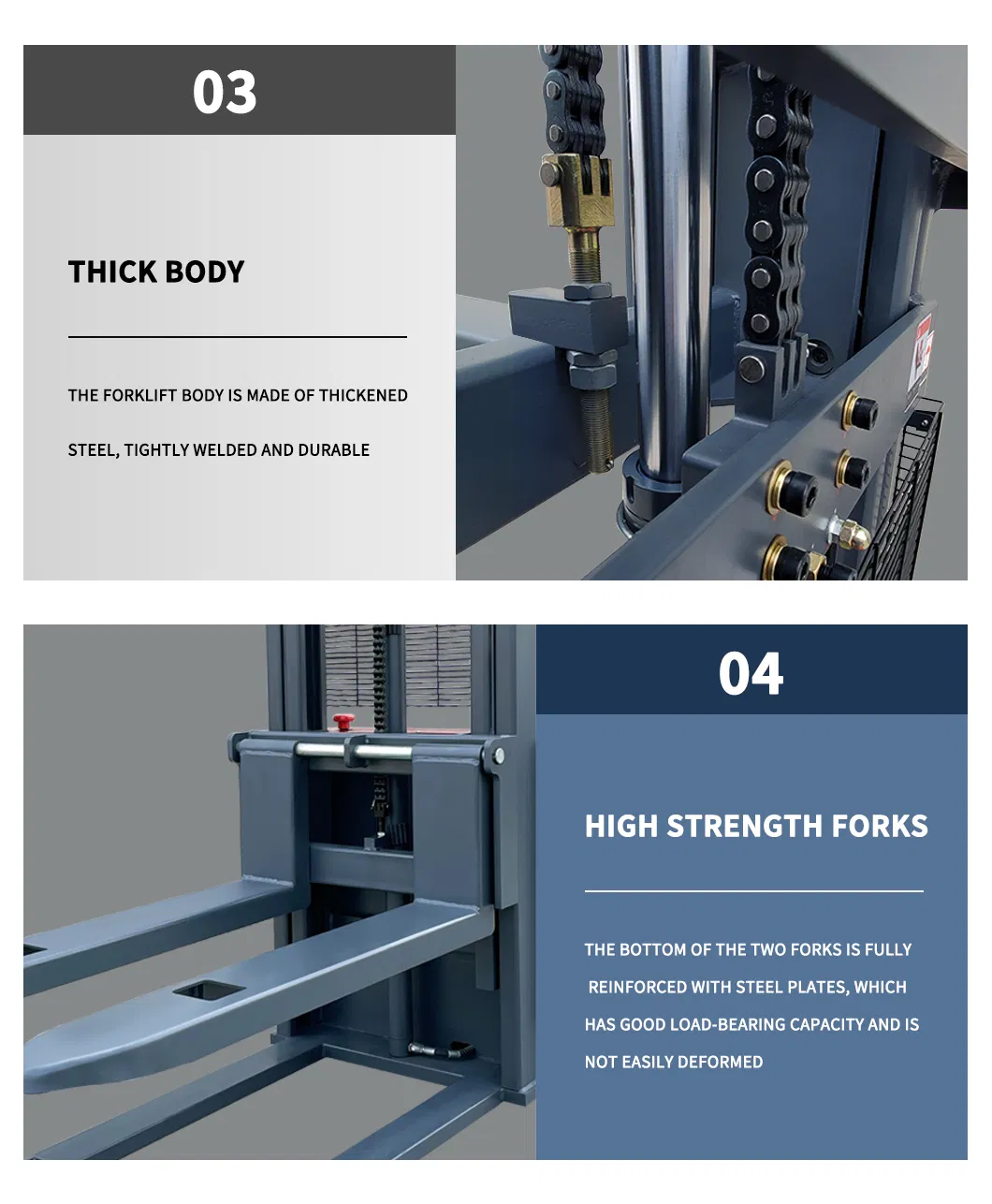

Stacker Detail 3

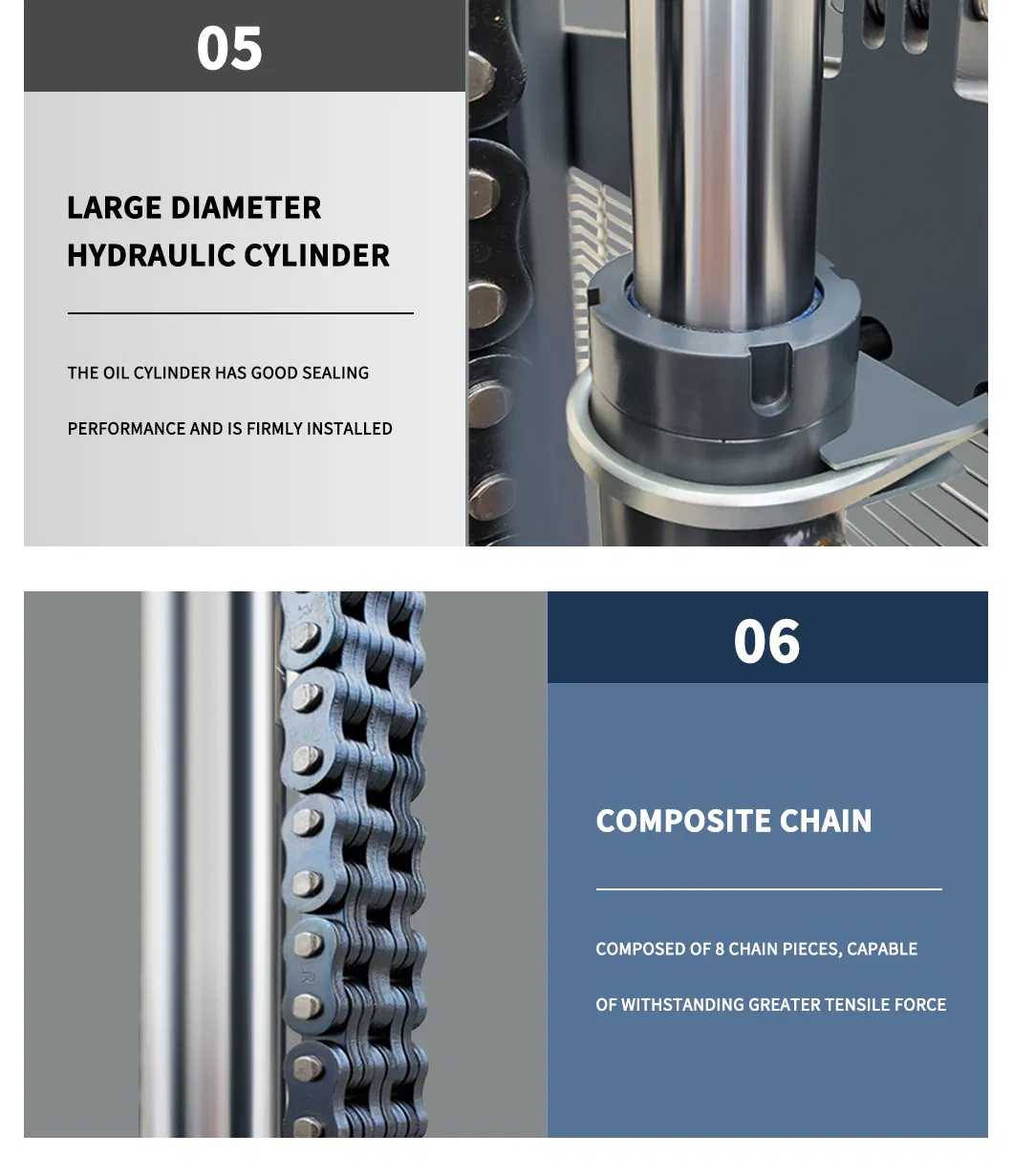

Stacker Detail 4

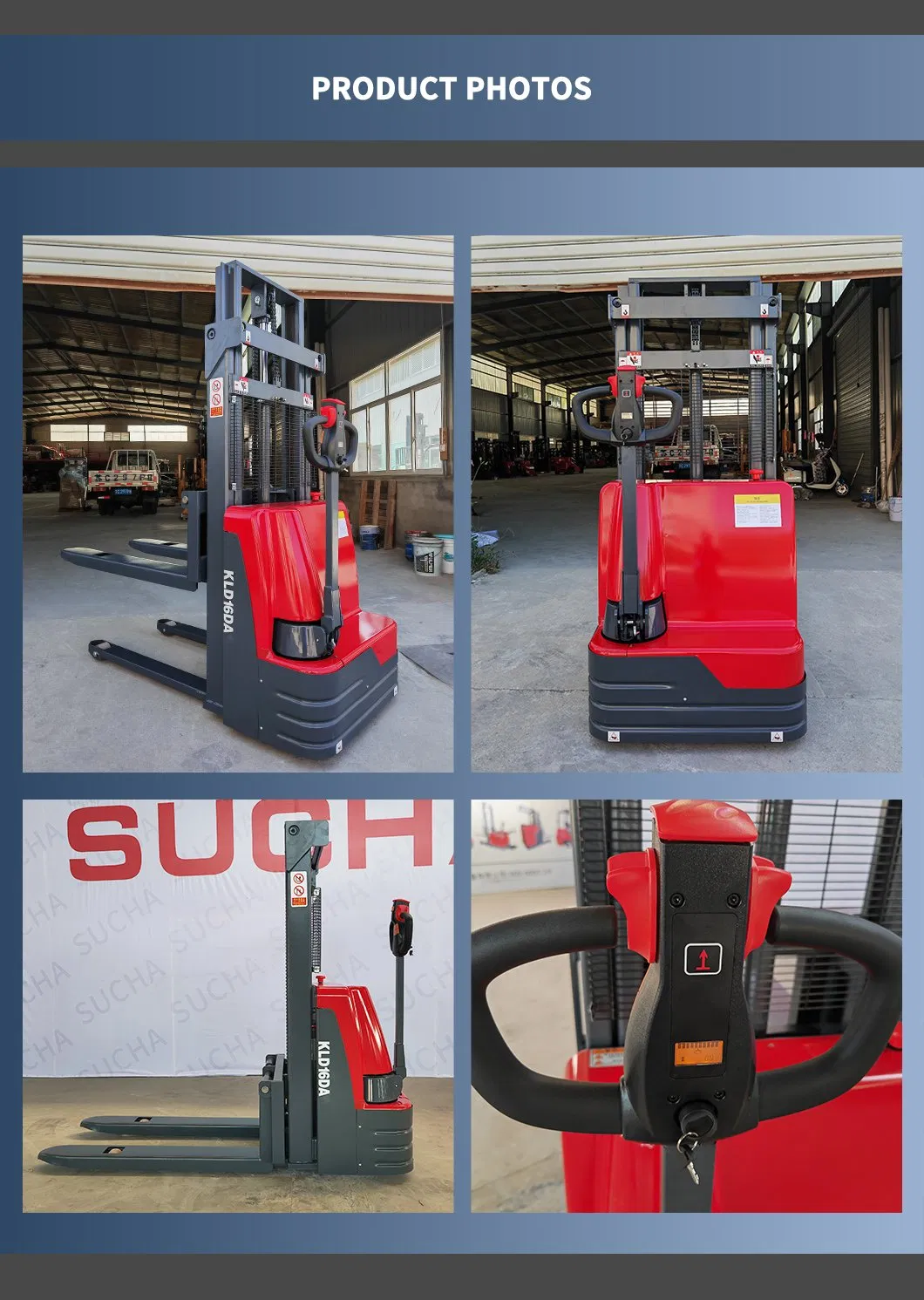

Stacker Detail 5
Stacker Detail 6
Stacker Detail 7
Stacker Detail 8
Stacker Detail 9
Frequently Asked Questions
How is the quality of your product?
We focus on producing high-quality products with thick materials and durable core components. Each product has undergone long-term market validation with a low failure rate.
Do you have an advantage in price?
We maintain long-term cooperation with raw material suppliers and employ skilled production personnel, allowing us to offer a higher price advantage for the same quality level.
How do you ensure the product meets my usage conditions?
Our professional sales personnel with over 5 years of experience will communicate your specific needs in detail and recommend the most suitable product for your requirements.
Can you provide customized services?
Yes, we provide various customization services including color, logo, body size, and specific functional customizations.
How long does it take for production?
Production typically takes 10 to 30 days. Regular products in stock can be shipped immediately, while customized or complex orders may take longer.
What shipping methods do you use?
Most orders are transported by sea. Some regions may use railway. Smaller parts can be sent via international express delivery.
