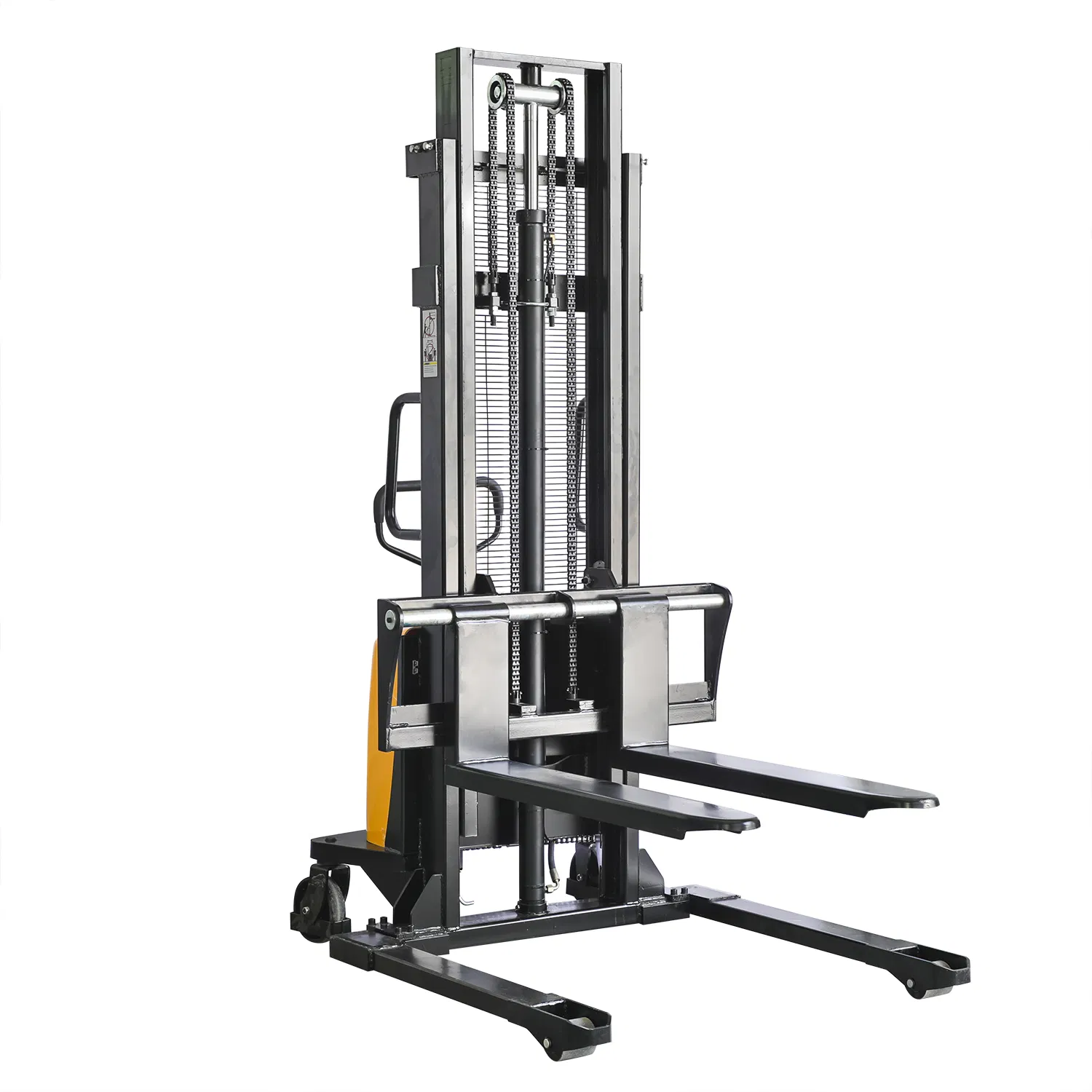

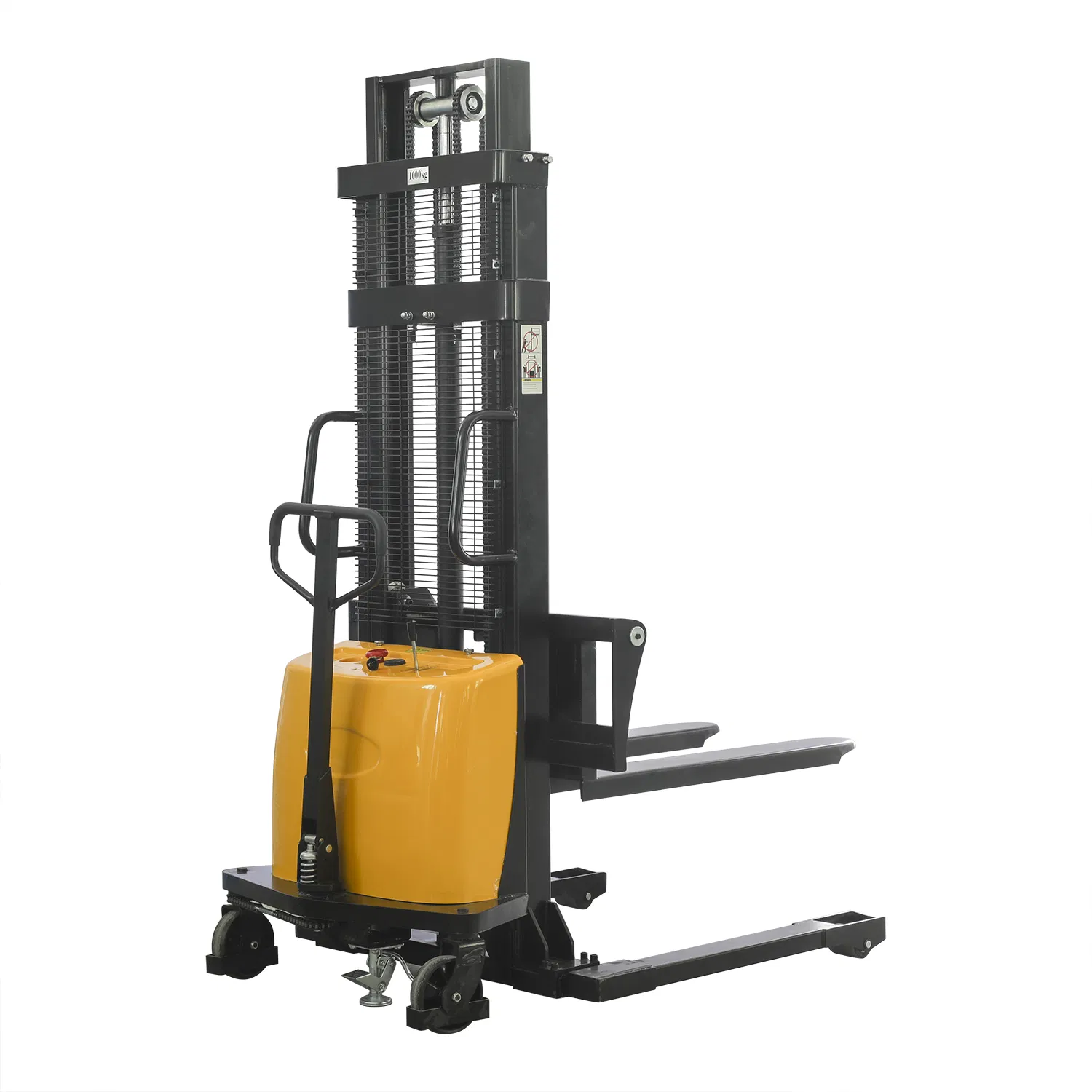

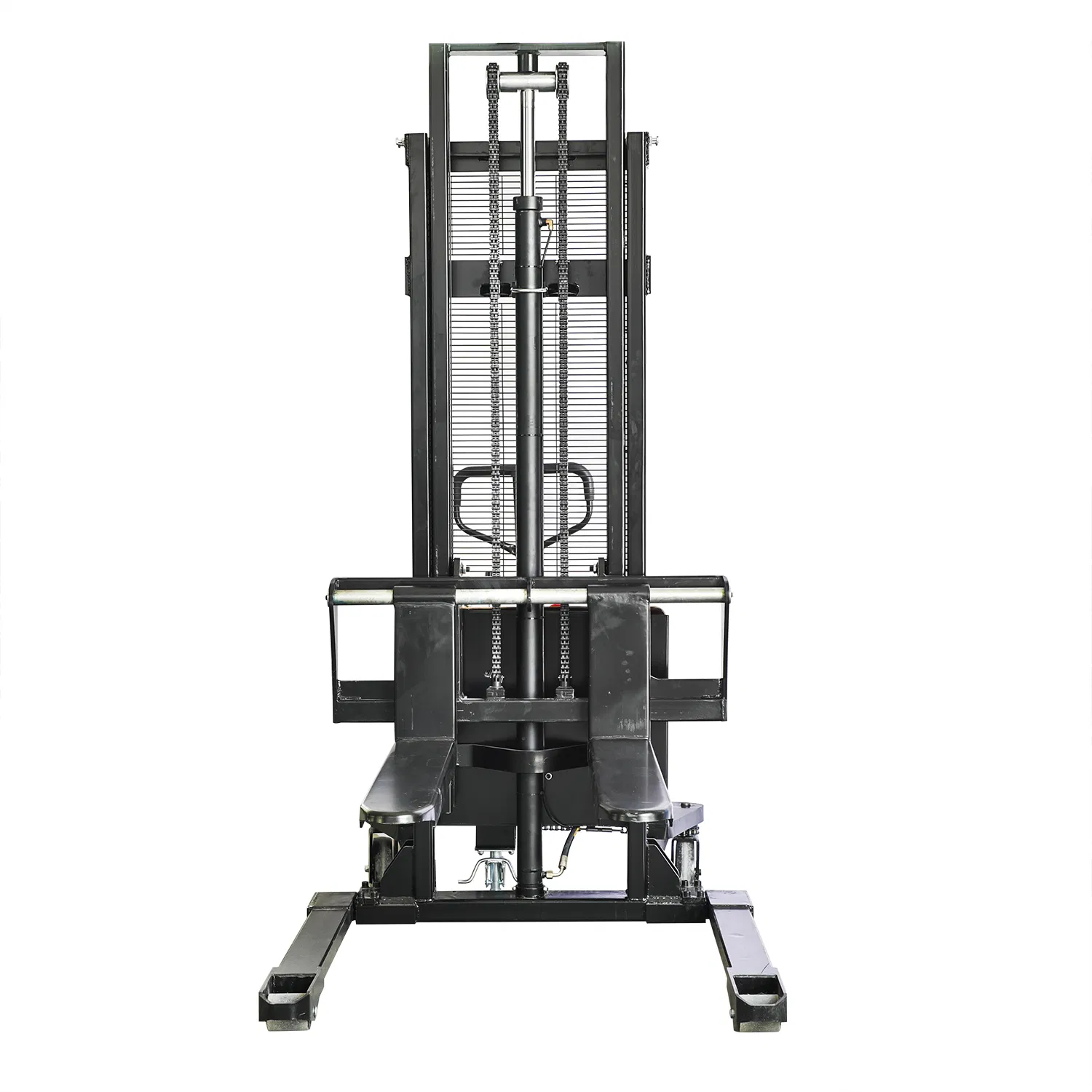

1ton 3m Semi-Electric Stacker Pallet Lift Pallet Stacker with Wide Base Legs

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Specifications

Model NO.
KX-CTD10 3M
Type
Stacker
Load Capacity
1t
Lift Height
3m
Power
DC Motor
Fuel
Electric
Battery Type
Lead-Acid Battery
Battery Capacity
12V/100ah
Turning Radius
1448mm
N.W.
480kg

Product Features

1000kg Capacity: Heavy-duty lifting capability for standard pallets.
3M Lift: Exceptional vertical reach for high shelving storage.
Adjustable Width: Fork width from 1146mm to 1152mm for various applications.
1.6 Kw Motor: Powerful lifting motor for efficient operations.
Lead-Acid Battery: 12V 100Ah ensures long working endurance.
Compact Turn: 1480mm turning radius for narrow aisle navigation.

Key Advantages

  • Reasonable design and compact structure
  • Steady lifting, flexible moving, and convenient operation
  • High efficient pumps for easier control

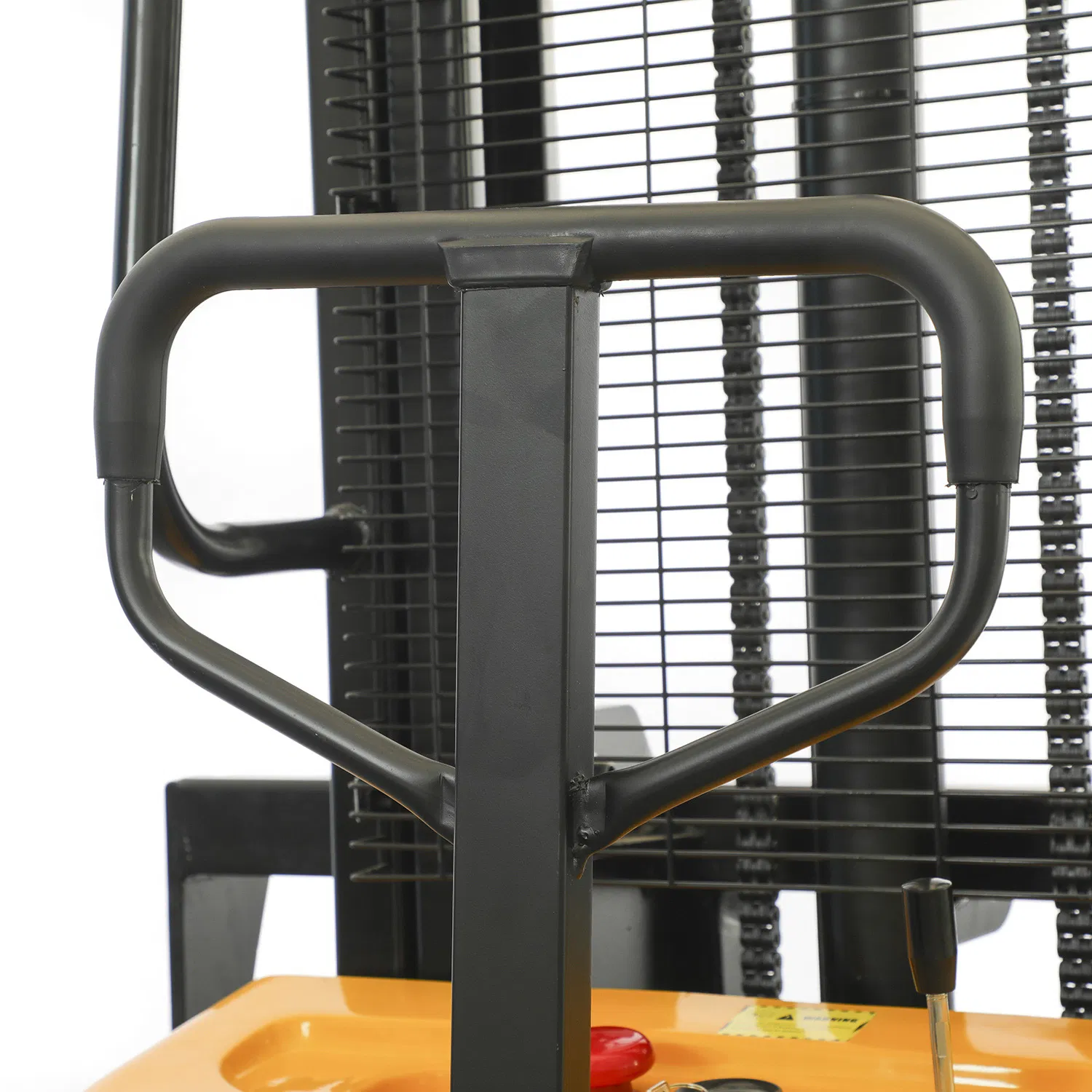

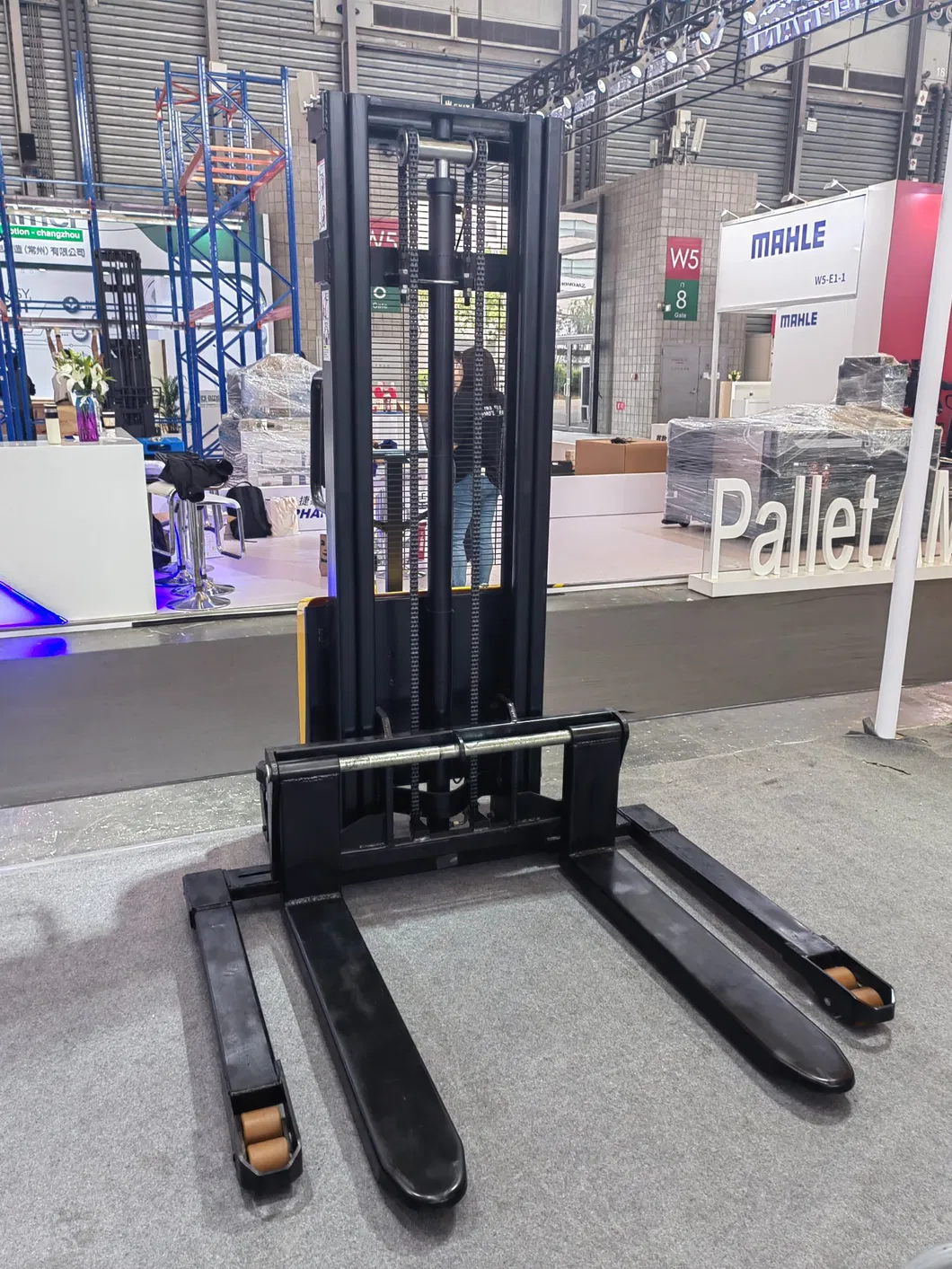

  • Metal grid protection for operator safety

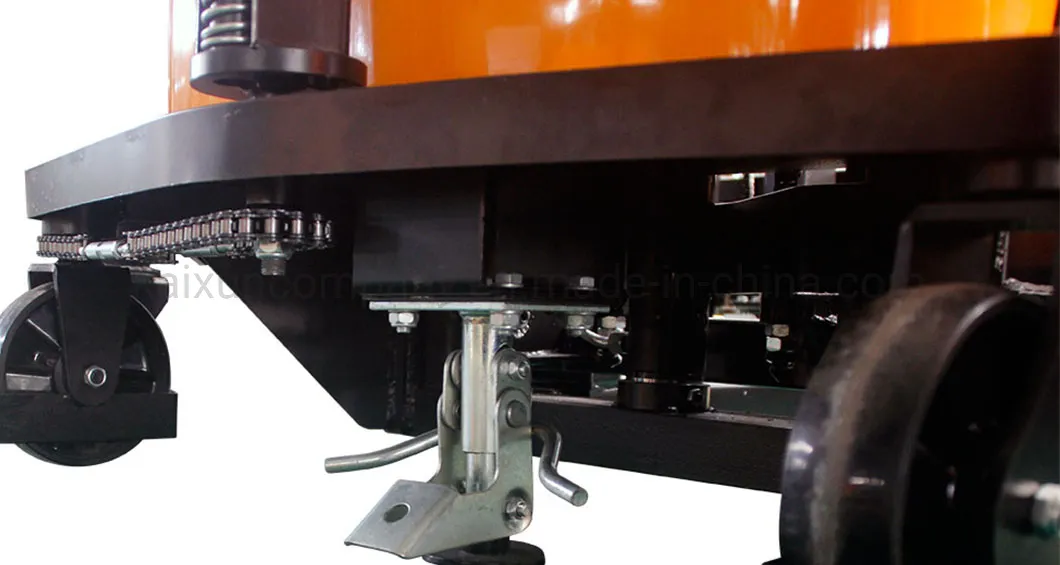

  • Integrated brake system for operational security
  • Easy maintenance and service access
📋

Technical Parameters

Article/Model Unit KX-CTD10
Rated Capacitykg1000
Lifting heightmm2000/2500/3000
Max.mast heightmm2563/3062/3562
Fork Sizemm1070x100x35
Overall Dimensions (LxWxH)mm1756x1552x2105
Turning Radiusmm1448
Lifting speed full-loadmm100
Lifting motorkw1.6
Battery CapacityV/Ah12/100
📷

Product Gallery

📦

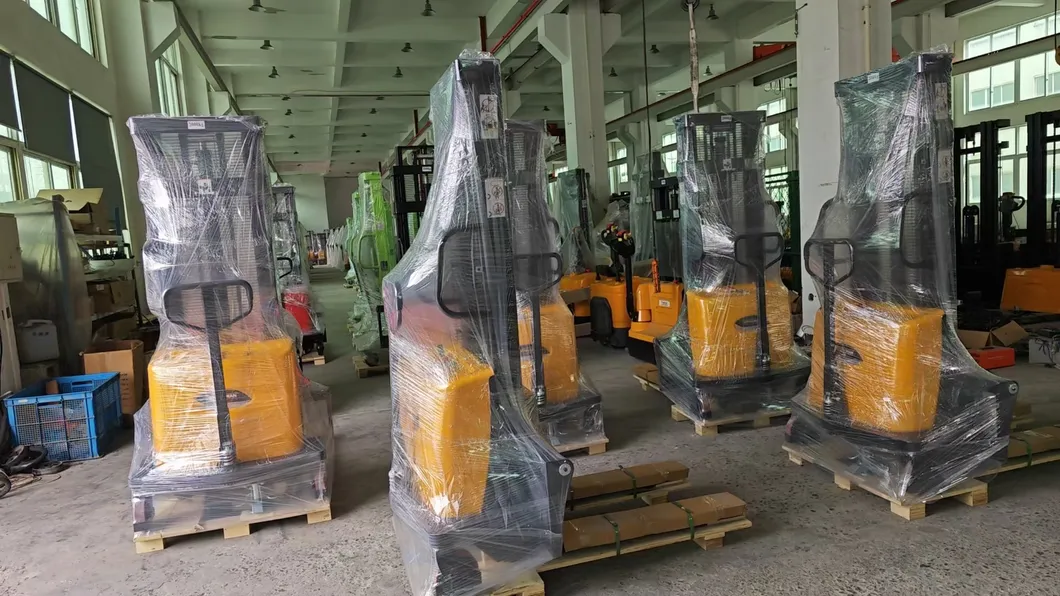

Packaging & Shipping

Package Size
175.00cm * 155.00cm * 210.00cm
Gross Weight
495.000kg
🏢

Professional Manufacturer

Founded in 1998, we are an export-oriented high-tech enterprise. We integrate R&D, production and sales, specializing in manufacturing over 380 items, including hoisting machinery, financial equipment, electric winches, electric trucks, and electric forklifts.

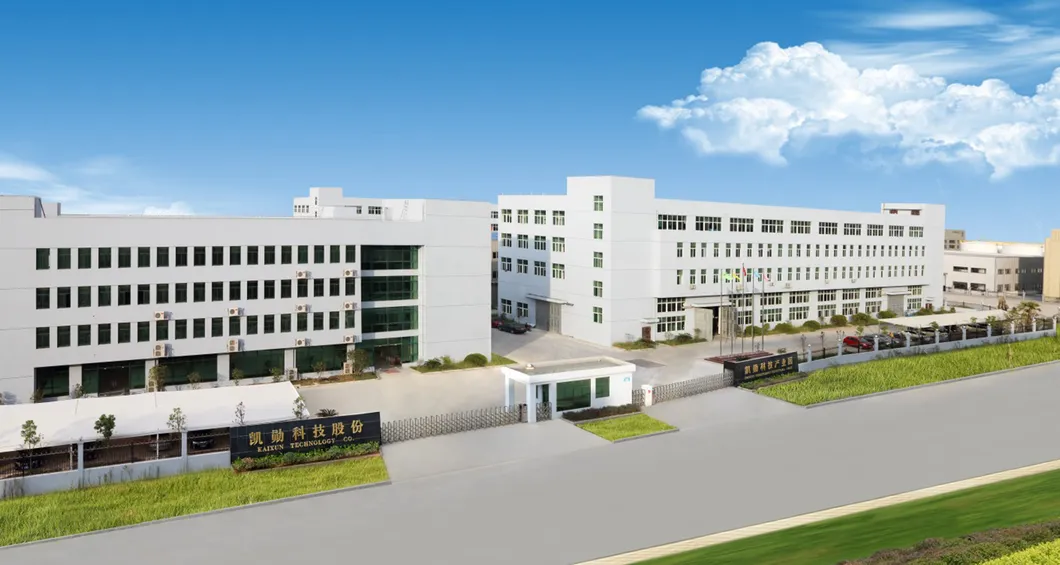

Our facility covers an area of 59,000m² with a structure area of 87,000m². We own 880 sets of production equipment, including 260 sets of testing instruments, with an annual production capacity reaching RMB 1,500 million.

We hold ISO9001:2008 quality system certification, and many products have obtained CE, GS, RoHS, CB, UL, CUL, and FCC approvals. Currently, 90% of our products are exported to over 120 countries and regions including Europe, USA, Africa, and Middle East.

?

Frequently Asked Questions

What is the maximum load capacity of the KX-CTD10 stacker?
The rated load capacity of this semi-electric stacker is 1000kg (1 ton).
How high can this stacker lift pallets?
This model supports lifting heights of 2000mm, 2500mm, and up to a maximum of 3000mm (3 meters).
What type of battery does the device use?
It is equipped with a high-capacity 12V 100Ah Lead-Acid battery, designed for long working hours.
Is the stacker suitable for narrow warehouse aisles?
Yes, with a compact design and a turning radius of only 1448mm, it is highly maneuverable in narrow spaces.
What safety features are included?

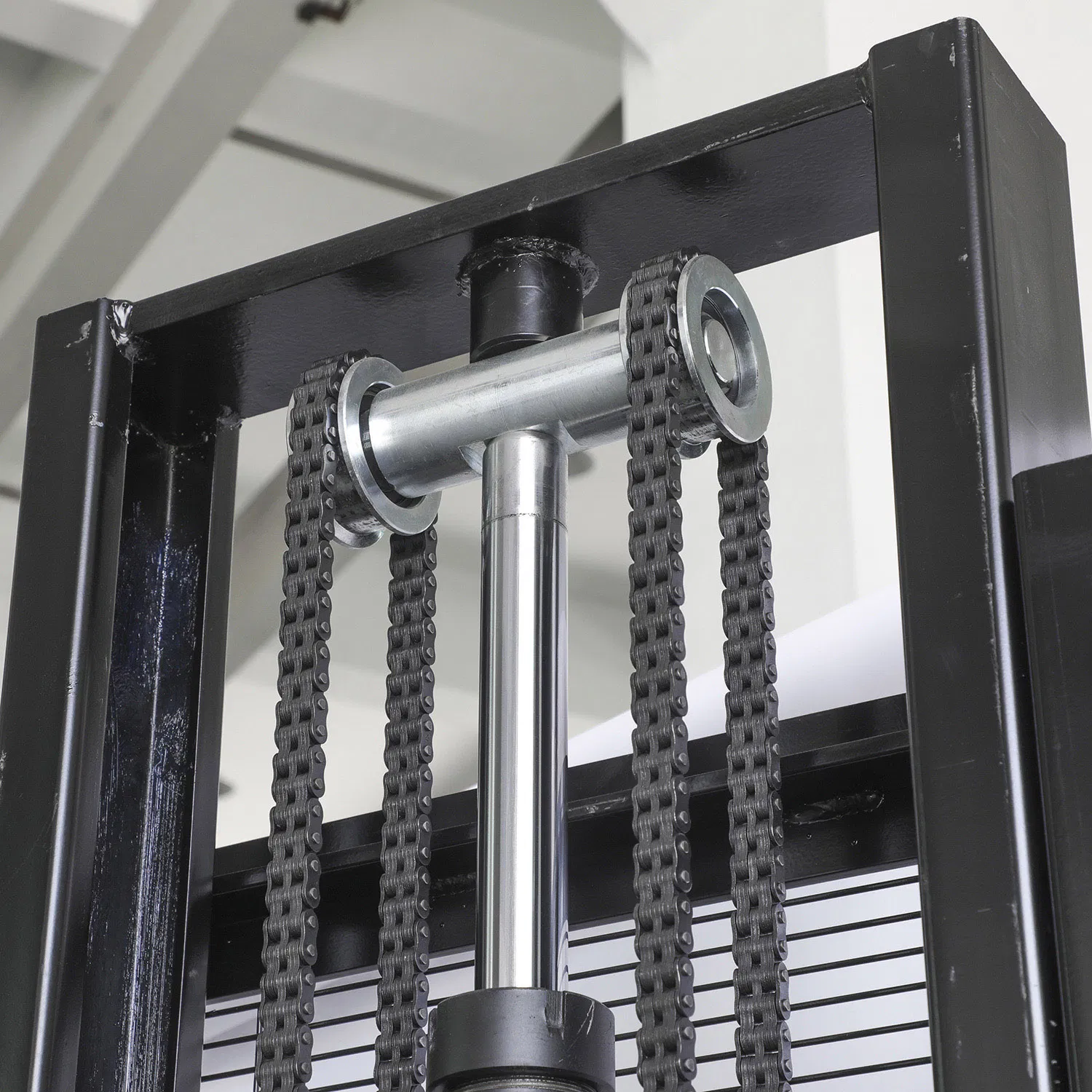

The stacker includes a metal grid to protect the user from lift chains and a dedicated brake system to ensure safety during stationary operation.
What is the power rating of the lifting motor?
The device features a high-performance 1.6 Kw DC lifting motor for steady and efficient vertical movement.
