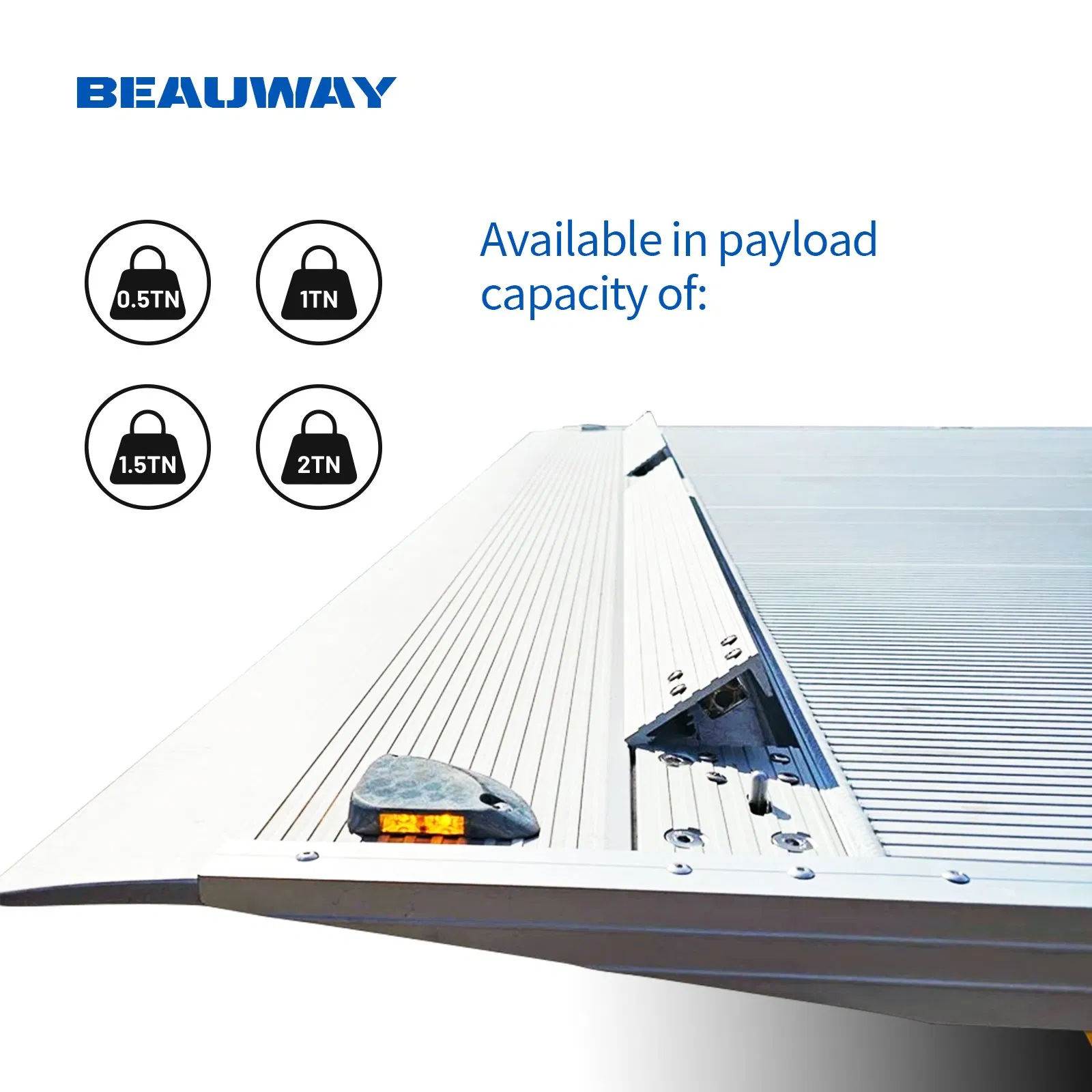

Truck Tailgate 2000kg Hydraulic Tail Lift System for Lorry Cargo Loading

Truck Tailgate 2000kg Hydraulic Tail Lift System for Lorry Cargo Loading

Truck Tailgate 2000kg Hydraulic Tail Lift System for Lorry Cargo Loading

Truck Tailgate 2000kg Hydraulic Tail Lift System for Lorry Cargo Loading

Truck Tailgate 2000kg Hydraulic Tail Lift System for Lorry Cargo Loading

1 / 5

Truck Tailgate 2000kg Hydraulic Tail Lift System for Lorry Cargo Loading

Truck Tailgate 2000kg Hydraulic Tail Lift System for Lorry Cargo Loading

Truck Tailgate 2000kg Hydraulic Tail Lift System for Lorry Cargo Loading

Truck Tailgate 2000kg Hydraulic Tail Lift System for Lorry Cargo Loading

Truck Tailgate 2000kg Hydraulic Tail Lift System for Lorry Cargo Loading

Truck Tailgate 2000kg Hydraulic Tail Lift System for Lorry Cargo Loading

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

BW-PP-05/10/15/20

Material

Aluminium

Lifting Weight

2000kg

Type

Cantilever Lift

Working Voltage

12V/24V(DC)

Truck Models

Dongfeng, Foton, HOWO, Jiefang, Shacman, Steyr

Platform Size

2000-2500mm (W) / 1600-1800mm (H)

Max Loading

500~2000kg

Usage

Cargo Loading and Lifting

Production Time

10-15 days

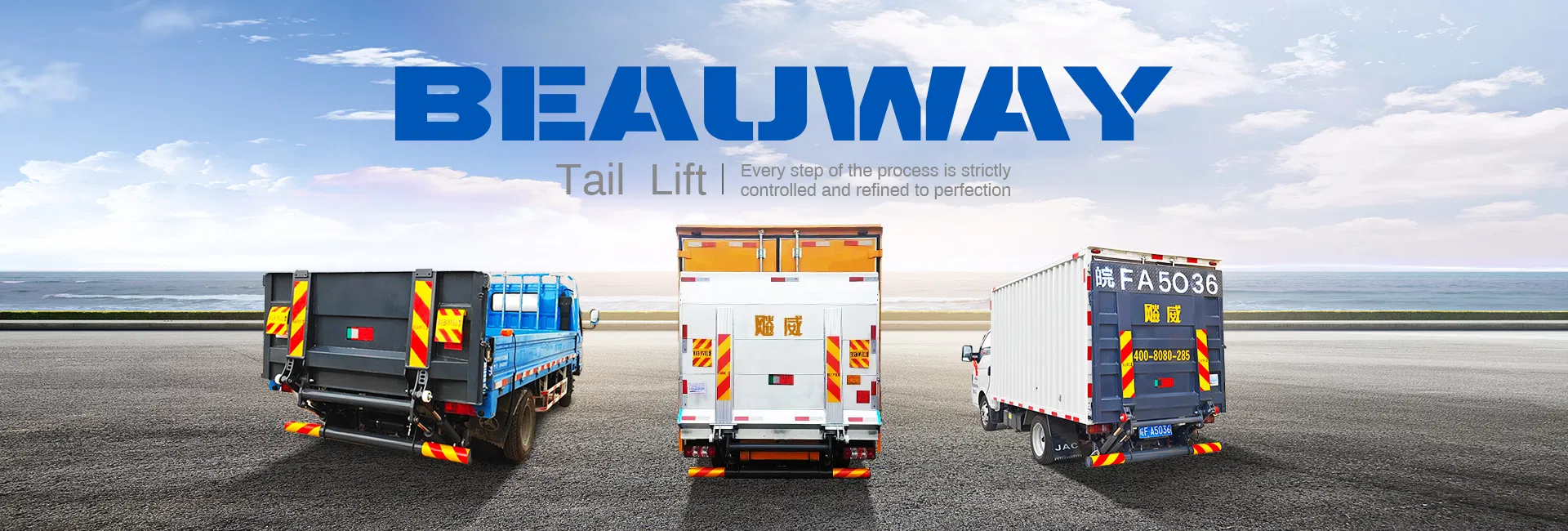

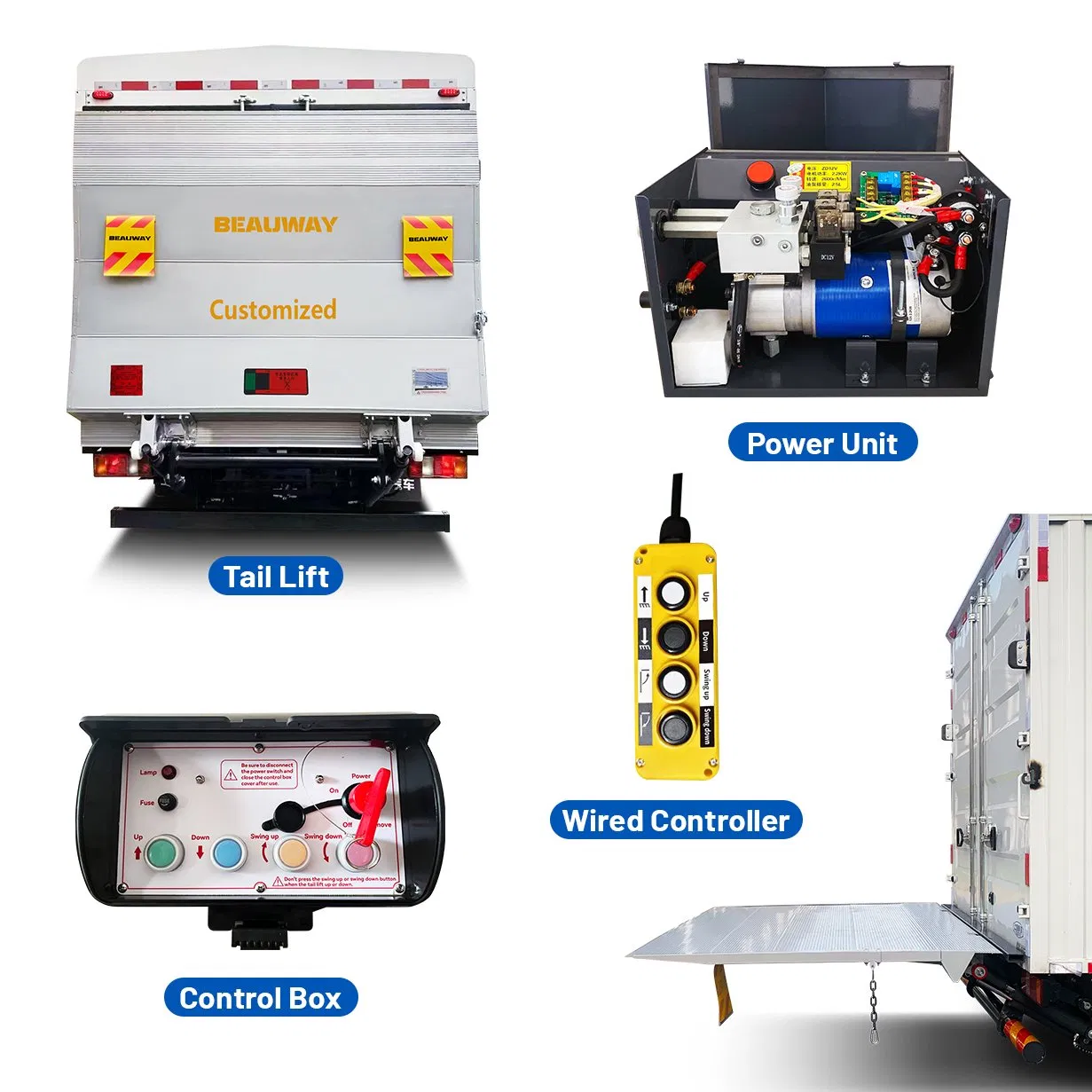

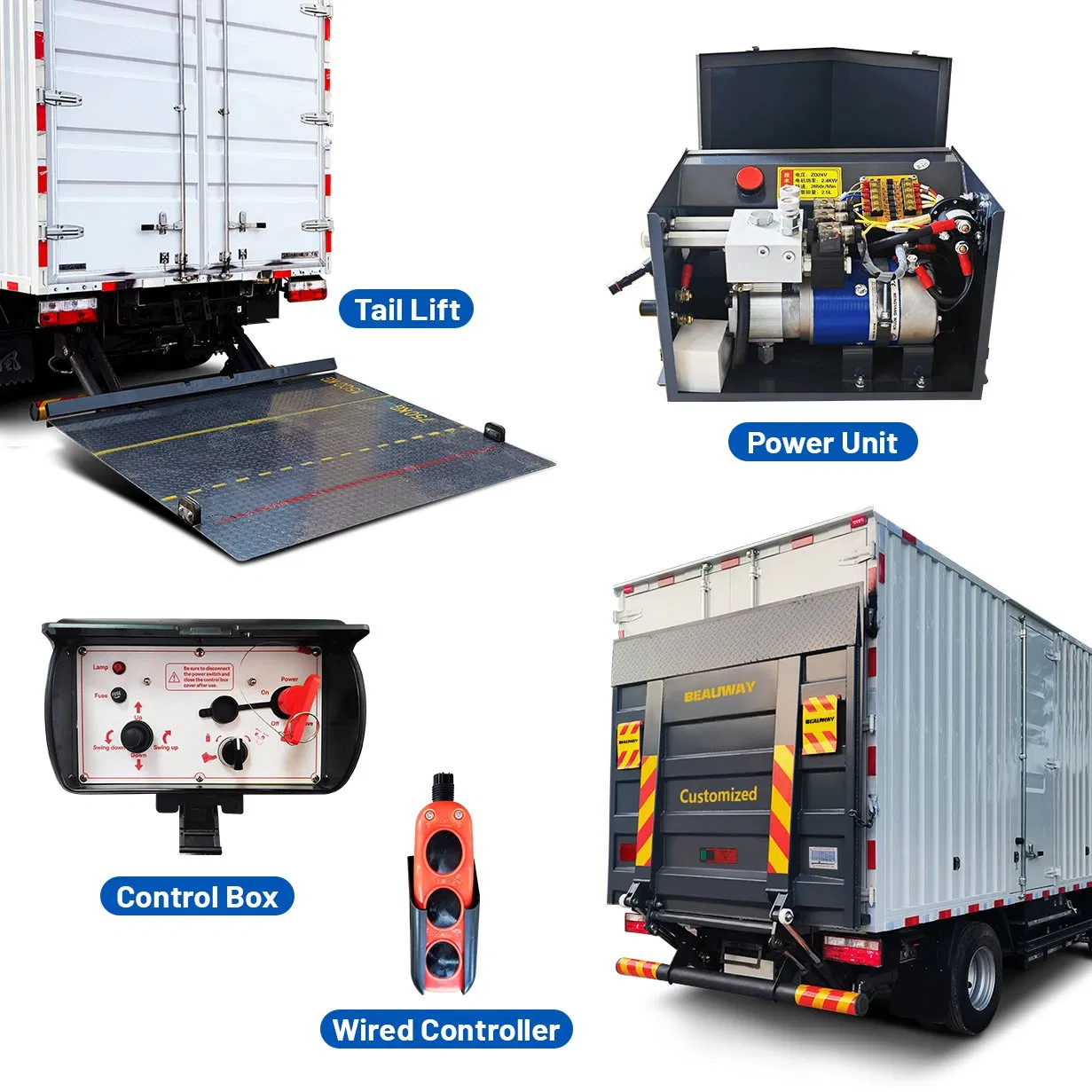

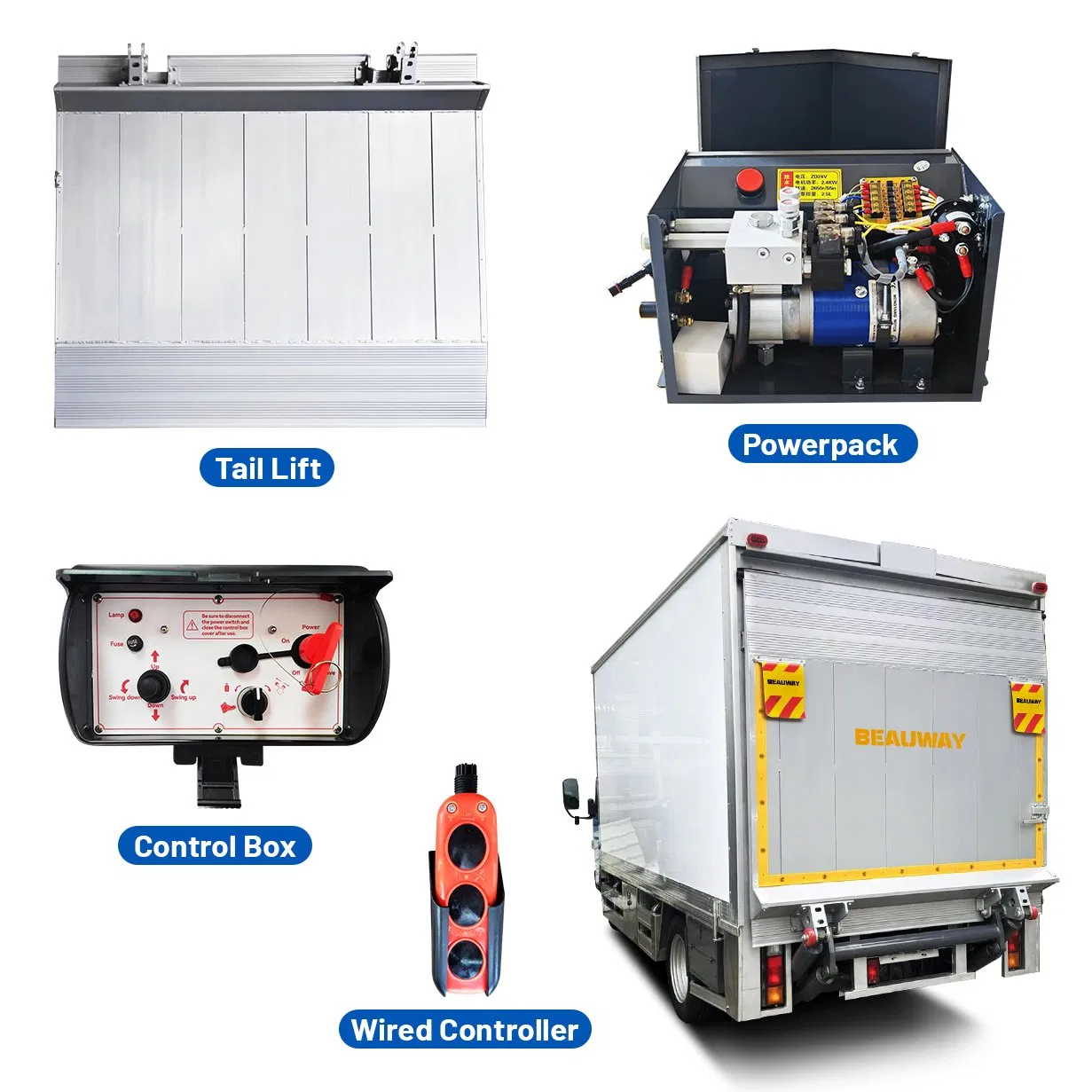

Hydraulic Tail Lift System

Specifications

MODEL	BW-PP05	BW-PP10/130	BW-PP15/150	BW-PP20/130
Rated load(KG)	500	1000	1500	2000
Platform size	2200*1800mm	2200*1800mm	2300*1800mm	2400*1800mm

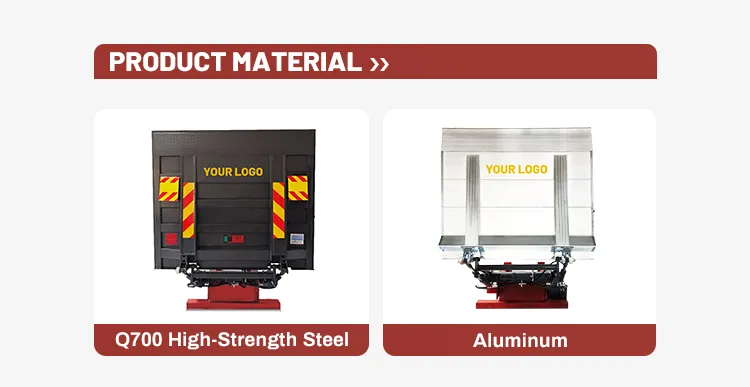

Material	Steel/Aluminum	Steel/Aluminum	Steel/Aluminum	Steel/Aluminum
Lifting height	600-1100mm	700-1100mm	900-1500mm	900-1600mm
Voltage	DC12V/24V	DC12V/24V	DC12V/24V	DC12V/24V

Product Gallery

Product detail 1

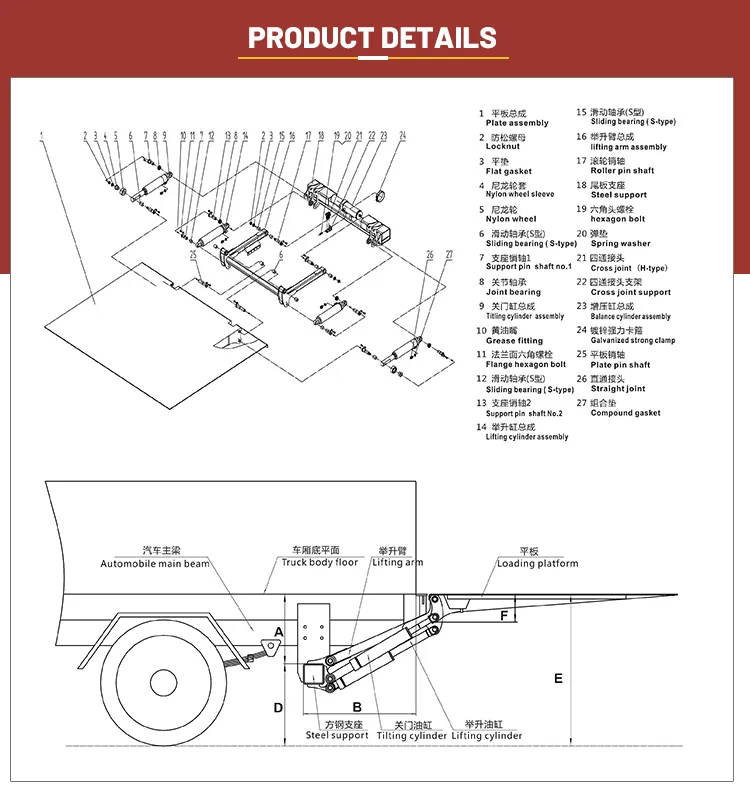

Product detail 2

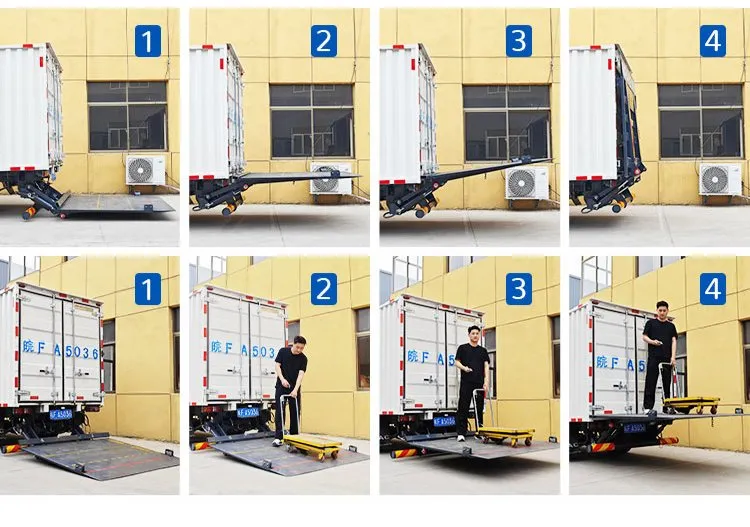

Product detail 3

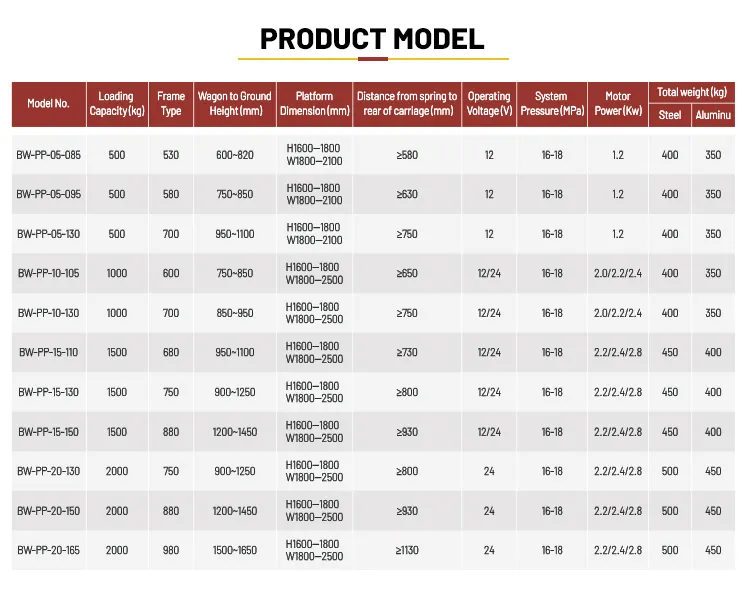

Product detail 4

Product detail 5

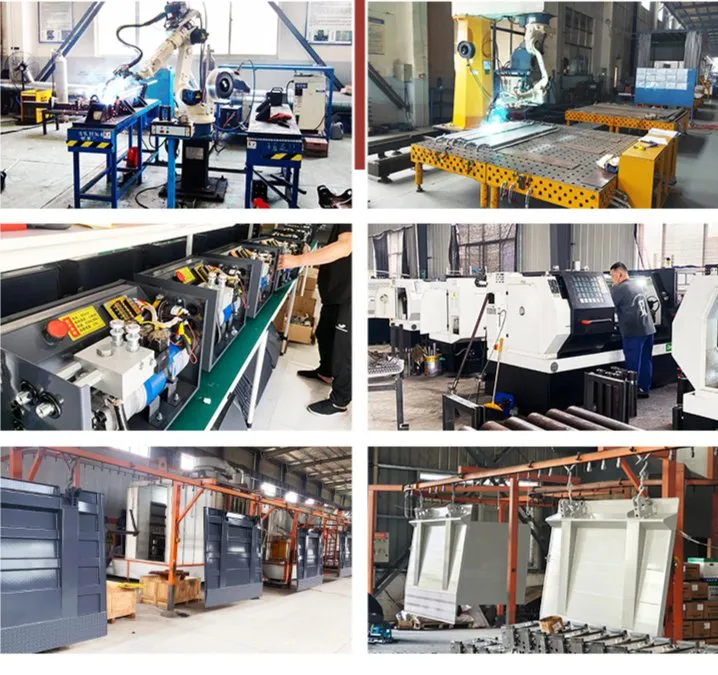

Product detail 6

Production & Quality

Factory Overview

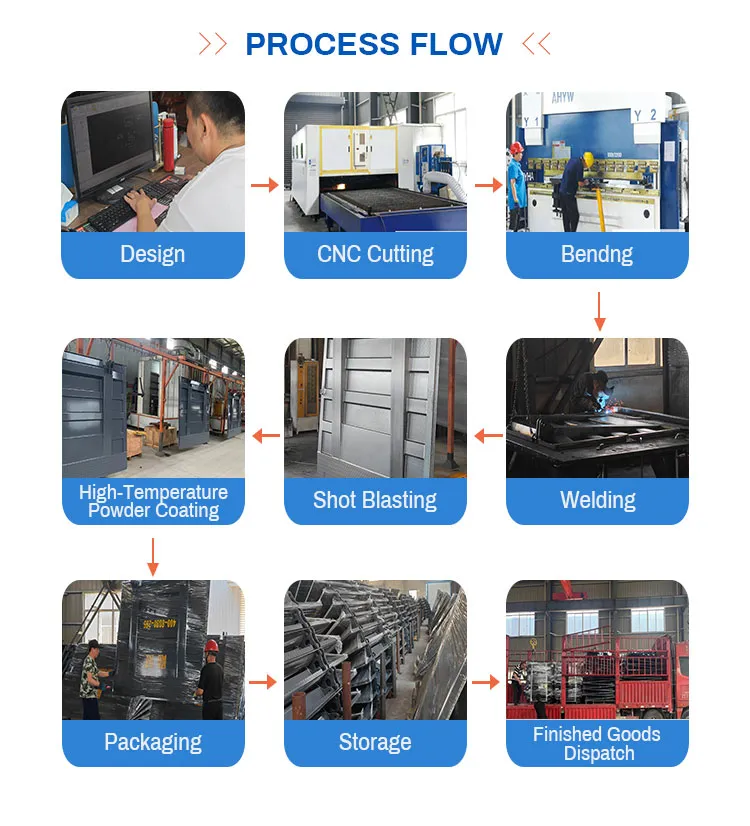

Production Line

Certification

Packing & Delivery

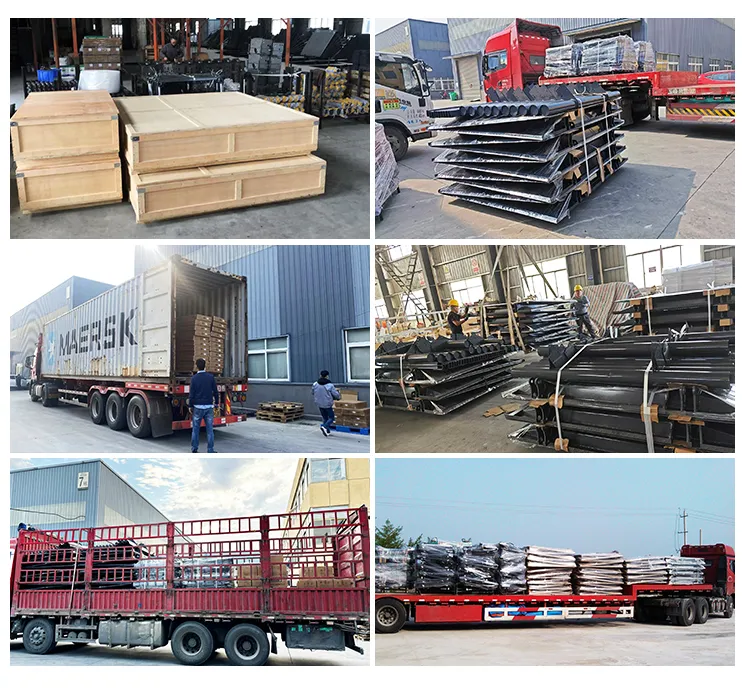

Packing Process 1

Packing Process 2

Delivery

Frequently Asked Questions

QAre you a manufacturer?

Yes, we are a professional manufacturer specializing in hydraulic truck tail lifts.

QWhat weight capacities do you offer for truck tail gates?

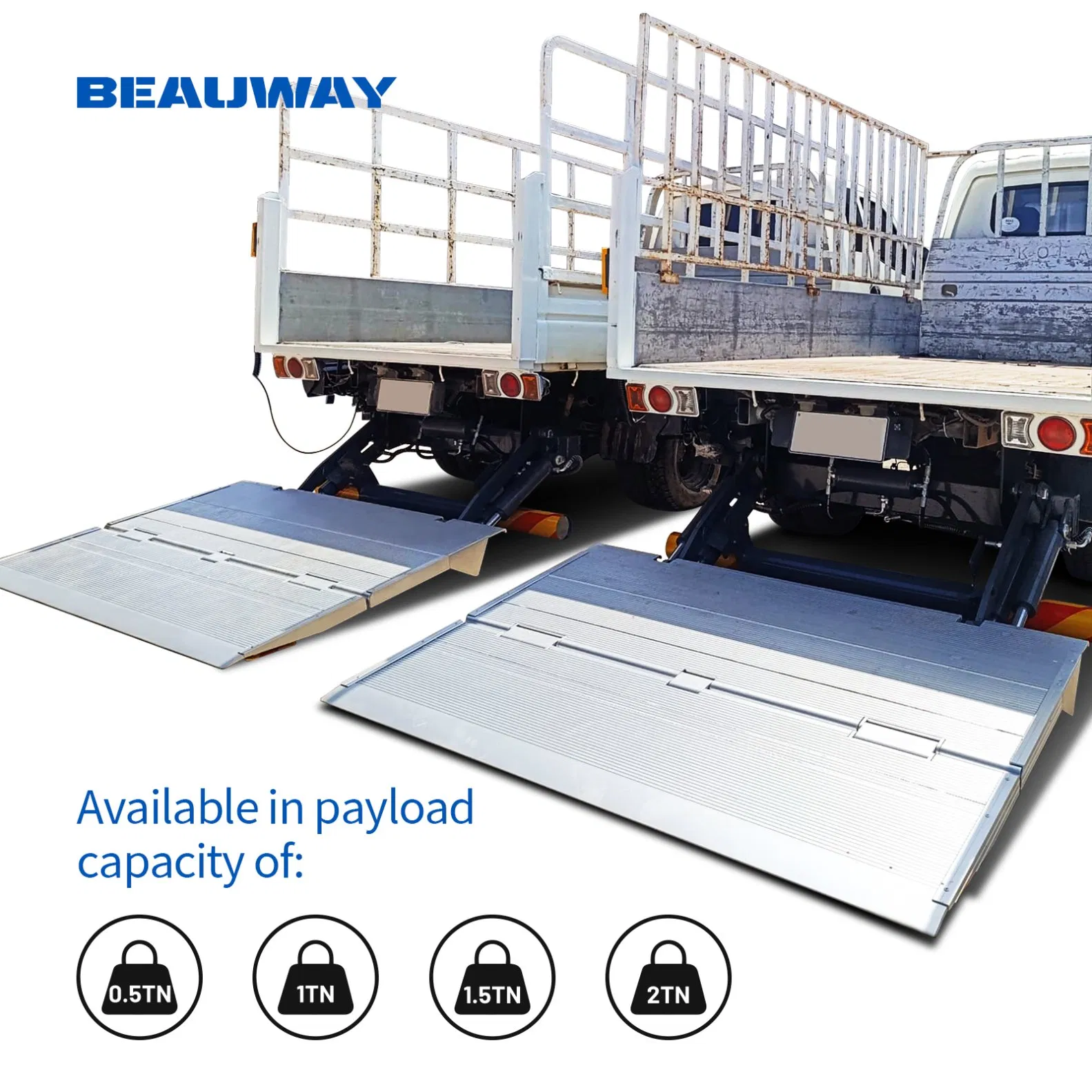

We produce a wide range of tail lifts with rated loads from 0.5 Ton (500kg) to 2 Ton (2000kg).

QWhich truck brands are compatible with your tail lifts?

Our systems can be installed on various truck chassis, including Dongfeng, Shacman, FOTON, IS-ZU, FAW, HOWO, T-King, and more.

QWhat is the typical delivery lead time?

The standard production and delivery time is within 15 to 20 days after receipt of the deposit.

QWhat payment methods do you accept?

We support multiple payment options including T/T, L/C, Western Union, Paypal, and Money Gram.

QWhat is the warranty period for the tail lift?

We provide a comprehensive one-year warranty service for all our hydraulic tail lift systems.
