Basic Information Overview
Material
Steel
Single Lifting Weight
750kg
Type
Cantilever Lift
Transport Package
Pallets
Specification
750KGS/1500KGS/2000KGS
Origin
China
Production Capacity
50000PCS/Month
Product Description
Our automobile tailgate systems span multiple industries such as logistics, express delivery, transportation, and warehousing, demonstrating excellent adaptability. Whether your vehicle is a large truck, a container truck, or a small truck, our tailgate can handle it easily, bringing you an efficient and convenient cargo loading and unloading experience.
💎

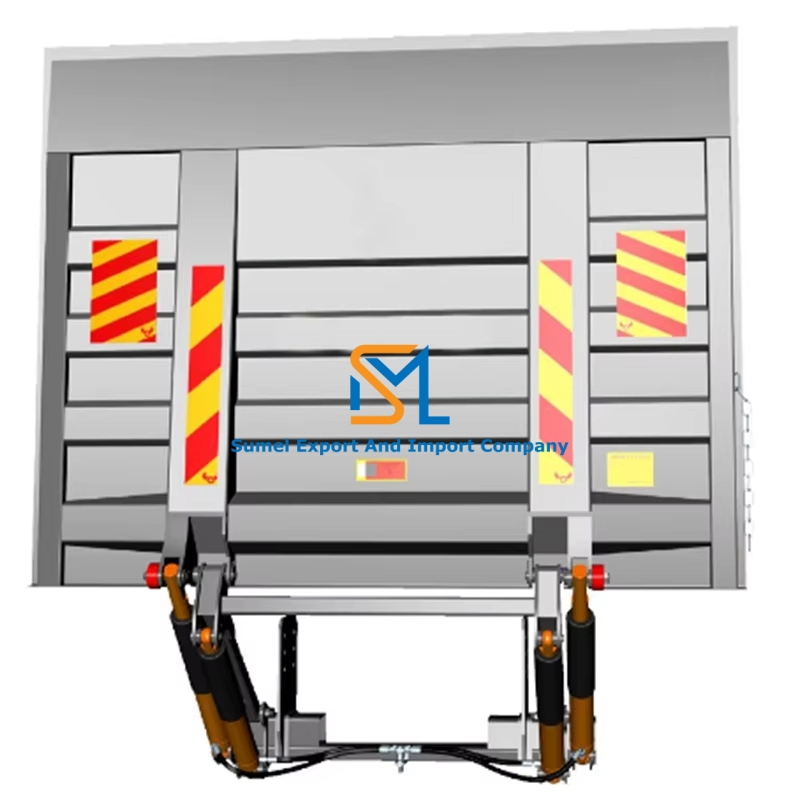

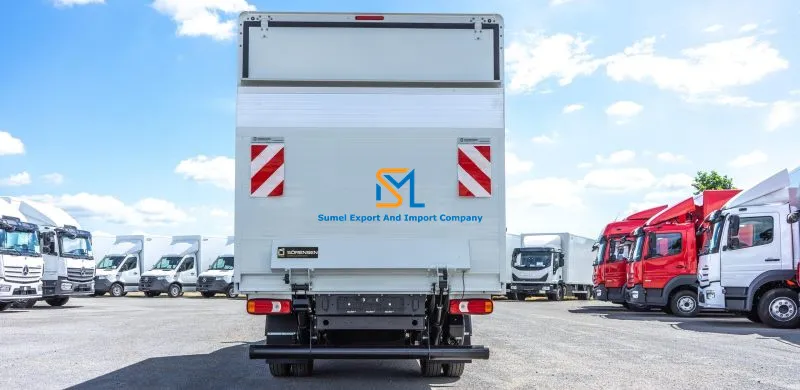

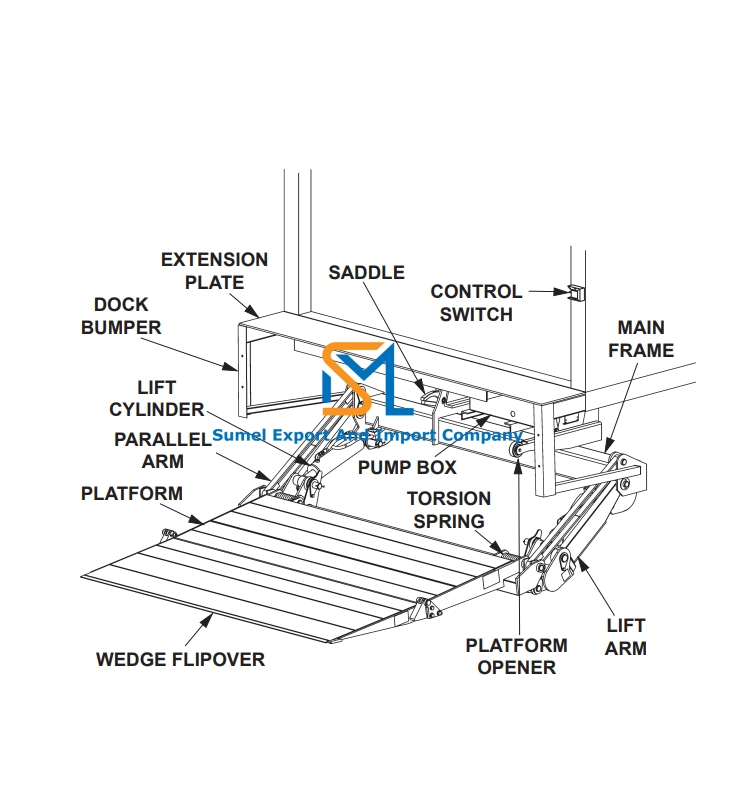

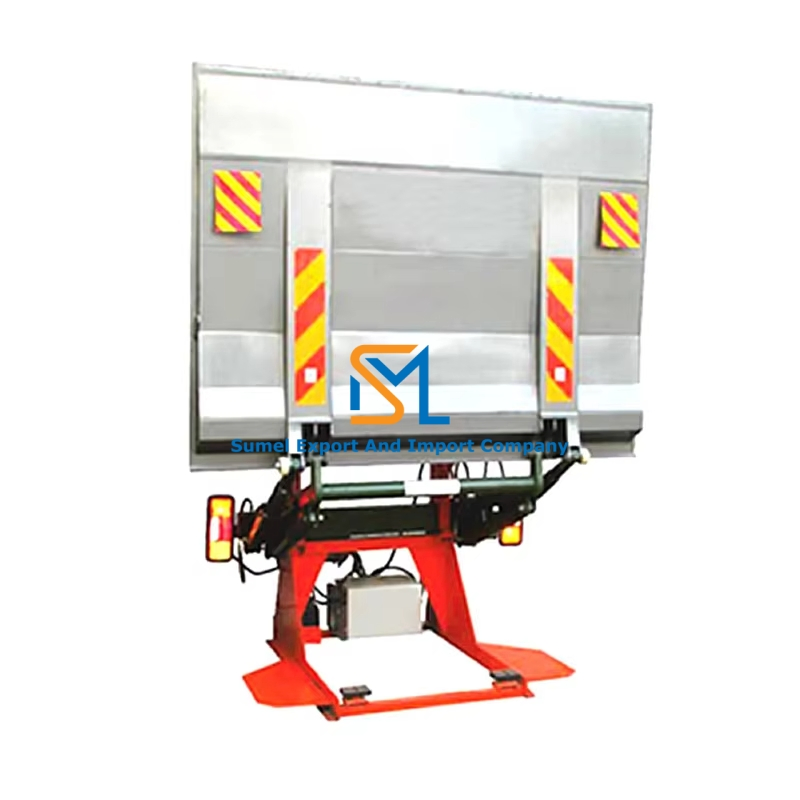

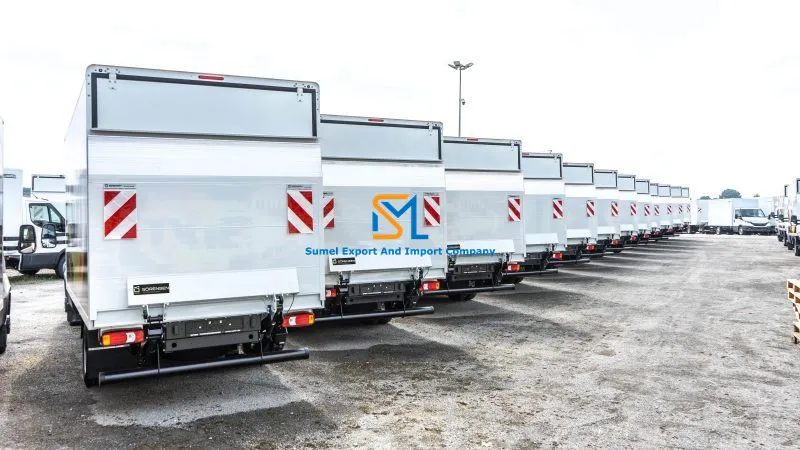

Cantilever Tailgate: Popular among users for its unique design and exceptional stability.
📦

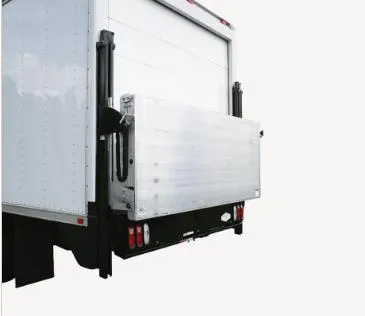

Foldable Tailgate: A great helper in the logistics field with convenient storage and rapid deployment functions.

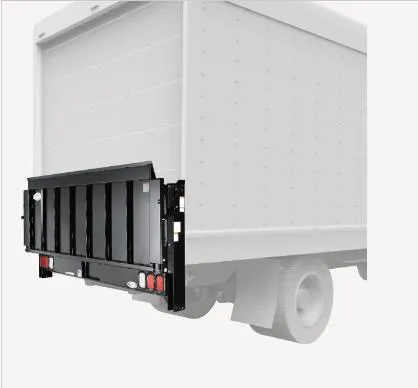

Featuring a dual-cylinder, parallel-arm design which utilizes a pair of hydraulic cylinders to lower and raise the lift by applying direct power to both sides of the platform.
Product Parameters
We utilize Q700 material, which is an ideal choice for carrying heavy objects and long-term use due to its high strength and wear resistance.
| Load capacity (kg) |
Hoist hydraulics |
Dead weight (kg) |
Load distance (mm) |
Mounting |
Permitted Total weight (t) |
| 750 |
1x lifting cylinder / 1x lock cylinder |
168 |
600 |
possible |
3.5/5.5/7.5 |
| 750 |
1x lifting cylinder / 1x lock cylinder |
167 |
600 |
possible |
3.5/5.5/7.5 |
| 750 |
1x lifting cylinder / 1x lock cylinder |
160 |
600 |
possible |
3.5/5.5/7.5 |
Dimensions & Specifications
| Platform height (mm) |
Lifting arm lengths (mm) |
Max loading height (unloaded) |
Min loading height (loaded) |
Offset dimension (mm) |
| 1450 / 1600 |
575 / 650 |
1100 |
700 |
580 |
| 1450 / 1600 |
575 / 650 |
1100 |
700 |
580 |
Core Components & Performance
Power Packs: Completely tested, adjusted, and filled with oil. Equipped with electrical controls to minimize installation time. Uses truck's power directly.

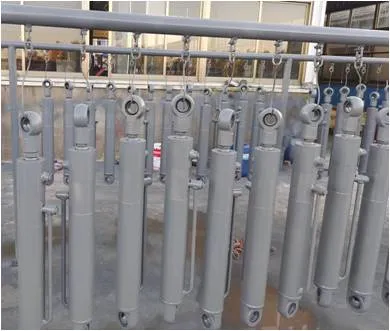

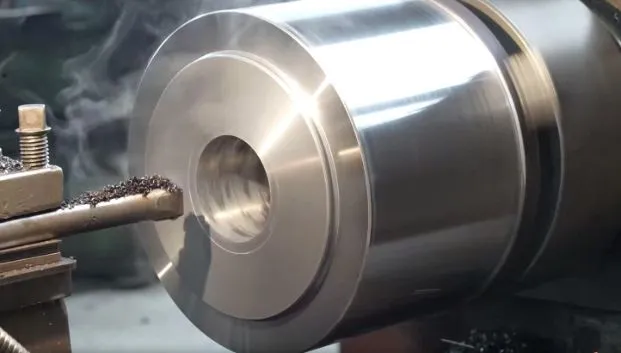

Oil Cylinder: We use premium Hallite seals to ensure excellent sealing. The piston rod features high-frequency quenching and hard chrome plating for maximum wear resistance.

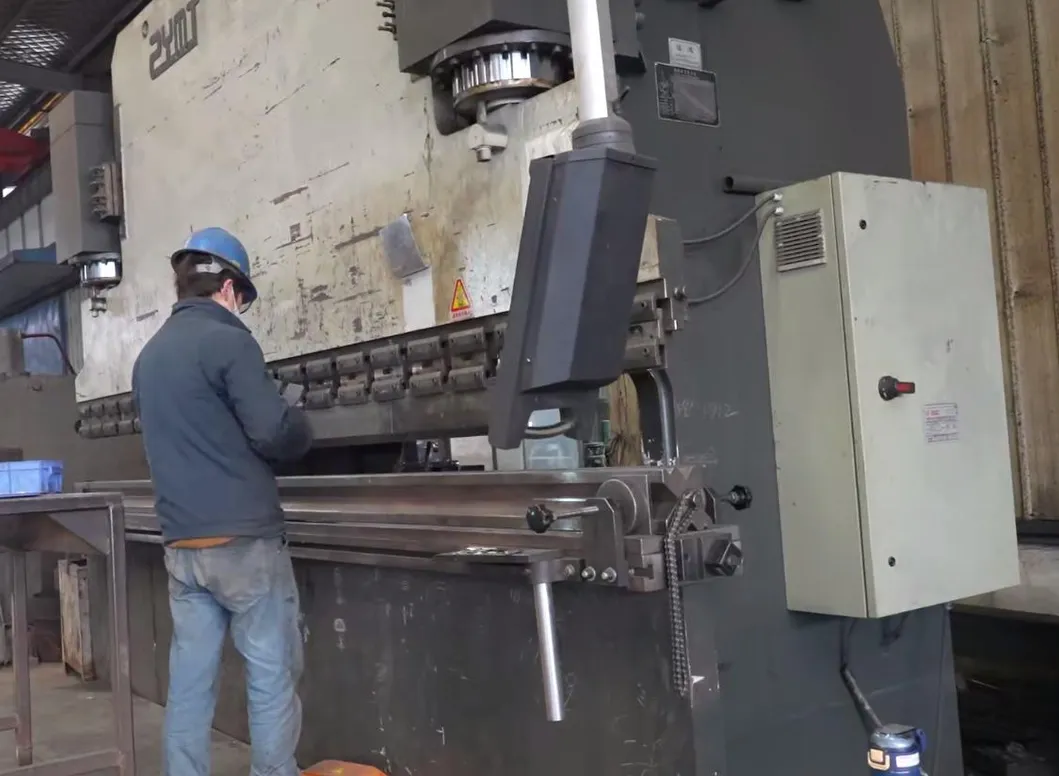

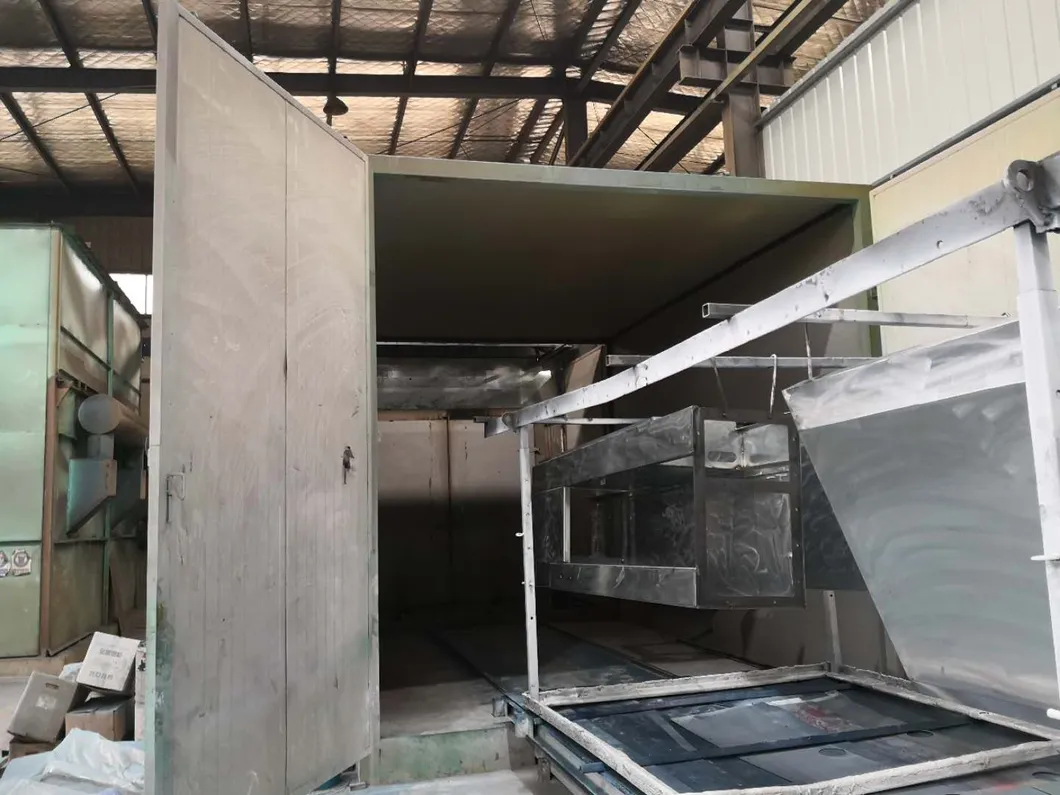

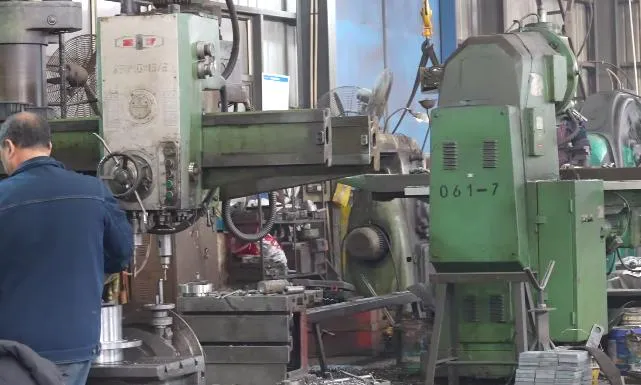

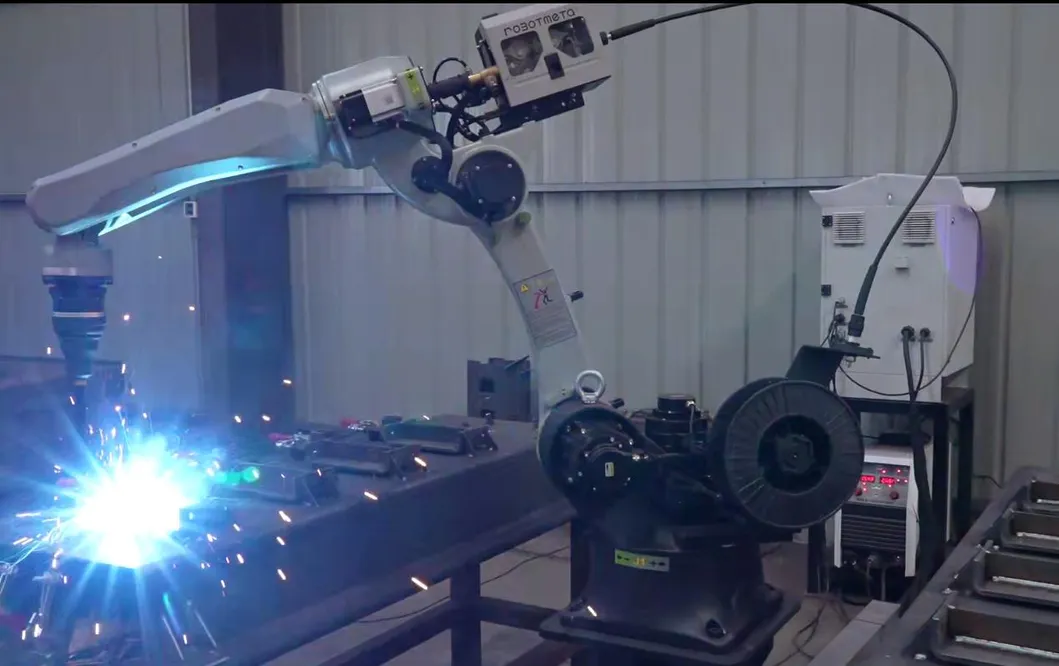

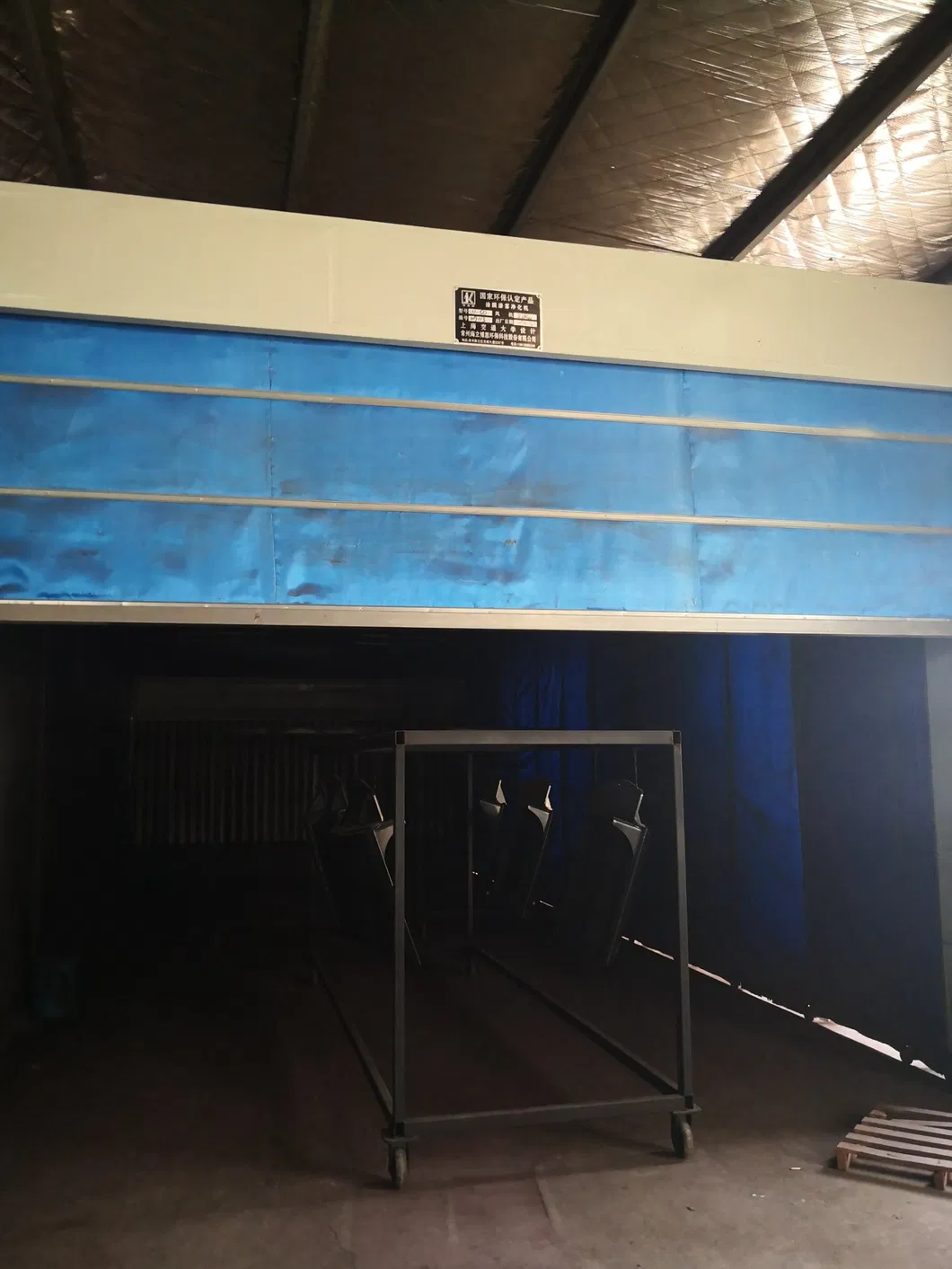

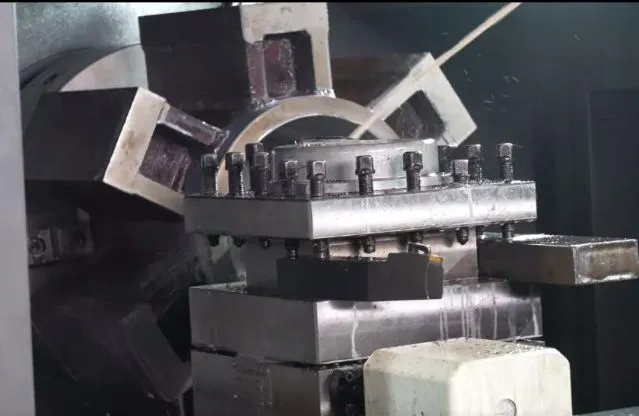

Truck Body Fabrication Equipments
Heavy Duty Steel / Aluminum liftgate systems designed for unmatched reliability. Features include a 3-year warranty, automatic transmission compatibility, and readily available spare parts.
Frequently Asked Questions
What materials are used in your hydraulic tail lifts?
We use high-strength Q700 steel, which provides excellent wear resistance and durability for heavy-duty long-term use.
What is the standard load capacity available?
Our systems are available in various specifications including 750kg, 1500kg, and 2000kg load capacities.
Does the tail lift require an external power source?
No, our power packs are designed to utilize the truck's existing power, making installation more efficient and simplified.
What types of tailgate designs do you offer?
We offer several designs including cantilever tailgates for stability and foldable tailgates for easy storage and deployment.
How do you ensure the sealing performance of the cylinders?
We use high-quality Hallite seals and the piston rods undergo high-frequency quenching and hard chrome plating to prevent leaks and wear.
What kind of warranty is provided for the fabrication equipment?
Our heavy-duty steel and aluminum liftgate fabrication equipment comes with a 3-year warranty and a reliable supply of spare parts.
