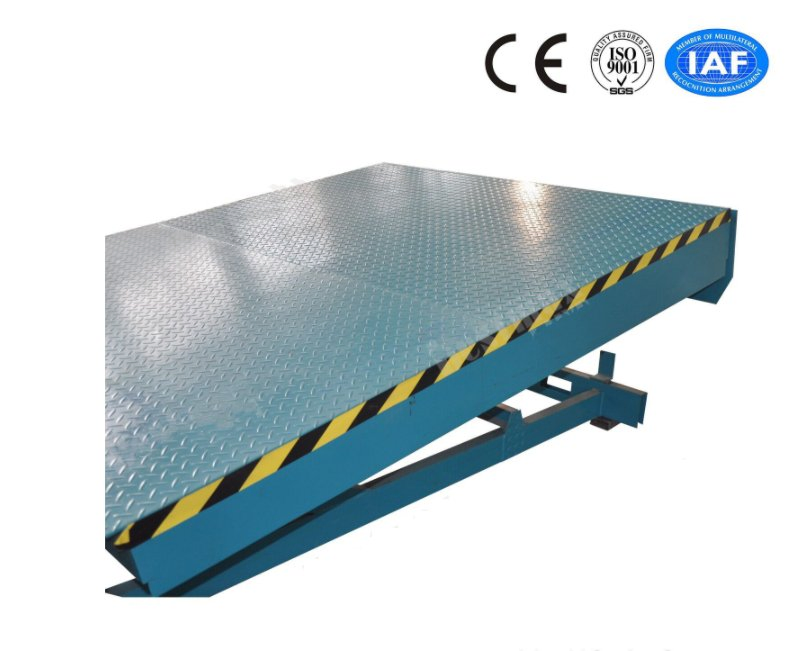

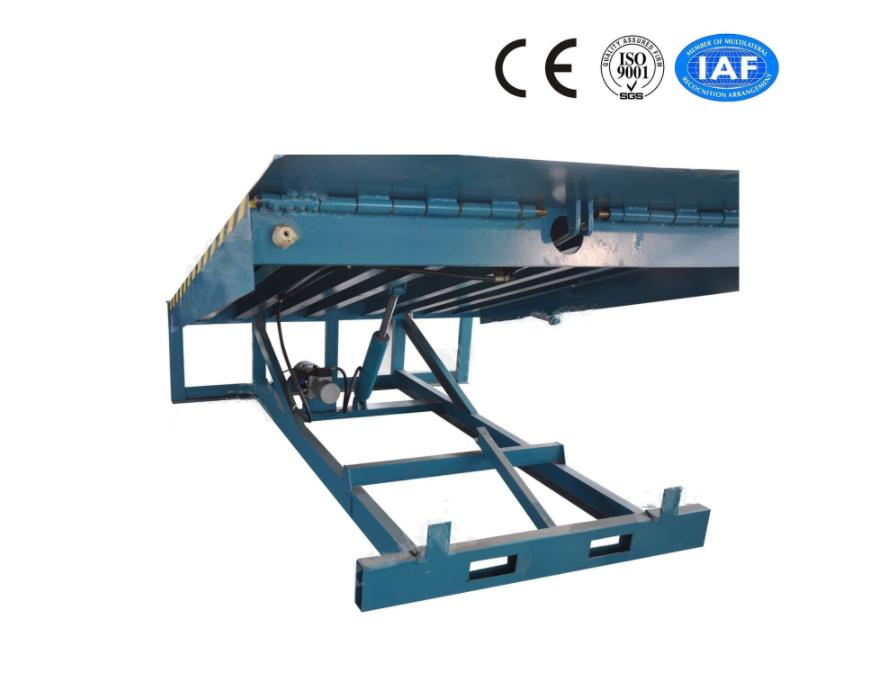

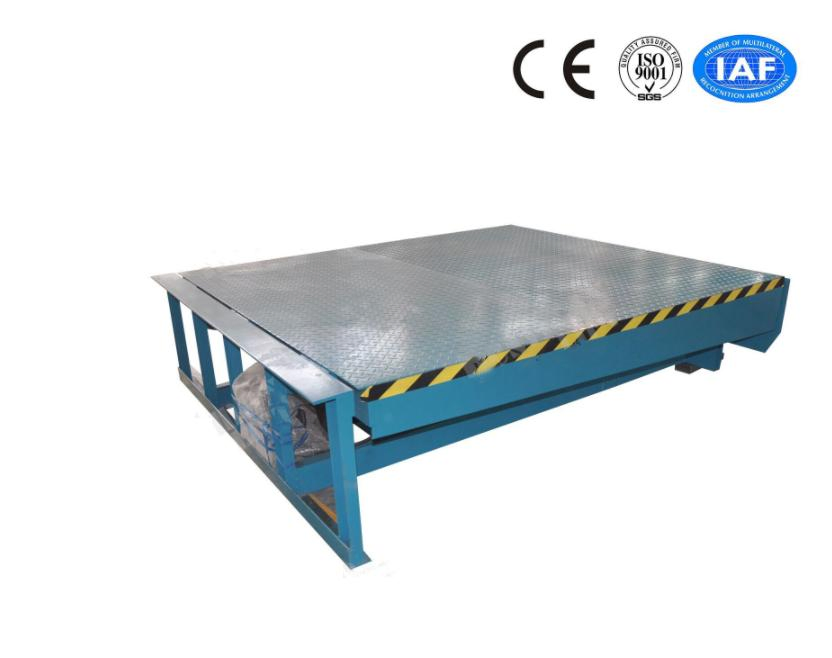

6 Tons Hydraulic Fixed Dock Ramp for Parking Lot

1 / 5

6 Tons Hydraulic Fixed Dock Ramp for Parking Lot

Customization:	Available
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Rack&Pinion

Send Inquiry

Product Description

Basic Information

Model NO.

DCQ6-0.6

Carrying Capacity

Weight Level

Moves

Stationary

Driven Type

Hydraulic

Running Mode

Stationary

Feature

Explosion-Proof, Insulating

Certification

CE, ISO 9001

Loading Capacity

6000kg

Lip Length

400mm

Work Range-up

300mm

Work Range-Down

300mm

Motor Power

0.75kw

Power Voltage

AC380V

HS Code

8428909090

Origin

China

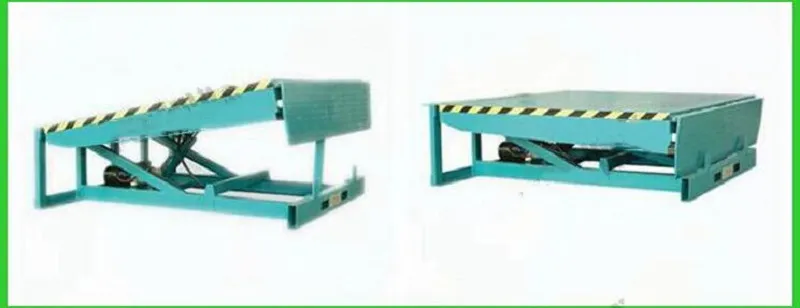

Product Overview

Stationary Dock Leveler For Loading Cargo is a fixed loading equipment and widely used as a bridge between platform and the truck. It allows the forklift to move conveniently. One side of this equipment has the same height with platform, and the other side connecting with the truck and it can adjust height according to different truck and different carriage in the process of loading.

Main Specifications

Model	DCQ 6-0.5	DCQ 6-0.6	DCQ 10-0.5	DCQ 10-0.6	DCQ 15-0.5	DCQ 15-0.6
Loading Capacity(Kg)	6000	6000	10000	10000	15000	15000
Platform Size (mm)	2000*2000	2500*2000	2000*2000	2500*2000	2000*2000	2500*2000
Lip Length (mm)	400	400	400	400	400	400
Travel (mm)	±250	±300	±250	±300	±250	±300
Motor Power (Kw)	0.75 Kw	0.75 Kw	0.75 Kw	0.75 Kw	0.75 Kw	0.75 Kw
Weight (Kg)	810	930	860	980	1050	1180

Main Features

Excellent design, compact hydraulically controller.

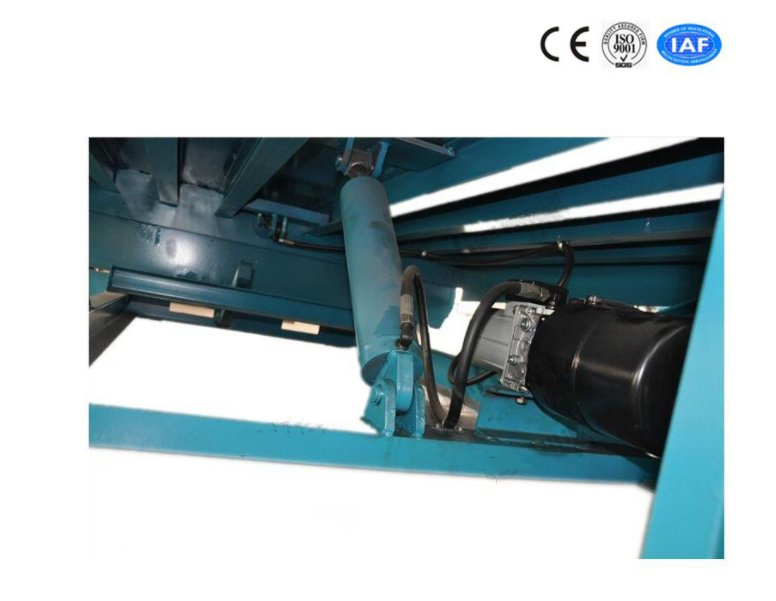

Imported Hydraulic system, easy to operate and reliable operation.
Lip plate and platform used to connect the whole axis, high strength and reliability.
Imported seals to protect the hydraulic system in an excellent sealing performance.
Overall module imported hydraulic station, sealing and long service life.
High-intensity "U"-shaped beam design to protect long-running high-load without deformation.
Non-slip tread plate for superior skid resistance.
Both sides fortification rolling pin apron to prevent accidental injuries.

Configurations

Standard Configurations:

Italian Brand Hydraulic System
Supporting Bar for Safety Maintenance
Full Range Toe Guard
Rubber Bumpers

Optional Configurations:

A220/50Hz Power Supply
Hydraulic System with Stop Device

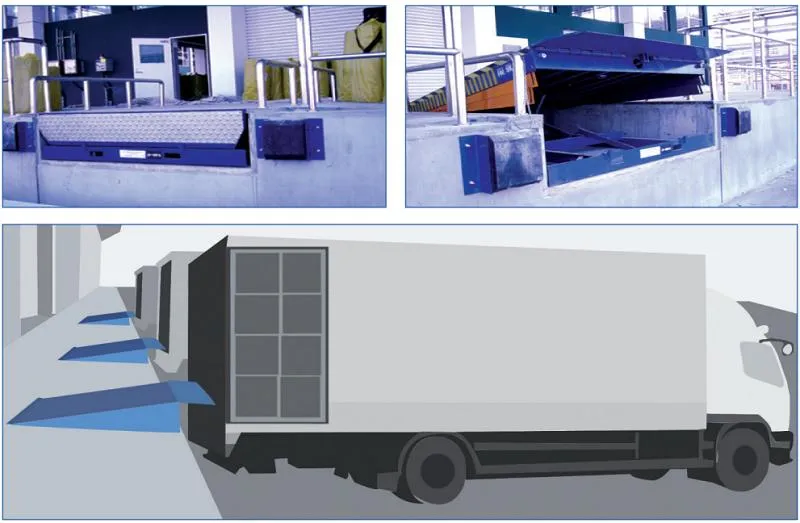

Installation Guide

1. Install dock leveler in prepared opening in accordance with instructions.
2. Set square and level.
3. Anchor unit securely, flush with dock. Weld back of dock leveler to pit frame.
4. Install dock bumpers securely.

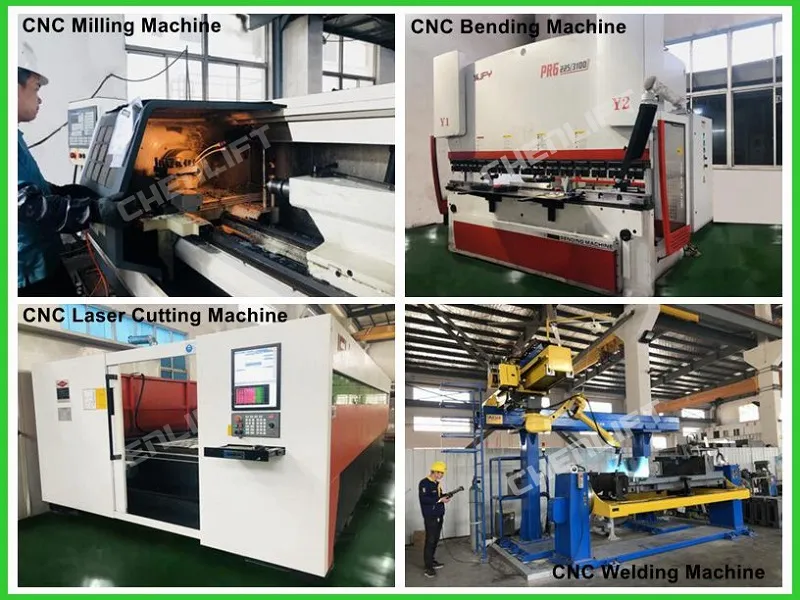

Manufacturing & Exhibition

Quality & Certificates

The quality control is strictly in accordance with ISO9001 quality management system. 100% inspection is executed upon product completion. We utilize imported key parts and advanced equipment to ensure high performance.

Frequently Asked Questions

Q1: How is the quality control managed? A: Quality control follows ISO9001 standards strictly, including 100% inspection of finished products and use of imported key components.

Q2: What is the standard delivery time for orders? A: The standard delivery time is approximately 30 days after order confirmation.

Q3: How long is the warranty period for the dock leveler? A: We provide a one-year quality guarantee period for our equipment.

Q4: Can the loading capacity be customized? A: Yes, the size and loading capacity can be designed and manufactured according to specific customer requirements.

Q5: What safety features are included? A: Standard safety features include a full-range toe guard, safety maintenance support bars, and rubber bumpers.

Q6: What power voltages are supported? A: The standard voltage is AC380V, with optional A220/50Hz configurations available upon request.
