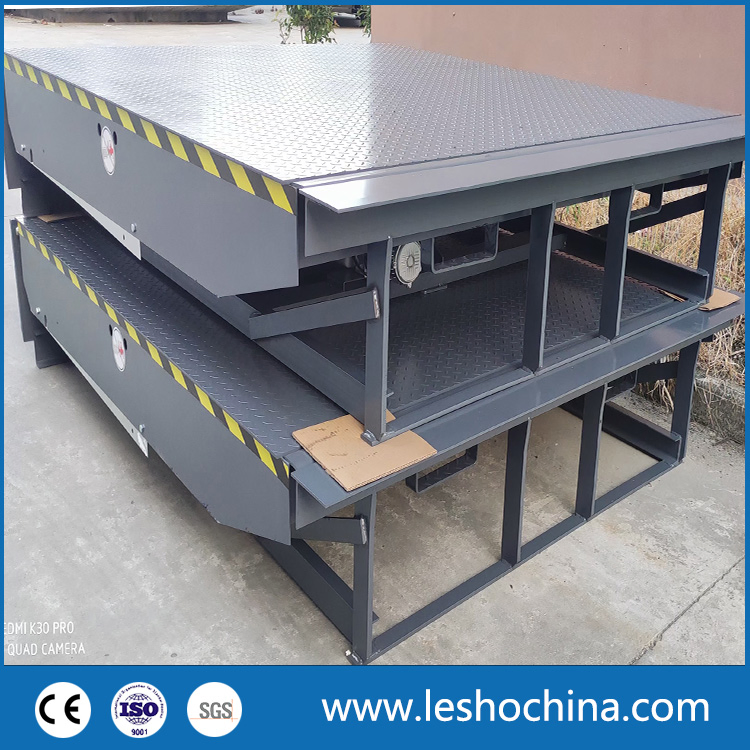

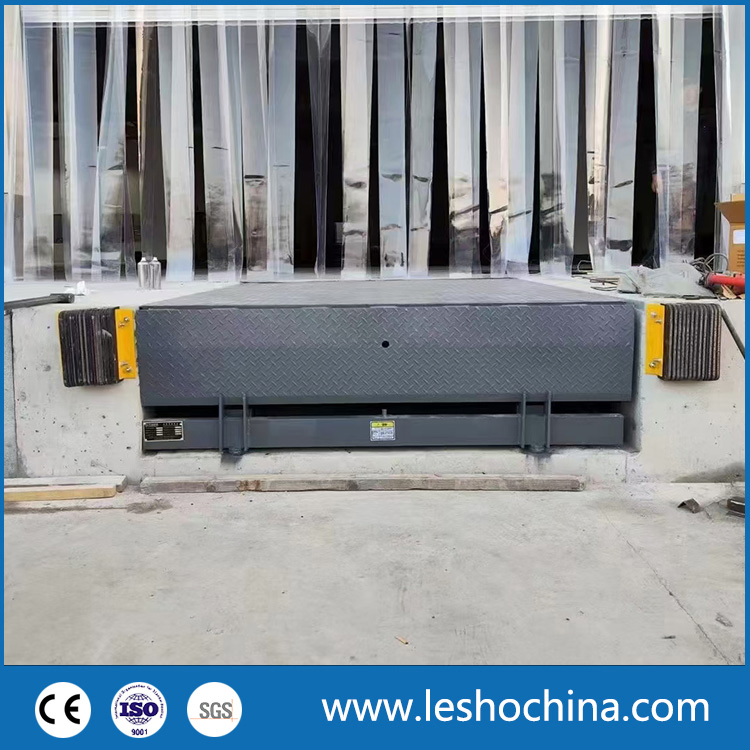

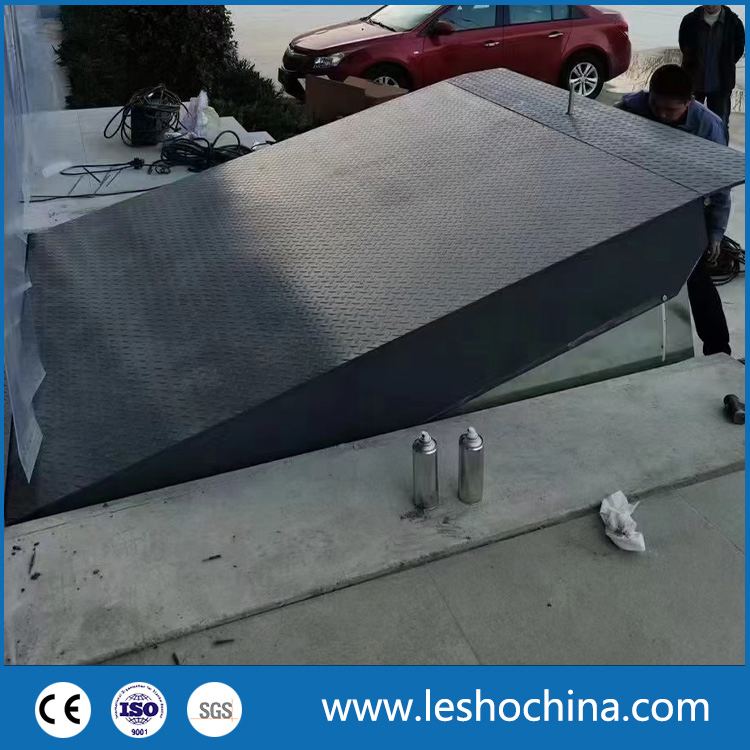

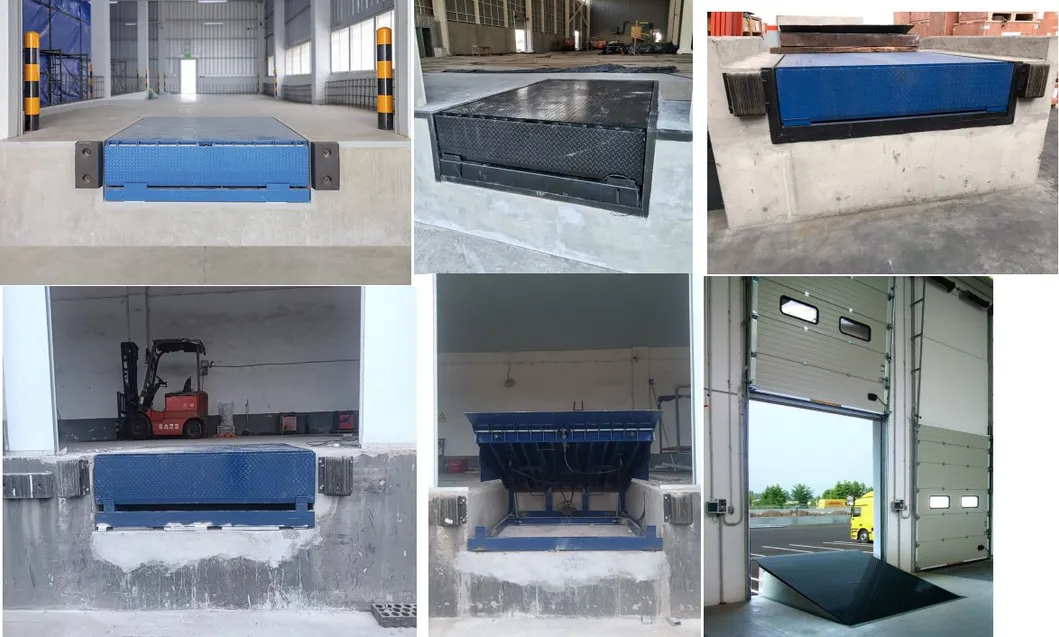

Automatic Stationary Fixed Hydraulic Dock Leveler: The ultimate solution for bridging the height gap between loading platforms and container trucks. It significantly enhances loading efficiency and reduces manual labor.
| Dynamic Load | Panel Thickness | Reinforcement | Mouth Plate | Static Load | Forklift Range |
|---|---|---|---|---|---|
| 5 Tons | 6mm | 4mmL Steel | 12mm | 8 Tons | 2.5 Tons |
| 8 Tons | 8mm | 4mmL Steel | 16mm | 11 Tons | 3.5 Tons |
| 10 Tons | 8mm | 14# I-beam | 16mm | 13 Tons | 5 Tons |
| 14 Tons | 10mm | 16# I-beam | 16mm | 17 Tons | 6 Tons |

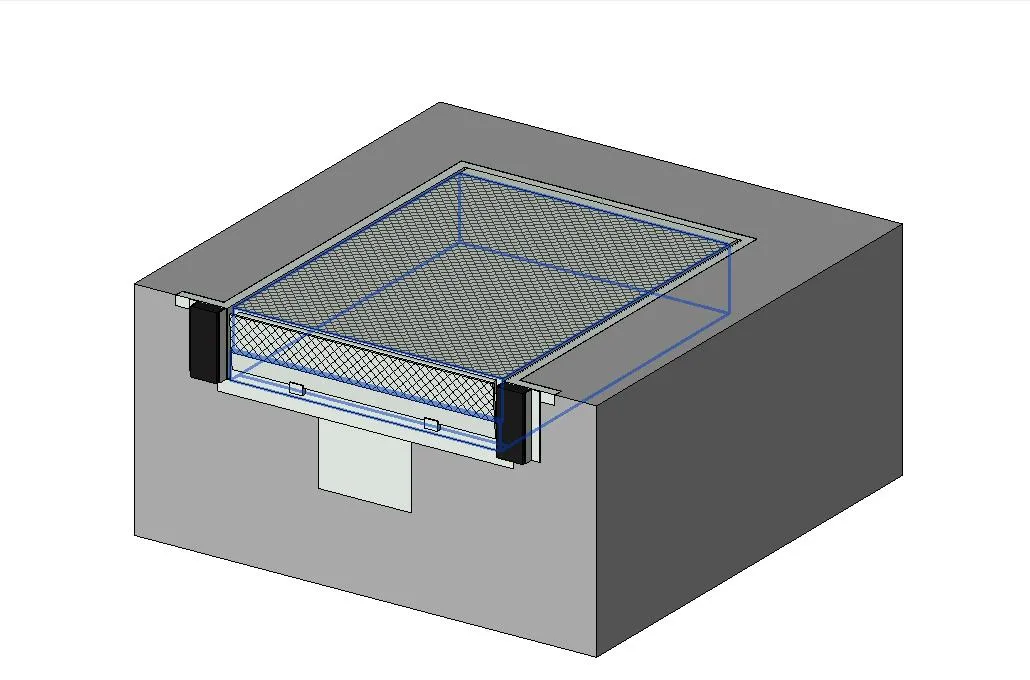

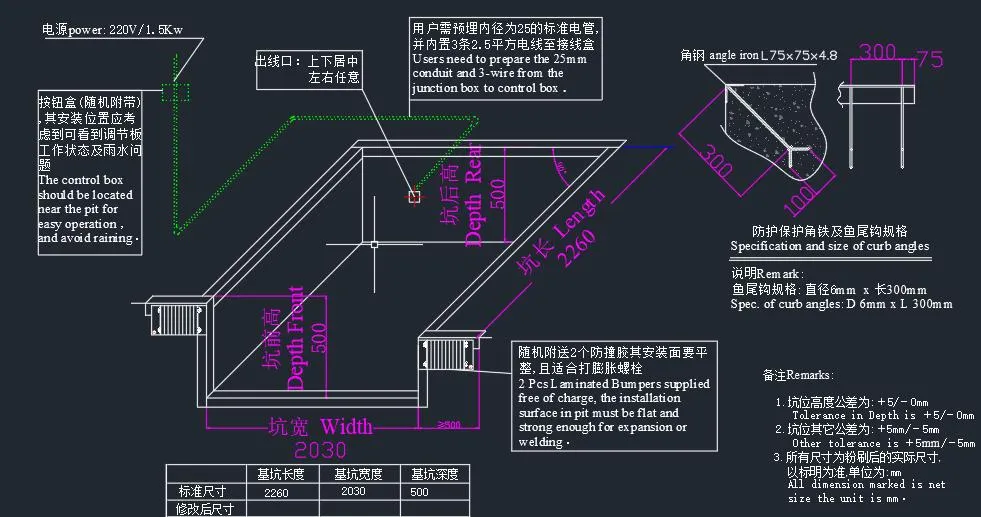

Accurate shop drawings ensure clear pit dimensions and precise construction, eliminating any risk of misunderstanding during installation.

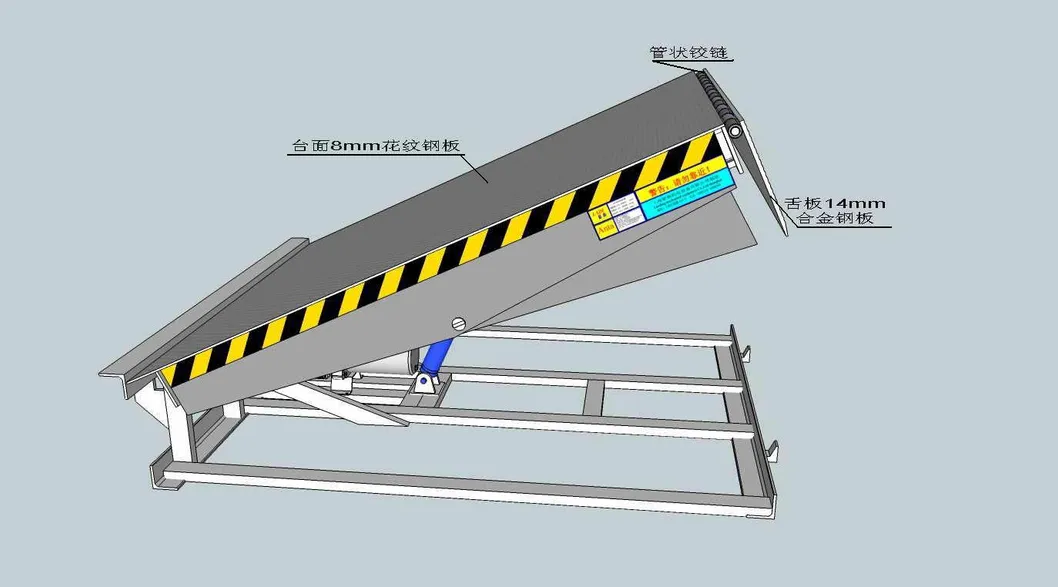

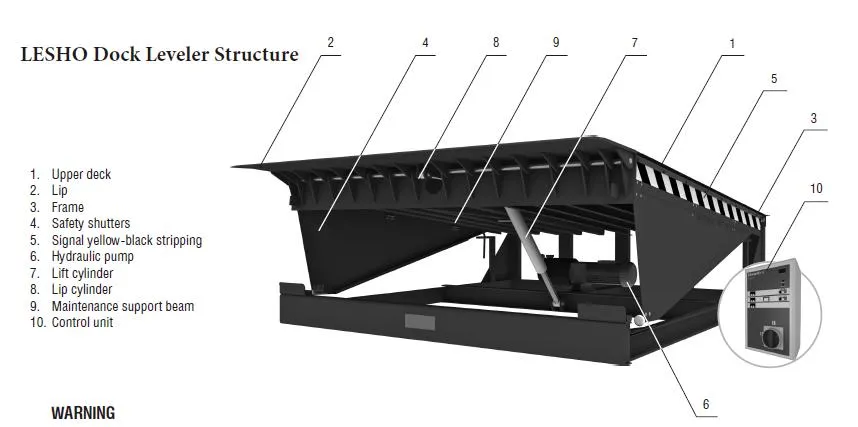

Main Platform: Built with 6mm-8mm thick high-strength steel plates. Unlike competitors who use welded joined sheets, we use whole-piece sheets for superior structural integrity.

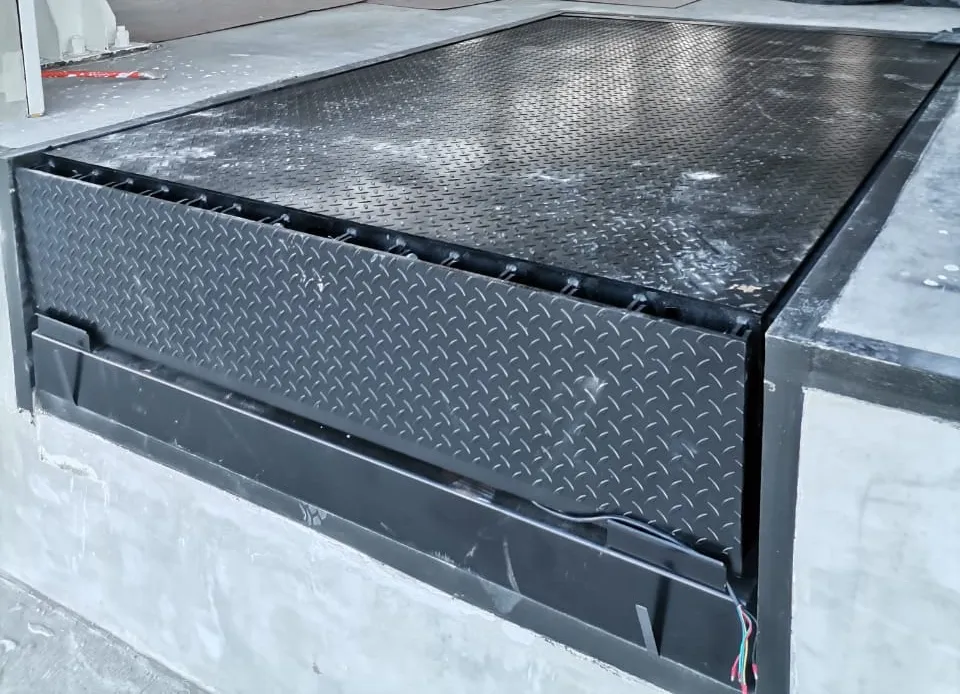

Top Lip: 12-16mm thick steel with an embossed anti-skid surface for forklift safety.

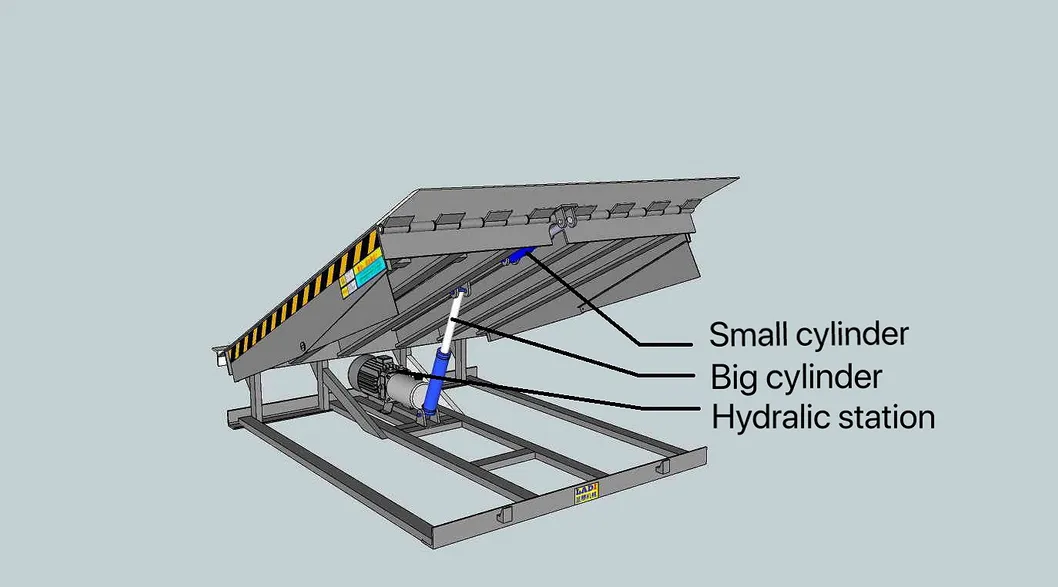

Hydraulic Motor: Equipped with overheating self-protection; 0.75KW-1.5KW output power.

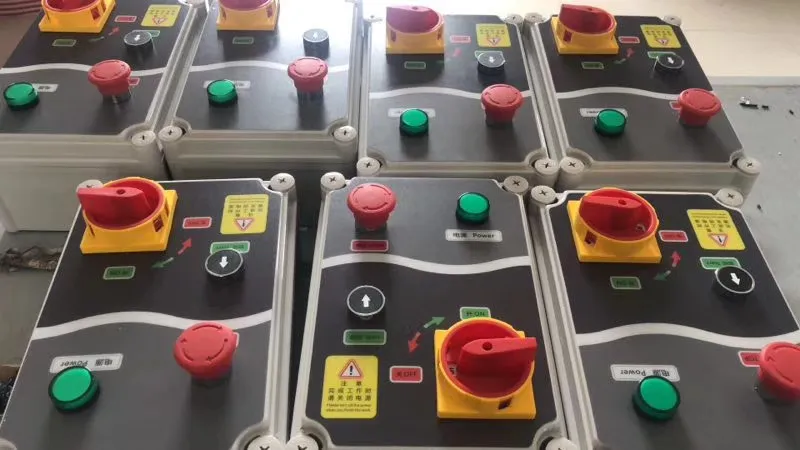

Control Panel: Multi-functional controller including a one-press operation button, power switch for maintenance, and an emergency stop for maximum safety.

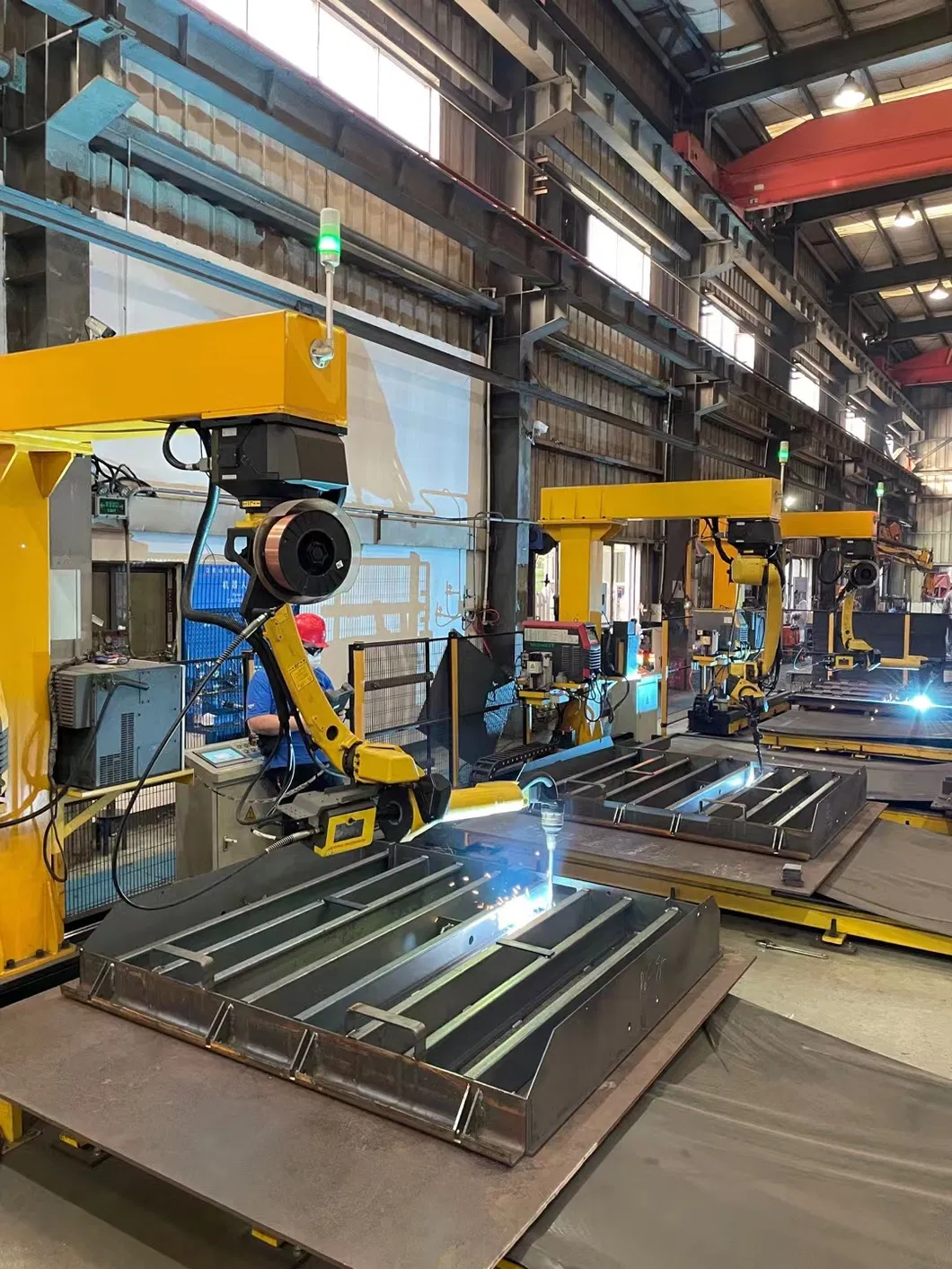

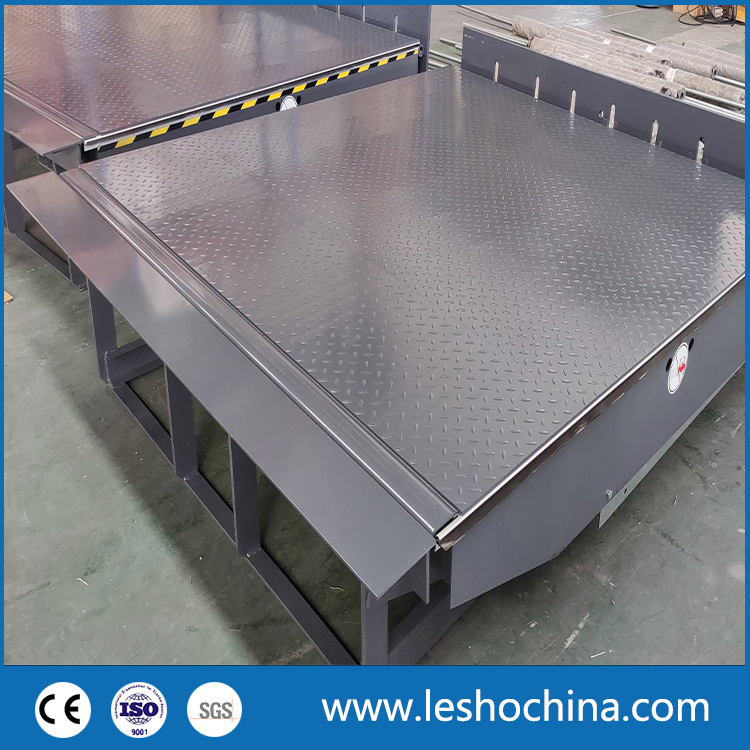

Our utilization of welding robots ensures every joint is accurate, strong, and consistent across all units.

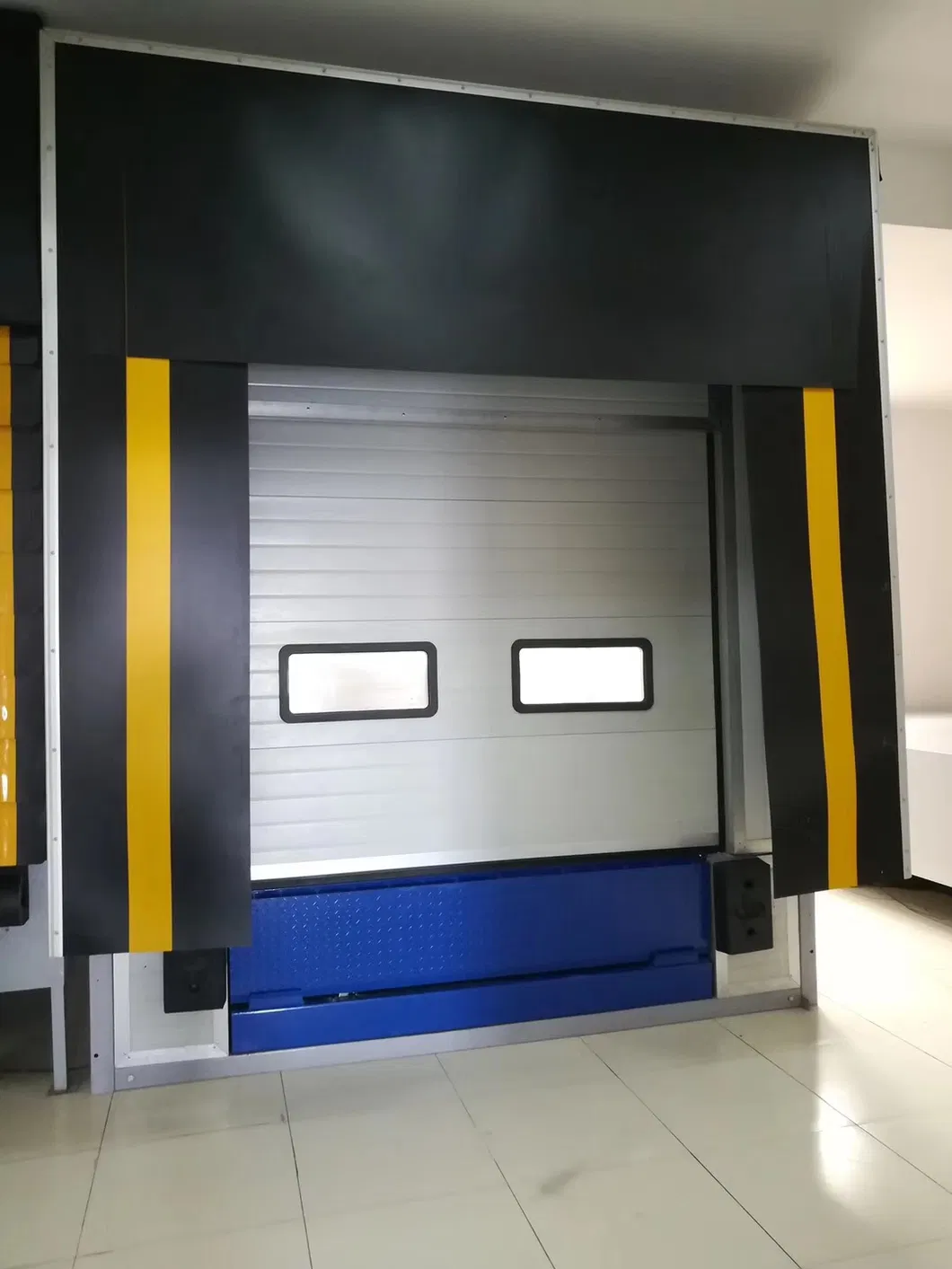

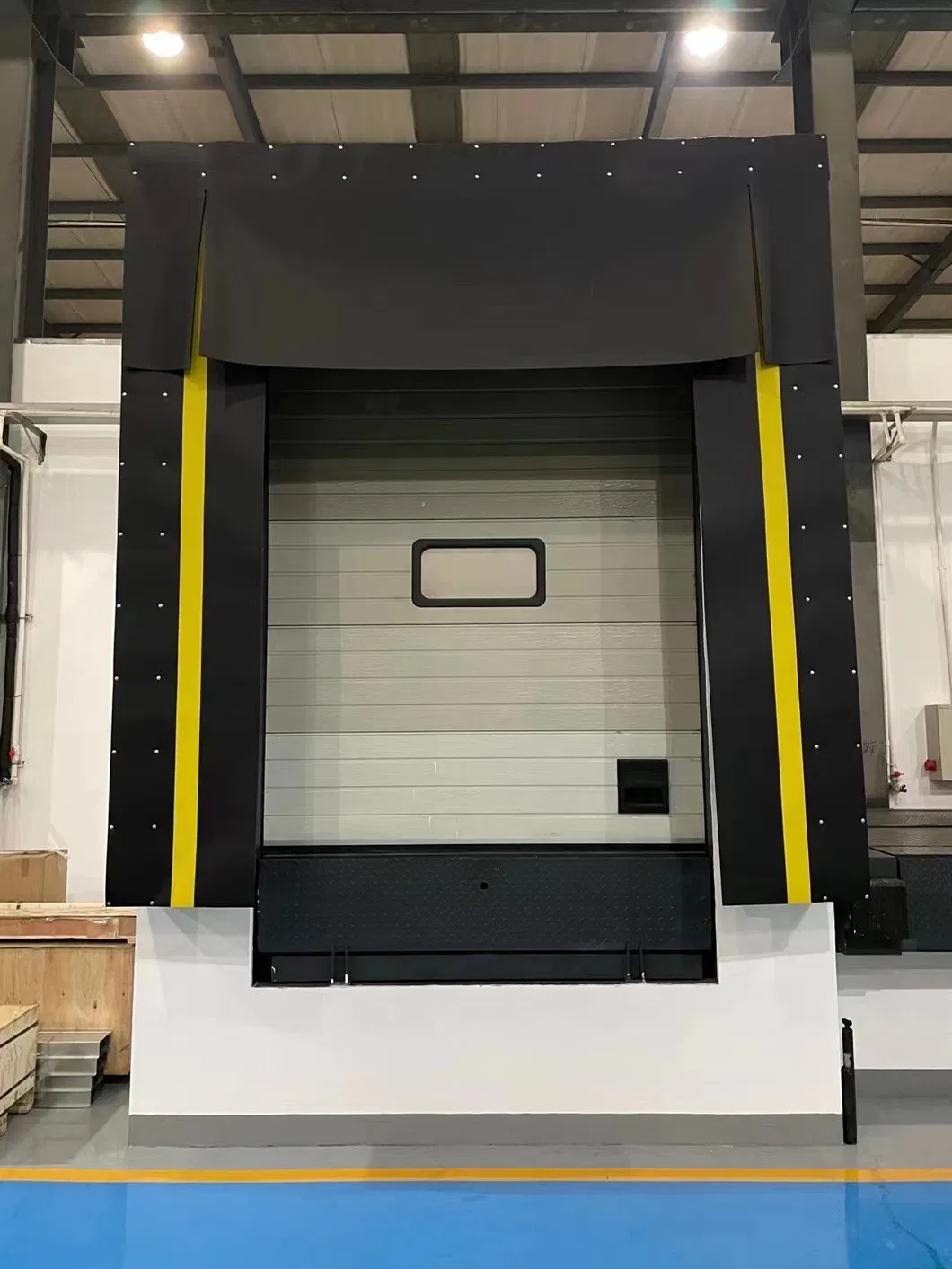

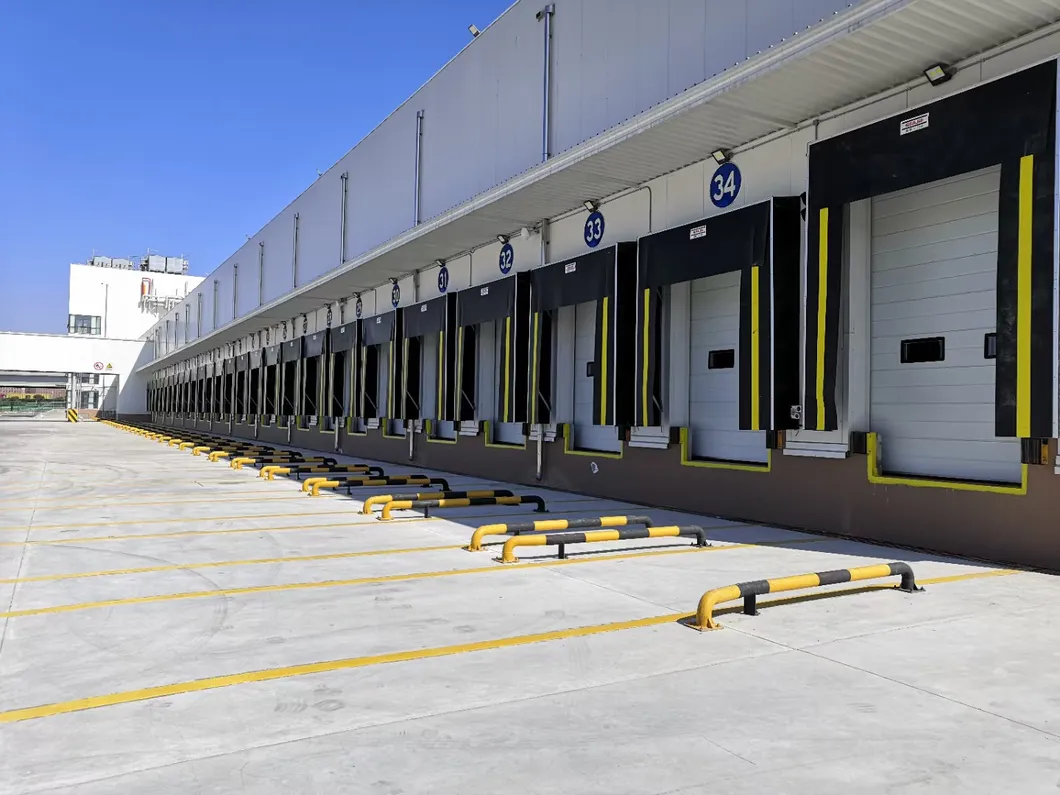

We provide complete loading bay assemblies including Overhead Doors, Dock Levelers, and Dock Shelters to protect your indoor environment and boost efficiency.
Standard size L2000*W2000*H600 mm: One 40ft HQ container can load up to 20 sets; One 20ft container can load 8 sets.
