Advanced Order Picker Machine for Efficient Warehouse Operations

1 / 5

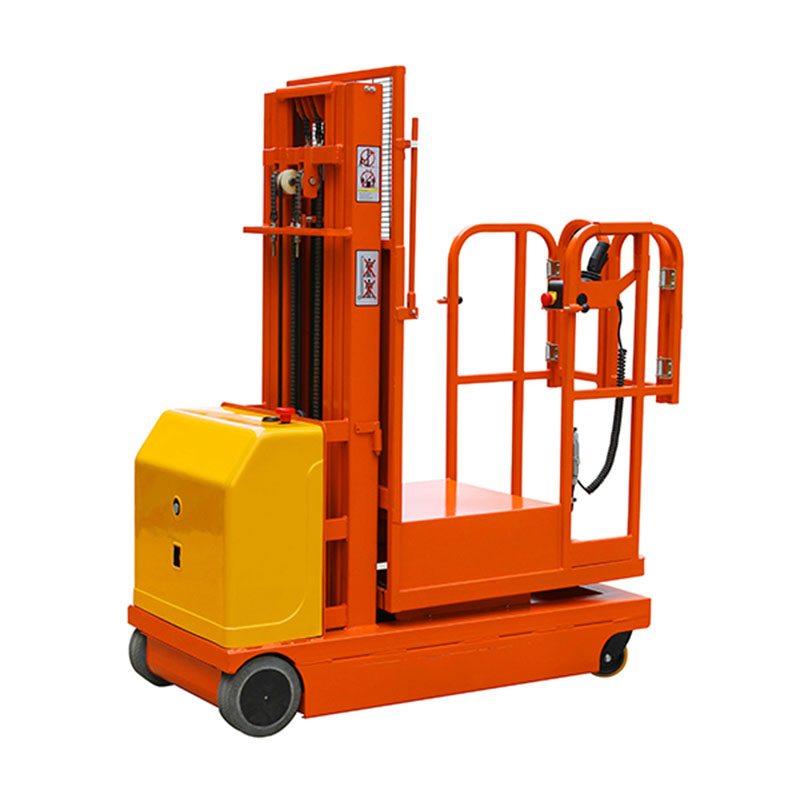

Advanced Order Picker Machine for Efficient Warehouse Operations

Customization:	Available
After-sales Service:	Online
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

OP0.2-3

Order Picker Type

Custom Order Picker Price

Application

Goods Order Picker

Equipment Class

Cargo Stacker Order Picker

Usage

Supermarket Warehouse Order Picker

Design

Small Aisle Order Picker

Operation

Full Electric Order Picker 3m

Pricing

Cheap Order Picker Made in China

Mechanism

Reclaimer Order Picker

Lifting Height

Stacker Reclaimer 5m

Value

Order Picker Cheap Price

System

Hydraulic Order Picker 4m

Power Type

Full Electric Order Picker

Battery

Battery Powered Order Picker

Warehouse Tool

Warehouse Goods Picking Equipment

Transport Package

Wooden Box

Specification

Customized

Origin

China

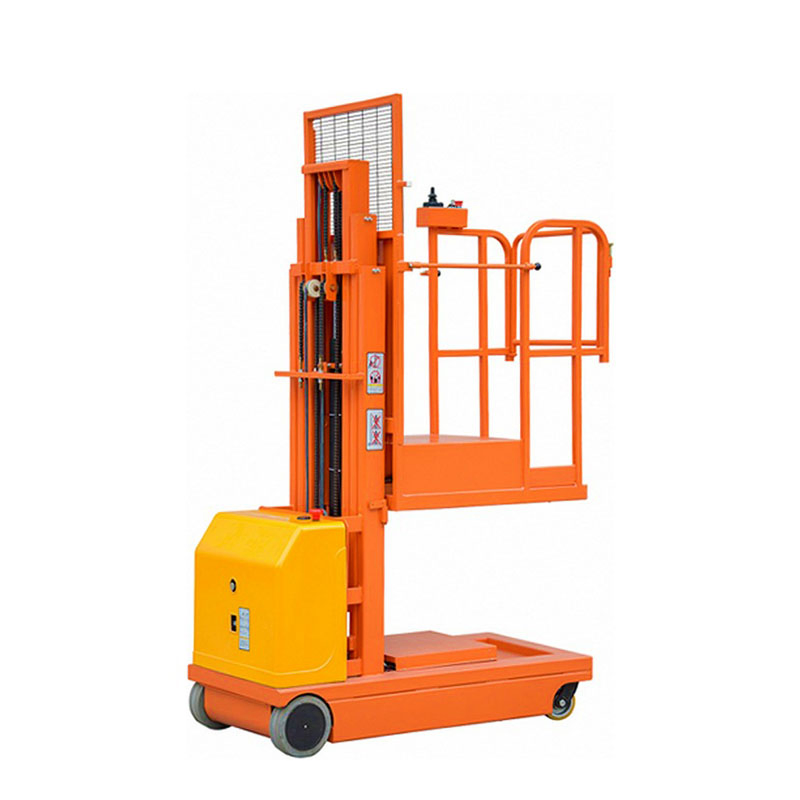

Detailed Product Information

Model	Unit	EOP3-2.7	EOP3-3.3	EOP3-4.0	EOP3-4.5
Max Platform height (H)	mm	2700	3300	4000	4500
Max Machine height (H1)	mm	4120	5000	5400	6000
Load capacity	kg	300	300	300	300
Platform size	mm	600x640	600x640	600x640	600x640
Max driving speed (lower)	km/h	4	4	4	4
Max driving speed (risen)	km/h	1.6	1.6	1.6	1.6
Min turning radius	mm	1600	1600	1600	1600
Max climbing ability	%	15~20	15~20	15~20	15~20
Drive wheel size	mm	Φ 230x80	Φ 230x80	Φ 230x80	Φ 230x80
Universal wheel size	in	6	6	6	6
Motor	v/kw	2x24/0.4	2x24/0.4	2x24/0.4	2x24/0.4
Lift motor	v/kw	24/1.6	24/1.6	24/1.6	24/1.6
Battery (Maintenance Free)	v/Ah	2x12/150	2x12/150	2x12/150	2x12/150
Charger	v/A	24/15	24/15	24/15	24/15
Overall size(AXBXC)	mm	1530x700x1830	1530x700x2130	1620x700x1840	1620x700x2000
Net weight	kg	430	450	660	680

Frequently Asked Questions

1. What is the maximum load capacity of the electric order picker?

The standard load capacity for these models is 300kg, making them ideal for small to medium-sized goods picking in warehouses and supermarkets.

2. Can this order picker be used in narrow aisles?

Yes, with a minimum turning radius of 1600mm and a compact overall width of 700mm, it is specifically designed for efficient operation in narrow aisle environments.

3. What heights are available for the platform?

Our electric order pickers offer multiple platform heights including 2700mm, 3300mm, 4000mm, and 4500mm, reaching maximum machine heights up to 6000mm.

4. Does the battery require frequent maintenance?

The machine is equipped with a high-capacity maintenance-free battery (2x12V/150Ah), which minimizes downtime and eliminates the need for regular fluid checks.

5. Is it safe to drive while the platform is raised?

Yes, the machine supports driving at a safe, reduced speed of 1.6km/h when the platform is risen, ensuring operator safety while maintaining productivity.

6. What type of packaging is used for shipping?

All equipment is securely packed in high-quality wooden boxes to prevent any damage during domestic or international transit.
