| Model NO. | NTDL |
|---|---|
| Application | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Logistics |
| Lift Mechanism | Articulated Lift |
| Carrying Capacity | Weight Level |
| Moves | Stationary |
| Driven Type | Hydraulic |
| Feature | Explosion-Proof, Insulating |
| Certification | ISO 9001 |
| Upper Plate | 8mm Thickness Steel |
| Swinging Lip | Single 16mm Thickness Steel |
| Safety System | Self-Locking, Lip Emergency Stop |
| Loading Capacity | 10000kg |
| Table Size | 2.0*2.0m |
| Product Name | Container Platform Air Bag Dock Leveler |

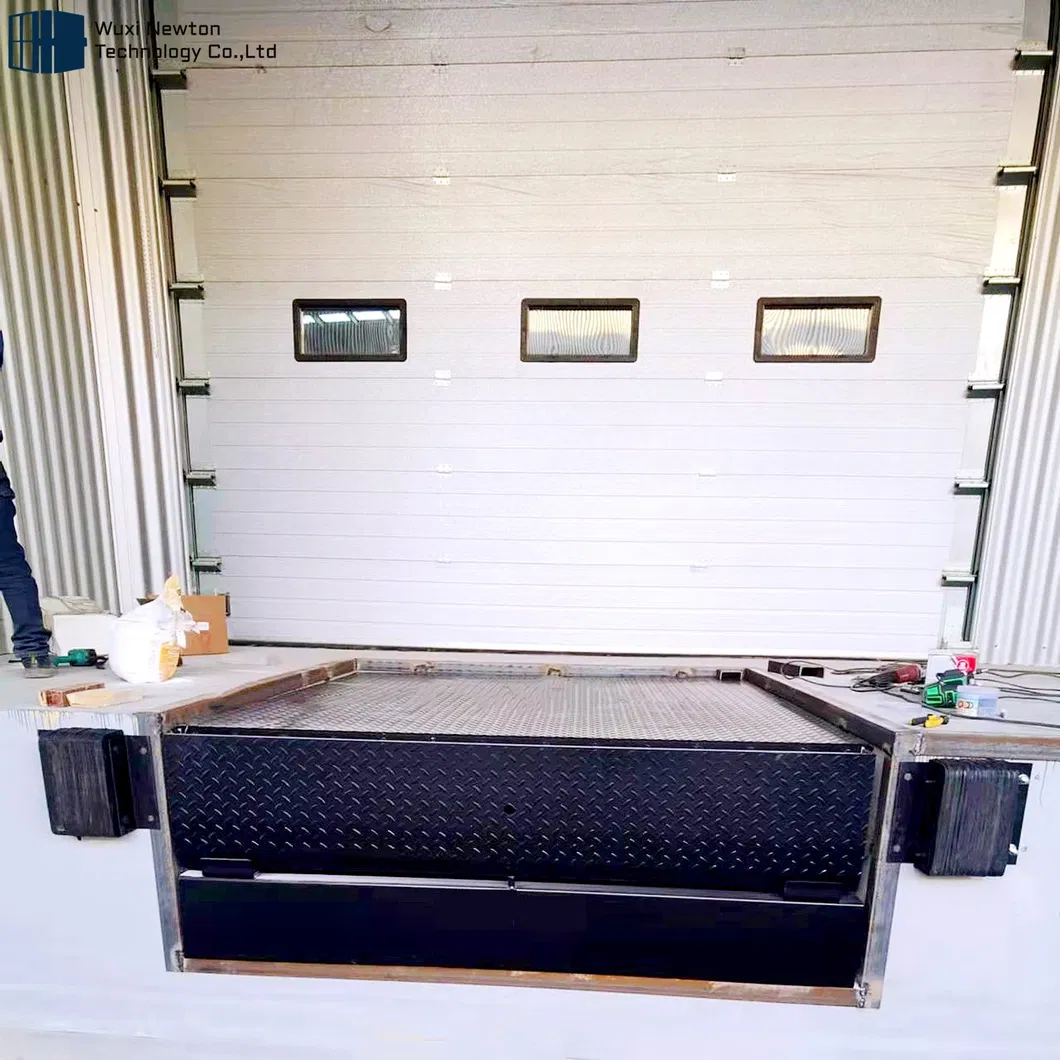

In the field of logistics, our dock leveler can realize fast and safe loading and unloading process. The dock leveler can balance the height difference between the platform ground and the dock of different transport vehicles. Whether it is a flatbed truck or a container truck, the dock leveler can meet the requirements.
| Upper Plate | 8 mm thickness, anti-skate steelplate |
|---|---|
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Adjustment Time | Rise Time ≤16S, Fall time ≤10S |
| Working Range | +300mm / 260~300mm |
| Power | 380V / 220V |
| Electric Control Box | 24V weak current control |
| Service Life | ≥200,000 times |
| Operating Temp | -25ºC ~ +50ºC |
| Noise | <50db (±5db) |

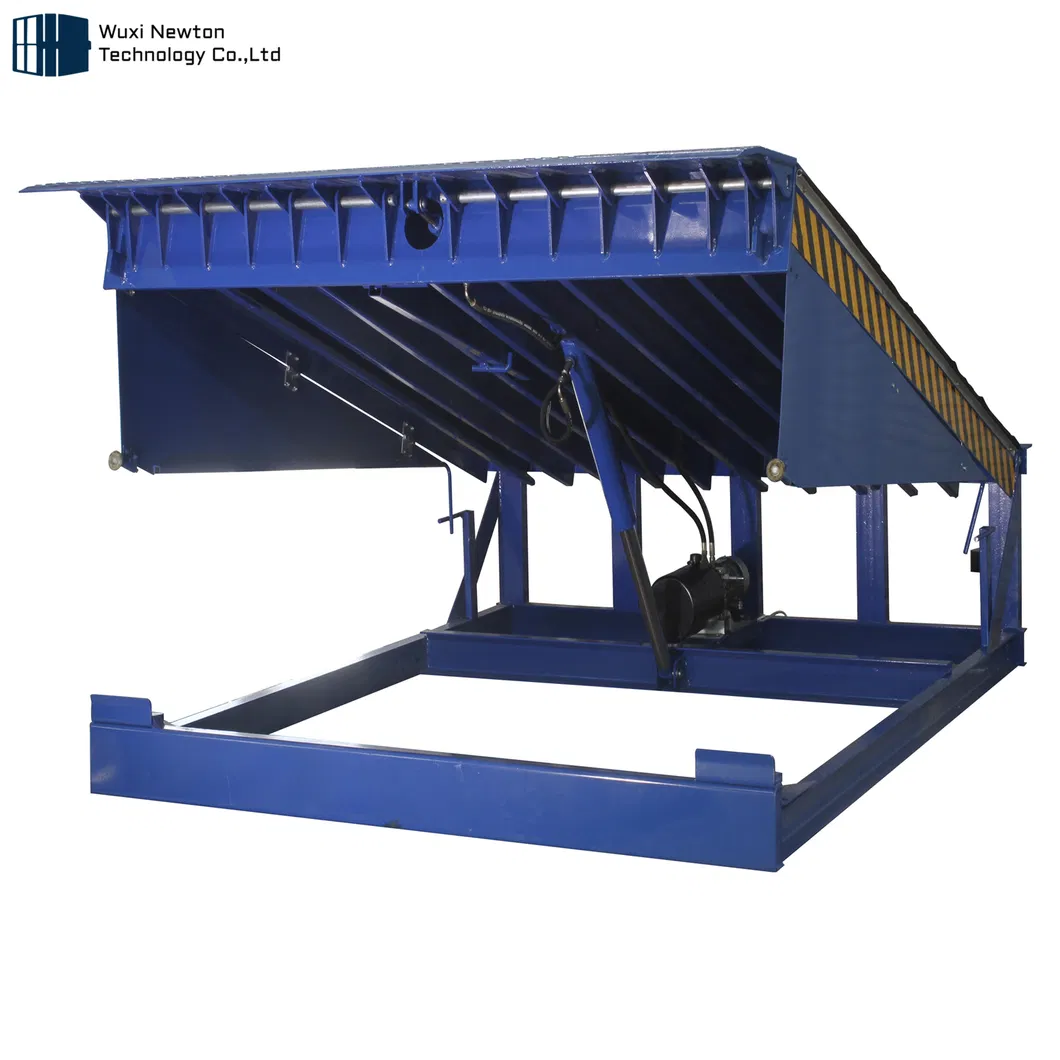

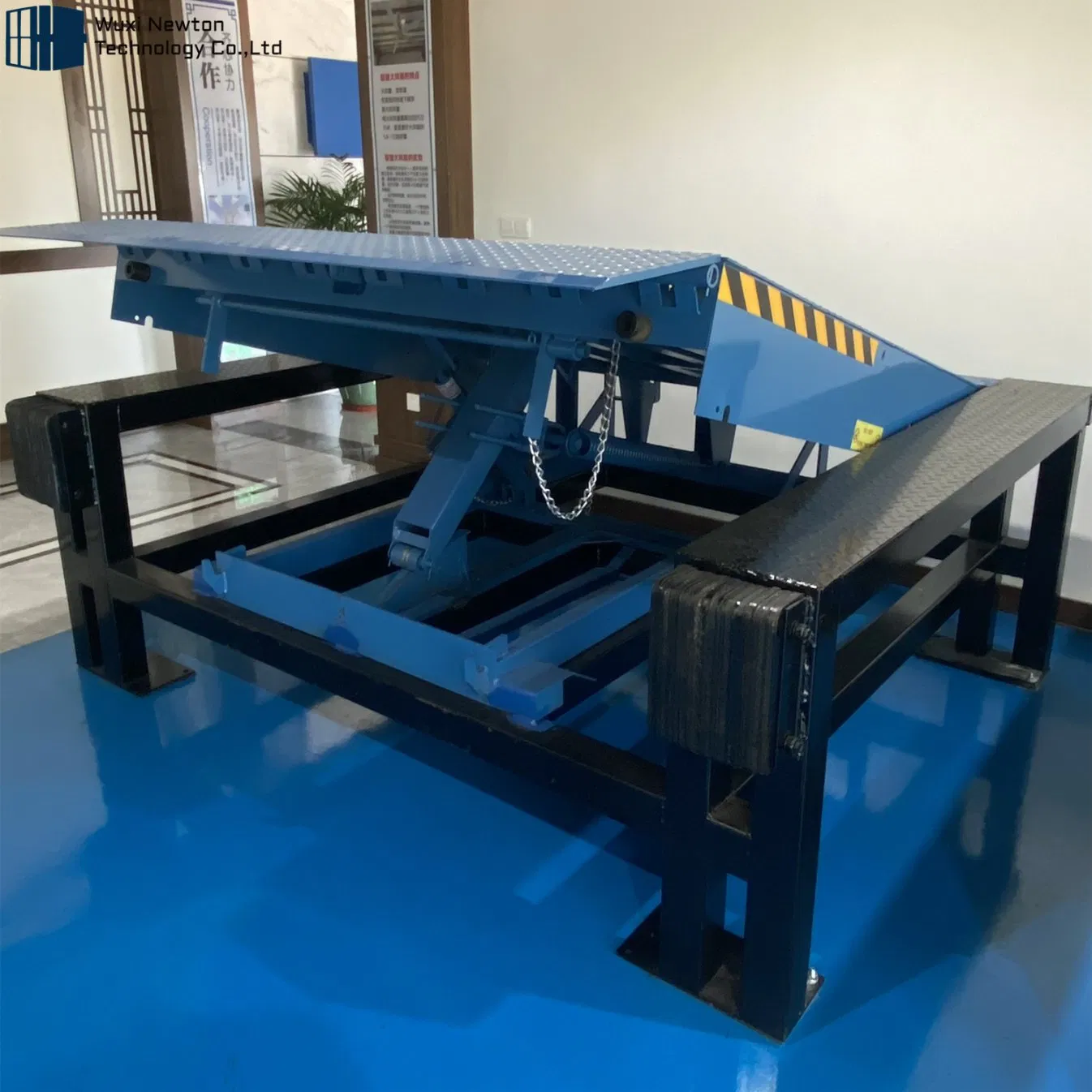

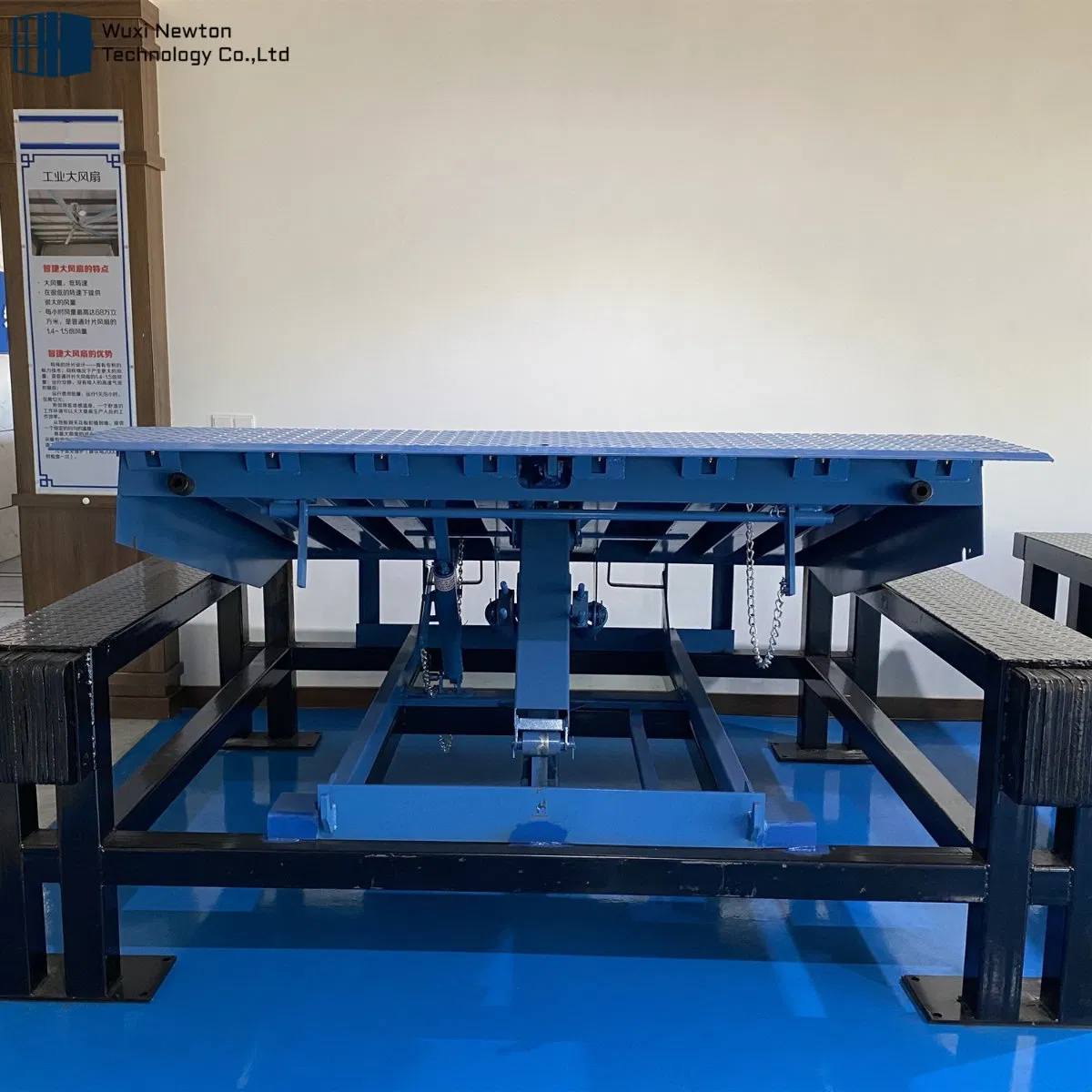

Hydraulic Dock Leveler
Utilizes push-button activation; safest and most reliable type.

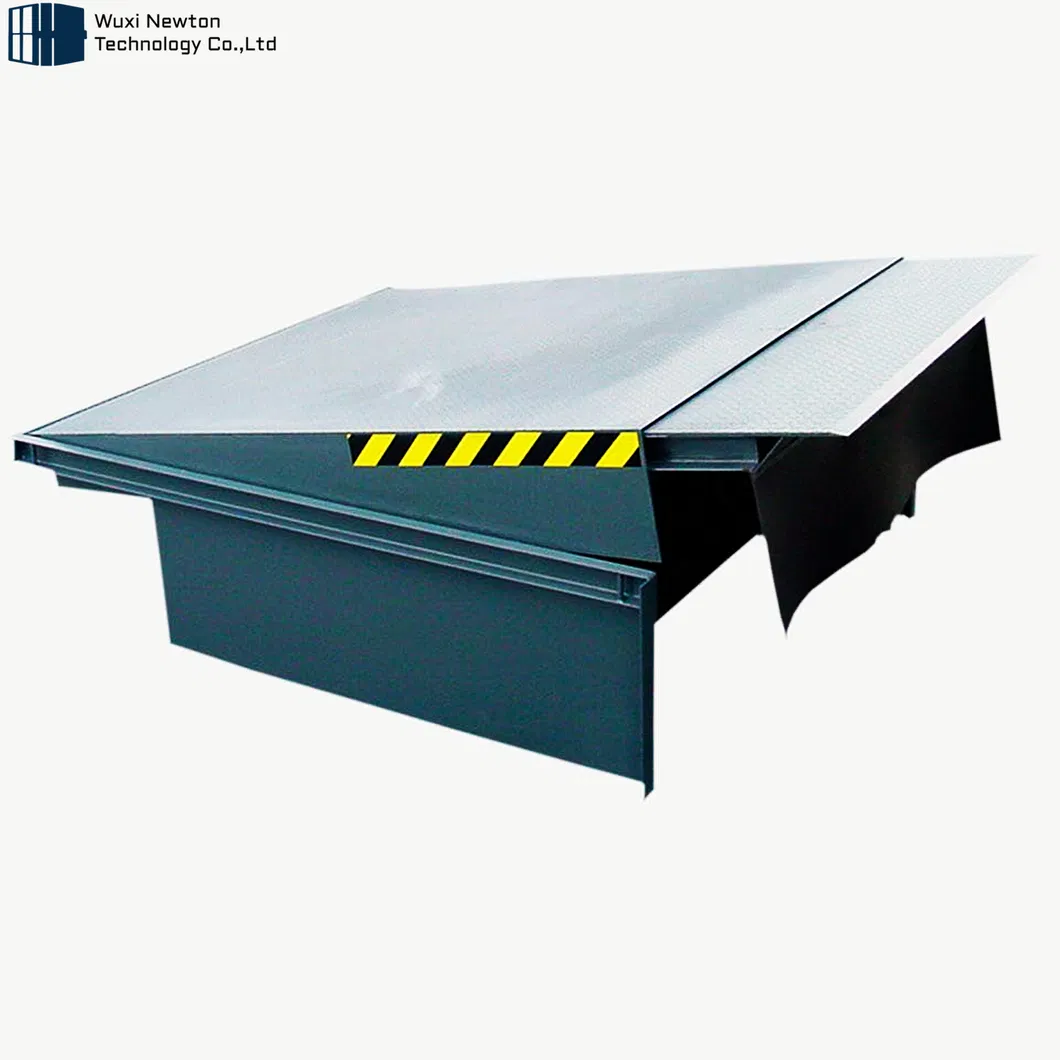

Telescopic Dock Leveler
Lip (1000mm) adapts to all loading situations including end loads.

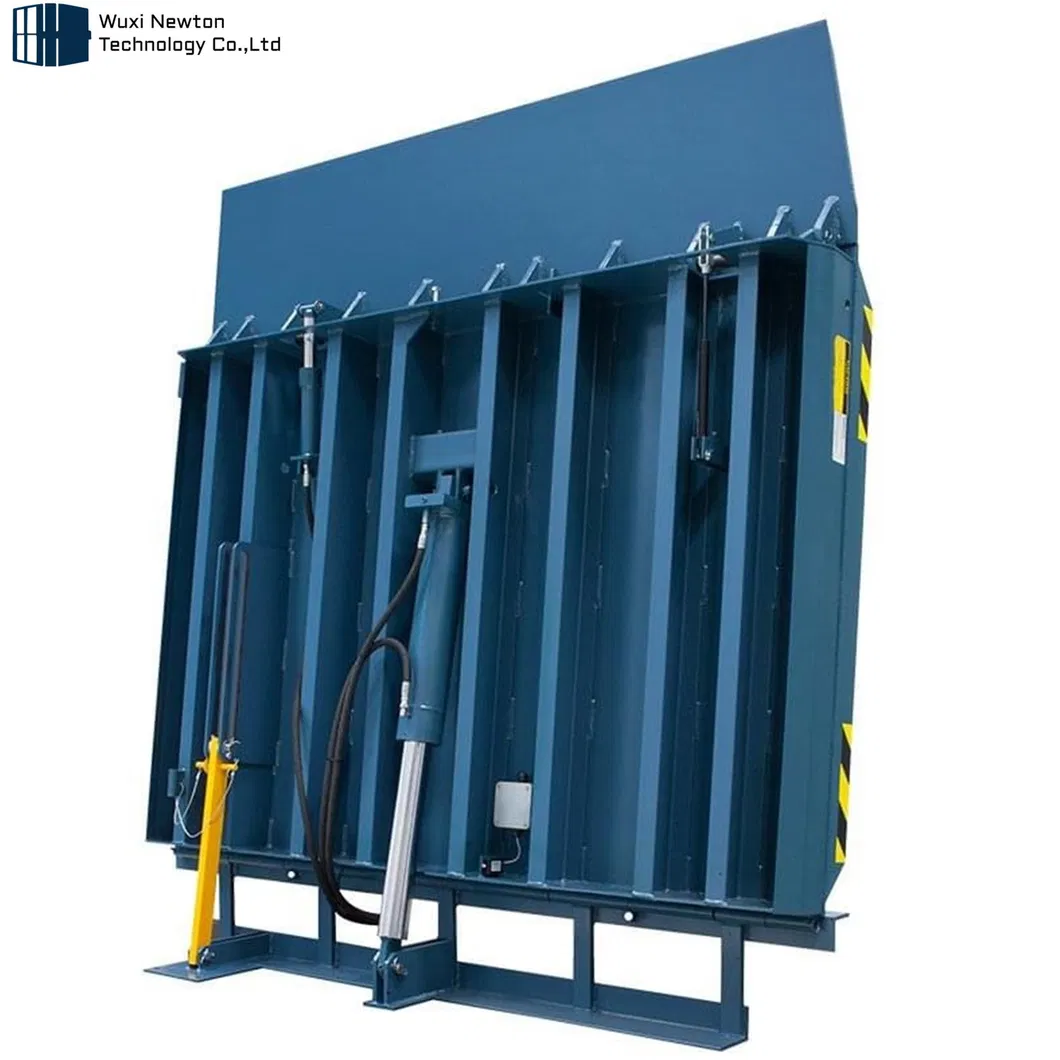

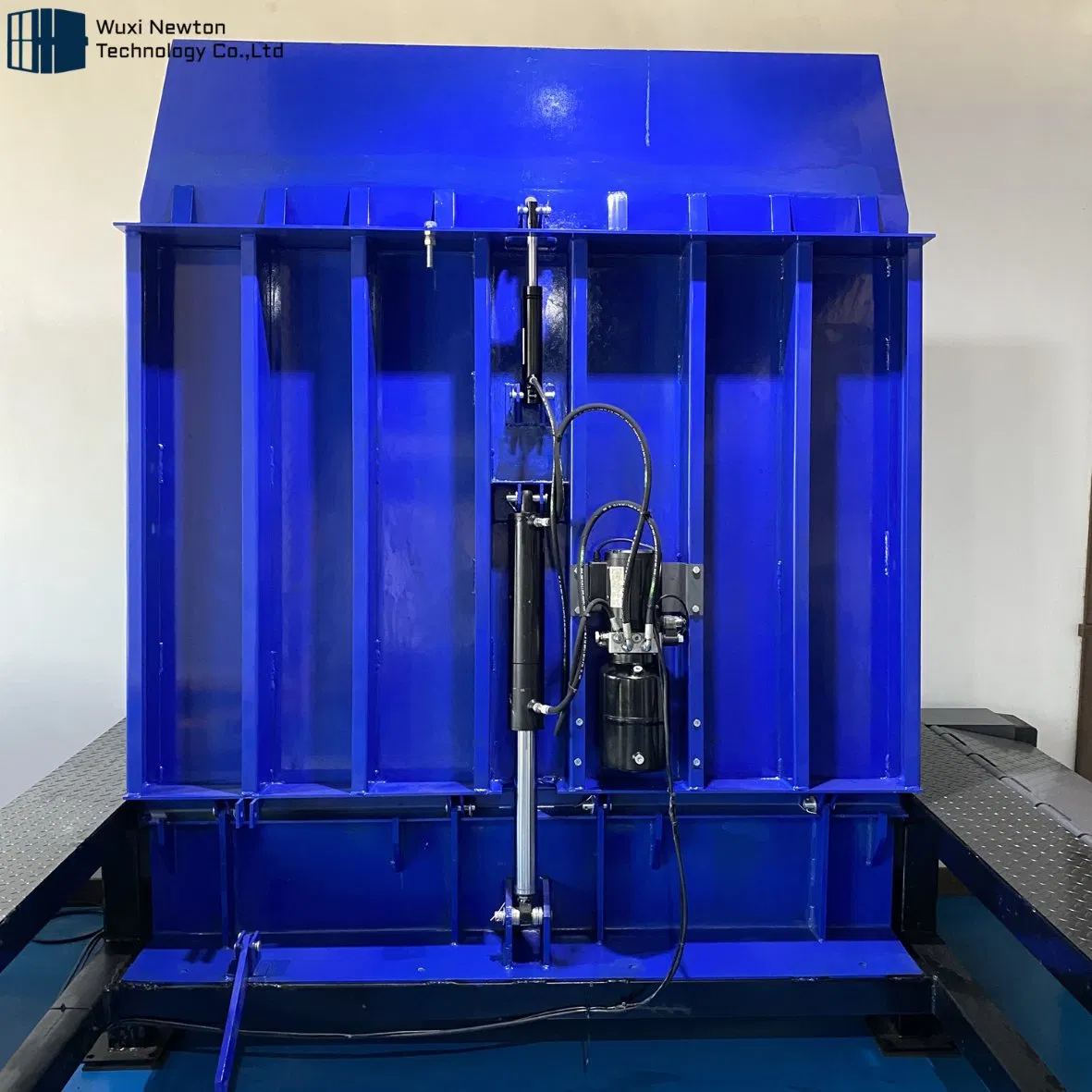

Vertical Dock Leveler
Enhanced pedestrian safety, sanitation, and environmental control.

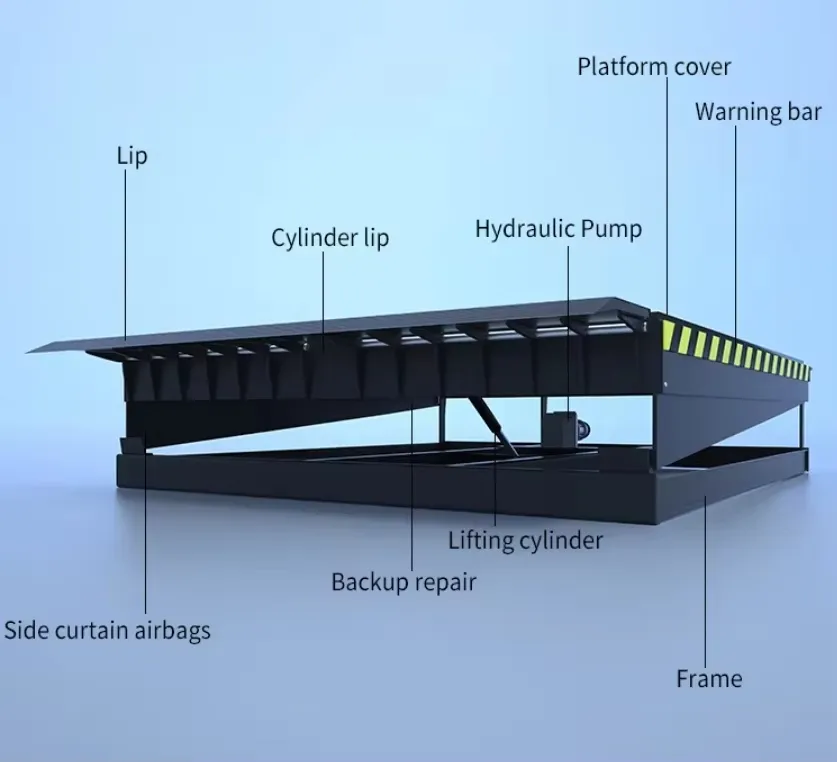

1. Solenoid valve | 2. Anti-explosion valve | 3. Feet protection plate | 4. Maintenance rod | 5. High quality rubber sealing strip | 6. Open type hinge | 7. Anti-rust galvanized parts | 8. Baking treatment
| Performance Data | |
|---|---|
| Maximum bearing weight | 6000kg (60KN) / 10000kg (10KN) |
| Hydraulic cylinder power | 1.1KW |
| Control power | 24V (IP54) |
| Hydraulic oil | Mobile VG46 |
| Spraying thickness | 60~90 um |

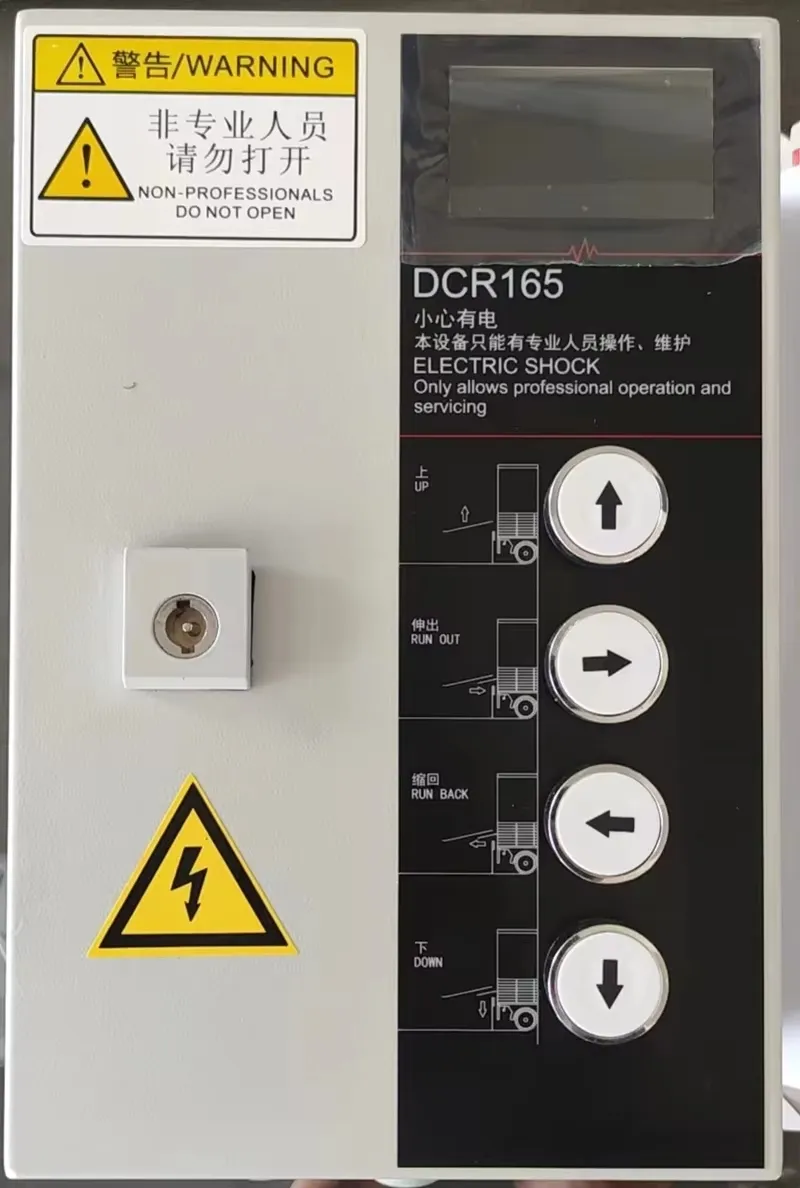

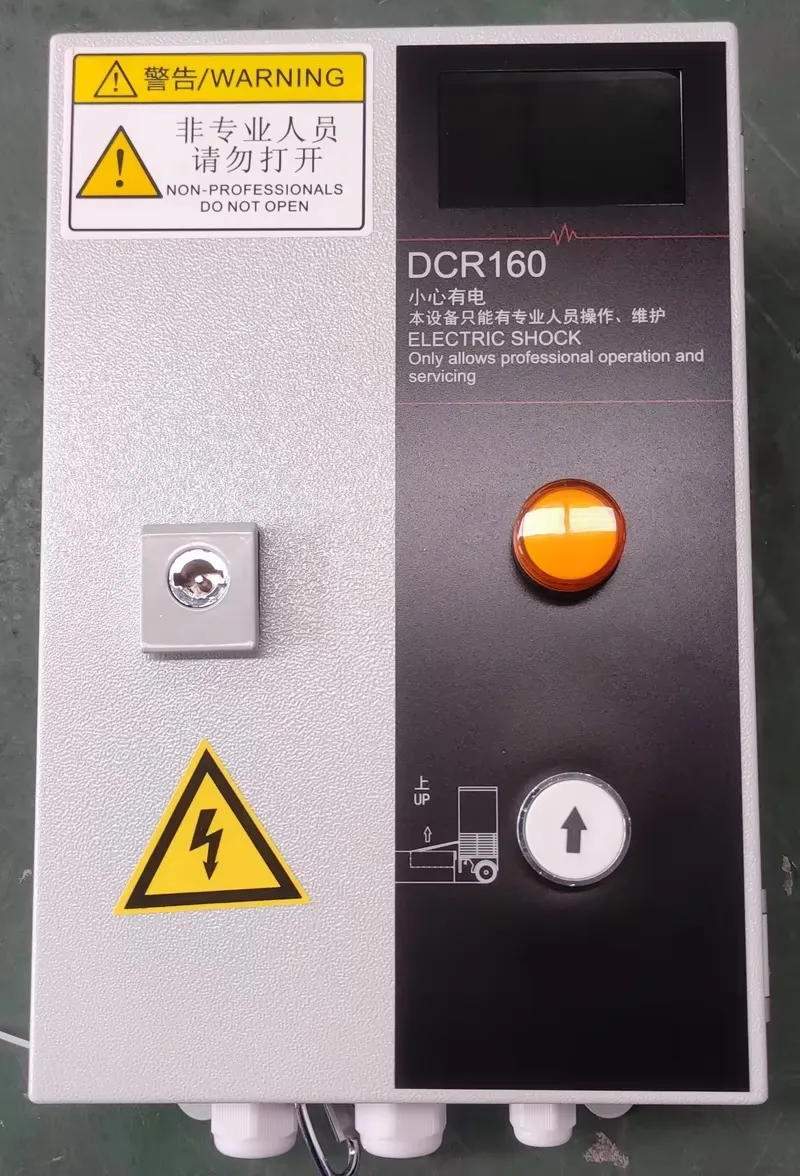

Controllers for Hydraulic & Telescopic Levelers
- Voltage: 220V/380V
- Protection: IP55
- Emergency stop button configuration available.
