Automatic Fixed Stationary Dock Leveler Container Hydraulic Dock Ramp for Warehouse
Automatic Fixed Stationary Dock Leveler Container Hydraulic Dock Ramp for Warehouse
Automatic Fixed Stationary Dock Leveler Container Hydraulic Dock Ramp for Warehouse
Automatic Fixed Stationary Dock Leveler Container Hydraulic Dock Ramp for Warehouse
Automatic Fixed Stationary Dock Leveler Container Hydraulic Dock Ramp for Warehouse
1 / 5
Automatic Fixed Stationary Dock Leveler Container Hydraulic Dock Ramp for Warehouse
Automatic Fixed Stationary Dock Leveler Container Hydraulic Dock Ramp for Warehouse
Automatic Fixed Stationary Dock Leveler Container Hydraulic Dock Ramp for Warehouse
Automatic Fixed Stationary Dock Leveler Container Hydraulic Dock Ramp for Warehouse
Automatic Fixed Stationary Dock Leveler Container Hydraulic Dock Ramp for Warehouse

Automatic Fixed Stationary Dock Leveler Container Hydraulic Dock Ramp for Warehouse

Customization: Available
After-sales Service: Available
Warranty: 1 Year
Send Inquiry

Product Description

🟦 Basic Information
Model NO.
RC-SC-003
Application
Warehouse Crane
Lift Mechanism
Hydraulic
Carrying Capacity
Middle-Level
Moves
Stationary
Driven Type
Hydraulic
Certification
CE, ISO 9001
Loading Capacity
6-10t
Platform Size
2000X2000mm
Origin
China
HS Code
8428909090
Capacity
300/Month
🟦 Product Description

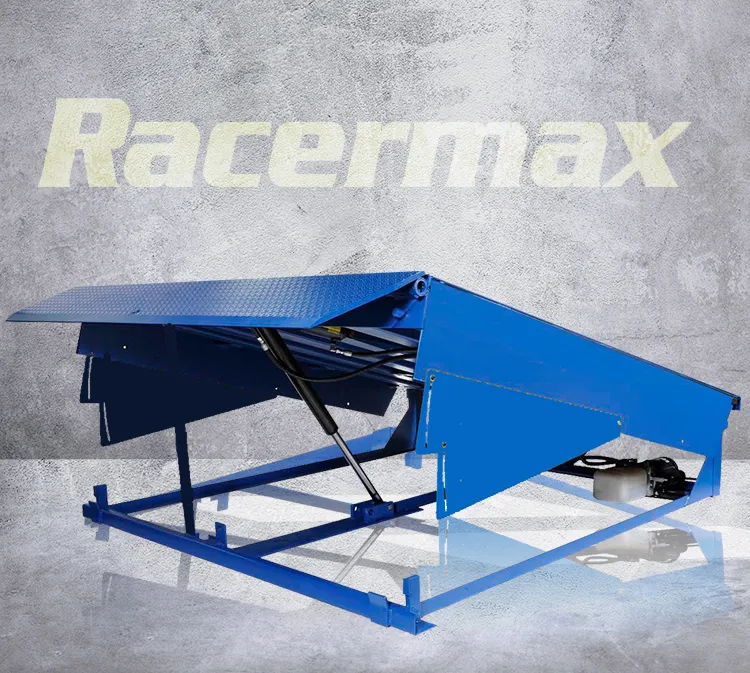

Automatic Fixed Stationary Dock Leveler
Model Capacity (t) Platform Size (mm) Lip Width (mm) Range Motor (kw) Pit Dimensions (mm)
Up Down L W H
AG-6 6 2000*2000 400 300 250 0.75 2050 2040 600
AG-8 8 2000*2000 400 300 250 0.75 2050 2040 600
AG-10 10 2000*2000 400 300 250 0.75 2050 2040 600
AG-12 12 2000*2000 400 300 250 0.75 2050 2040 600
🟦 Detailed View

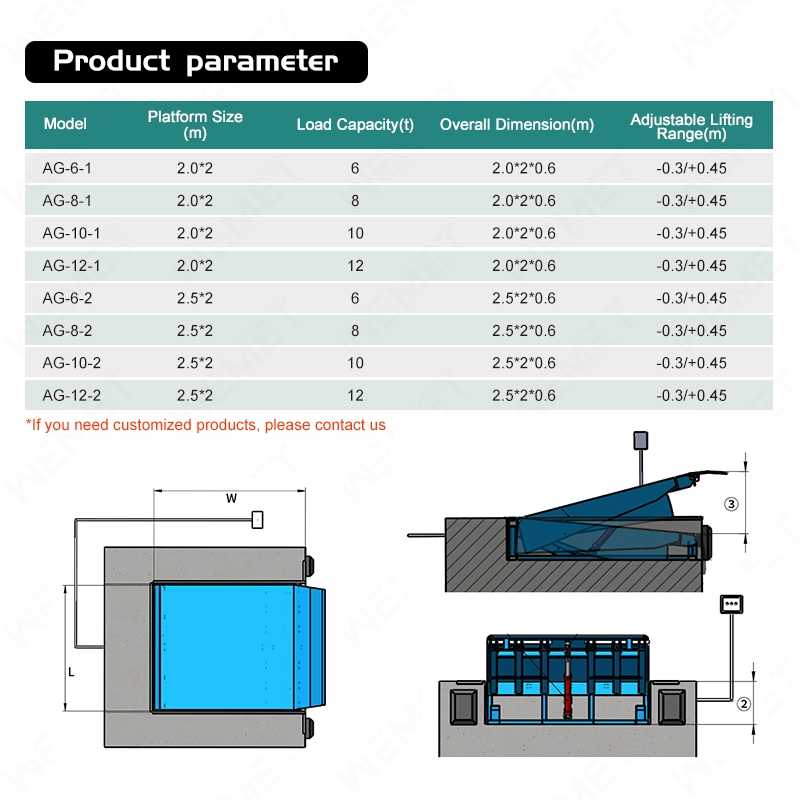

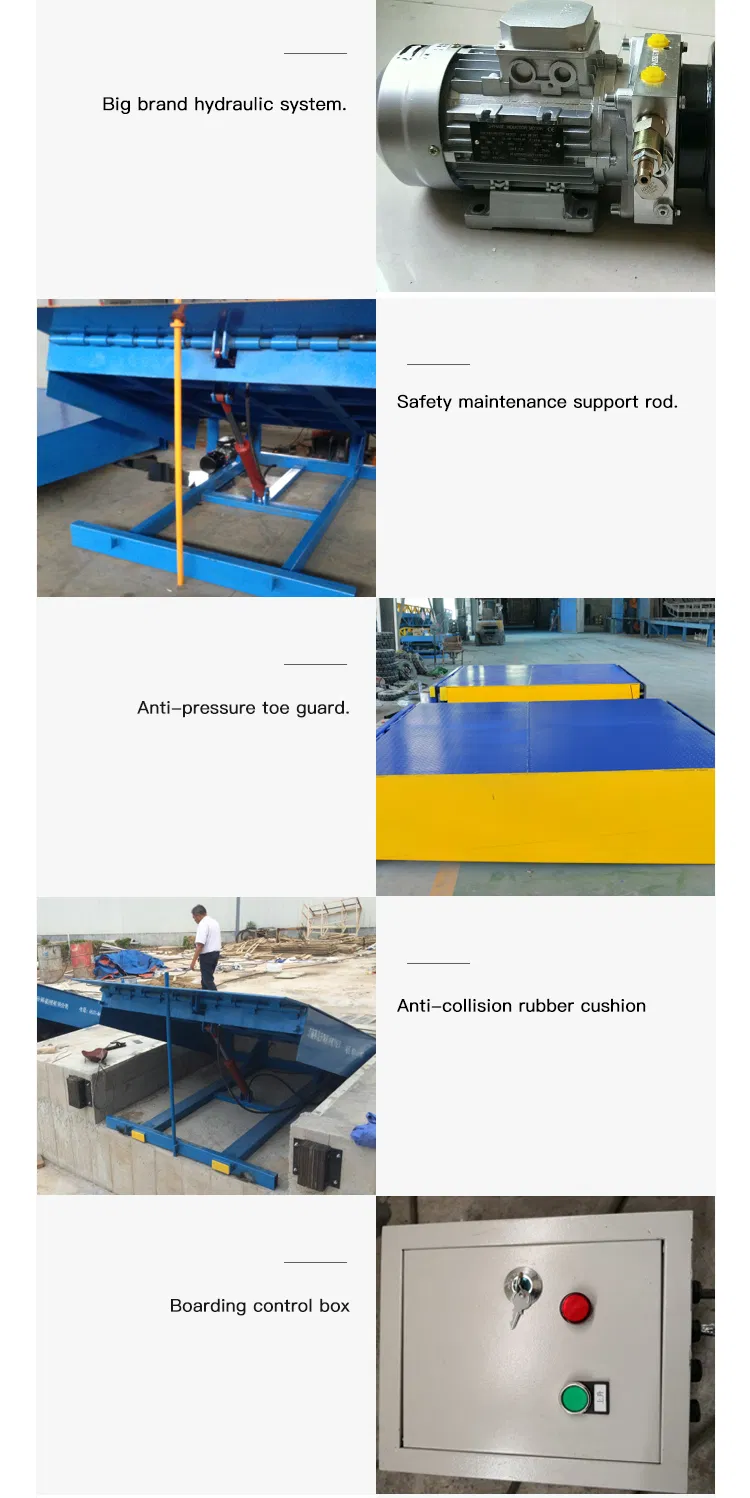

Technical Drawing

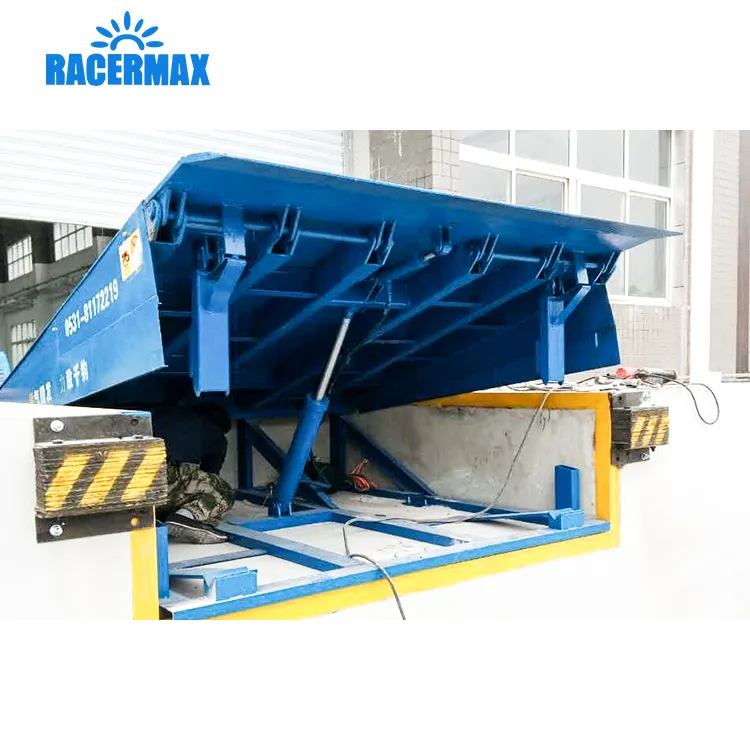

Hydraulic Dock Leveler Detail 1

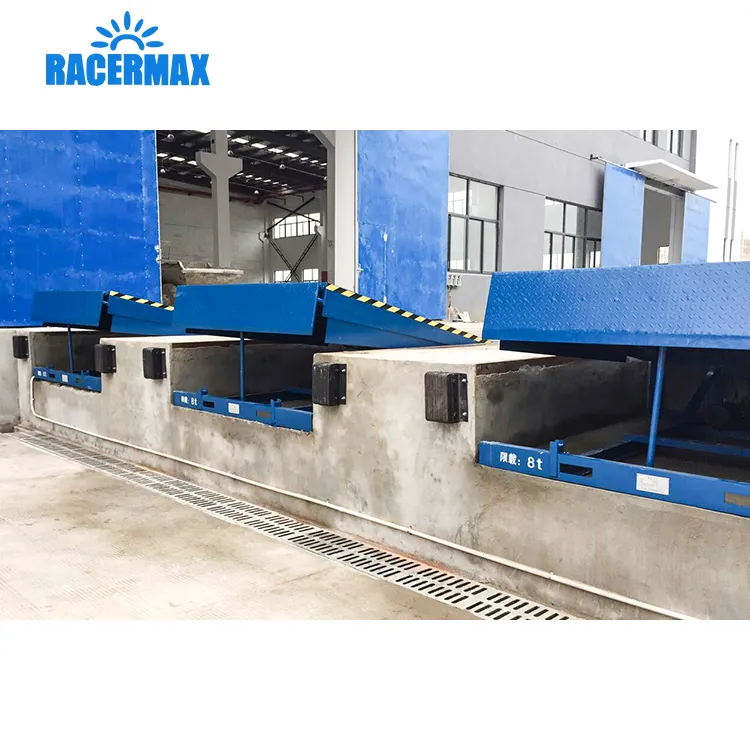

Hydraulic Dock Leveler Detail 2

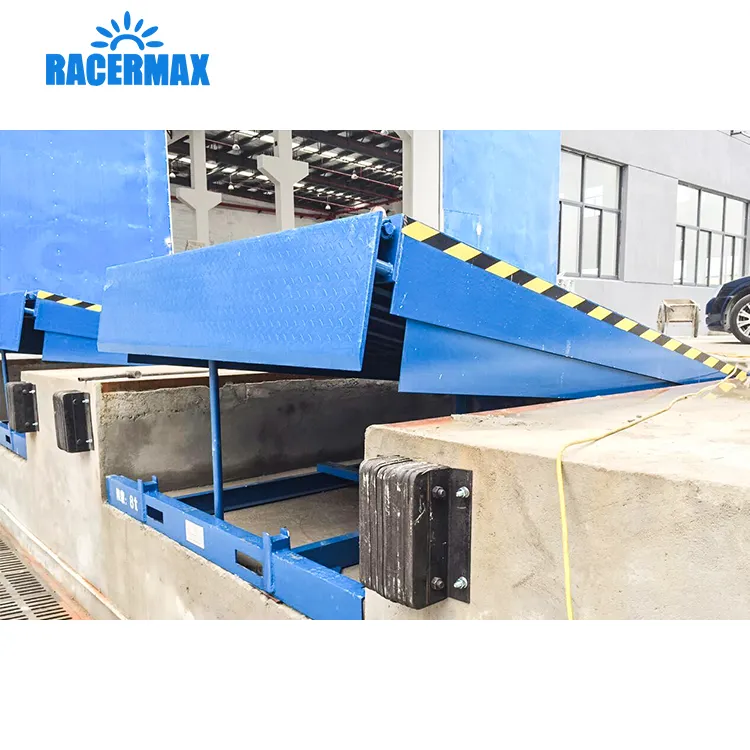

Hydraulic Dock Leveler Detail 3
Hydraulic Dock Leveler Detail 4
Workshop Display
🟦 Frequently Asked Questions
What is the primary function of a stationary dock leveler?
A stationary dock leveler is designed to bridge the gap and height difference between a warehouse floor and a transport vehicle, ensuring smooth and safe loading and unloading of goods using forklifts.
What are the available loading capacities for this model?
This series offers multiple capacity options ranging from 6 tons to 12 tons (6t, 8t, 10t, 12t) to meet different industrial requirements.
Is the platform size customizable for specific warehouse needs?
While the standard platform size is 2000x2000mm, specifications can be adjusted according to the customer's specific pit dimensions and operational requirements.
Which certifications do these hydraulic dock ramps carry?
Our dock levelers are fully compliant with international quality standards, holding both CE and ISO 9001 certifications.
What type of drive system does the dock leveler use?
The system utilizes a high-efficiency hydraulic drive mechanism with a 0.75kw motor, providing stable and reliable lifting performance.
What are the pit requirements for installation?
Standard pit dimensions for these models are approximately 2050mm in length, 2040mm in width, and 600mm in height, though this may vary based on specific model selections.
