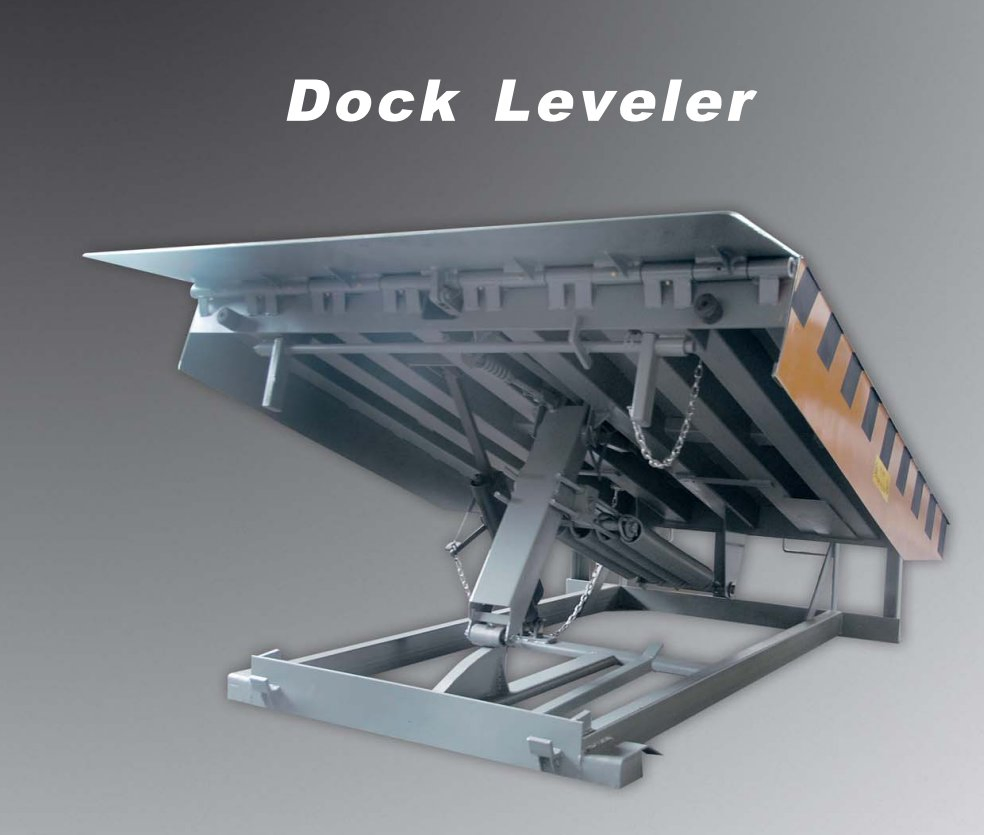

Unloading Platform Stationary Edge Eod Automatic Hydraulic Truck Loading Adjustable Dock Leveler Car Ramp

1 / 5

Unloading Platform Stationary Edge Eod Automatic Hydraulic Truck Loading Adjustable Dock Leveler Car Ramp

Customization:	Available
After-sales Service:	Yes
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

XF-O-2500

Lift Mechanism

Hydraulic Cylinder

Carrying Capacity

6t / 8t / 10t

Moves

Stationary

Driven Type

Hydraulic

Feature

Explosion-Proof

Certification

CE, ISO 9001

Voltage

220V 50Hz / 380V 50Hz

Power

0.75 Kw / 1.5kw

Specification

2000*2000*600 mm

Origin

Made in China

HS Code

84254290

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 60.00cm

Gross Weight

1000.000kg

Transport Package

Wrapping Film

Product Gallery

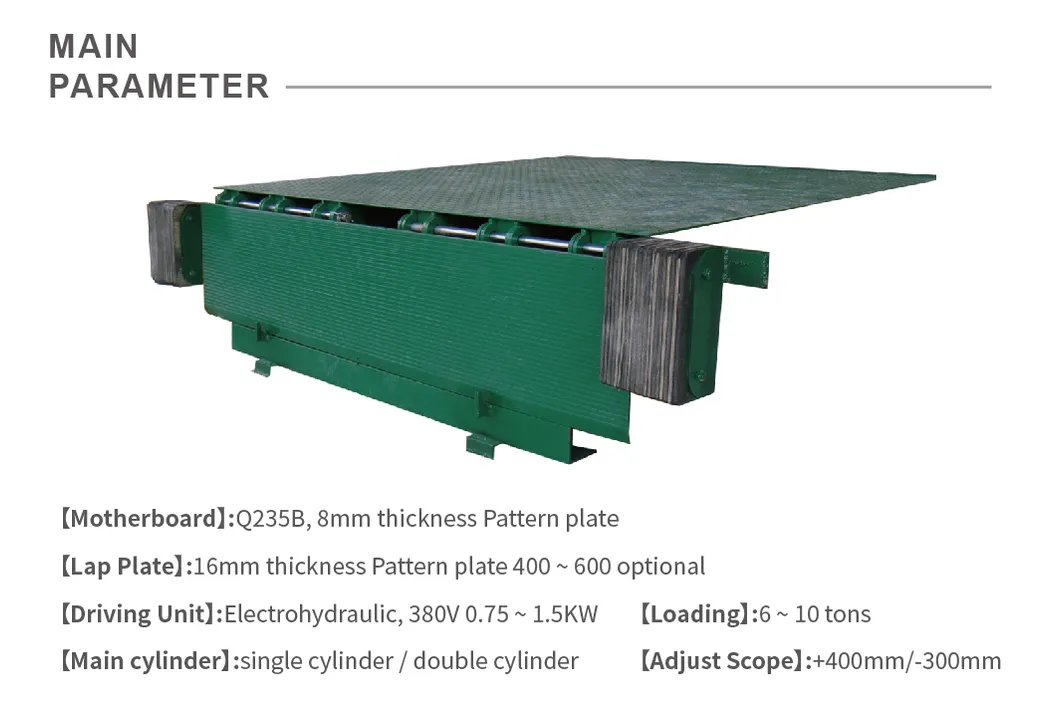

Detailed Technical Parameters

MORE PARAMETERS

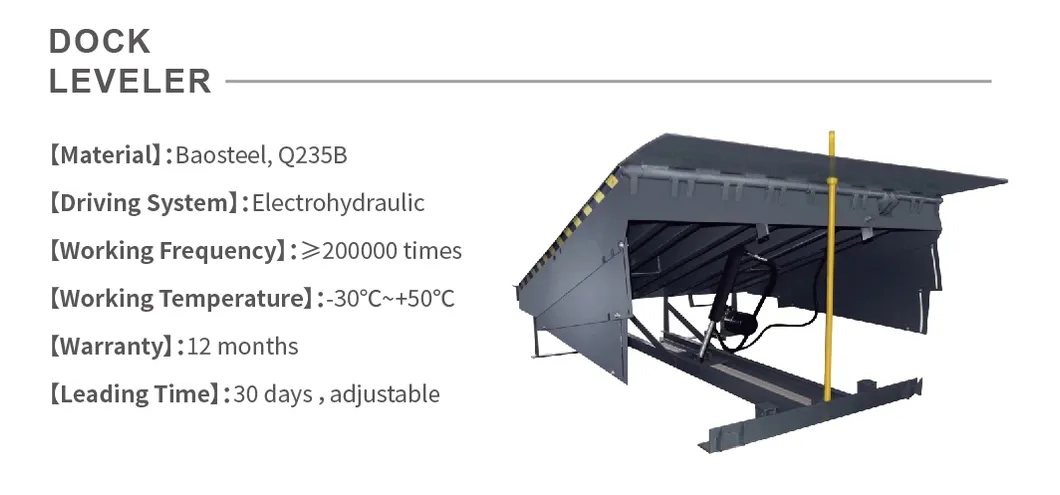

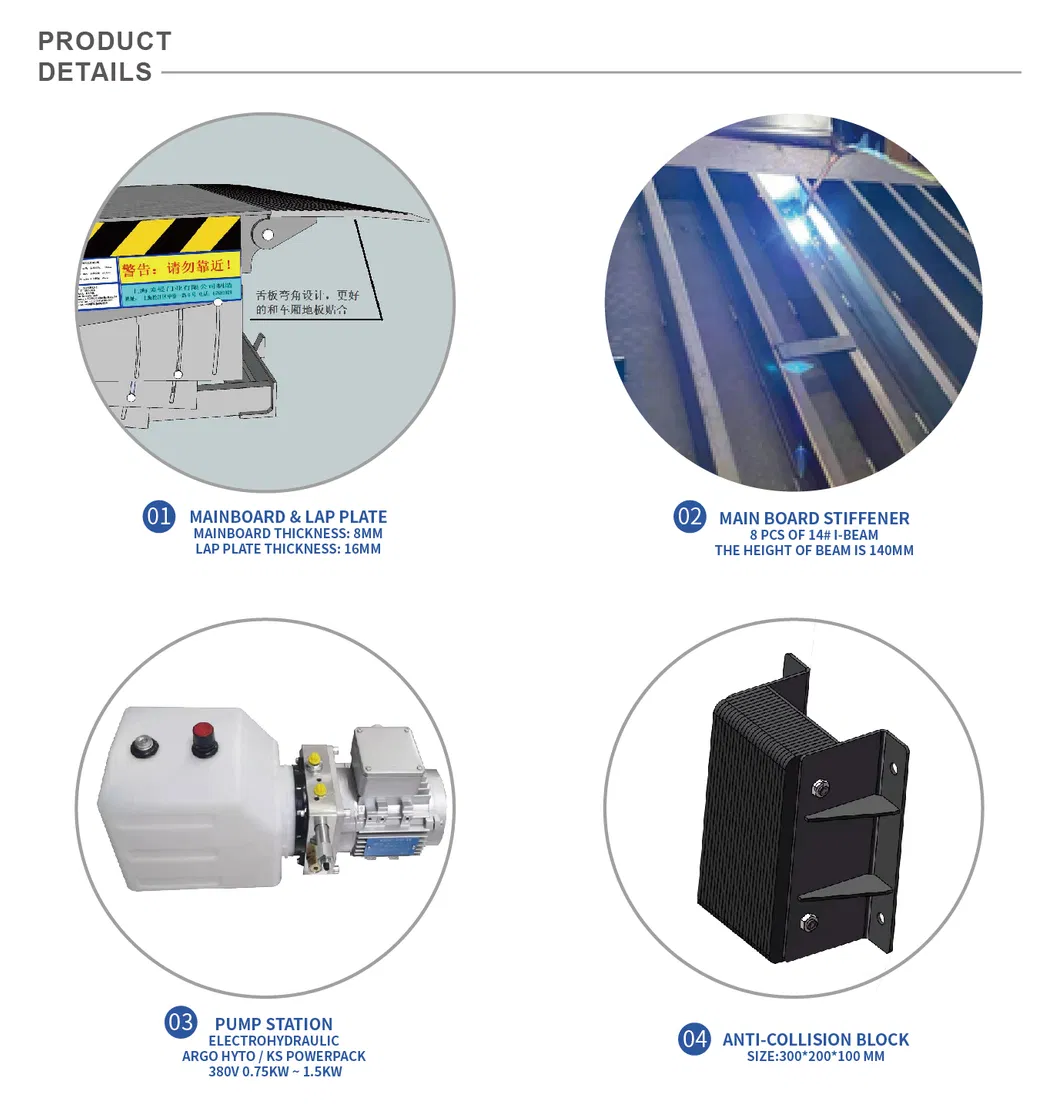

Main Board	Q235B steel plate with anti-slide pattern, thickness: 6/8 mm; blasting surface treatment and powder coating
Lap Plate	Q235B steel plate with anti-slide pattern, thickness: 14/16mm; surface treatment: blasting and powder coating
Hinge	Open type, 8*150mm
Loading Weight	Dynamic load: 6T / 8T / 10T / 12T / 15T
Driving System	Electrohydraulic, high-quality powerpack, 380V 0.75KW ~ 1.5KW
Control System	Standard 380V English interface
Adjust Scope	+400mm / -300mm
Adjust Time	Up ≤ 16S; Down ≤ 10S
Sealing Parts	Complete set of seals for oil cylinder (Brand: NOK A505)
Main Cylinder	Single cylinder / double cylinders
Main Board Stiffener	8 pcs of 14# I-Beam, height of Beam: 140mm
Side Baffles	Automatic retraction to ensure safety
Working Temperature	-30ºC ~ +50ºC
Safety Part	Explosion proof valve
Working Frequency	≥ 200,000 times

Technical Remarks:
1. Professional enterprise specializing in industrial door design, manufacturing, and installation.
2. Utilization of advanced equipment and technology to provide high-quality products and professional solutions.
3. Main product range includes steel doors, fire doors, high speed doors, sectional doors, and logistic docking systems.
4. Certifications: China AAA Enterprise, ISO9001: 2000 Management Certification, CE Certification.

Frequently Asked Questions (FAQ)

What is the dynamic load capacity of this dock leveler?

The system supports multiple dynamic load options including 6T, 8T, 10T, 12T, and 15T to suit different industrial needs.

What are the safety features included in the hydraulic system?

It includes explosion-proof valves, automatic retraction side baffles to prevent toe-trapping, and a high-pressure oil pipe rated for 60mpa.

Can it operate in extreme weather conditions?

Yes, the dock leveler is designed to work efficiently within a temperature range of -30ºC to +50ºC using 32# anti-wear hydraulic oil.

What is the vertical adjustment range of the platform?

The platform offers a flexible adjustment scope of +400mm upwards and -300mm downwards to accommodate various truck heights.

How long is the expected operational lifespan?

The unit is engineered for heavy-duty usage with a working frequency of 200,000 cycles or more, ensuring long-term reliability.

What materials are used for the main platform construction?

The main board and lap plate are constructed from Q235B steel plate with an anti-slide pattern, finished with blasting surface treatment and powder coating for durability.
