Product Parameters

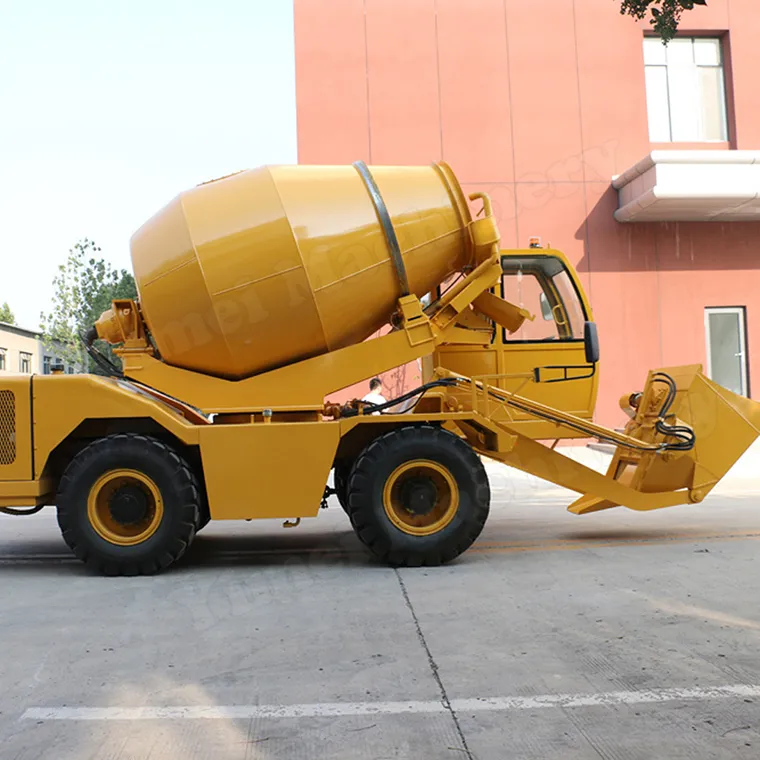

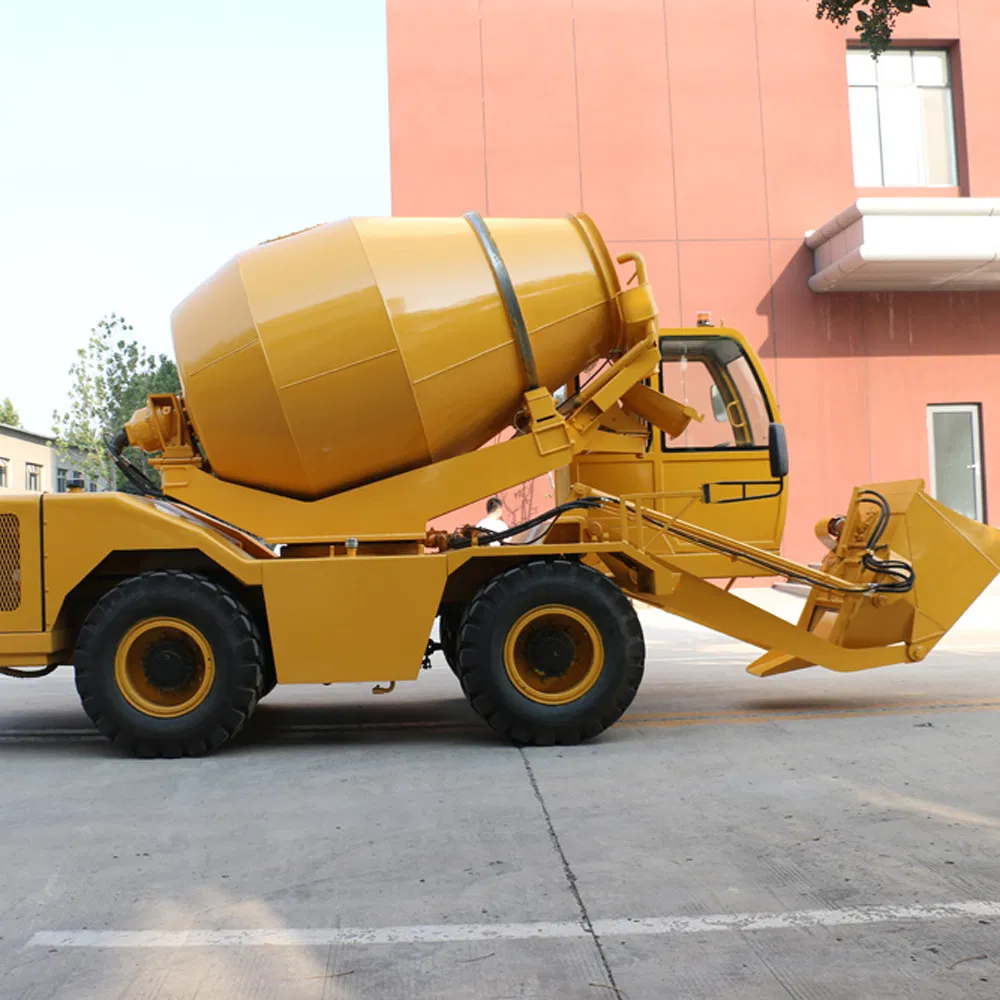

Fm3.5-3 Mobile Self Loading Concrete Mixing Truck
| Net Weight | 8800kg |
| Gross Weight | 16000kg |
| Transmission | Hydraulic 4*4 |
| Brake System | Hydraulic Brake / Independent System |
| Loader Capacity | 0.6m³ |
| Dimensions (L*W*H) | 7011*2441*3310 mm |
| Engine Power | 85KW/2200rpm |
| Drum Capacity | 3.5m³ |

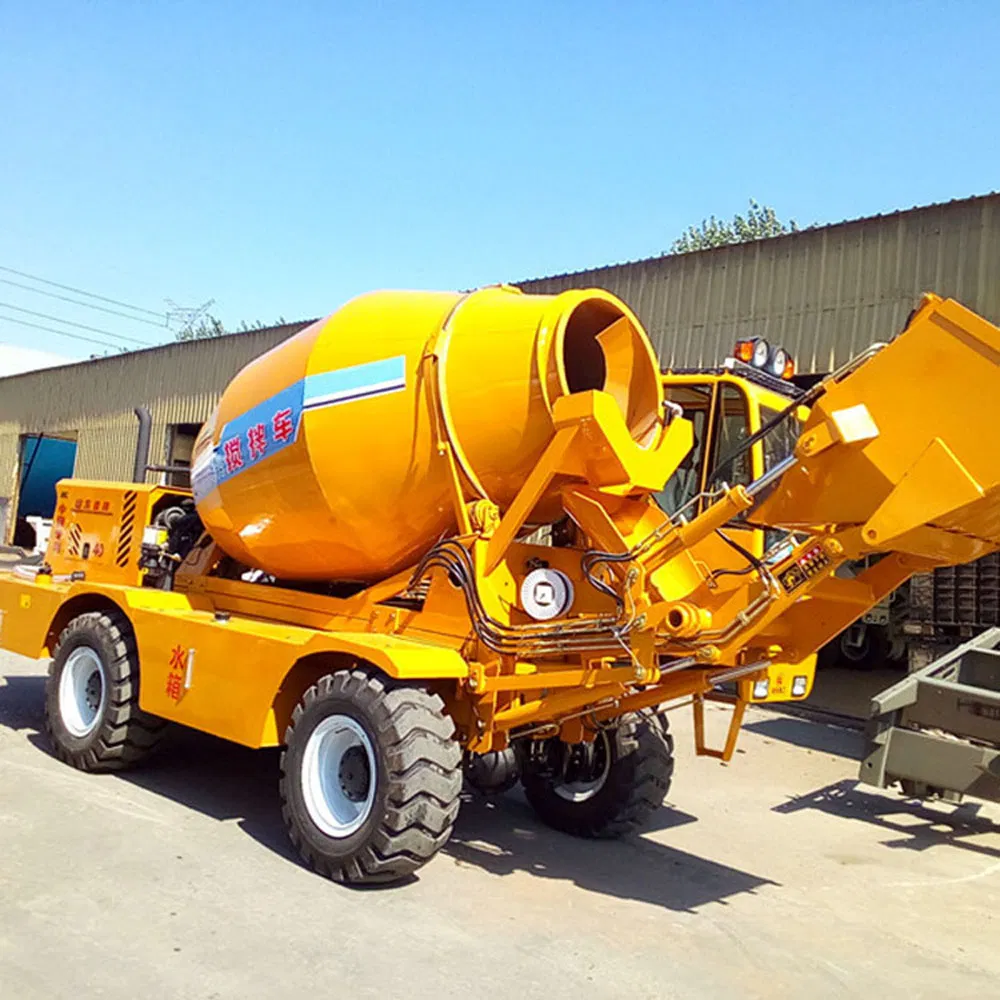

4 Cubic Meter Self Loading Concrete Mixer Truck
| Mixing System | Drum capacity of 4 cubic meters |
| Production Capacity | 12 m³ / h |
| Engine | Yuchai / Xichai 85 kw / 2400 RPM |
| Transmission | Full hydraulic pressure drive, 4 wheel drive |
| Bucket Capacity | 700 liters |
| Weight | 7100 kg |
FM7.5 Self-loading Concrete Cement Mixer
| Mixer Capacity | 7.5 m3 concrete output/h |
| Engine | Cummins 4BTA3.9-C110 (110HP) |
| Drive System | Danvers variable stroke pump, 4 wheel drive |
| Speed | Low: 0-9.5km/h, High: 0-28km/h |
| Weight | Off load: 8t, Full load: 18t |
Frequently Asked Questions
What is the production capacity of the self-loading mixer?
Depending on the model, productivity ranges from 4.8 m³/h for mini models to 16 m³/h or more for heavy-duty models like the FM5.5.
Are these trucks suitable for off-road operations?
Yes, most models are equipped with 4-wheel drive (4x4) systems and construction machinery off-road tires, specifically engineered for rugged construction sites.
What types of engines are used in these mixer trucks?
We use high-performance diesel engines from brands such as Yuchai, Cummins (Dongfeng), and Yunnei, offering power ratings from 48KW up to 110KW.

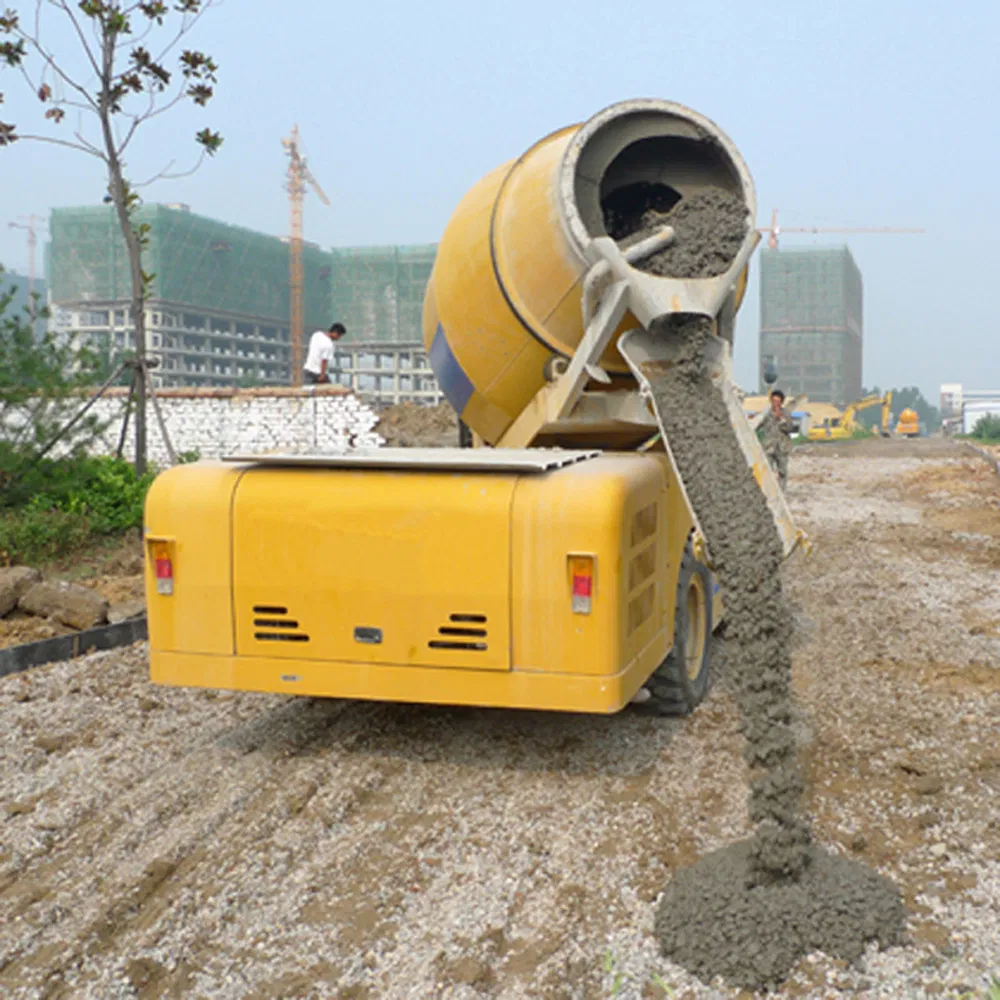

Can the discharge chute direction be adjusted?
Yes, the discharge chutes feature hydraulic adjustable angles and slewing capabilities (often up to 270-300 degrees) to ensure precise concrete placement.
Does the machine include a weighing system?
Electronic weighing systems and measuring water control are available as standard or optional configurations depending on the specific model.
What is the advantage of a self-loading mixer over a traditional one?
It combines loading, mixing, and transport into one machine, significantly reducing labor costs, transportation expenses, and the need for a stationary batching plant.
