Oil Drum Carrier 1100 lbs Load Capacity 3.28 FT Lifting Height Oil Drum Trolley

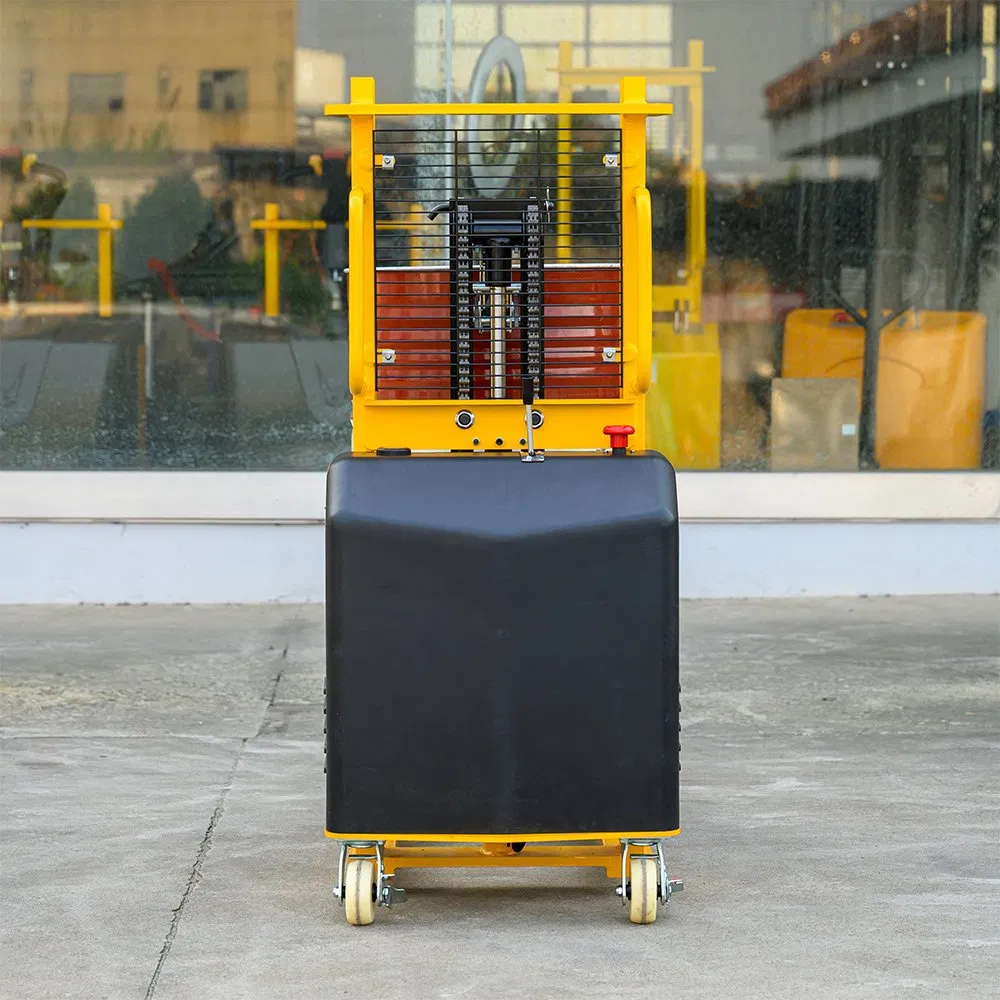

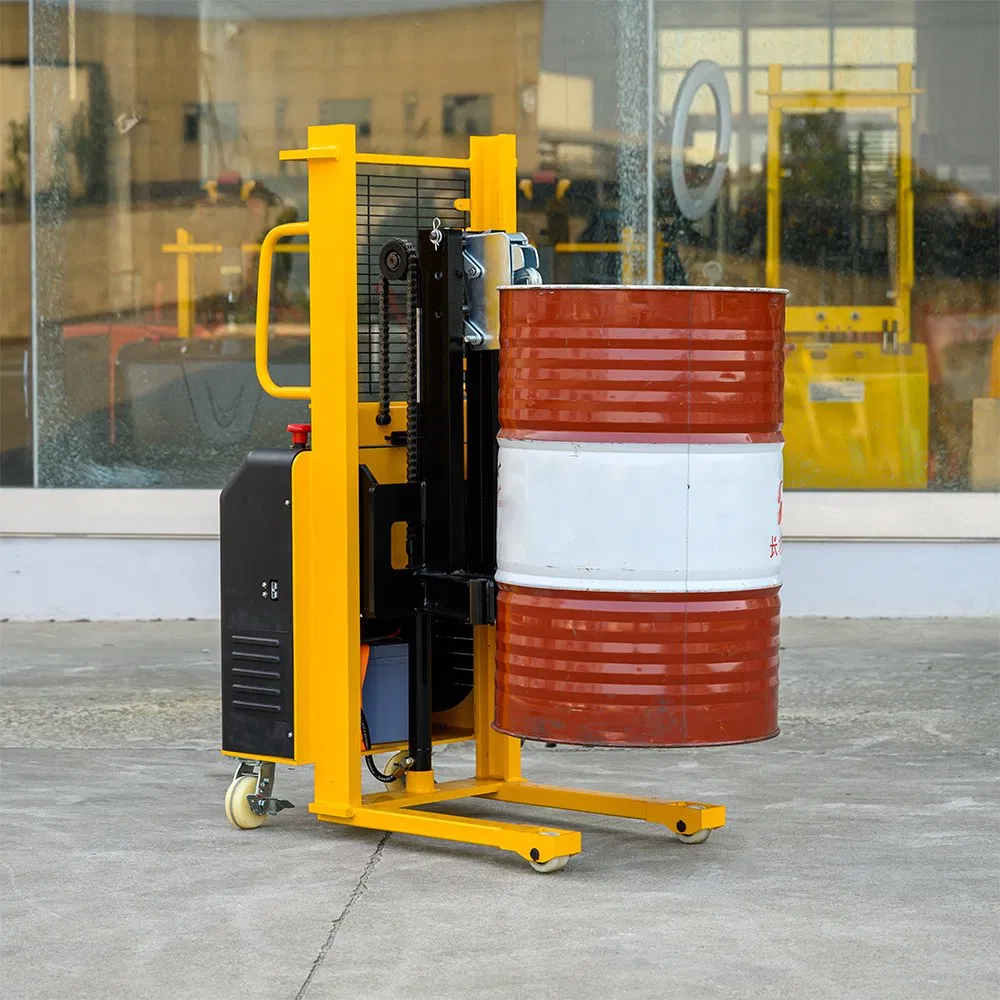

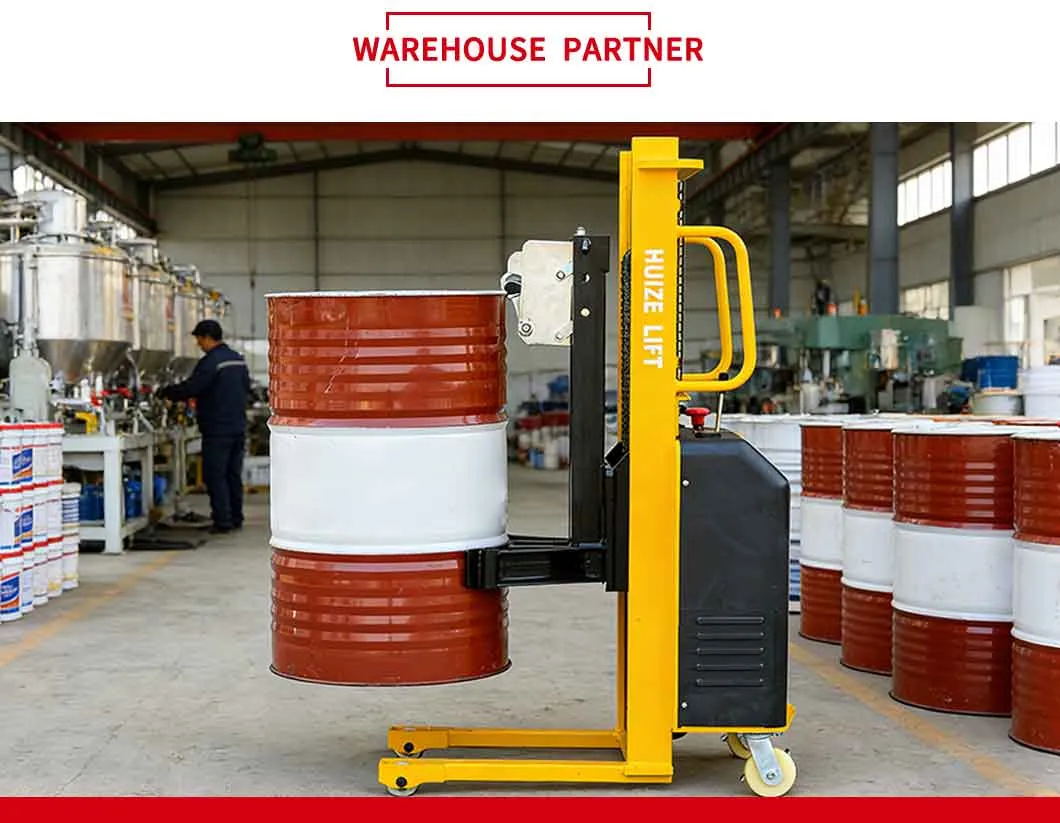

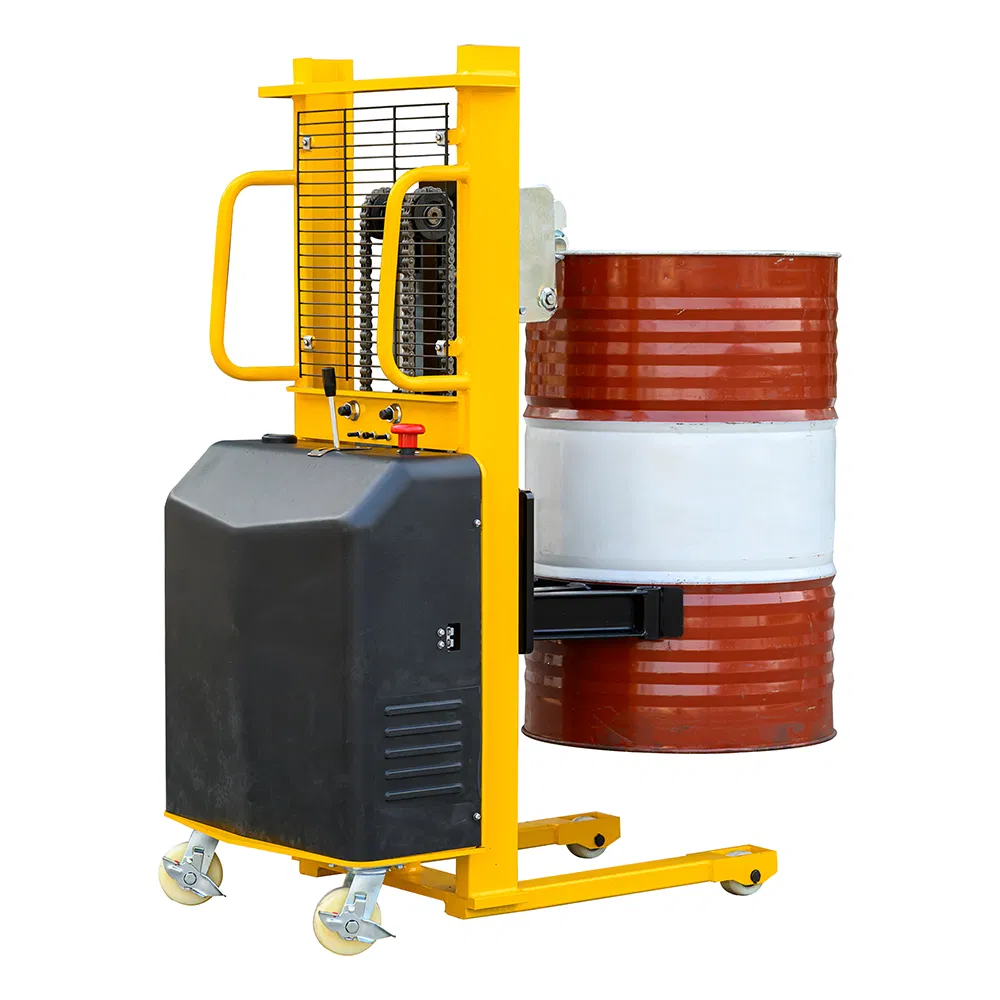

The semi electric drum lifter with eagle beak clamp is a material handling equipment specially designed for the safe and efficient vertical handling of 500kg steel or plastic drums (cylindrical drums). Adopting a design of electric lifting and manual auxiliary movement, it is equipped with a clamping mechanism of eagle-beak type drum clamps, and is widely used in industries that require frequent drum handling such as chemical industry, petroleum, food and beverage, pharmaceutical, coatings, lubricating oil, warehousing and logistics.
| Parameter Item | Unit | Specification 1 | Specification 2 |
|---|---|---|---|
| Rated Load | kg | 500 | 500 |
| Lifting Height | mm | 1000 | 1000 |
| Net Weight | kg | 226 | 254 |
| Caster Specification | mm | Ø80×55/Ø150×50 | Ø80×55/Ø150×50 |
| Turning Radius | mm | 1430 | 1450 |
| Pump Station Power | KW/h | 1.6 | 1.6 |
| Battery | Ah/V | 100/12 | 100/12 |
| Lifting Speed | mm/s | 120 | 120 |

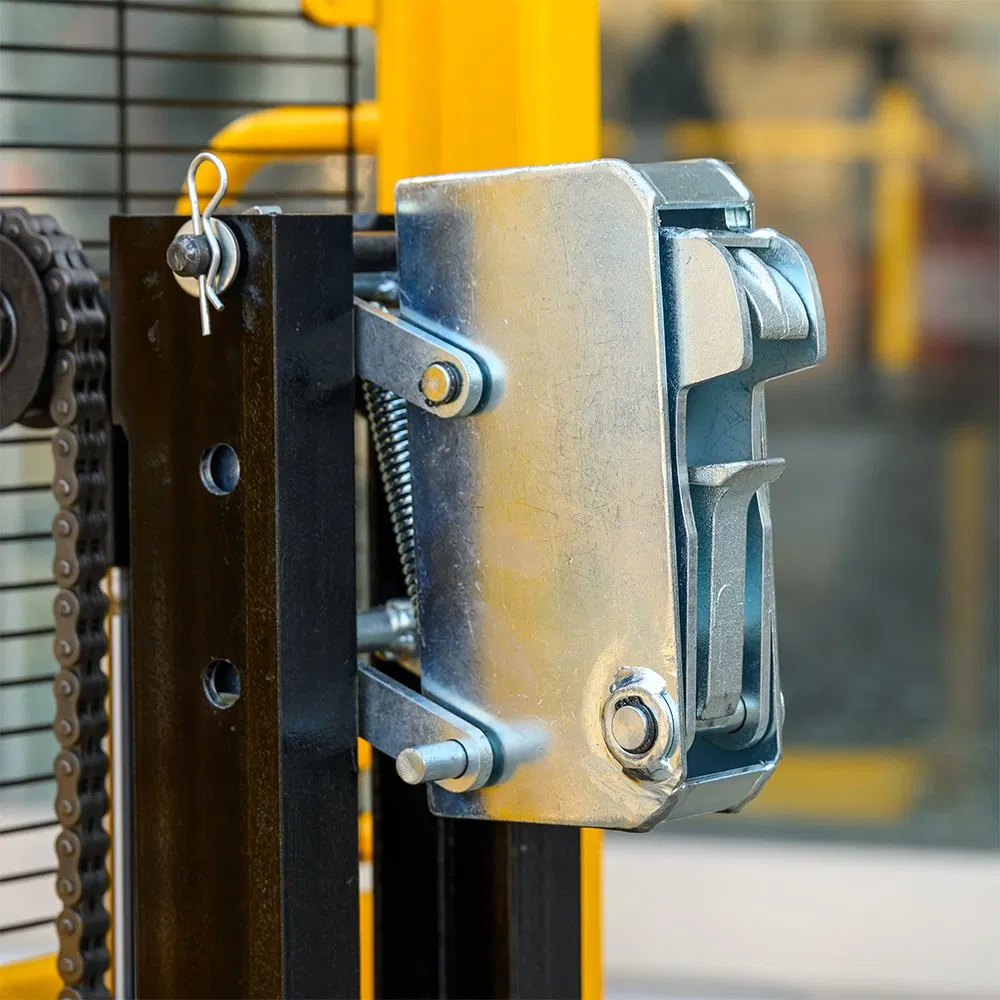

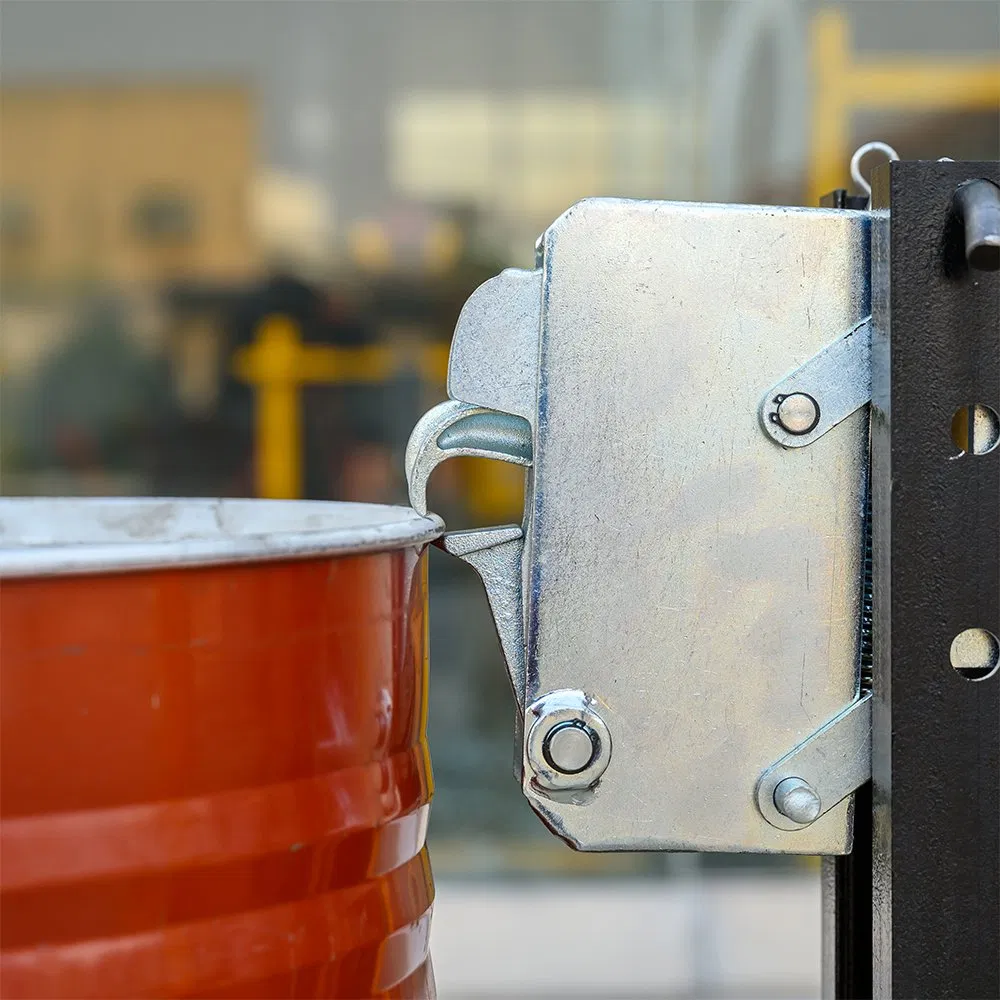

| Eagle Beak Clamp Fastened upper edge clamp and arc-shaped hoop for double safety protection. |

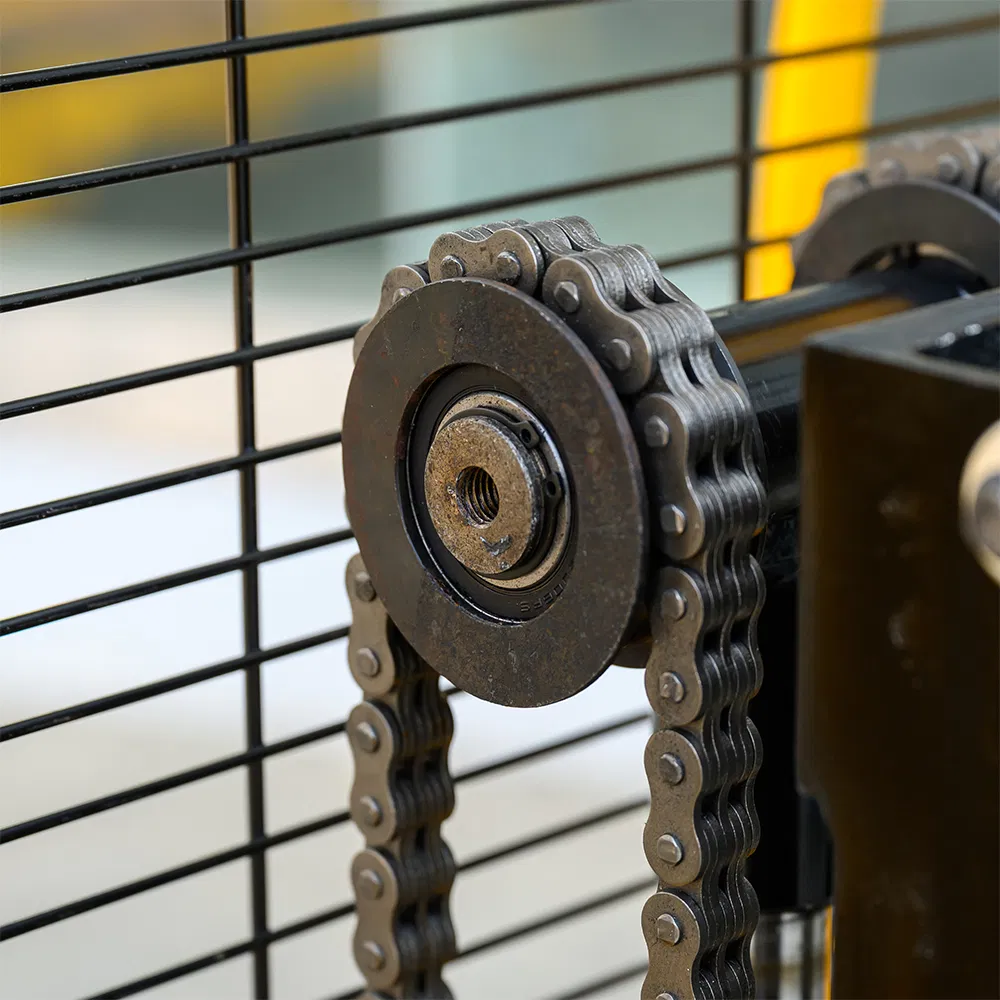

Chain Corrosion-resistant and smooth lifting for a long service life. |

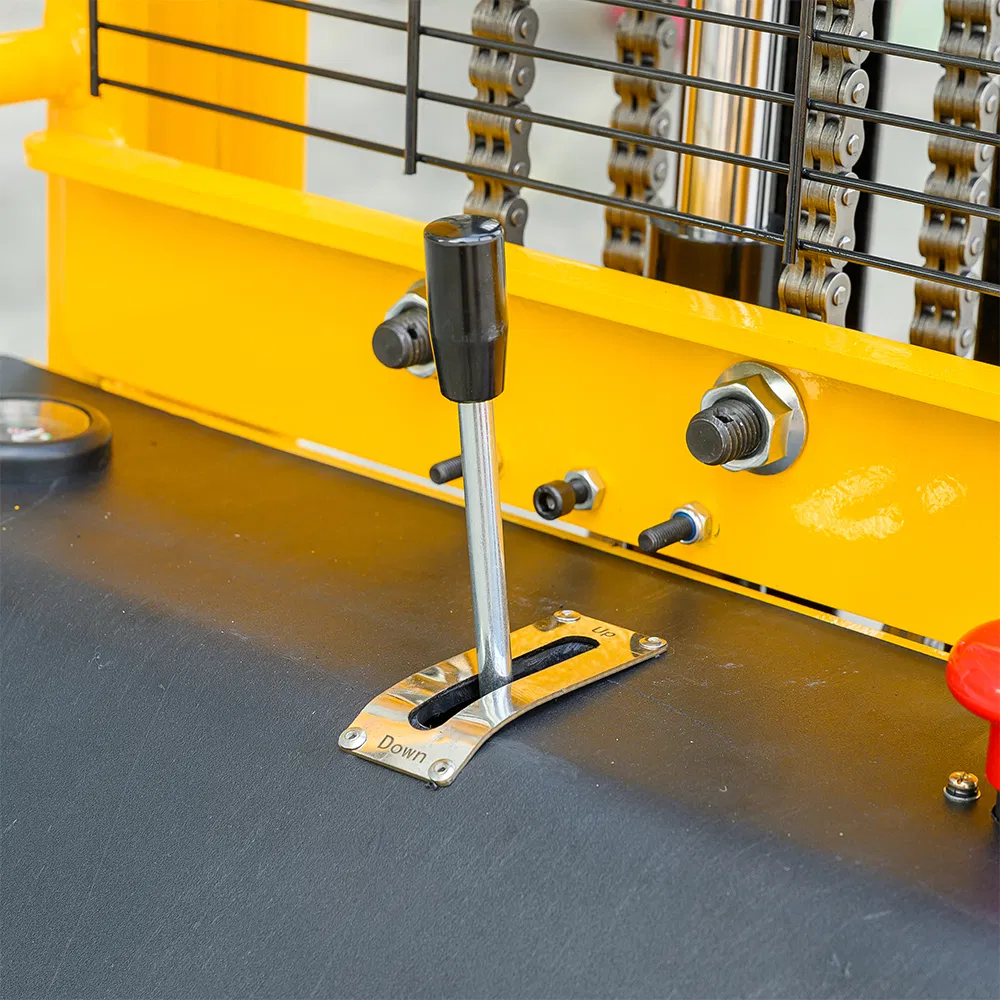

Operation Panel Ergonomic design with intuitive layout for convenient operation. |
As a source manufacturer specializing in material handling and logistics equipment for 18 years, the facility offers complete services including design, self-development, manufacturing, and after-sales support. The product range includes electric stackers, pallet trucks, paper roll lifters, tow tractors, electric cranes, and specialized drum lifters.
