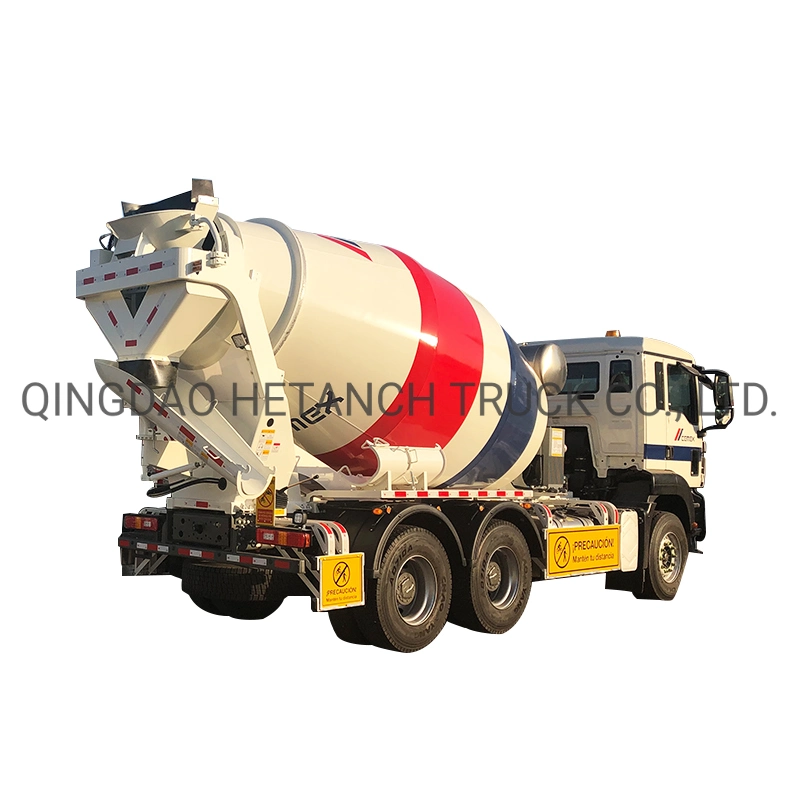

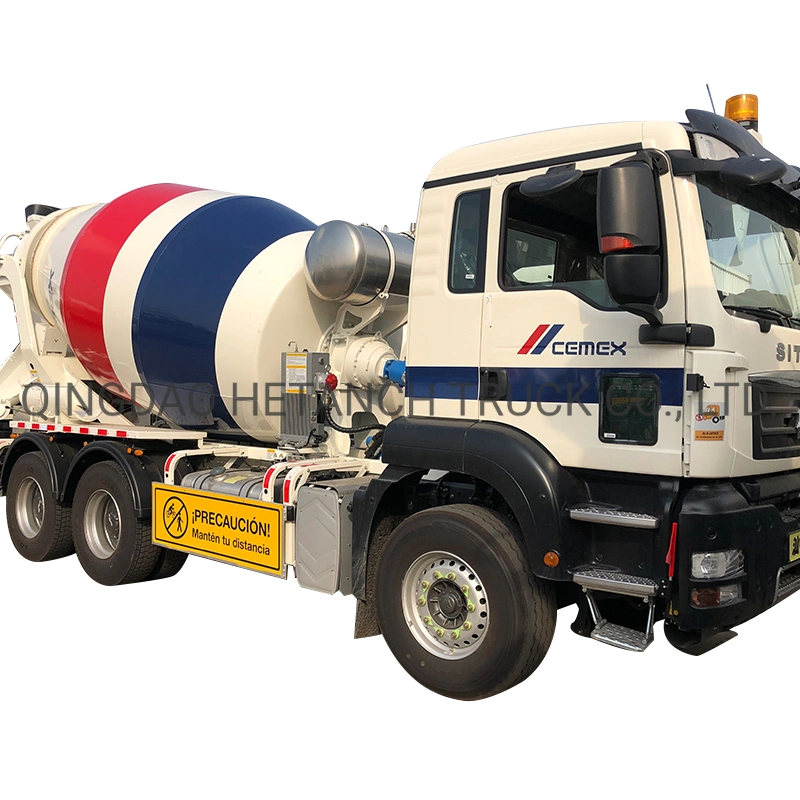

8 ~12 cbm Cement Agitator Using HARDOX steel Mixer Drum Concrete Truck

Customization: Available
After-sales Service: 1
Warranty: 1

Product Description

Basic Specifications
Certification:ISO9000, CCC
Transmission:Manual
Emission Standard:State four
Displacement:9
Payload:20T
Fuel:Diesel
Drive Mode:6x4
Max Horsepower:300-400hp
Condition:New
Truck Type:Agitator Truck
Tire Design:Tubeless/Radial
Load Capacity:8, 9, 10, 12m³
Trademark:FAW
Origin:China
HS Code:87054000
Product Description

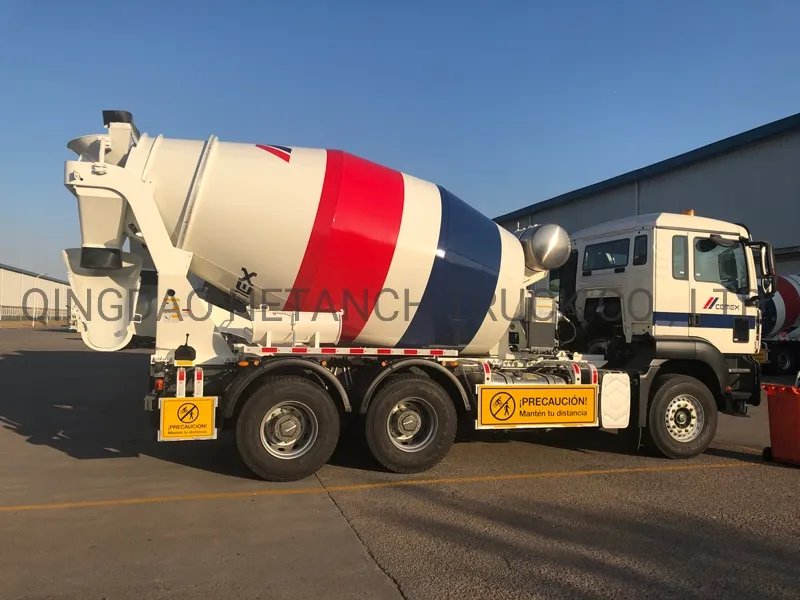

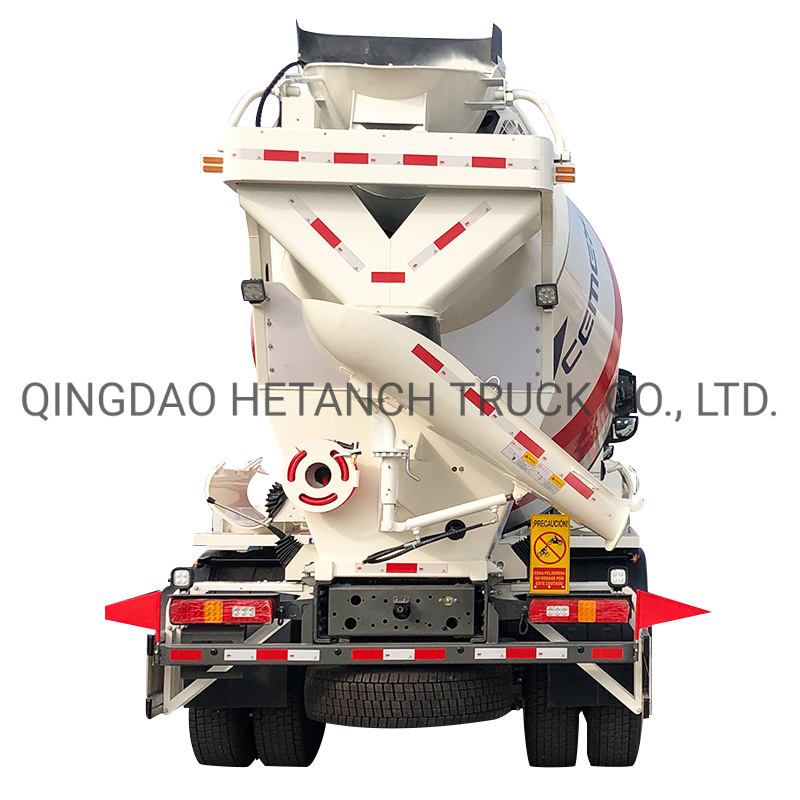

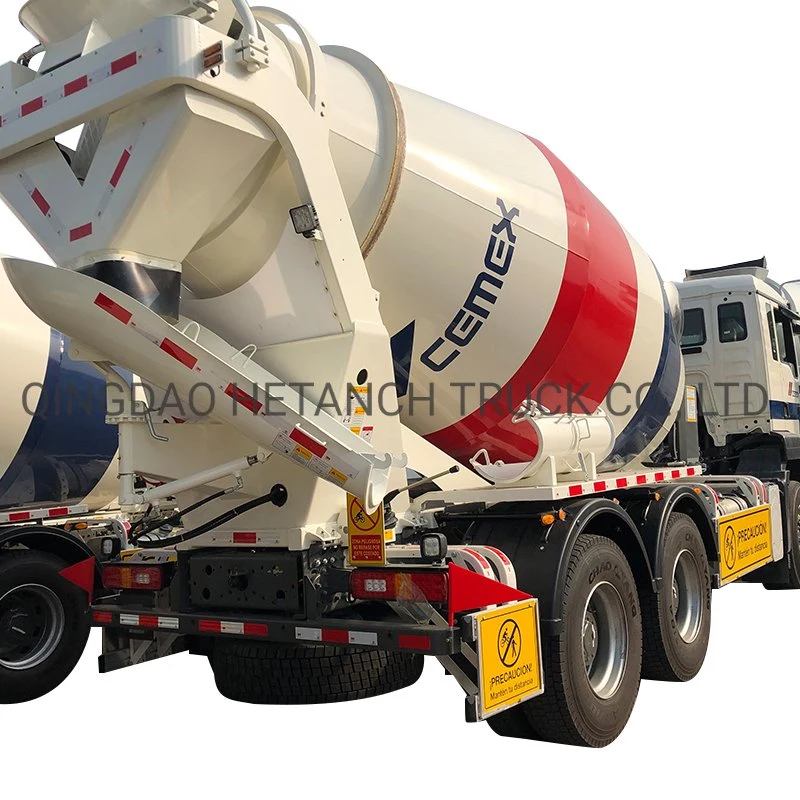

8 ~12 cbm Cement Agitator HARDOX steel Mixer Drum Concrete Truck
6 7 8 9 10 12 m3 Cement Mixing Drum Agitator HARDOX 450 steel Concrete Mixer Truck
Product Parameters
Item Parameter
Declared external dimension (mm)9870×2500×3990
Chassis modelZZ1257N3847C
Curb weight (kg)Actual: 15340 (Declared: 15050)
Rated load (Kg)24980
Maximum vehicle speed (km/h)90/102
Wheelbase (mm)3825+1350
Tire12.00-20 Common tire
Agitating volume (cubic meter)10
Feed rate (m³/min)≥2.7
Discharge rate (m³/min)≥0.65
Rotating speed of drum (r/min)0-14
Engine modelWD615.95E
Rated power (kw/hp)247/336
TransmissionHW15710
Pump / MotorARK Pump PV089 / ARK Motor MF089

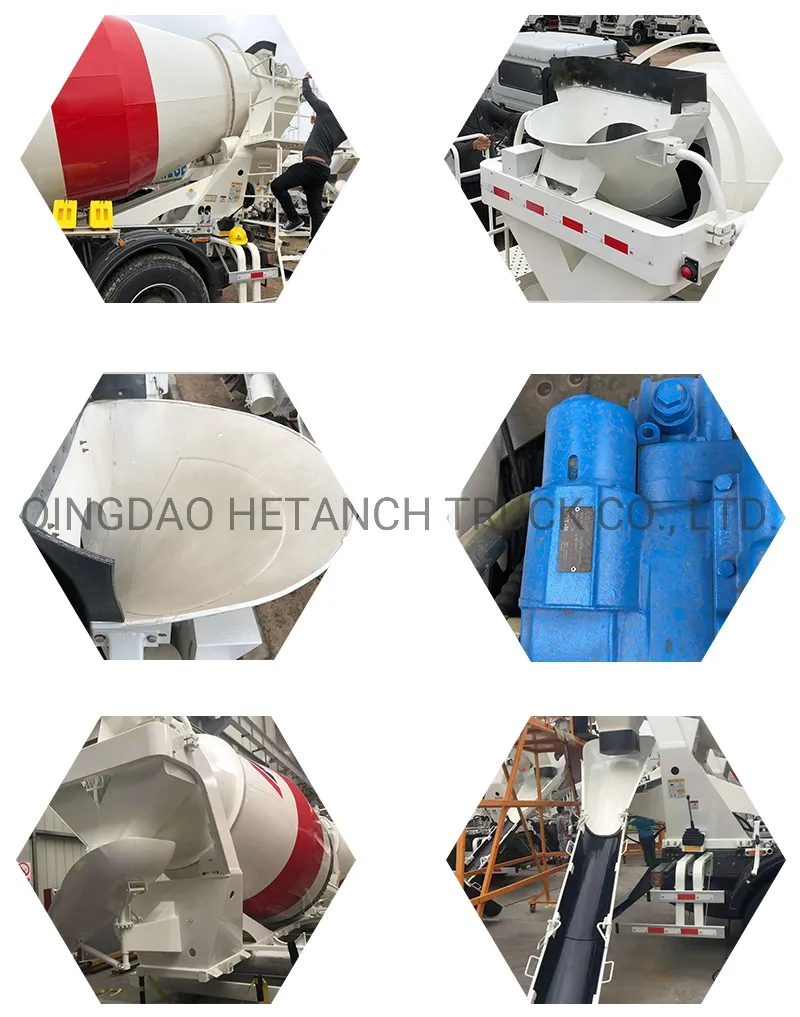

Product Details & Advantages
  • Manufacturer with more than 14 years professional exporting experience.
  • CCC, SGS and ISO9001 certificate, one year guarantee term provided.
  • Small orders accepted.
  • Any color and logo customization available.
  • Products can be custom-made according to design or diversified needs.
Specialist in truck refitting and semi trailer manufacturing, supplying various special purpose trucks. Our products have gained international admiration since 2005, exporting to more than 30 countries. We focus on high quality and excellent performance, never reducing material quality even for expensive components.

Product ranges include all types of trucks, semi trailers, low bed trailers, container transport trailers, van series, tanker trailers, and concrete mixer trucks. Major markets include Philippines, Tunisia, Vietnam, Tanzania, Angola, Mongolia, Venezuela, UAE, Kenya, and more.
Frequently Asked Questions
1. What is the mixing capacity of your concrete trucks?
We offer a wide range of capacities including 6m³, 8m³, 9m³, 10m³, and 12m³ to suit different construction requirements.
2. What kind of steel is used for the mixer drum?
We use high-quality HARDOX 450 wear-resistant steel for our mixer drums to ensure durability and a long service life under heavy-duty use.
3. Does the truck come with international certifications?
Yes, all our concrete mixer trucks are certified with ISO9001, CCC, and SGS standards, ensuring they meet global safety and quality regulations.
4. Can I customize the color and logo of the truck?
Absolutely. We provide full customization services where you can choose any color and have your company logo applied according to your design.

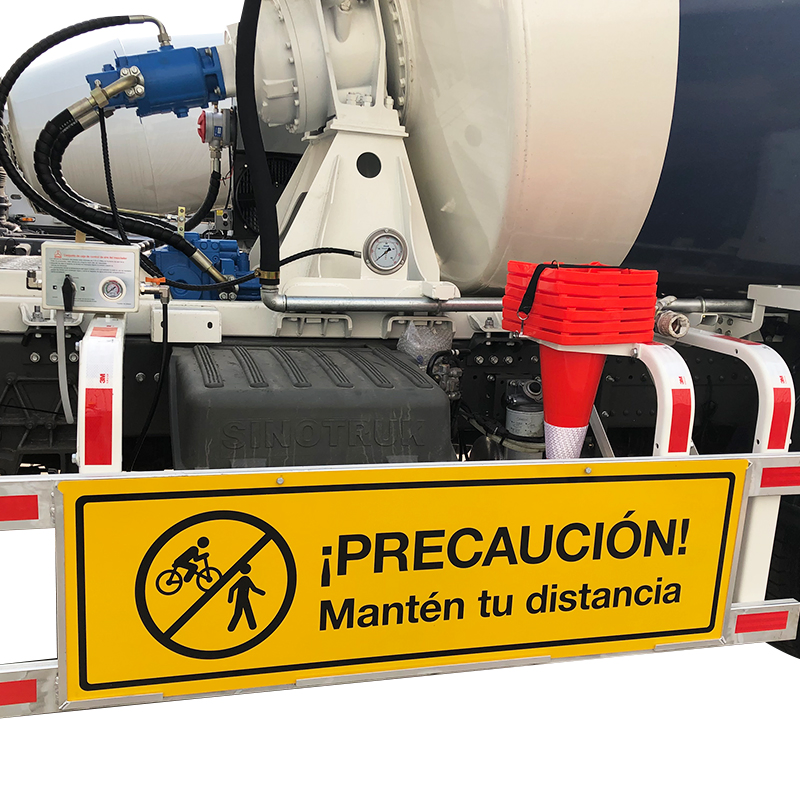

5. What are the key components of the hydraulic system?
Our trucks are equipped with high-performance components, typically featuring ARK pumps and motors (such as PV089/MF089) and TOP P68 reduction gears for stable operation.
6. What is the discharge and feed rate of the 10m³ model?
The feed rate is ≥2.7 cubic meters per minute, and the discharge rate is ≥0.65 cubic meters per minute, with a very low residual ratio of ≤0.5%.
