China Factory Price 400kg Drum Hand Rotator Lm800 Oil Drum Lifting Clamps

1 / 5

China Factory Price 400kg Drum Hand Rotator Lm800 Oil Drum Lifting Clamps

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

LM800

Material

Carbon Steel

Surface Treatment

Powder Coating

Name

Below-Hook Tilting Drum Dispenser

Lifting Capacity

400kg

Colour

Yellow or Customized

Overall Size

900*600*950mm

Type

Drum Handling Equipment

Product Description

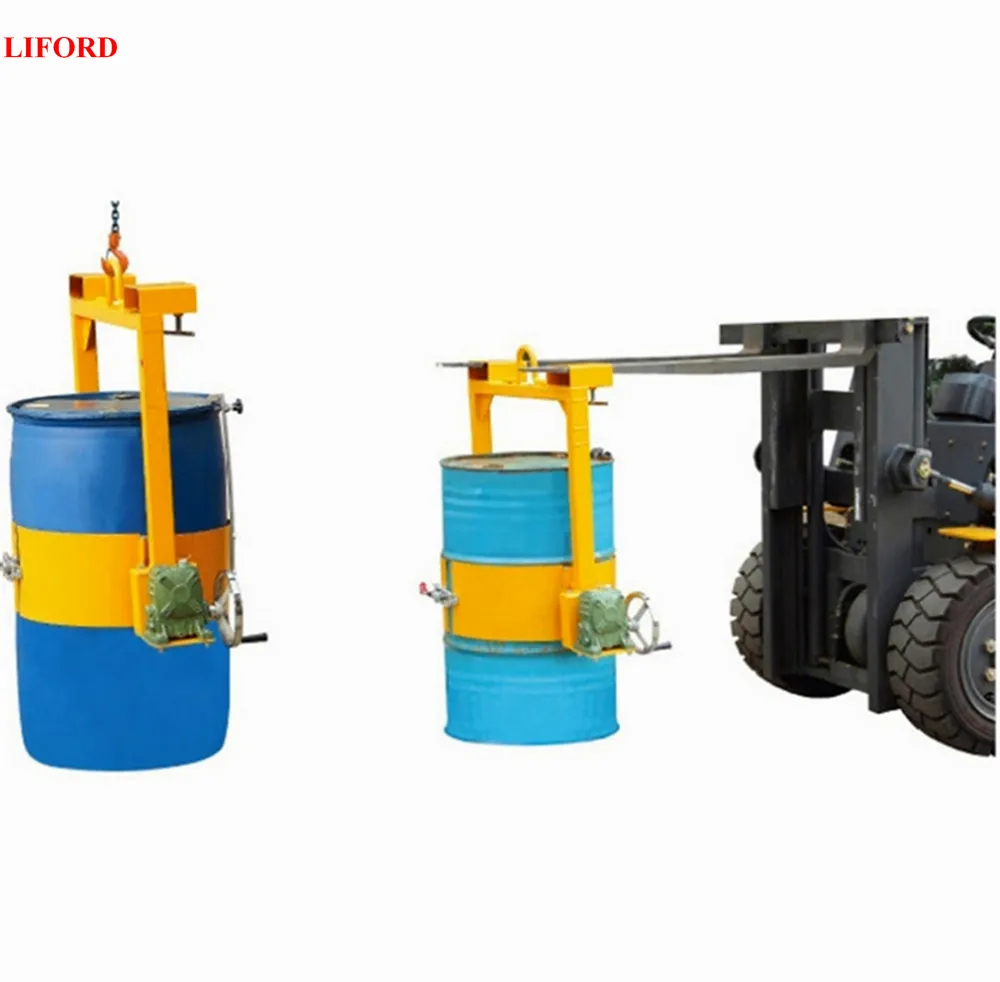

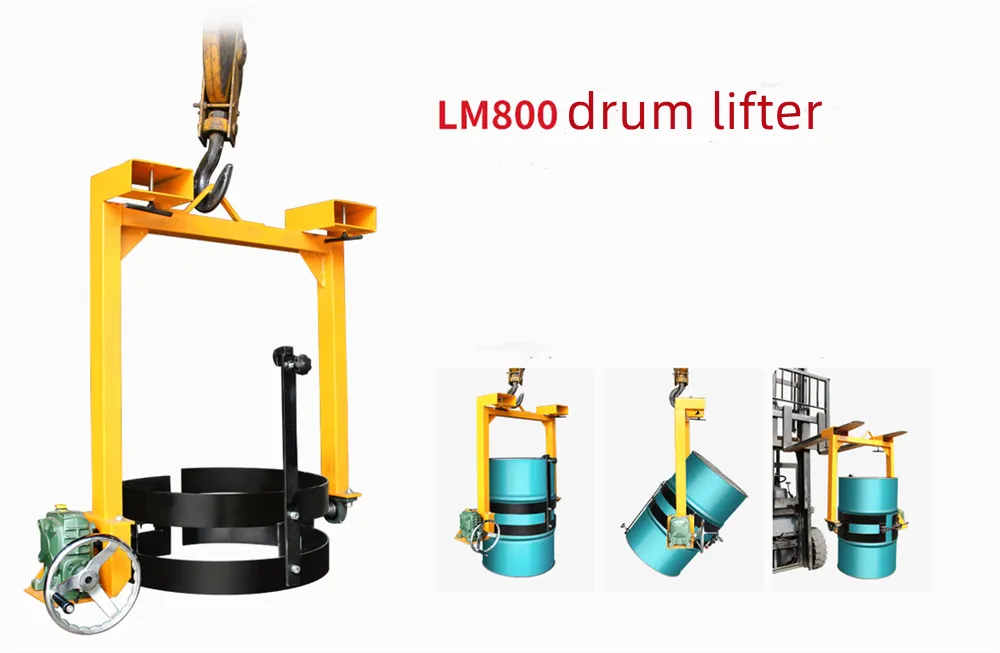

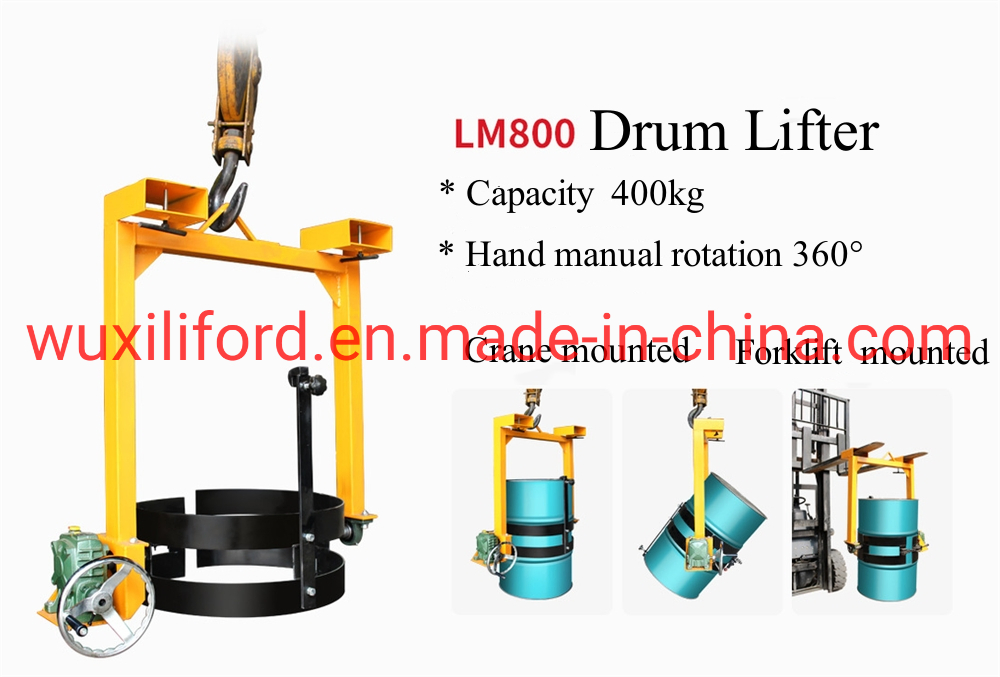

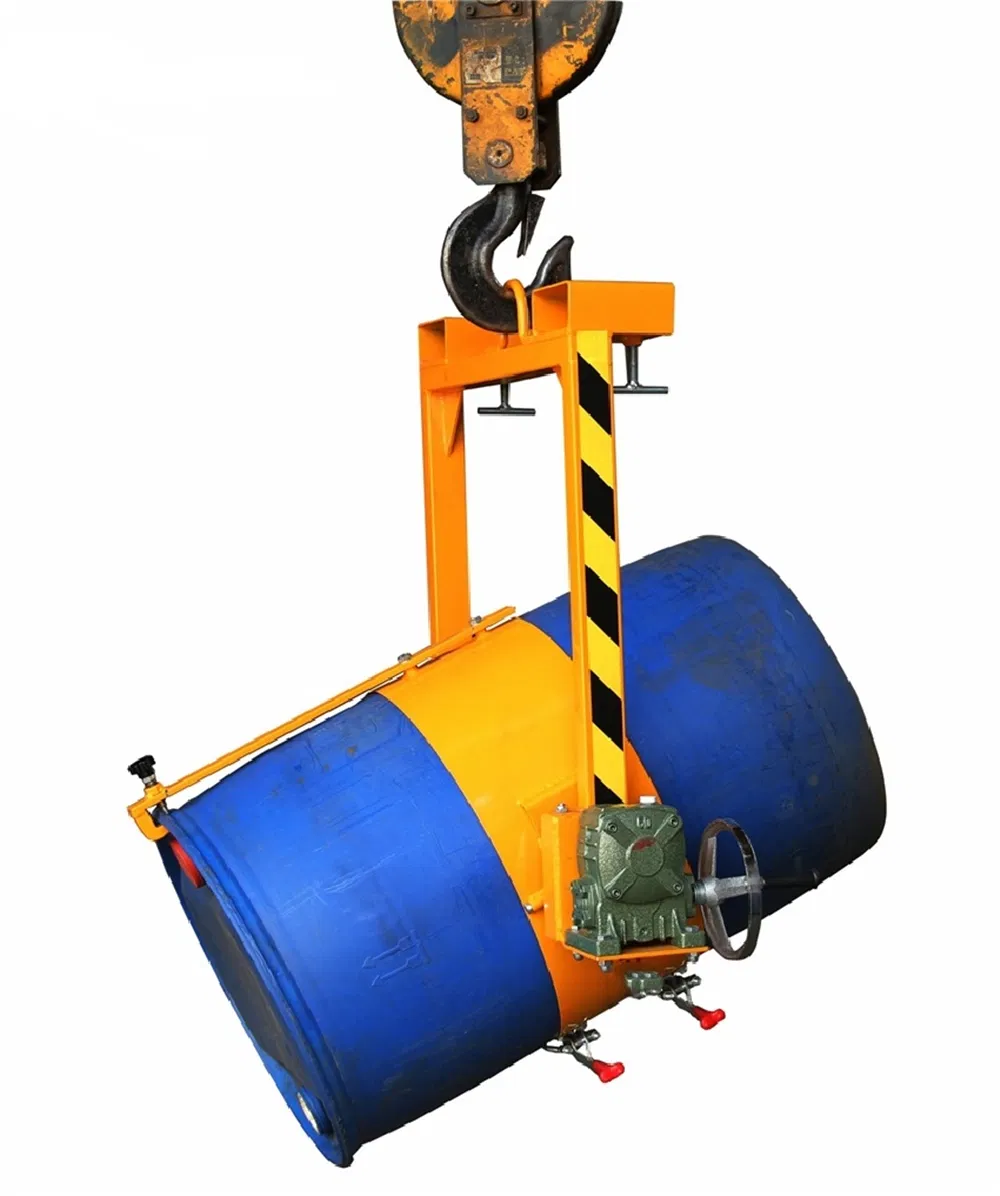

The Vertical Drum Lifter and Drum Dispenser LM800 is designed for versatility and efficiency. It can be easily mounted on forklifts or cranes to lift both steel and plastic drums and dispense their contents safely. This one-person operated system significantly saves time, reduces waste from spills, and enhances overall workplace productivity.

Key Features of LM800

Lift, transport, and pour from open and closed head drums.
Suitable for 55 gallon steel or 200 liter double closed plastic drums.
Ideal for lower level powering and dumping operations.

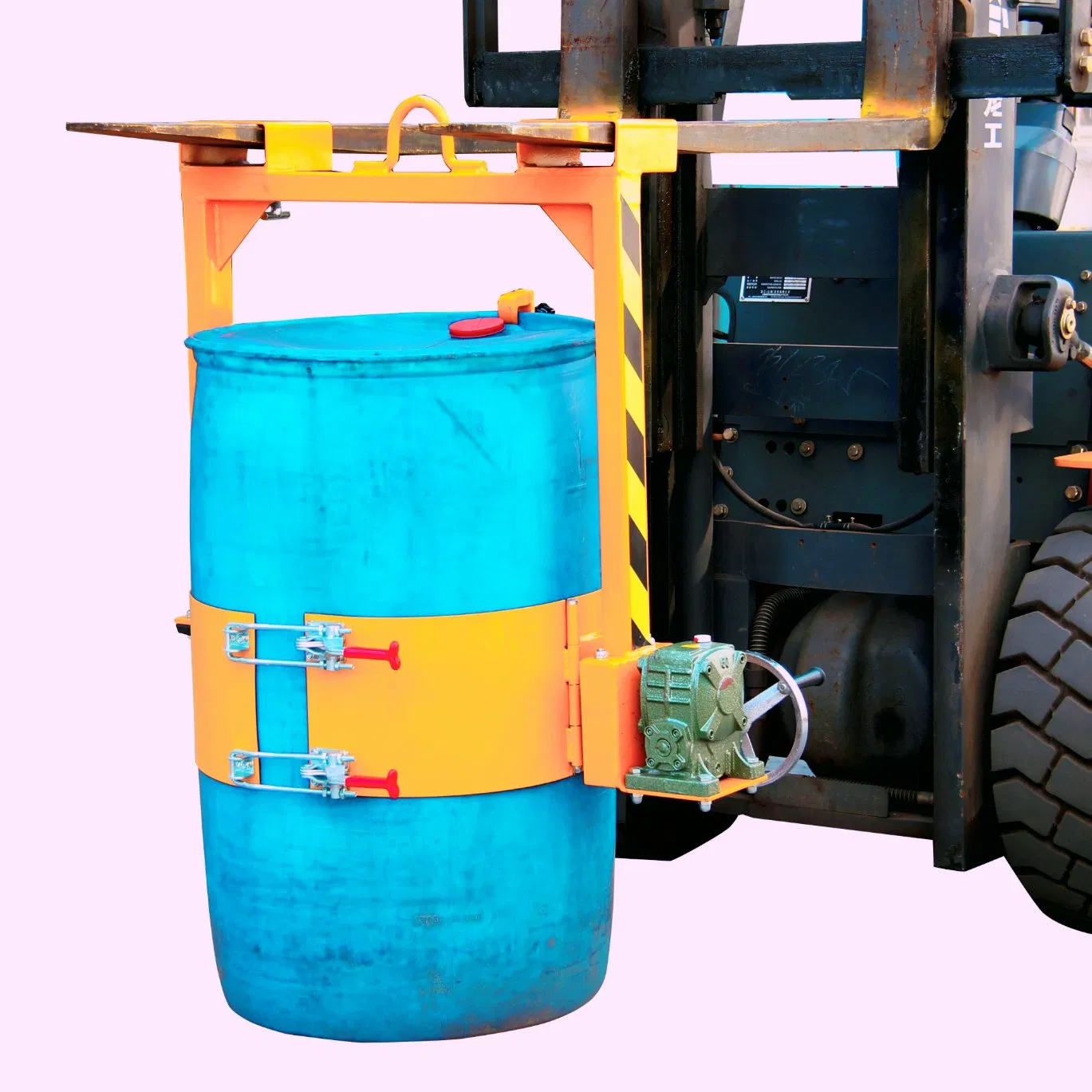

Positive tilt lock on drum saddle to hold drum upright in transit.

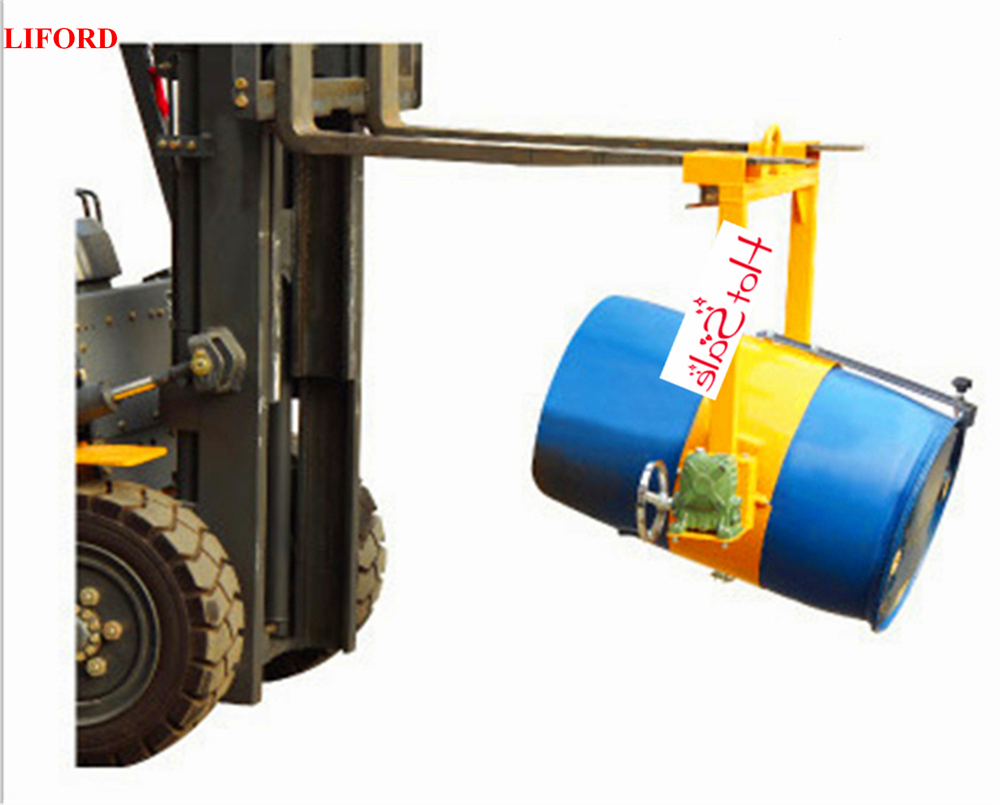

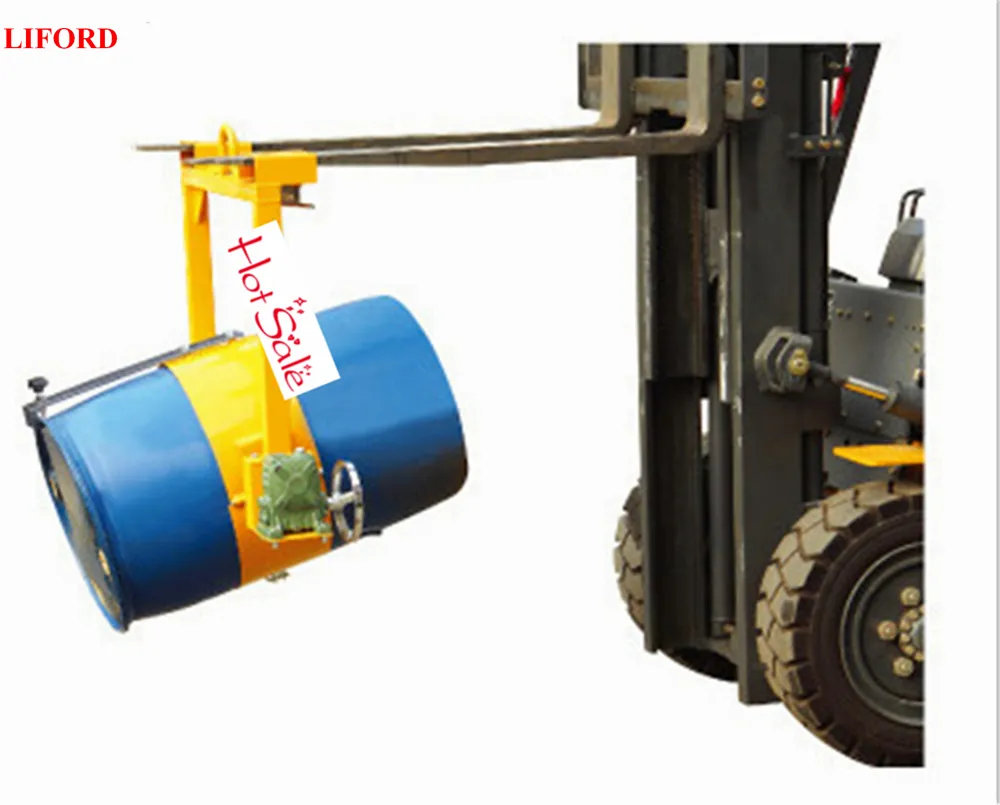

Locks hold drum in a horizontal position for controlled pouring.

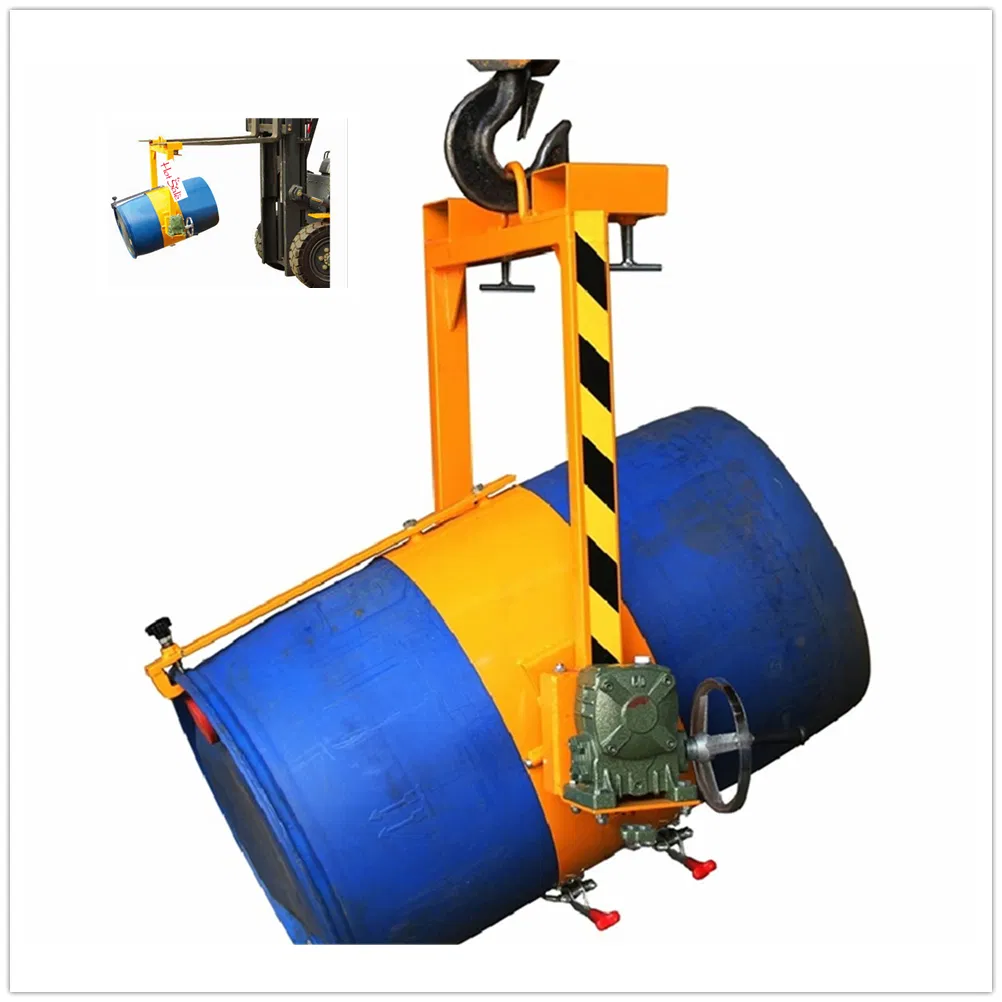

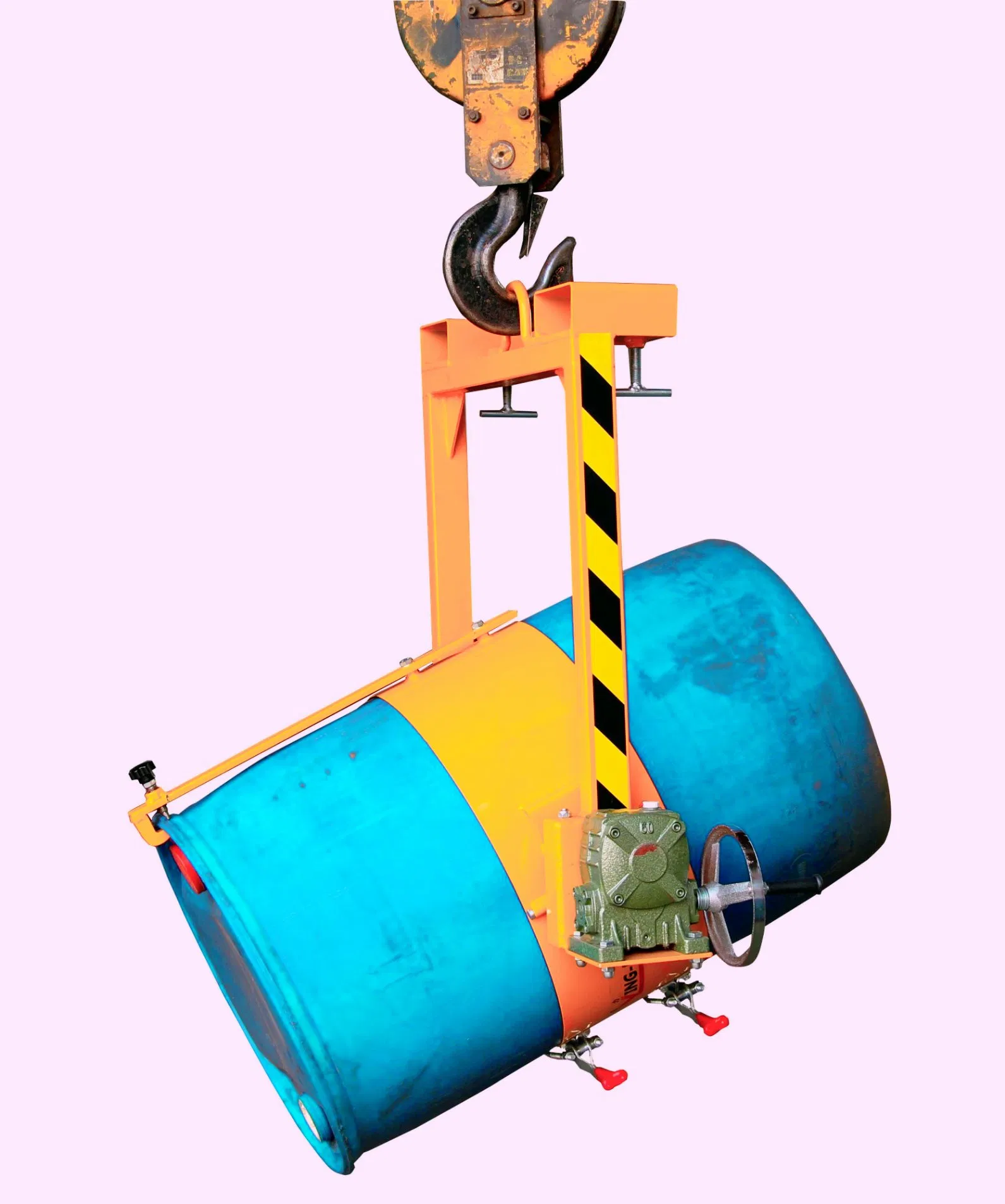

360-degree rotation in either direction for flexible manual tilting.

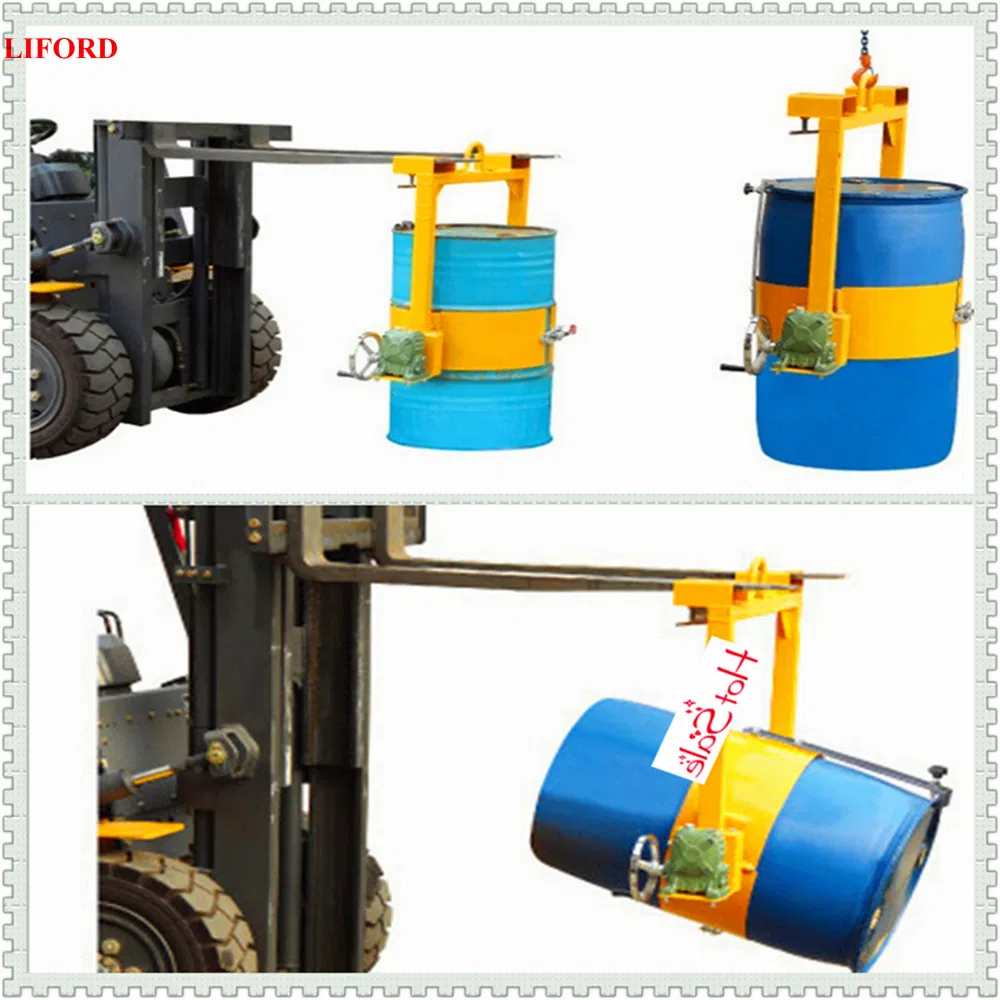

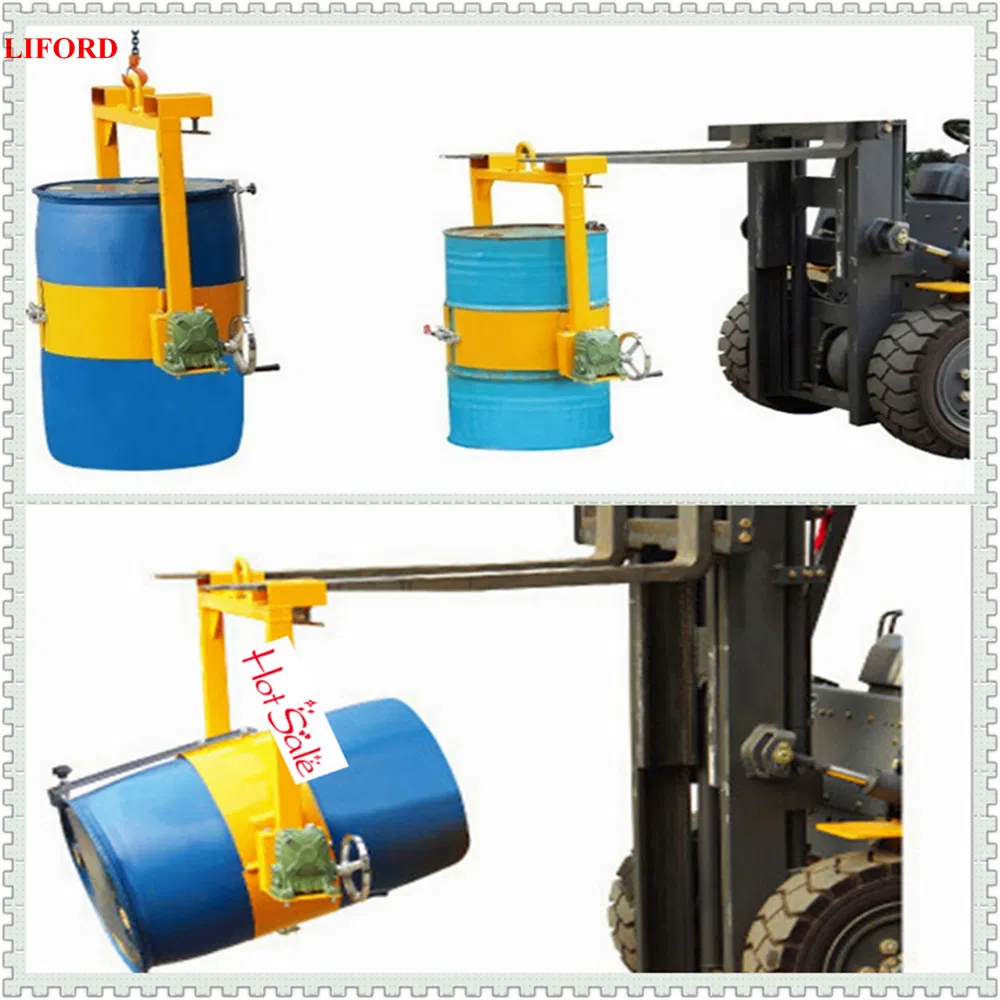

Simple attachment to overhead hoists, cranes, or forklift hooks.

Technical Parameters

Specifications	Unit	Data (LM800)
Rated load capacity	kg	400
Net Weight	kg	44
Inner diameter of supporting leg	mm	150*55
Inside width of supporting legs	mm	420
Outside width of supporting legs	mm	720
Overall size	mm	900600950

Wide Application

This forklift and crane mounted tilting drum dispenser is essential for handling drums in chemical and food processing plants. It is widely used for transferring, loading, unloading, and compounding fluids such as dyes, paints, adhesives, petrol, and edible oils.

Quality & Service Highlights

With over 10 years of professional experience, we ensure that every product meets rigorous inspection standards before shipment. Our services include:

OEM/ODM services for non-standard material handling needs.
Fast production and on-time delivery.
Strong packaging suitable for air and sea transport (reinforced cartons and pallets).
2-hour response time for technical and pricing inquiries.
One-year warranty with essential spare parts included.

Frequently Asked Questions

1. What is the maximum load capacity of the LM800 drum lifter? The LM800 is rated for a maximum lifting capacity of 400kg.

2. Which types of drums are compatible with this equipment? It is designed for standard 55-gallon steel drums and 200-liter double-closed plastic drums.

3. Can the drum be rotated during the pouring process? Yes, the dispenser allows for 360-degree rotation in either direction, giving the operator full control over the pouring process.

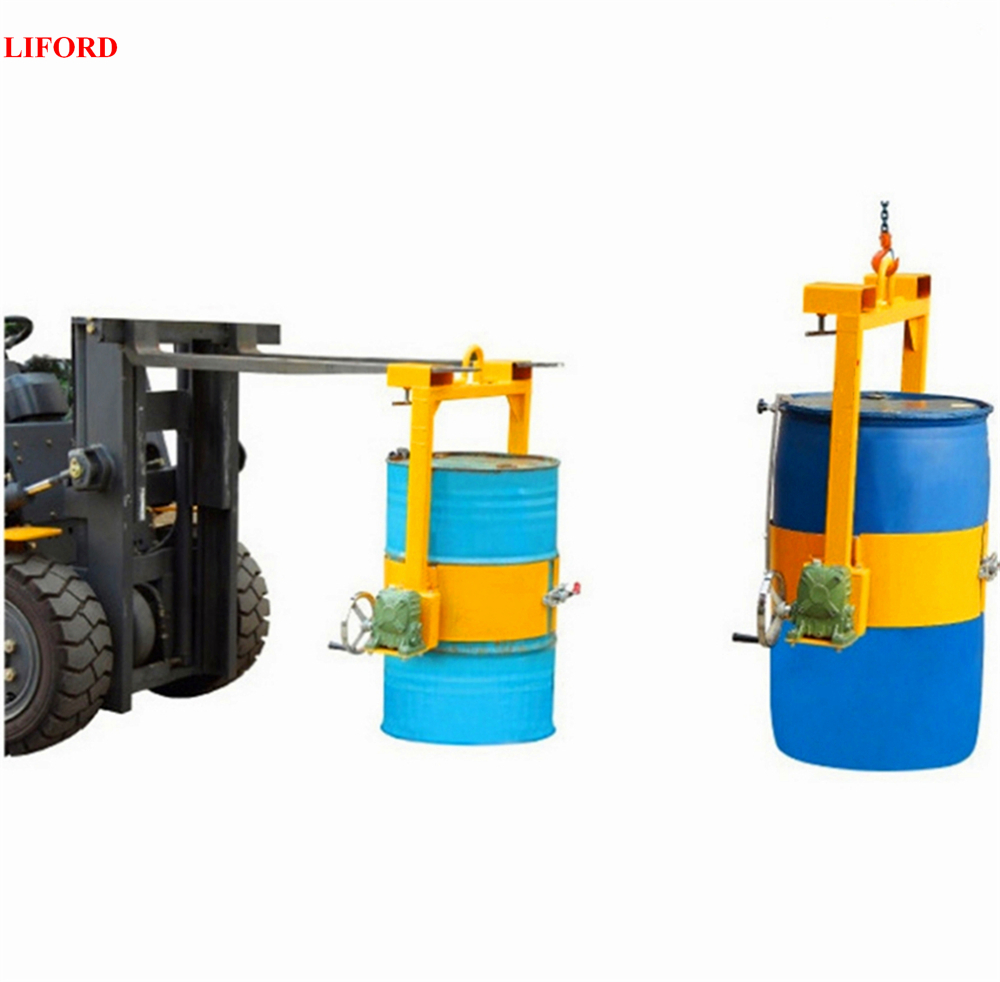

4. Is the LM800 compatible with both forklifts and cranes? Absolutely. It is a dual-purpose design that can be easily mounted on a forklift or hung from an overhead hoist or crane hook.

5. What safety features are included for transport? It features a positive tilt lock on the drum saddle to keep the drum securely upright during transit. It also has a lock to hold the drum in a horizontal position.

6. What is the material and finish of the lifter? The equipment is constructed from high-quality carbon steel and finished with a durable powder coating for corrosion resistance.
