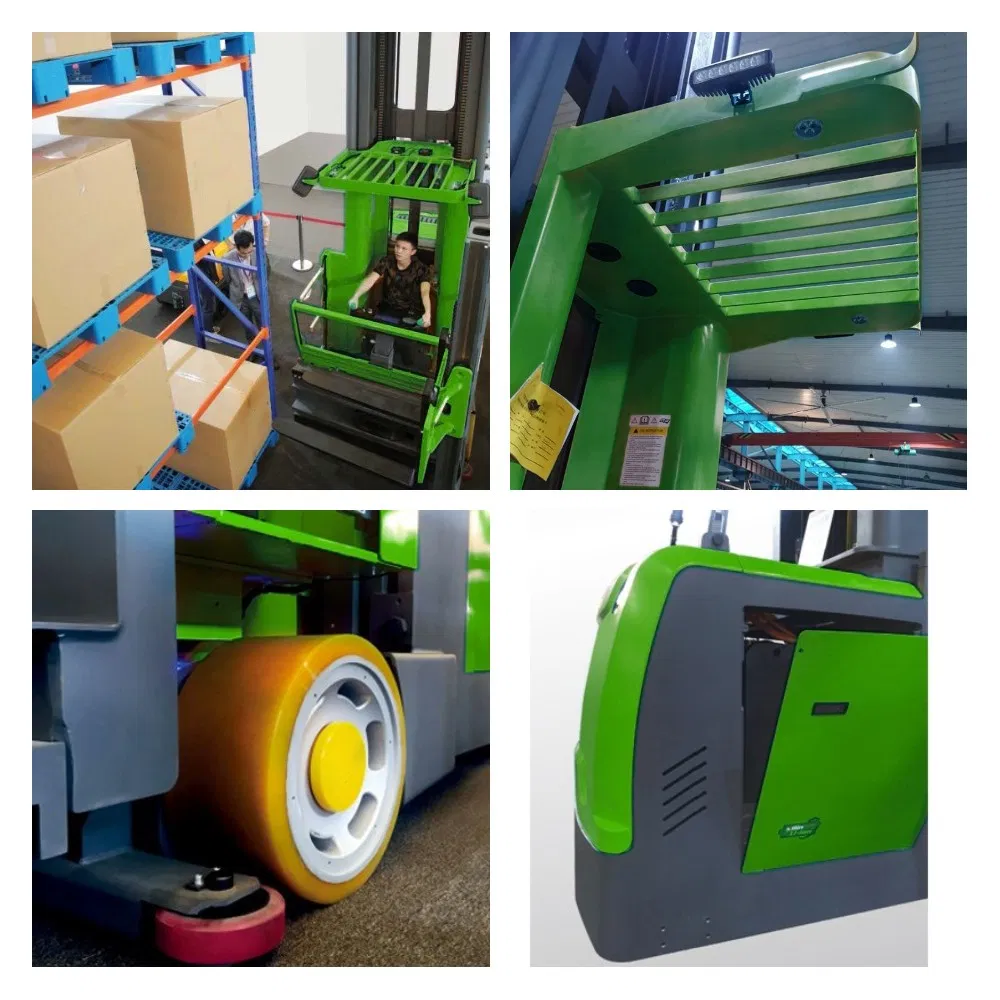

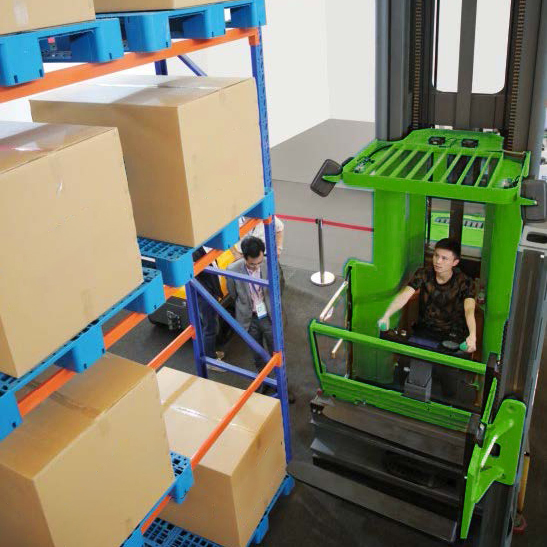

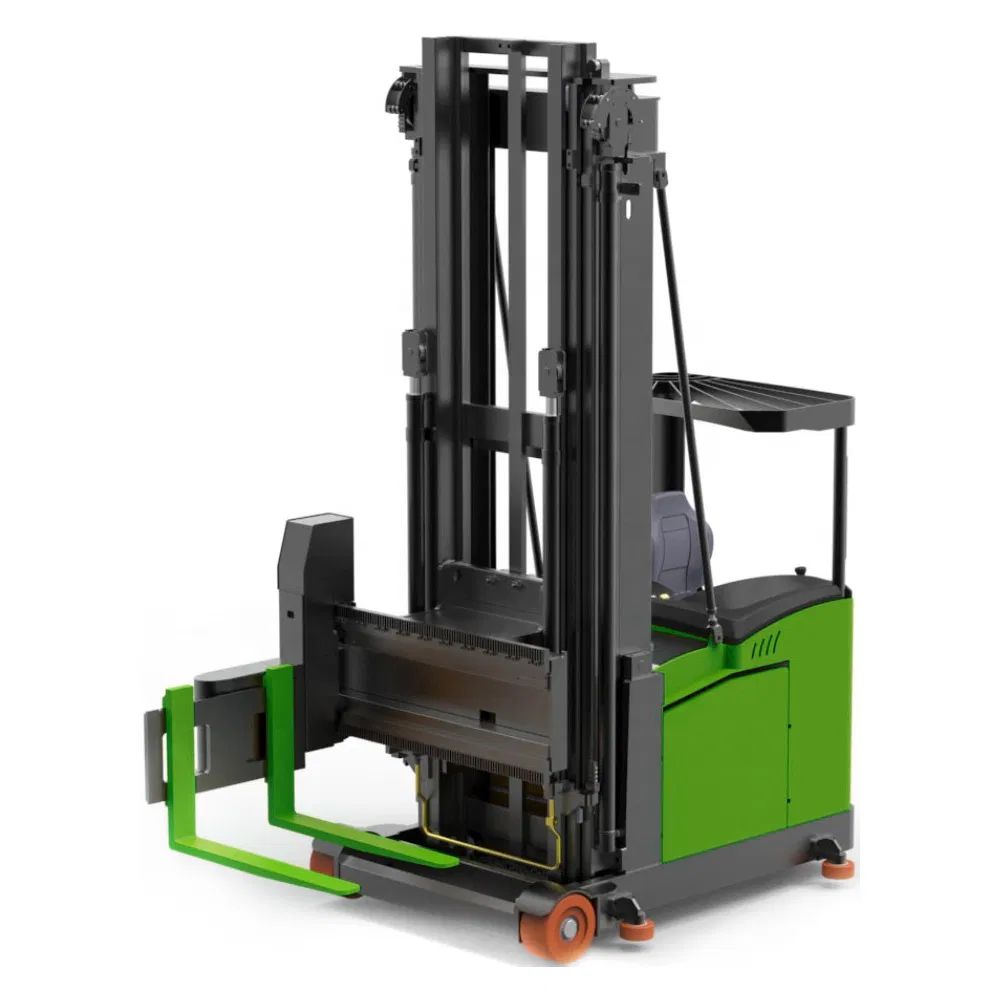

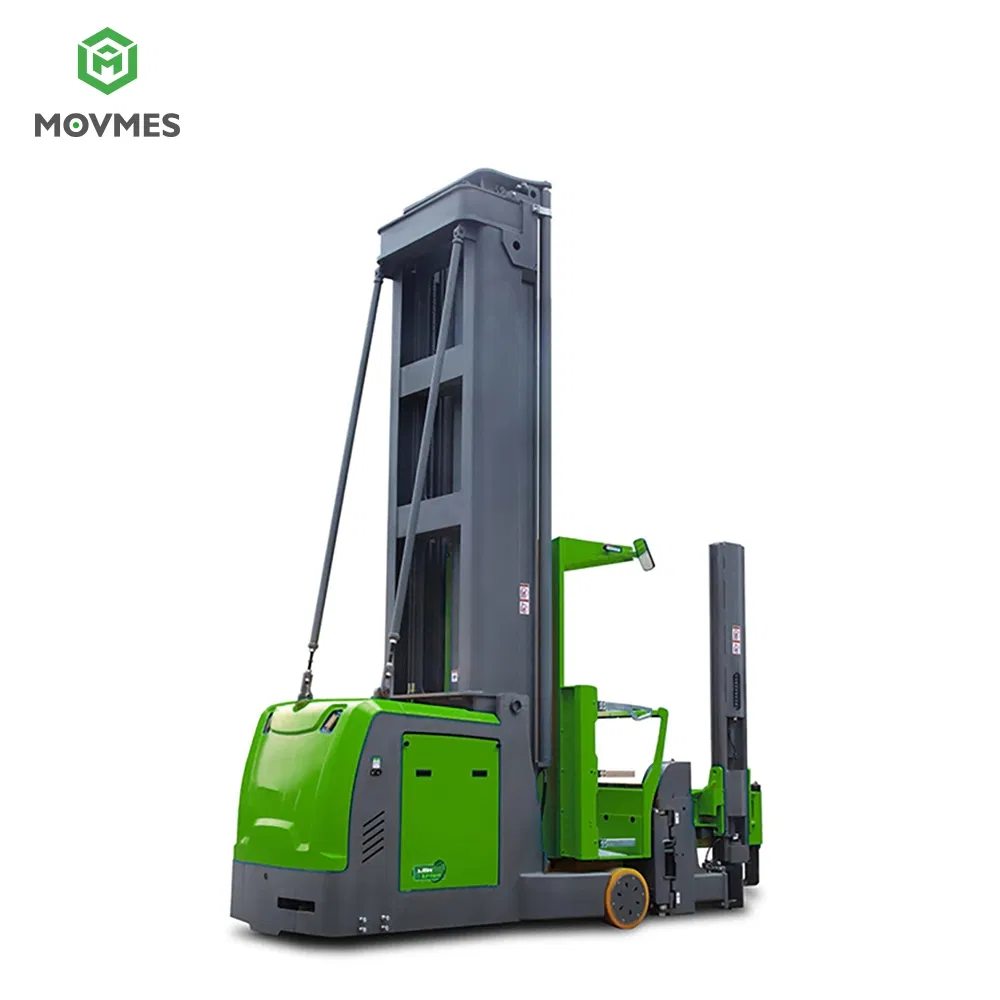

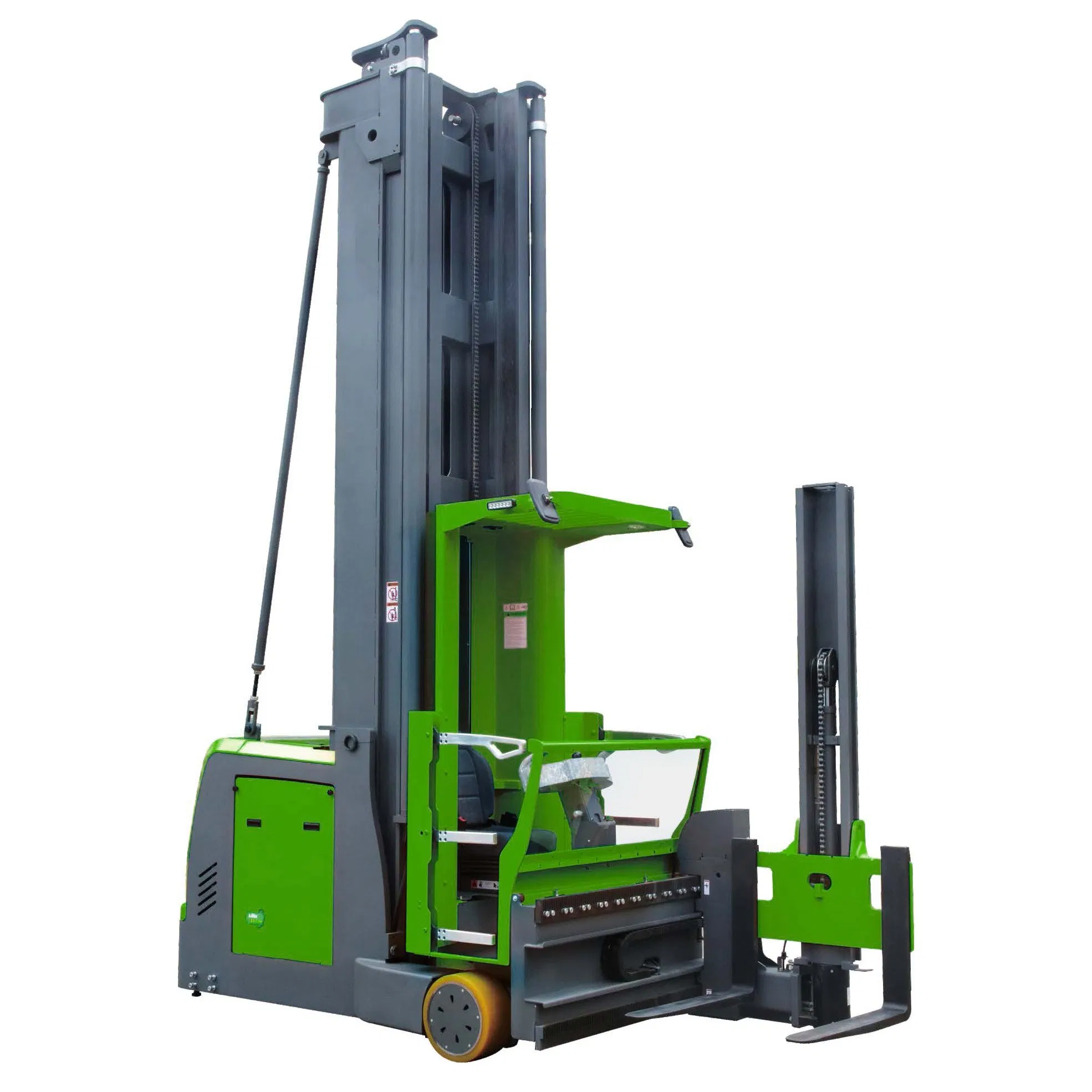

OPTS15 is a high-performance man-up tri-lateral stacker specifically engineered for very narrow aisles (VNA), offering a lifting height ranging from 6m to 15.5m.
Equipped with a three-fulcrum design, it maximizes warehouse storage density. The advanced control system ensures superior operational efficiency, stability, and ease of use when navigating between racks of various aisle widths.

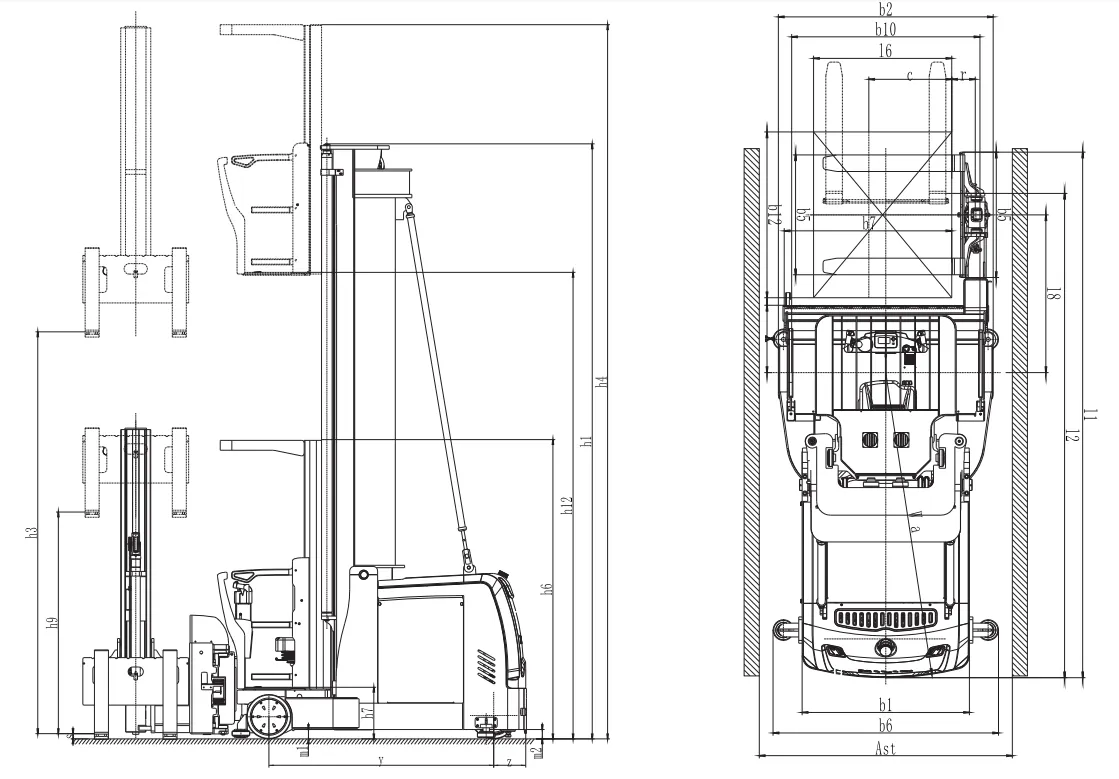

| Parameter | Unit | OPTS15 (9.2M) | OPTS15 (10M) | OPTS15 (10.5M) | OPTS15 (13M) |
|---|---|---|---|---|---|
| Power Type | - | Electric | Electric | Electric | Electric |
| Rated Load Capacity | kg | 1500 | 1500 | 1500 | 1500 |

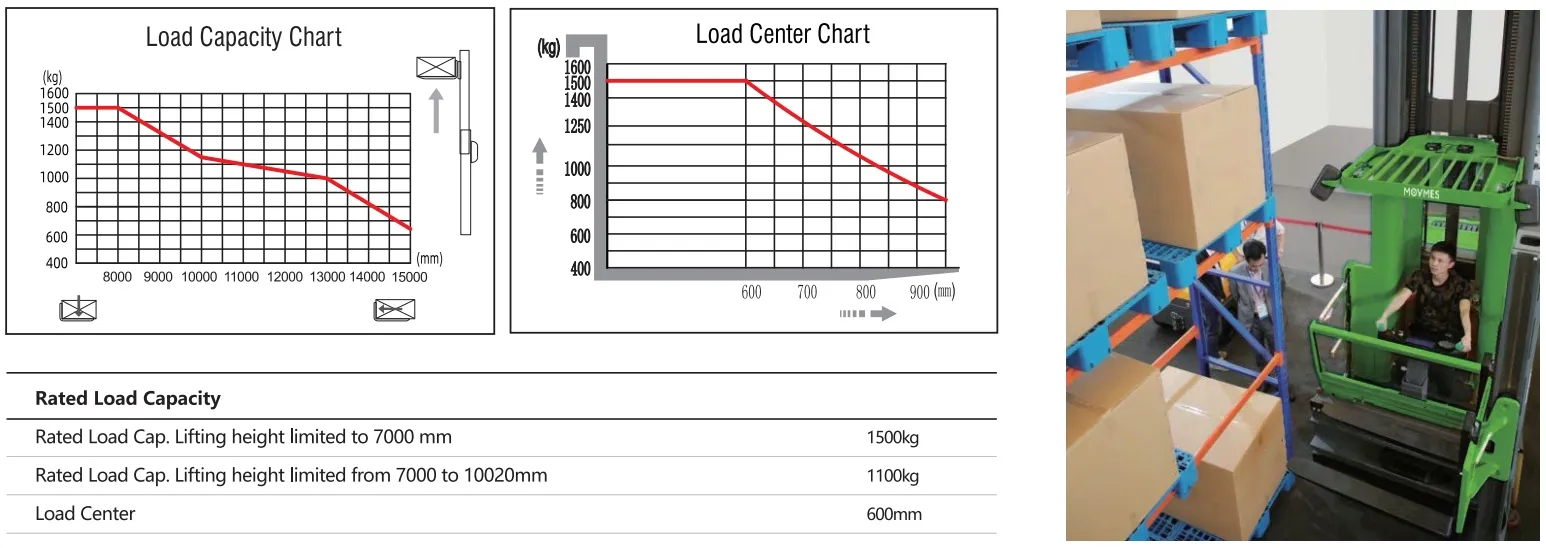

| Load Capacity at Max Height | kg | 950 | 900 | 850 | 600 |
| Load Centre Distance | mm | 600 | 600 | 600 | 600 |
| Wheelbase | mm | 1928 | 1928 | 1928 | 2248 |
| Service Weight | kg | 8405 | 8705 | 8805 | 9855 |
| Lifting Height | mm | 7460 | 8260 | 8760 | 11260 |
| Total Lifting Height | mm | 9200 | 10000 | 10500 | 13000 |
| Aisle Width (1200x1200pallet) | mm | 1700 | 1700 | 1700 | 1700 |
As a specialized brand in intelligent logistics and warehousing, we focus on cutting-edge technology and product quality. Our warehousing solutions are designed to improve material circulation efficiency and reduce operational costs for global markets.
