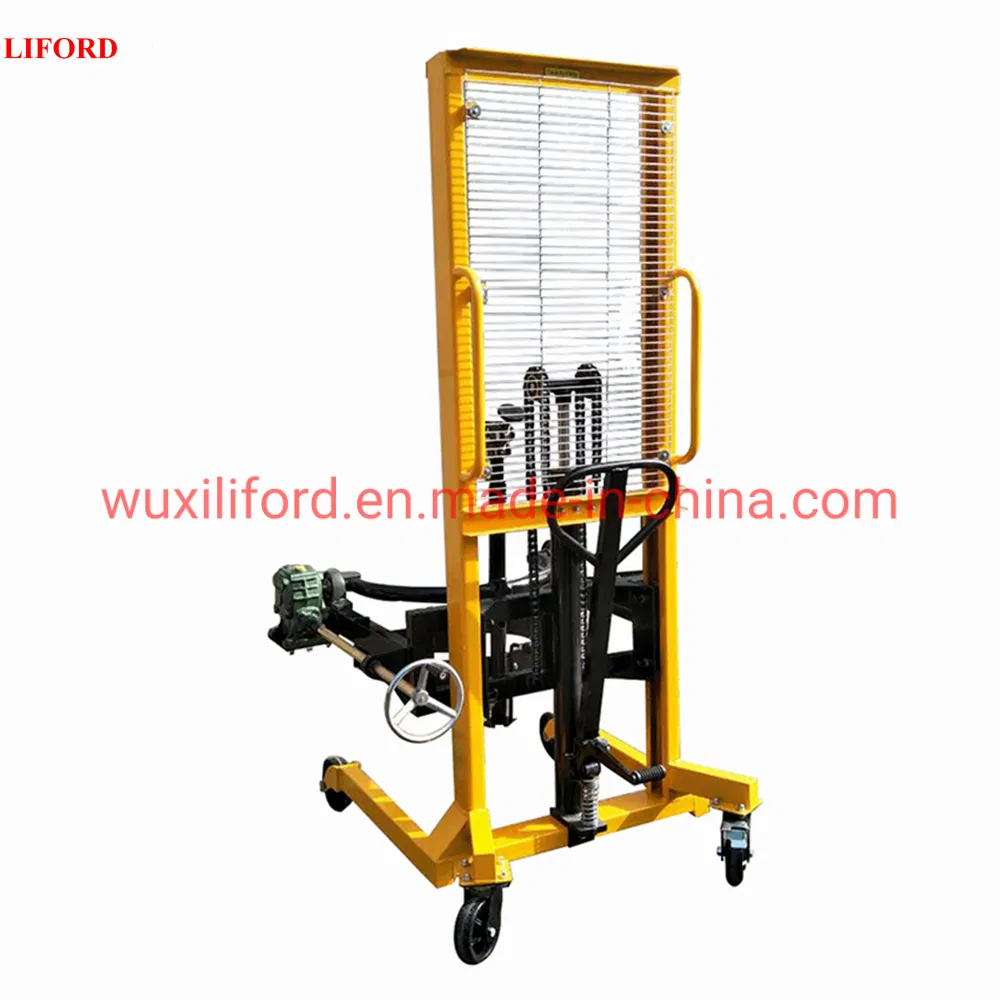

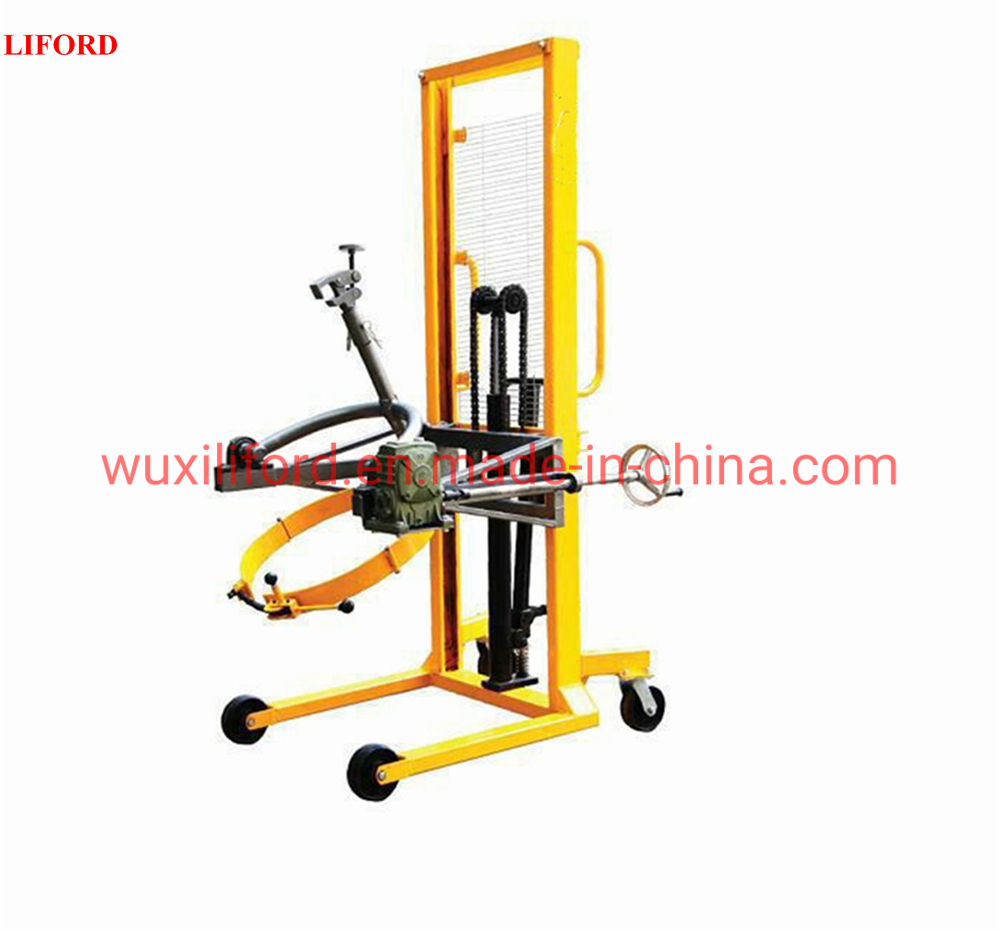

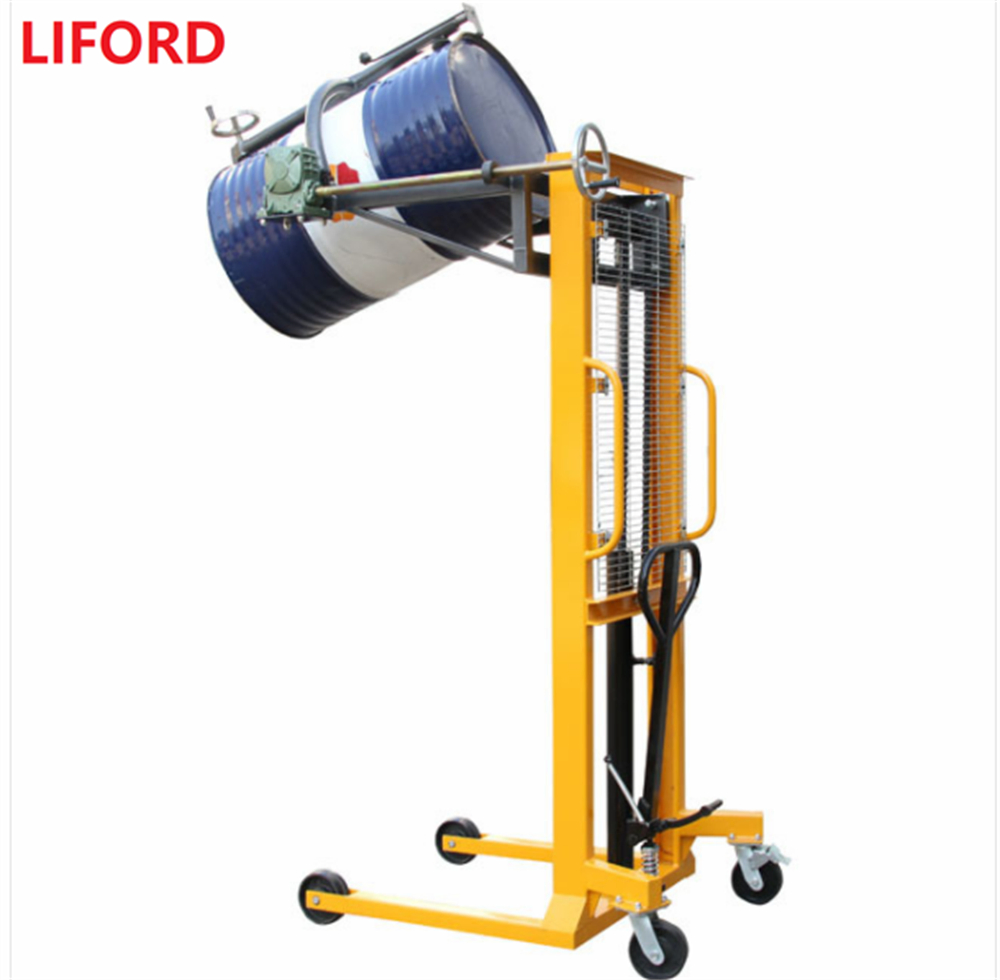

Chinese Manufacturer 450kg Hand Vertical Drum Lifter Manual Drum Rotator Hydraulic Drum Lifting Equipment Drum Dumper Drum Stacker Steel Drum Lifter A450

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Specifications

Model NO.
DA450, DA450-1
Certificate
ISO9001:2015, ISO14001:2015
Product Name
Counterbalance Powered Drum Lifter
Type
Hydraulic Drum Lifter
Capacity
450kg
Lifting Height
1500mm
Pouring Height
1580mm
Wheel Dimension
150*50mm
Feature
Floor Lock
HS Code
84279000
Production Capacity
5000PCS/Month
Drum Lifter Overview
🛠️

Product Description

Safe drum dumping requires well-designed, ergonomic drum handling equipment to reduce risks of injury or property damage. Our hydraulic Drum Karriers combine incredible strength with simple drum handling by one person. It can help you lift, move and pour plastic, fiber and steel drums, and also provide controlled dispensing of your drums. With a simple design and easy operation, this all-steel construction Hydraulic Drum Dumper is ideal for dumping steel and plastic drums weighing up to 450kg.

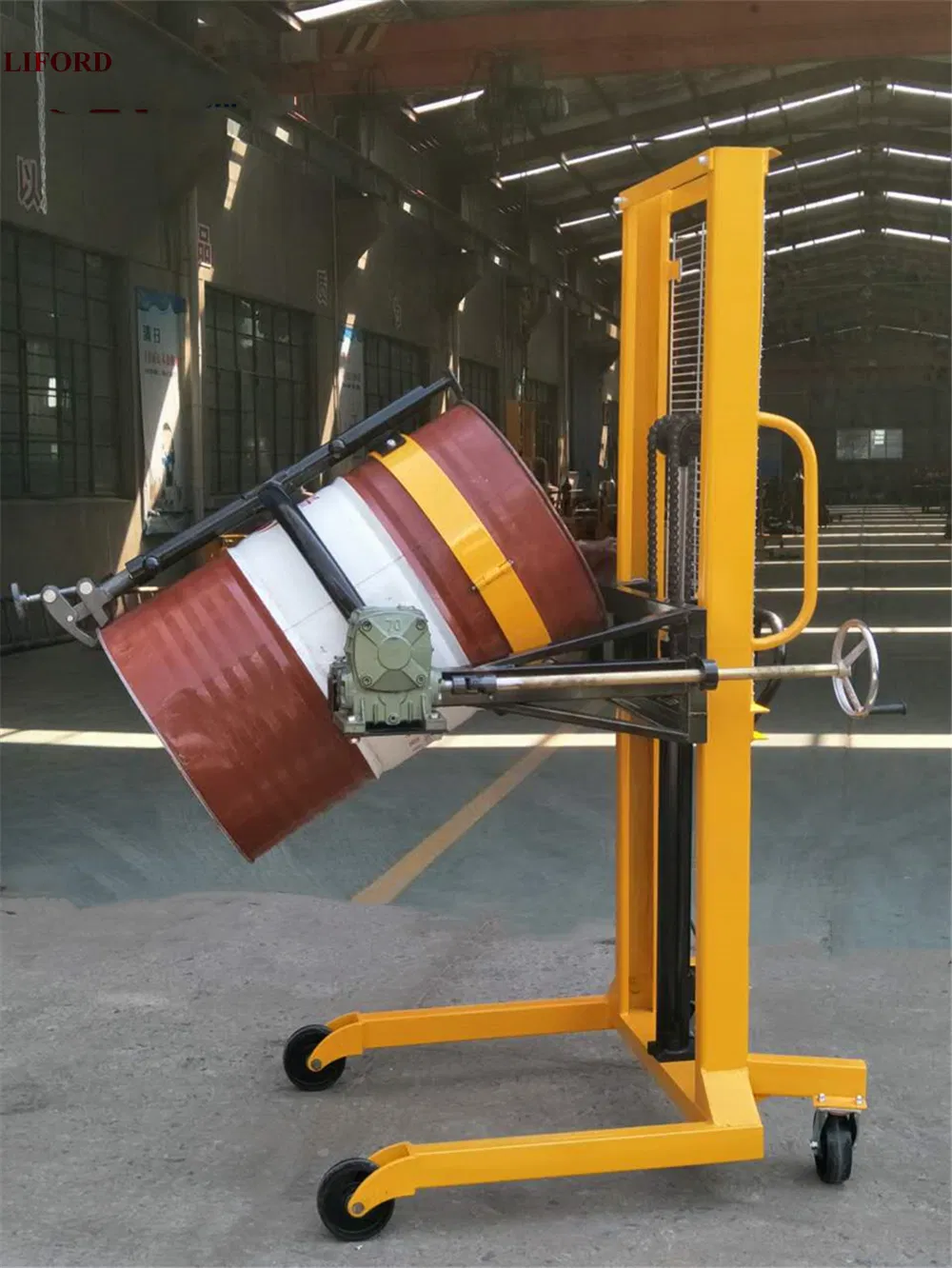

Product Detail

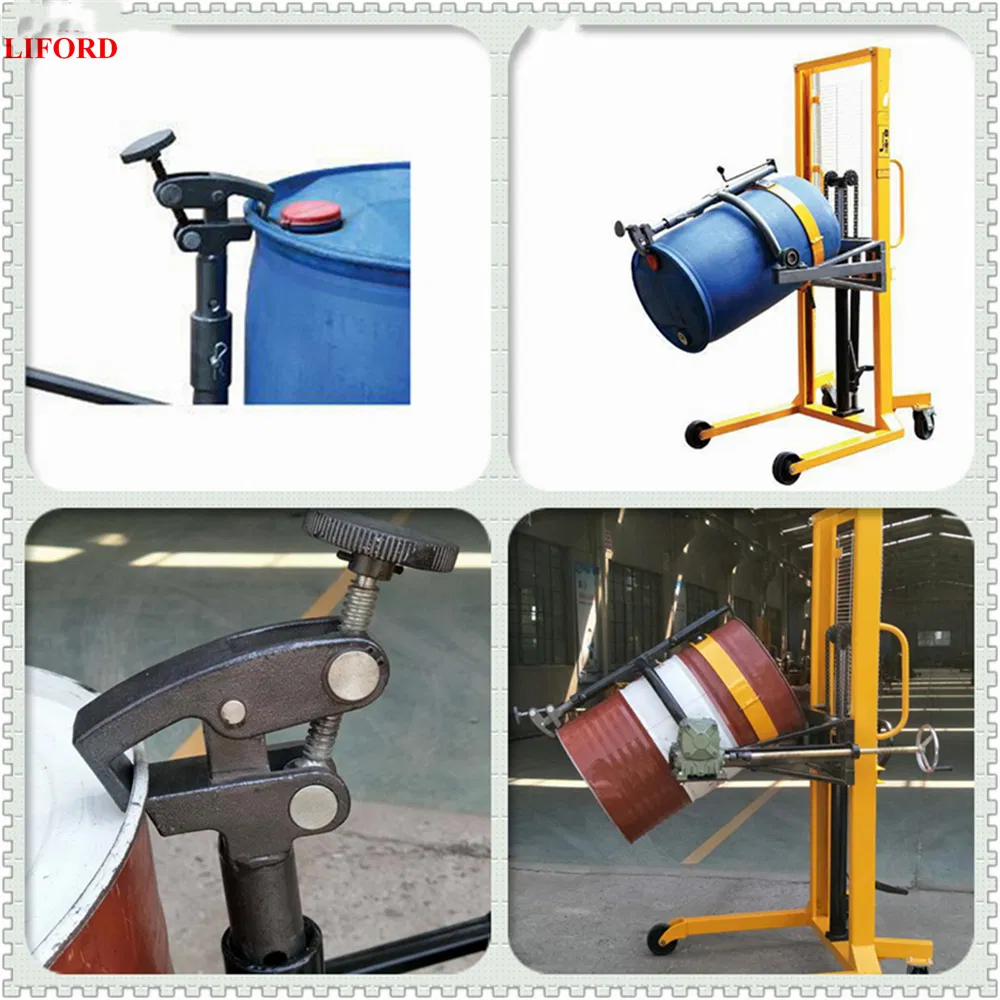

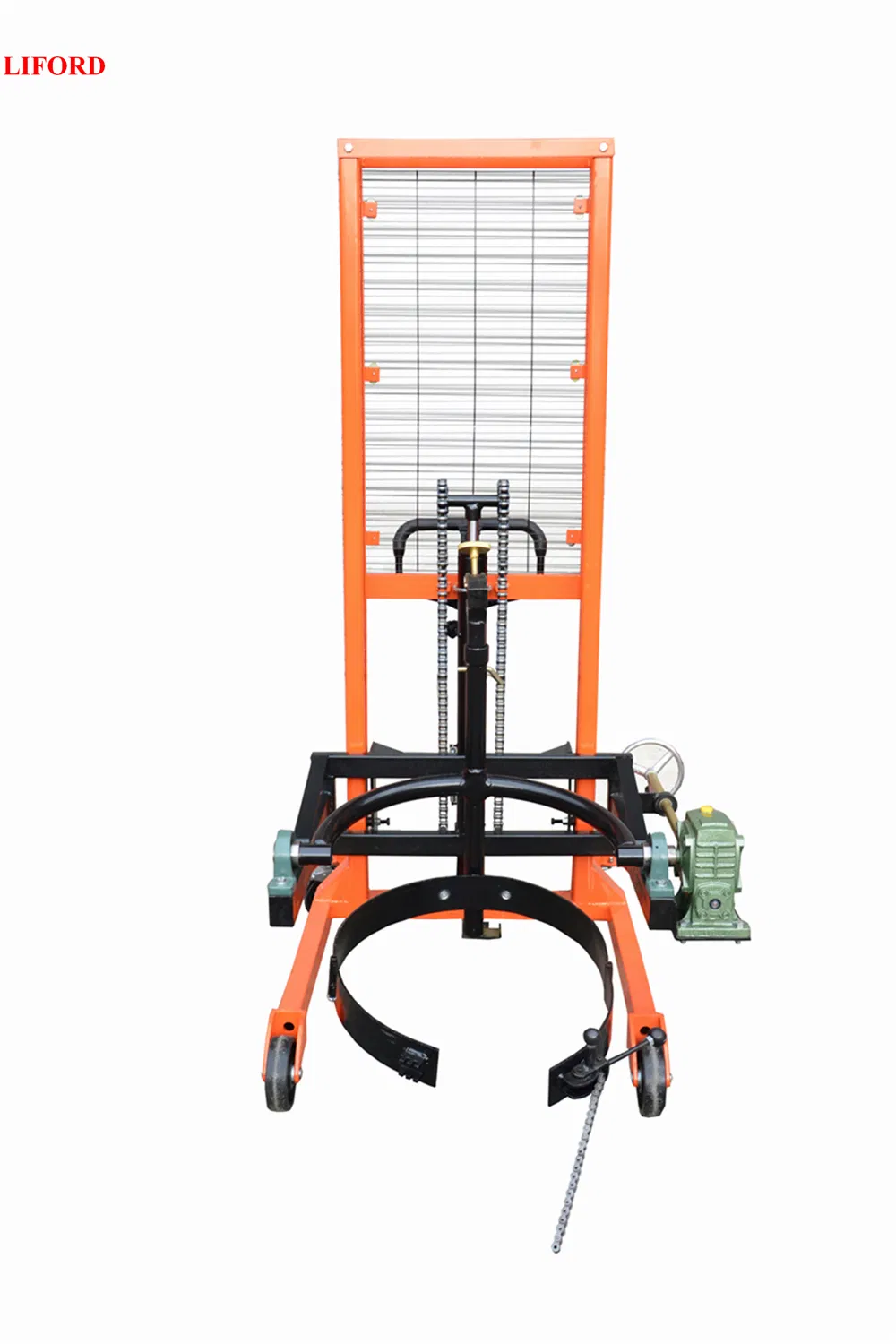

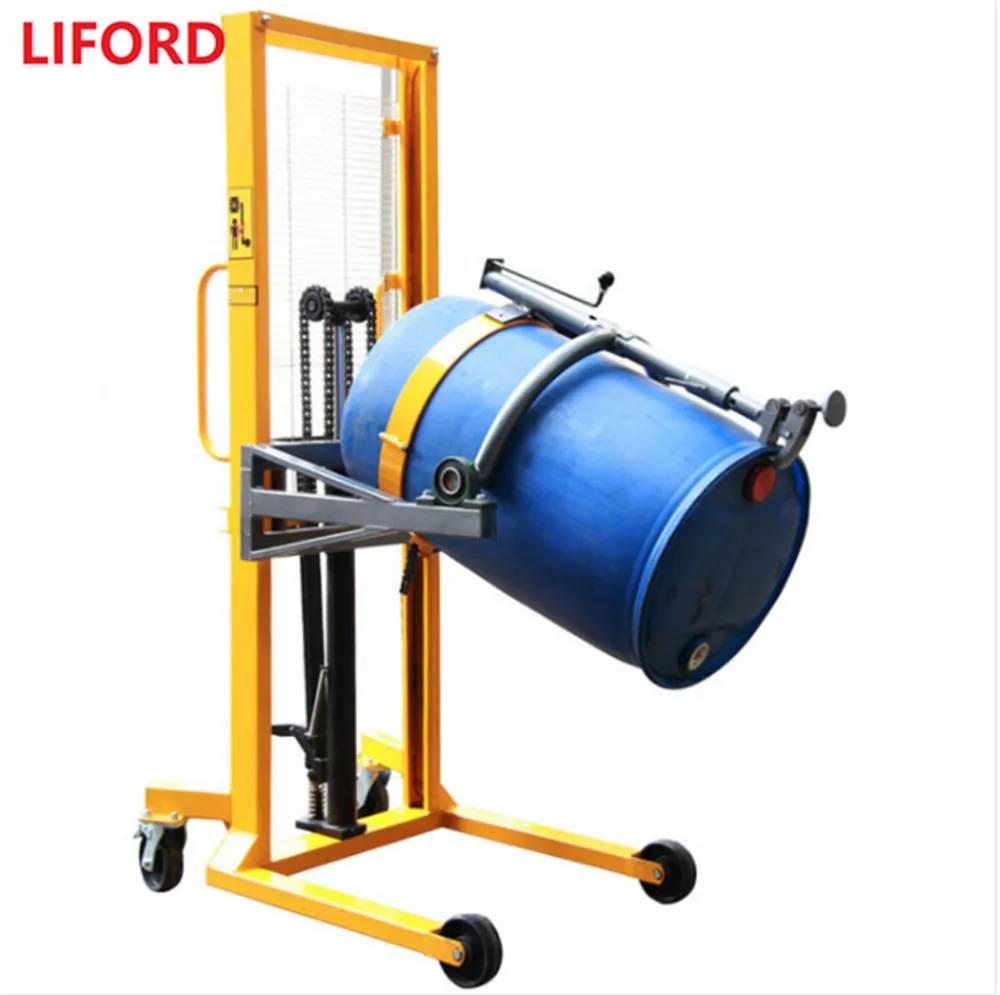

Drum Handling 1 Drum Handling 2 Drum Handling 3

Key Features

Floor lock for enhanced stability
Massive 450kg load capacity

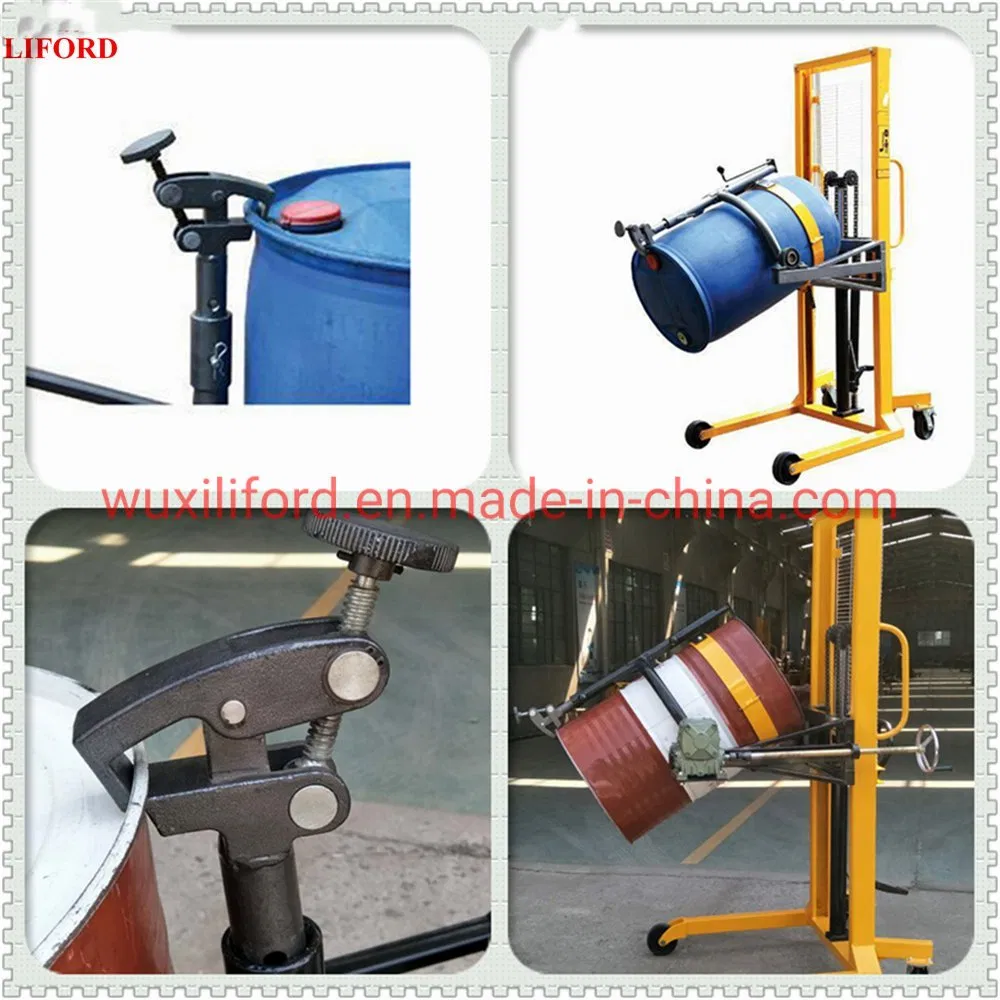

Combined Eagle-grip and Anchorear structure
Manually rotate drums 180 degrees
Suitable for both steel and plastic drums
Operable by a single person
Solid steel construction for transit stability
Controlled dispensing and pouring

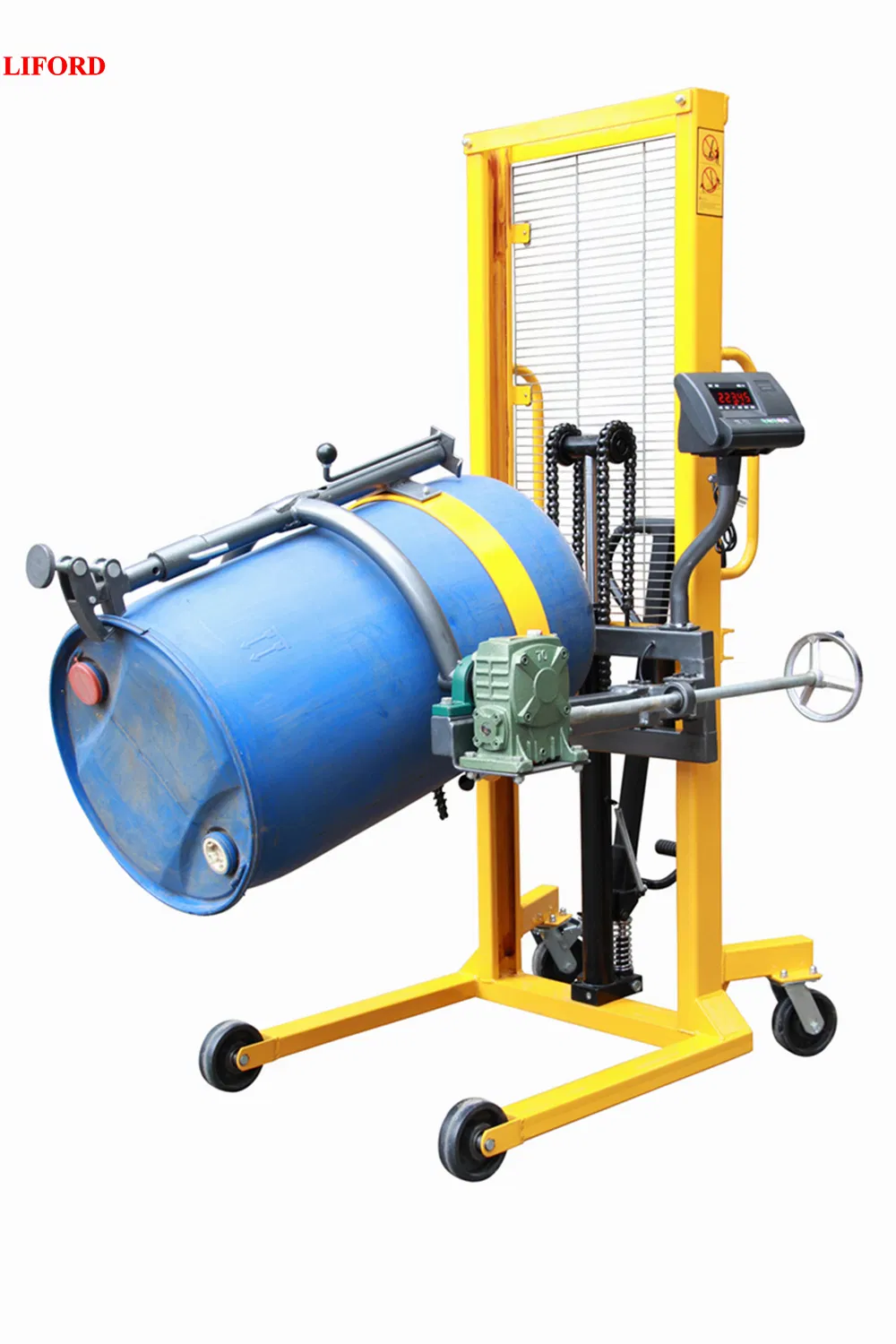

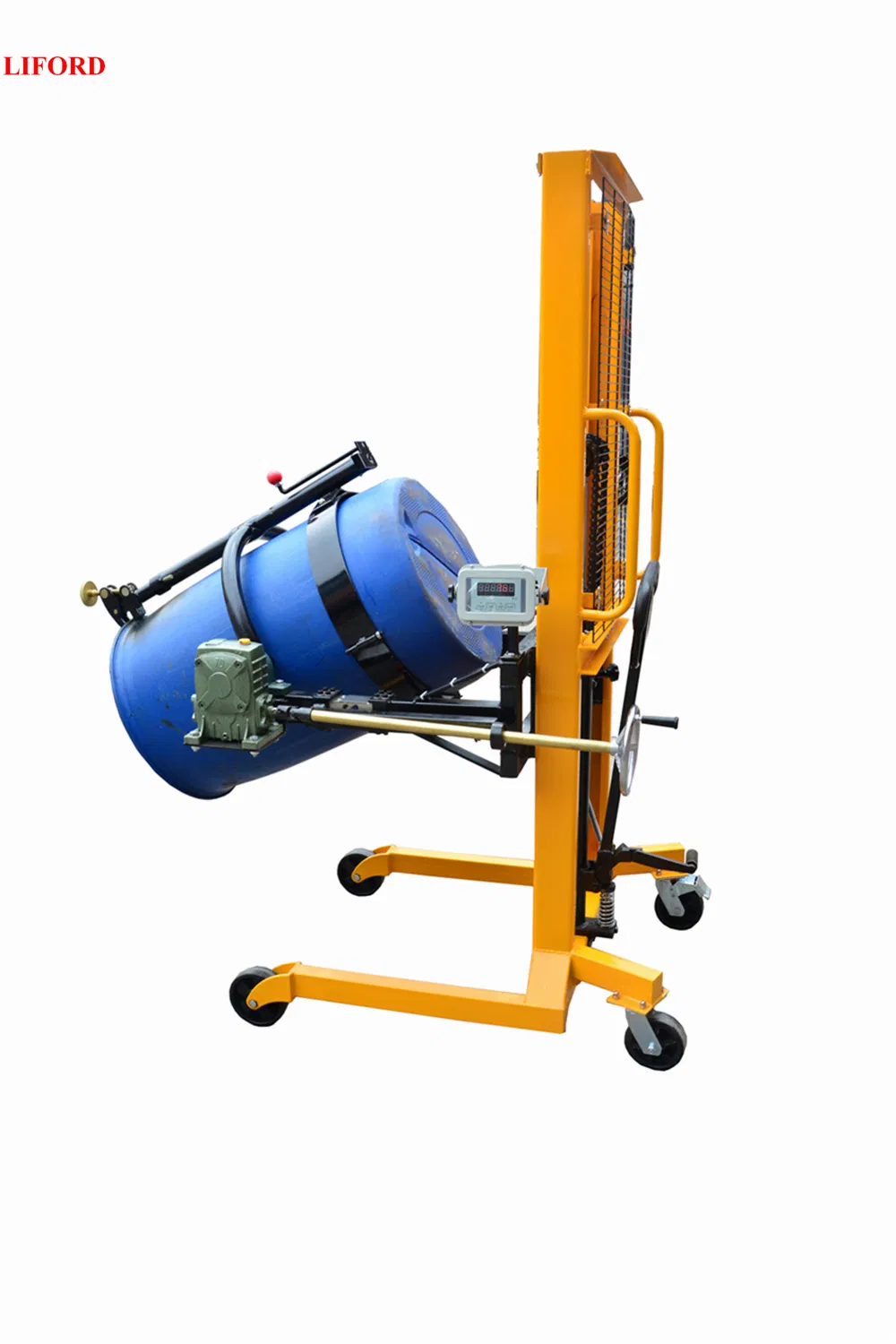

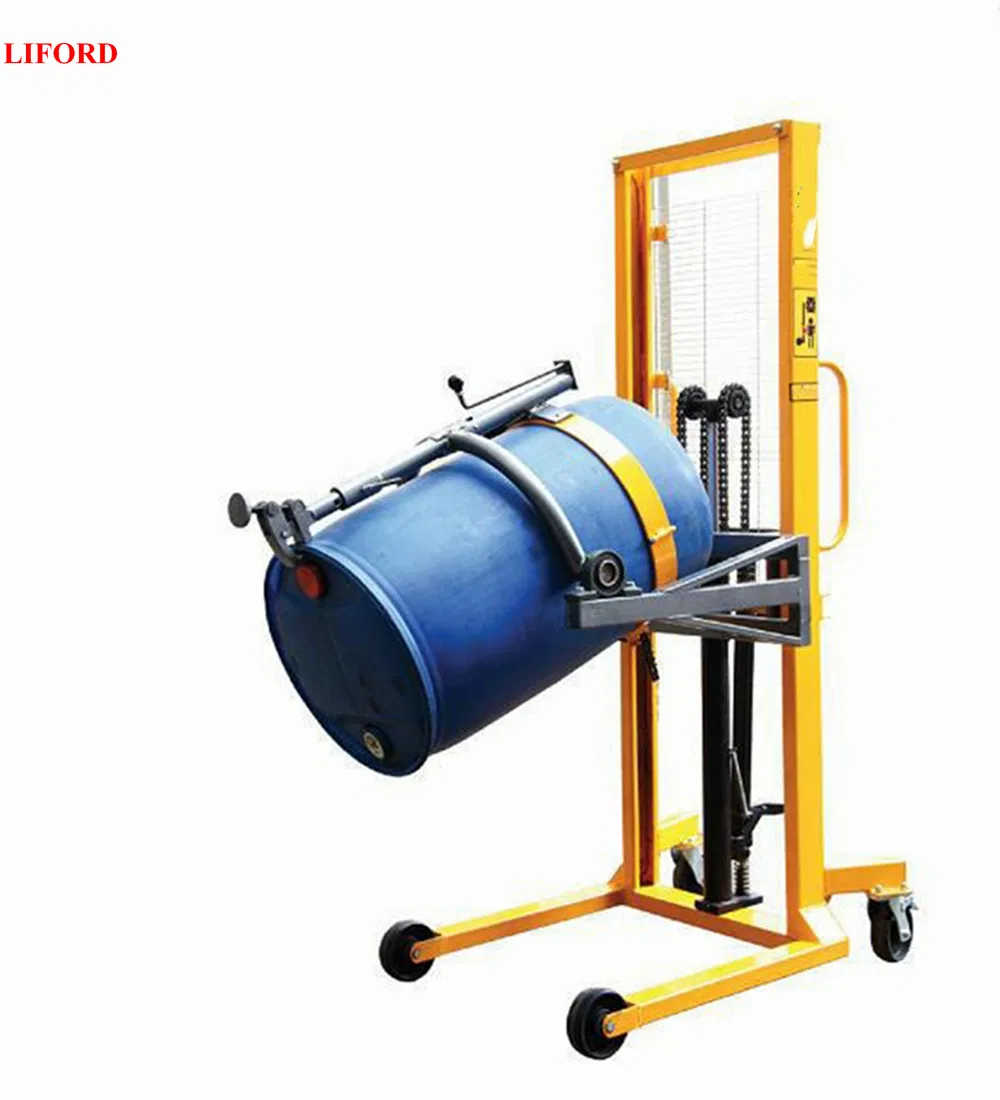

Detail View 1 Detail View 2 Detail View 3
📊

Technical Data

Parameter Unit Value (Model DA450)
Load capacitykg450
Net weightkg176
Lifting heightmm1500
Pouring heightmm1580
Caster dimensionmmØ150*50
Inner/Outer width of legsmm650/810
Max. Grade ability%3/5
Overall sizemm1400*1000*2100

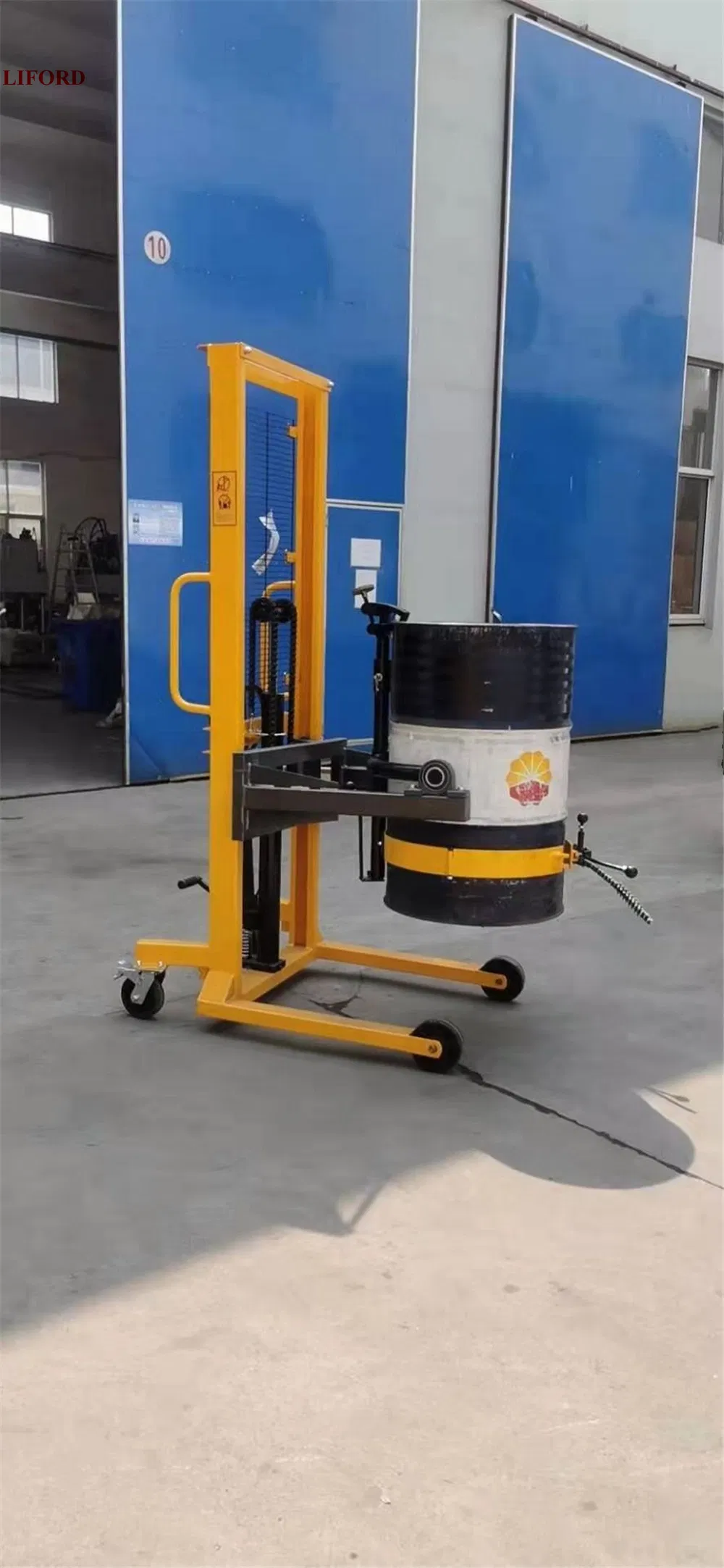

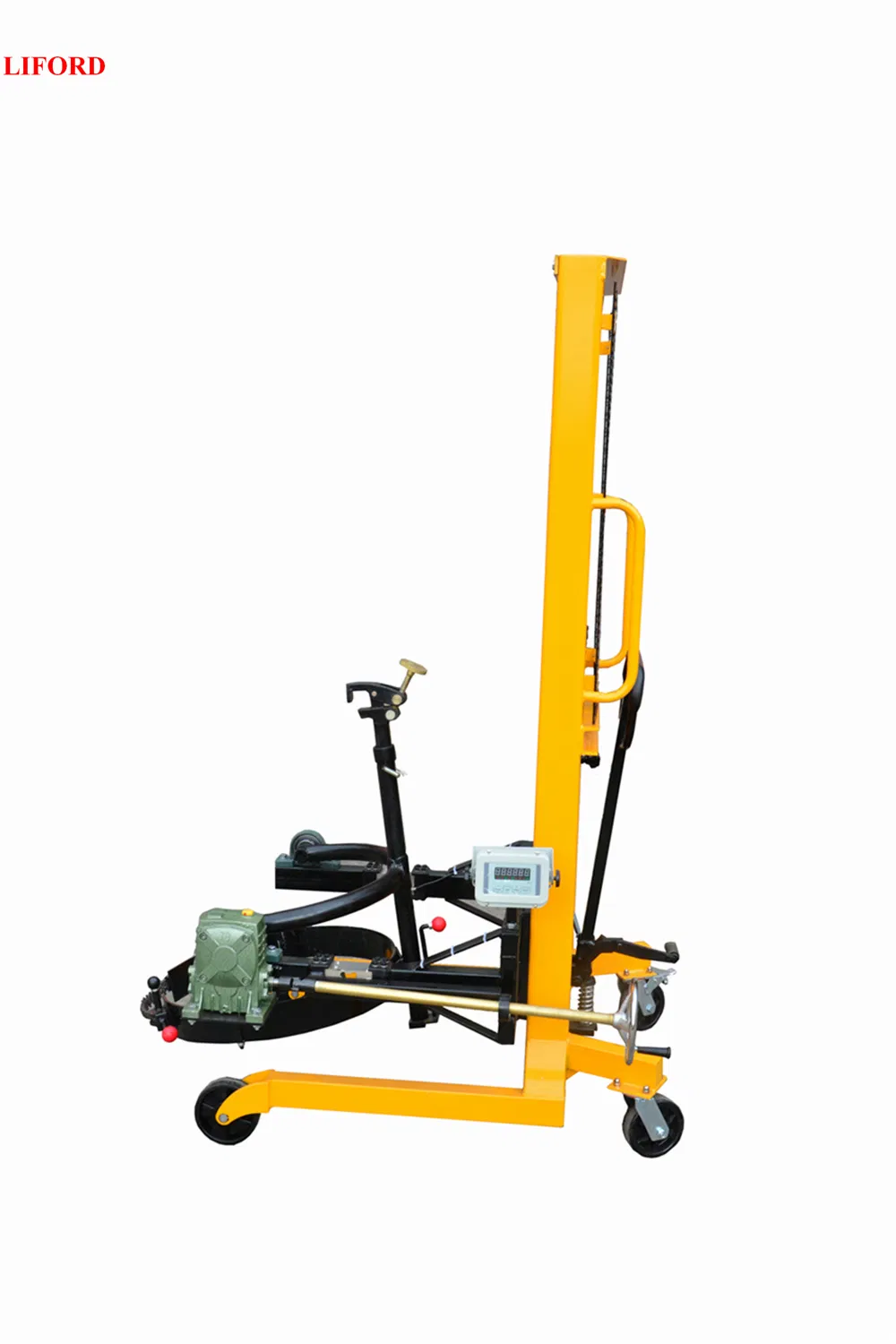

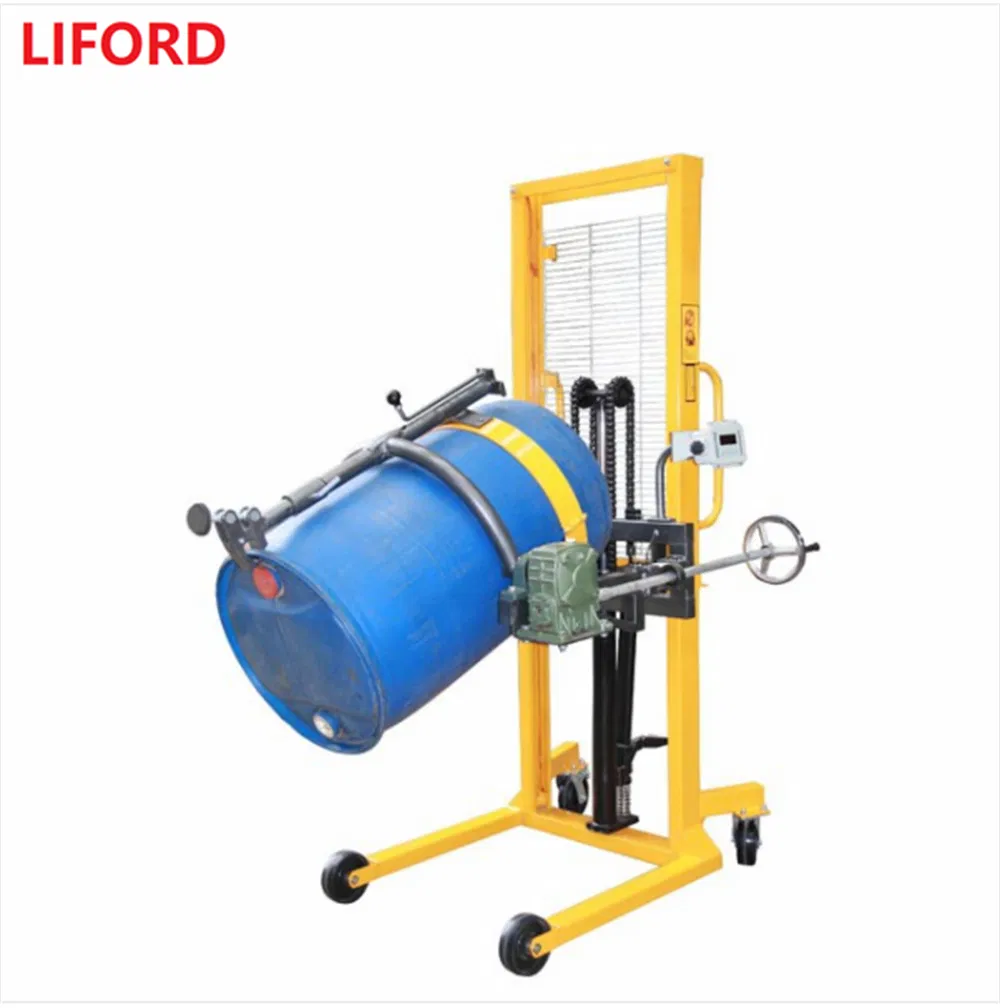

Technical Drawing 1 Technical Drawing 2 Technical Drawing 3
🚀

Industry Applications

Combining Eagle-grip and Anchorear structures, our drum carrier is widely used to lift, transport, and tilt steel and plastic drums in chemical, food, dye, and paint workshops, as well as handling adhesives, oils, and other liquid loading and unloading tasks.

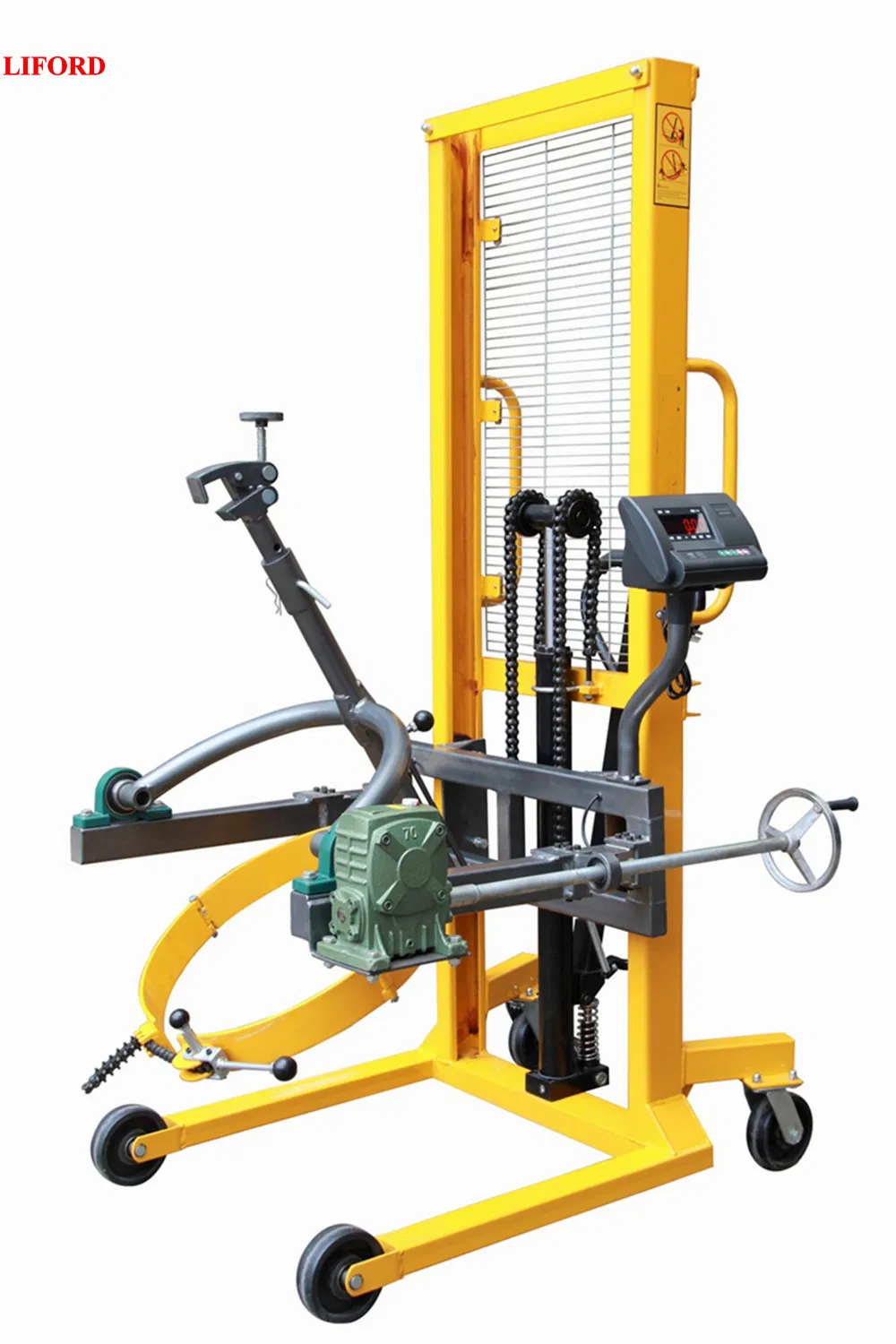

Application 1 Application 2 Application 3
🏆

Why Choose Us?

Over 10 years of professional experience in material handling
Fast production and on-time delivery systems
One-stop custom services to save time and cost
Available OEM/ODM services for non-standard parts
100% inspection of finished products before shipment
Specialized packaging for sea and air transport
Quality Control
Production Team Export Packing

Frequently Asked Questions

What is the maximum weight capacity of the DA450 drum lifter?
The DA450 model is designed to handle a maximum load capacity of 450kg (approx. 992 lbs).
Can this unit handle both plastic and steel drums?
Yes, it features a combined Eagle-grip and Anchorear structure specifically designed to be compatible with both standard steel and plastic drums.
How many degrees can the drum be rotated?
The drum can be manually rotated 180 degrees, allowing for controlled pouring and dispensing at various angles.
What is the maximum lifting height of the equipment?
The DA450 provides a maximum lifting height of 1500mm and a pouring height of 1580mm.
Is the drum lifter easy to move when fully loaded?
Yes, it is equipped with high-quality casters (150*50mm) and a floor lock, ensuring both ease of mobility and stability during the dumping process.
Are custom (OEM/ODM) designs available?
Yes, we provide OEM and ODM services to design and produce various non-standard material handling equipment based on your specific industrial needs.
