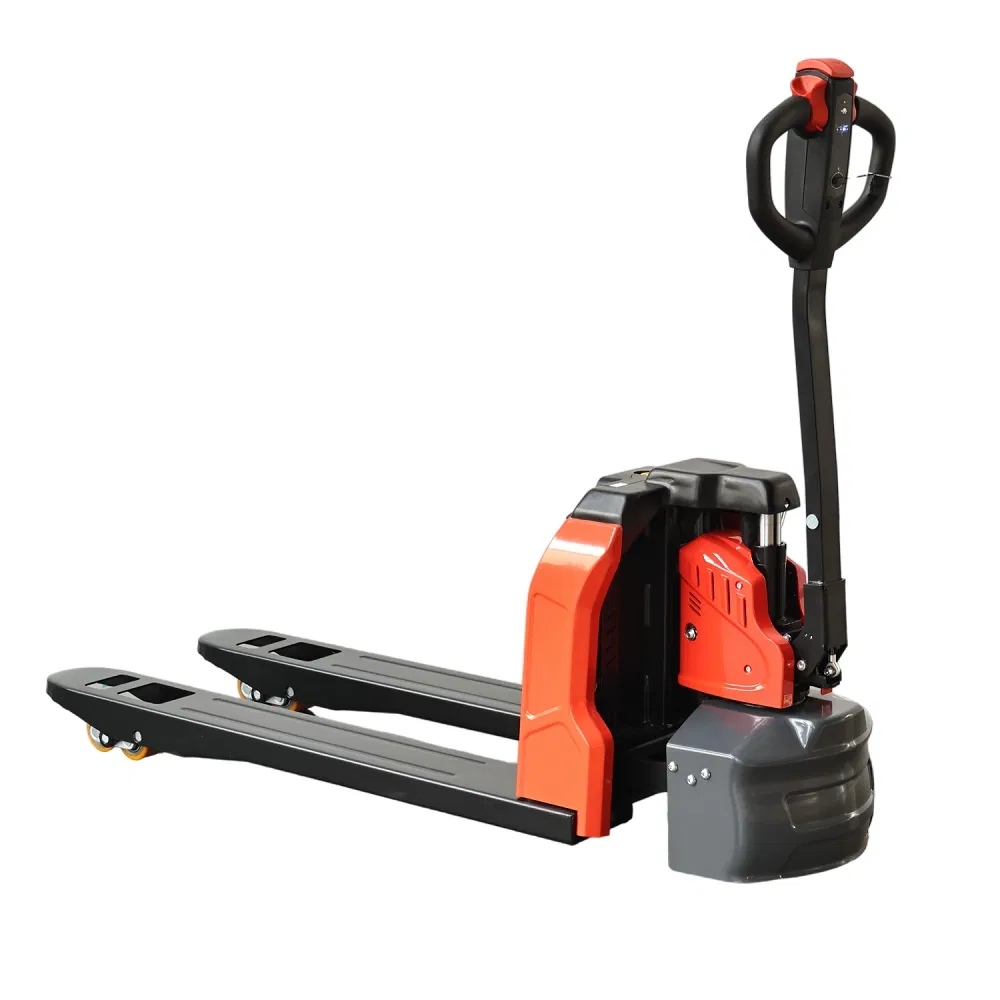

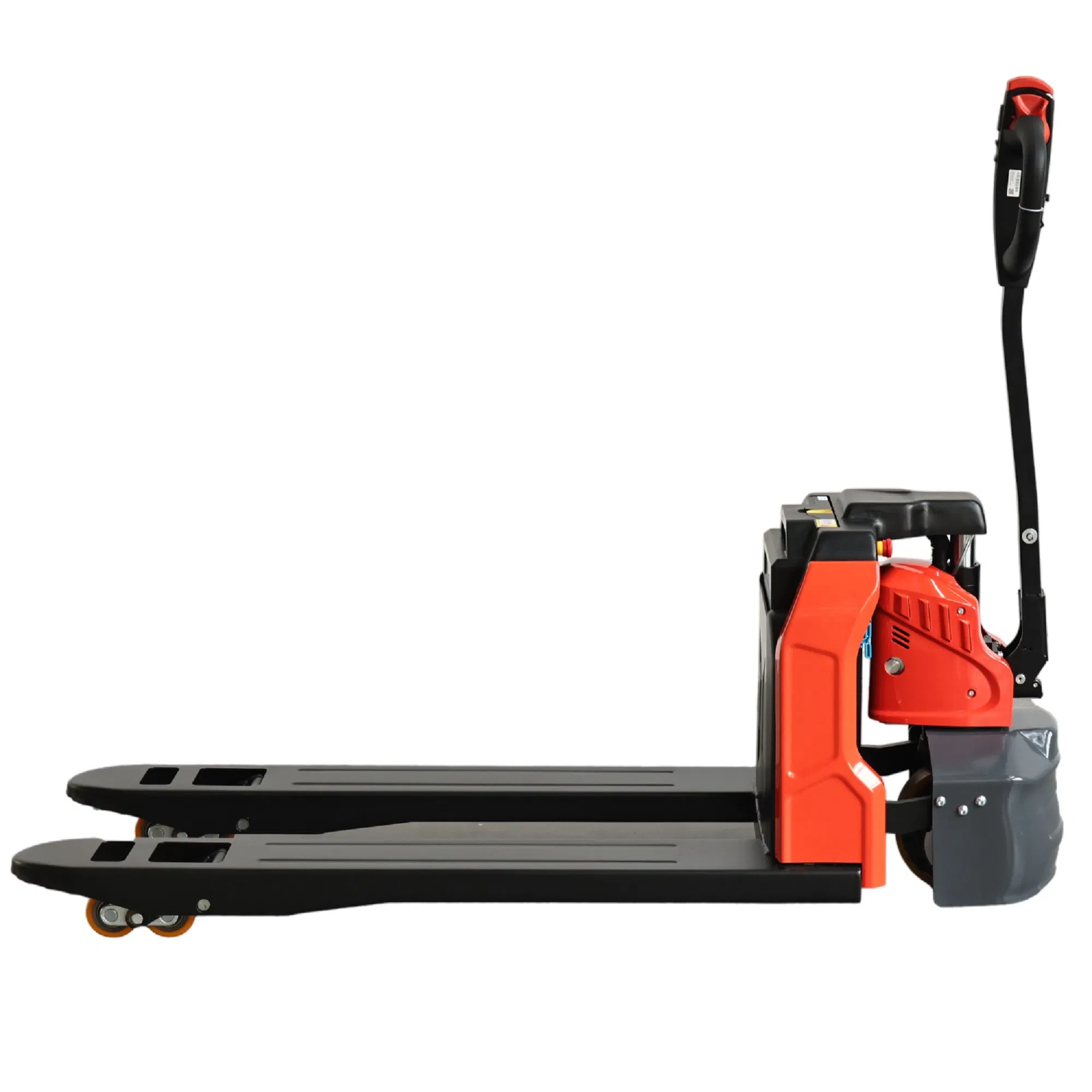

High Standard Durable Pallet Lift Stacker in Warehouses
High Standard Durable Pallet Lift Stacker in Warehouses
High Standard Durable Pallet Lift Stacker in Warehouses
High Standard Durable Pallet Lift Stacker in Warehouses
High Standard Durable Pallet Lift Stacker in Warehouses
1 / 5
High Standard Durable Pallet Lift Stacker in Warehouses
High Standard Durable Pallet Lift Stacker in Warehouses
High Standard Durable Pallet Lift Stacker in Warehouses
High Standard Durable Pallet Lift Stacker in Warehouses
High Standard Durable Pallet Lift Stacker in Warehouses

High Standard Durable Pallet Lift Stacker in Warehouses

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
EPT15V/20V
Cab Location
Adjustable
Type
Powered Pallet Truck
Power
DC Motor
Load Capacity
1T - 5T
Fuel
Electric
Load center
500mm
Lift height
85mm-195mm
Condition
New
Certificate
CE and ISO
Transport Package
Wooden Box or Other
Specification
L1620mm*W550mm/685mm*H1250mm
HS Code
8427109000
Production Capacity
20000
Product Application Technology Characteristics
  • EPT15V/20V full electric pallet truck is perfect for light-duty applications with compact & skeleton design.
  • Fast-charging li-on battery with the integrated charger what makes this electric pallet truck so versatile.
  • Fast battery replacement and high maneuverability.
  • Versatile usage: From the warehouse to the factory to the supermarket, EPT15V/20V can handle all.
  • EPT15V/20V provides customers with a new solution that can replace traditional products. It reduces the physical damage to operators caused by long-term dragging or lifting operations.
  • The lightweight design of the truck, without sacrificing frame strength, is very suitable for spaces where truck weight limits are required.
Technology Parameters
Model Unit EPT-15V EPT-20V
Power unit-ElectricElectric
Operation-PedestrianPedestrian
Loading capacitykg15002000
Load centremm600600
Wheel basemm12701270
Service weight with batterykg142145
Wheels type-PUPU
Driving wheel size, numbermmφ210*70/1φ210*70/1
Loading roller size, numbermmφ80*70/4φ80*70/4
Lifting heightmm110110
Height of tiller in driving position min/maxmm585/1200585/1200
Lowered heightmm8585
Overall lengthmm16201620
Overall widthmm550/685550/685
Single fork dimensionsmm50*160*115050*160*1150
Ground clearancemm3535
Channel width (1000mm*1200mm tray)mm18201820
Channel width (800mm*1200mm tray)mm18701870
Min. turning radiusmm13801380
Travel speed (Laden/Unladen)km/h4.2/4.54.2/4.5
Lifting speed (Laden/Unladen)mm/s22/1722/17
Lowering speed (Laden/Unladen)mm/s26/3026/30
Max climbing ability (With/Without load)%6%-10%6%-10%
Service brake-ElectromagneticElectromagnetic
Drive motorkw0.750.9
Lifting motorkw0.50.5
Battery voltage/Rated capacityVAh24V/20AH (30/40AH Optional)48V/15AH (20AH Optional)
Battery weightkg5.55.5
Charging timeh2.52.5
Working time after full chargeh>3>3
Product Showcase
Durable Pallet Lift Stacker 1
Durable Pallet Lift Stacker 2

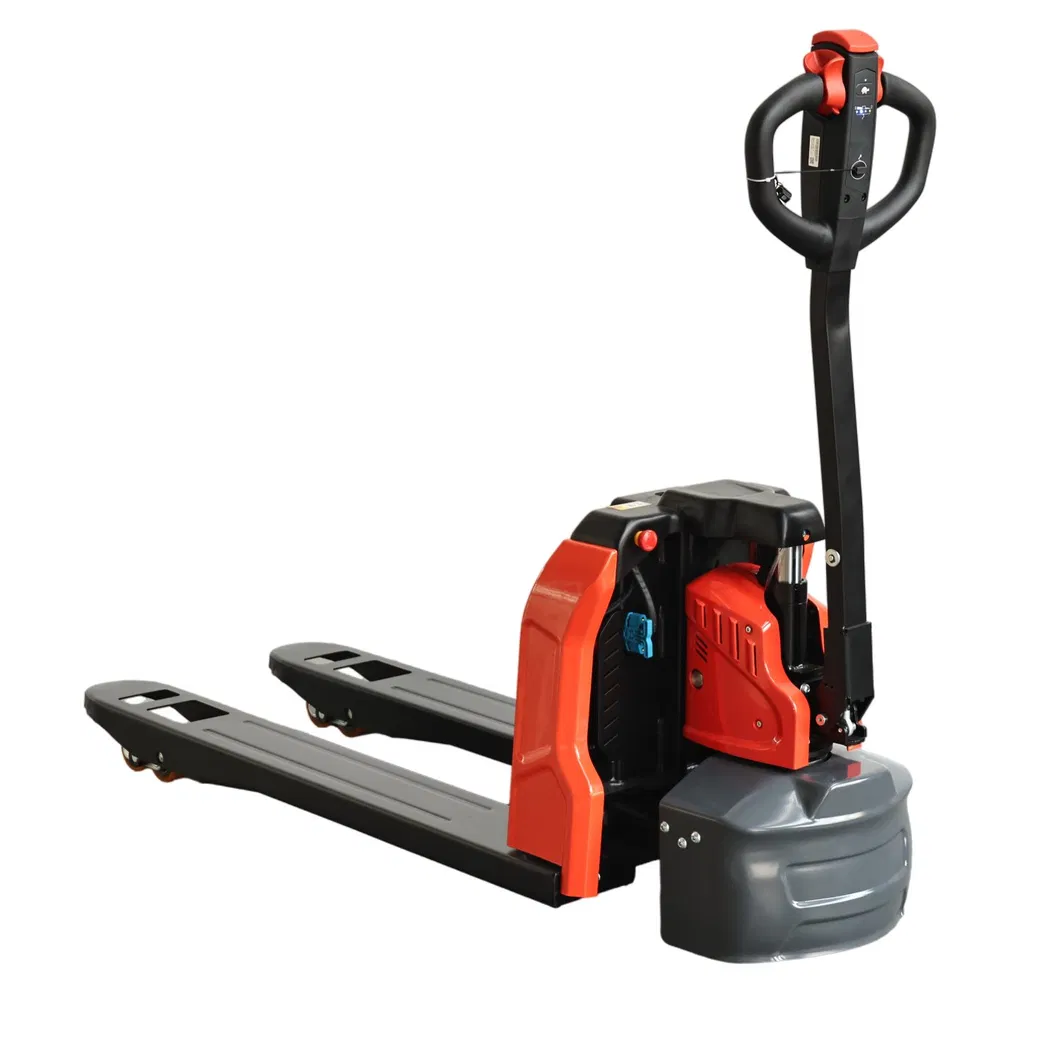

Durable Pallet Lift Stacker 3

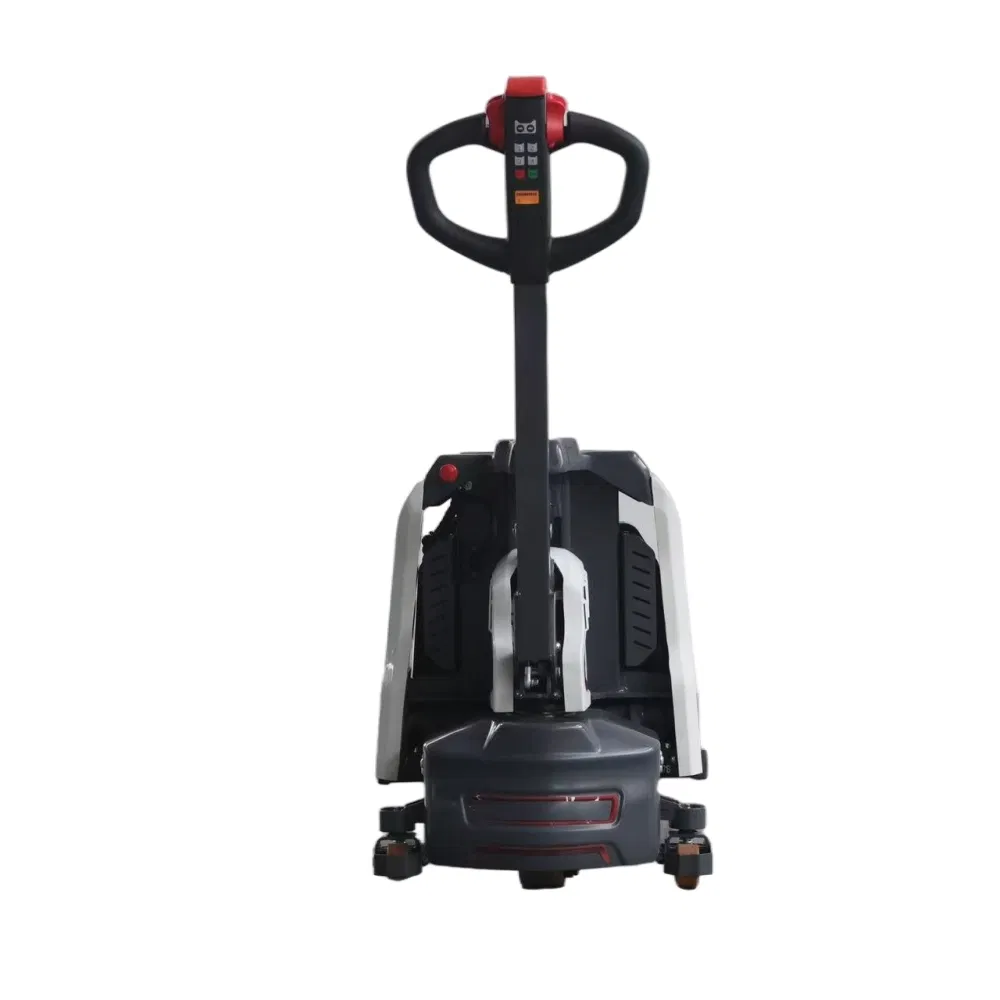

Durable Pallet Lift Stacker 4

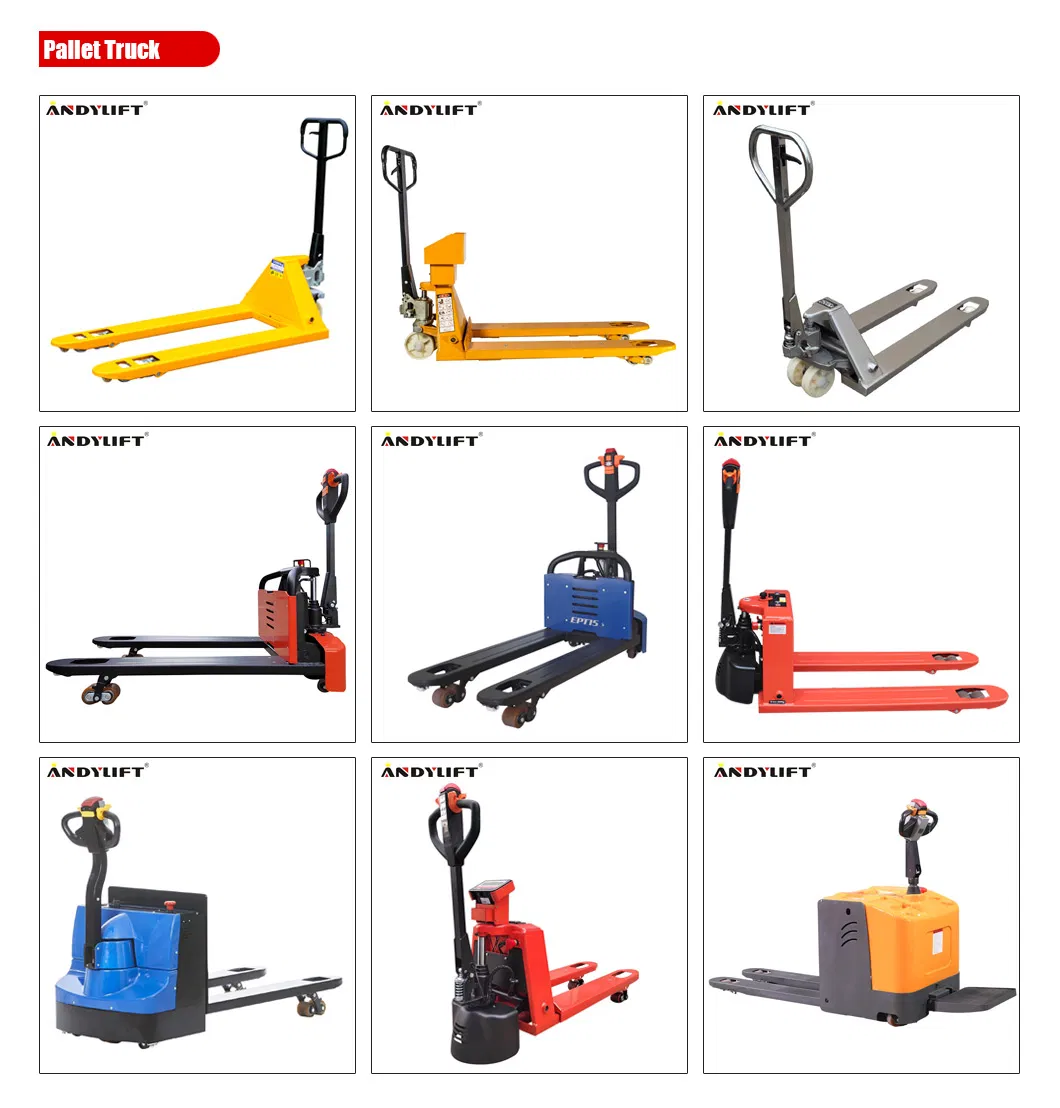

Durable Pallet Lift Stacker 5
Durable Pallet Lift Stacker 6

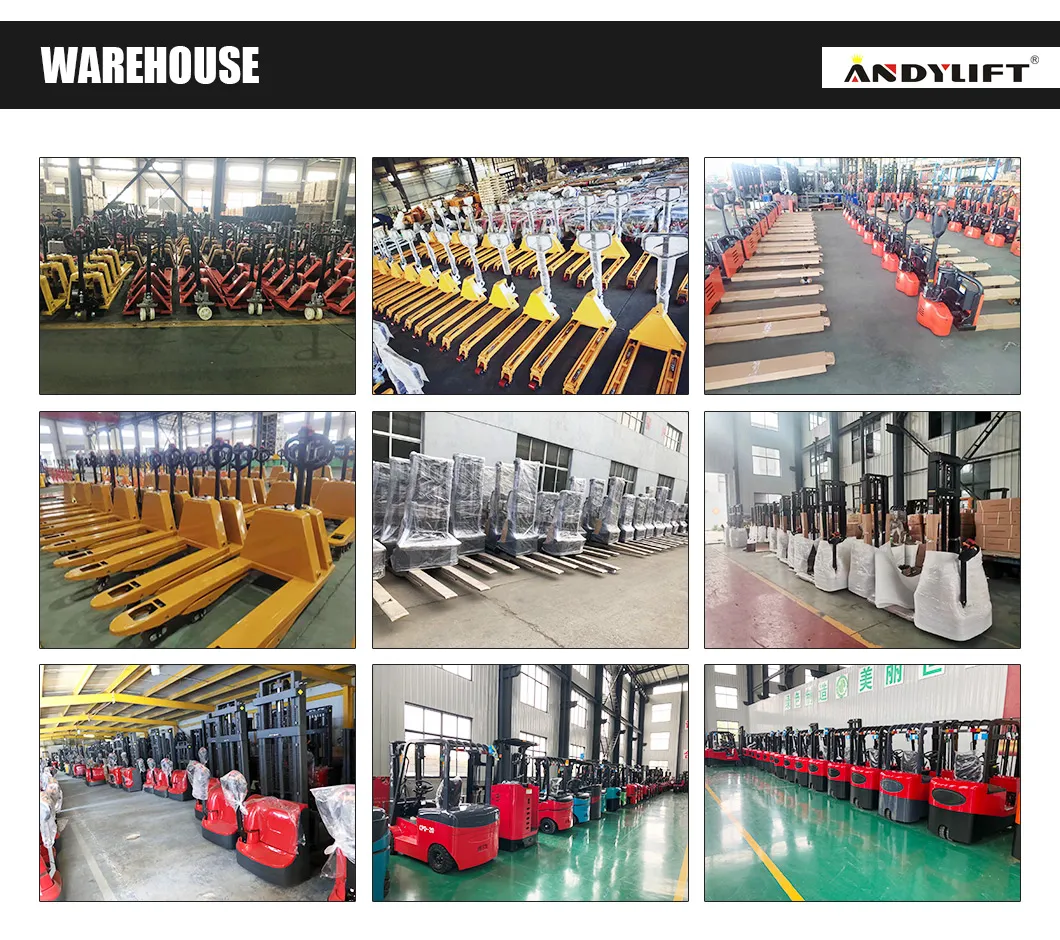

Durable Pallet Lift Stacker 7
Durable Pallet Lift Stacker 8
Durable Pallet Lift Stacker 9
Frequently Asked Questions
How long is the warranty of your products?
Equipment typically provides 12 months or 2000 working hours warranty as standard, whichever comes first.
What payment terms do you accept?
Our standard payment term is 30% in advance and 70% in balance by TT before delivery or against the original B/L copy.
How long can I get my order finished?
It takes 15-20 days for classic forklifts, pallet trucks, and stackers, and 5-10 days for spare parts.
Can you customize the configuration, logo, label, or color?
Yes, we can customize the configuration, logo, labeling, and color according to your specific requirements.
Do you accept small orders?
Yes, the MOQ is 1 unit for most products. For very small handling equipment, we can check on a case-by-case basis.
What is the charging time for the EPT15V/20V?
The fast-charging Li-ion battery requires approximately 2.5 hours for a full charge, providing over 3 hours of working time.
