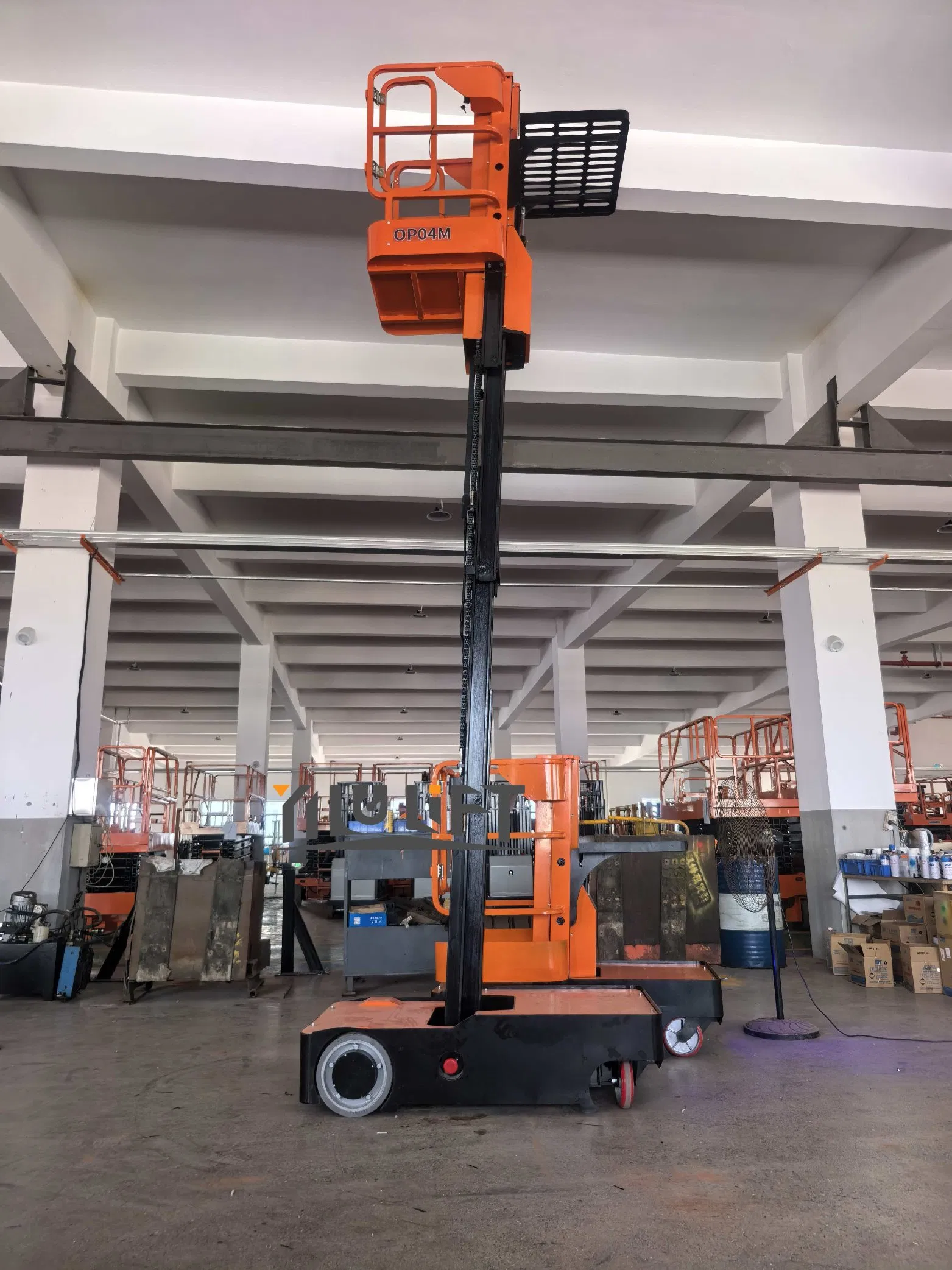

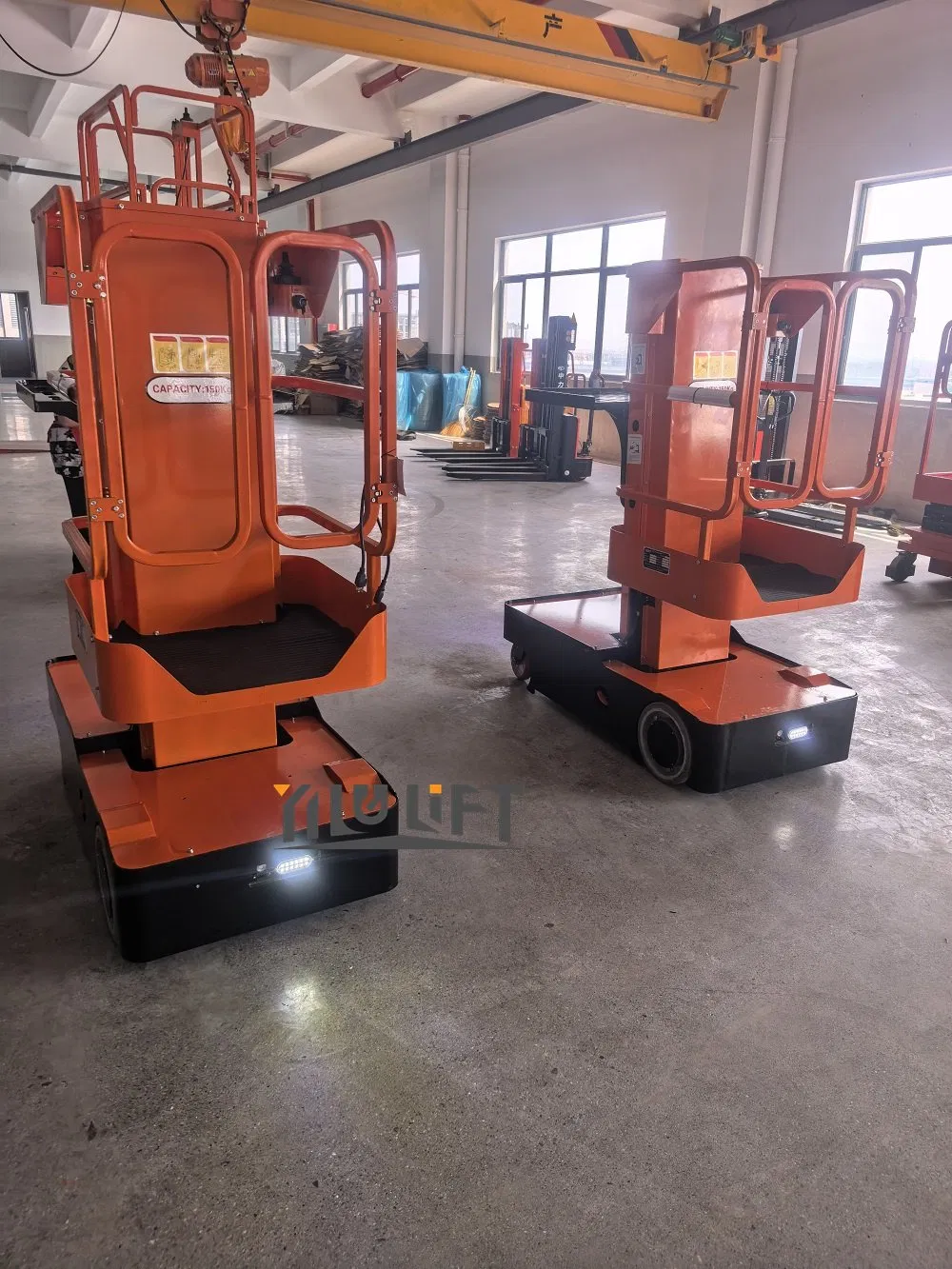

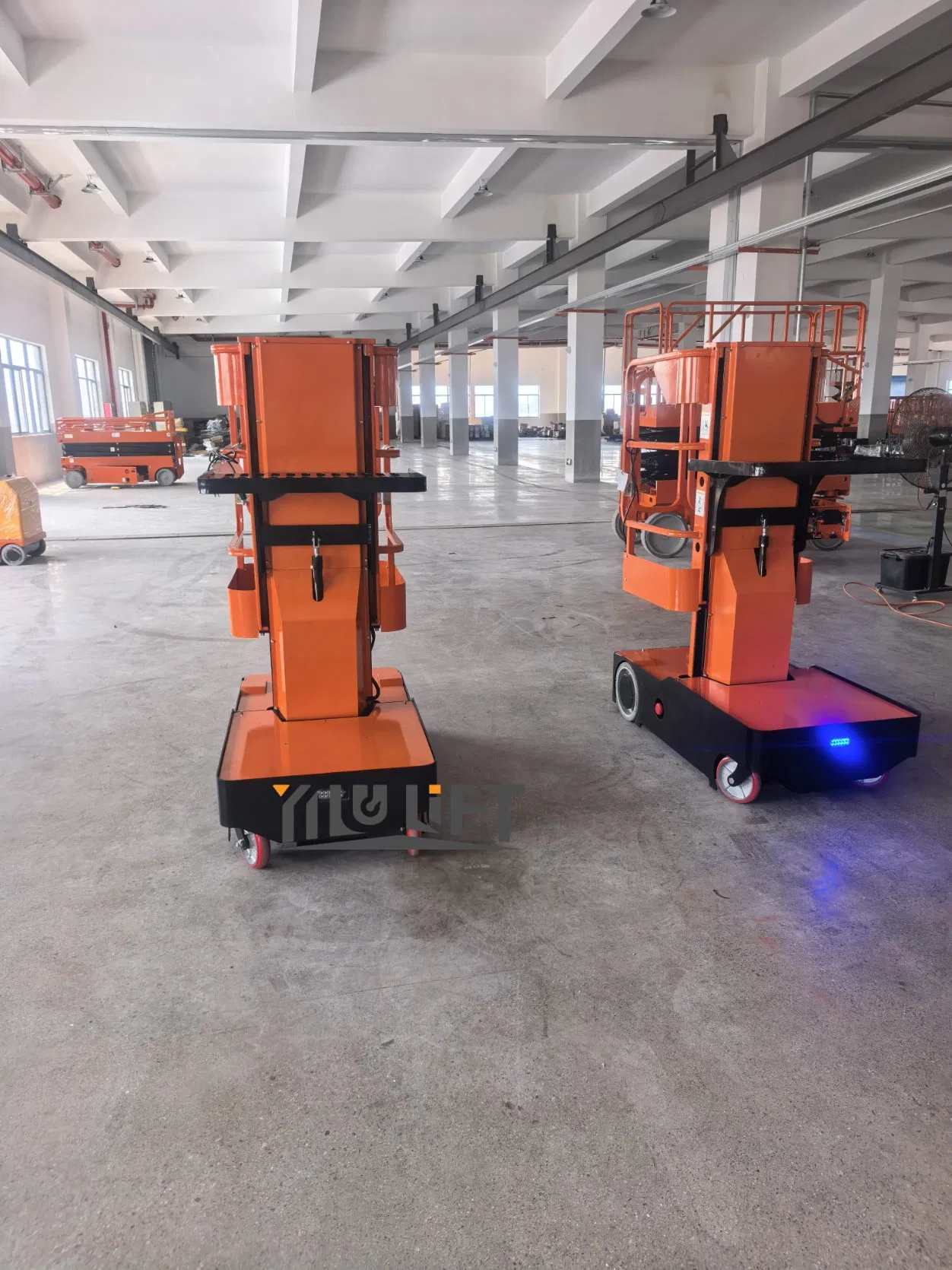

Warehouse Equipment Electric Mobile Order Picker for Sale

Technical Specifications

Application

Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Lift Mechanism

Rack & Pinion

Carrying Capacity

Middle-Level (160 Kg)

Driven Type

DC

Feature

Explosion-Proof, Insulating

Certification

GS, CE, ISO 9001

Platform Height

2.7 M - 4.5 M

Platform Size

495X690 mm

Battery

2*12V/150Ah

Warranty

1 Year

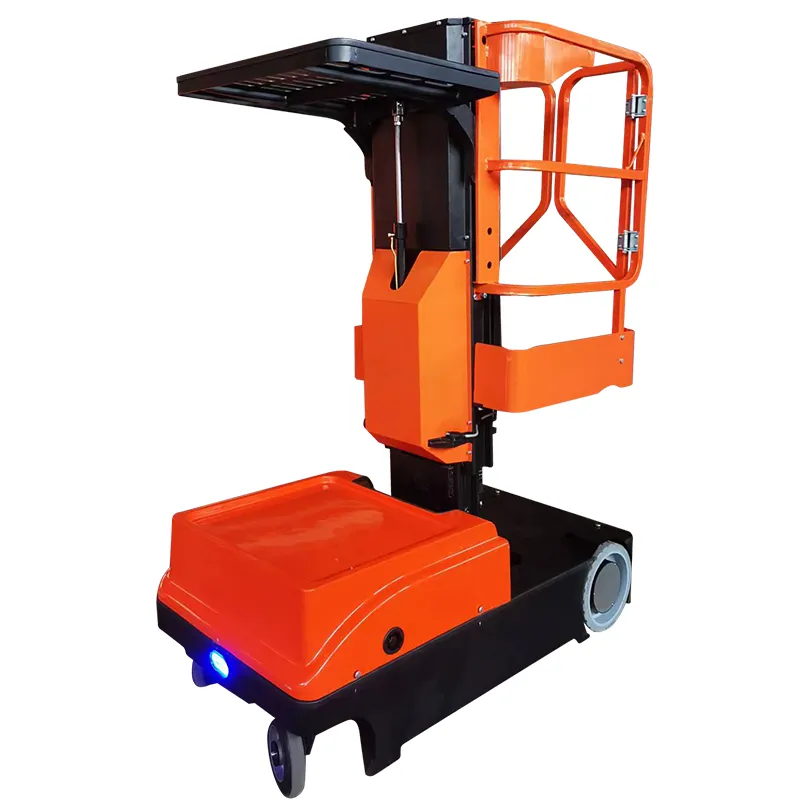

Self Propelled Order Picker

The self-propelled order picker is renowned for its compact body size, simple structure, and exceptionally low failure rate. It operates entirely on battery power for both movement and lifting. Operators can control all functions directly from the platform, ensuring maximum efficiency in stacking and reclaiming tasks within warehouses and supermarkets.

Model Comparison

Model Type	Unit	OPC03M	OPC04M
Max. Platform Height	mm	3050	4000
Max. Working Height	mm	4880	5880
Platform Size	mm	495X690	495X690
Min. Turning Radius	m	0.23	0.23
Max. Climbing Capacity	%	25%	25%
Battery	v/Ah	2X12V/100Ah	2X12V/100Ah
Platform Capacity	kg	160	160

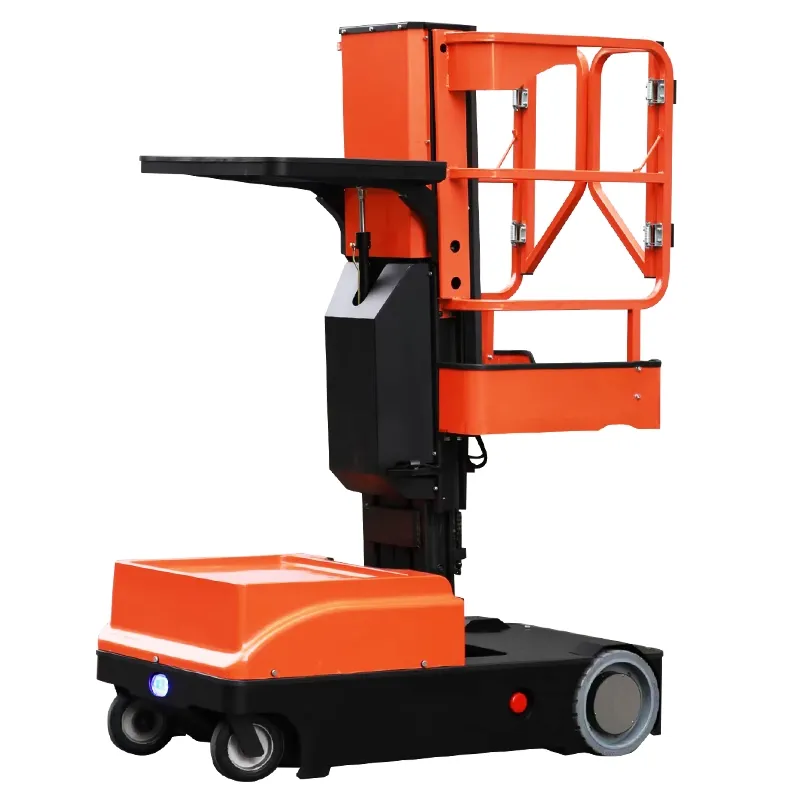

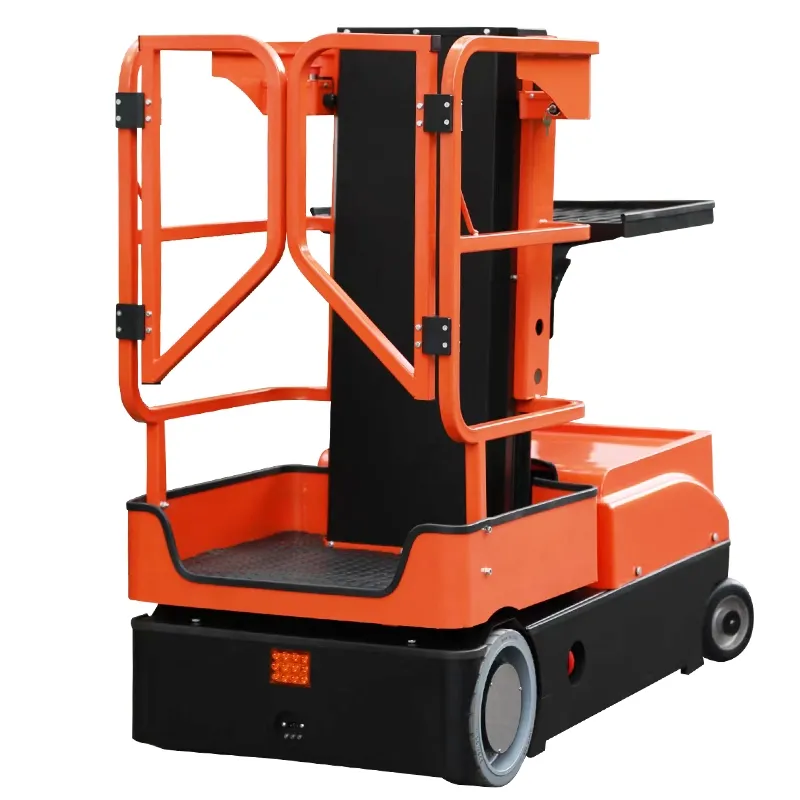

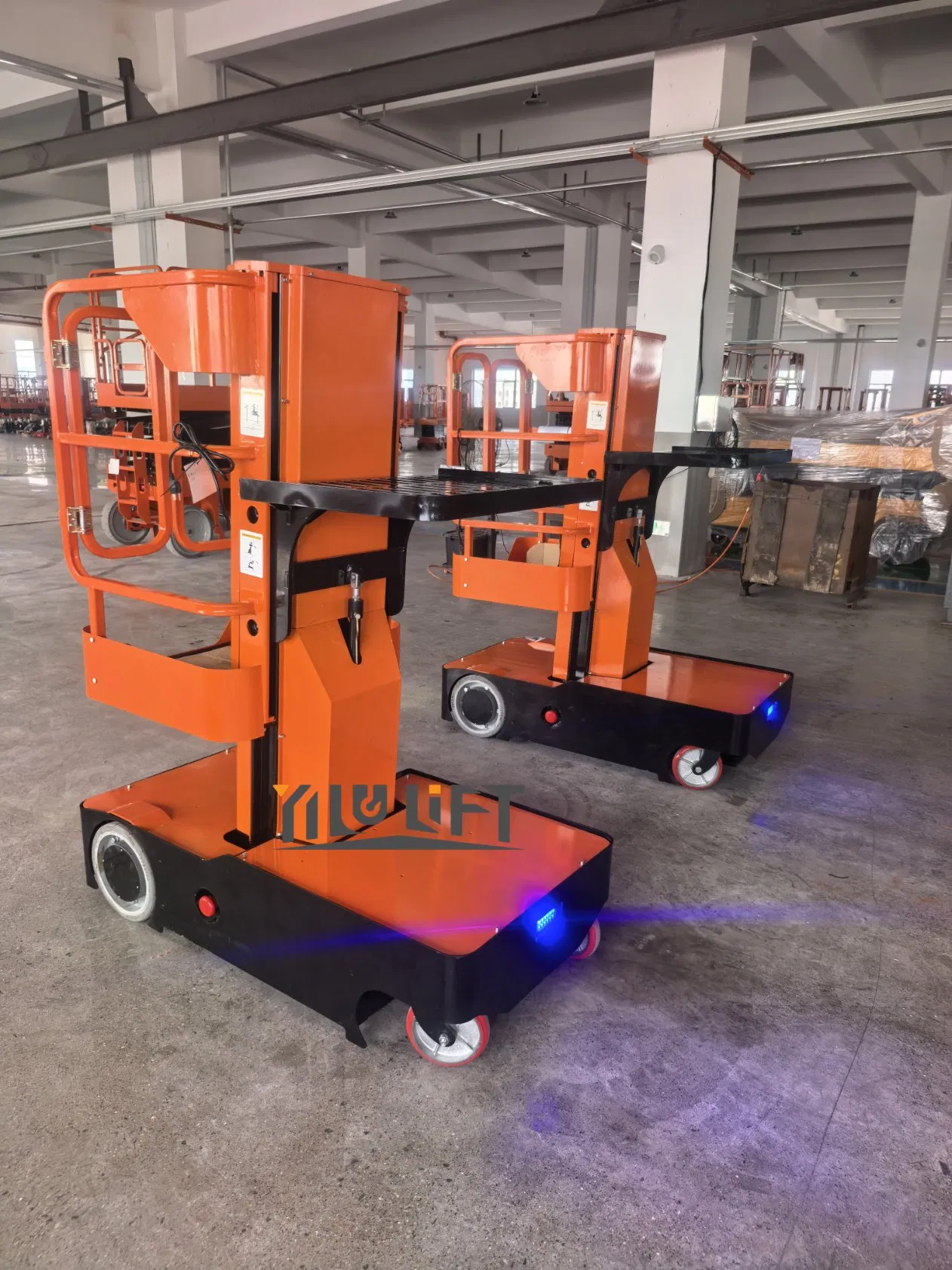

Product Display

Standard Specifications & Features

✓Planetary Gear Drive Motors
✓Simultaneous Lift and Drive
✓One-hand Drive and Steer System
✓Proportional Drive
✓Automatic 5-Hour Battery Charger
✓Battery Discharge Indicator
✓Maintenance-Free Mast System
✓Front and Rear Strobe Lights
✓Platform Gate Operation Interlock
✓Adjustable Height Material Tray
✓Non-Marking Tire Material
✓Lanyard Attachment Anchor Point

Technical Details

Frequently Asked Questions

What is the maximum carrying capacity of this order picker?

The rated capacity for these models is 160 kg, making it ideal for middle-level material handling tasks.

Can the equipment be used in specialized environments?

Yes, it features explosion-proof and insulating properties, suitable for various industrial applications including workshops and warehouses.

How long is the charging time and battery life?

It comes with an automatic charger. The system includes a battery discharge indicator on both the platform and base to monitor power levels efficiently.

Is it easy for a single person to operate?

Absolutely. The self-propelled order picker features a one-hand drive and steer system, proportional drive, and is light enough for single-person handling.

What safety features are included as standard?

Standard safety includes strobe lights (front and rear), a horn, platform gate interlocks, stand-on foot switch operation, and emergency attachment anchor points.

What kind of warranty is provided?

The product comes with a 1-year warranty period covering standard manufacturing defects and performance.
