Electric Pallet Stacker Semi Electric Pallet Stacker Truck for Sale

Customization:	Available
After-sales Service:	Video Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Cab Location

Ground

Type

Stacker

Power

DC Motor

Load Capacity

1T - 5T

Fuel

Hand

Load center

500mm

Lift height

1600~3000mm

Condition

New

Color

Red or Yellow Optional

Transport Package

Bubble Wrap

Origin

China

HS Code

8427109000

Production Capacity

2000sets/Month

Product Description

Semi electric pallet stacker available in 1000KGS and 1500KGS capacities. Lifting height options include 1.6m, 2m, 2.5m, and 3.5m.

Semi-electric Stacker Truck Technical Specifications
Model	-	DYC10-1.6	DYC20-1.6	DYC10-2.0	DYC20-2.0	DYC10-2.5	DYC20-2.5	DYC10-3.0	DYC20-3.0	DYC10-3.5	DYC20-3.5
Lifting Height (mm)	-	1600	1600	2000	2000	2500	2500	3000	3000	3500	3500
Loading Capacity (Kg)	-	1000	2000	1000	2000	1000	2000	1000	2000	1000	2000
Lower Height (mm)	-	85	85	85	85	85	85	85	85	85	85
Fork Length (mm)	-	1000	1100	1000	1100	1000	1100	1000	1100	1000	1100
Outer Width of Fork (mm)	-	320-680	320-680	320-680	320-680	320-680	320-680	320-680	320-680	320-680	320-680
Lifting Speed (s)	-	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15
Lifting Motor	-	12V/1.5kw	12V/1.5kw	12V/1.5kw	12V/1.5kw	12V/1.5kw	12V/1.5kw	12V/1.5kw	12V/1.5kw	12V/1.5kw	12V/1.5kw
Battery	-	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH

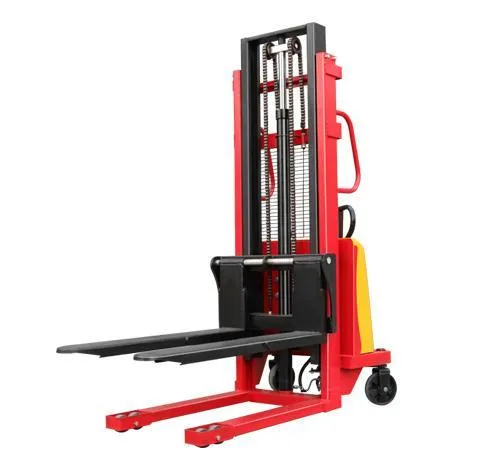

Detailed Photos

Frequently Asked Questions

1. What is the difference between a manual and semi-electric stacker?

A manual stacker requires physical effort for both moving and lifting. A semi-electric stacker features an electric lifting motor for effortless raising and lowering of loads, while movement is still done manually.

2. How long does the battery last on a single charge?

The 12V/120AH battery is designed for standard daily warehouse operations. Typical usage allows for several hours of continuous lifting operations before requiring a recharge via the included 12V/15A charger.

3. Are the forks adjustable?

Yes, most of our semi-electric stackers come with adjustable outer fork widths ranging from 320mm to 680mm to accommodate different pallet sizes.

4. What safety features are included?

Our stackers include a robust protective screen on the mast, a mechanical parking brake on the wheels, and an emergency disconnect switch to ensure operator safety.

5. Can this stacker be used on uneven surfaces?

These stackers are designed for use on smooth, level, and hard surfaces such as concrete warehouse floors. Using them on slopes or uneven ground is not recommended for safety and stability.

6. Does the stacker require specialized maintenance?

Maintenance is straightforward. It primarily involves keeping the battery charged, checking hydraulic fluid levels periodically, and ensuring the lifting chain is lubricated and the wheels are free of debris.
