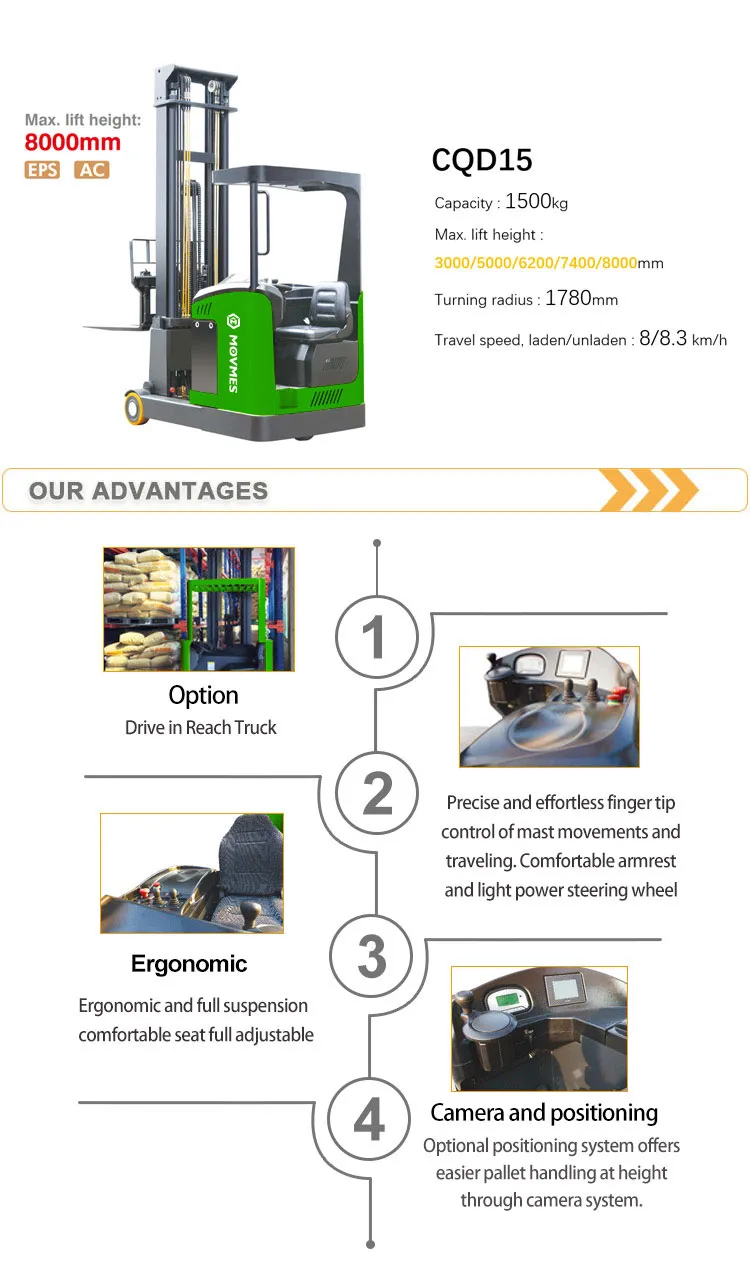

| Model NO. | CQD15 | Type | Reach Forklift |
| Power | AC Motor | Fuel | Electric |
| Load Capacity | 1.5 Ton (1500 Kg) | Load Center | 600 mm |
| Lift Height | 3000/5000/6200/7400/8000 mm | Turning Radius | 1780 mm |
| Battery | 48V / 400Ah | Service Weight | 2900 - 3300 Kg |

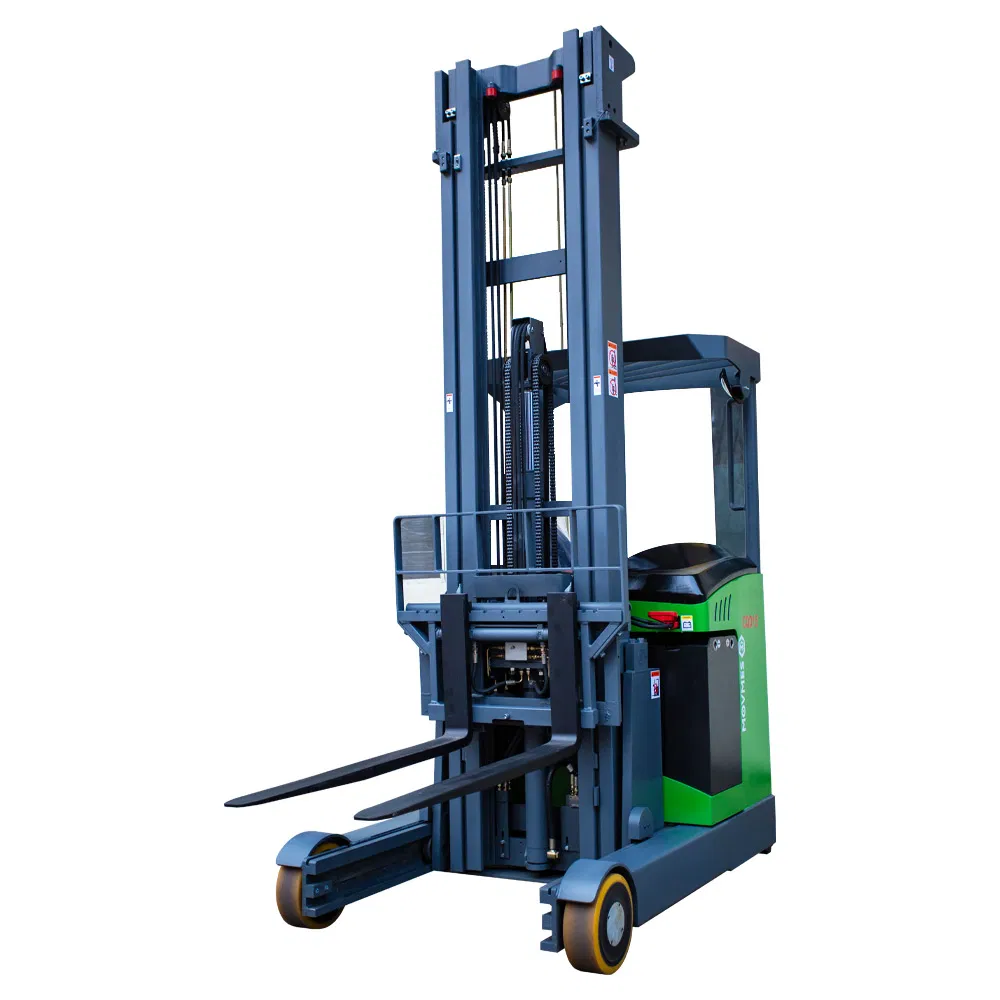

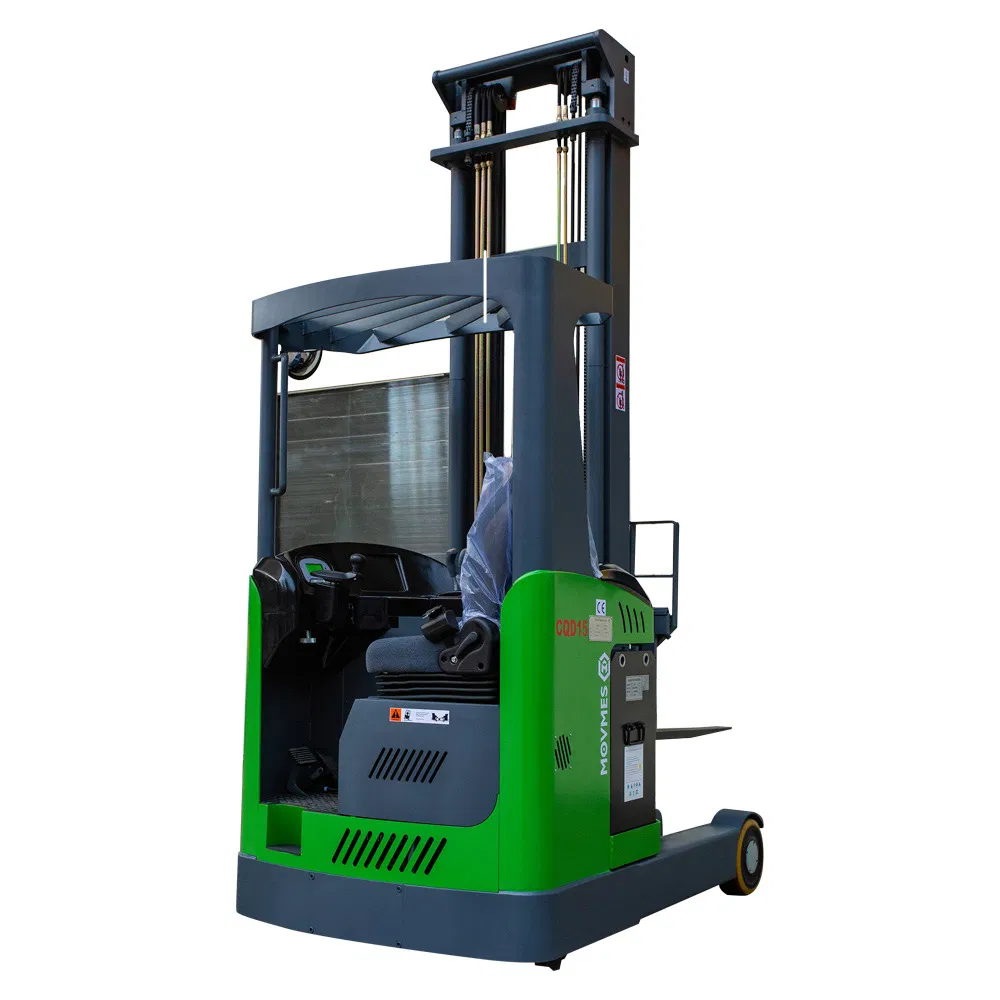

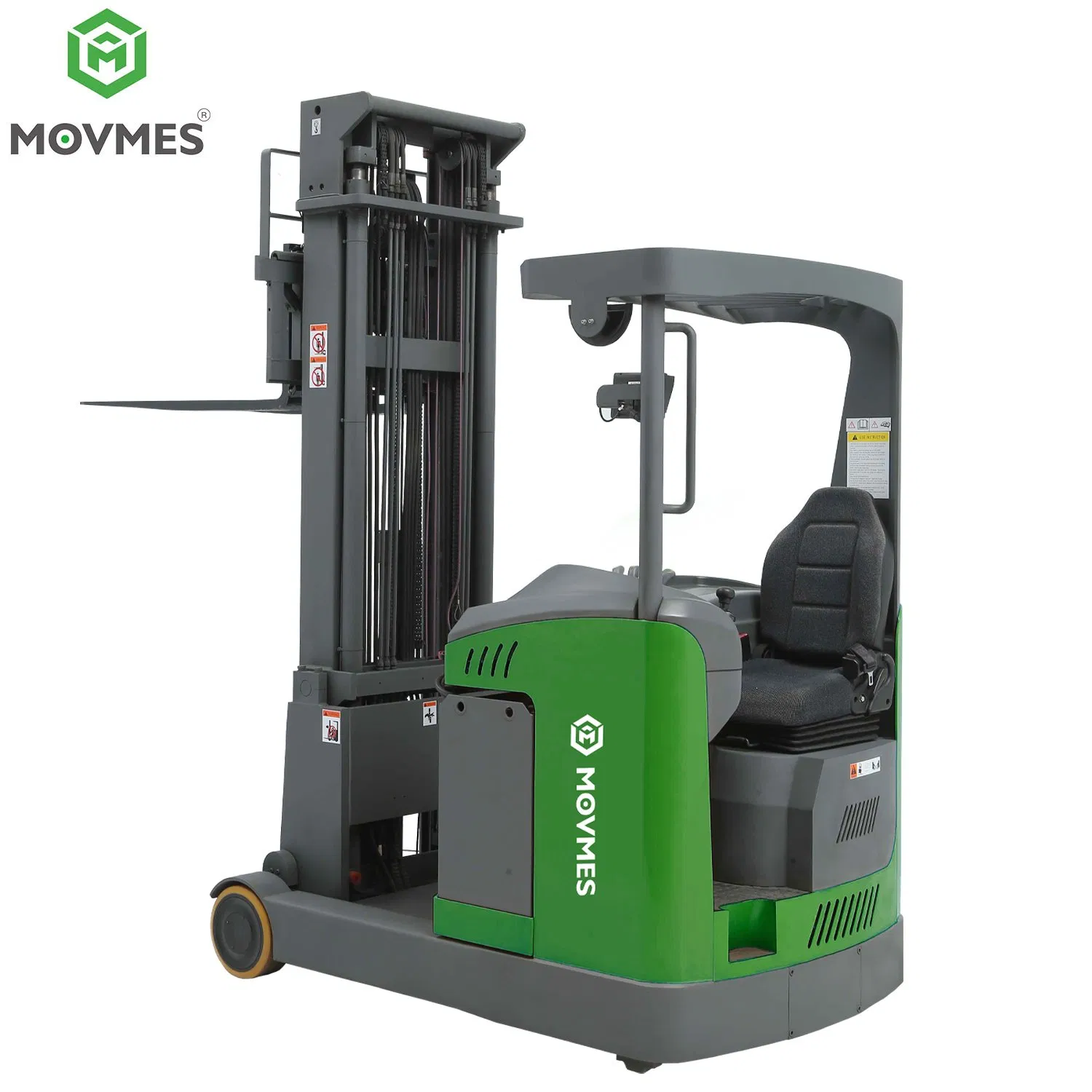

China EPS 1500kg 1.5 Ton Counterbalance Forklift High Sit Down Electric Reach Stacker. Designed for advanced material handling in warehouses, sales floors, and pallet lifting applications with 6-8m lifting height capabilities.

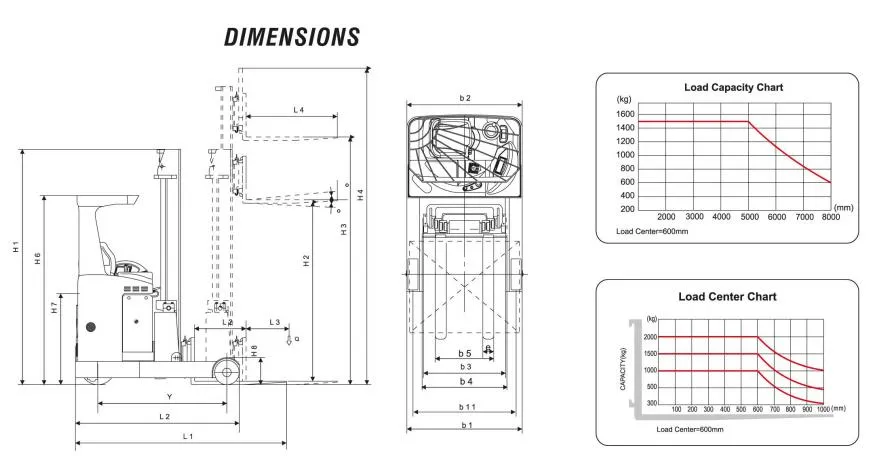

| Parameter Item | Unit | Data |
|---|---|---|
| Max. Lift Height | mm | 3000 / 5000 / 6200 / 7400 / 8000 |
| Free Lift | mm | 0 / 1700 / 2100 / 2500 / 2700 |
| Height, Mast Lowered | mm | 2086 / 2240 / 2740 / 3190 / 3390 |
| Overall Length | mm | 2370 |
| Overall Width | mm | 1200 |
| Fork Dimensions | mm | 35 / 100 / 1070 |
| Travel Speed (Laden/Unladen) | Km/h | 8 / 8.3 |
| Lift Speed (Laden/Unladen) | M/s | 0.45 / 0.36 |

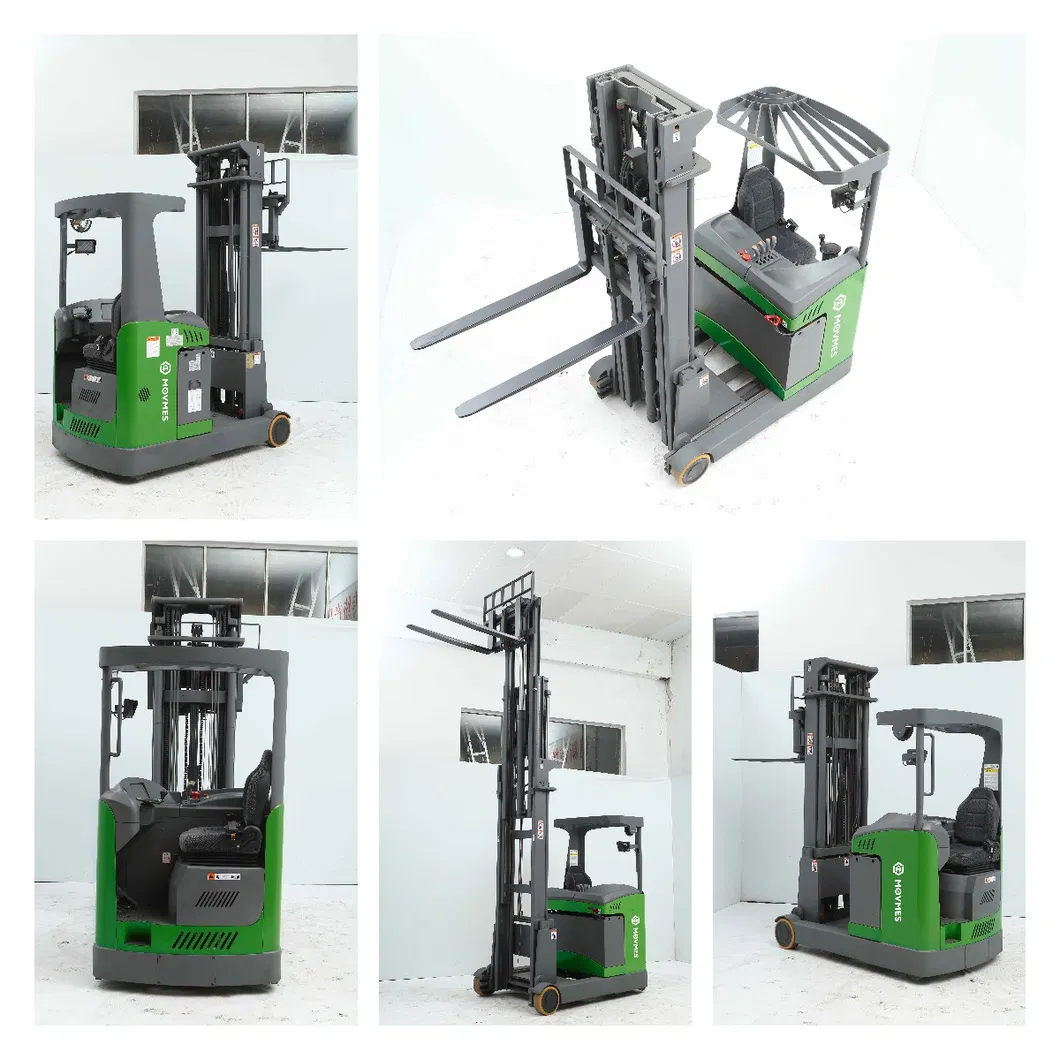

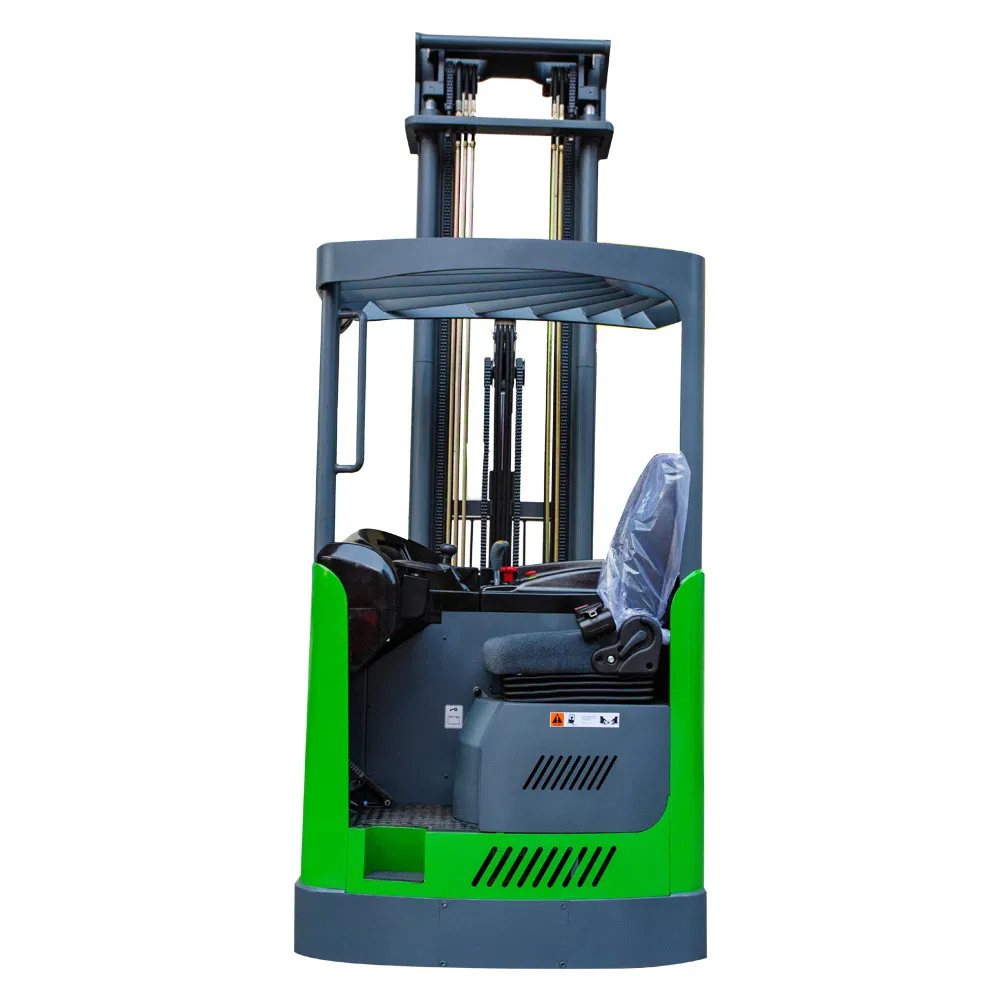

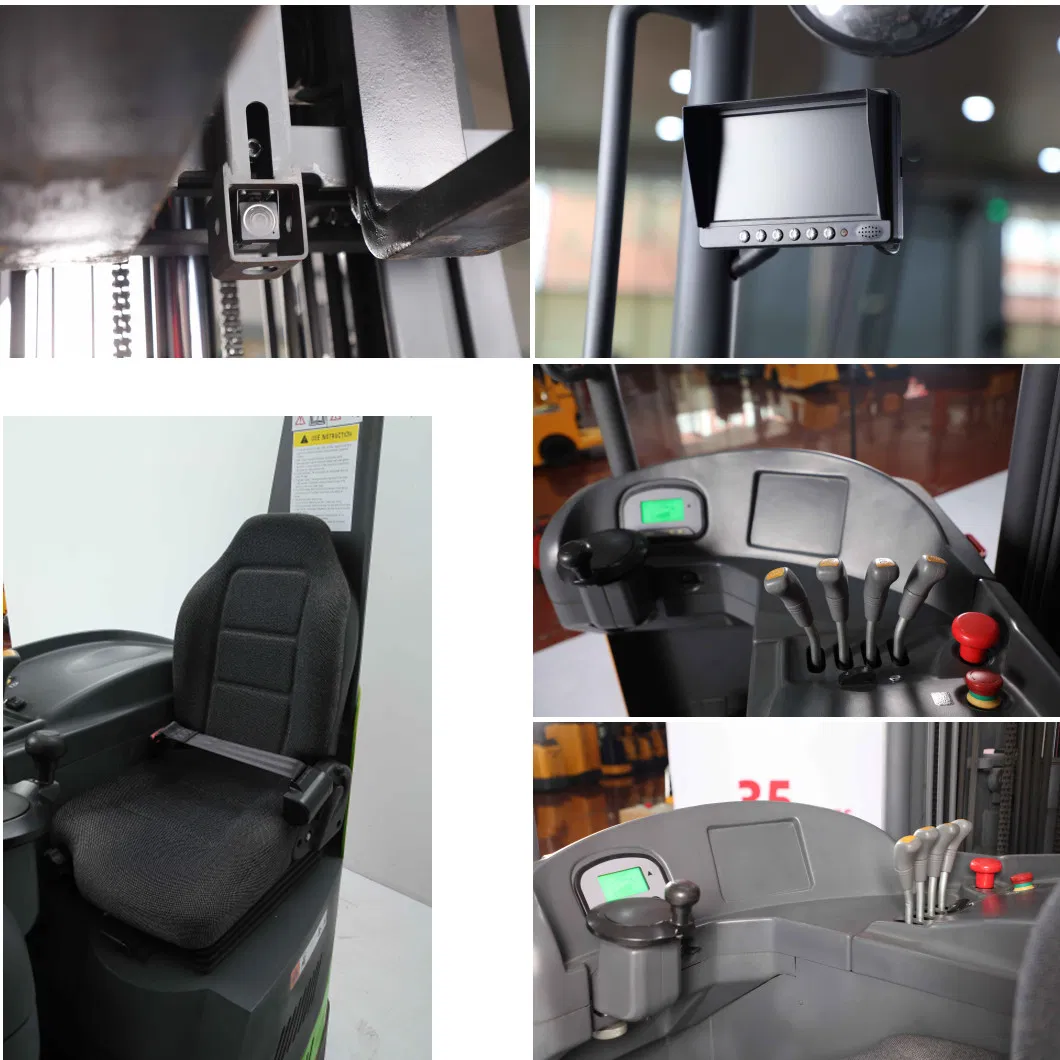

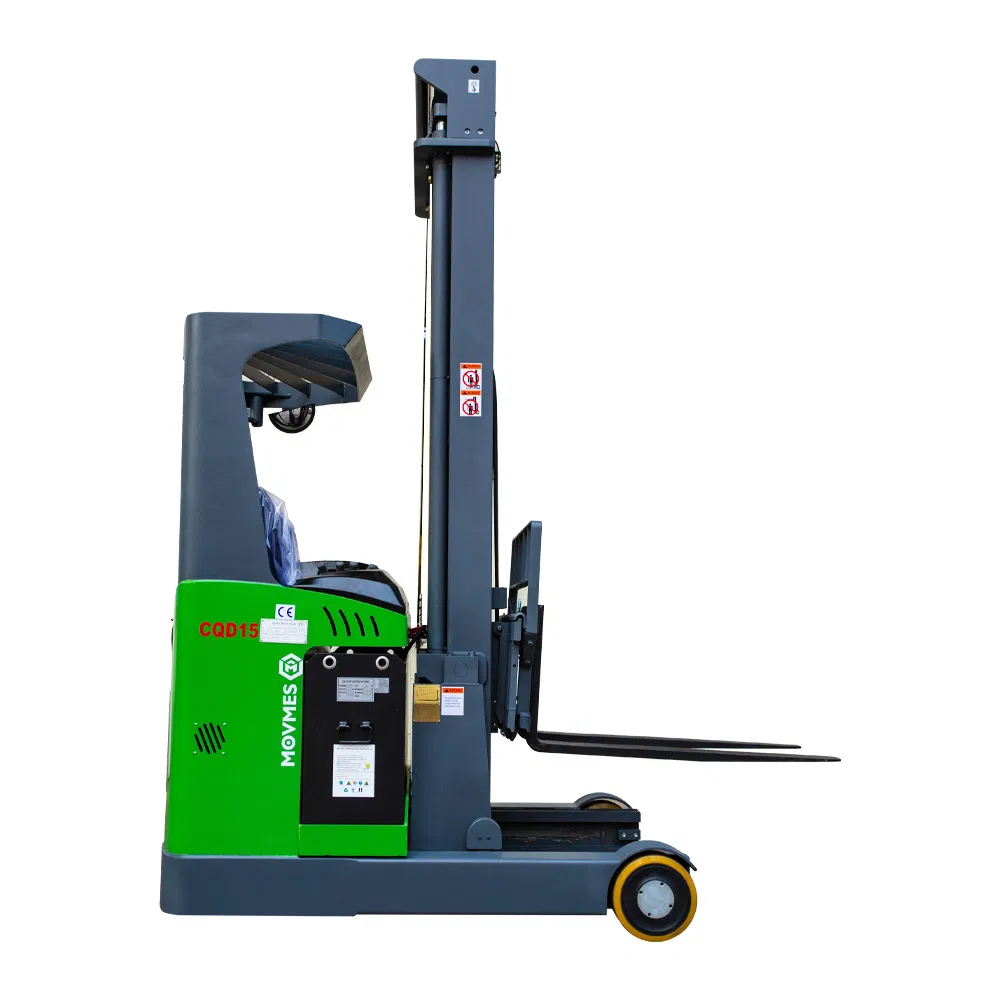

The CQD15(EPS) Reach truck is an innovation based on heavy-duty chassis, featuring an extra-large compartment and unequaled visibility. It excels in load capacity at high reach elevations. The compact cabin design is perfect for drive-in racking, allowing operators to work more effectively.
CBD20R-II 2.0T Rider Electric Pallet Truck
CDD10R-E 1.0T Electric Stacker

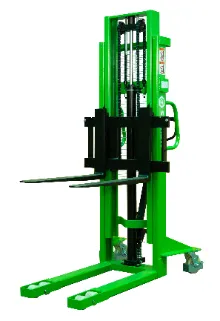

SDJA 1000 Manual Stacker
