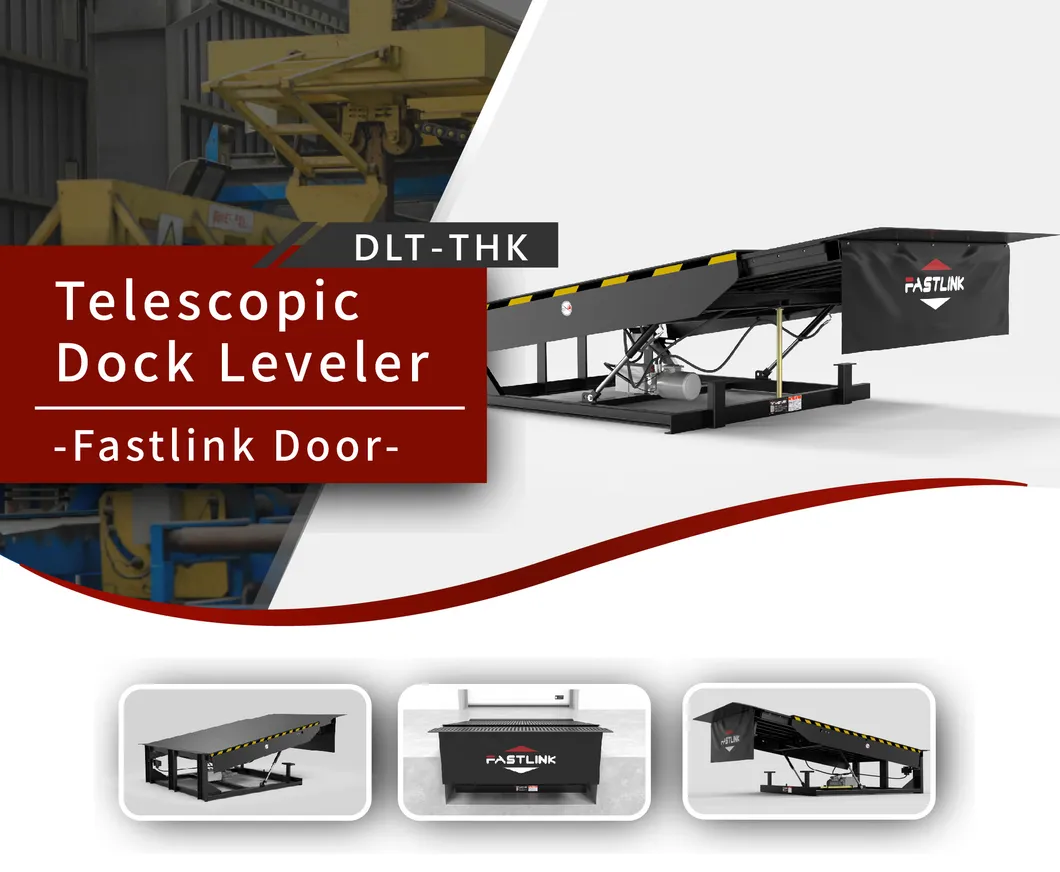

Fastlink in Stock Industrial Alloy Safety Protection Fixed Intelligent Hinged Dock Plate Telescopic Dock Lift Ramp

1 / 5

Fastlink in Stock Industrial Alloy Safety Protection Fixed Intelligent Hinged Dock Plate Telescopic Dock Lift Ramp

Customization:	Available
After-sales Service:	2 Years
Warranty:	1 Year

Send Inquiry

Product Description

Technical Specifications

Model NO.

DLT-THK

Application

Workshop Crane

Lift Mechanism

Telescoping Lift

Driven Type

Hydraulic

Load Capacity

6.8t

Power Source

380V, 3pH, 50Hz

Lip Length

1000mm/1200mm

Certification

CE, ISO 9001

Cylinder

Double Cylinders

Table Size

W2000mm*L2500mm*H600mm

Product Description

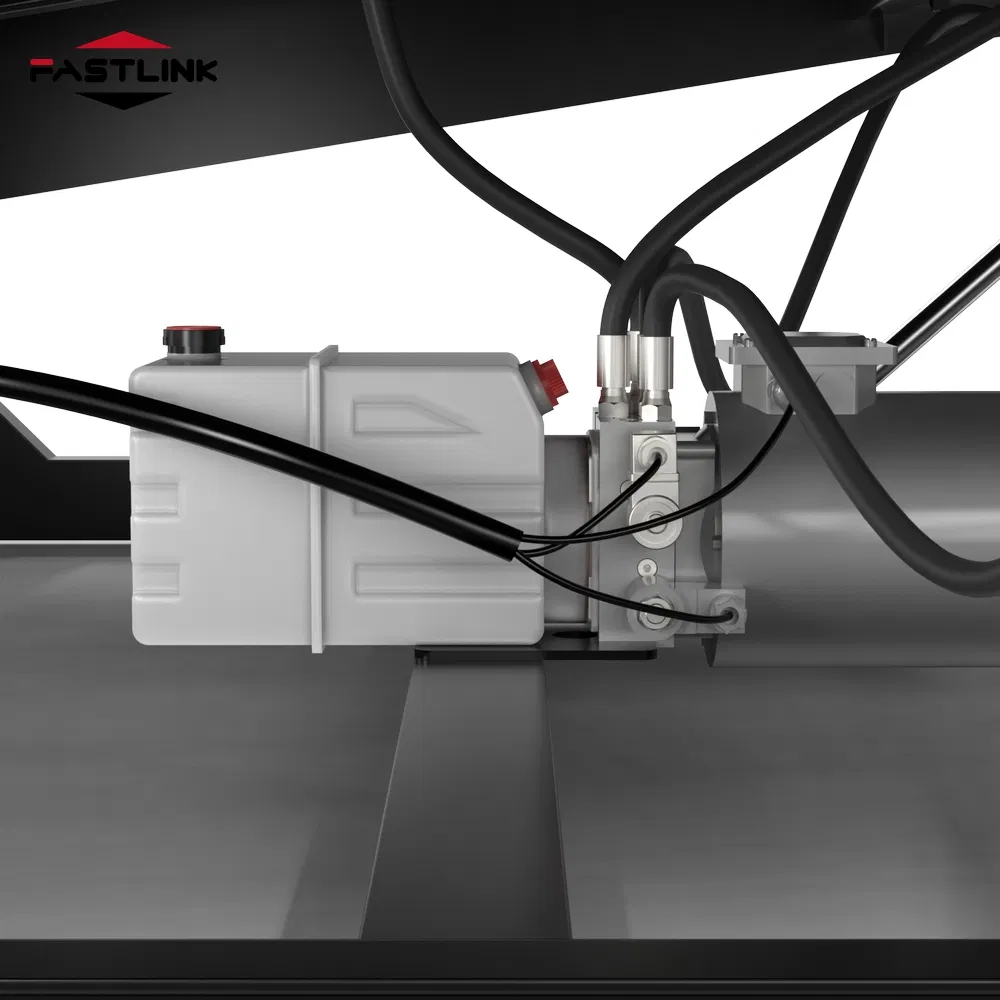

The telescopic dock leveler is engineered for industrial plants, logistics, and warehousing buildings. It features an integrated hydraulic power unit, including the lip control, ensuring reliability and low maintenance requirements. The intelligent control system provides fault code displays, operational status monitoring, and fire linkage functions.

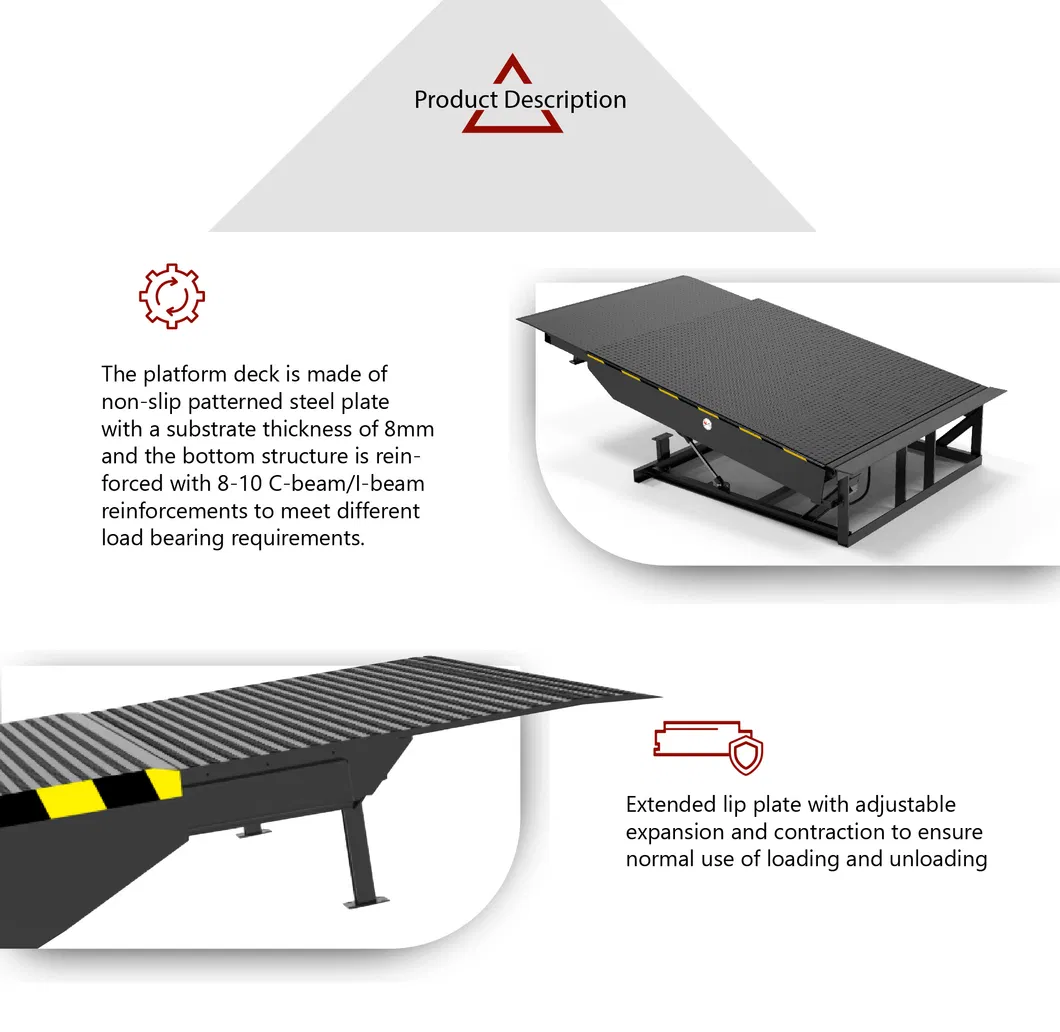

Reinforced Platform

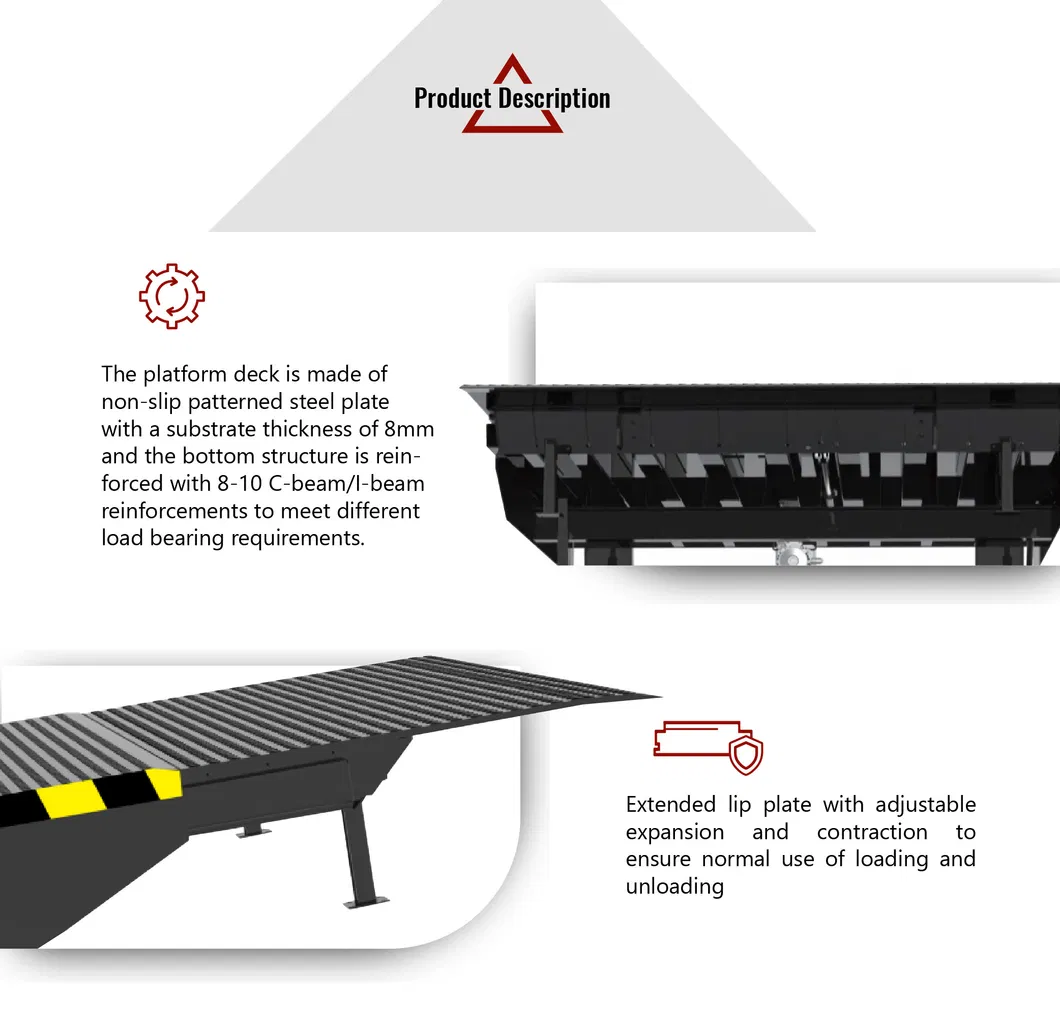

The structure is reinforced by 8-10 C-beam steel reinforcements, ensuring the surface remains resilient and provides optimal support during heavy loading.

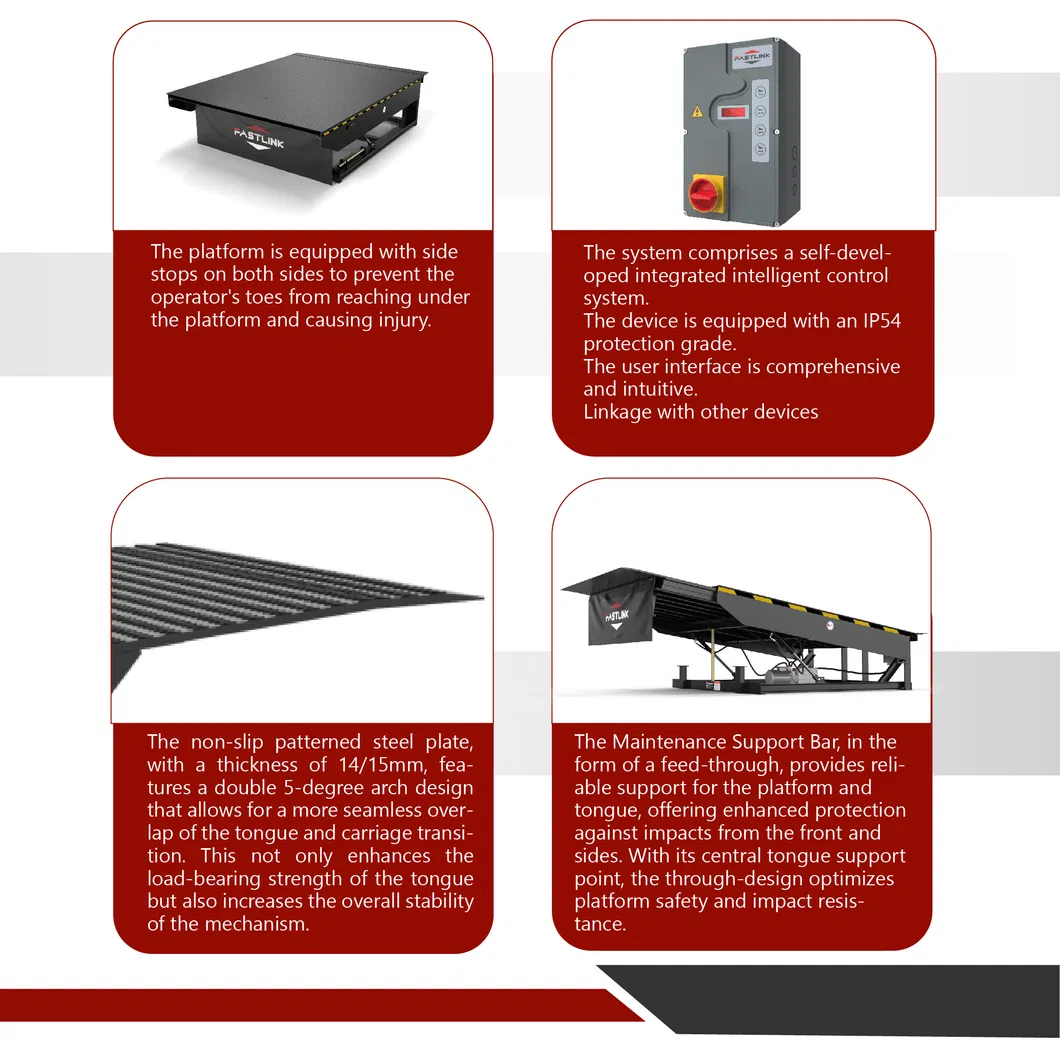

Safety Configuration

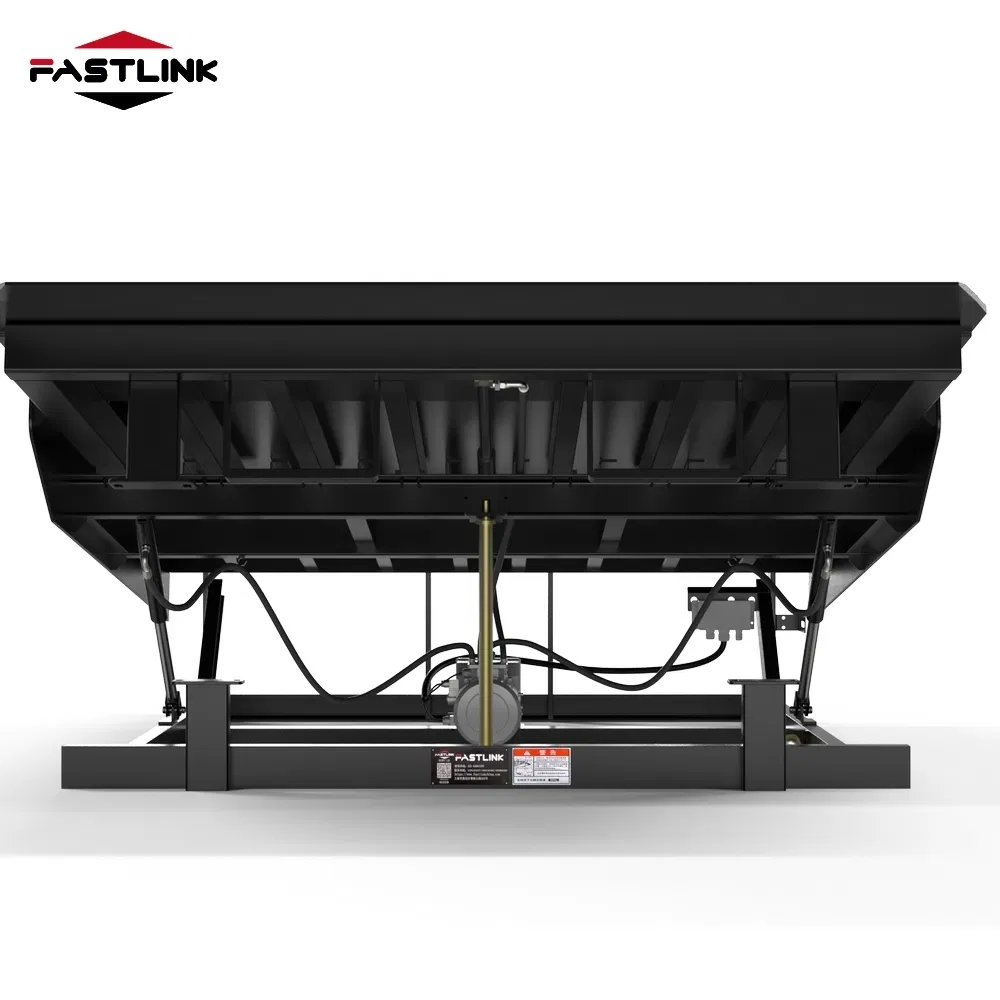

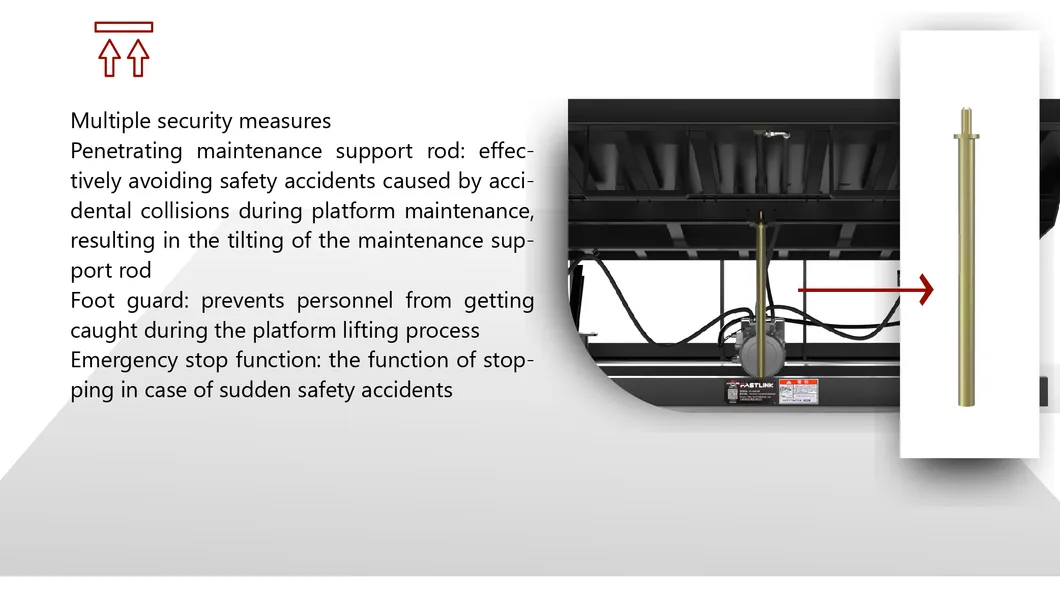

Equipped with penetrating maintenance support bars and side foot protectors to prevent operator injury and handle front or side impacts.

Intelligent Control

National invention patent control box enabling fire linkages, interlock functions, and self-safety protection mechanisms.

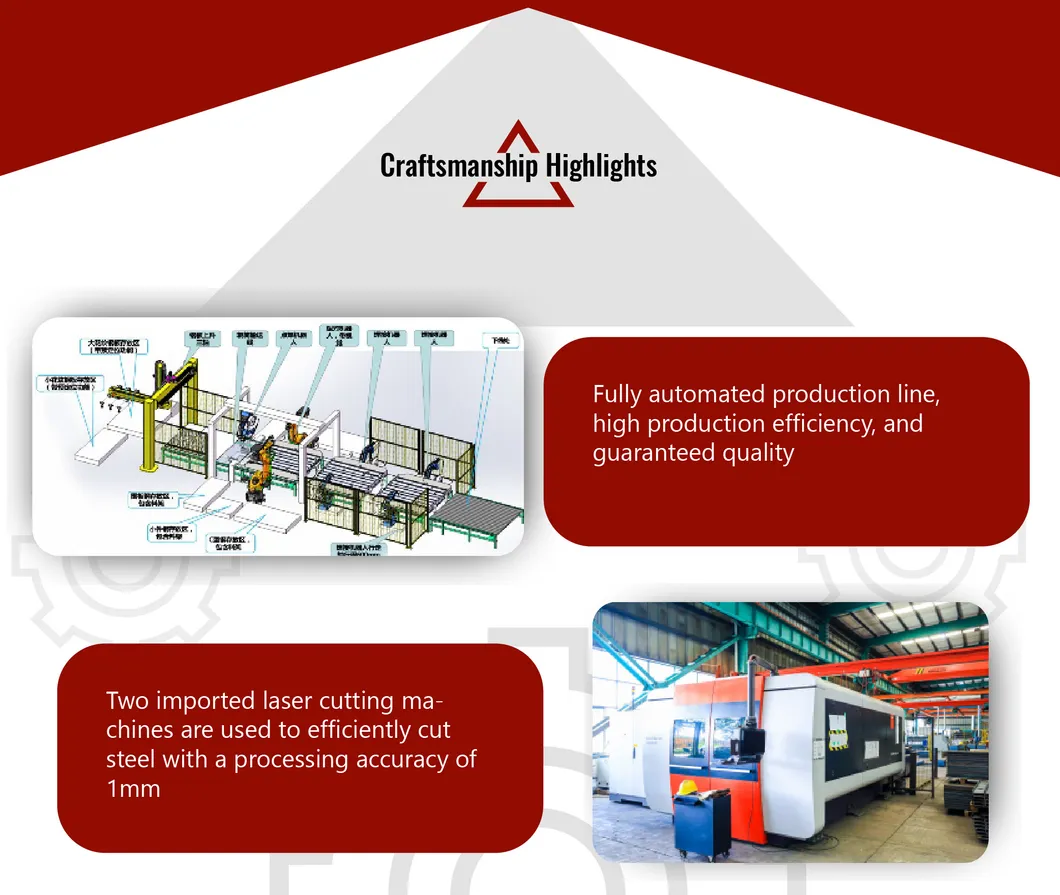

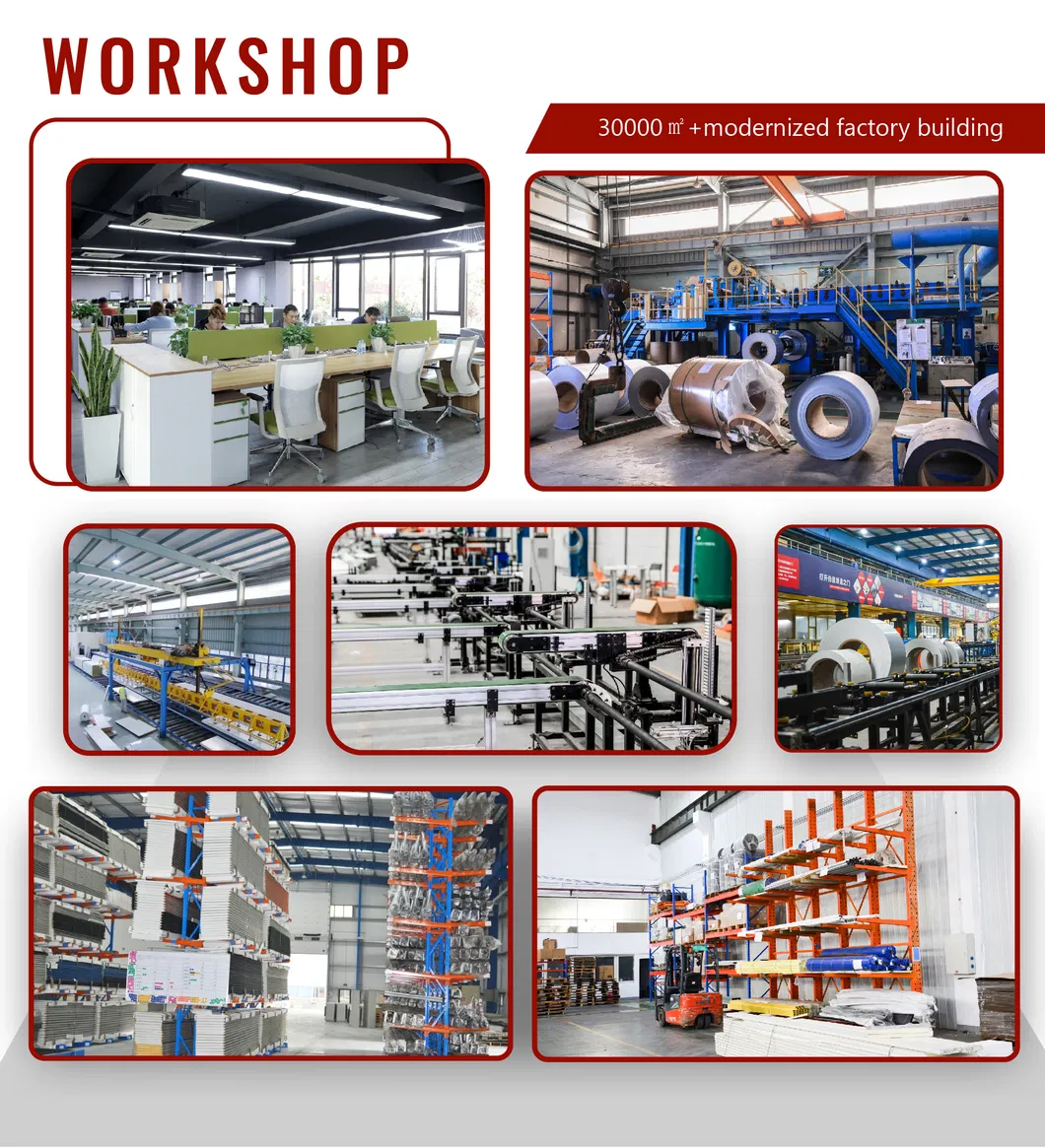

Advanced Manufacturing

Platform Manufacturing

Full-automatic laser machine & welding assembly line

Electrical Production

Modularized production line

Supply Ability

2000 sets per month

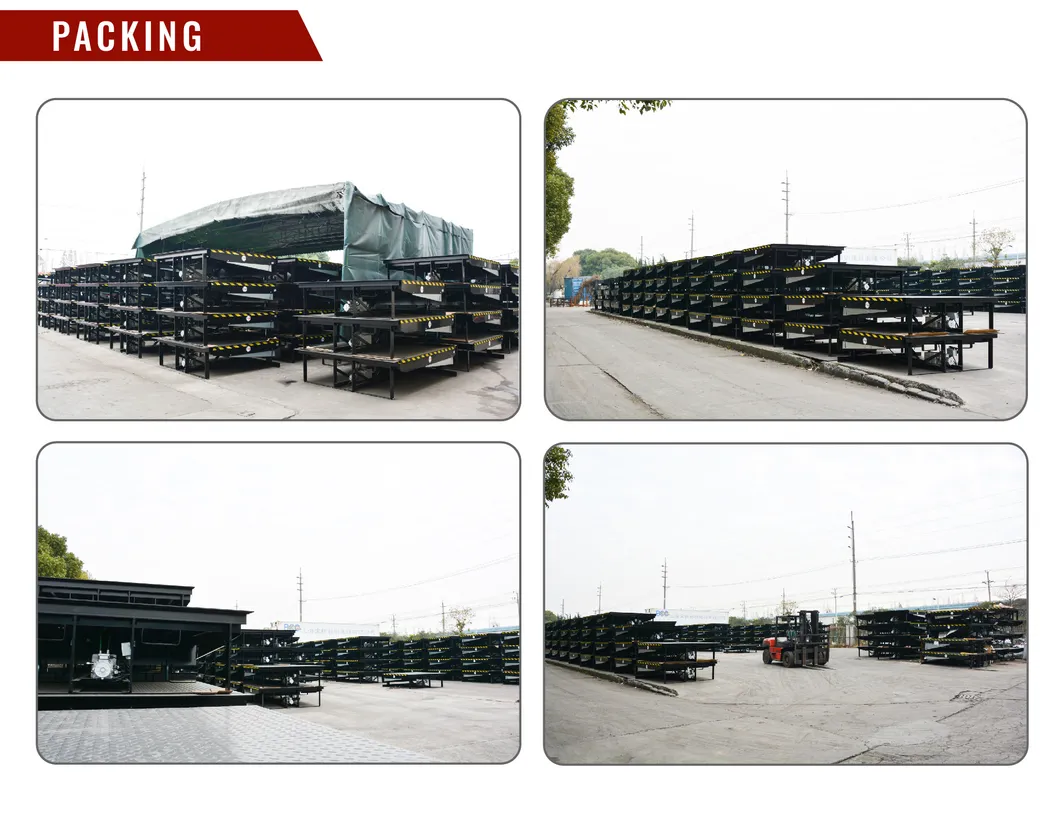

Packaging

Plastic Film / Wooden Pallet

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 200.00cm

Gross Weight

750.00kg

Production Time

30 Days

Frequently Asked Questions

How to choose the length of the Telescopic Dock Leveler?

The length of the platform depends mainly on the difference between the height of the floor of the carriage and the height of the platform. The formula is: Platform length L = h (difference between carriage floor height and platform height) / 0.125.

What sizes are generally selected for the Telescopic Dock Leveler?

Common standard sizes include W2000mm*L2000mm*H600mm and W2000mm*L2500mm*H690mm. Customized sizes are also available based on specific dock requirements.

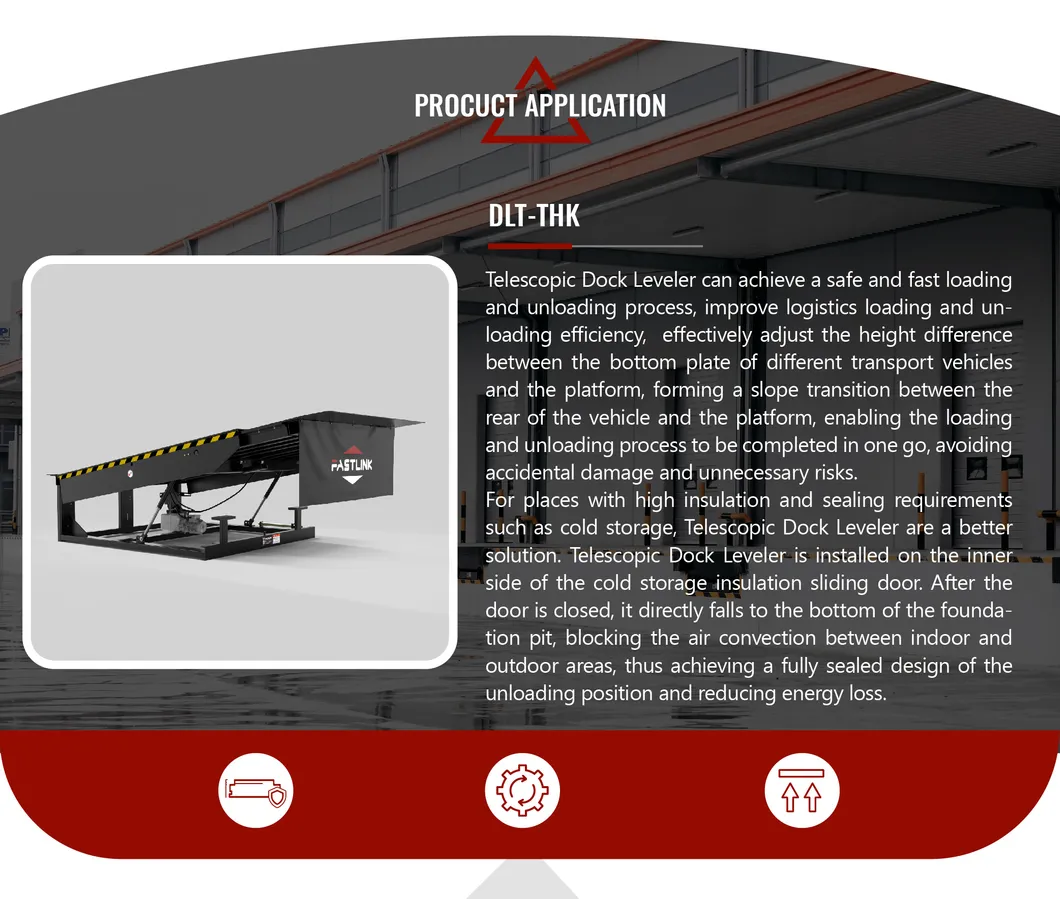

What are the common application scenarios for this leveler?

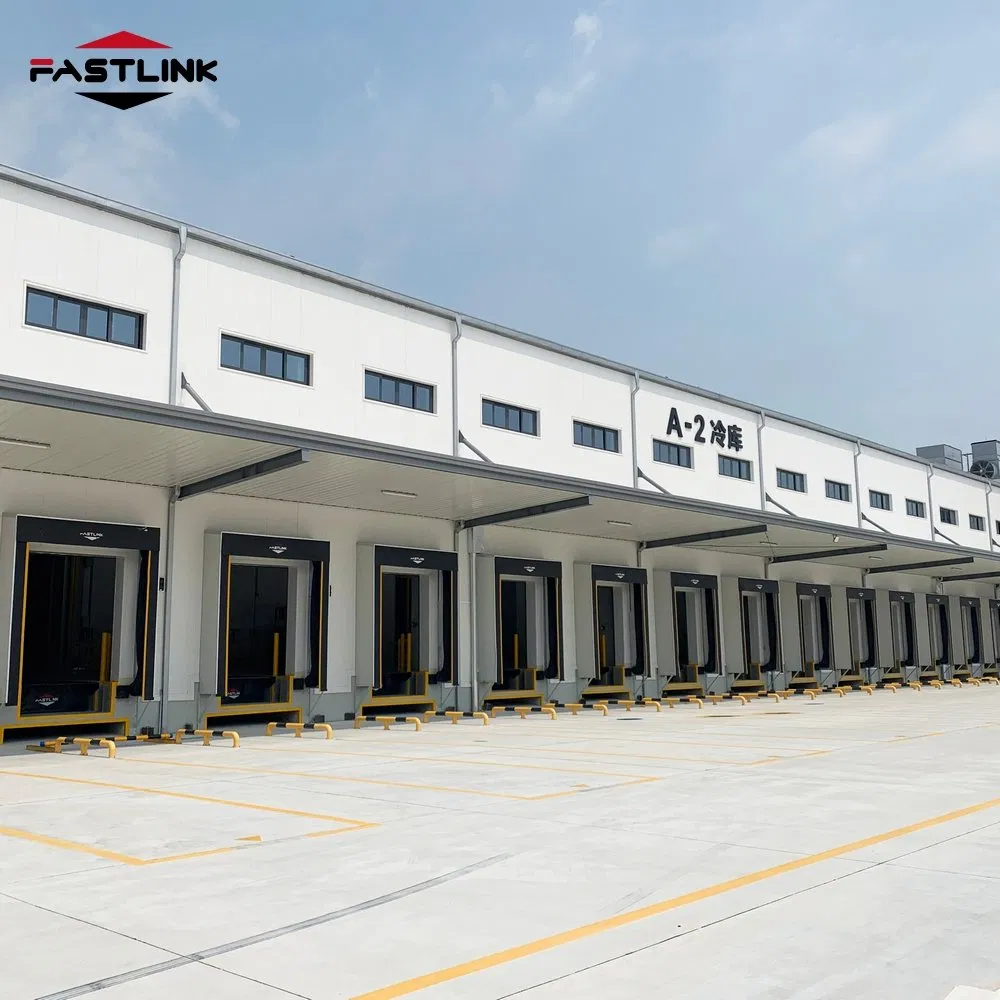

It is ideal for loading and unloading goods on side platforms and in insulation environments like cold storage, where the leveler must remain completely indoors while the lip extends to meet the carriage.

What is the difference between dynamic and static platform loads?

Dynamic load is the maximum combined weight of the forklift and cargo moving across the platform. Static load is the maximum weight the platform can support in its reset (parked) state.

What safety features are integrated into the control system?

The system includes fire linkages, interlock functions, and self-safety protection mechanisms. The control box can also display real-time operational status and fault codes for quick troubleshooting.

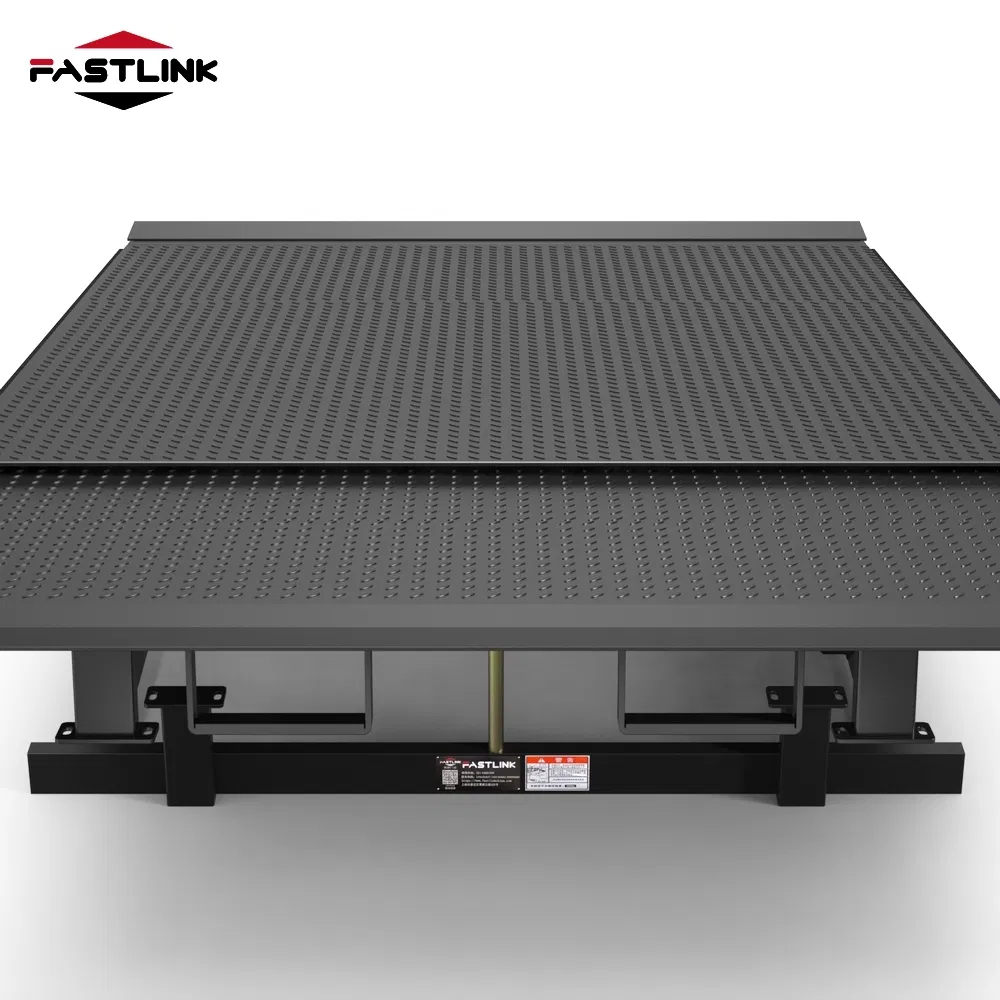

How does the lip plate design enhance stability?

The lip plate (14/15mm thick) features a double 5-degree arch design. This allows for a more seamless overlap with the vehicle carriage, increasing load-bearing strength and overall mechanism stability.
