Basic Specifications

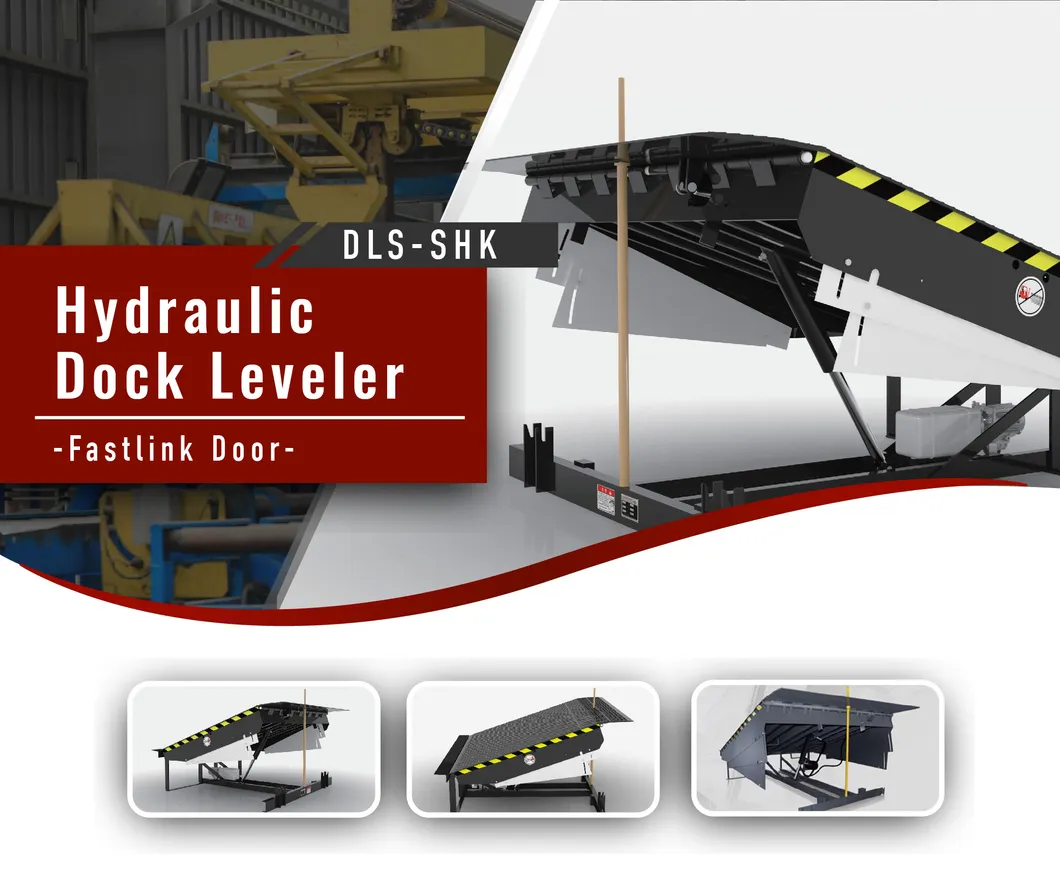

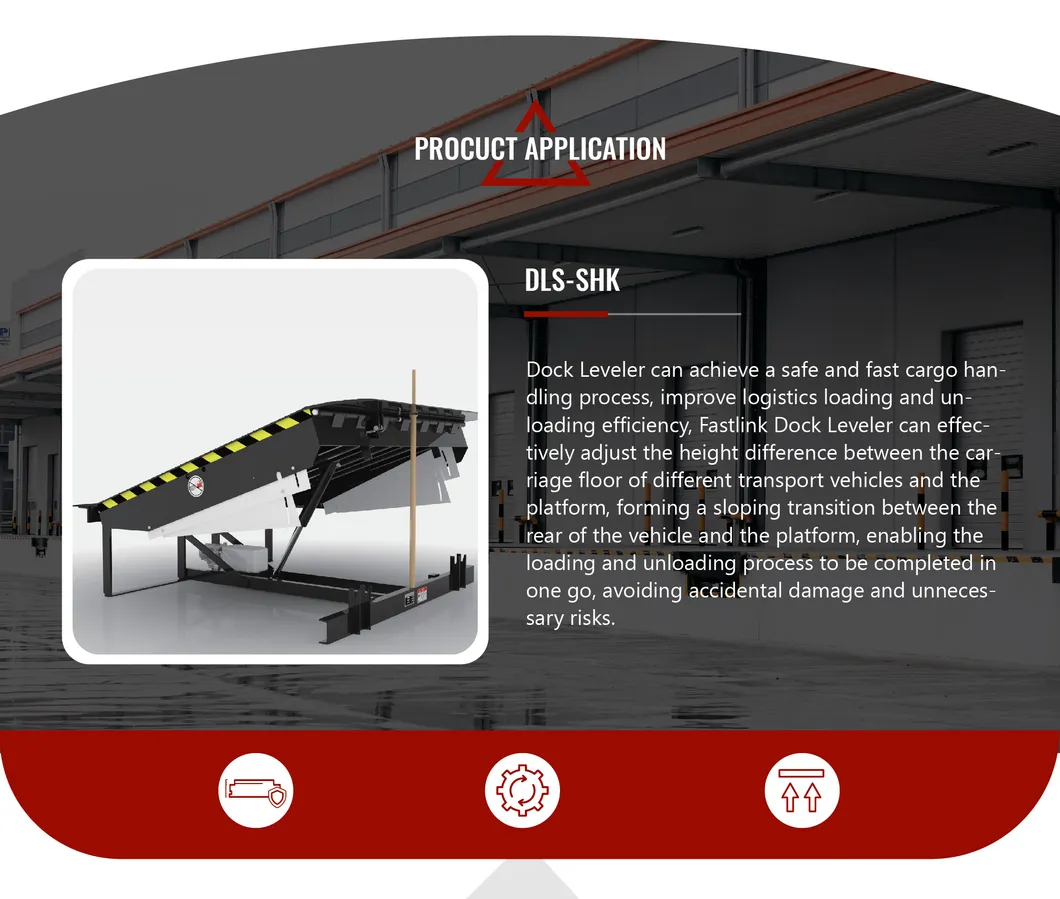

Model NO.DLS-SHK
ApplicationWorkshop, Warehouse Crane
Lift MechanismHydraulic
Dynamic Load6.8t / 10t / 15t
Driven TypeHydraulic
CertificationCE
Table SizeW2000mm*L2500mm*H600mm
Opening ModeElectro-Hydraulic
Lip Length400mm
Power380V, 3pH, 50Hz
HS Code8428909090
Production Capacity50,000 PCS/Year
Product Description & Key Features
🛡️
Intelligent Control System: Features fault code display, operation status display, fire linkage, interlock function, and self-safety protection. The patented control box design provides extended functionality for intelligent management.
⚙️

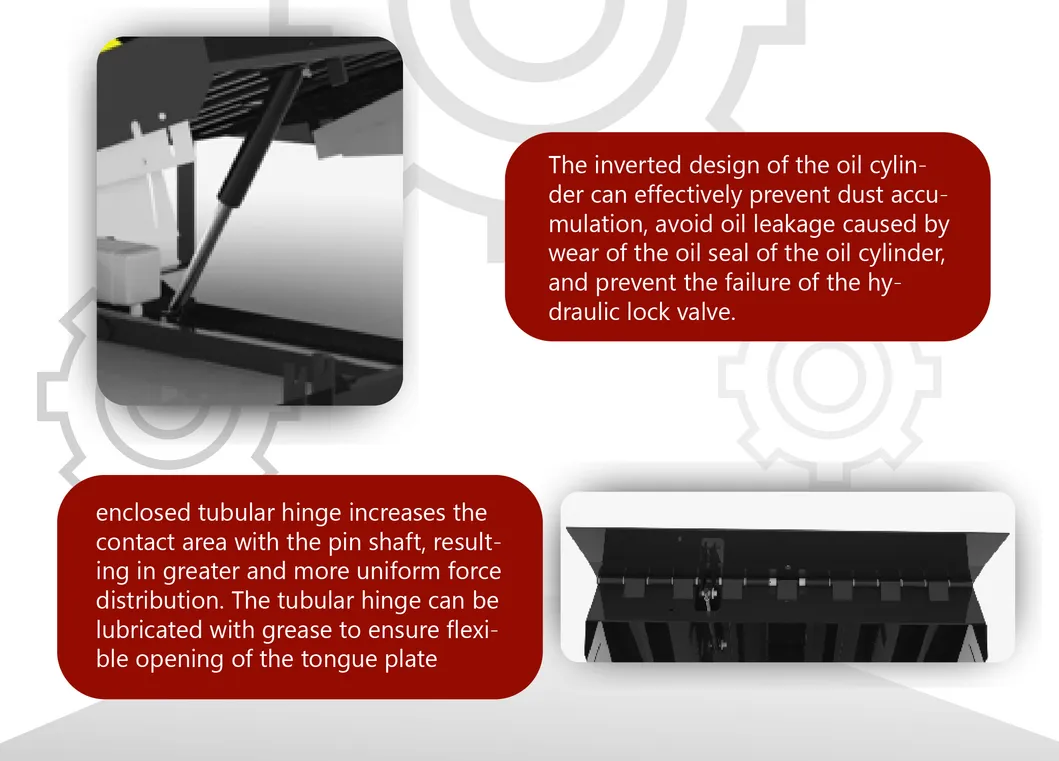

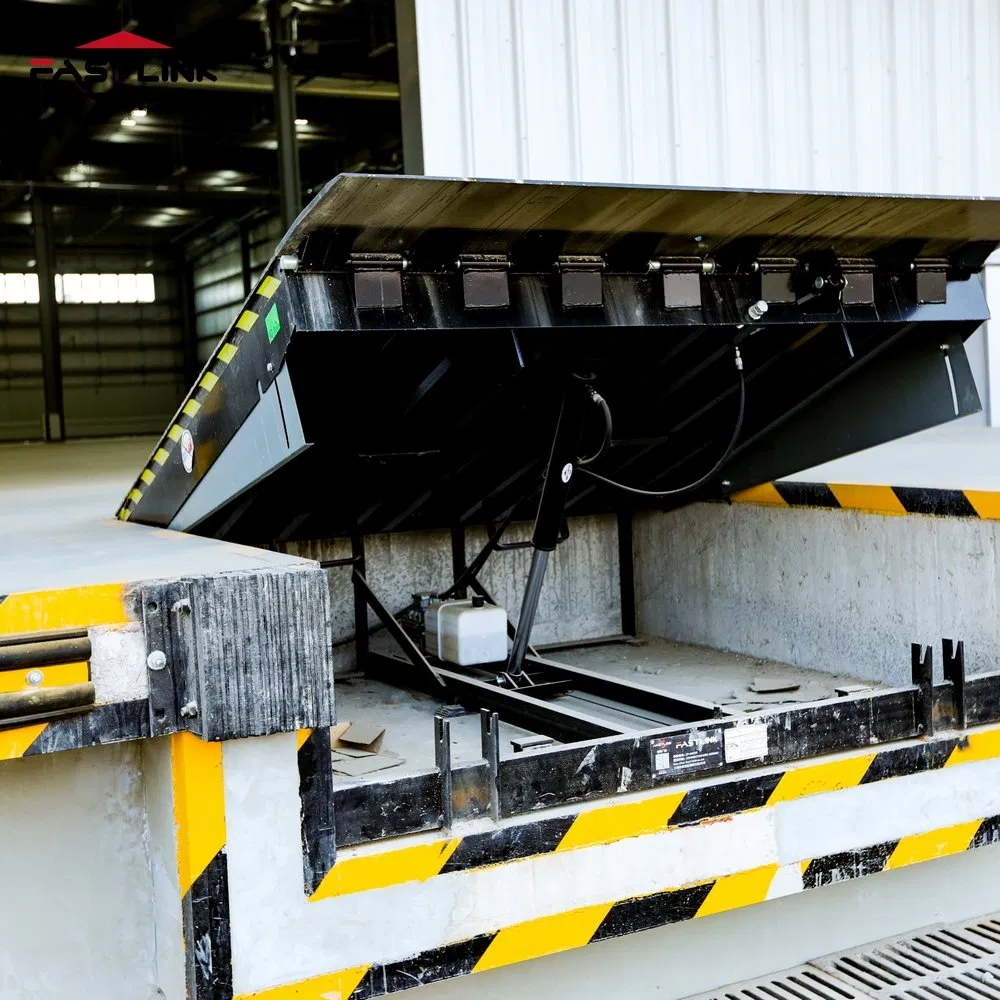

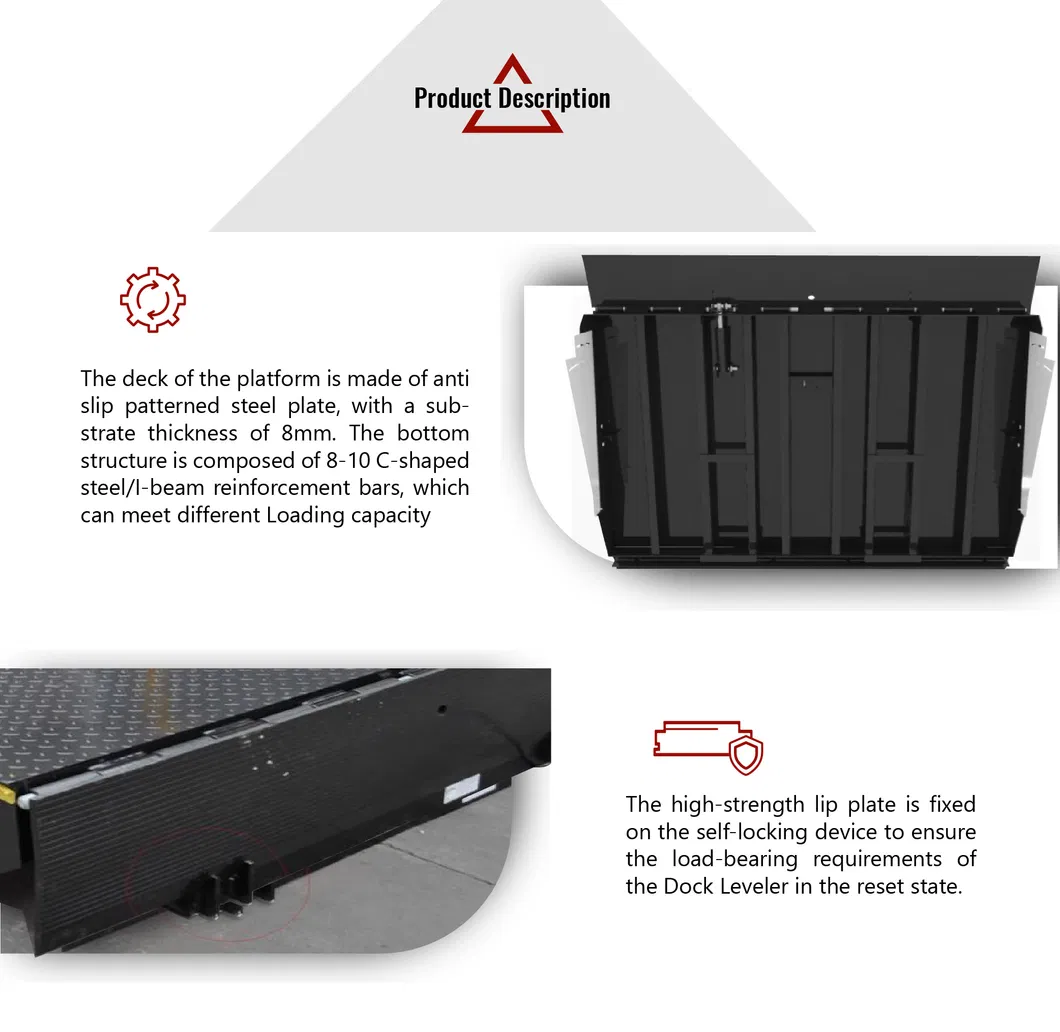

Advanced Construction: The deck structure is reinforced by 8-10 C-rope steel reinforcements to maintain resilience. It utilizes a closed tubular hinge design to increase contact area with the pin, ensuring uniform force distribution and easy lubrication.
Manufacturing & Logistics
Package Size200cm * 200cm * 60cm
Gross Weight750.00kg

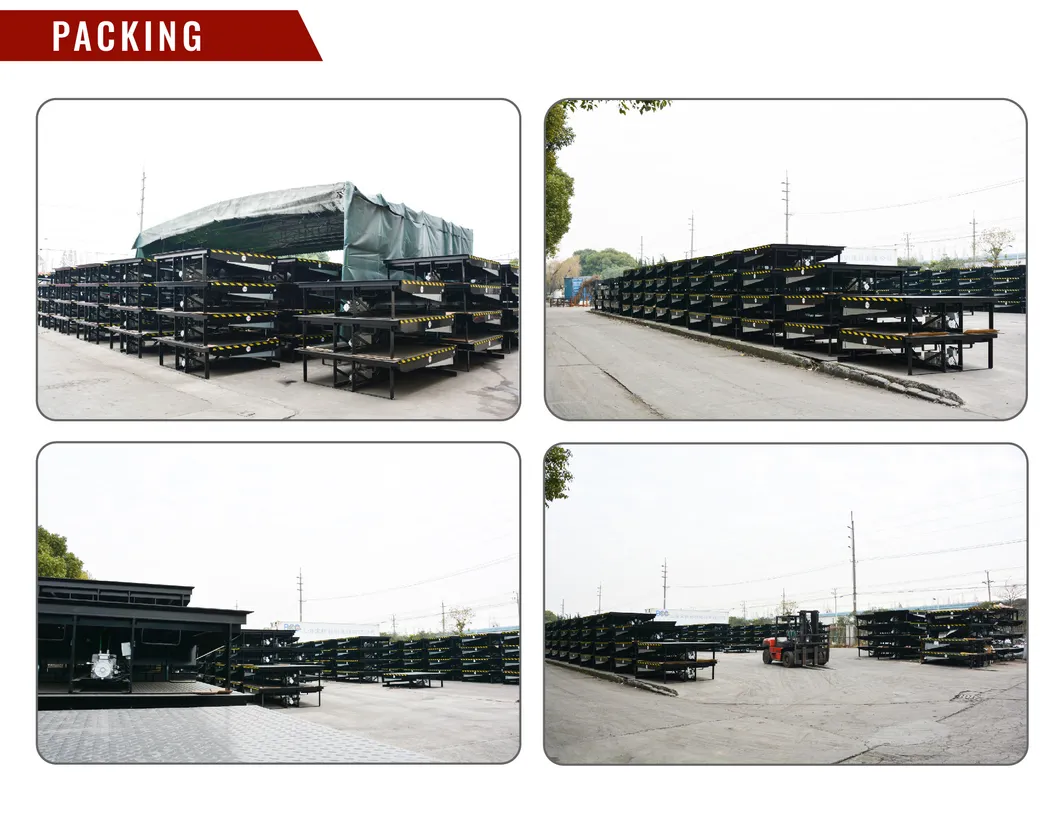

Transport PackageWooden Box / Pallet
Supply Ability2000 sets/month
Frequently Asked Questions
❓ How do I choose the correct length for the Hydraulic Dock Leveler?
The length depends on the height difference between the carriage floor and the platform. The formula used is: Platform length L = h (height difference) / 0.125.
❓ What are the common sizes available for these levelers?
The standard common size is W2000mm * L2000mm * H600mm, though sizes can range from a minimum of W1400mm to a maximum of W2200mm in width and 4000mm in length.
❓ What is the difference between dynamic and static loads?
Dynamic load refers to the maximum combined weight of the forklift and cargo moving across the platform. Static load is the maximum weight the platform can support when in its reset (stored) position.
❓ What safety configurations are included?

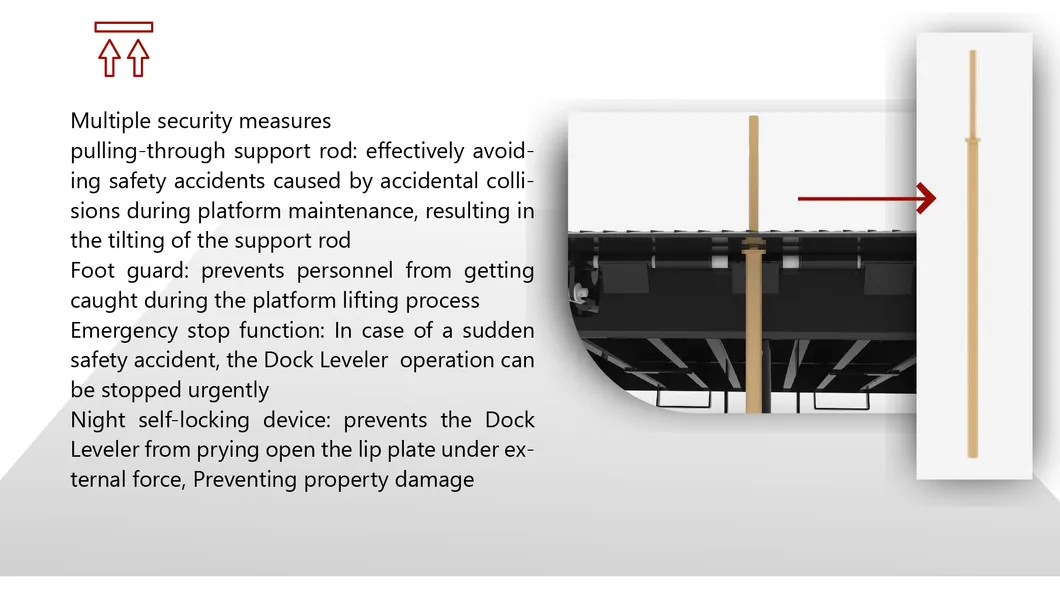

The equipment includes side foot protectors to prevent injury, and penetrating maintenance support rods that effectively support the platform and tongue against front and side impacts.
❓ What are the key features of the lip plate?
The lip plate is made of high-strength anti-slip tread steel (14/15mm thickness) with a double 5-degree arch design. This increases the contact area with the vehicle and ensures a smoother transition for cargo.
❓ Is the control system customizable?
Yes, the intelligent control system supports fire linkage, interlock functions, and operation status displays. It is designed to integrate with modern intelligent warehouse management systems.
