6t Fixed Hydraulic Dock Leveler Yard Ramp for Truck Loading

1 / 5

6t Fixed Hydraulic Dock Leveler Yard Ramp for Truck Loading

Customization:	Available
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Lift Chain

Send Inquiry

Product Description

Basic Specifications

Model NO.

DCQ6-0.7

Load Capacity

Driven Type

Certification

CE, ISO 9001

Material

Manganese Steel

Platform Size

2.5*2m

Power

0.75kw

Running Mode

Stationary

Warranty

12 Months

HS Code

8428909090

Product Overview

Fixed hydraulic dock leveler renders adjustable working height according to truck, ensuring high efficiency for cargo loading and unloading operations. Built with high-strength manganese steel, it provides a stable transition between the warehouse floor and the transport vehicle.

Technical Parameters

Model	Load Capacity (T)	Platform Size LxW (mm)	Lip Pad Width (mm)	Stroke (mm)	Net Weight (kg)	Power (kw)	Ditch Size LxWxH (mm)
DCQ6-0.55	6	2000*2000	400	250/250	1200	0.75	20802040600
DCQ6-0.7	6	2500*2000	400	400/300	1300	0.75	25802040600
DCQ8-0.55	8	2000*2000	400	300/250	1250	0.75	20802040600
DCQ8-0.7	8	2500*2000	400	400/300	1360	0.75	25802040600
DCQ10-0.55	10	2000*2000	400	300/250	1300	0.75	20802040600
DCQ10-0.7	10	2500*2000	400	400/300	1400	0.75	25802040600

Features & Configuration

Standard Configuration

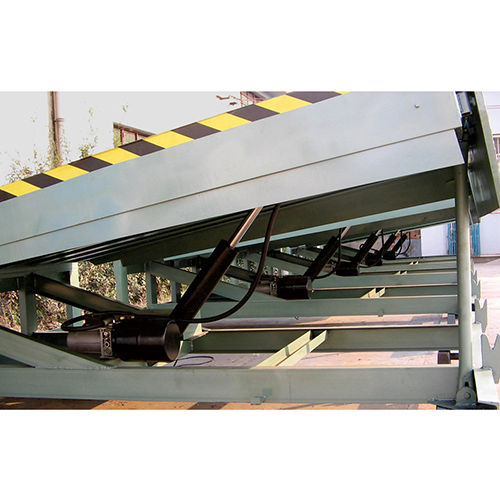

High-performance Hydraulic system
Maintenance supporting shaft for safety
Anti-slip safety plate surface
Durable Rubber buffering pads

Optional Features

AC 220V/50Hz Power supply
Hydraulic system with emergency stop device
Customized color options (e.g., Lake Green)

Service & Quality Assurance

English Manuals: User-friendly guides for operation and maintenance.
12-Month Warranty: Coverage for the whole machine (excluding man-made faults).
Free Parts Replacement: Provided for non-human factor issues during warranty.
24/7 Technical Support: Available via multiple online communication channels.
Quick Response: Technical inquiries addressed within 2 hours.

Frequently Asked Questions

Q1: What is the primary material used in the dock leveler?

A1: Our dock levelers are constructed using high-grade Manganese Steel to ensure durability and high load-bearing capacity.

Q2: What load capacities are available?

A2: Standard models support load capacities of 6 tons, 8 tons, and 10 tons. Custom capacities can be discussed based on requirements.

Q3: How long is the delivery time for a standard order?

A3: The typical delivery time is 15 days, though rush orders can be accommodated upon request.

Q4: What kind of safety features are included?

A4: Safety is prioritized with maintenance supporting shafts, safety plates, rubber buffering pads, and optional emergency stop devices for the hydraulic system.

Q5: Is the product certified for international markets?

A5: Yes, our equipment is CE and ISO 9001 certified, ensuring compliance with international quality and safety standards.

Q6: How is the product protected during shipping?

A6: We use a robust packaging method involving steel pallets, buffer sponges, bubble bags, and waterproof wrapping to ensure the machine arrives in perfect condition.
