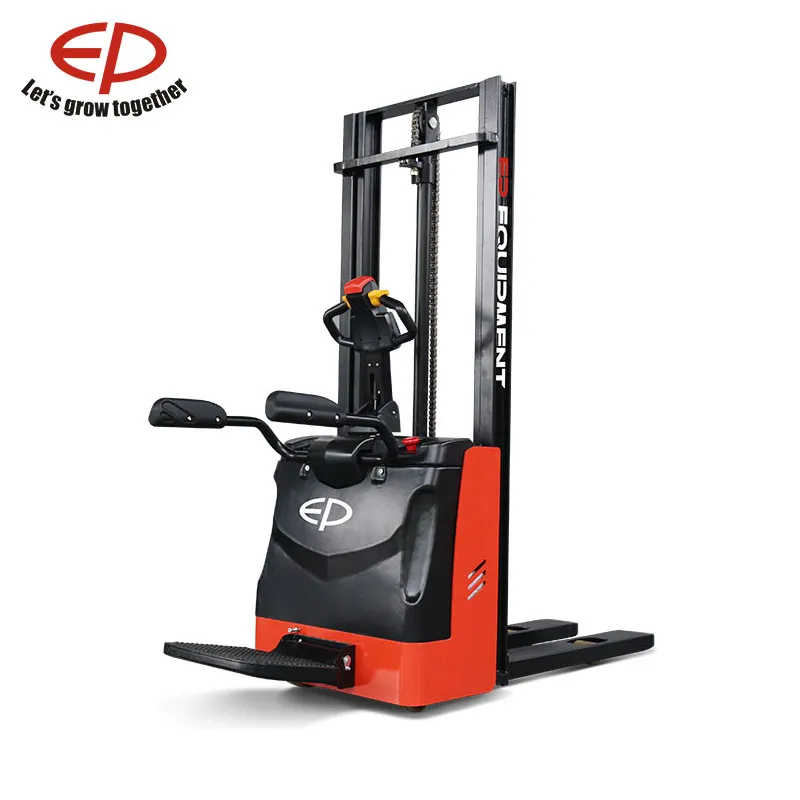

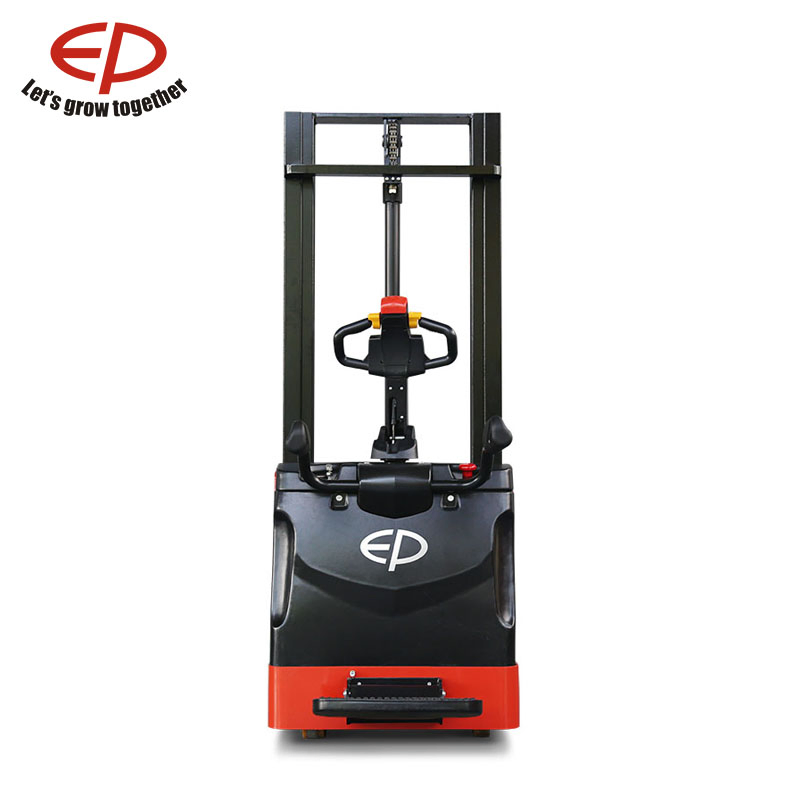

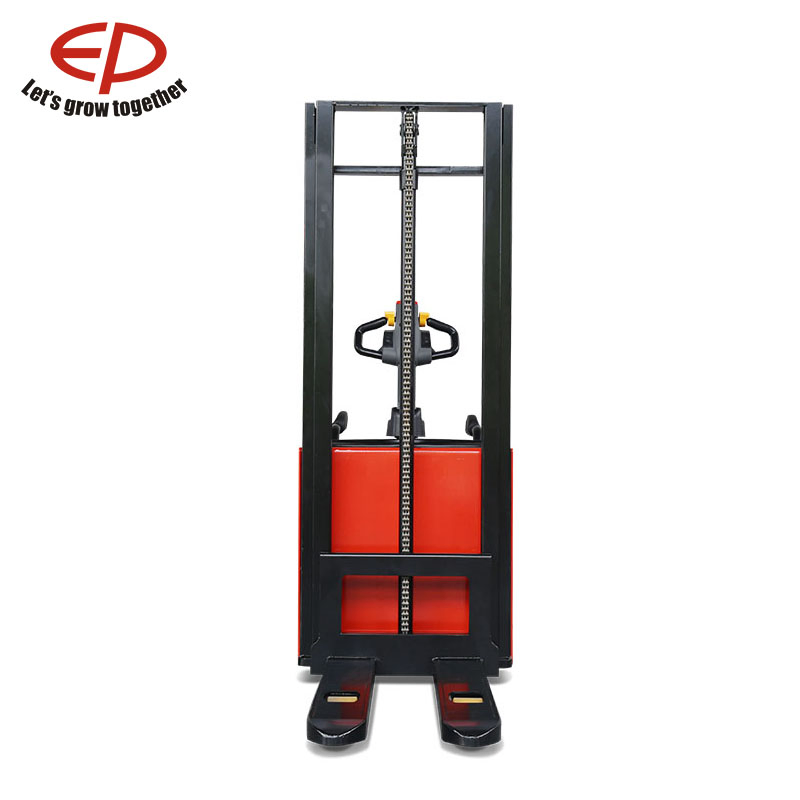

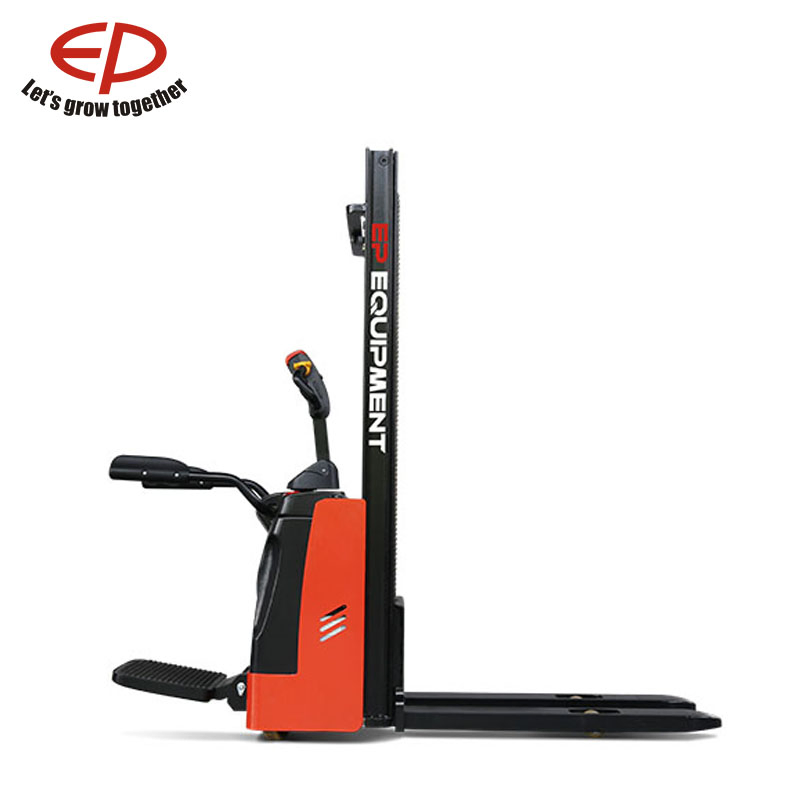

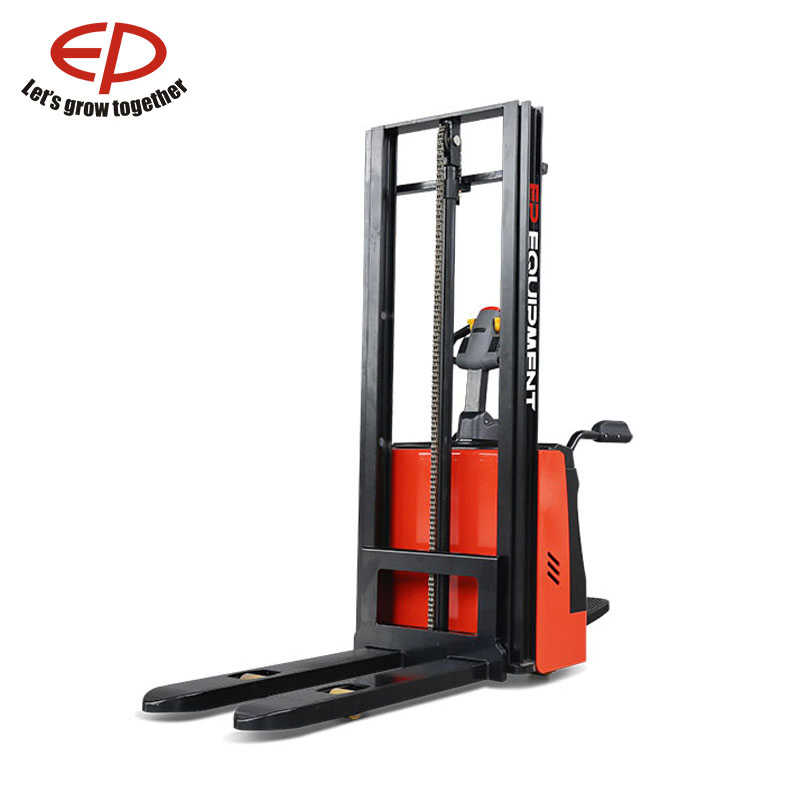

Fully Automatic Forklift Electric Handling Pallet Stacker (RSB141)
Basic Information
Technical Specifications
| Model |
Unit |
RSB141 |
ES16-RS |
ES16-RSi |
| Capacity | KG | 1400 | 1600 | 1600 |
| Length to face of fork | mm | 604 | 879 | 957 |
| Overall width | mm | 800 | 850 | 850 |
| Lift Height | mm | 3212 | 2912 | 3000 |
| Self weight | kg | 770 | 1240 | 1335 |
| Travel Speed (laden/unladen) | KM/H | 5/5.5 | 5.5/6.0 | 5.5/6 |

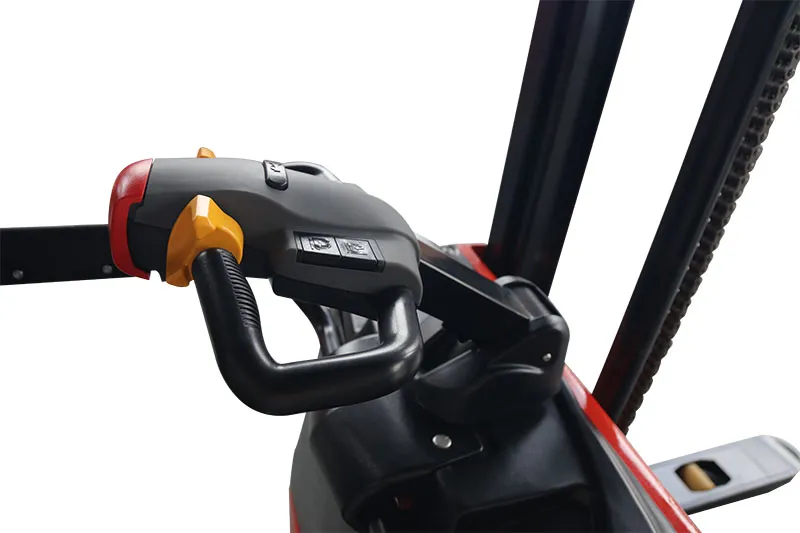

| Steering Type | - | Electronic |
| Service brake | - | Electromagnetic |

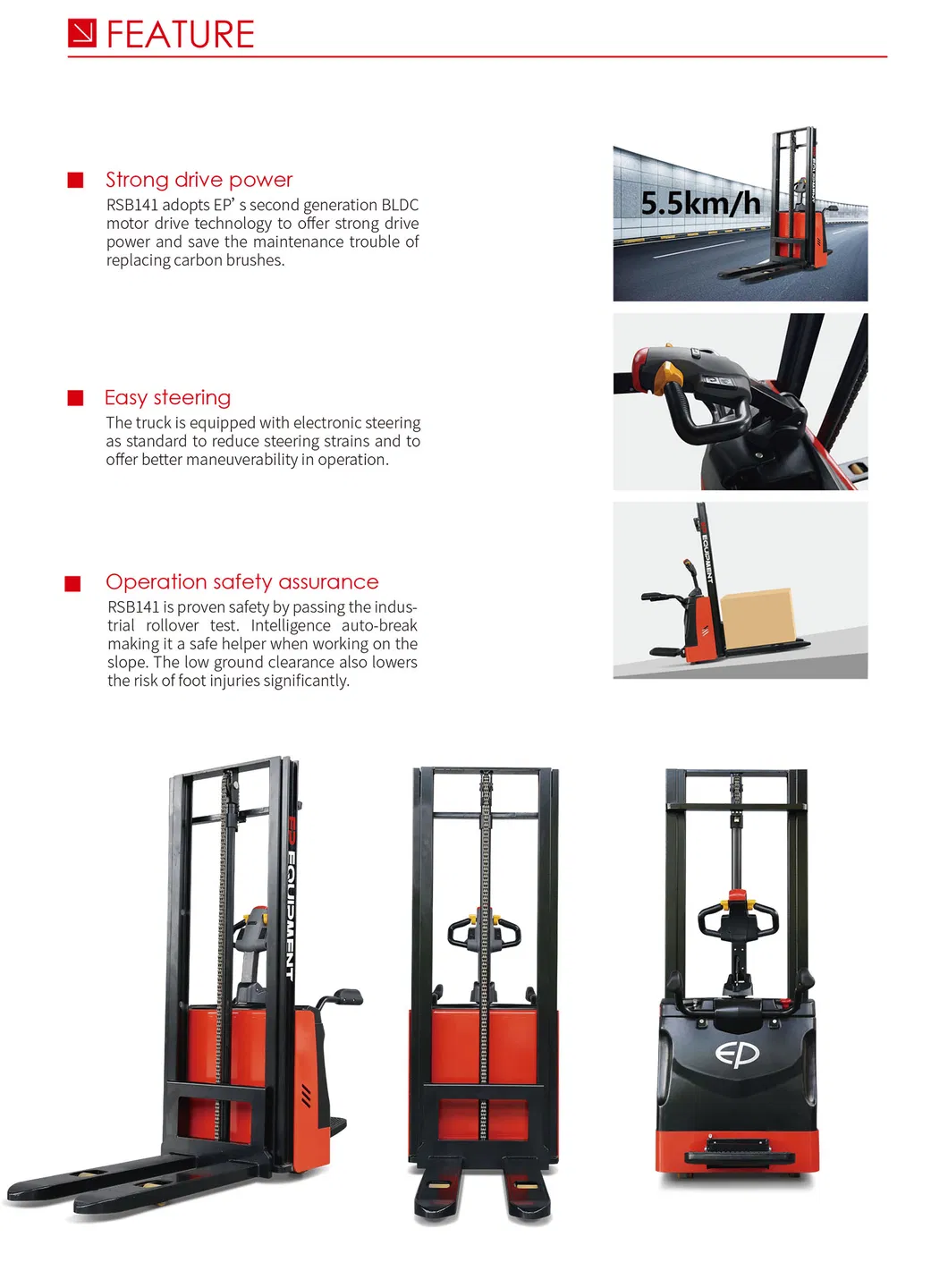

Key Performance Features
✔️
High Intensive Working: Equipped with a large capacity 48V battery to support demanding operations.
✔️
Advanced Drive Technology: Utilizes second generation DC drive technology (BLDC) for stronger power and reduced energy consumption.
✔️
Intelligent Safety: Features an automatic parking system that identifies stationary status and engages the parking brake automatically.
✔️
Easy Maintenance: Fast detachable mask and modular design significantly reduce maintenance time and technical difficulty.
✔️
Safety Standards: Fully compliant with EN ISO 3691 safety and inspection standards for industrial vehicles.
✔️

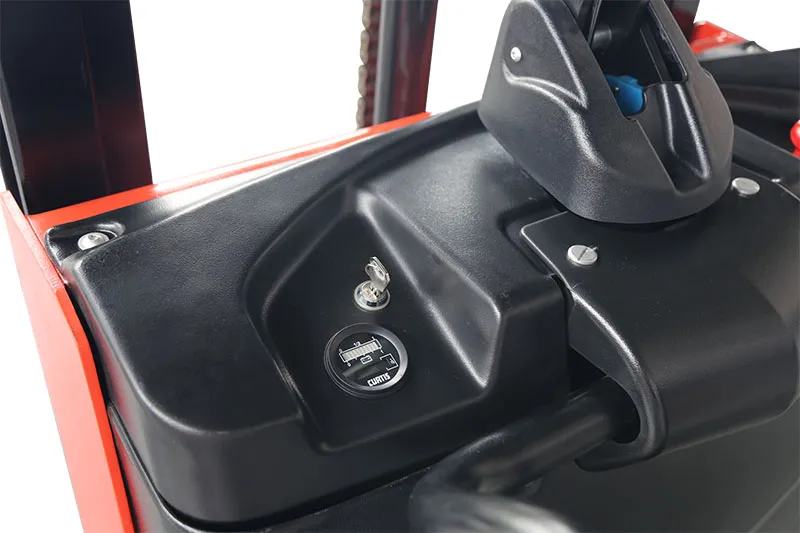

Battery Protection: Quantifiable timing instrument panel and low power protection system to extend battery life.
Product Gallery
Frequently Asked Questions
Q1: Do you offer Lithium-ion battery options?
Yes, we provide advanced Lithium-ion material handling equipment featuring dedicated BMS systems for optimal battery management.
Q2: What are the payment terms and minimum order quantity?
We accept L/C and T/T payments. The Minimum Order Quantity (MOQ) is 1 set.
Q3: How do you ensure the equipment operates stably?
We perform rigorous pre-shipment tests for every unit. Our quality control, delivery, and sales departments follow a strict management process.
Q4: What is included in your after-sales service?
We provide a 1-5 year warranty supported by professional overseas teams, global service centers, and an efficient parts supply system.
Q5: How is the equipment installed upon arrival?
For standard equipment, we provide manual instructions and operation videos. If necessary, engineers can provide overseas support for installation and training.
Q6: What certifications do these stackers hold?
The vehicles are designed in accordance with EN ISO 3691 safety and inspection standards to ensure maximum industrial safety.
