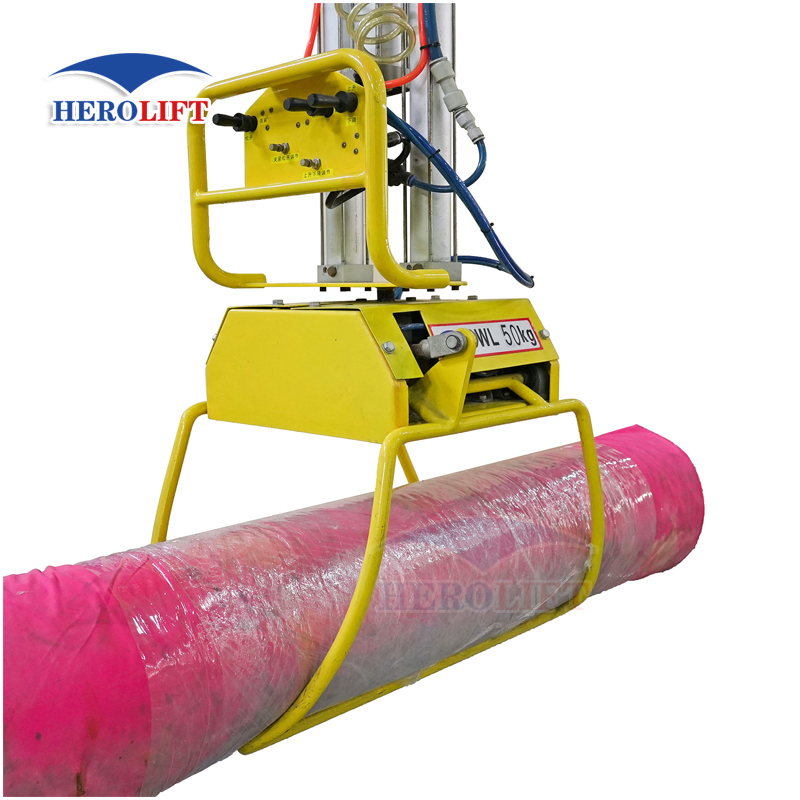

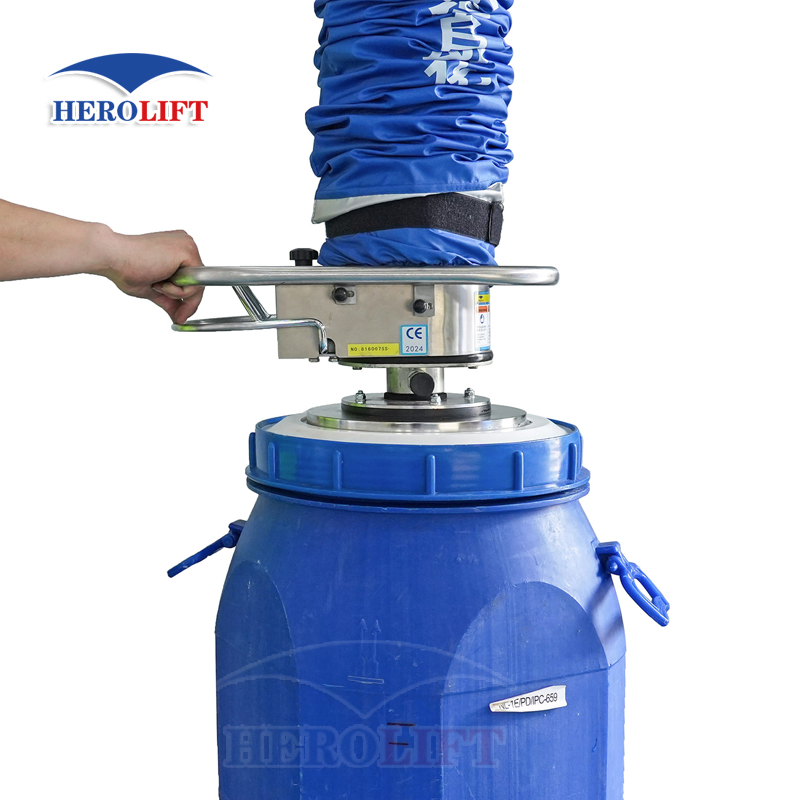

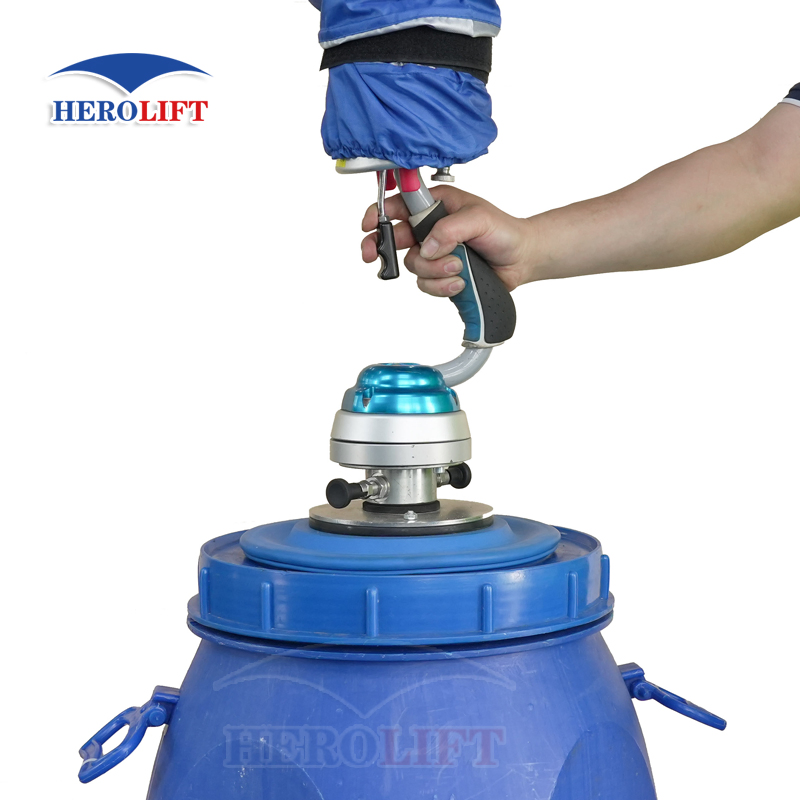

Heavy-Duty Vacuum Tube Lifter for Efficient Drum Handling

Customization:	Available
After-sales Service:	Provide After-Sales Service
Warranty:	12 Months

Basic Information

Model NO.:VEL160-2.5-STD

Cup Quantity:1

Application:Lifting Bag/Box/Rubber/Plane

Vacuum Source:Oil-Free Vacuum Pump

Safety:CE Certificate / Pressure Holding

Max Loading:20/40/60kg (Customizable)

Control Mode:Manual Valve

Usage:Palletizing Material Handling

Origin:China

Capacity:5000 pieces/Year

Product Description

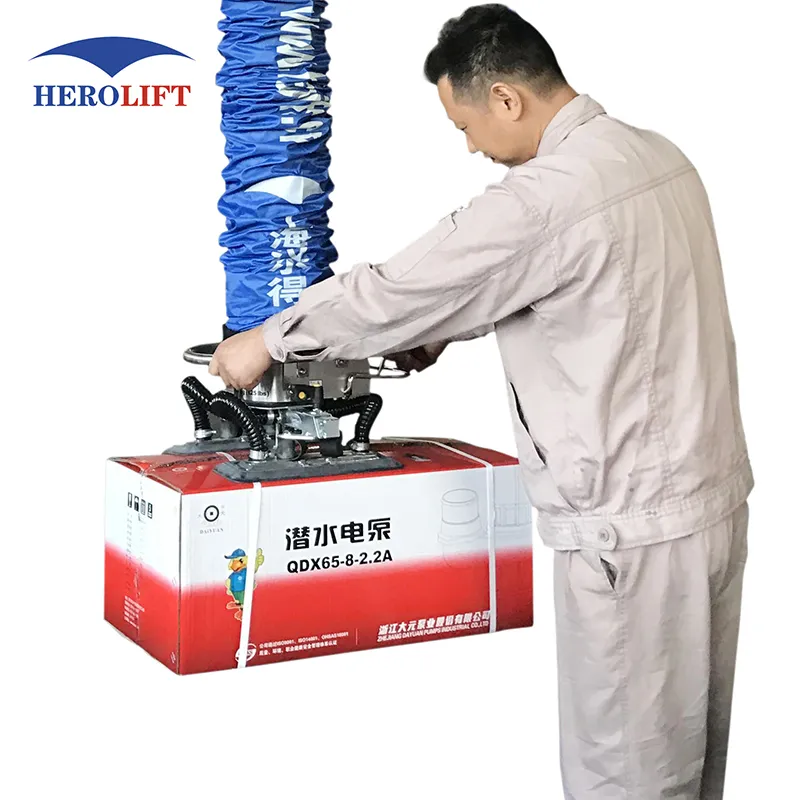

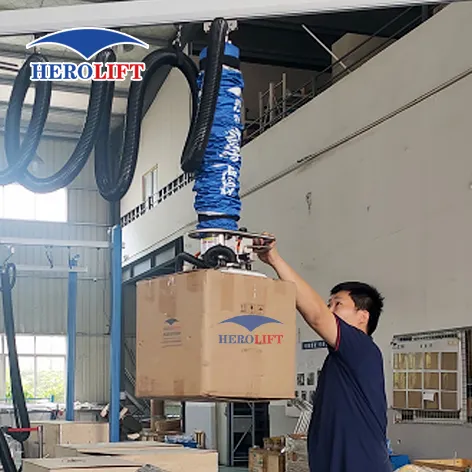

A vacuum tube lifter is a modern ergonomic solution for material handling. It is ideal for picking up carton boxes, wooden plates, sacks, drums, and more. Whether it's stacked cartons, moving iron or wood, loading oil drums, or placing slate, this equipment effectively prevents the risks associated with manual handling, such as injury and fatigue.

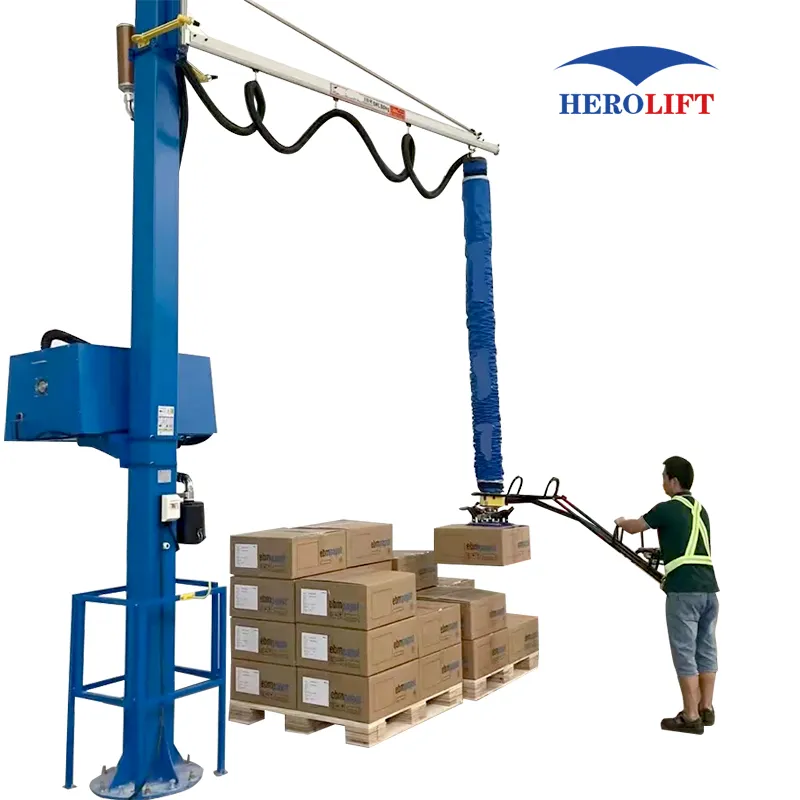

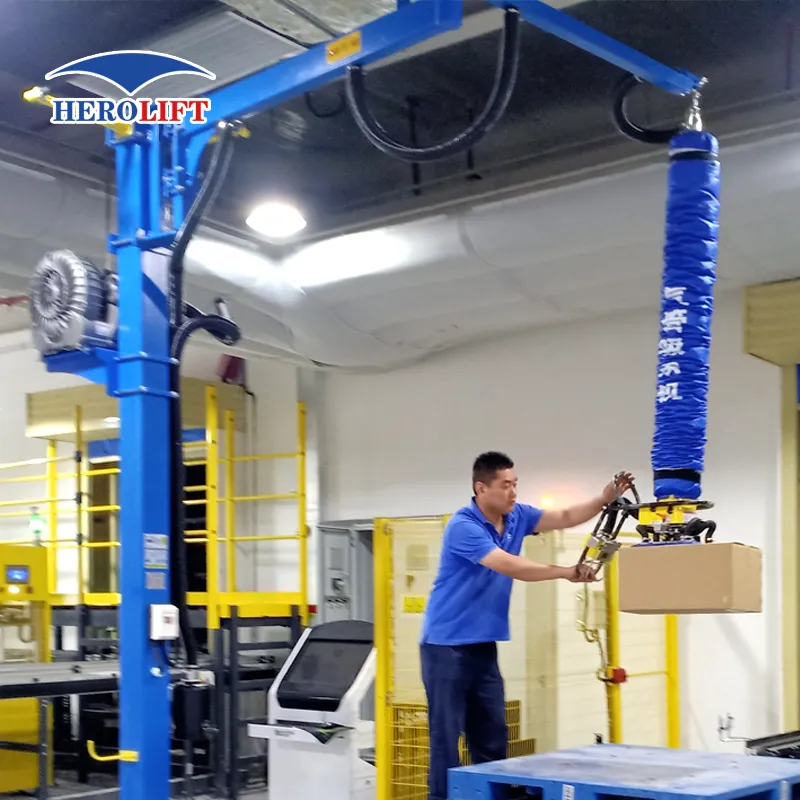

Unlike traditional cranes that require hooks and buttons, the fast vacuum handling machine integrates suction and height control into a single grip. Operators can quickly move items from the top or side, reaching high into racks or far into pallet stacks with ease.

Key Characteristics

Lifting Capacity: Up to 270 kg
Lifting Speed: 0-1 m/s adjustable
Handle Options: Standard, one-hand, flex, or extended
Flexibility: 360-degree rotation
Swing Angle: 240 degrees
Customization: Large range of standardized grippers and accessories available

Serial No.	VEL140-2.5-STD	Max Capacity	40kg
Dimensions	13301060780mm	Control Mode	Manual handle operation
Displacement	150mm - 1500mm range	Power Supply	380VAC ±15%, 50Hz
Install Height	> 4000mm	Temp Range	-15ºC to 70ºC

Detailed Features

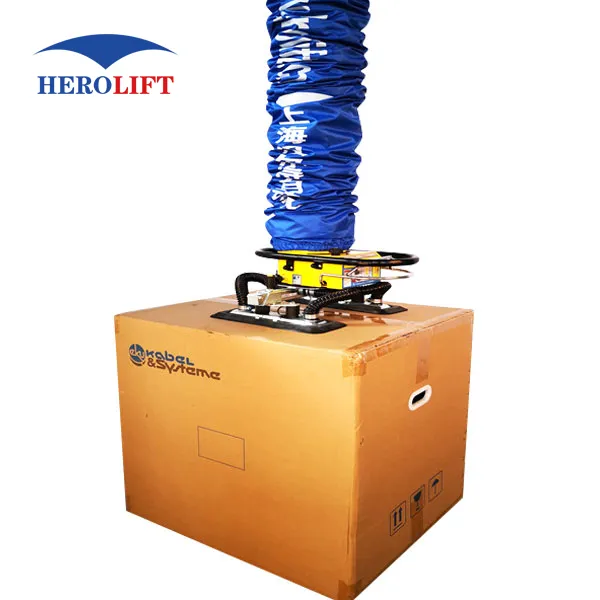

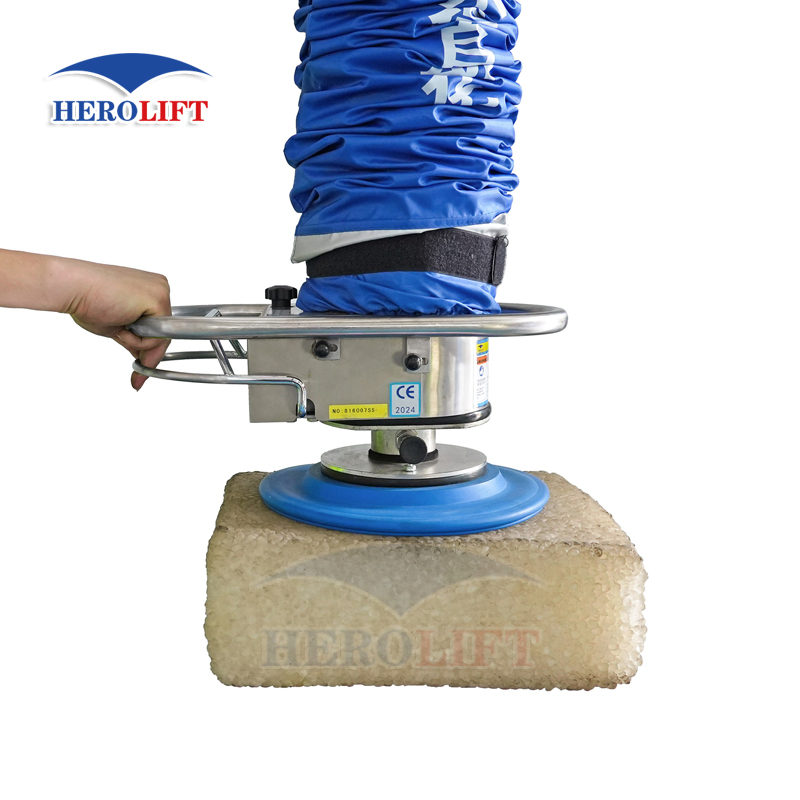

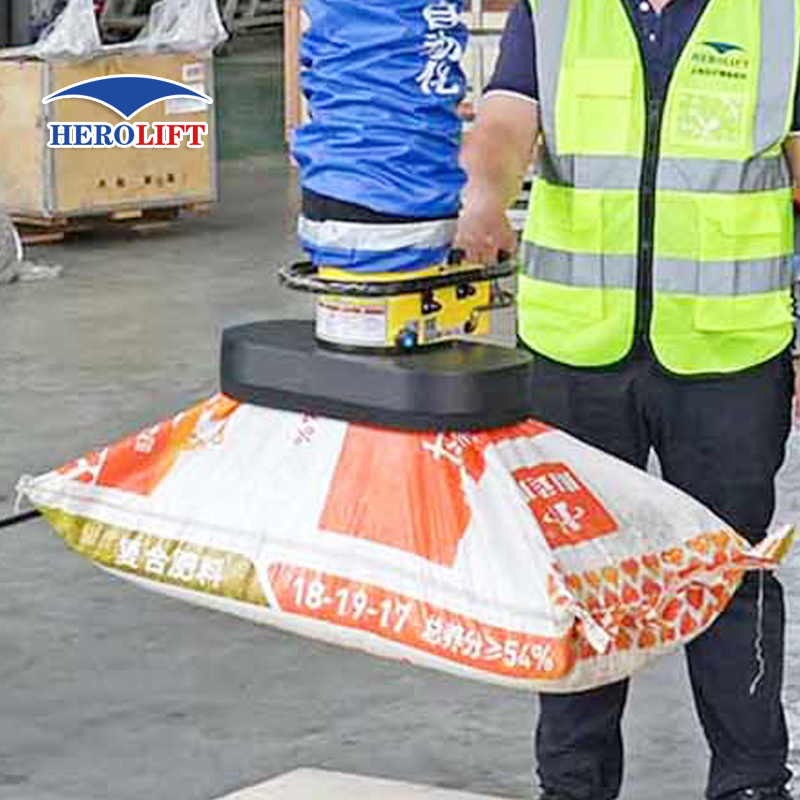

Suction Head Assembly

• Easy to replace
• Rotatable pad head
• Optional flexible handles
• Protects workpiece surfaces

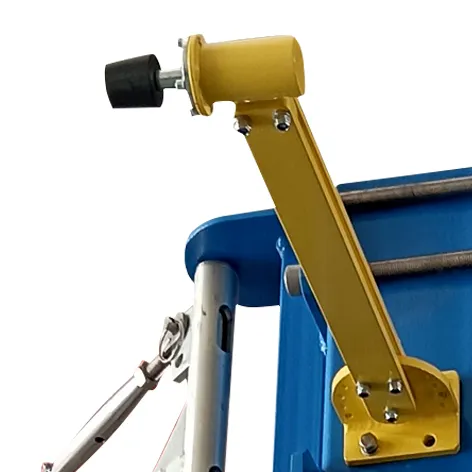

Jib Crane Limit

• Precise shrinkage and elongation
• Achieves vertical displacement stability

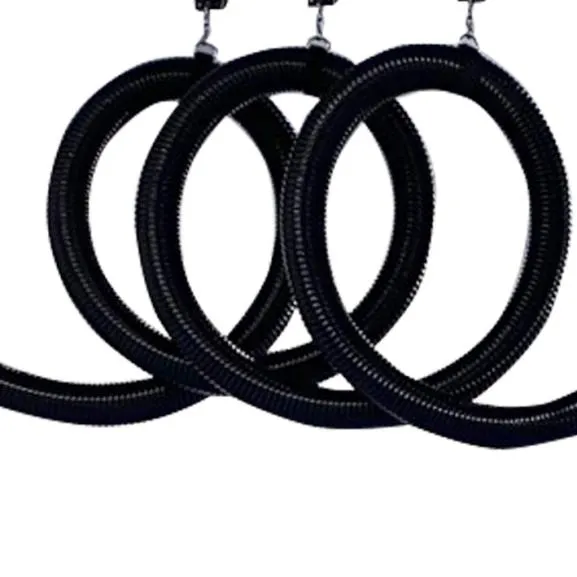

Air Tube

• High-pressure corrosion resistance
• Connects blower to suction pad securely

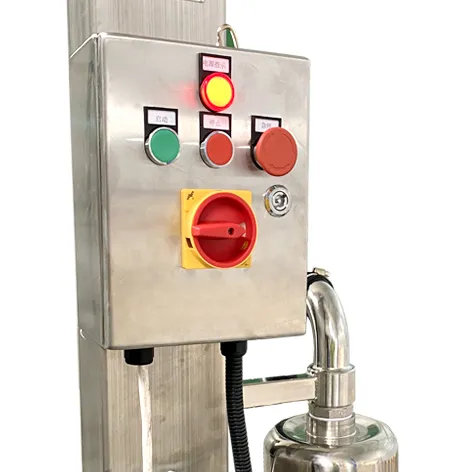

Filter

• Filters impurities from workpiece surfaces
• Ensures long service life for vacuum pump

Technical Specifications

Type	VEL100	VEL140	VEL180	VEL200	VEL250	VEL300
Capacity(kg)	30	60	90	120	200	300
Tube Dia(mm)	100	140	180	200	250	300
Lift Height(mm)	1800/2500			1700/2400		1500/2200
Pump(Kw)	3Kw/4Kw			4Kw/5.5Kw

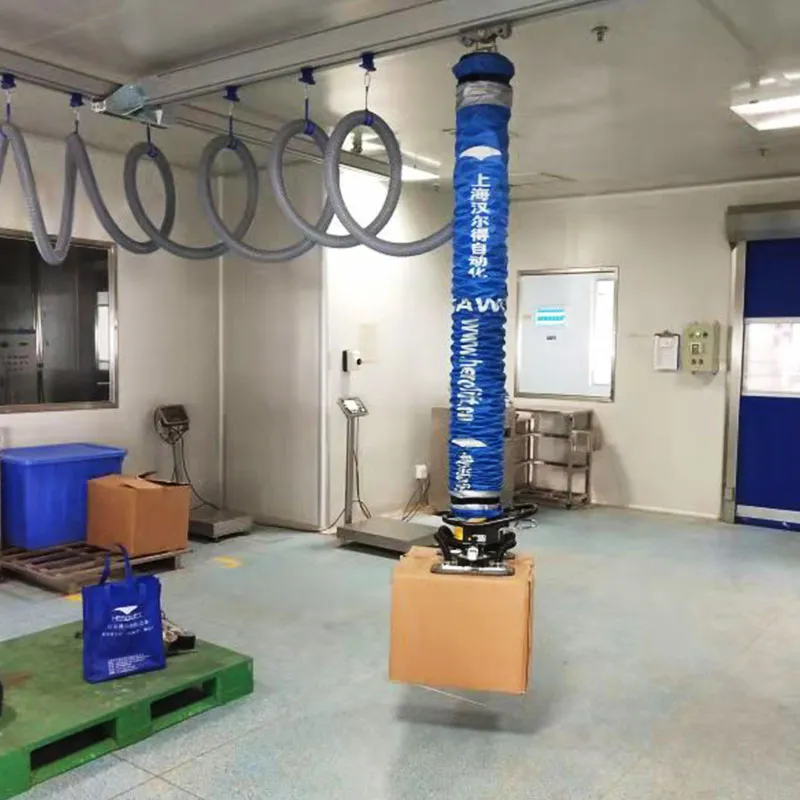

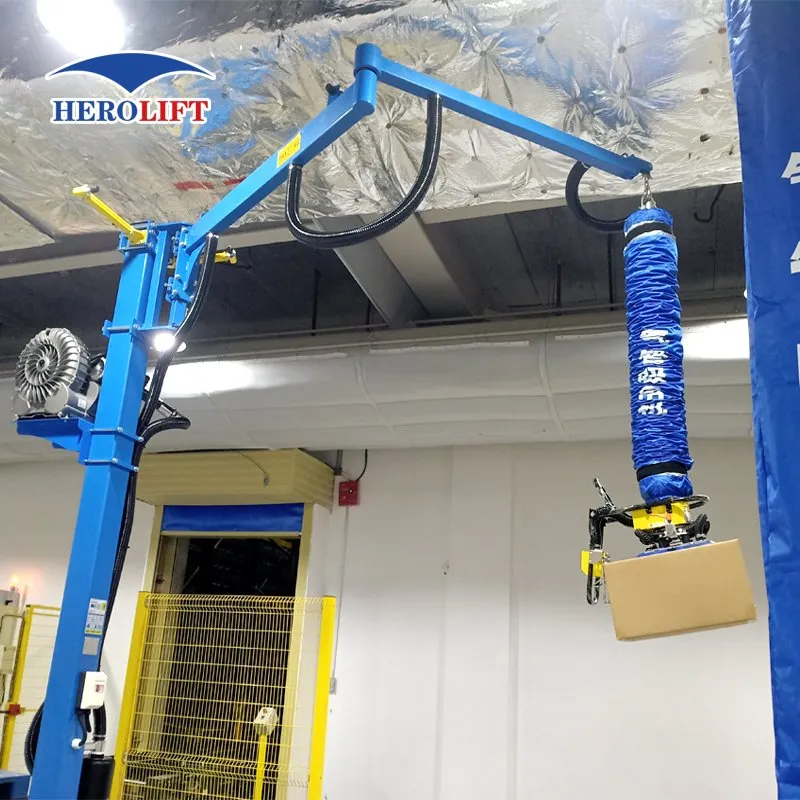

Applications

Highly versatile for various materials: Sacks, cardboard boxes, wooden sheets, sheet metal, drums, electrical appliances, cans, baled waste, glass plates, baggage, plastic sheets, and stone.

Safety Functions

Power Failure Protection: Ensures absorbed material will not fall if power is lost.
Leakage Protection: Fully insulated system prevents personal injury.
Current Overload Protection: Prevents equipment damage from abnormal electrical surges.
Factory Tested: Every unit undergoes stress and installation tests before shipping.

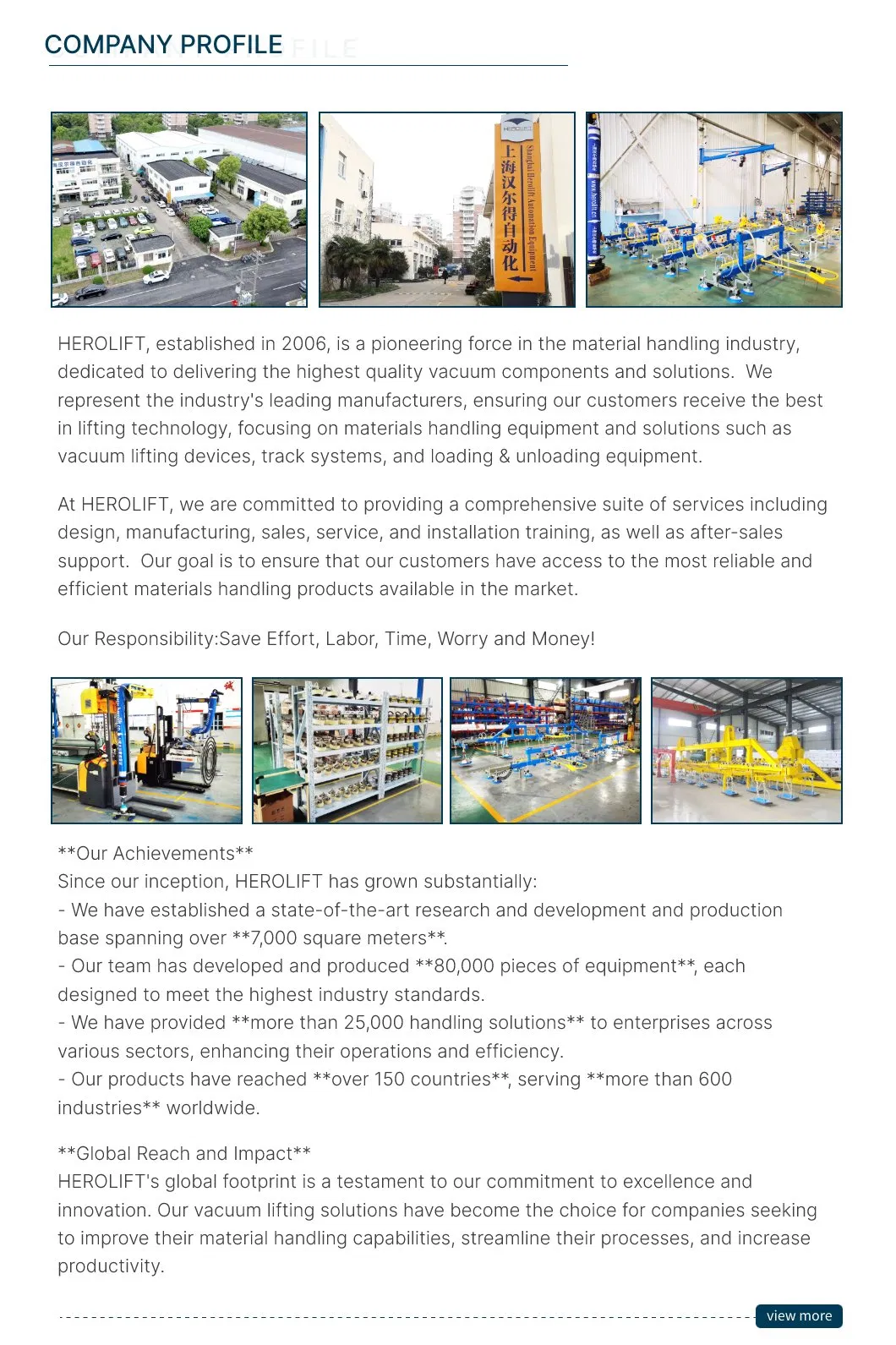

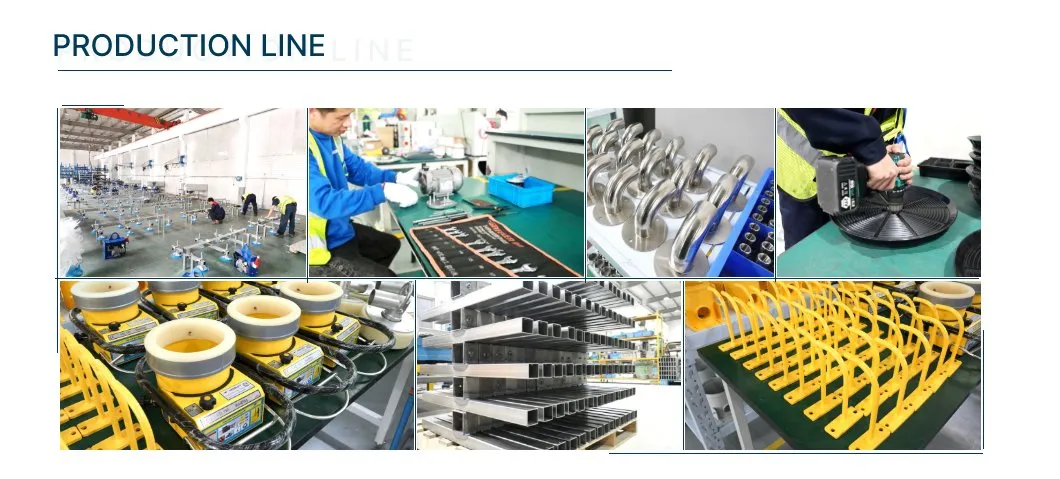

Production & Quality

Frequently Asked Questions

Q1: How can I choose the most suitable machine? A: Please provide details about your material and your specific tasks (images or videos are helpful). Our experts will recommend the best model based on your handling requirements.

Q2: Is this machine easy for a first-time user to operate? A: Yes. We provide technical training and comprehensive English operating instructions. We are also available via phone or email for additional support.

Q3: What is the safety guarantee during a power failure? A: The system includes a pressure-holding function that ensures the material remains gripped and does not fall immediately if the power is interrupted.

Q4: What happens if the machine breaks down during the warranty period? A: The machine comes with a one-year guarantee. We provide free replacement parts for quality-related issues under normal use.

Q5: How long does the delivery take? A: Standard models typically take 20-30 days. For customized solutions tailored to specific requirements, the delivery time is between 45 and 60 days.

Q6: Can the lifter handle different types of loads with the same unit? A: Yes, the lifter is designed with quick-connect features, allowing you to easily switch between various suction pads for boxes, bags, or drums.
