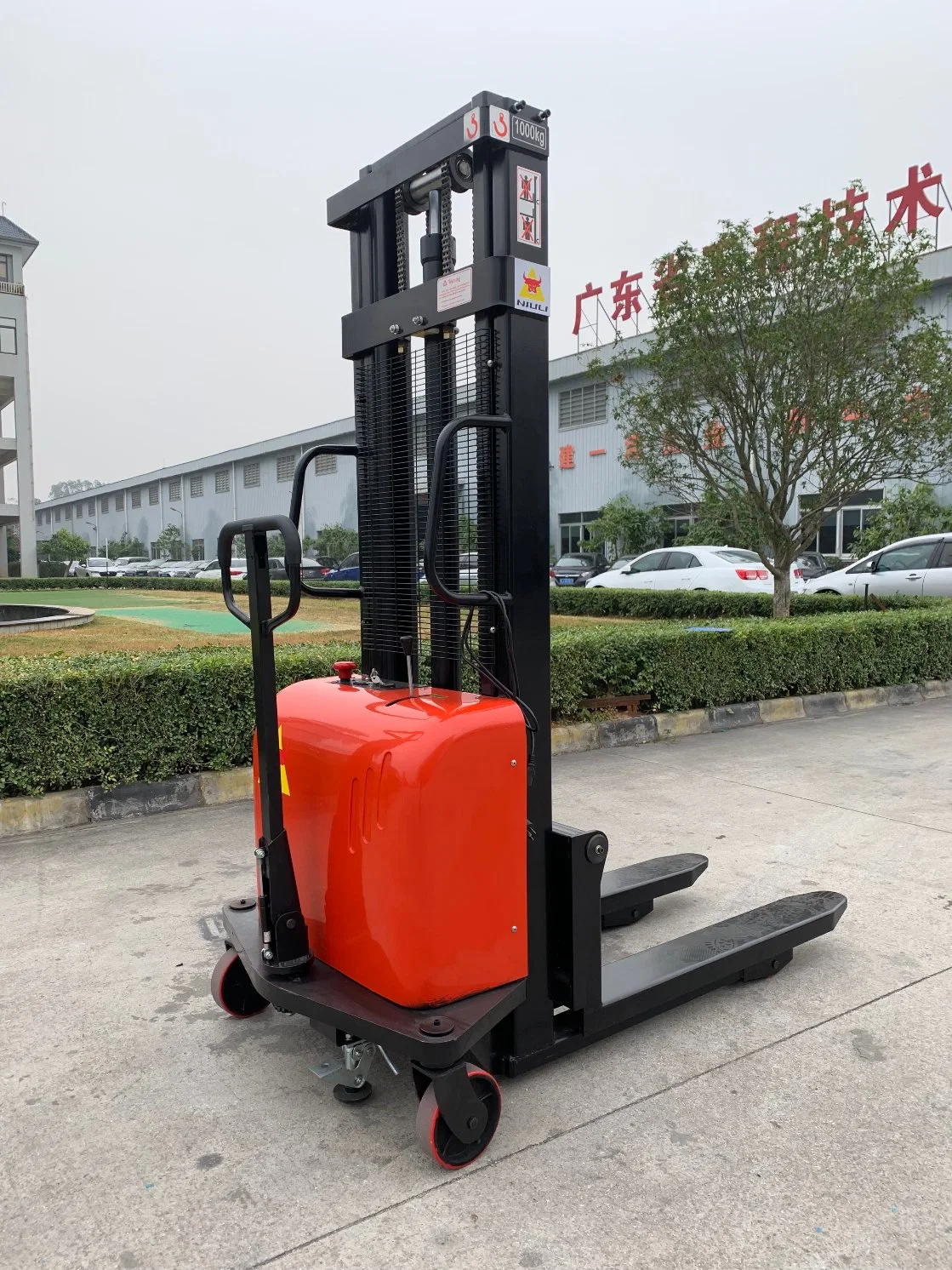

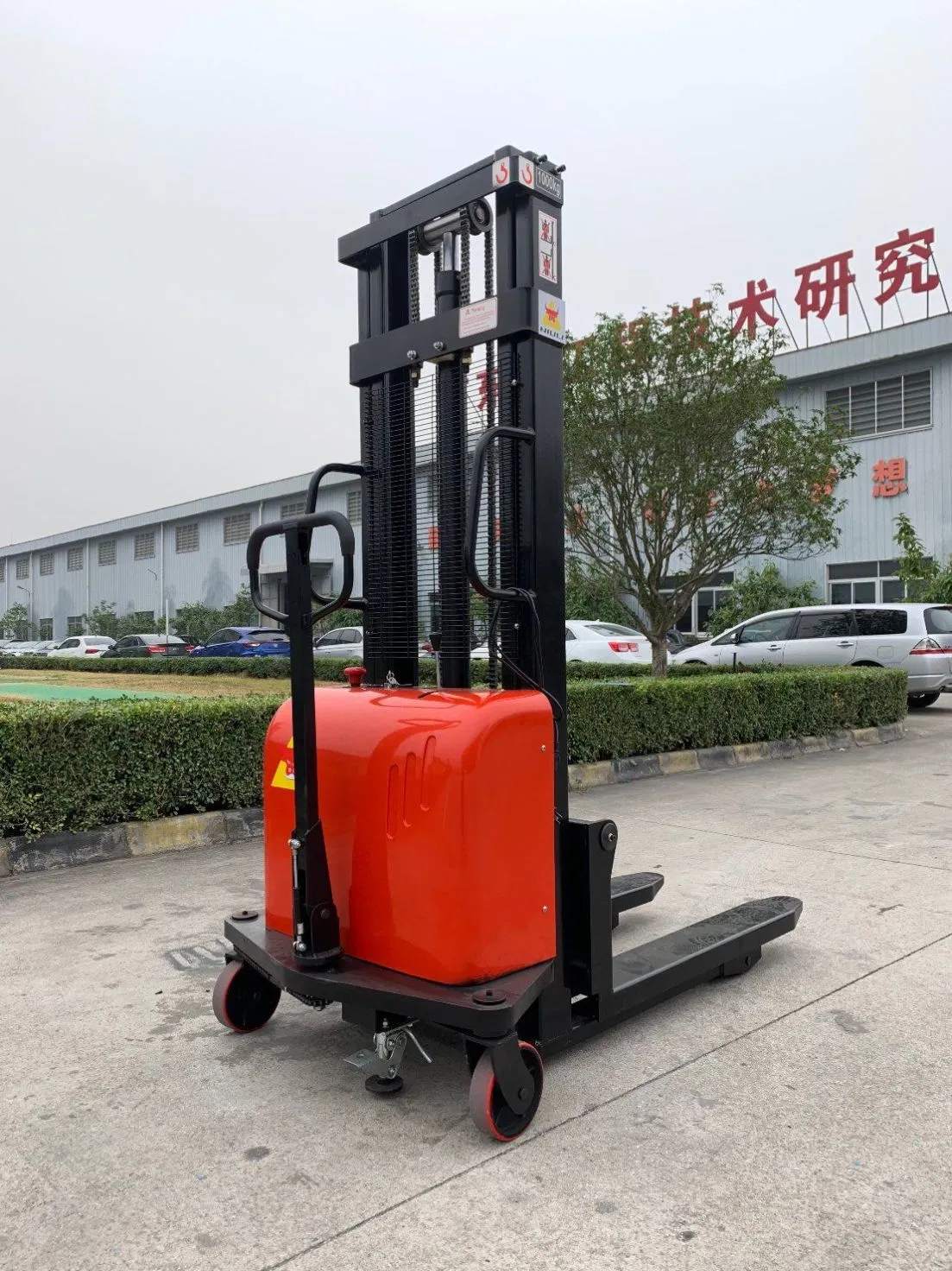

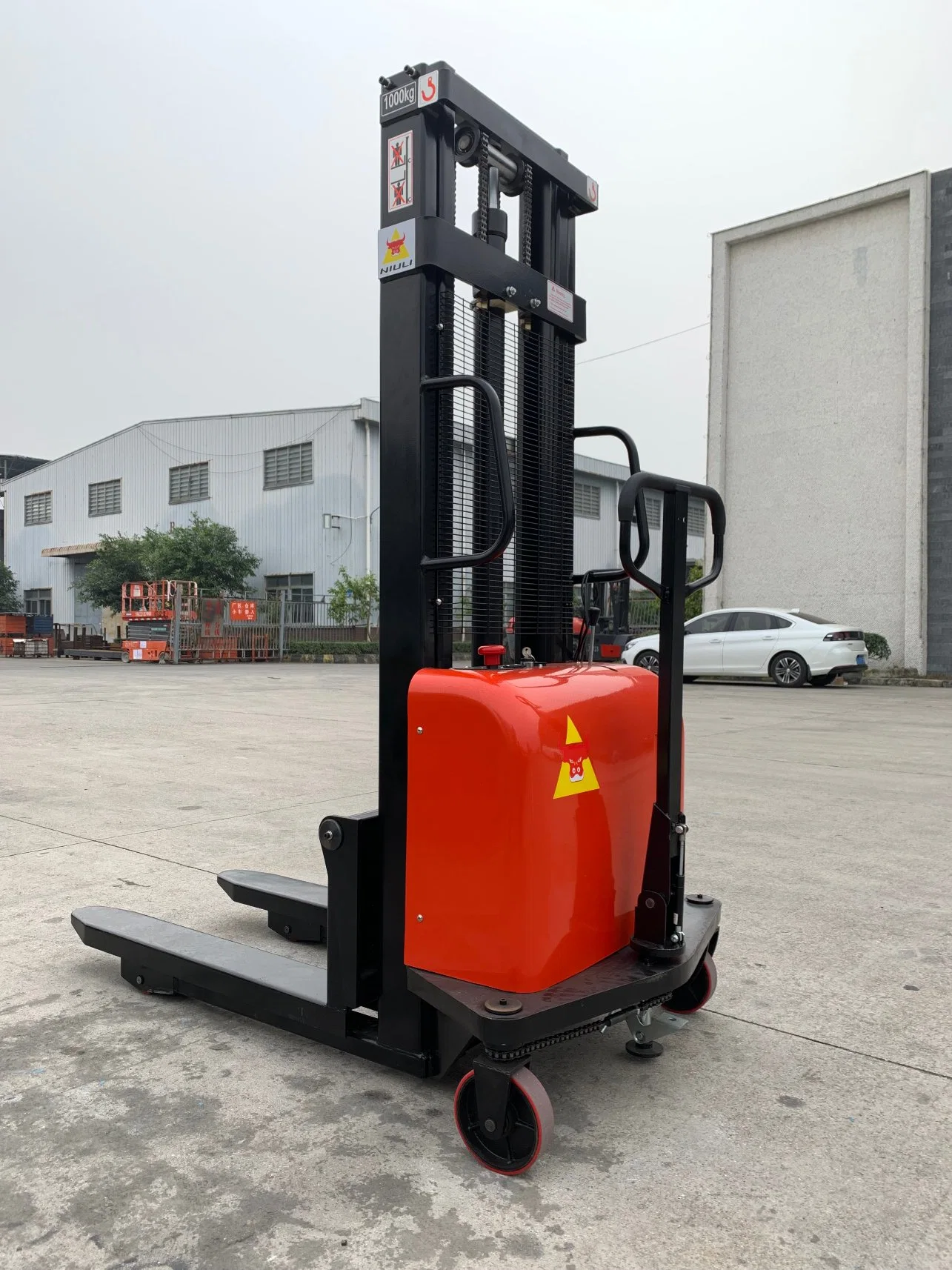

High Lift Walkie Fully Electric Powered Pallet Stacker
High Lift Walkie Fully Electric Powered Pallet Stacker
High Lift Walkie Fully Electric Powered Pallet Stacker
High Lift Walkie Fully Electric Powered Pallet Stacker
High Lift Walkie Fully Electric Powered Pallet Stacker
1 / 5
High Lift Walkie Fully Electric Powered Pallet Stacker
High Lift Walkie Fully Electric Powered Pallet Stacker
High Lift Walkie Fully Electric Powered Pallet Stacker
High Lift Walkie Fully Electric Powered Pallet Stacker
High Lift Walkie Fully Electric Powered Pallet Stacker

High Lift Walkie Fully Electric Powered Pallet Stacker

Cab Location: Adjustable
Type: Electric Forklift
Power: DC Motor
Send Inquiry

Product Description

📊 Basic Information
Model NO.
CTDN
Load Capacity
1T - 5T
Fuel
Electric
Load Center
500mm
Lift Height
>5000mm
Condition
New
Production Capacity
10000
📋 Product Description
High Lift Walkie Fully Electric Powered Pallet Stacker
Powered Pallet Stacker Detail
Fully Electric Stacker Feature
⚙️ Technical Data Sheet
No. Model Capacity (kg) Self Weight (kg) Max Lift Height (mm) Min Lift Height (mm) Fork Width (mm) Turning Radius (mm) Battery (V/Ah) Power (kw)
1 CTDN1016 1000 350 1600 90 550 / 360-690 1280 12/120 1.6
2 CTDN1020 1000 370 2000 90 550 / 360-690 1380 12/120 1.6
3 CTDN1525 1500 410 2500 90 550 / 360-690 1530 12/120 1.6
4 CTDN1530 1500 430 3000 90 550 / 360-690 1530 12/120 1.6
5 CTDN2020 2000 400 2000 90 550 / 360-690 1380 12/120 1.6
Technical Specifications Chart
Electric Stacker Operation
Internal Components
Safety Features

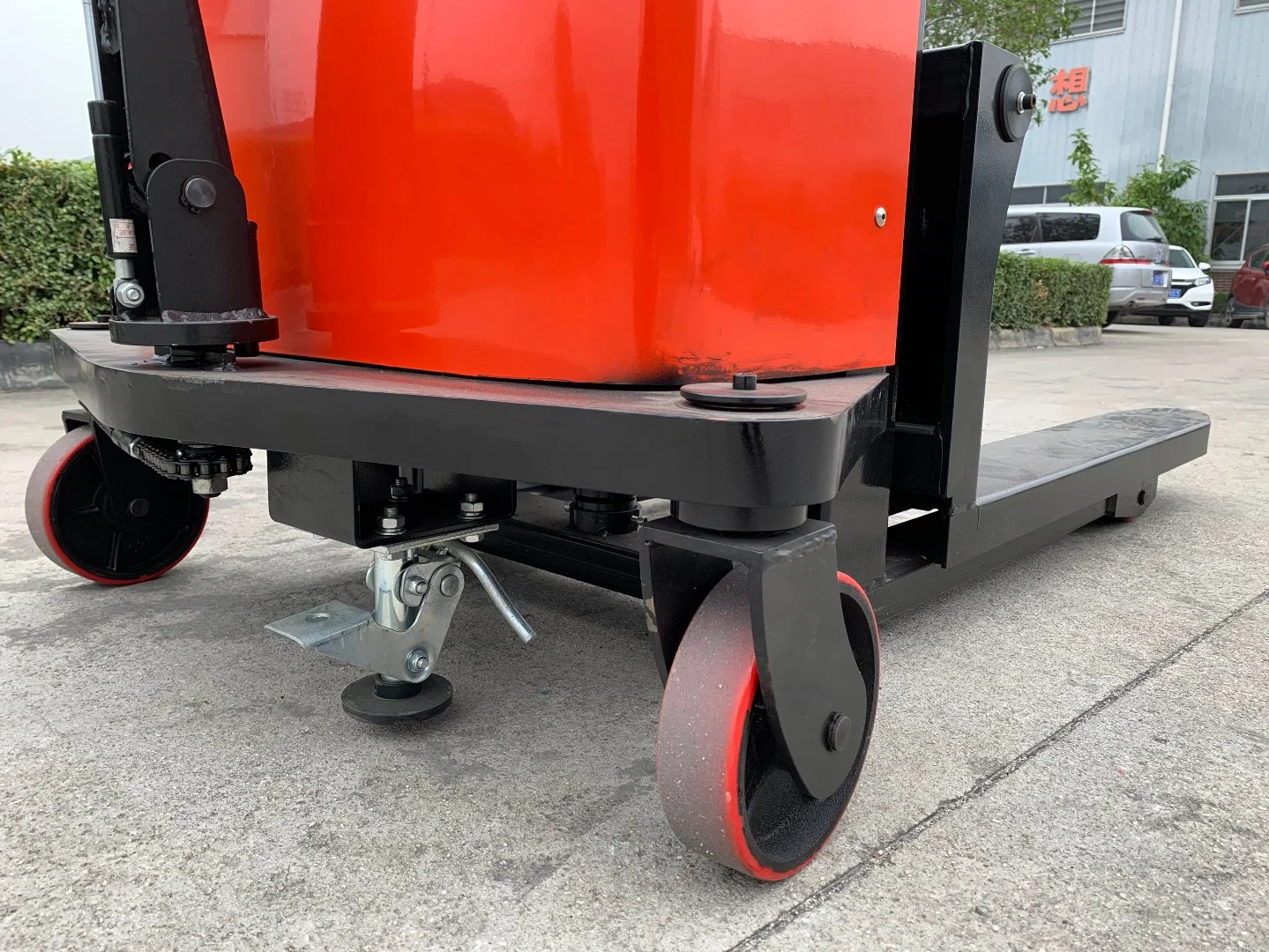

Wheel Details
Base Frame Structure
Rear View Stacker
❓ Frequently Asked Questions
What is the load capacity of the CTDN series electric stacker?
The load capacity for the CTDN series ranges from 1 ton to 5 tons, depending on the specific model selected.
What are the available lifting heights for this equipment?
We offer various lifting height options including 1600mm, 2000mm, 2500mm, and 3000mm, with high-lift capabilities exceeding 5000mm.
Can the fork width be adjusted?
Yes, models are available with either a fixed fork width of 550mm or an adjustable fork range of 360mm to 690mm to accommodate different pallet sizes.
What type of battery and motor power does the stacker use?
The stacker is equipped with a 12V/120Ah battery and a powerful 1.6kw electric motor for efficient and smooth operation.
What is the turning radius for the 1-ton models?
The turning radius varies by model and fork length, typically ranging from 1280mm to 1530mm, making it suitable for narrow aisle operations.
Is this pallet stacker fully electric?
Yes, the CTDN series is fully electric powered for both driving and lifting functions, reducing physical labor and increasing efficiency.
