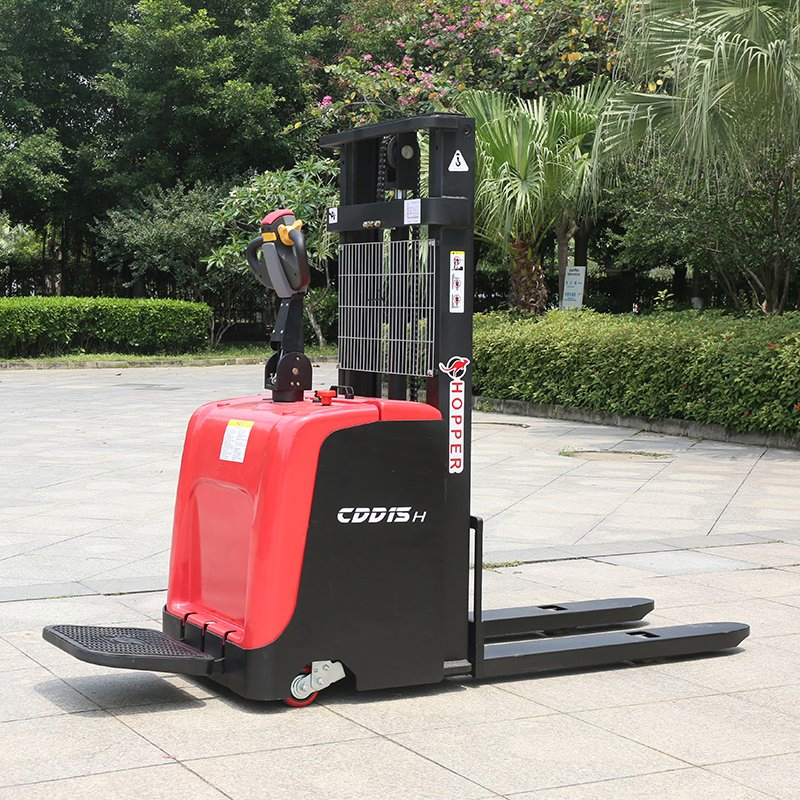

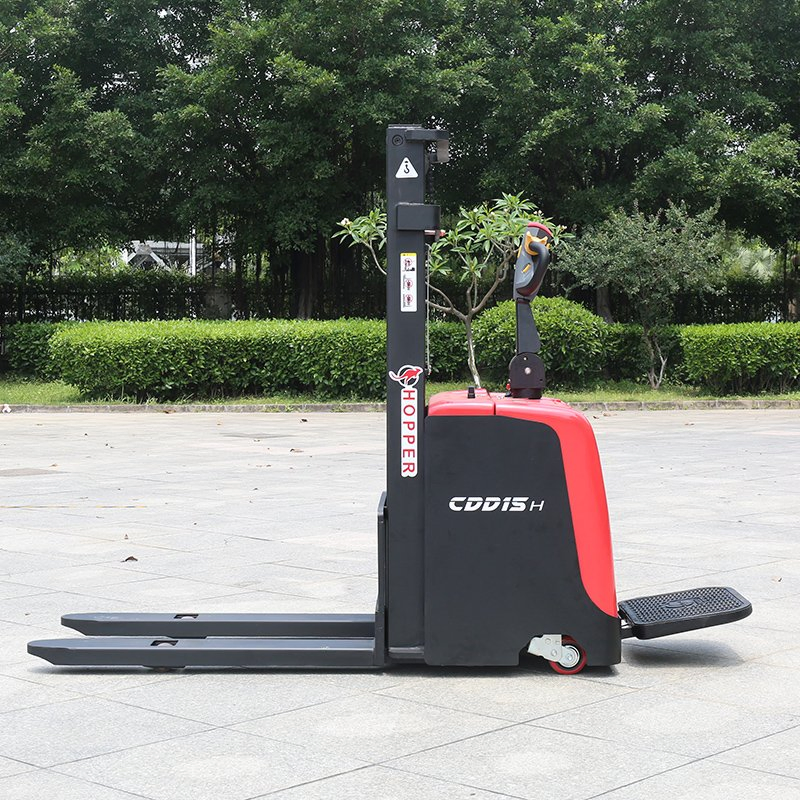

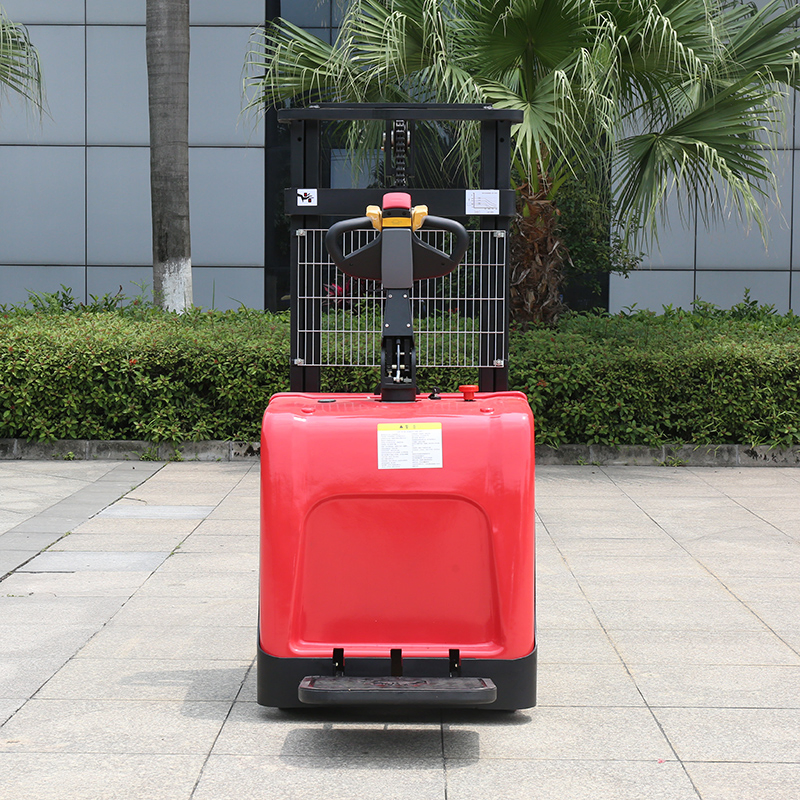

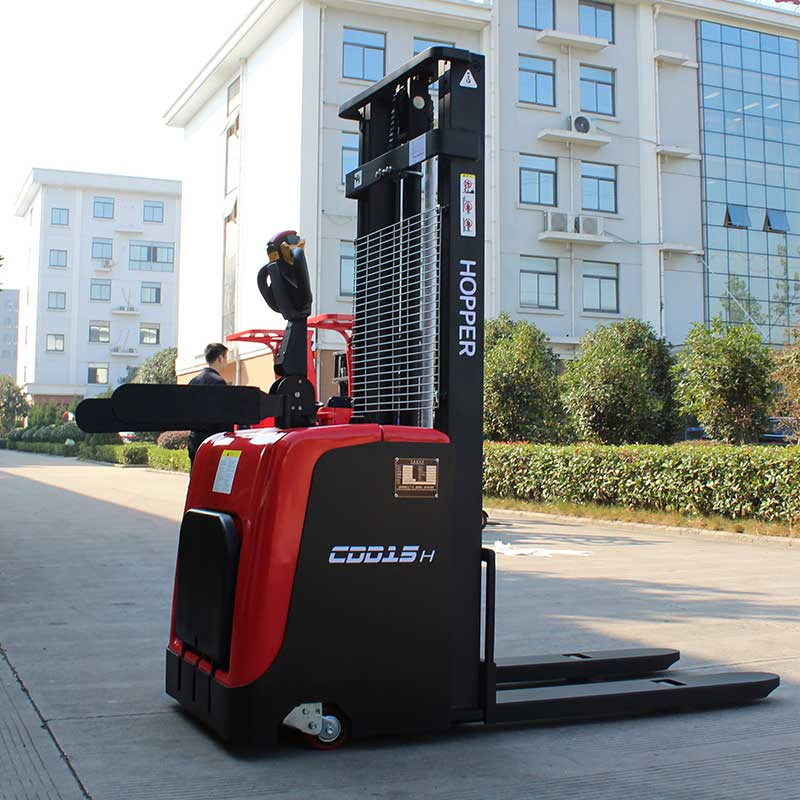

High-Performance 1.5t Electric Pallet Stacker with Triplex Lift
High-Performance 1.5t Electric Pallet Stacker with Triplex Lift
High-Performance 1.5t Electric Pallet Stacker with Triplex Lift
High-Performance 1.5t Electric Pallet Stacker with Triplex Lift
High-Performance 1.5t Electric Pallet Stacker with Triplex Lift
1 / 5
High-Performance 1.5t Electric Pallet Stacker with Triplex Lift
High-Performance 1.5t Electric Pallet Stacker with Triplex Lift
High-Performance 1.5t Electric Pallet Stacker with Triplex Lift
High-Performance 1.5t Electric Pallet Stacker with Triplex Lift
High-Performance 1.5t Electric Pallet Stacker with Triplex Lift

High-Performance 1.5t Electric Pallet Stacker with Triplex Lift

Customization: Available
Cab Location: Adjustable
Type: Powered Pallet Truck
Send Inquiry

Product Description

📦Product Overview

Electric Pallet Stacker 1.5t Rider Electric Stacker with Triplex Mast 5m (CDD15H)

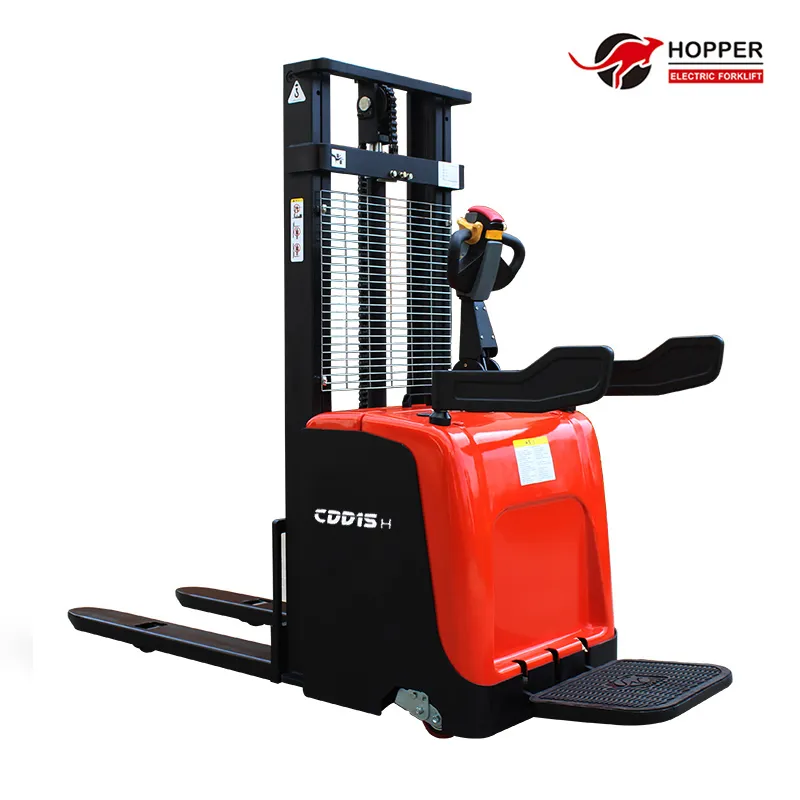

Electric Pallet Stacker

infoBasic Specifications

Model NO.
CDD15H
Power
AC Motor
Fuel
Electric
Load Center
>500mm
Lift Height
3000~5000mm
Condition
New
Production Capacity
2000 Pieces Per Month
Specification
CE

🌟Key Advantages

AC drive control precision, maintenance-free, safe, and reliable.
High-performance hydraulic station, low noise, small vibration.
HMI design handle, easy for left and right-hand operation.
Electronic steering systems, lightweight and low noise.
Emergency reverse device for enhanced operator safety.
Electromagnetic, regenerative braking system.
High vehicle automatic deceleration function.
Wide view mast for clear visibility during operation.

📊Technical Parameters

Parameter Item Unit Details (CDD15H)
Operation Type-Stand-on
Load Capacity (Q)kg1500
Load Center (C)mm500
Wheelbase (y)mm1235
Total Weight (With Battery)kg780
Overall Lengthmm1950/2415
Overall Widthmm790
Lifting Height (h1)mm3000
Fork Size (l/e/s)mm1150×160×60
Turning Radiusmm1535/1970
Traveling Speed (Loaded/Unloaded)Km/h5/5.5
Drive Motor PowerKWAC 1.5
Battery Voltage/CapacityV/Ah24/100
Controller Brand-ZAPI

🛠️Operational Features

  • Works efficiently in narrow passages due to compact appearance and small turning radius.
  • Standard solid tires with strong bearing capacity and low maintenance costs.
  • Zero pollution battery power source, meeting environmental protection requirements.
  • Imported SME controller for stable, precise, and high-performance control.
  • Ergonomic design for operator comfort during extended use.
  • Fully open hood allowing easy access to battery and motor for maintenance.
Equipment View 1
Equipment View 2
Equipment View 3

Frequently Asked Questions

What is the maximum load capacity of the CDD15H stacker?
The CDD15H electric pallet stacker has a rated load capacity of 1500kg (1.5 tons).
What are the available lifting heights for this model?
The standard lifting height is 3000mm, with options ranging from 3000mm up to 5000mm to suit different warehouse needs.
Does this stacker require frequent motor maintenance?
No, it utilizes an AC drive motor which is maintenance-free, providing high reliability and reducing long-term operational costs.
Is the steering system easy to operate?
Yes, the stacker features an electronic steering system and an ergonomic HMI control handle, making it lightweight and easy to maneuver for both left and right-handed operators.
What safety mechanisms are built into the vehicle?
The stacker is equipped with an emergency reverse device, an electromagnetic regenerative braking system, and an automatic deceleration function for high-speed turns.
Can this electric stacker be used in narrow aisles?
Yes, its compact design and small turning radius (minimum 1535mm) make it ideal for working in narrow passages and confined warehouse spaces.
