Home > High Lift Pallet Stacker > High Range Stand-on Pallet Stacker-Hangcha a Series 1.2t-1.6t with Initial Lift for Pallet Stacking

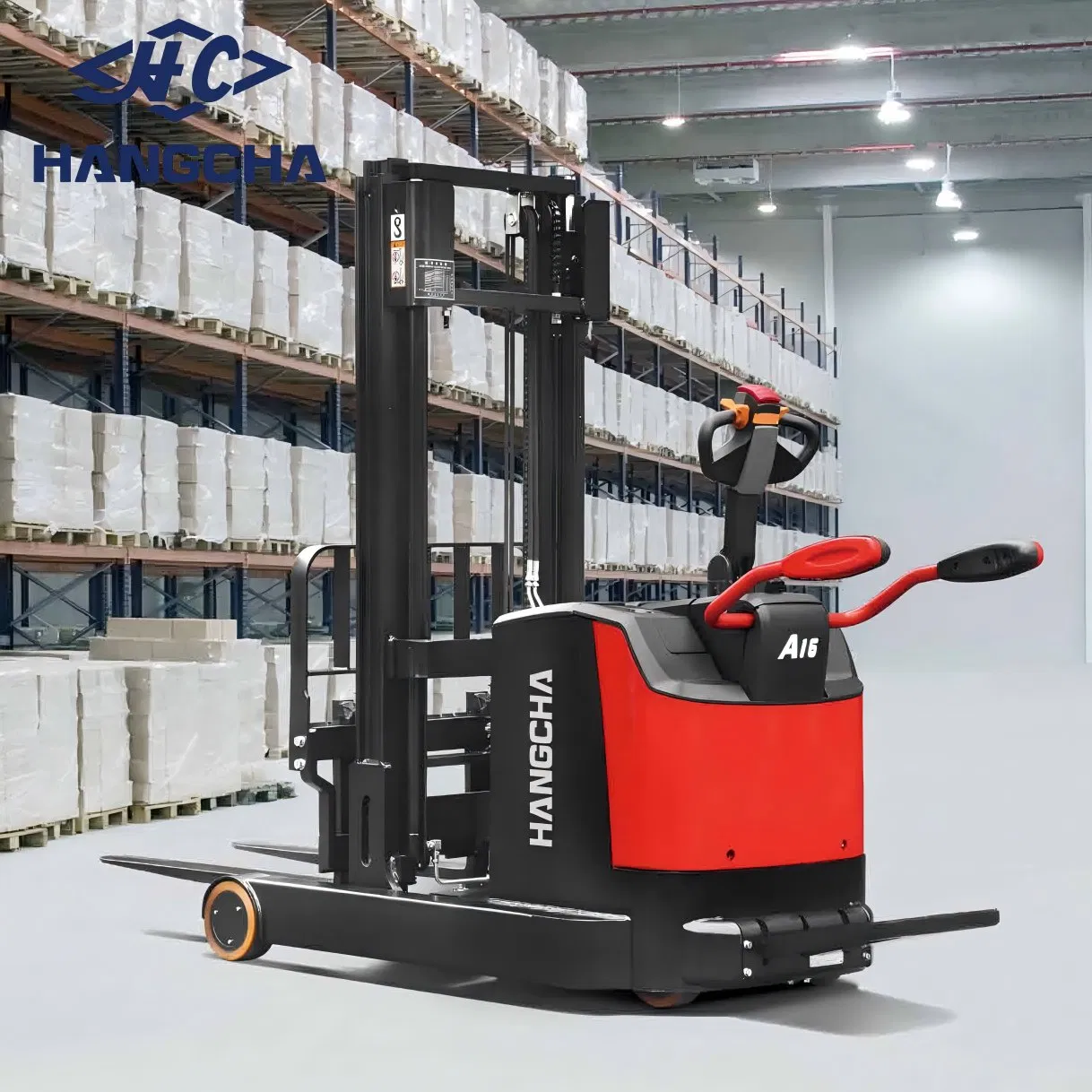

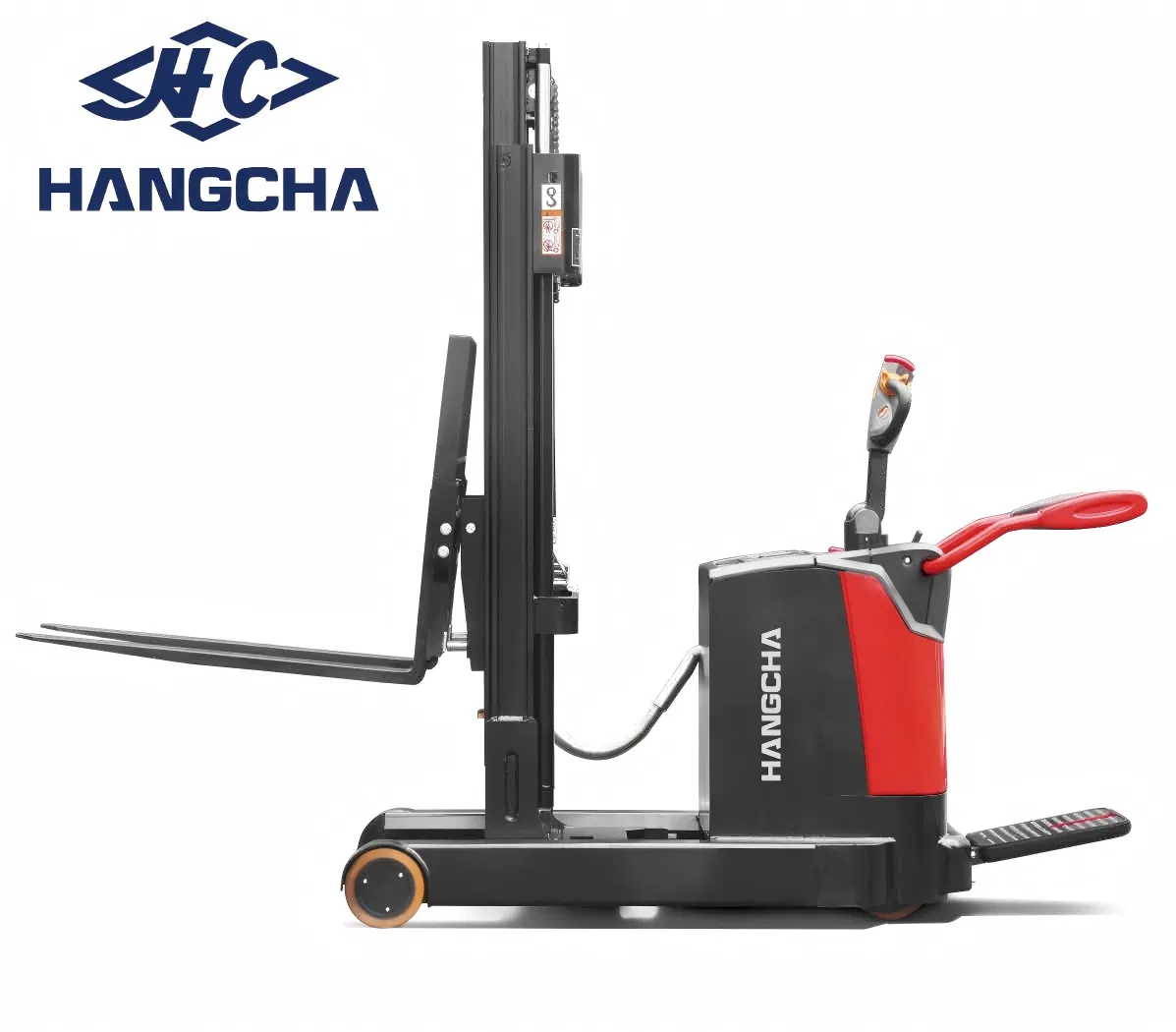

High Range Stand-on Pallet Stacker-Hangcha a Series 1.2t-1.6t with Initial Lift for Pallet Stacking
High Range Stand-on Pallet Stacker-Hangcha a Series 1.2t-1.6t with Initial Lift for Pallet Stacking
High Range Stand-on Pallet Stacker-Hangcha a Series 1.2t-1.6t with Initial Lift for Pallet Stacking
High Range Stand-on Pallet Stacker-Hangcha a Series 1.2t-1.6t with Initial Lift for Pallet Stacking
High Range Stand-on Pallet Stacker-Hangcha a Series 1.2t-1.6t with Initial Lift for Pallet Stacking
1 / 5
High Range Stand-on Pallet Stacker-Hangcha a Series 1.2t-1.6t with Initial Lift for Pallet Stacking
High Range Stand-on Pallet Stacker-Hangcha a Series 1.2t-1.6t with Initial Lift for Pallet Stacking
High Range Stand-on Pallet Stacker-Hangcha a Series 1.2t-1.6t with Initial Lift for Pallet Stacking
High Range Stand-on Pallet Stacker-Hangcha a Series 1.2t-1.6t with Initial Lift for Pallet Stacking
High Range Stand-on Pallet Stacker-Hangcha a Series 1.2t-1.6t with Initial Lift for Pallet Stacking

High Range Stand-on Pallet Stacker-Hangcha a Series 1.2t-1.6t with Initial Lift for Pallet Stacking

Customization: Available
After-sales Service: 1 Year or 2000h Which Comes First
Warranty: 1 Year or 2000h Which Comes First
Send Inquiry

Product Description

Basic Specifications
Model NO. CQDB12-AC2S
Type Stacker
Power AC Motor
Load Capacity 1200-2000kg
Fuel Electric
Load Center 500mm
Lift Height 2000-5500mm
Battery Lead Acid or Li-ion
Tyre Type PU (Pedestrian)
Fork Size 1070mm
Controller Brand Curtis
Dimensions 2612*1030*1892MM
Product Description

High Range Stand-on Pallet Stacker With Mast Move

This truck combines the benefits of a regular stacker and a counterbalanced stacker. It is highly versatile, suitable for non-standard pallets, enclosed pallets, and enclosed shelves. The mast can be retracted into the truck body, significantly reducing the passage width required for operation. This makes the stacker an ideal vehicle for working in narrow passages.

Equipped with cutting-edge AC control technology, this truck offers excellent performance, comfortable operation, enhanced safety, and high reliability with low maintenance costs.

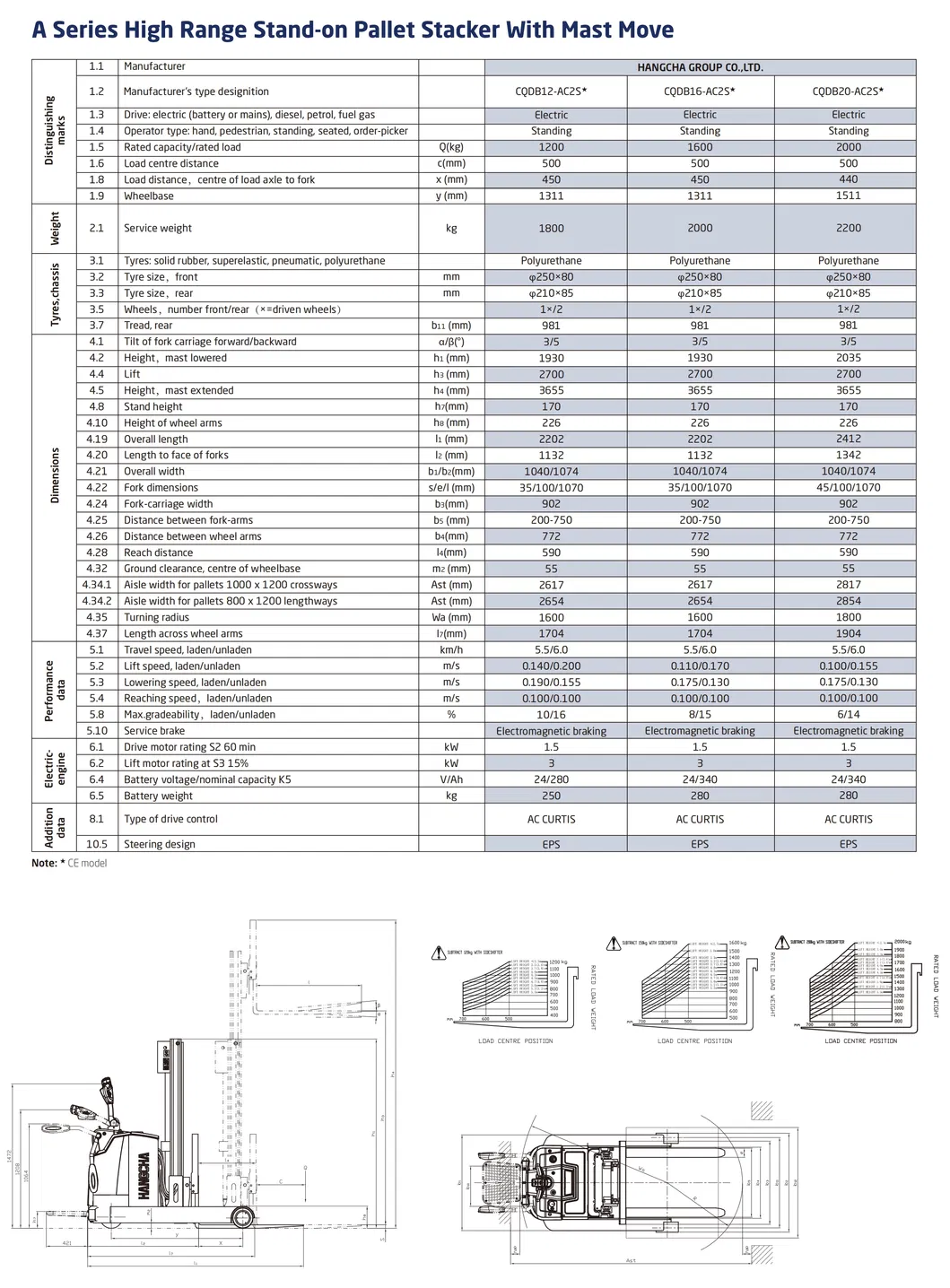

Technical Parameters
Technical Parameters
Key Advantages
Electric Power Steering (EPS): Standard specification providing flexible and effortless operation.
Proportional Control: Pump motor realizes proportional control for accurate fork operations via the controller.
Advanced AC Drive: Features excellent acceleration, outstanding climbing ability, low heat emission, and is maintenance-free.
Control System: Latest AC control system ensures accurate, stable, and efficient equipment management.
Safety Braking: Regenerative braking prevents the truck from sliding on slopes during operation.
Imported Components: High-quality switches, connectors, and meters imported for reliable performance.
Detailed View

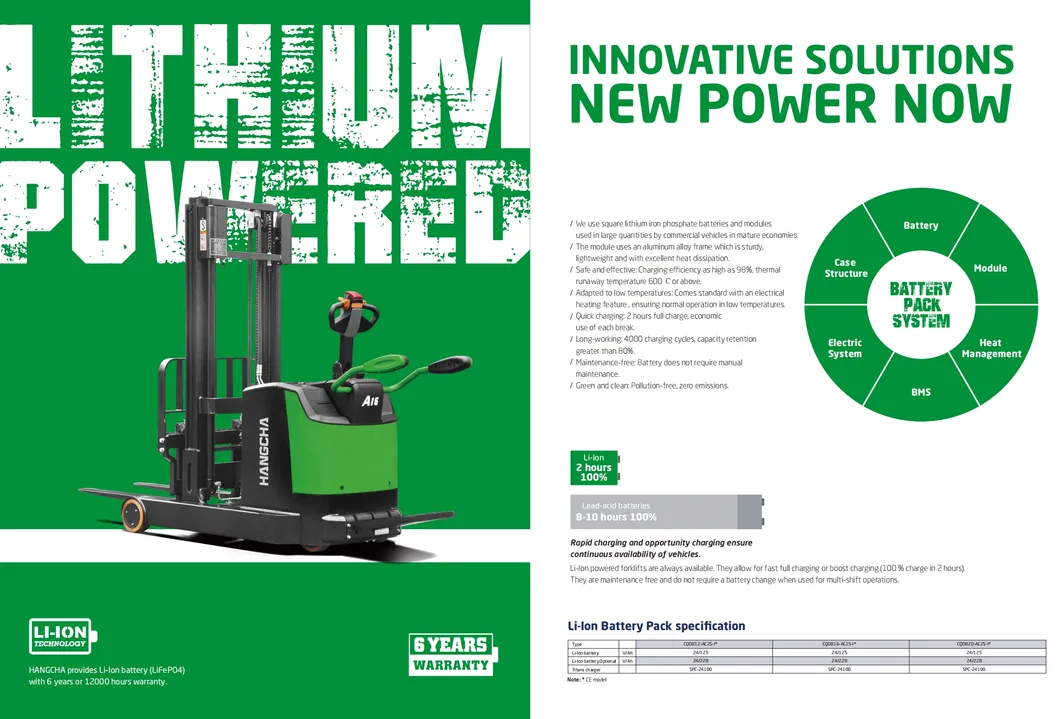

Stacker Detail 1

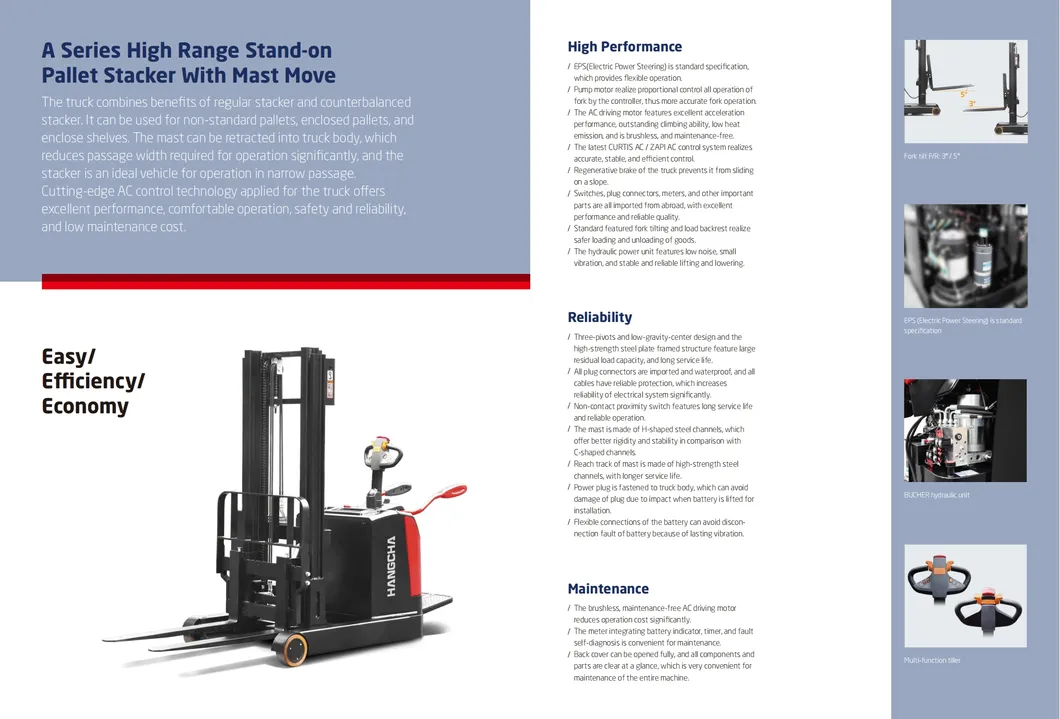

Stacker Detail 2

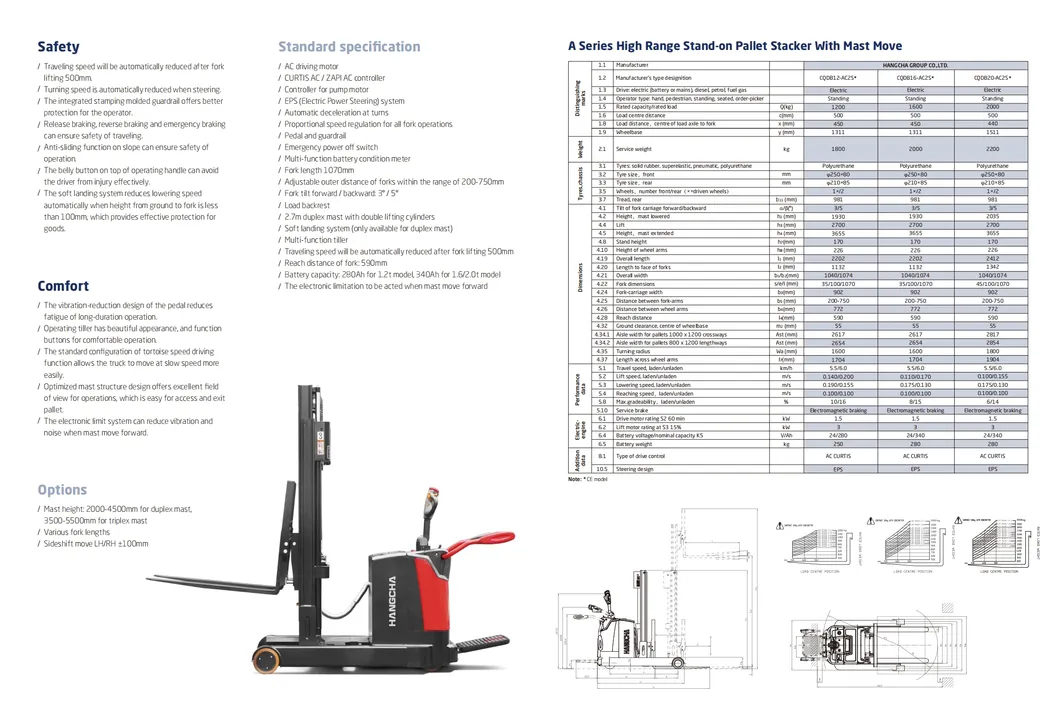

Stacker Detail 3
Packaging & Logistics

Standard export nude packing with iron or wooden blocks fixed on container ground. Both FCL (Full Container Load) and LCL (Less than Container Load) shipping options are available.

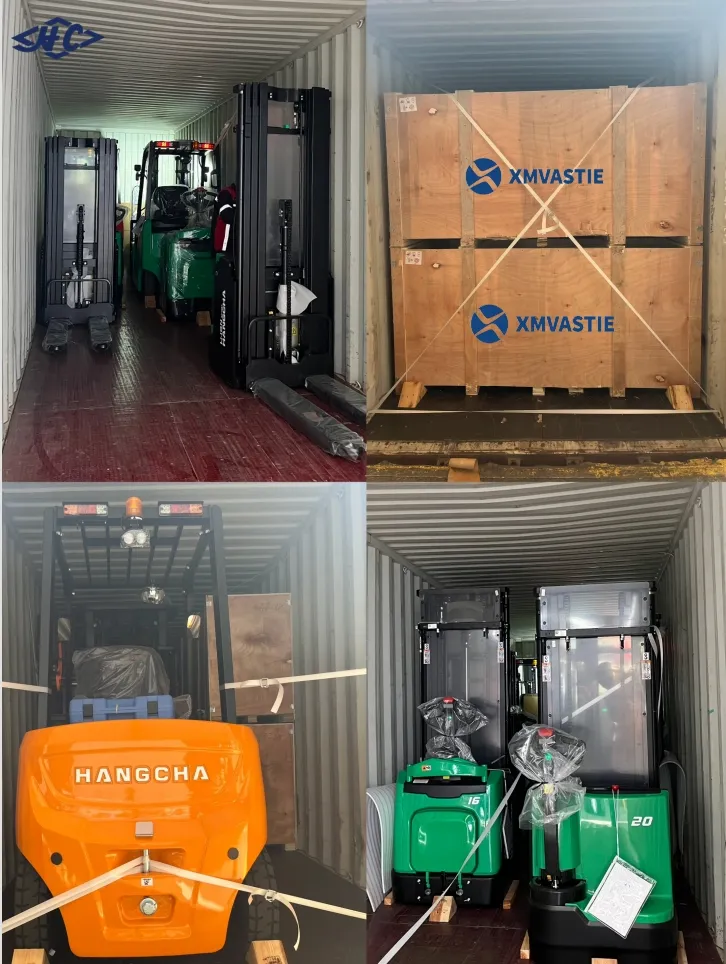

Packaging

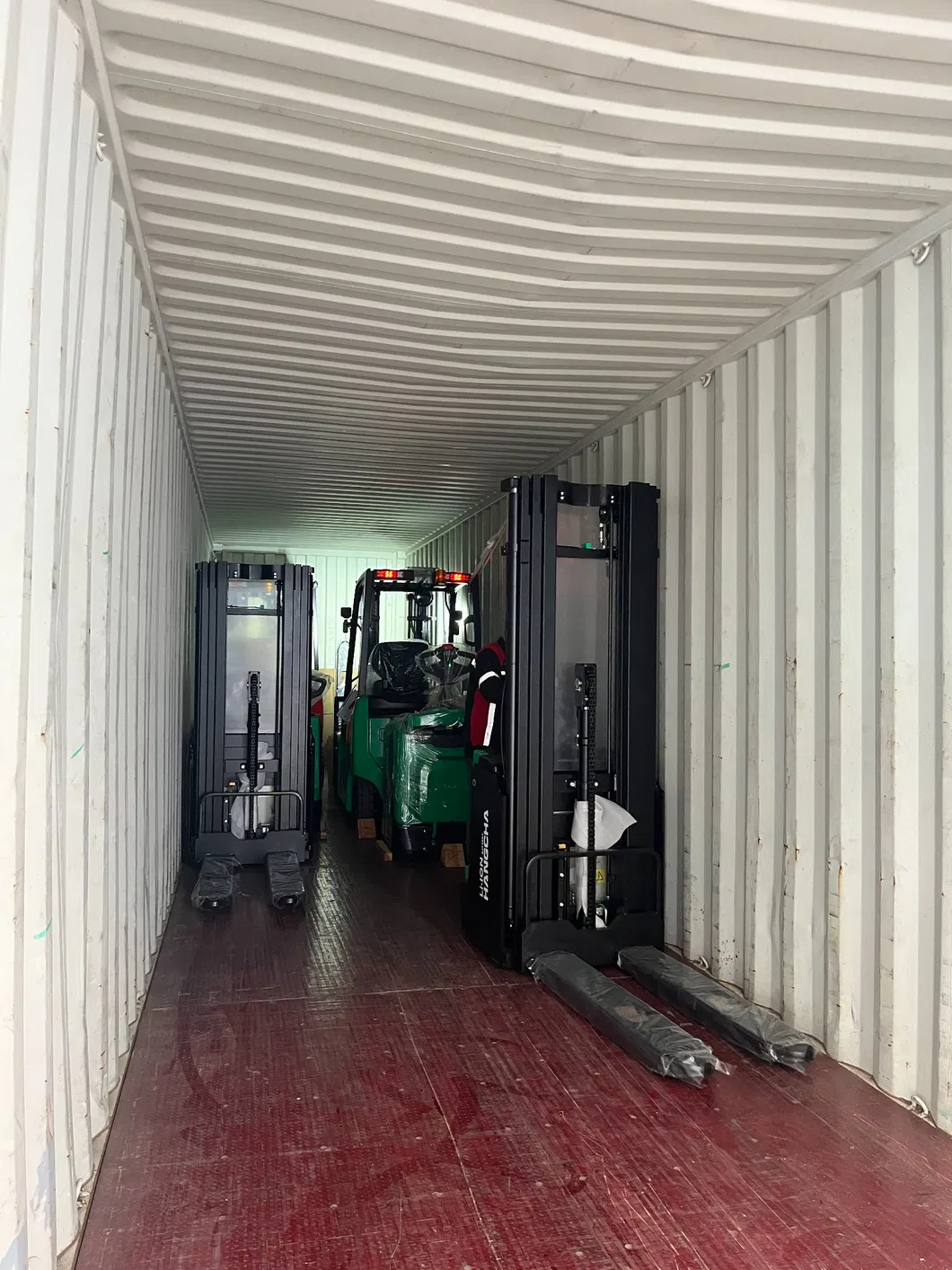

Shipping Load
Frequently Asked Questions
What materials handling solutions are available?
We provide a full series of forklifts and genuine spare parts, offering comprehensive material handling solutions tailored to your equipment needs.
What is the standard delivery time?
Delivery times vary by capacity: 1.5-3.5T standard specs take 25-30 days; 4-10T take 30-35 days; units above 10T require 45-60 days. Special specifications can be confirmed upon request.
Can I request a different color or custom logo?
Yes, customization for colors, logos, and other special requests is available to meet your specific requirements.
What battery options are available for this stacker?
This model supports both traditional Lead-Acid batteries and high-efficiency Li-ion (Lithium-ion) batteries, depending on your operational needs.
Does the stacker feature electric power steering?
Yes, EPS (Electric Power Steering) is a standard specification for this series, ensuring flexible and precise maneuverability in tight spaces.
What are the benefits of the AC driving motor?
The AC motor provides excellent acceleration and gradeability. It is brushless and maintenance-free, which significantly reduces long-term operating costs.
