| Model NO. | EPT20-15ET2P |
| Type | Powered Pallet Truck |
| Power | DC Motor / Electric |
| Load Capacity | 1.5ton |
| Load center | 600mm |
| Lift height | 115mm |
| Tyer Type | PU |
| Certification | CE/ISO9001 |
| Battery Voltage | 24V/65ah |
| Turning Radius | 1475mm |

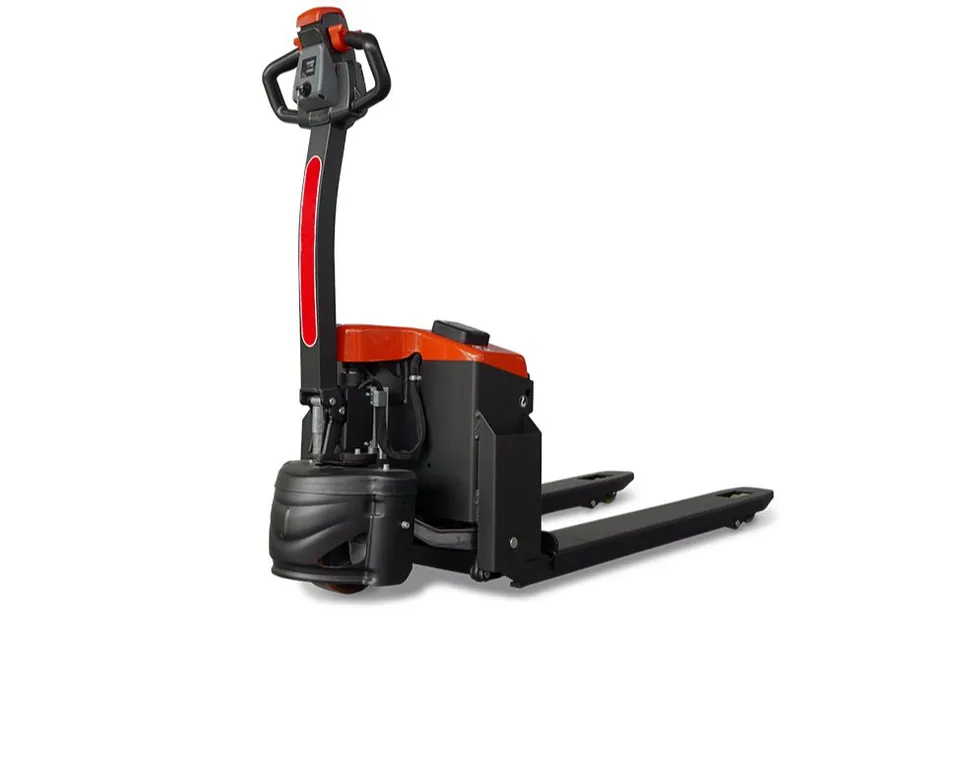

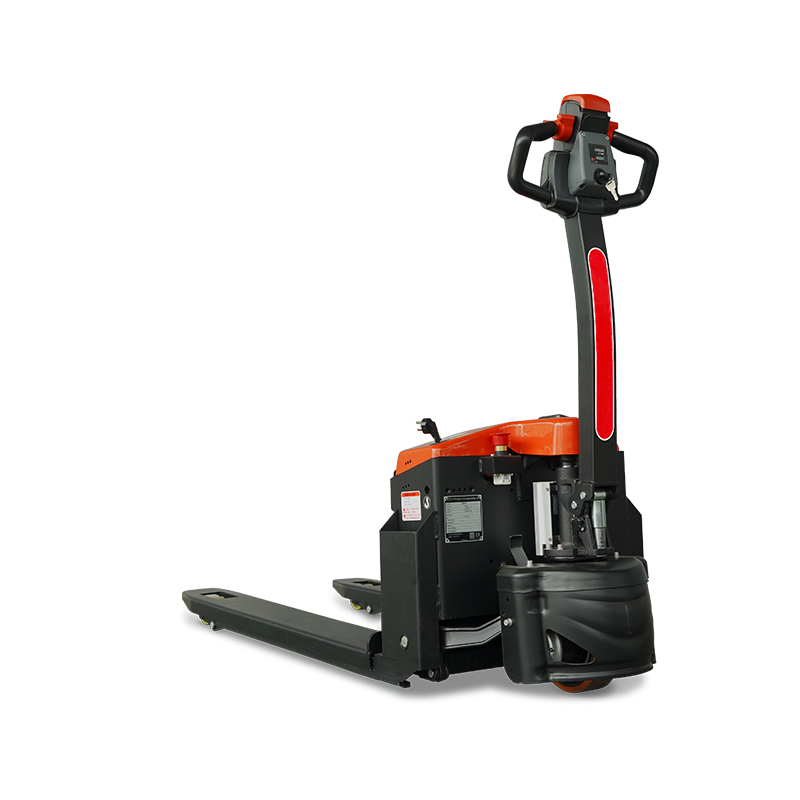

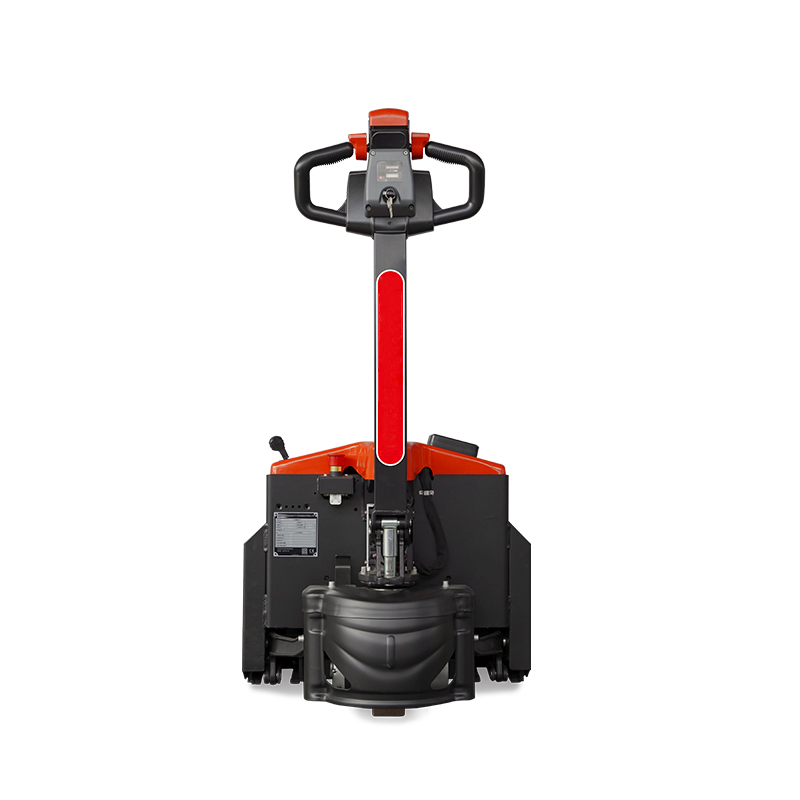

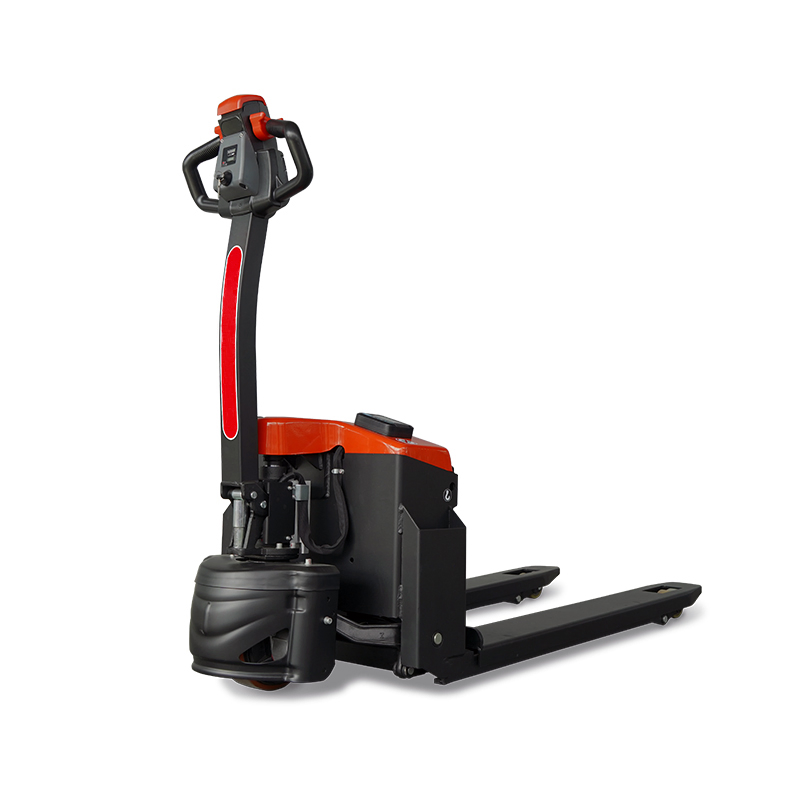

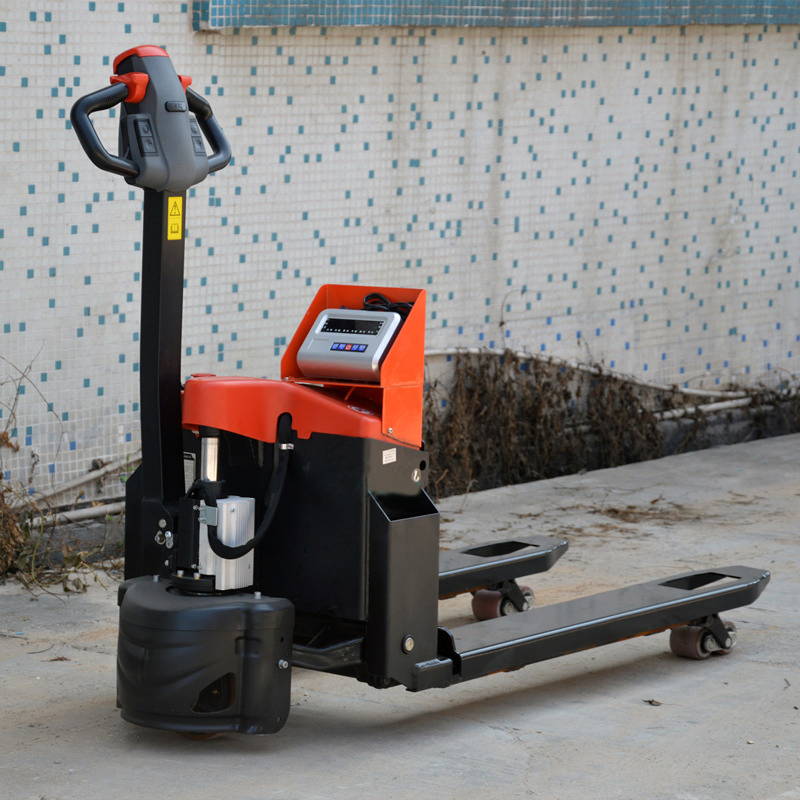

1.5 Ton Mini Electric Pallet Truck with Weighing Scale
Small size with plenty of power – this model has proven itself with rapidly increasing sales. Innovative patents ensure strong performance, high stability, long service life, and ease of use.

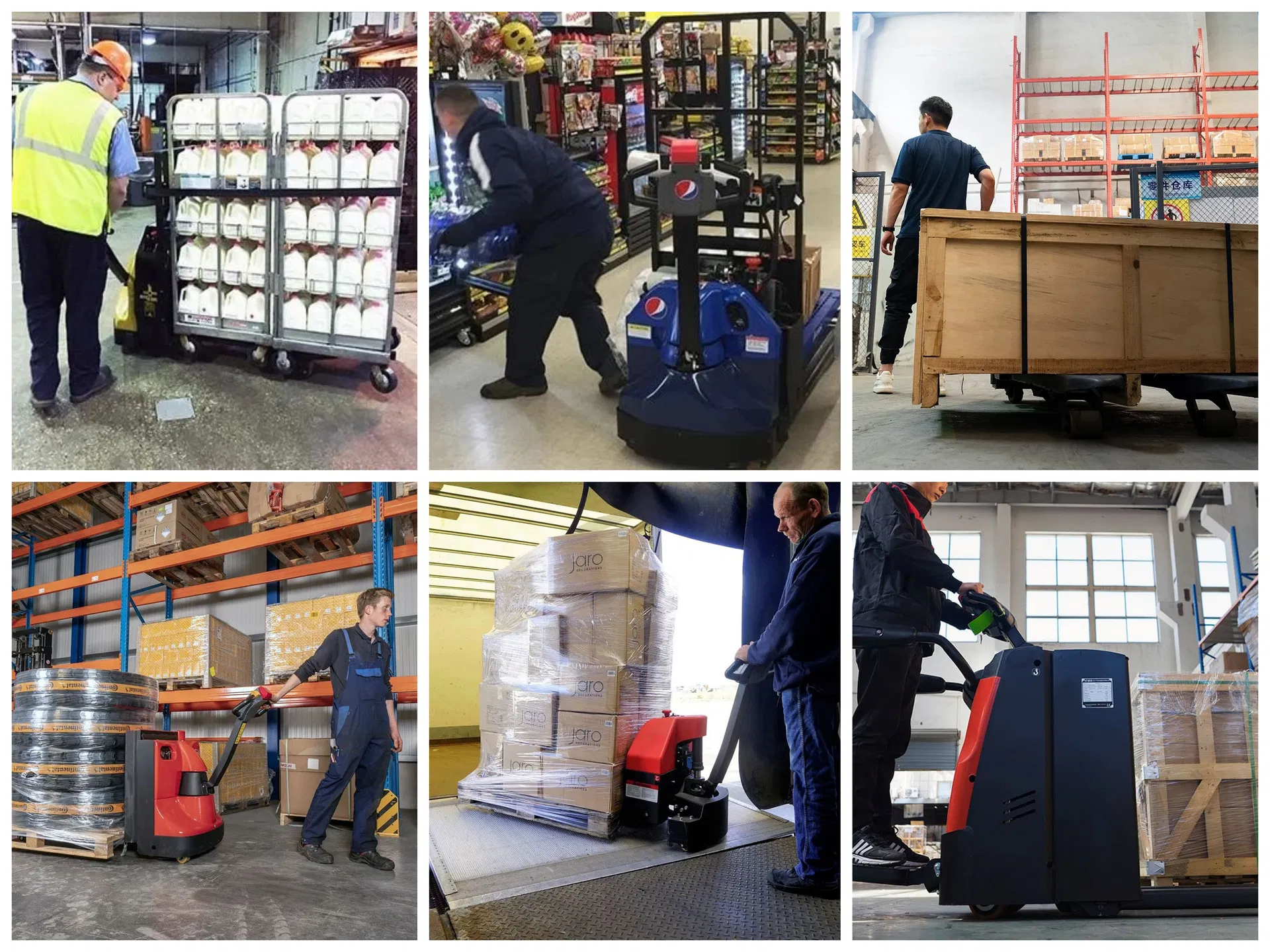

Pedestrian pallet trucks, also known as walkie pallet trucks, are operated while the operator walks alongside the truck. These trucks are ideal for short-distance transport tasks within warehouses, retail stores, and manufacturing facilities. Their compact design allows for easy navigation in tight spaces, making them perfect for environments where space is limited.
| No. | Description | Unit | Data |
| 1.3 | Drive | - | Electric |
| 1.4 | Drive mode | - | Pedestrian |
| 1.5 | Load capacity | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 600 |
| 2.1 | Service weight | kg | 180 |
| 4.4 | Lift height | h3 (mm) | 115 |
| 4.19 | Overall length | l1 (mm) | 1638 |
| 4.21 | Overall width | b1/ b2 (mm) | 560 |
| 4.22 | Fork dimensions | s/e/l (mm) | 50/150/1150 |
| 4.35 | Turning radius | Wa (mm) | 1475 |
| 5.1 | Travel speed (laden/unladen) | km/h | 4.5/5.0 |
| 6.4 | Battery voltage/capacity | V/Ah | 24V/65Ah |
The EPT20-15ET2 is a reliable partner for increasing production efficiency and freeing up labor. It is the ideal entry-level electric pallet truck for daily operations in logistics, warehousing, and retail environments.

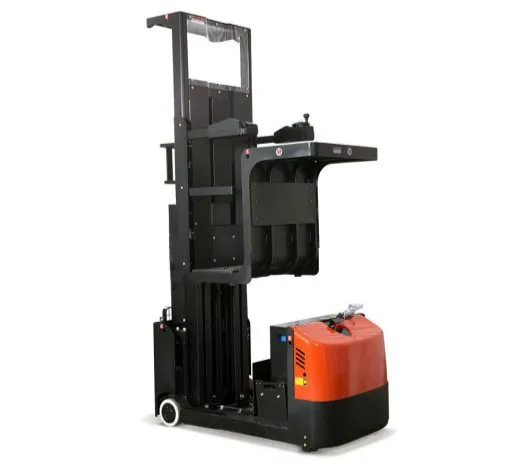

ORDER PICKER

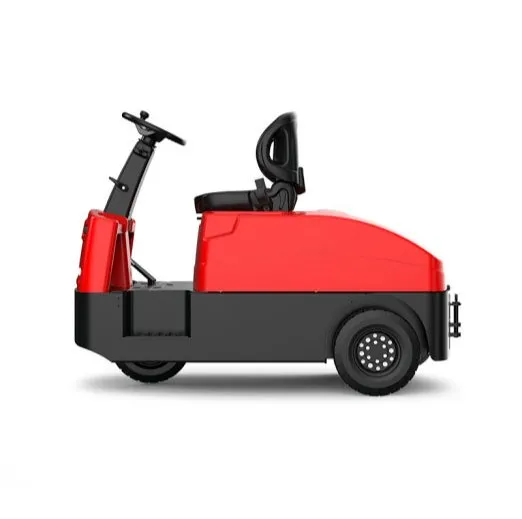

TOW TRACTOR

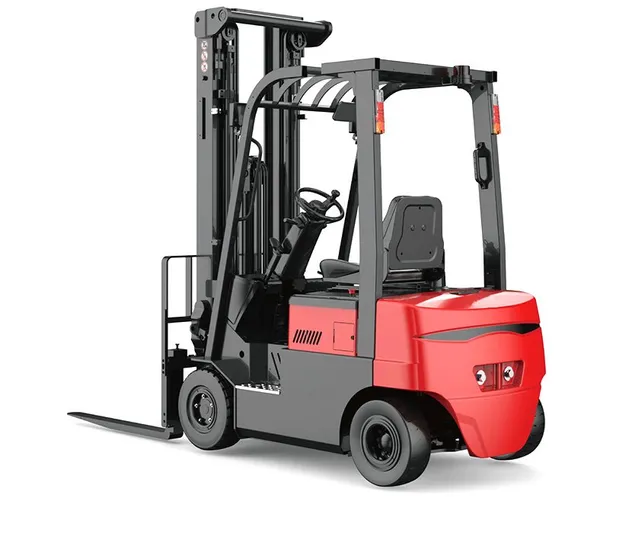

FORKLIFT

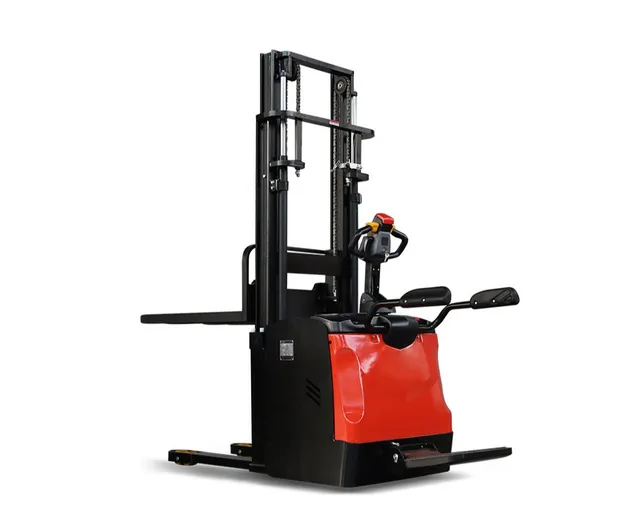

PALLET STACKER

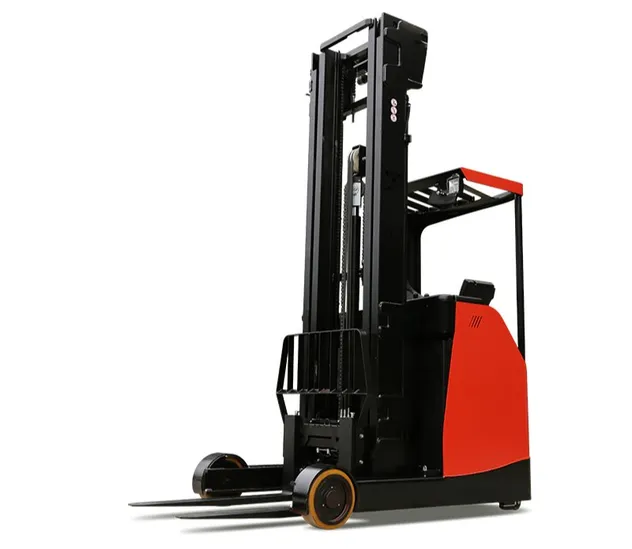

REACH TRUCK
AGV

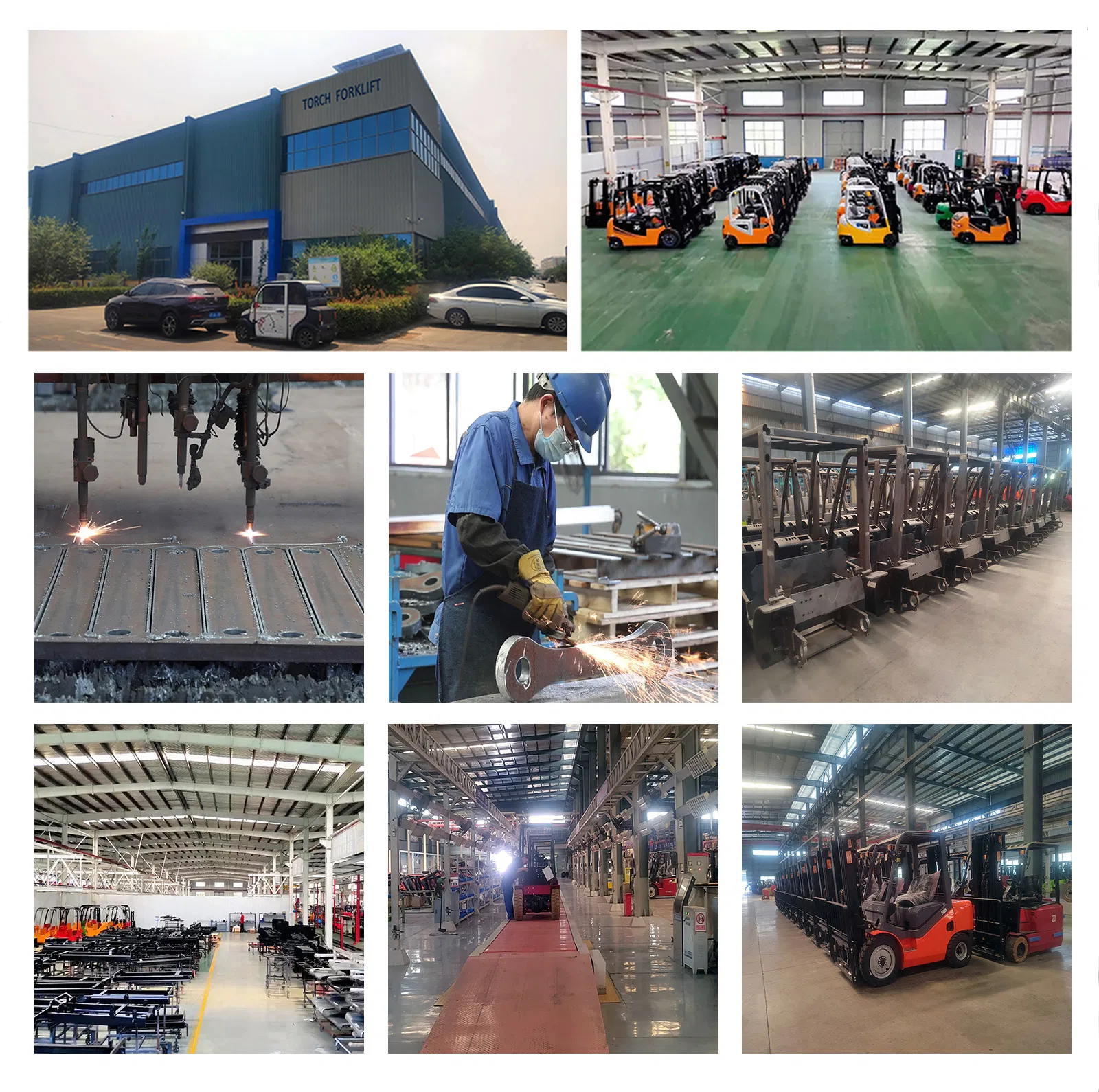

As a leading machinery manufacturer based in China, we specialize in the R&D, production, and service of high-performance material handling equipment. Our product range includes electric forklifts, diesel forklifts, electric stackers, and industrial AGVs. Our equipment has been exported to more than 100 countries including the USA, Mexico, Canada, and Russia.
| Package Size | 1638.00cm * 560.00cm * 750.00cm |
| Package Gross Weight | 180.000kg |

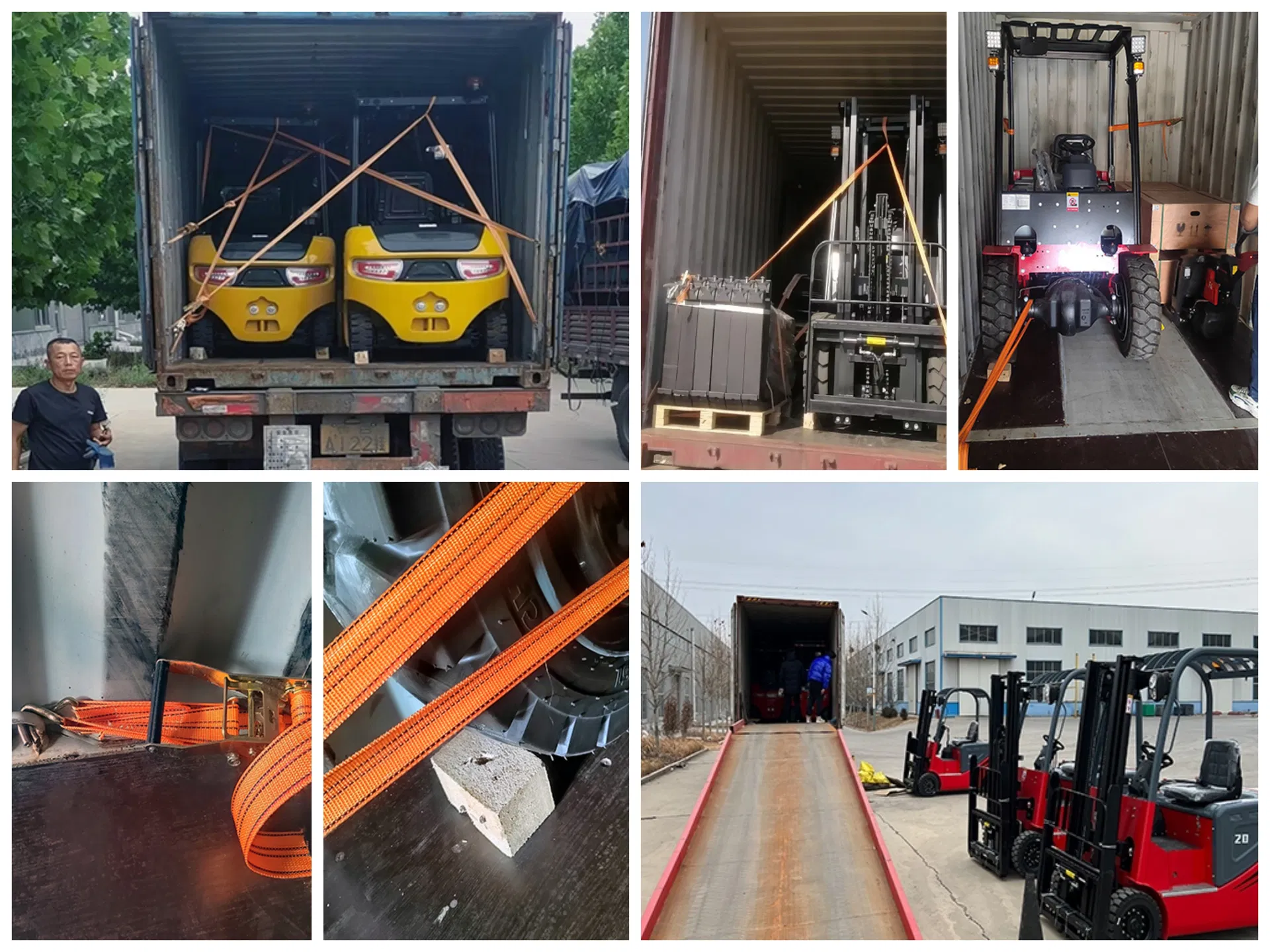

| Transport Package | Standard Export Package |
