Basic Information
Carrying Capacity
Weight Level
Certification
CE, ISO 9001
Load Capacity
6-30T Optional
Control
Electric or Manual Control
Safety
Emergency Button / Safety Valve
Structure
Bridge Body Structure
Warranty
5 years for main structure, 1 year for parts
Production Capacity
100sets Per Month
Product Introduction

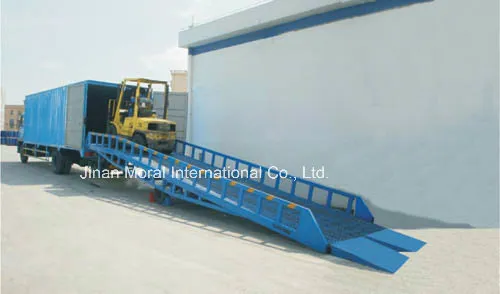

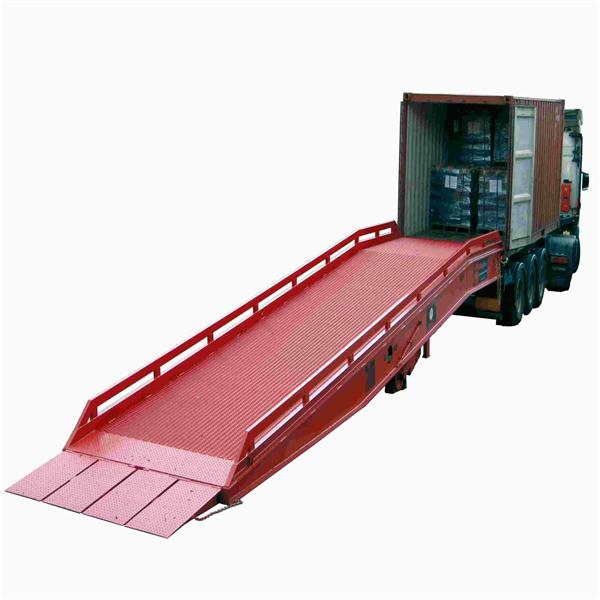

The Mobile Hydraulic Loading Ramp is a special auxiliary equipment for rapid loading and unloading of goods. Its height adjustment feature allows forklifts and other moving vehicles to enter into the truck directly to handle the goods. Controlled by a manual hydraulic system, it enables a single operator to manage the process, significantly increasing efficiency and reducing labor costs.
Main Features
1
Hydraulic System: Equipped with a handle pump and return valve for smooth lifting and gravity-based lowering.
2
Heavy-duty Mobile Chakra: Solid tyres with brake pads ensure durability and operational safety.
3
Adjustable Support Legs: Prevents vehicle overturning by concentrating gravity correctly.
4
Bridge Body Structure: High-strength manganese steel skeleton for large carrying capacity.
5
Antiskid Steel Nets: Anilox steel plates prevent grease, dirt, and ice accumulation for better traction.
6
Safety Crack-proof Valve: Automatically locks in case of pipeline rupture to prevent accidents.
Technical Parameters
| Model |
Load Capacity (T) |
Working Height (m) |
Max Elevation |
Overall Dimensions (m) |
Operation Method |
| YDCQ-5 | 5 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual / Electric |
| YDCQ-6 | 6 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual / Electric |
| YDCQ-8 | 8 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual / Electric |
| YDCQ-10 | 10 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual / Electric |
| YDCQ-12 | 12 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual / Electric |
| YDCQ-15 | 15 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual / Electric |
Safe Operation Guidelines
- Maintain table level and stability during use. Maximum move speed: 3km/h.
- Personnel are forbidden from climbing while the ramp is lowering.
- Strictly avoid overloading beyond the specified capacity.
- Keep hydraulic oil clean. Change every six months (N32# for winter, N46# for summer).
- Note: Tyres are for movement only. Use legs for loading to protect cylinders and tyres.

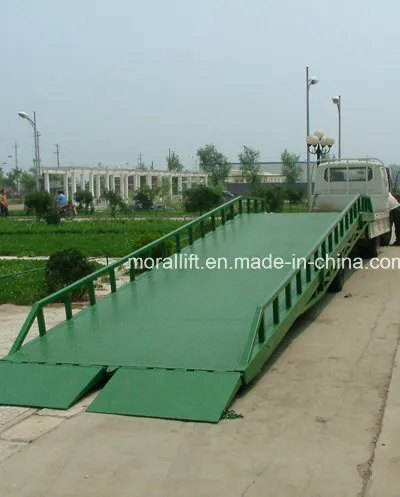

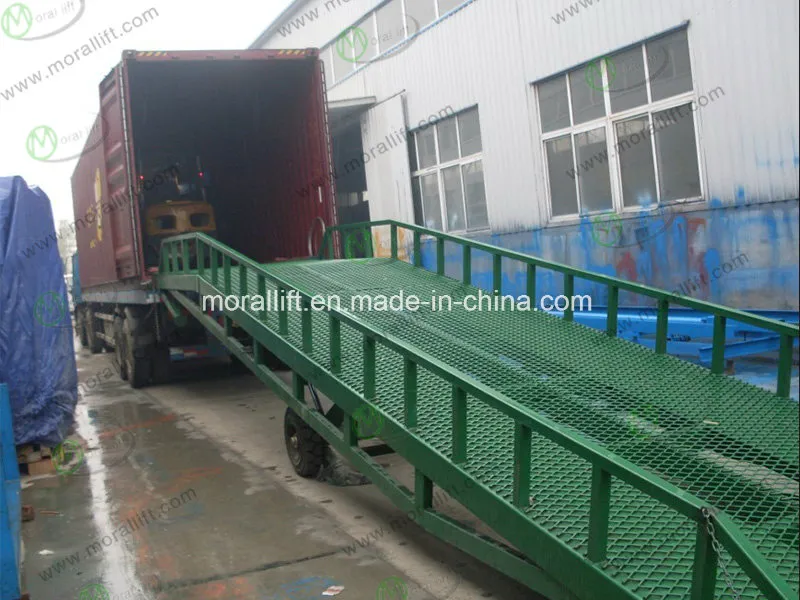

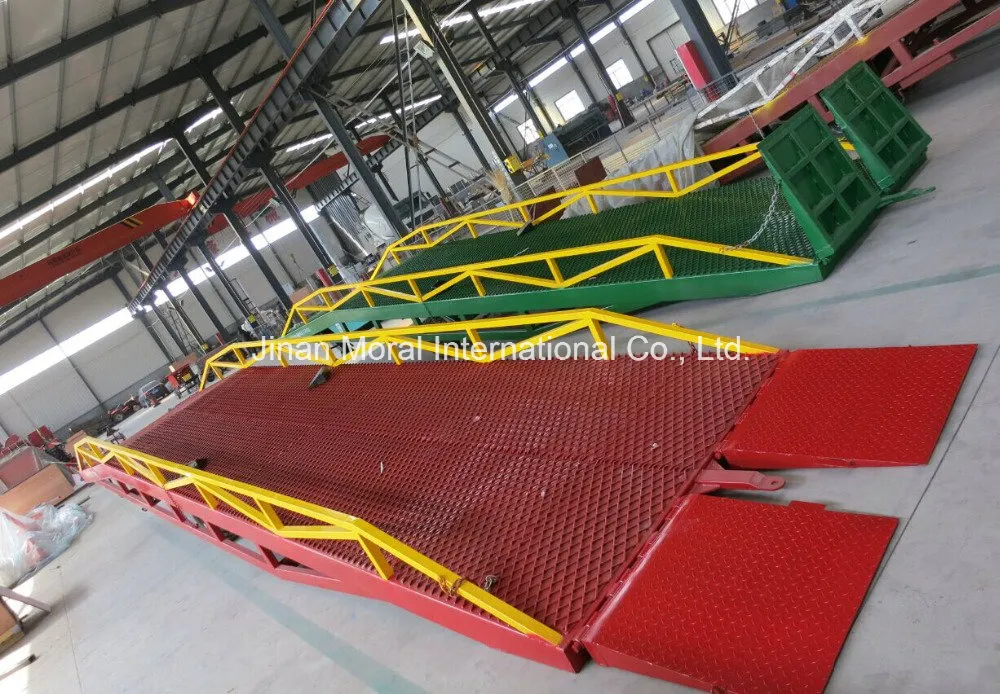

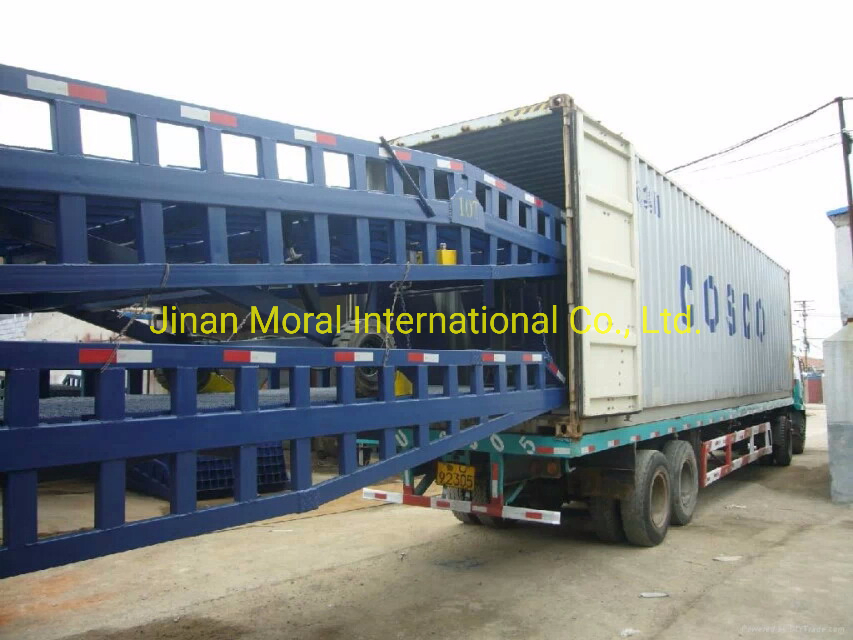

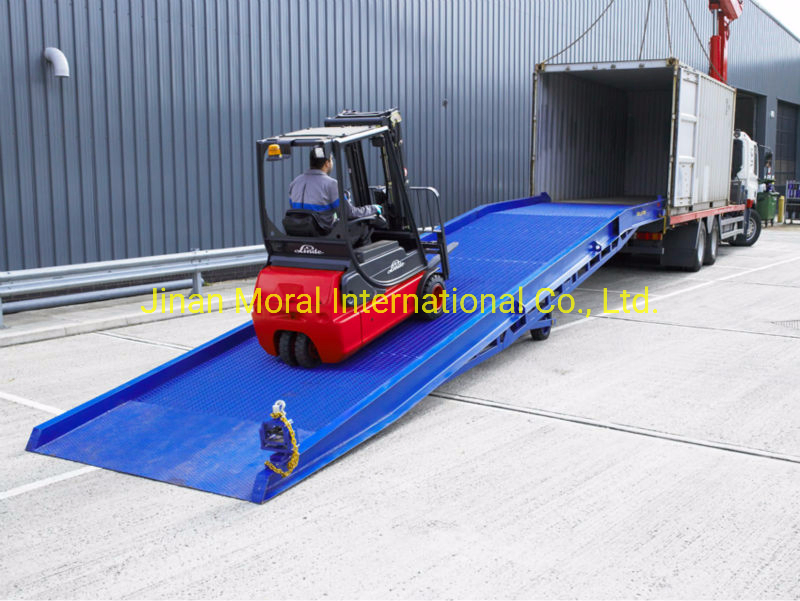

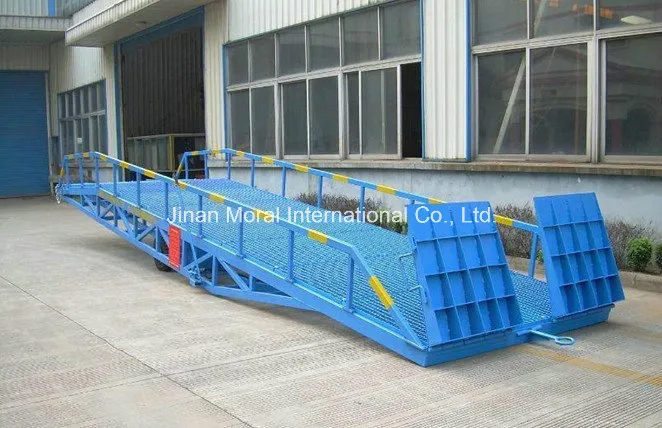

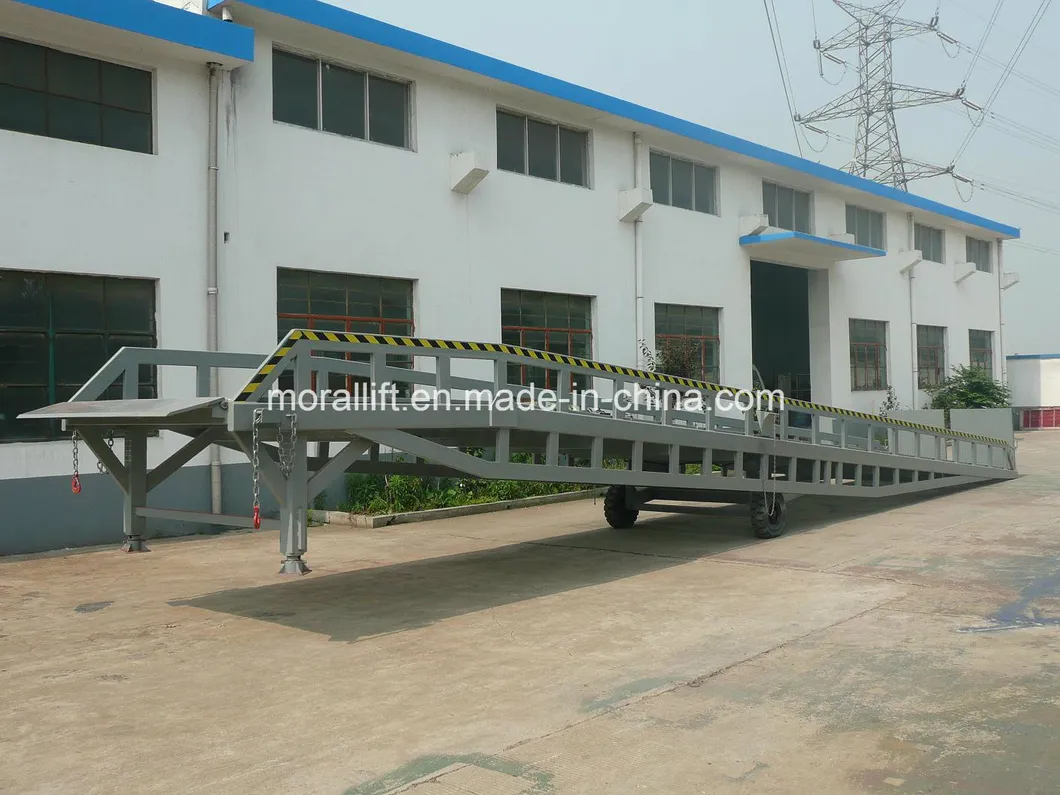

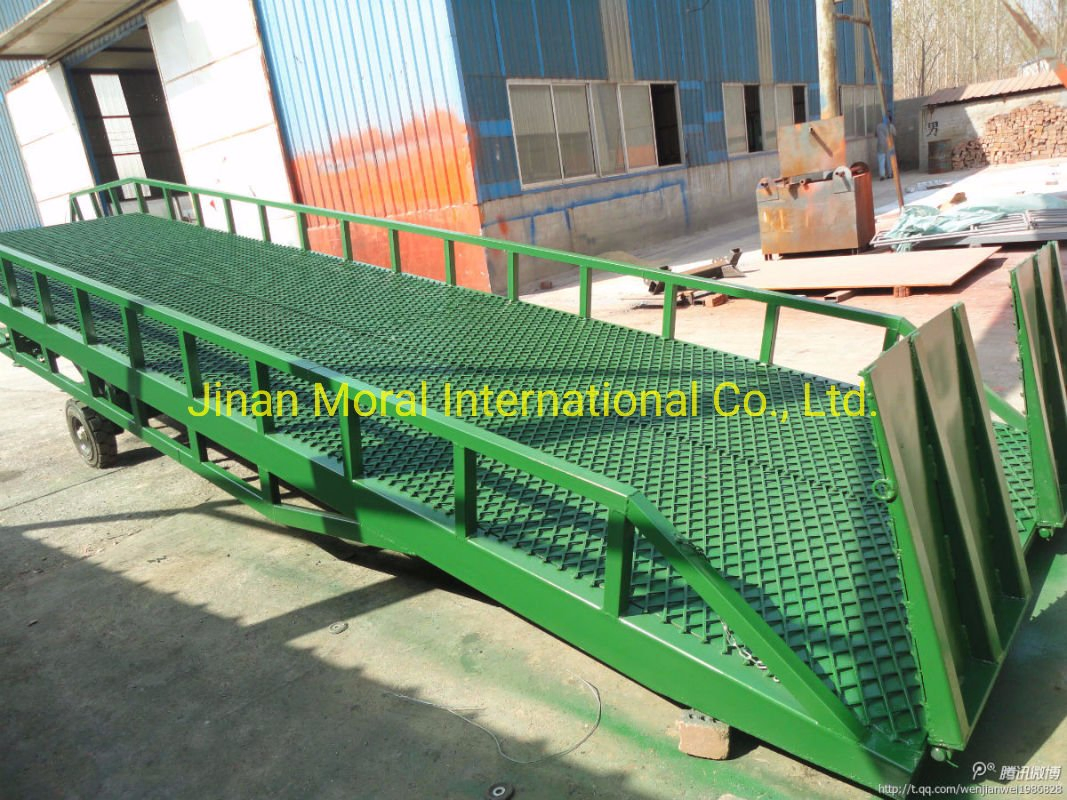

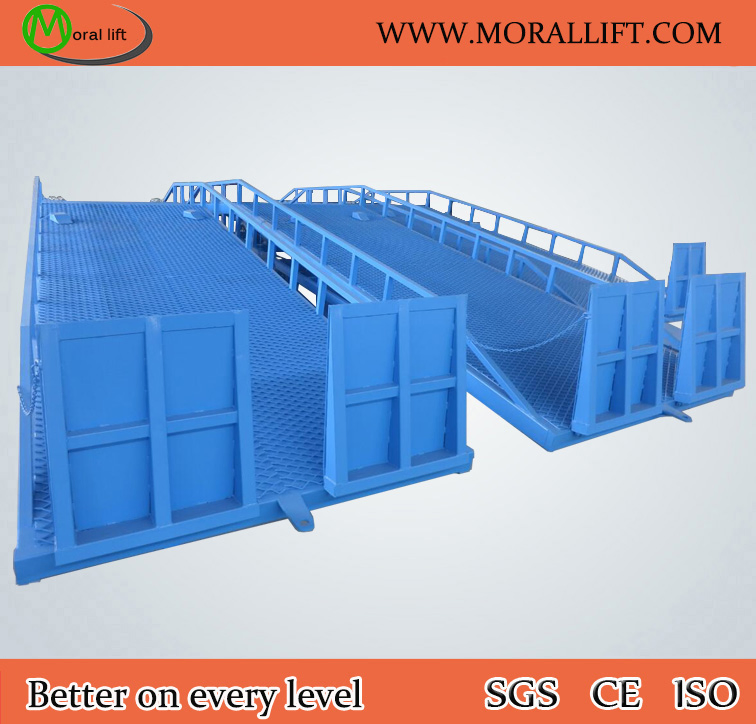

Product Gallery
Support & Services
Guarantee: 5 years for steel structure, 1 year for hydraulic and electrical systems. Essential spare parts provided.
Technical Support: 24-hour support via email and digital manuals. Engineering services available if required.
After Sales: Machines are factory-adjusted for immediate use upon arrival. Lifetime technical consultation is provided.
Frequently Asked Questions
Q1: What is the load capacity of the mobile loading ramp?
A: The standard load capacity ranges from 6T to 30T, and we can provide customized designs based on your specific requirements.
Q2: What is the adjustable height range?
A: The ramp typically adjusts between 1200mm and 1700mm to accommodate various truck heights.
Q3: Does the ramp require an external power source?
A: No, it features a manual hydraulic elevator system that doesn't require external electricity, although electric control is available as an option.
Q4: How does the ramp ensure safety during operation?
A: Safety features include anti-skid steel mesh, safety crack-proof valves for the hydraulic system, adjustable support legs, and emergency buttons.
Q5: What kind of warranty is provided?
A: We offer a 5-year warranty on the main steel structure and a 1-year warranty on hydraulic and electrical components.
Q6: Can the dimensions be customized?
A: Yes, if you need a special size yard ramp, we can customize the platform size and load capacity to suit your needs.
