Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
1 / 5
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler

Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler

Customization: Available
After-sales Service: Yes
Warranty: 12 Months After Delivery
Send Inquiry

Product Description

i

Basic Specifications

Model NO.XF-O-2500
Lift MechanismHydraulic Cylinder
Carrying Capacity6t / 8t / 10t
MovesStationary
Driven TypeHydraulic
FeatureExplosion-Proof
CertificationCE, ISO 9001
Voltage220V/380V 50Hz
Power0.75 Kw / 1.5kw
HS Code84254290

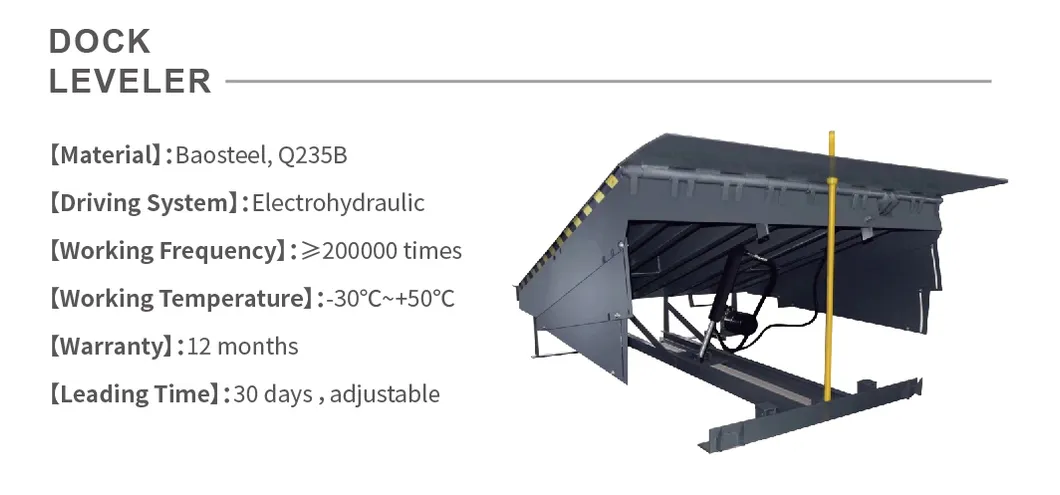

Hydraulic Dock Ramp 1

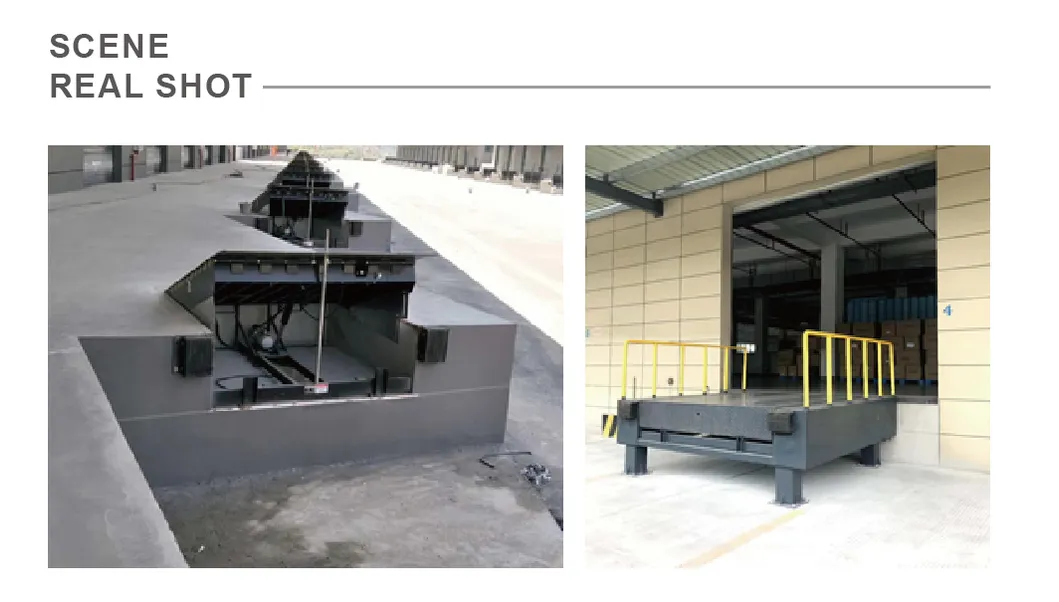

Hydraulic Dock Ramp 2
T

Technical Parameters

DETAILED PRODUCT PARAMETERS
Main BoardQ235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14 / 16mm; blasting and powder coating
Loading WeightDynamic load: 6T / 8T / 10T / 12T / 15T
DrivingElectrohydraulic, 380V 0.75KW ~ 1.5KW powerpack
Control SystemStandard 380V English interface
Adjust Scope+400mm / -300mm
Adjust TimeUp ≤16S ; Down ≤10S
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Main cylinderSingle cylinder / double cylinders
Side BafflesAutomatic retraction to ensure safety
Hydraulic Oil32# Anti-wear hydraulic oil
Working Temperature-30ºC ~ +50ºC
Anti-collision Bumper300*200*100 mm
Safety PartExplosion proof valve
Working Frequency≥ 200,000 times

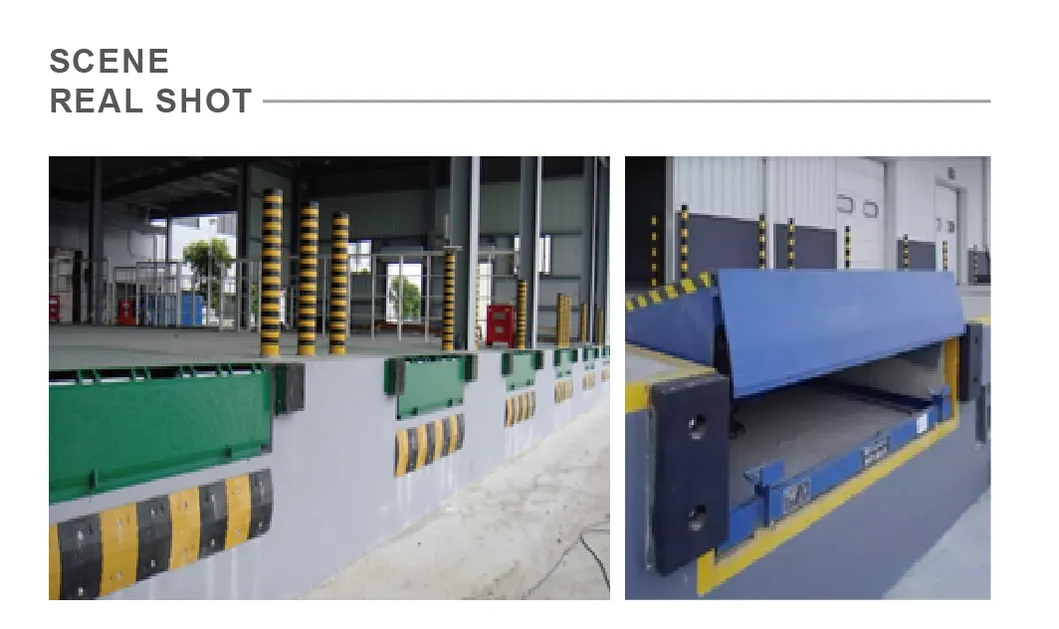

Technical Drawing 1

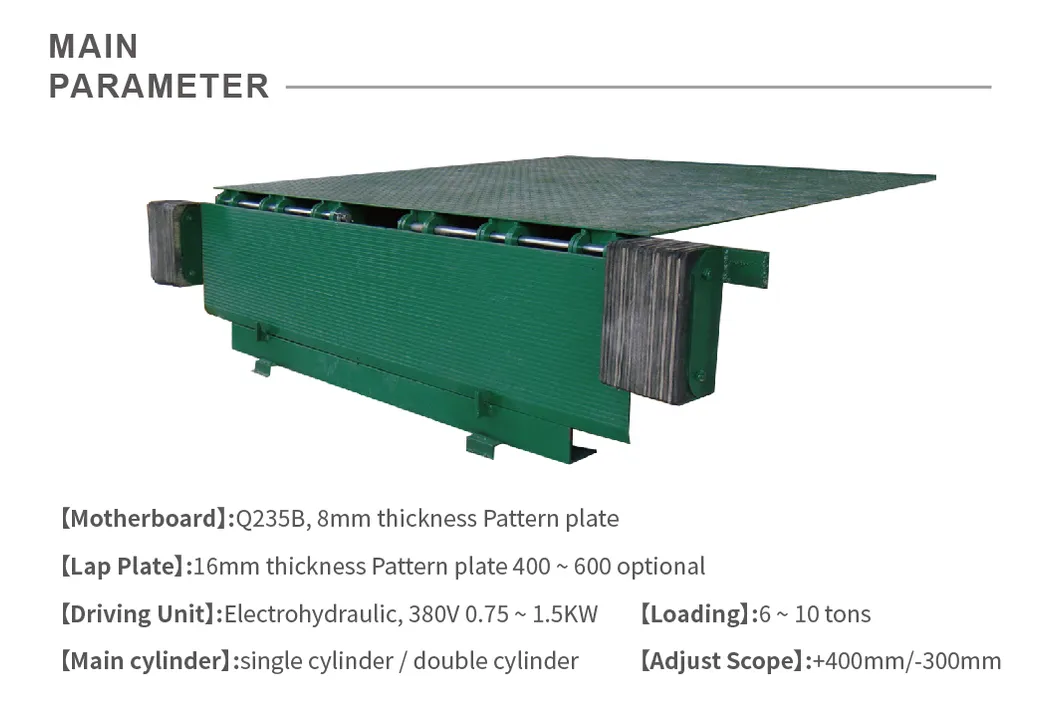

Technical Drawing 2

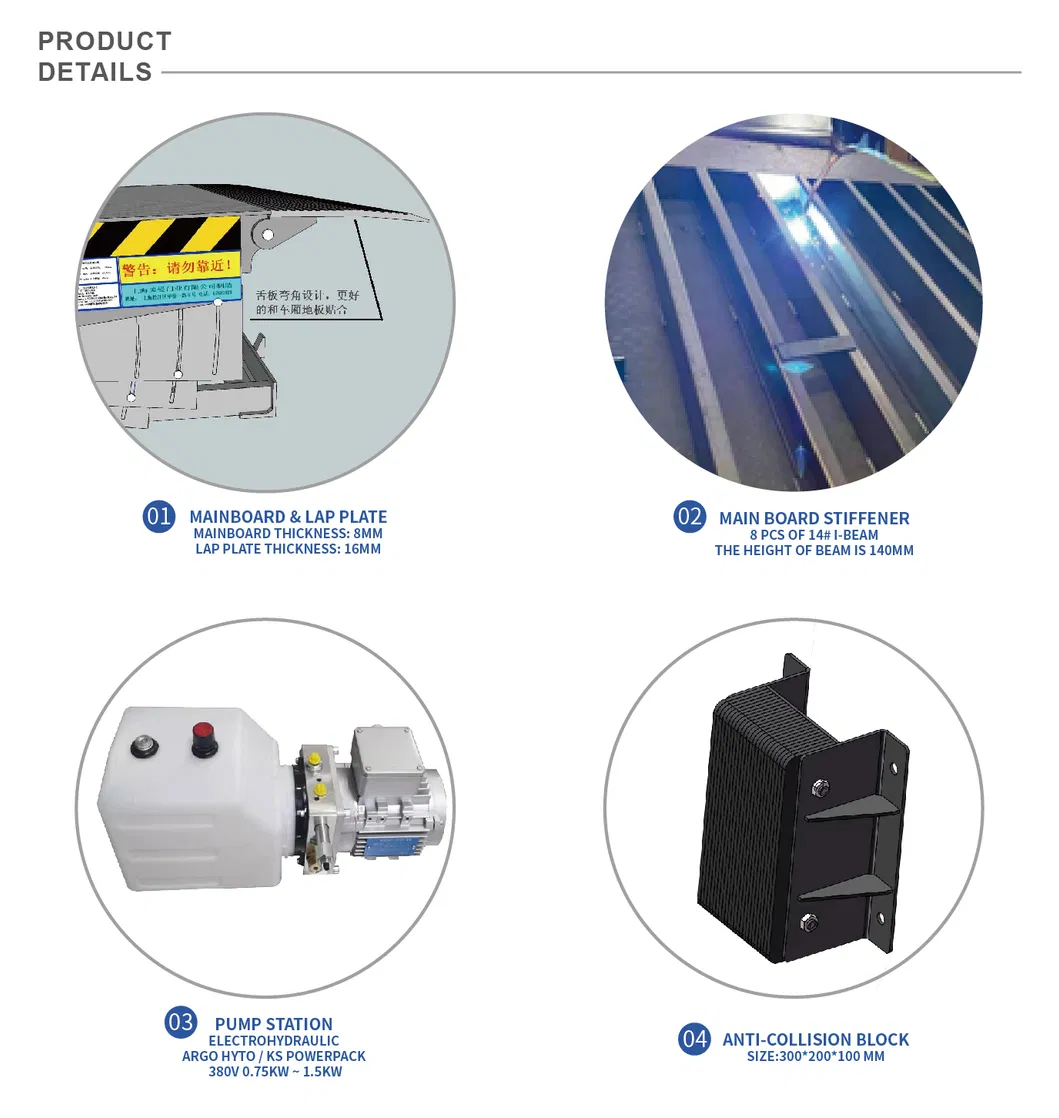

Technical Drawing 3
P

Packaging & Delivery

Package Size200.00cm * 200.00cm * 60.00cm
Gross Weight1000.00kg
Transport PackageWrapping Film
Work Platform Details
Work Platform View
?

Frequently Asked Questions

What is the dynamic loading capacity of this dock leveler?
The system supports various dynamic load capacities including 6T, 8T, 10T, 12T, and 15T to suit different industrial requirements.
Is the equipment safe for use in hazardous environments?
Yes, it features explosion-proof valves and is built with high-quality Q235B steel, making it durable and safe for rigorous industrial use.
What is the height adjustment range for the ramp?
The adjustment scope is +400mm upwards and -300mm downwards, providing flexibility for various truck bed heights.
What kind of power supply does the dock leveler require?
It standardly operates on a 380V 50Hz supply, but 220V options are also available depending on the power unit configuration.
How long is the service life of the hydraulic system?
The system is designed for high-frequency use, with a tested working frequency of over 200,000 operations.
What surface treatment is applied to the steel plates?
The main board and lap plate undergo surface blasting treatment followed by high-quality powder coating for superior anti-corrosion and slip resistance.
