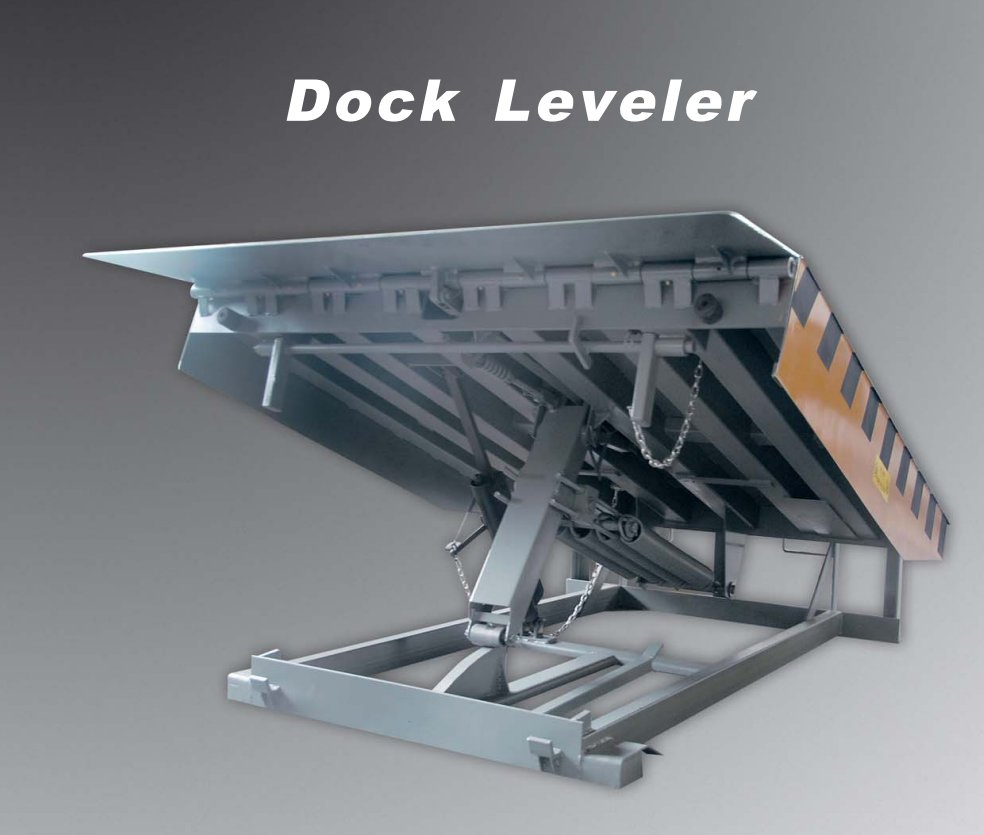

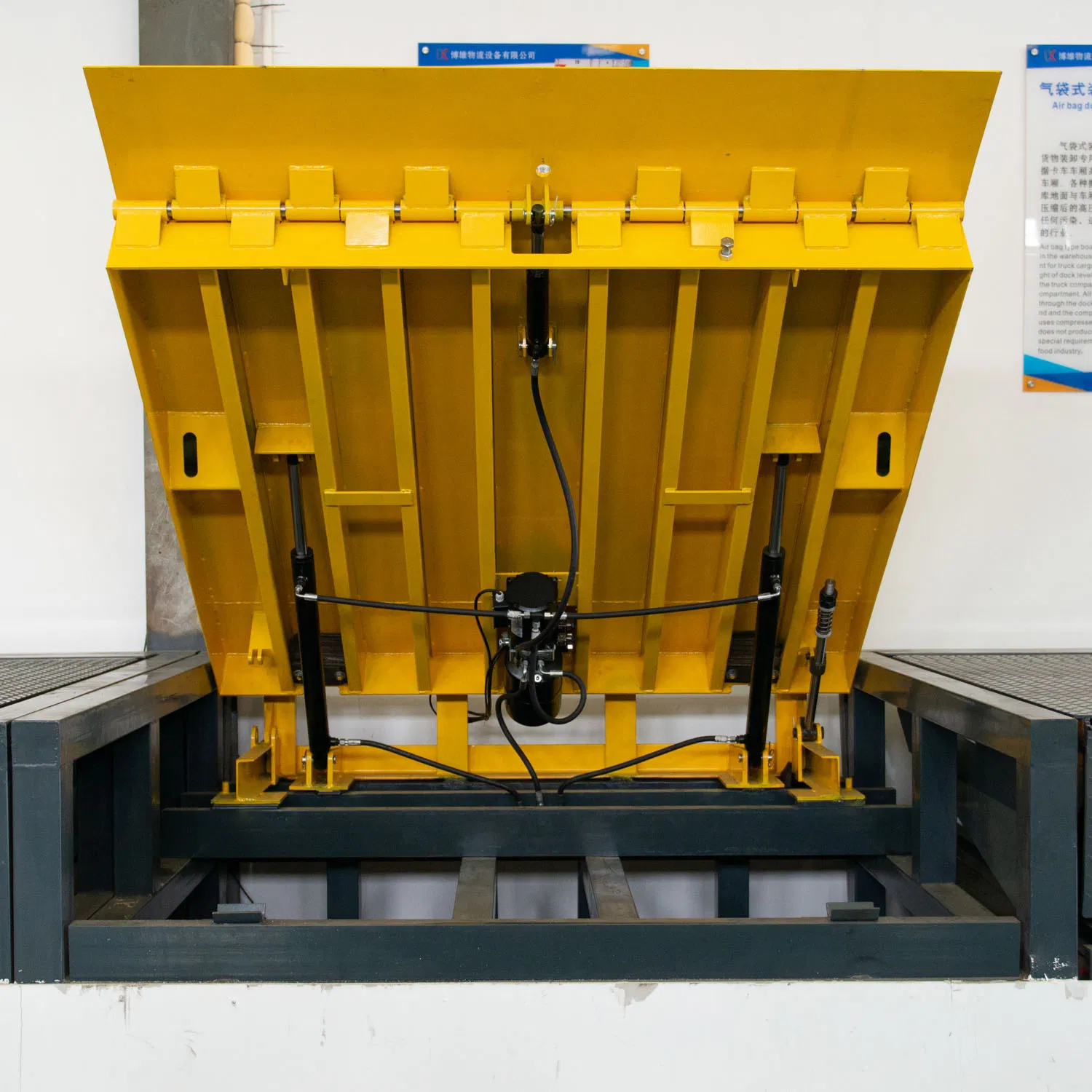

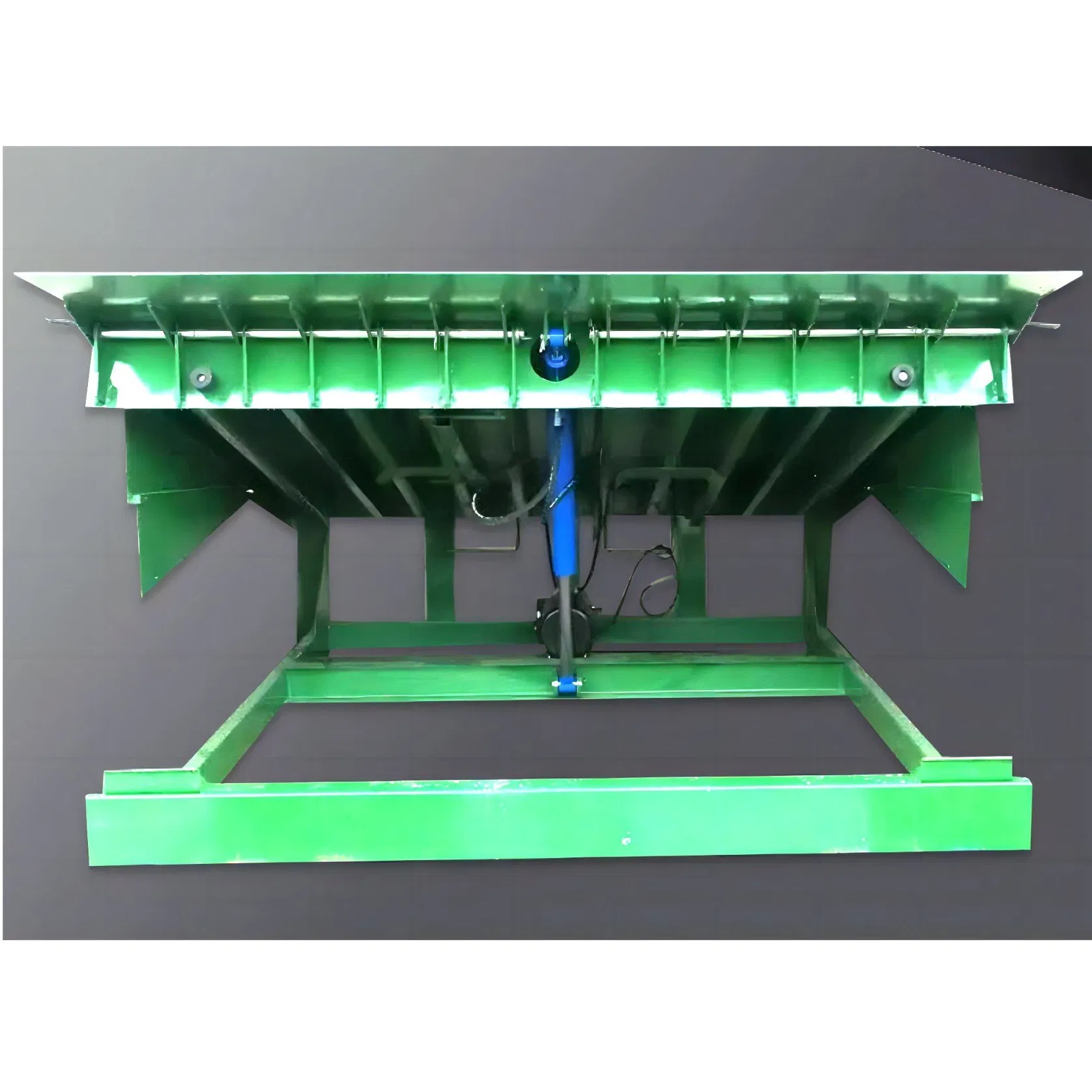

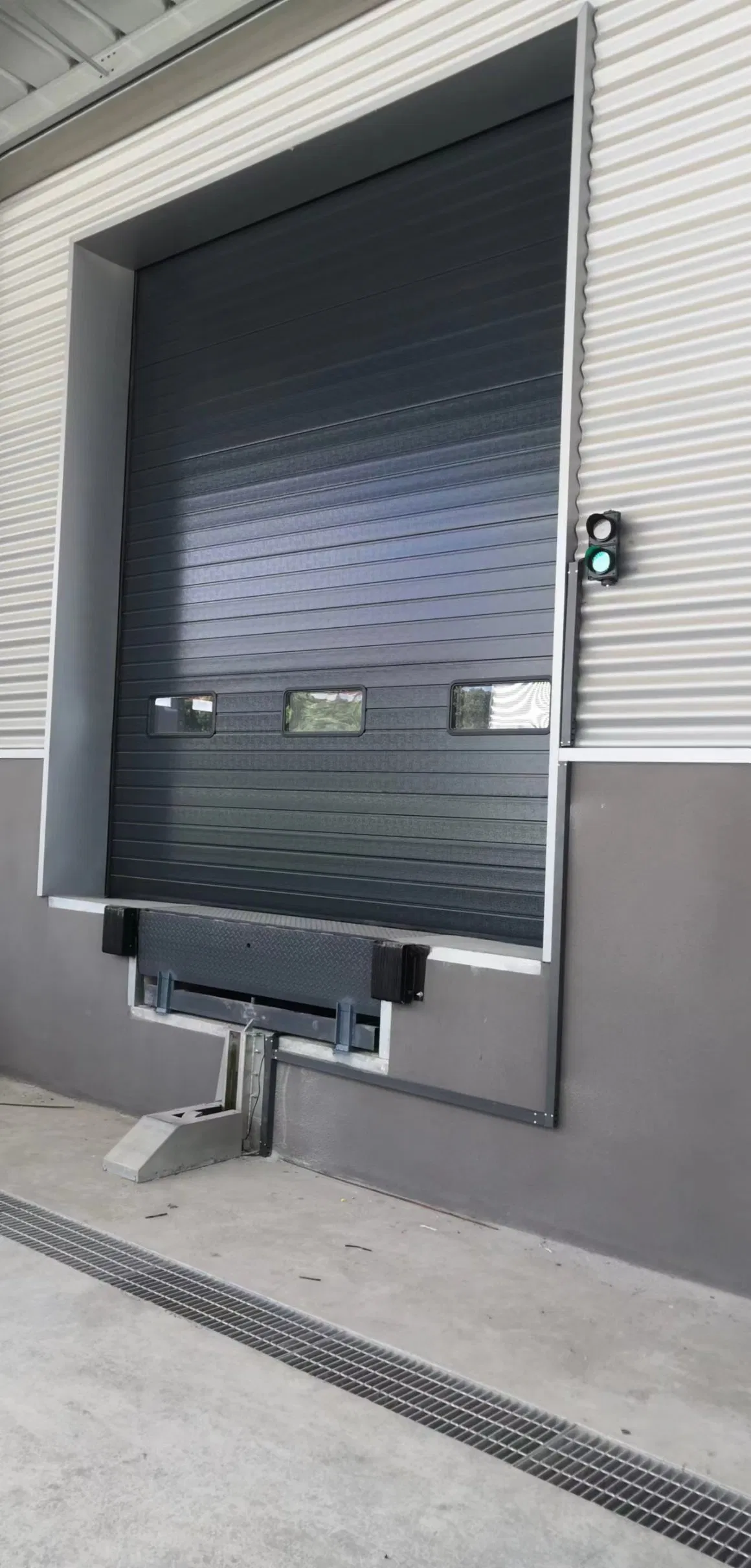

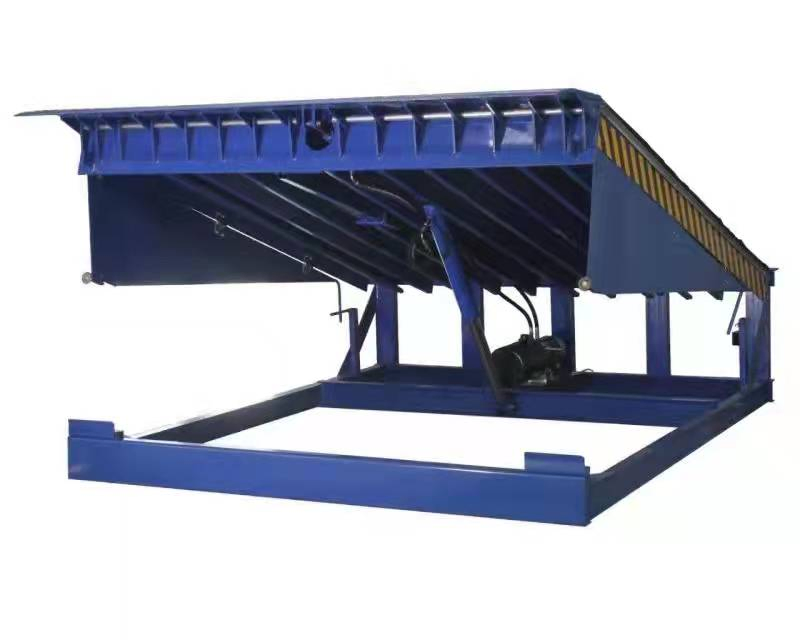

Factory Stationary Hydraulic Warehouse Unloading Lift Platform Dock Leveler Loading Dock Ramp
Factory Stationary Hydraulic Warehouse Unloading Lift Platform Dock Leveler Loading Dock Ramp
Factory Stationary Hydraulic Warehouse Unloading Lift Platform Dock Leveler Loading Dock Ramp
Factory Stationary Hydraulic Warehouse Unloading Lift Platform Dock Leveler Loading Dock Ramp
Factory Stationary Hydraulic Warehouse Unloading Lift Platform Dock Leveler Loading Dock Ramp
1 / 5
Factory Stationary Hydraulic Warehouse Unloading Lift Platform Dock Leveler Loading Dock Ramp
Factory Stationary Hydraulic Warehouse Unloading Lift Platform Dock Leveler Loading Dock Ramp
Factory Stationary Hydraulic Warehouse Unloading Lift Platform Dock Leveler Loading Dock Ramp
Factory Stationary Hydraulic Warehouse Unloading Lift Platform Dock Leveler Loading Dock Ramp
Factory Stationary Hydraulic Warehouse Unloading Lift Platform Dock Leveler Loading Dock Ramp

Factory Stationary Hydraulic Warehouse Unloading Lift Platform Dock Leveler Loading Dock Ramp

Customization: Available
After-sales Service: Yes
Warranty: 12 Months After Delivery
Send Inquiry

Product Description

Basic Info.

Model NO. XF-O-2500
Lift Mechanism Hydraulic Cylinder
Capacity 6t / 8t / 10t
Certification CE, ISO 9001
Voltage 220V 50Hz / 380V 50Hz
Power 0.75 Kw / 1.5kw

Packaging & Delivery

Package Size 200.00cm * 200.00cm * 60.00cm
Gross Weight 1000.000kg

Product Overview

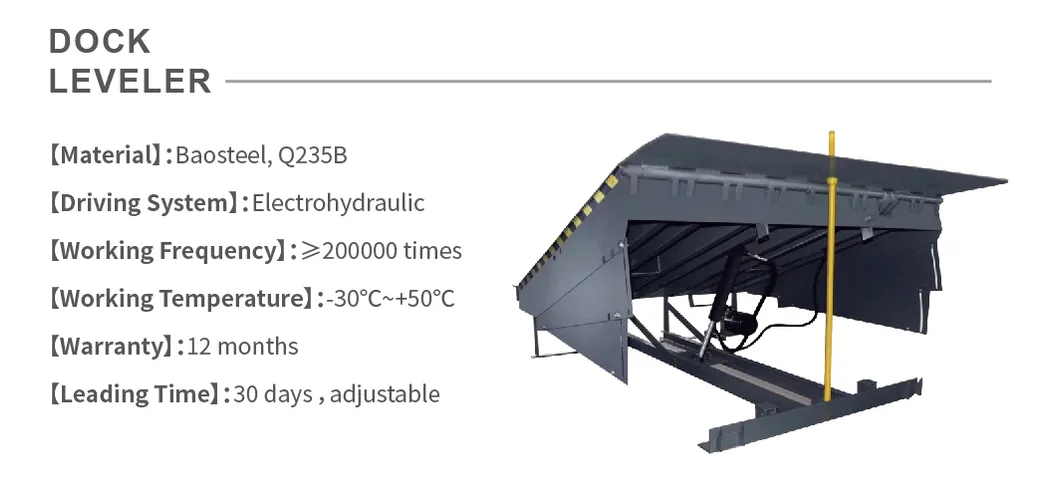

Dock Leveler 1

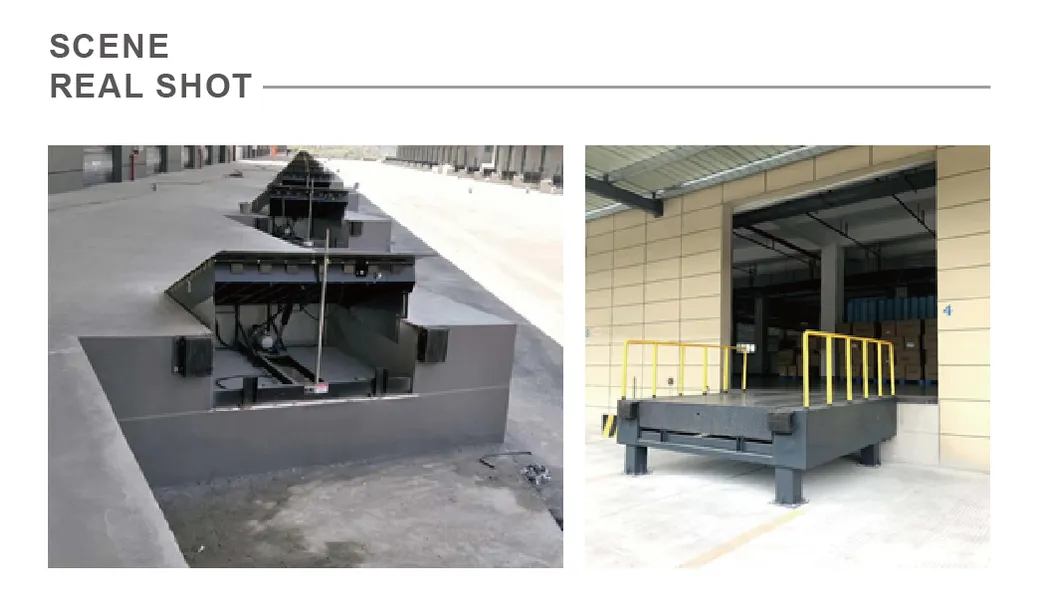

Dock Leveler 2

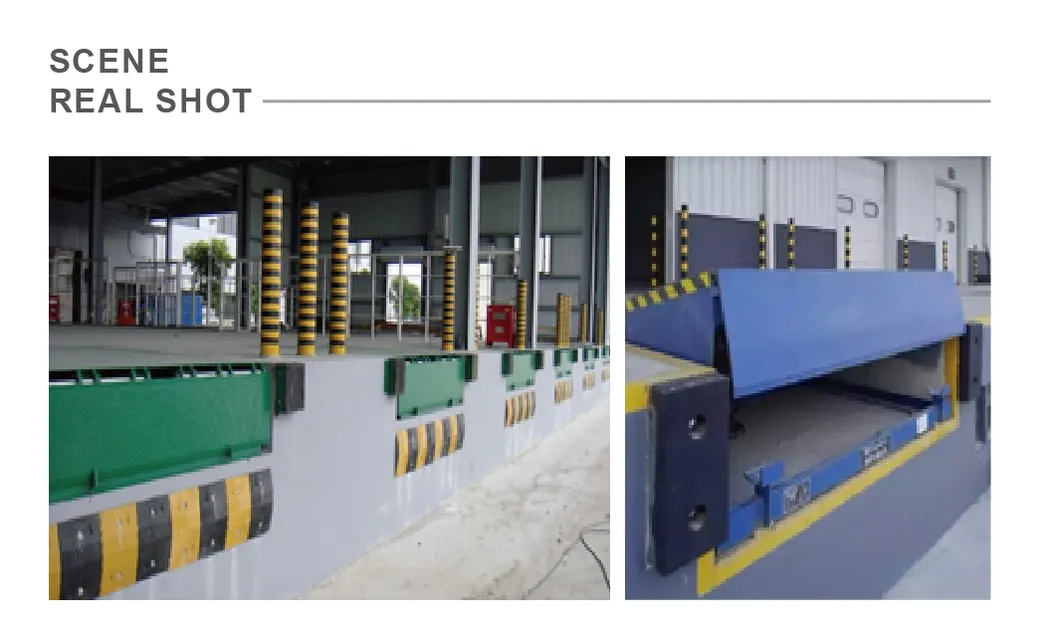

Dock Leveler 3

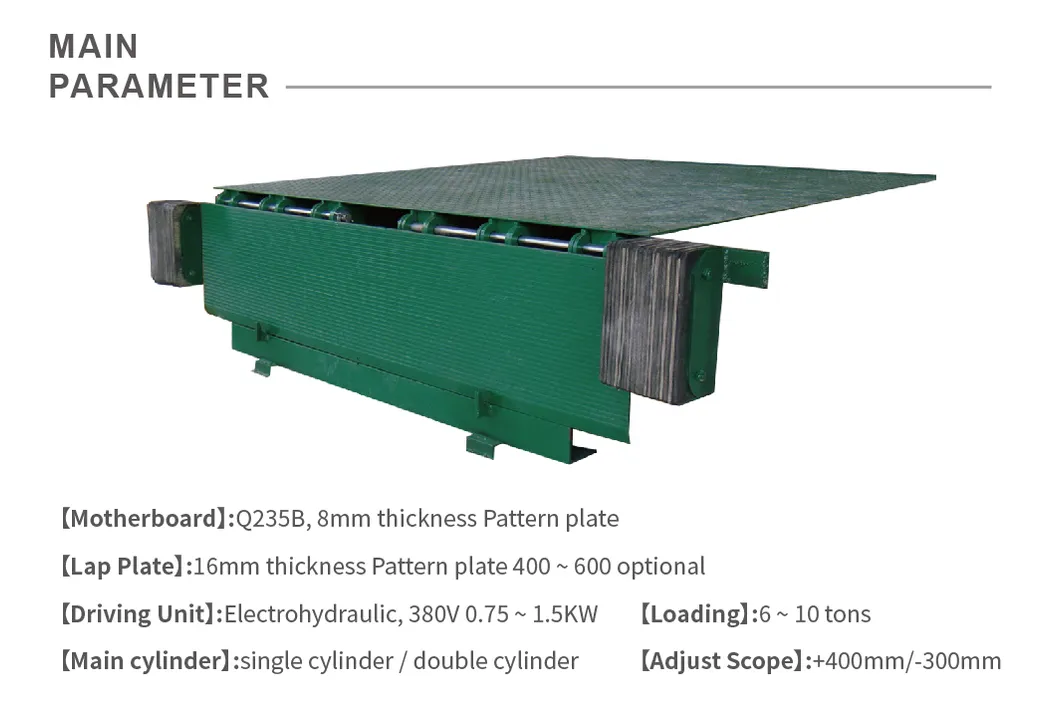

Dock Leveler 4

Technical Parameters

MORE PARAMETERS
Main BoardQ235B steel plate with anti-slide pattern,thickness:6 / 8 mm;blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern,thickness:14 / 16mm;The surface treatment is blasting and powder coating
HingeOpen type, 8*150mm
Loading WeightDynamic load:6T / 8T / 10T / 12 T / 15T
DrivingElectrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Control SystemStandard 380V English interface
Adjust Scope+400mm/-300mm
Adjust TimeUp ≤ 16S ; Down ≤ 10S
Sealing PartsBrand:NOK A505 Complete set of seals for oil cylinder
Main cylinderSingle cylinder / double cylinders
Main Board Stiffener8 pcs of 14# I-Beam, the height of Beam is 140mm
Side BafflesAutomatic retraction to ensure safety
Working Temperature-30ºC ~ +50ºC
Anti-collision Bumper300*200*100 mm
Safety PartExplosion proof valve
Working Frequency≥ 200000 times
Dock Leveler Detail 1
Dock Leveler Detail 2

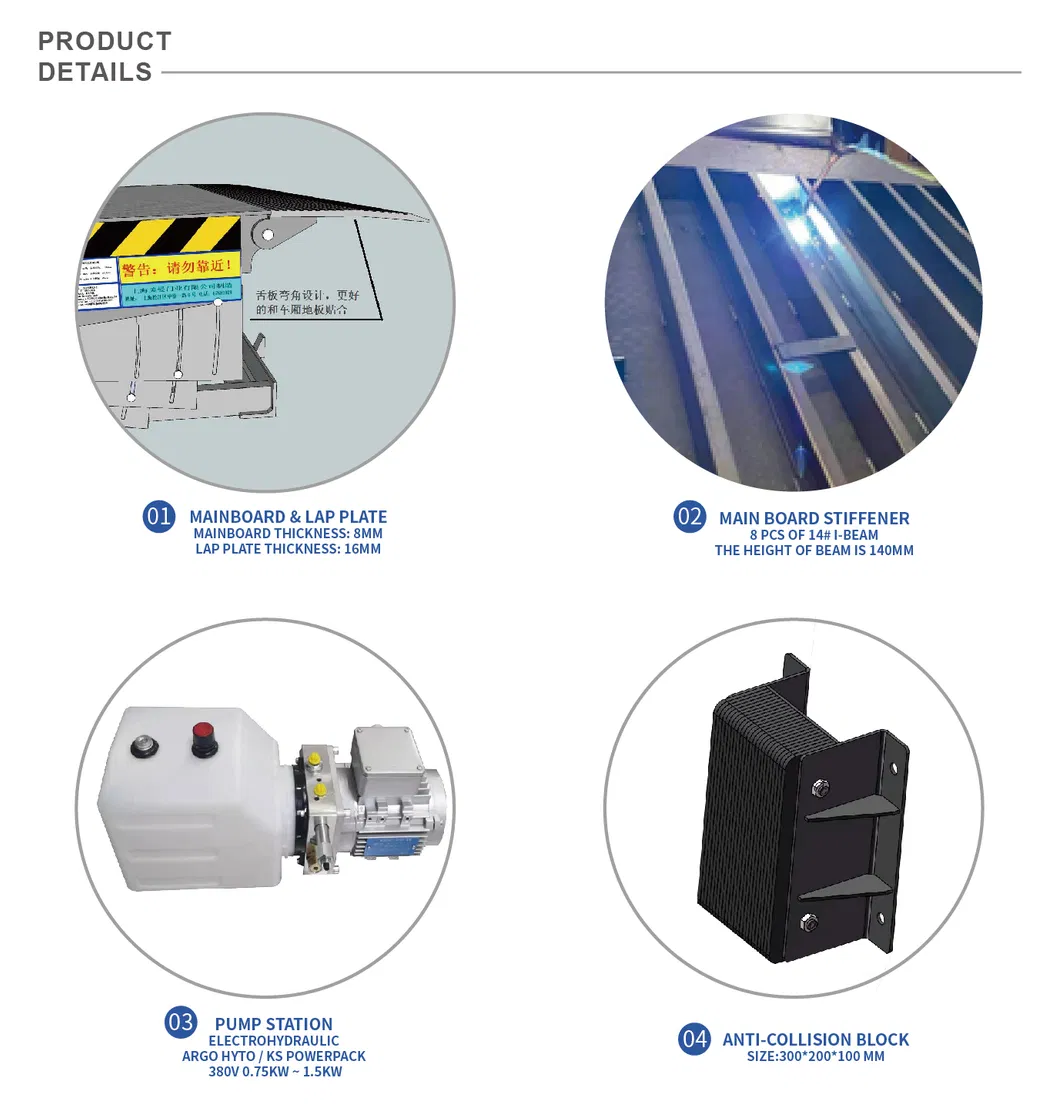

Dock Leveler Detail 3

Frequently Asked Questions

1. What are the available dynamic load capacities?
The stationary hydraulic dock leveler supports dynamic loads of 6T, 8T, 10T, 12T, and 15T to suit different industrial requirements.
2. What material is used for the main board and lap plate?
Both are made from high-quality Q235B steel plate with an anti-slide pattern. The main board thickness ranges from 6-8mm, while the lap plate is 14-16mm thick.
3. What is the working temperature range for this platform?
The platform is designed to operate reliably in extreme environments, with a working temperature range of -30ºC to +50ºC.
4. What safety features are integrated into the system?
The system includes an explosion-proof valve, side baffles for automatic safety retraction, and anti-collision bumpers (300*200*100 mm).
5. What is the adjustment scope of the dock leveler?
The vertical adjustment range is +400mm upward and -300mm downward, allowing it to bridge the gap between various truck heights and the warehouse floor.
6. What certifications does this product hold?
The product is fully certified with CE and ISO 9001 standards, ensuring high quality and international safety compliance.
