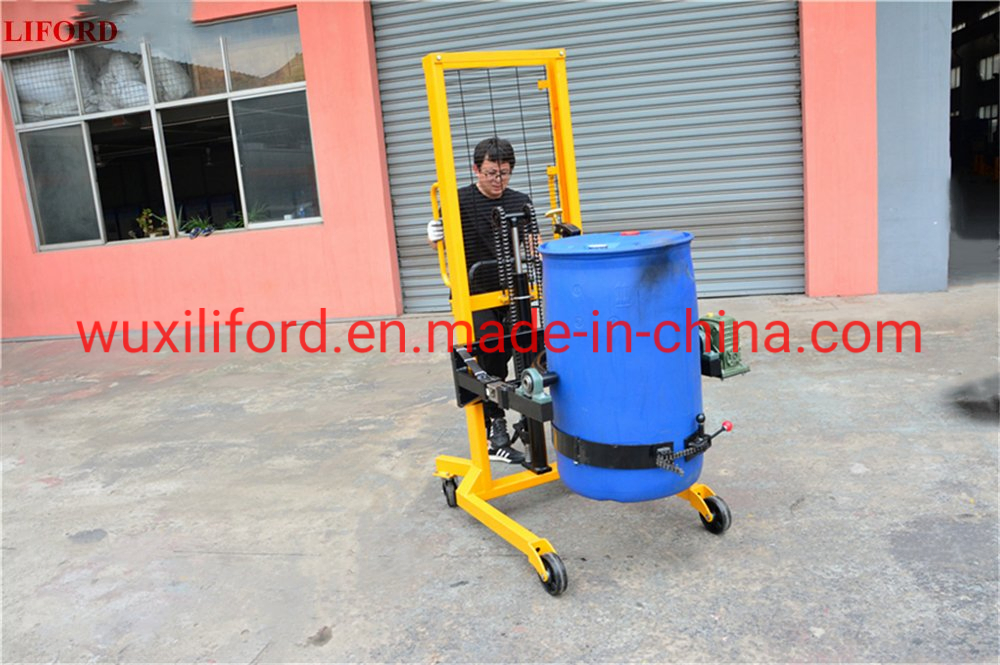

450kg Manual Drum Rotator with Scale Drum Truck Da450-1

Basic Specifications

Model NO.

DA450, DA450-1

Product Name

Scale-Equipped Hydraulic Drum Pourers

Type

Hydraulic Drum Lifter

Capacity

450kg

Lifting Height

1500mm

Pouring Height

1580mm

Wheel Dimension

150*50mm

Feature

Floor Lock

HS Code

84279000

Production Capacity

5000PCS/Month

Product Description

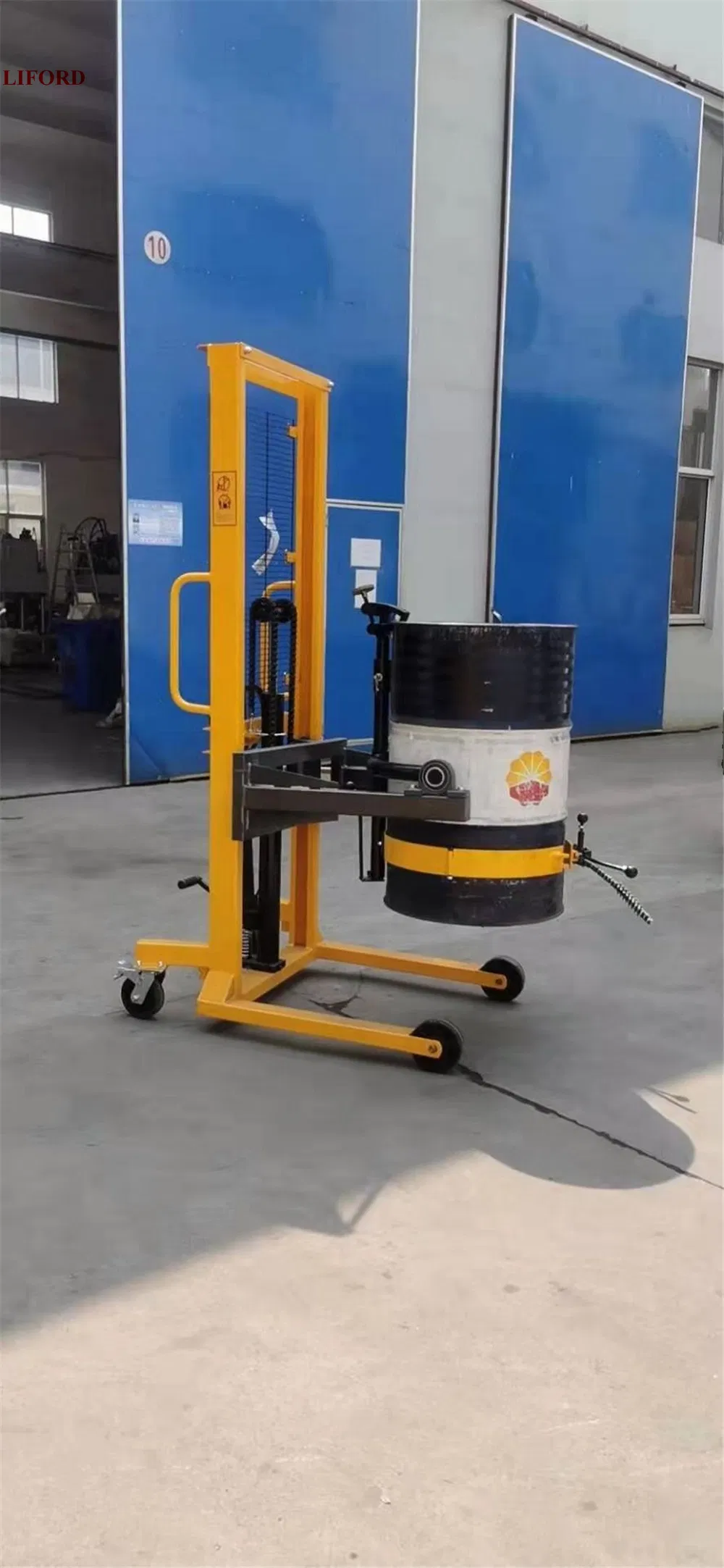

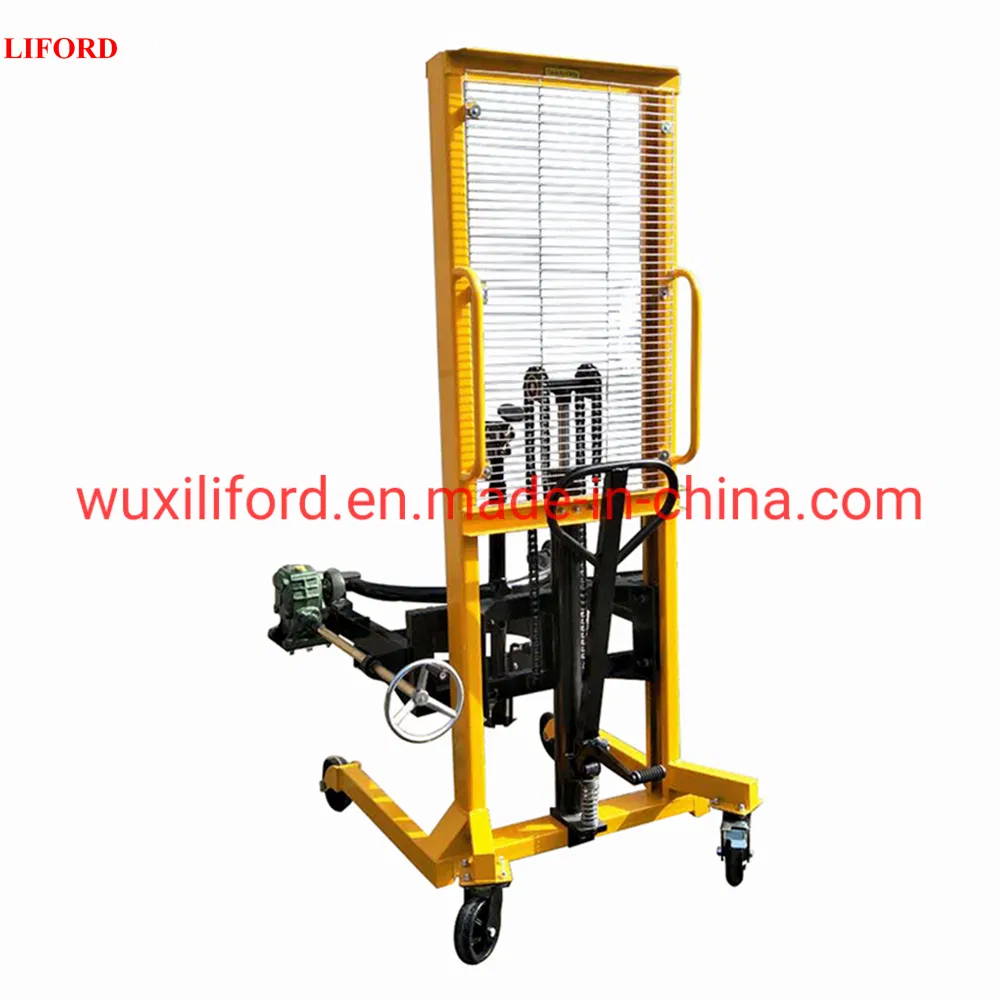

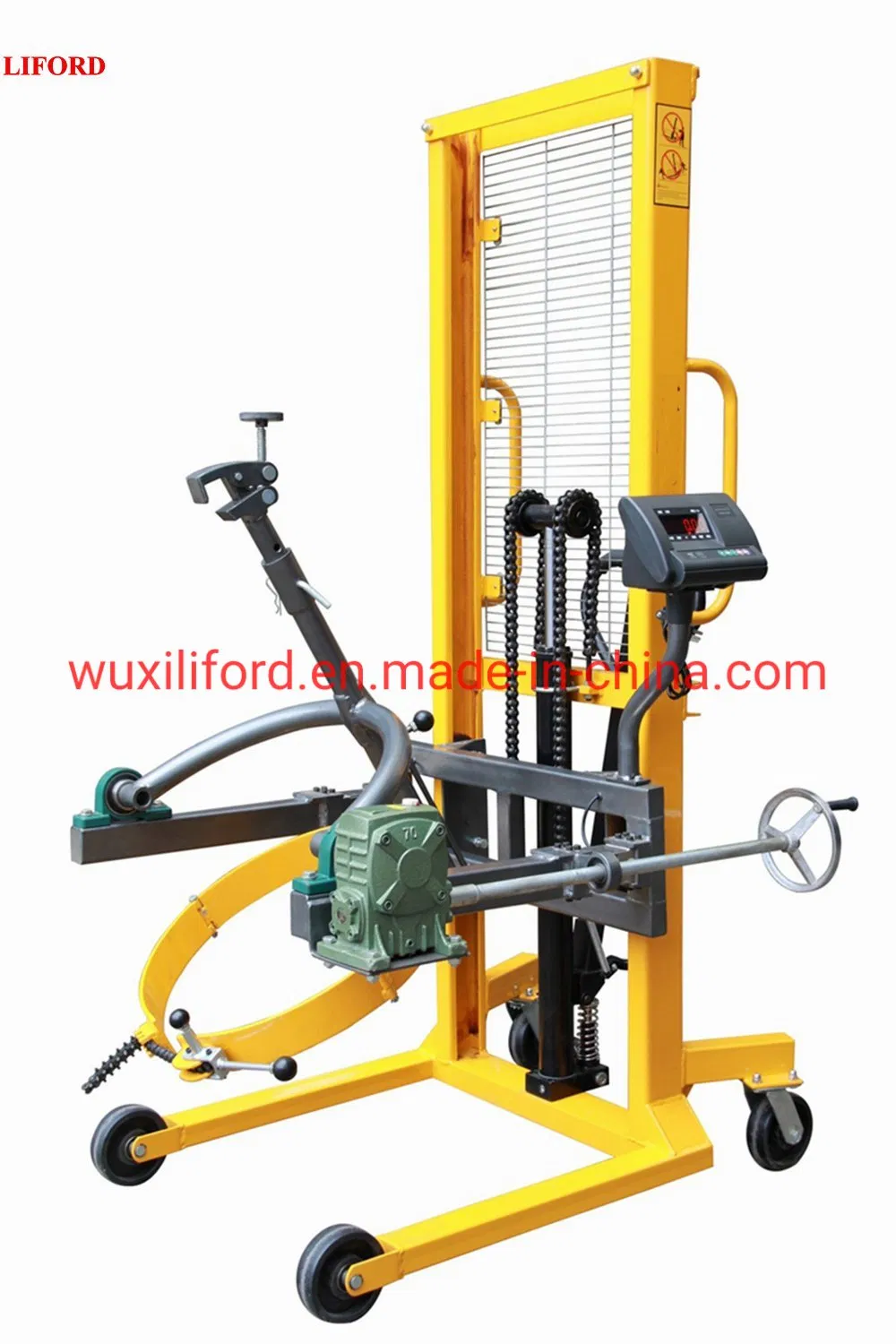

450kg weighing Hand operated hydraulic manual drum lifter drum truck DA450-1

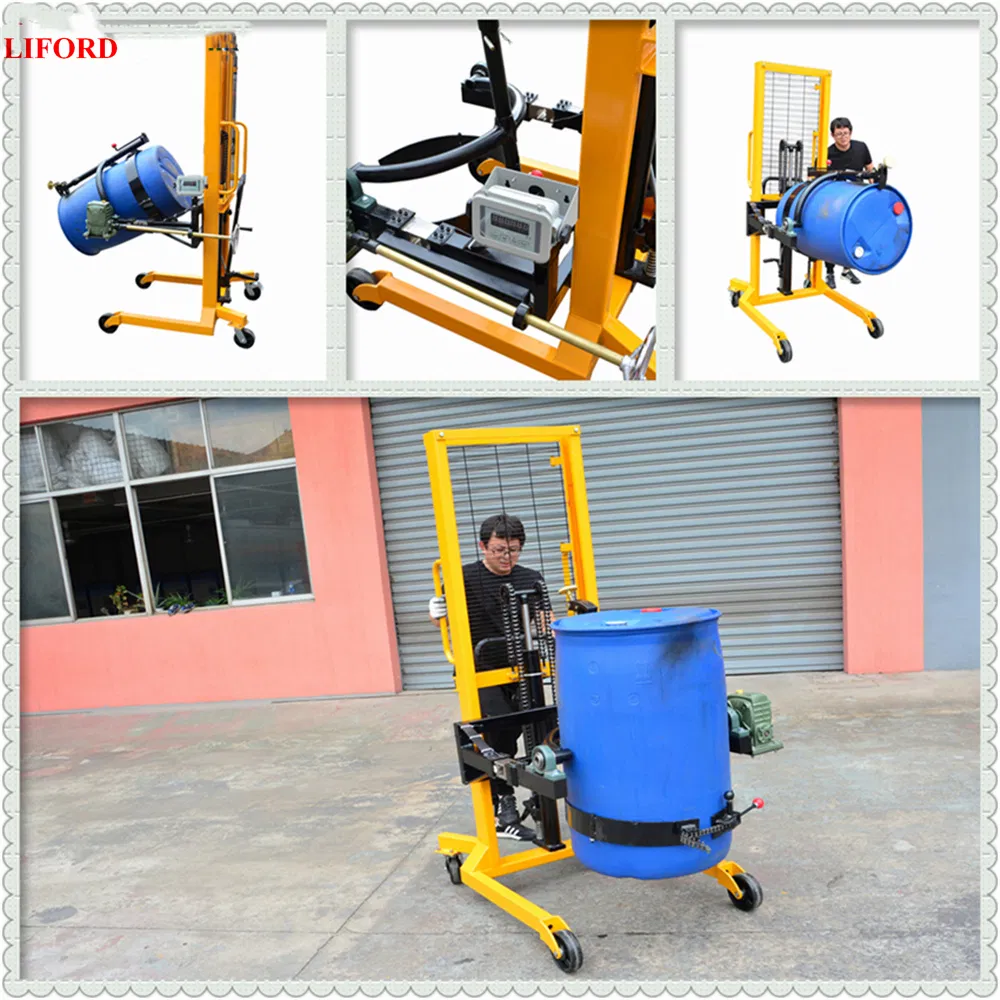

The DA450 and DA450-1 drum dumpers with integrated scales simplify the process of weighing, raising, and pouring heavy plastic and steel drums. These handlers allow you to dispense precise amounts without needing a separate weighing station. You maintain full control over the pouring angle and height during dispensing.

Featuring a robust all-steel construction, this hydraulic dumper is designed for drums up to 450kg. It is compatible with 55 and 30-gallon plastic, steel, and fiber drums. The units are highly portable, equipped with two rigid and two swivel casters plus floor lock screws.

Key Features

★ Load capacity of 450kg.
★ Combined Eagle-grip and Anchor-ear structure for versatility.
★ Suitable for 55-gallon steel and plastic rimmed drums.
★ Single-person operation for efficiency.

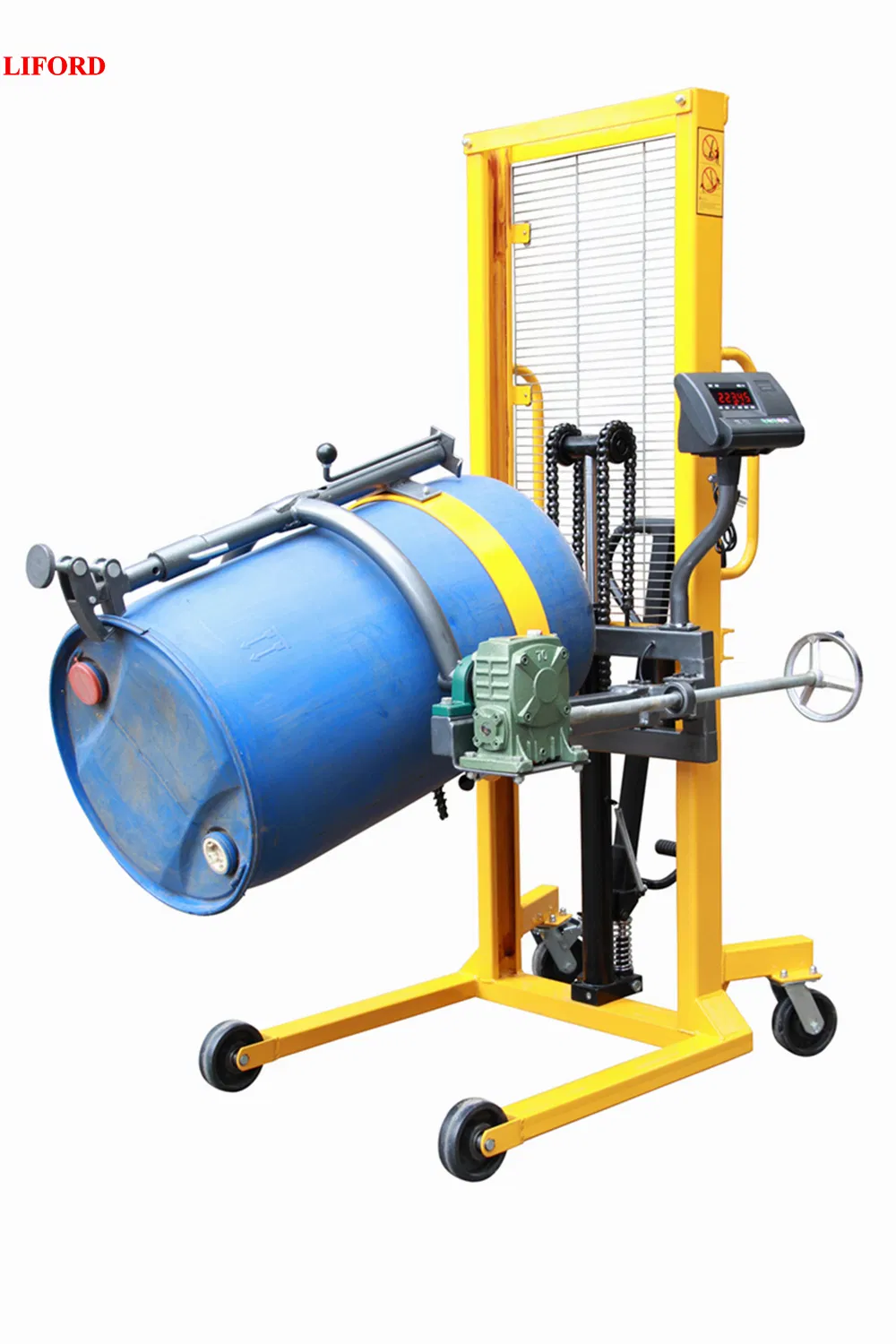

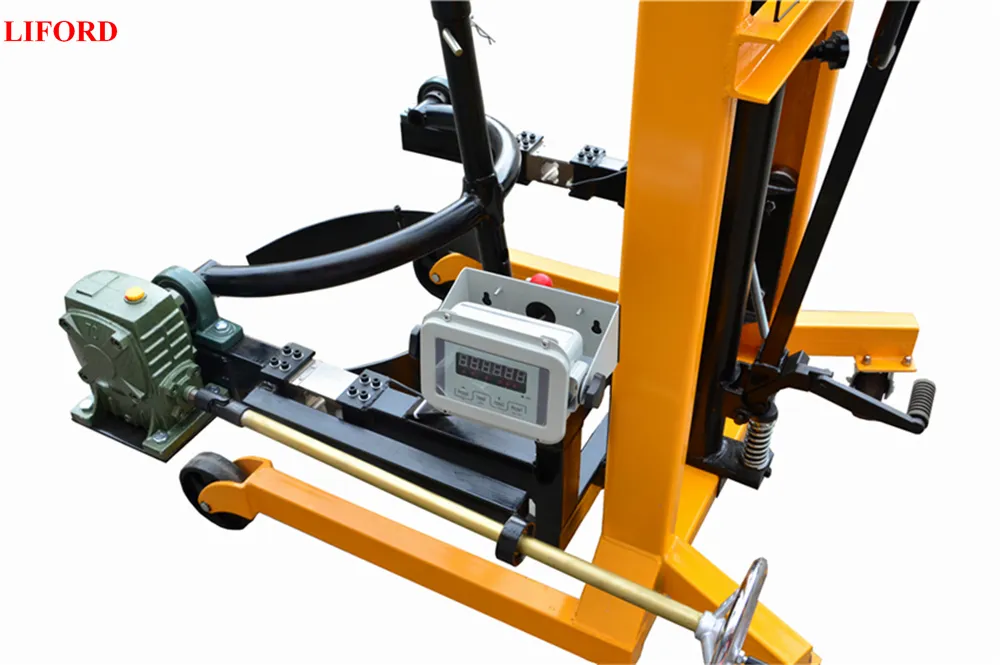

★ Manual 180-degree drum rotation with the ability to hold at any angle.

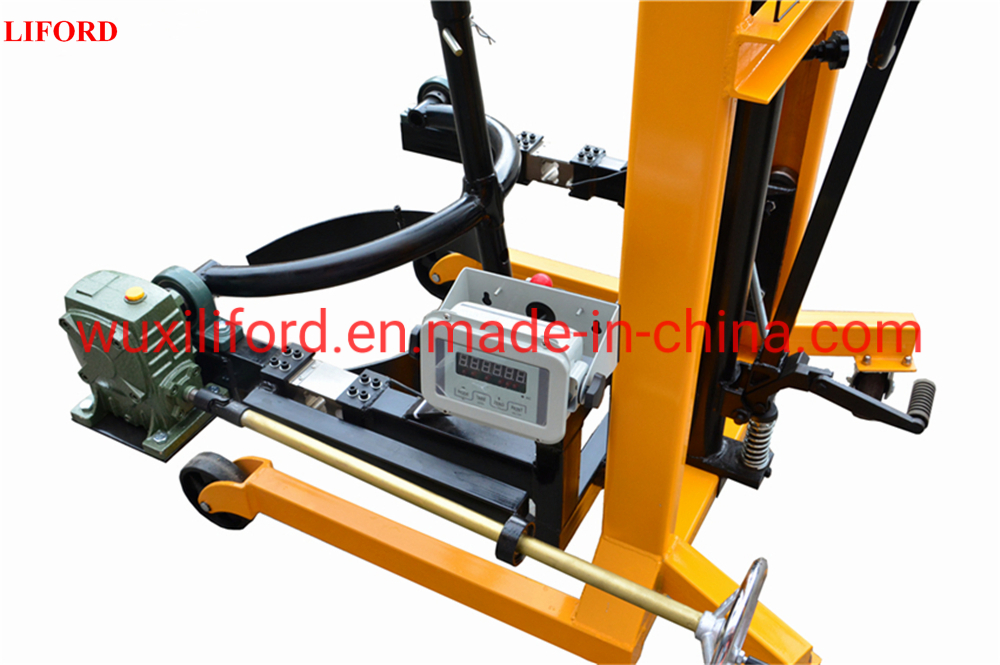

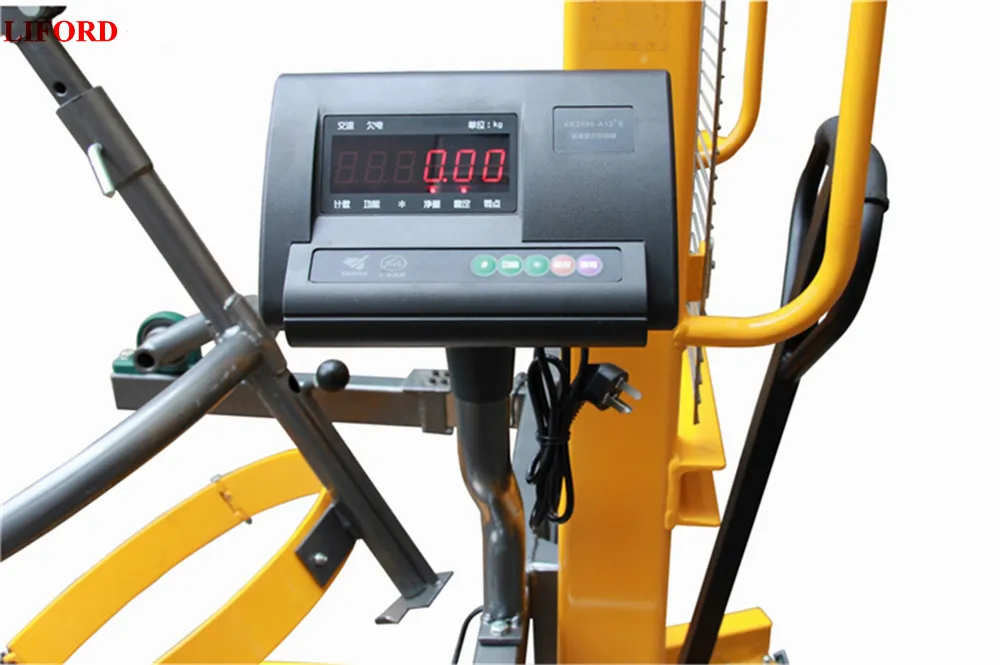

★ High-accuracy measuring capabilities: accuracy range ±3‰.
★ Solid C-frame steel construction for maximum stability during transit.
★ Smooth mobility with four Ø150*50mm casters.

Technical Specifications

Parameter	Unit	Model DA450-1
Load capacity	kg	450
Net weight	kg	191
Lifting height	mm	1500
Pouring height	mm	1580
Caster dimension	mm	Ø150*50
Inner/Outer width of front support legs	mm	630/810
Overall size	mm	140010002100

Industrial Applications

This drum stacker with scale is widely utilized for lifting, transporting, and tilting steel and plastic drums across various sectors including chemical, food, dye, paint workshops, adhesive manufacturing, and oil handling facilities.

Service Advantages

✔ Over 10 years of professional experience in material handling.
✔ Fast production and on-time delivery for project efficiency.
✔ One-stop custom OEM/ODM services for non-standard requirements.
✔ 100% inspection of finished products before shipment.
✔ Professional packaging for sea and air freight safety.

Frequently Asked Questions

What is the maximum load capacity of the DA450-1 drum pourer?

The equipment is designed to handle a maximum load capacity of 450kg.

Can this unit weigh liquid while it is being poured?

Yes, the scale-equipped handler allows you to weigh the drum while you pour to dispense precise amounts, with an accuracy range of ±3‰.

Which types of drums are compatible with this lifter?

It is suitable for 55 and 30-gallon plastic, steel, and fiber drums with rimmed structures.

How far can the drum be rotated?

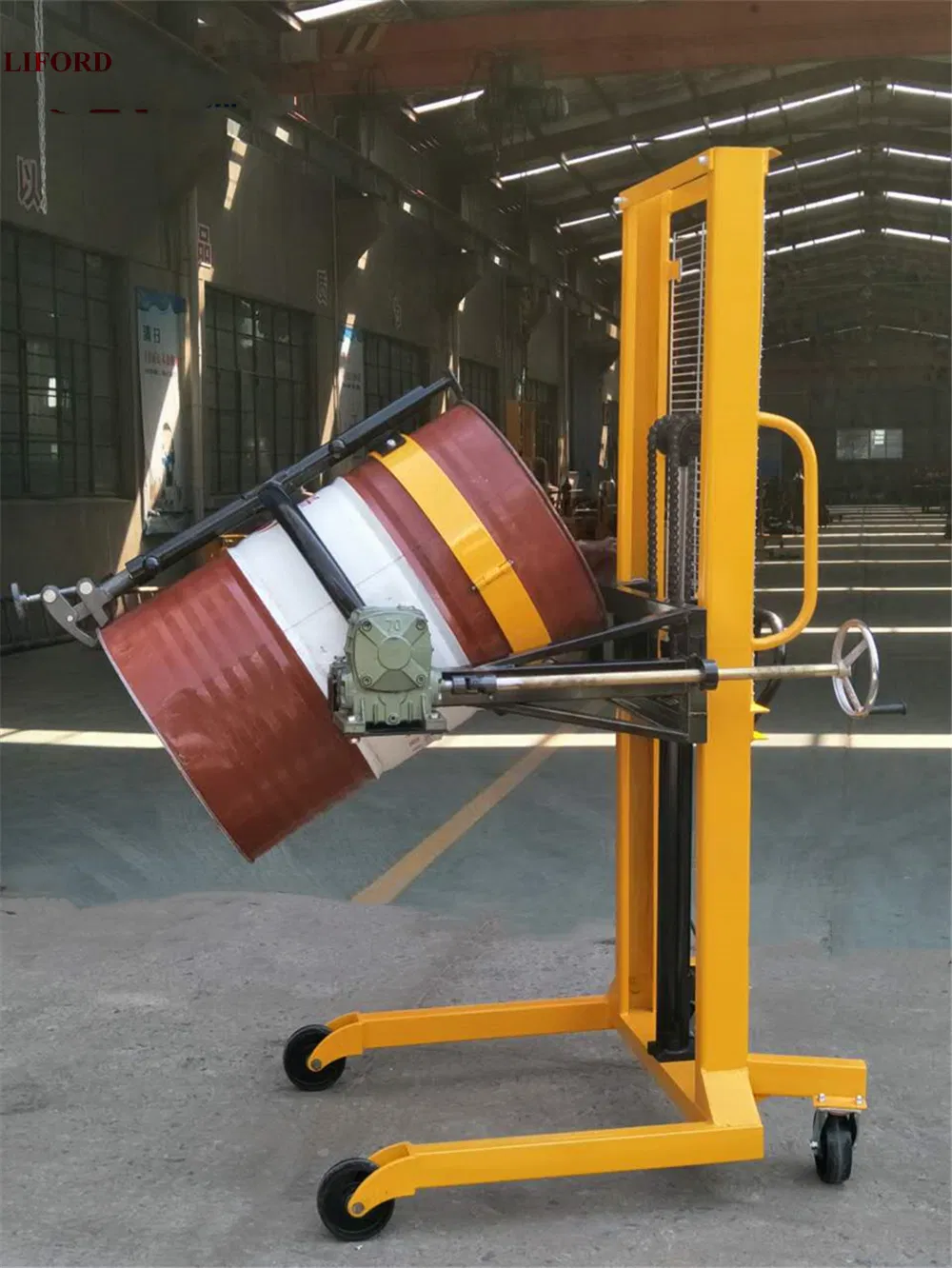

The drum can be manually rotated 180 degrees and can be locked at any angle for controlled pouring.

Does the equipment require a team to operate?

No, the design allows for efficient operation by a single person.

What kind of warranty and support is provided?

We offer a one-year warranty period and include necessary spare parts in a toolbox delivered with the machine. Technical support and training are also available.
