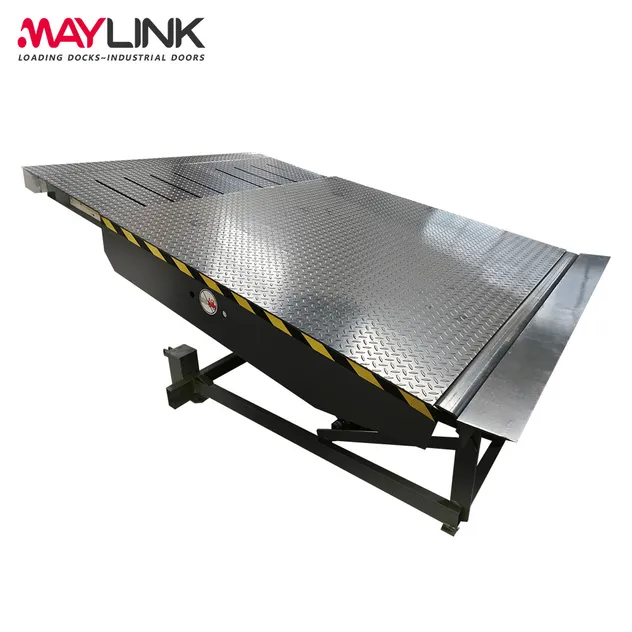

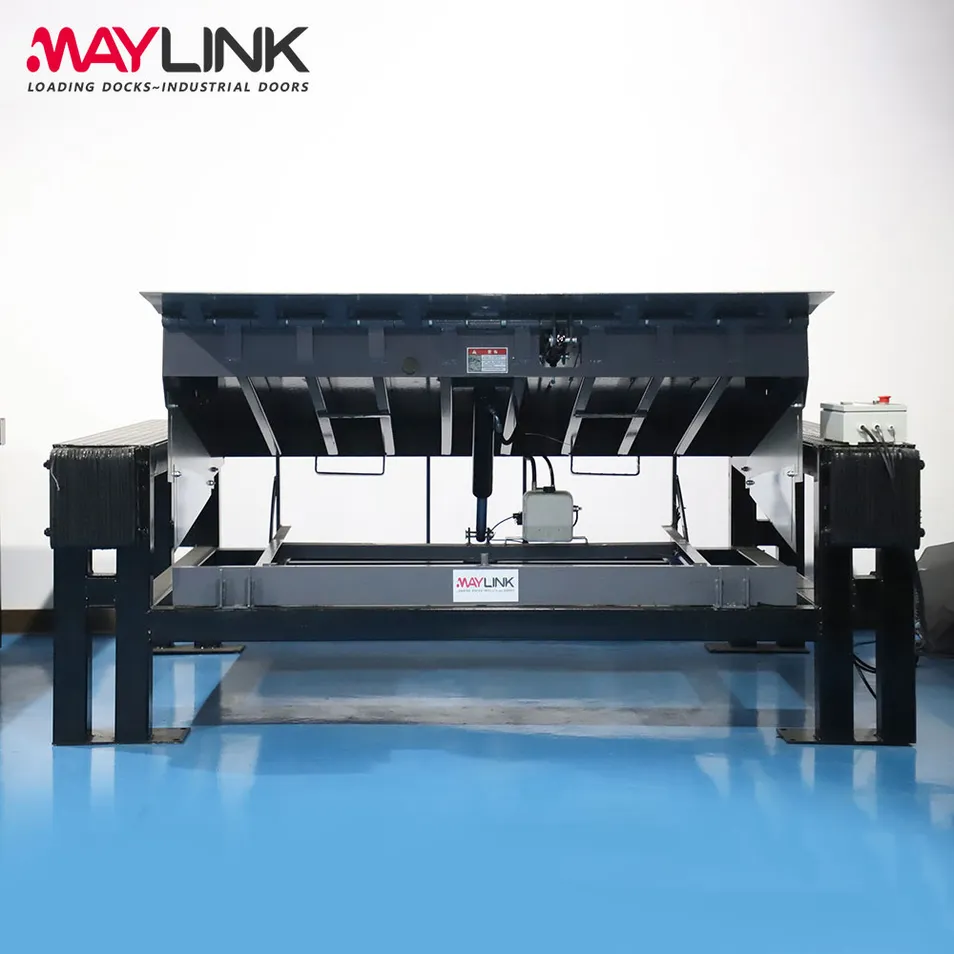

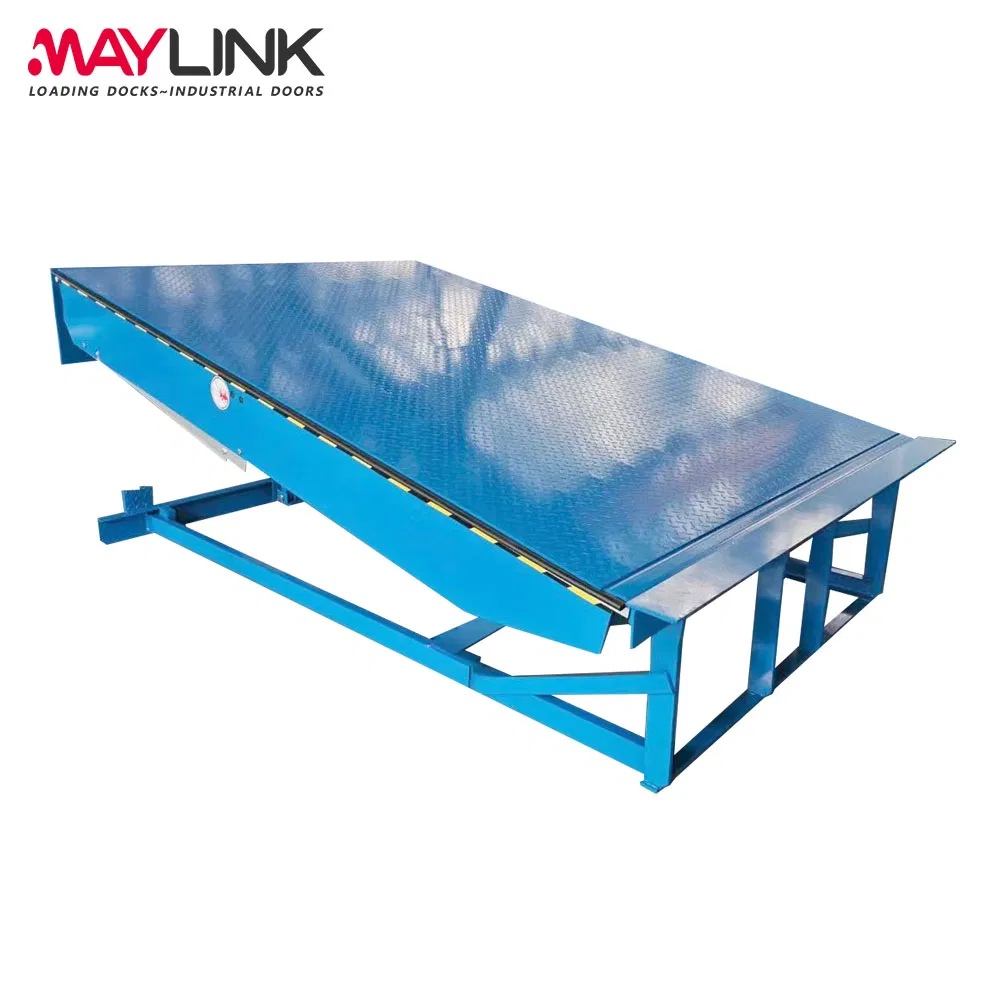

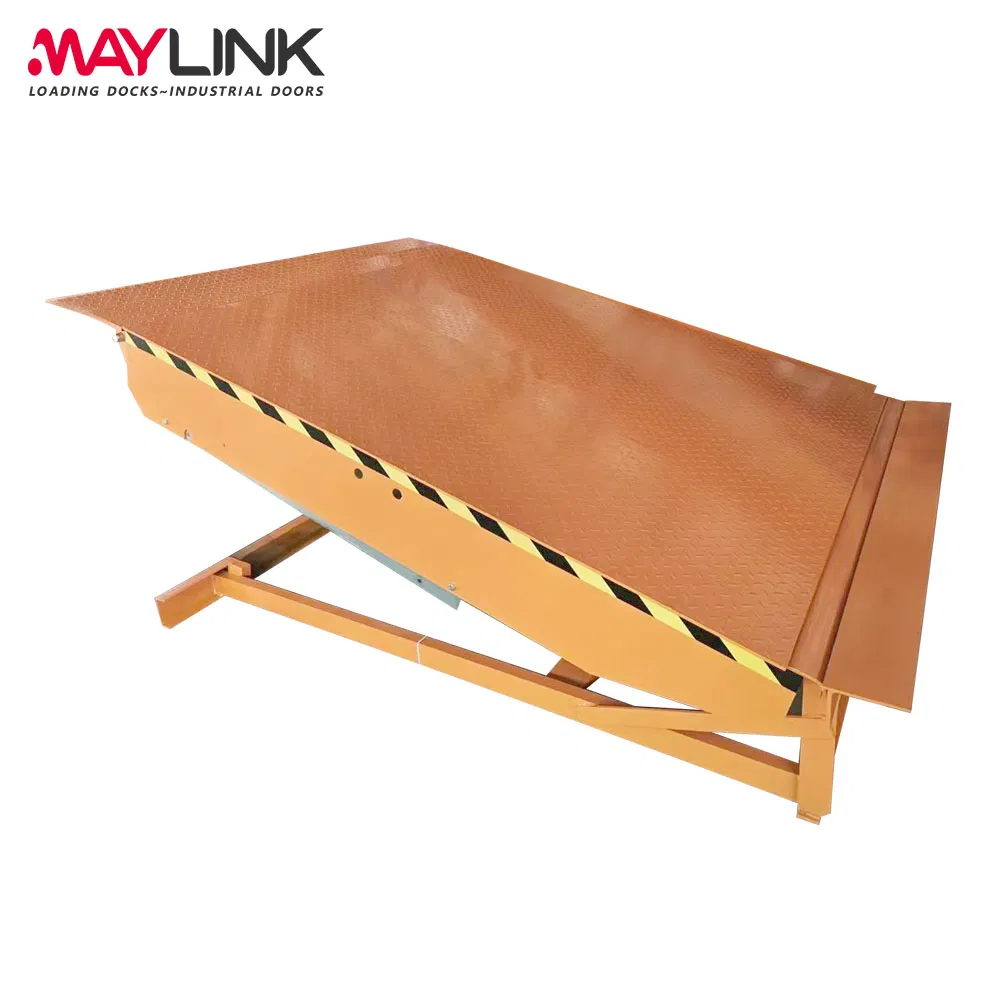

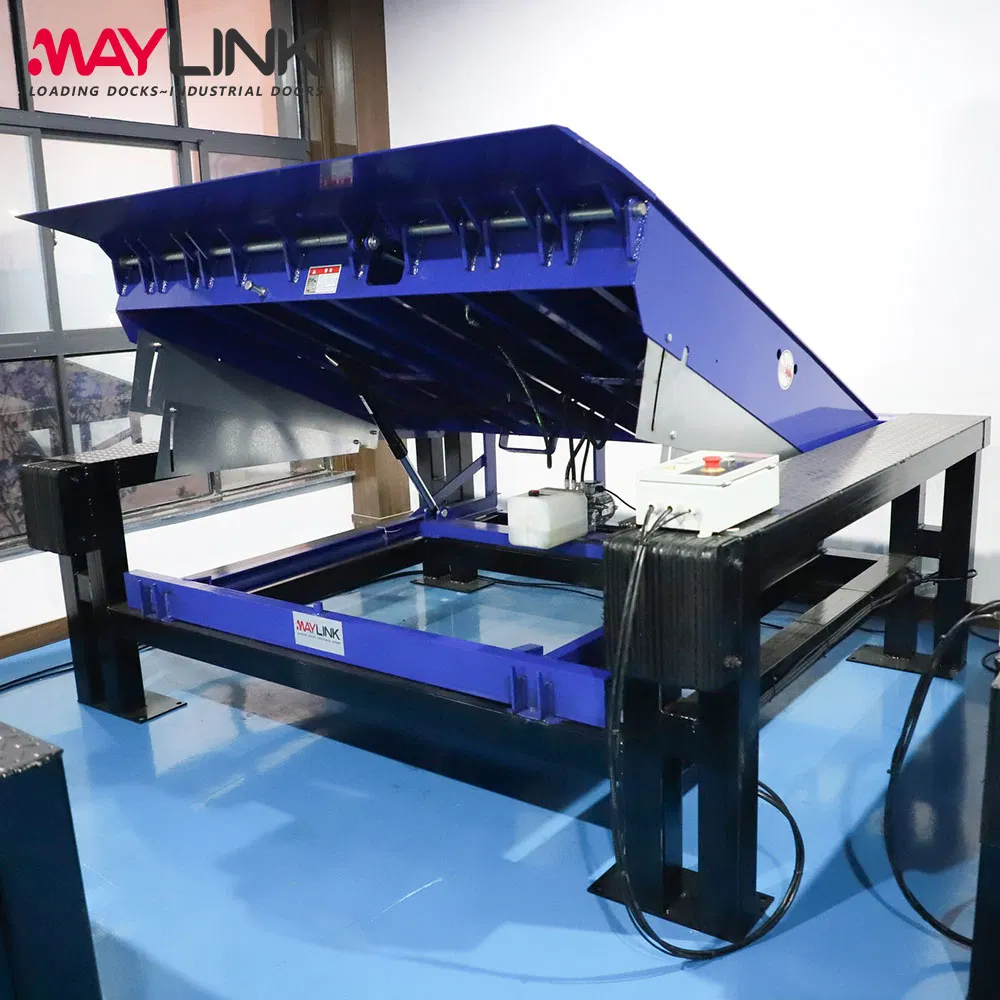

The electric hydraulic dock leveler is designed to bridge height differences between loading docks and truck carriages of varying heights. With the press of a button, the platform automatically rises and the lip extends to create a smooth, adjustable slope for forklift access, greatly improving loading efficiency.
| Model | MLK-HDL-002 |
|---|---|
| Lift Mechanism | Hydraulic Lift |
| Dynamic Load | 8 - 10 Tons |
| Static Load | 16 - 20 Tons |
| Adjustment Range | +350mm / -300mm |
| Specification | Details |
|---|---|
| Available Sizes | W2000×L2000/2500/3000mm (Customizable) |
| Power Supply | 380V/3P/50-60Hz; 220V/1P/50-60Hz |
| Color Options | Black (RAL9011), Blue (RAL5005), Gray, Yellow, Green |
| Dock Plate Material | 8mm Non-slip pattern steel |
| Tongue Plate Material | 16mm Non-slip pattern steel |
| Hydraulic System | Germany Argo-Hytos / Switzerland Bucher |
| Control Box | IP54 / IP55 Integrated Control Box |
| Emergency Stop | Included |
A national high-tech enterprise specializing in designing, manufacturing, and servicing premium industrial doors and loading dock solutions. With advanced European quality standards and automated production lines, our CE-certified products deliver top-tier performance for logistics, cold chain, manufacturing, and pharmaceutical industries.
Our standard hydraulic dock levelers support a dynamic load of up to 10 tons and a static load of up to 20 tons. Custom heavy-duty versions are also available.
Yes, we offer full customization for width, length, and height to ensure a perfect fit for your existing loading dock infrastructure.

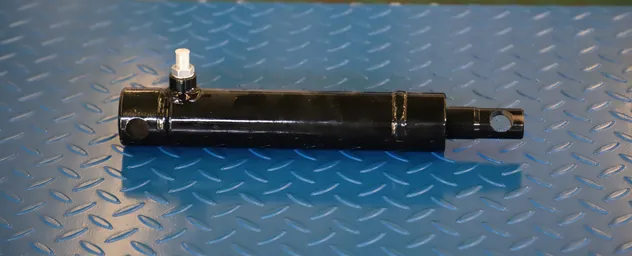

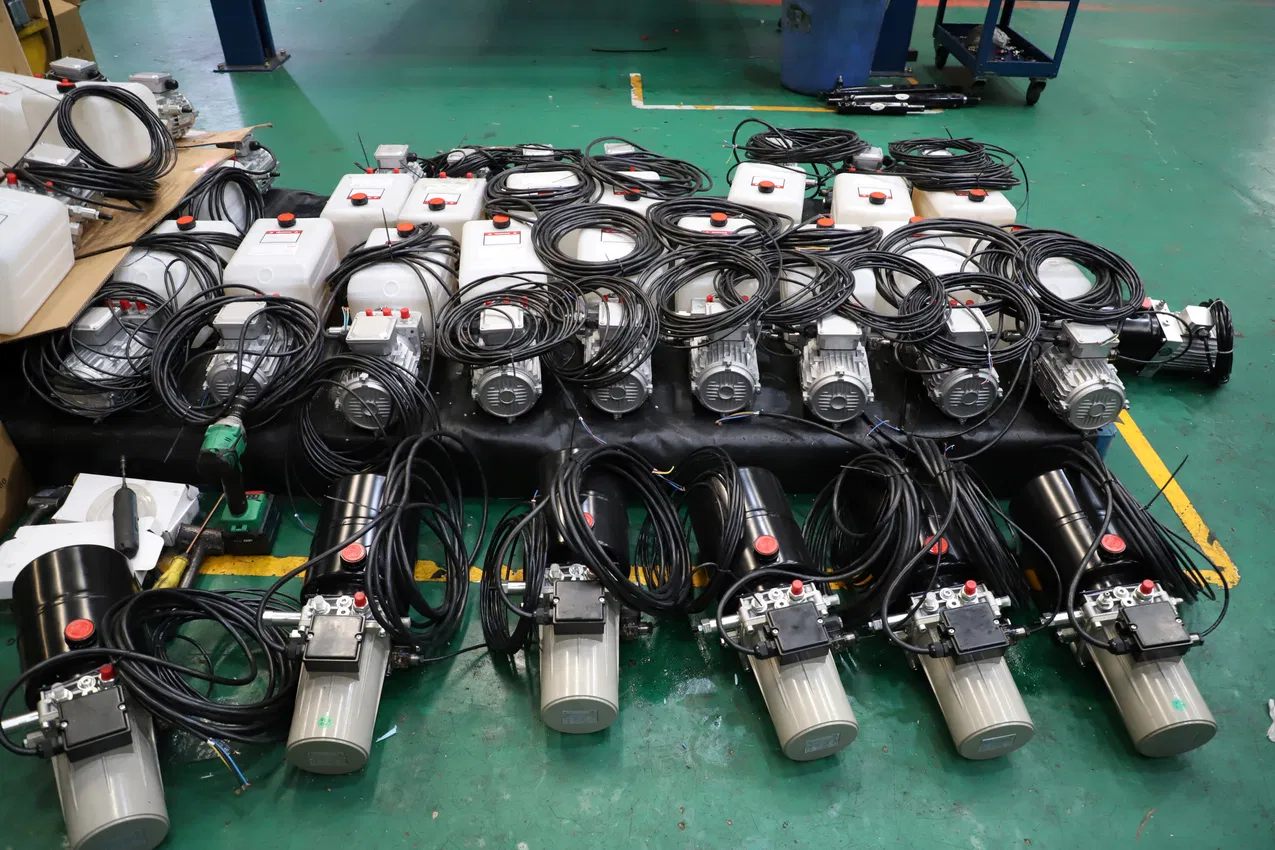

We utilize world-class hydraulic components from German Argo-Hytos or Switzerland Bucher to ensure smooth operation and long-term reliability.
Yes, all our dock levelers and industrial doors are CE, RoHS, and ISO 9001 certified, complying with international safety and quality standards.
Standard orders typically have a lead time of 2 to 4 weeks, depending on the scale of customization and current production capacity.
We provide comprehensive installation guides and remote technical assistance. For large-scale projects, we can coordinate professional installation support.
