Product Description

Basic Specifications

Model NO.

SDC-A

Cab Location

Adjustable

Type

Manual Pallet Truck

Power

Hand

Load Capacity

1T - 5T

Fuel

Hand

Load center

500mm

Lift height

85mm-195mm

Condition

New

Certificate

CE and ISO

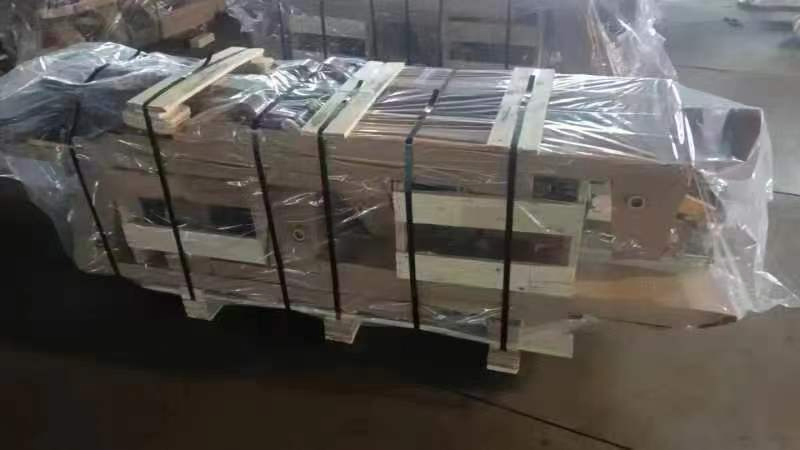

Transport Package

Wooden Box or Other

Specification

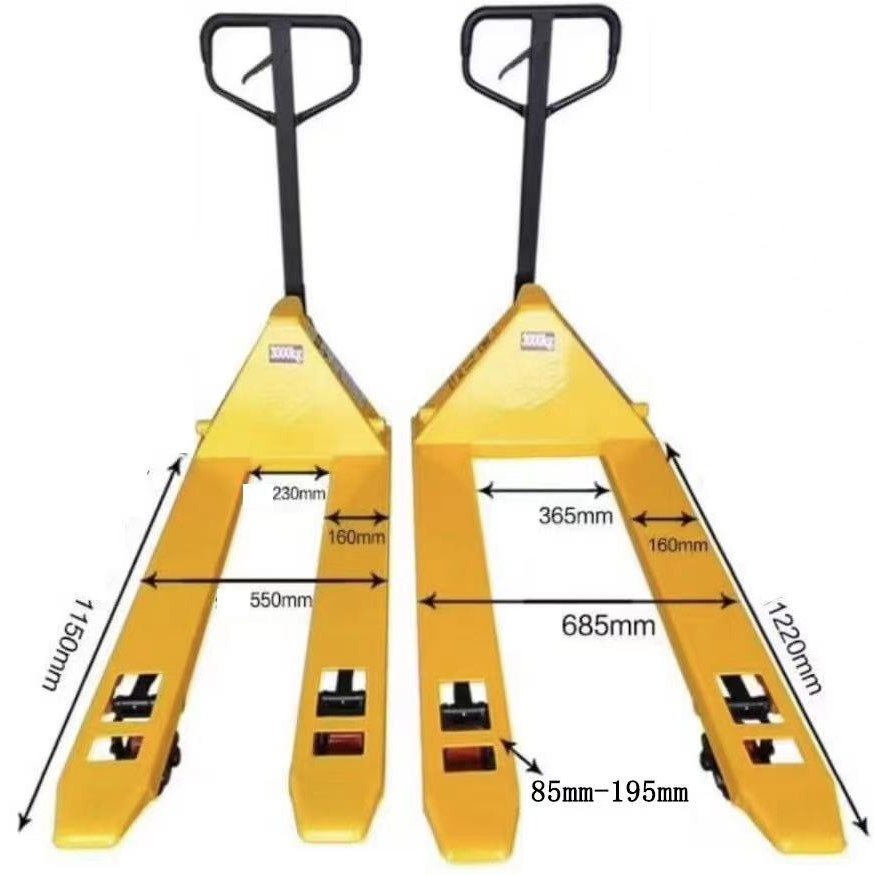

fork width 550mm/685mm

HS Code

8427900000

Production Capacity

20000

Package Size

220.00cm * 60.00cm * 70.00cm

Package Gross Weight

420.000kg

Product Application Technology Characteristics

The pallet truck is economical in design.

Standard epoxy resin powder coating, anti-fragmentation, anti-corrosion.

Extremely strong lightweight steel structure, the body weight is only 70kg.

Solder joints and reinforced fork tips for durability.

Three-stage handle - lifting, lowering, neutral.

High quality 190 degree corner setting.

The number of strokes of the oil pump is up to 8 times, and the height of each stroke is up to 11 mm.

Reliable oil leakage hydraulic system.

Technology Parameter

Model	Unit	SDC-A20	SDC-A25	SDC-A30	SDC-A50
Load Capacity	kg	2000	2500	3000	5000
Front Wheel Size	mm	φ180*50	φ180*50	φ180*50	φ180*50
Rear Wheel Size	mm	φ80*70	φ80*70	φ80*70	φ80*70
Lifting Height	mm	85-195	85-195	85-195	85-195
Total Height	mm	1250	1250	1250	1250
Overall Length	mm	1480/1580	1480/1580	1480/1580	1480/1580
Fork Length	mm	1150/1220	1150/1220	1150/1220	1150/1220
Outer Width of Fork	mm	550/685	550/685	550/685	550/685
Ground Clearance	mm	30	30	30	30
Turning Radius	mm	1265/1335	1265/1335	1265/1335	1265/1335
Net Weight	kg	60-68	64-71	68-75	132-140

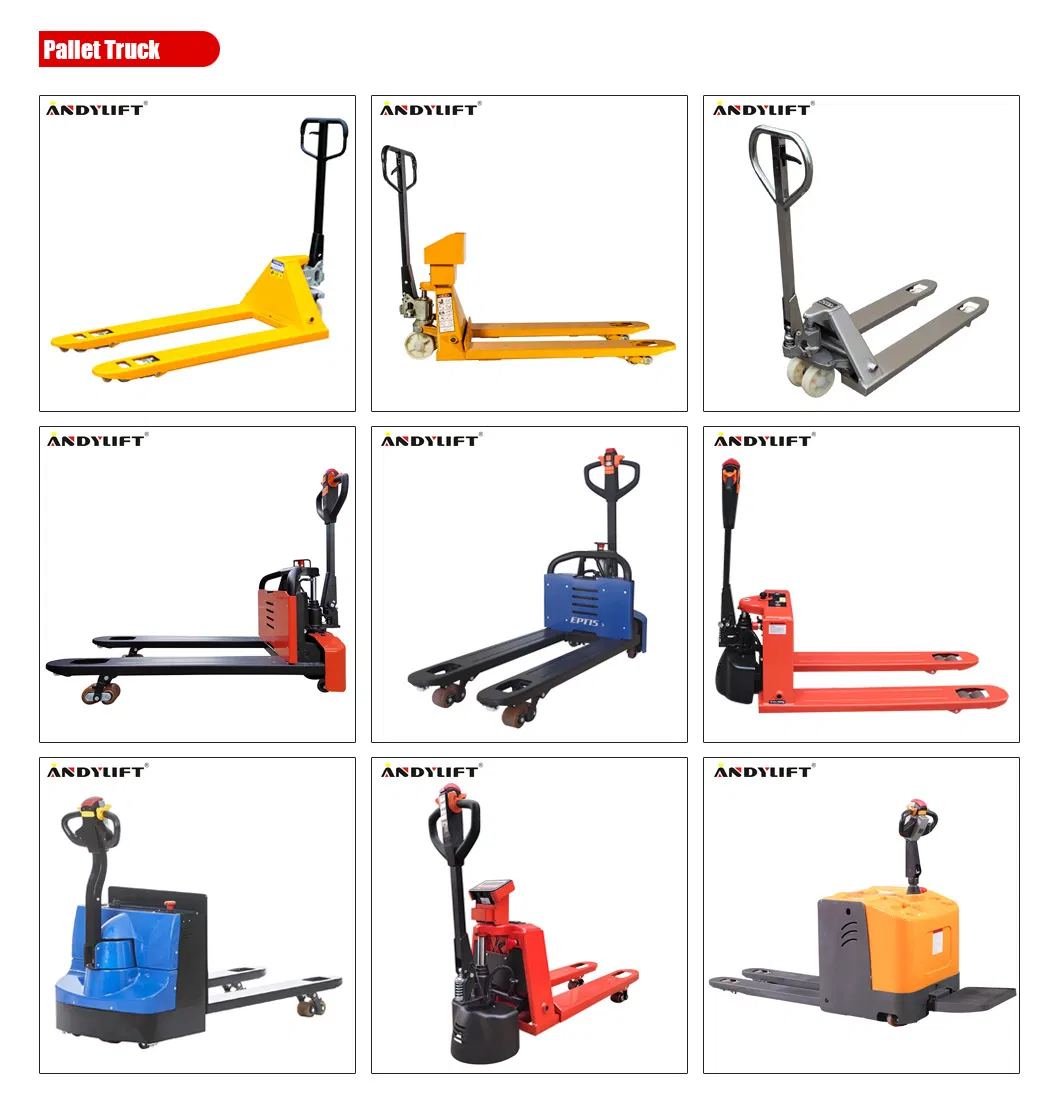

Product Gallery

Frequently Asked Questions

Q1: How long is the warranty of your products? A: Equipment provides 12 months or 2000 working hours warranty as standard, whichever comes first.

Q2: What payment terms do you accept? A: Our standard payment term is 30% in advance and 70% in balance by TT before delivery or against original B/L copy.

Q3: How long can I get my order finished? A: 15-20 days for classic forklift, pallet truck, stacker; 5-10 days for spare parts.

Q4: Can you customize the configuration/logo/label/color? A: Yes, we can customize these features according to your specific requirements.

Q5: Do you accept small orders? A: Yes, the MOQ is 1 unit for most products. For very small handling equipment, we can check case by case.
