Customization: Available
After-sales Service: Yes
Warranty: 12 Months After Delivery
Send Inquiry

Product Description

📋 Basic Information
Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Running Mode
Stationary
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
Transport Package
Wrapping Film
Specification
2000*2000*600 mm
HS Code
84254290
Production Capacity
10000/ Year
📦 Packaging & Delivery
Package Size
200.00cm * 200.00cm * 60.00cm
Package Gross Weight
1000.000kg
📷 Product Visuals

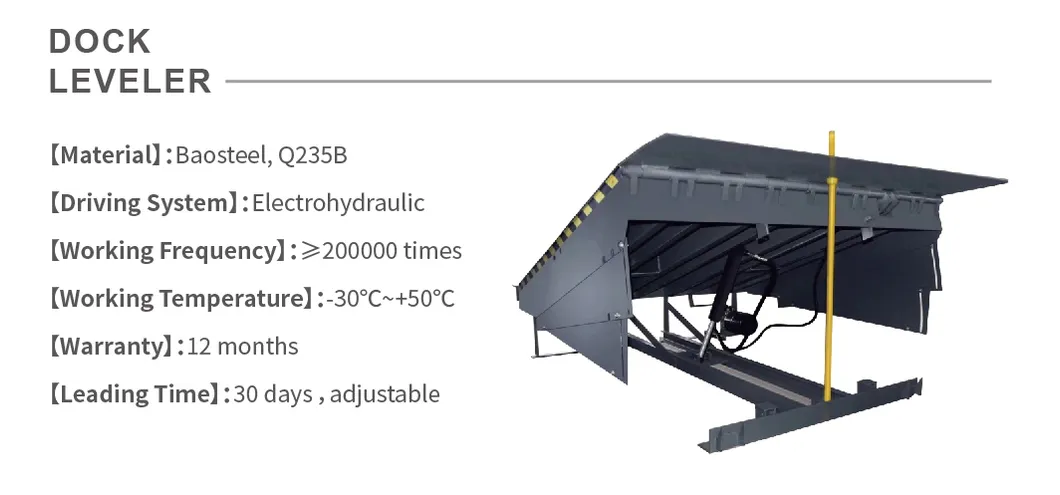

Loading Unloading Bay Truck Ramp
Dock Leveler Dock Ramp

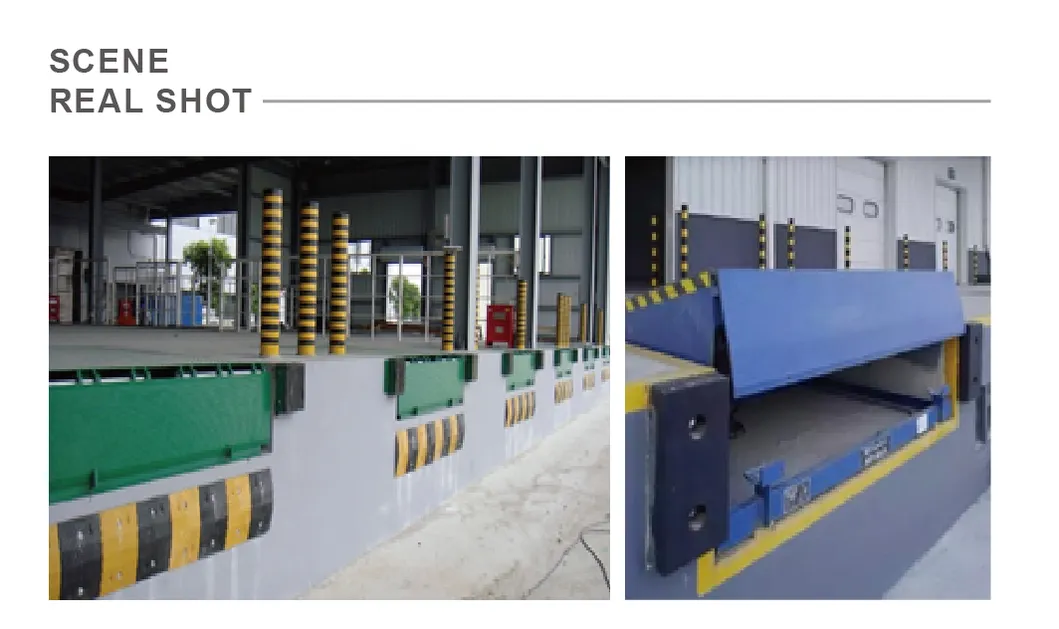

Container Lift Ramps

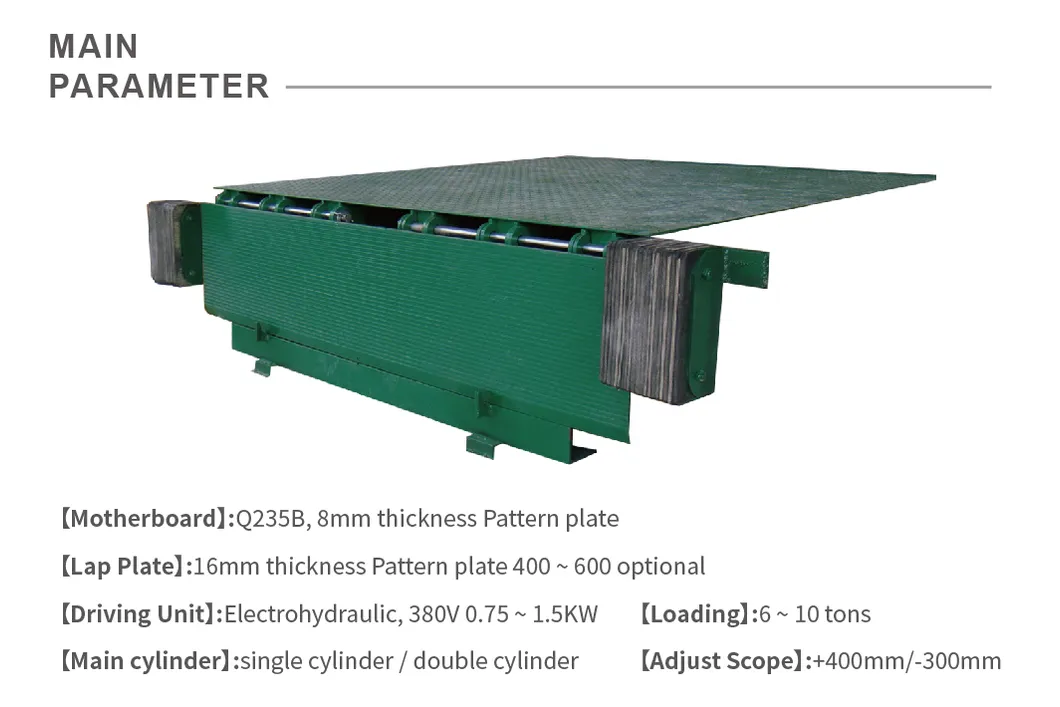

Dock Leveler System
Industrial Dock Ramp
⚙ Technical Parameters
MORE PARAMETERS

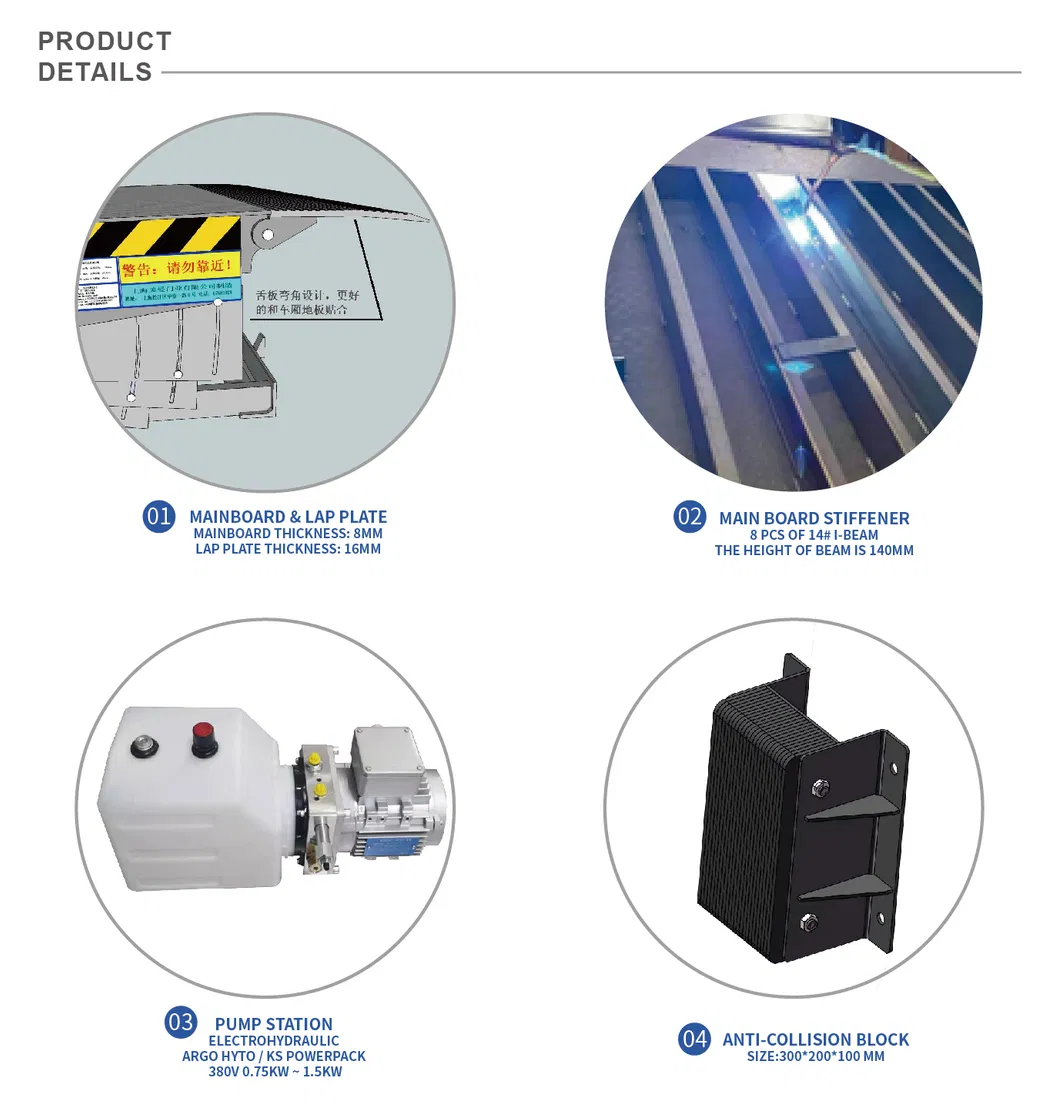

Main Board Q235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap Plate Q235B steel plate with anti-slide pattern, thickness: 14 / 16mm; The surface treatment is blasting and powder coating
Hinge Open type, 8*150mm
Loading Weight Dynamic load: 6T / 8T / 10T / 12 T / 15T
Driving Electrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Control System Standard 380V English interface
Adjust Scope +400mm / -300mm
Adjust Time Up ≤ 16S; Down ≤ 10S
Sealing Parts Brand: NOK A505 Complete set of seals for oil cylinder
Main cylinder Single cylinder / double cylinders
Main Board Stiffener 8 pcs of 14# I-Beam, the height of Beam is 140mm
Side Baffles Automatic retraction to ensure safety
Working Temperature -30ºC ~ +50ºC
Safety Part Explosion proof valve
Working Frequency ≥ 200,000 times
Technical Drawing

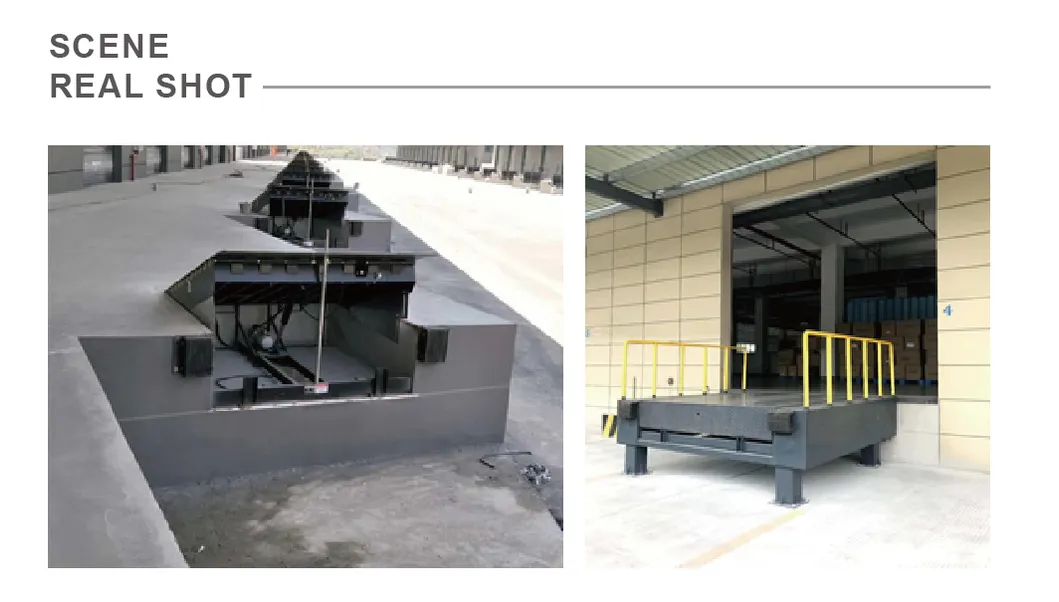

Installation Overview
❓ Frequently Asked Questions
What is the dynamic load capacity of this dock leveler?
The system supports a dynamic dynamic load range of 6T, 8T, 10T, 12T, and up to 15T depending on the specific configuration.
What materials are used for the main board construction?
The main board is constructed from Q235B steel plate featuring an anti-slide pattern with a thickness of 6mm to 8mm, finished with powder coating.
Does the system include safety features for emergency situations?
Yes, it is equipped with explosion-proof valves and automatic retraction side baffles to ensure operator and equipment safety.
What is the adjustable height range for loading?
The dock leveler provides an adjustment scope of +400mm upward and -300mm downward to accommodate various truck heights.
Can this equipment operate in extreme weather conditions?
Yes, the hydraulic system and components are designed to operate efficiently within a temperature range of -30°C to +50°C.
What power supply is required for operation?
The standard configuration requires a 220V 50Hz or 380V 50Hz power supply, driving a 0.75Kw to 1.5Kw motor.
