Narrow Aisle Battery Forklift 1200kg 1500kg 2000kg Electric Reach Truck with Full AC Motor
Narrow Aisle Battery Forklift 1200kg 1500kg 2000kg Electric Reach Truck with Full AC Motor
Narrow Aisle Battery Forklift 1200kg 1500kg 2000kg Electric Reach Truck with Full AC Motor
Narrow Aisle Battery Forklift 1200kg 1500kg 2000kg Electric Reach Truck with Full AC Motor
Narrow Aisle Battery Forklift 1200kg 1500kg 2000kg Electric Reach Truck with Full AC Motor
1 / 5
Narrow Aisle Battery Forklift 1200kg 1500kg 2000kg Electric Reach Truck with Full AC Motor
Narrow Aisle Battery Forklift 1200kg 1500kg 2000kg Electric Reach Truck with Full AC Motor
Narrow Aisle Battery Forklift 1200kg 1500kg 2000kg Electric Reach Truck with Full AC Motor
Narrow Aisle Battery Forklift 1200kg 1500kg 2000kg Electric Reach Truck with Full AC Motor
Narrow Aisle Battery Forklift 1200kg 1500kg 2000kg Electric Reach Truck with Full AC Motor

Narrow Aisle Battery Forklift 1200kg 1500kg 2000kg Electric Reach Truck with Full AC Motor

Customization: Available
Warranty: 1 Year
Cab Location: Stand
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
CQD
Type
Reach Forklift
Power
AC Motor
Load Capacity
1.5t-2.5t
Fuel
Electric
Load center
500mm
Lift height
3000-8000mm
Condition
New
Origin
China
Production Capacity
5000set/Month
⚙️

Main Configuration

Narrow aisle battery forklift with full AC motor capability, designed for high-efficiency material handling.

  • Load capacity 1500kg-2500kg
  • Lift height 3000mm-8000mm
  • INMOTION controller
  • 48V full AC power
  • Camera & monitor system
  • Big LED display

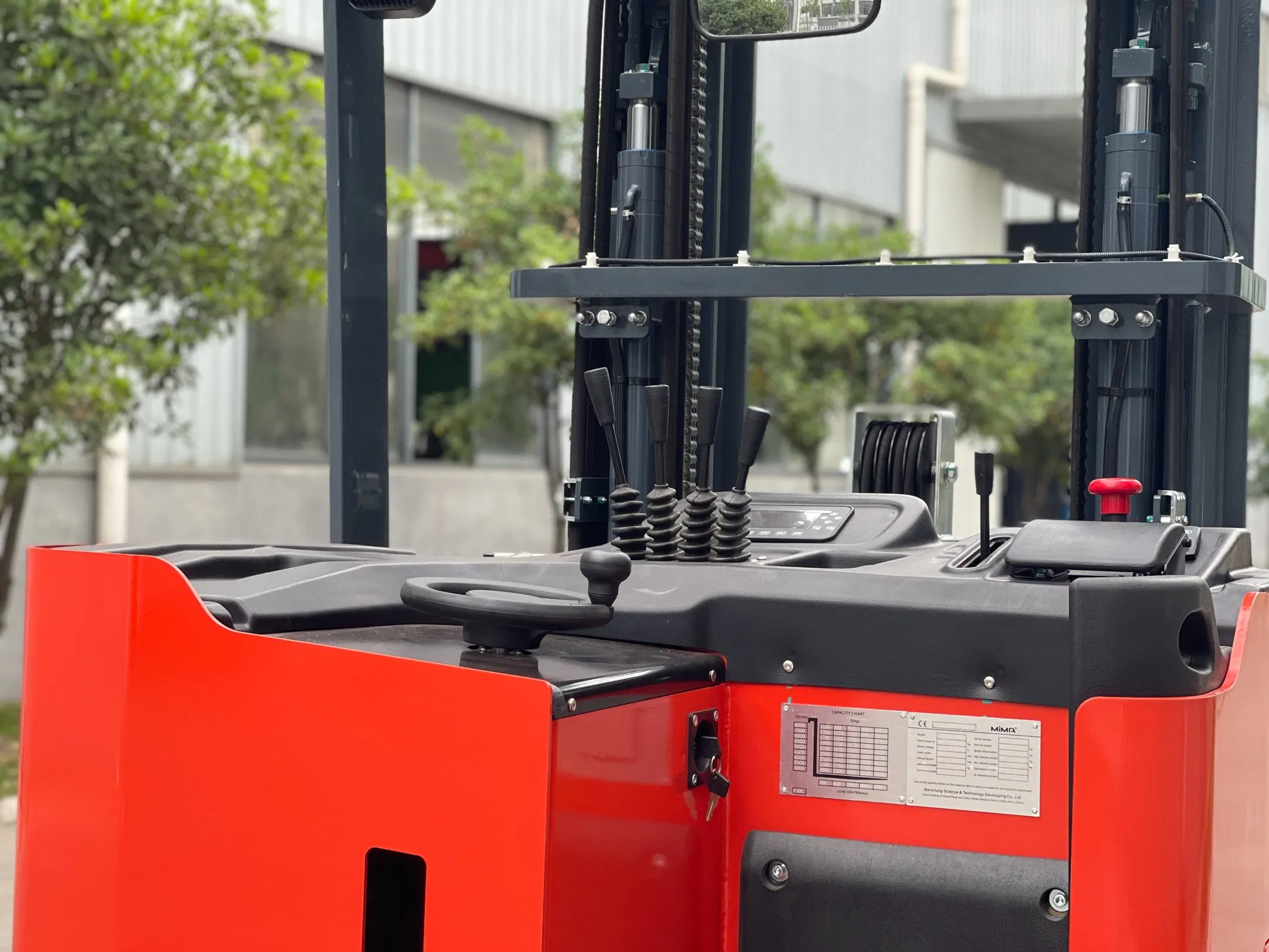

  • Central control instrument
  • Lead-acid battery 48V400AH (lateral exchange)
  • Charger 48V50A, 3 Phase
  • Electric power steering (EPS)
  • Integrated side shifter
  • Fork with tilt forward/backwards
  • German imported H type mast steel

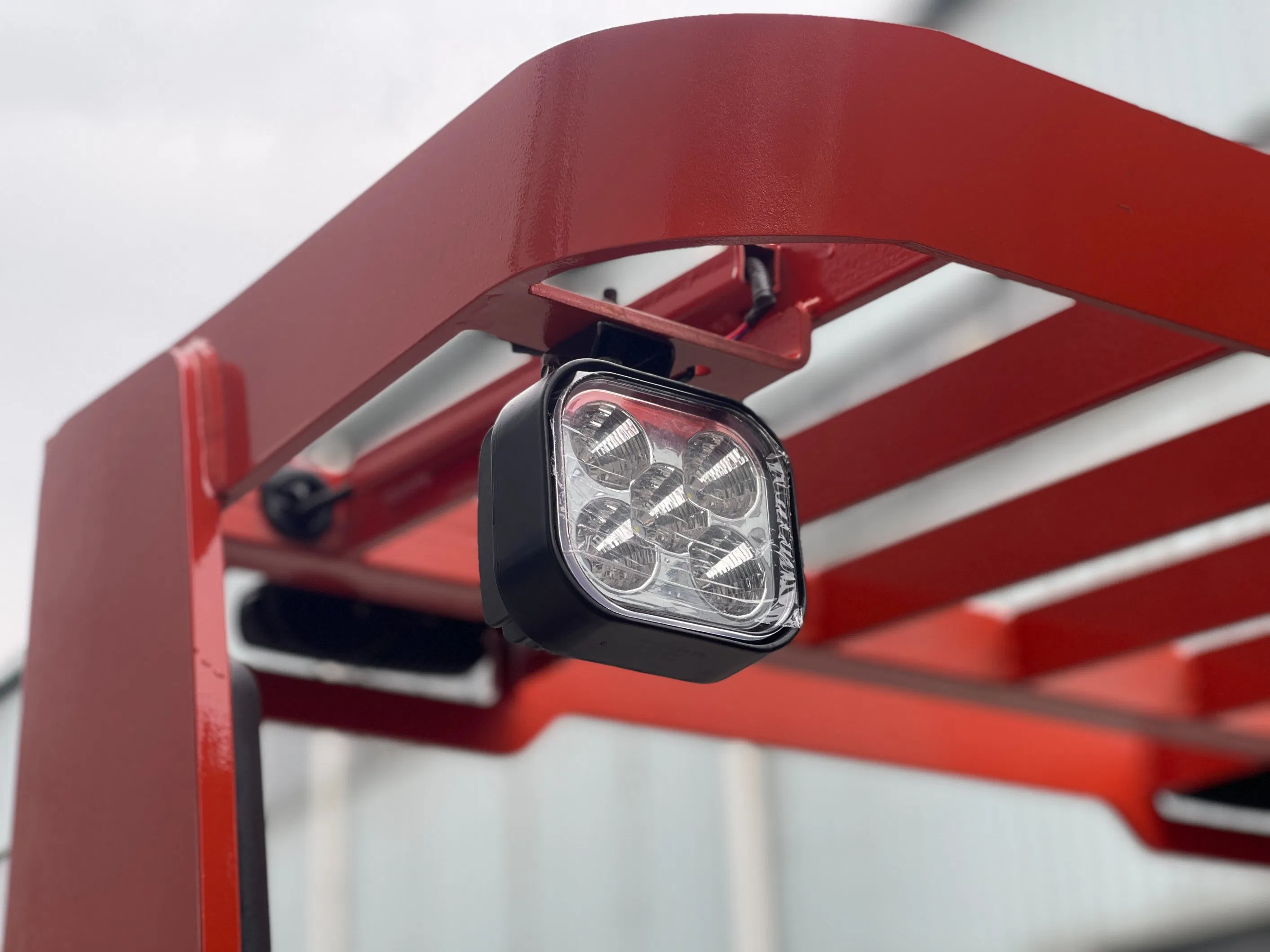

  • LED front light, warning light, reversing buzzer
  • High-quality Polyurethane wheels
📋

Technical Parameters

Parameter Item Unit CQD15 CQD20 CQD25
Power Type-BatteryBatteryBattery
Operation Type-Stand-onStand-onStand-on
Rated Capacitykg150020002500
Load Centermm500500500
Lift heightmm300030003000
Overall length (fork off/on)mm1752/24051902/24052060/2550
Overall widthmm119511951270
Forks sizemm1070/100/351070/122/401070/122/40
Turning radiusmm173018361995
Driving speed (load/unload)km/h6/66/65/6
Lifting speed (load/unload)mm/s40/5540/5529/33
Steering system-EPSEPSEPS
📸

Product Display

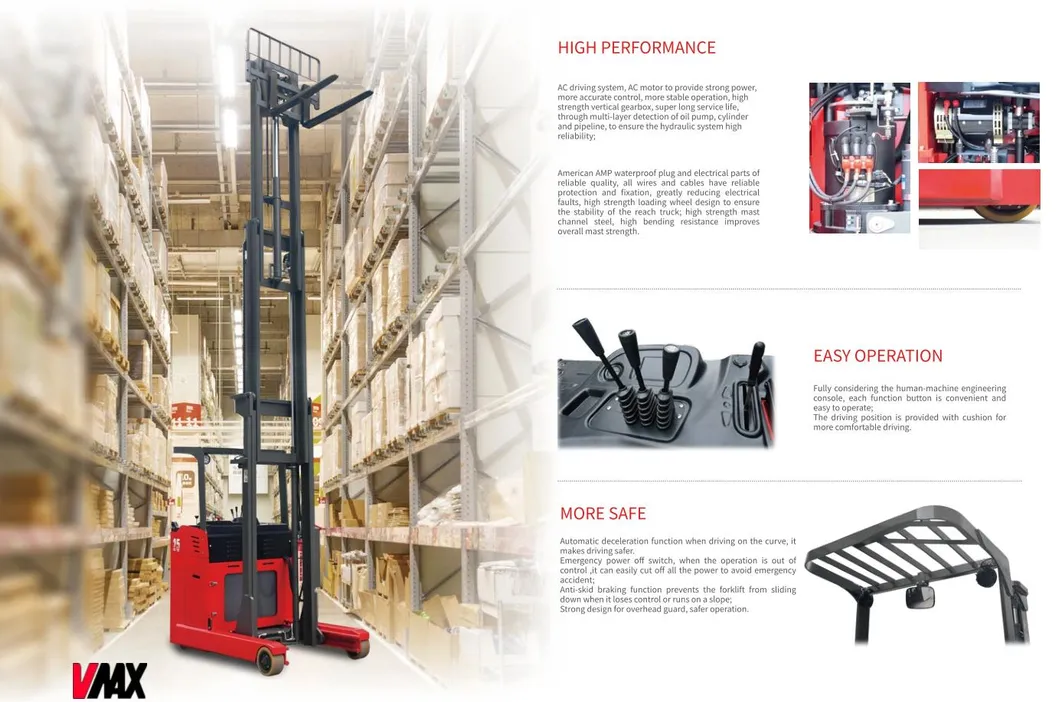

Electric Reach Truck Operation
Narrow Aisle Forklift Design
Forklift Package View

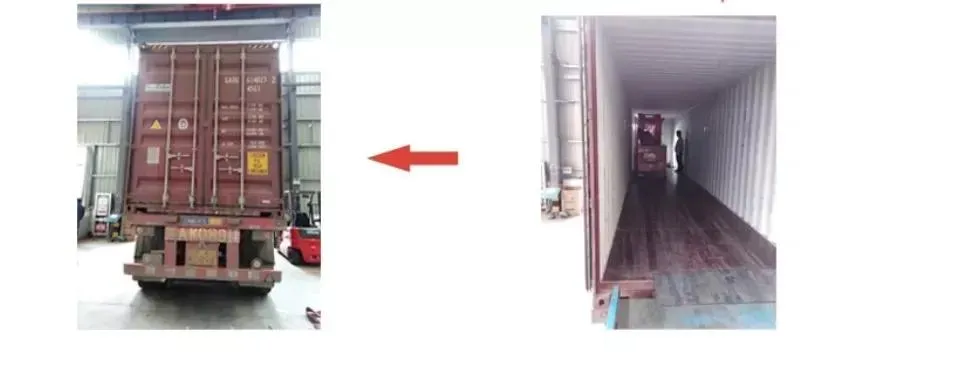

Shipping and Transport
❓

Frequently Asked Questions

What quality certifications do your forklifts have?
Our manufacturing facility complies with the ISO9001:2008 Quality System. All products are CE and SGS certified to ensure international standards.
Can the forklifts be customized for specific requirements?
Yes, we can customize and design based on client requirements, provided that all modifications are implemented safely and scientifically. Colors can also be customized.
How long is the product warranty period?
The standard warranty is typically 1 year or 2000 working hours, whichever occurs first.
Do you offer OEM services for client branding?
With proper brand authorization, we are fully capable of providing OEM services and labeling products with the client's brand.
What are the standard payment terms?
Typically, we require a 30% T/T deposit in advance, with the balance paid before shipment. 100% L/C at sight from reputable banks is also accepted.
What is the production capacity for these reach trucks?
Our current production capacity is approximately 5000 sets per month, ensuring timely delivery for large orders.
