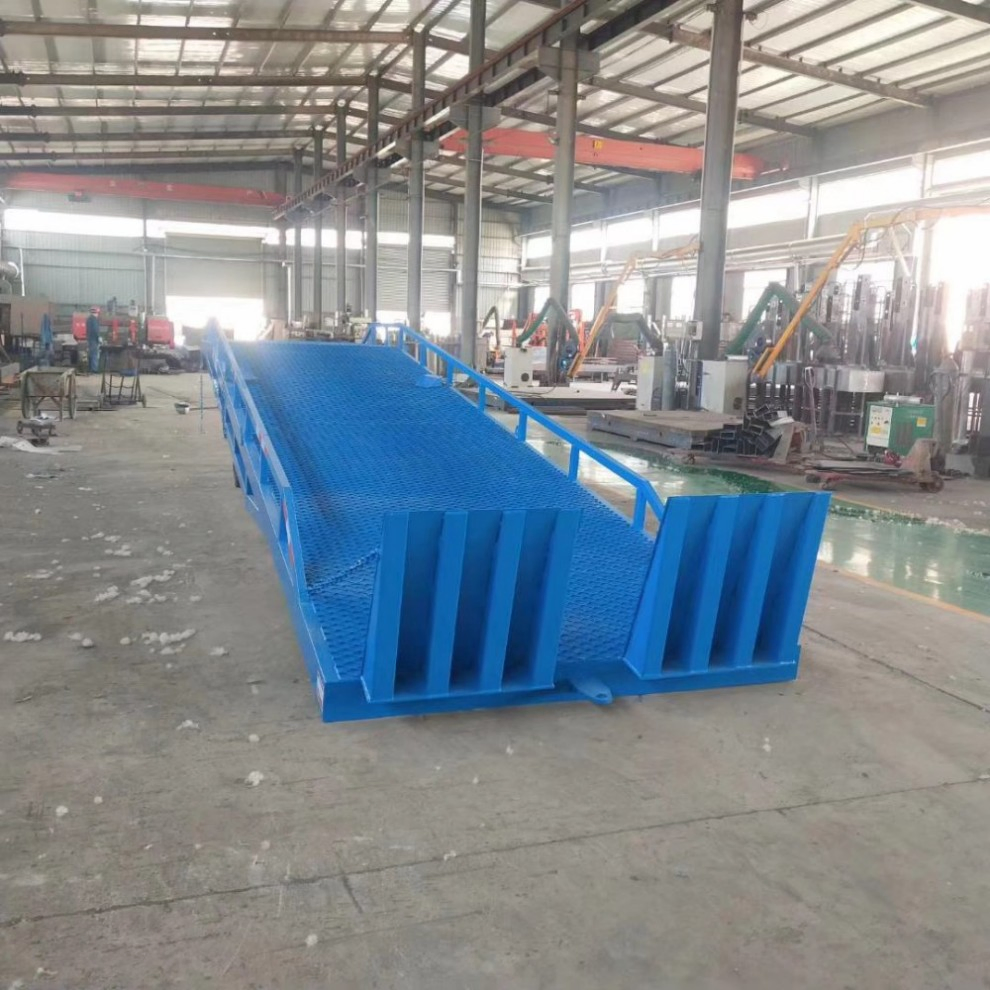

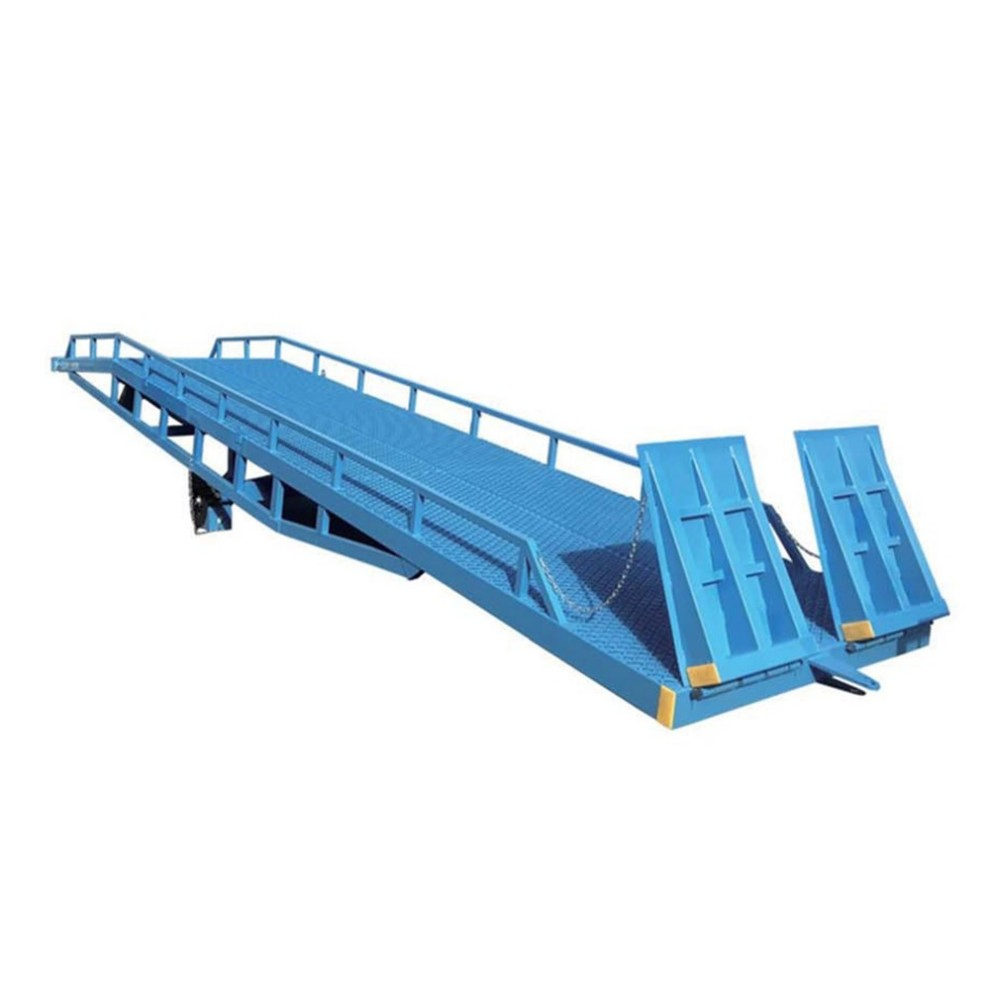

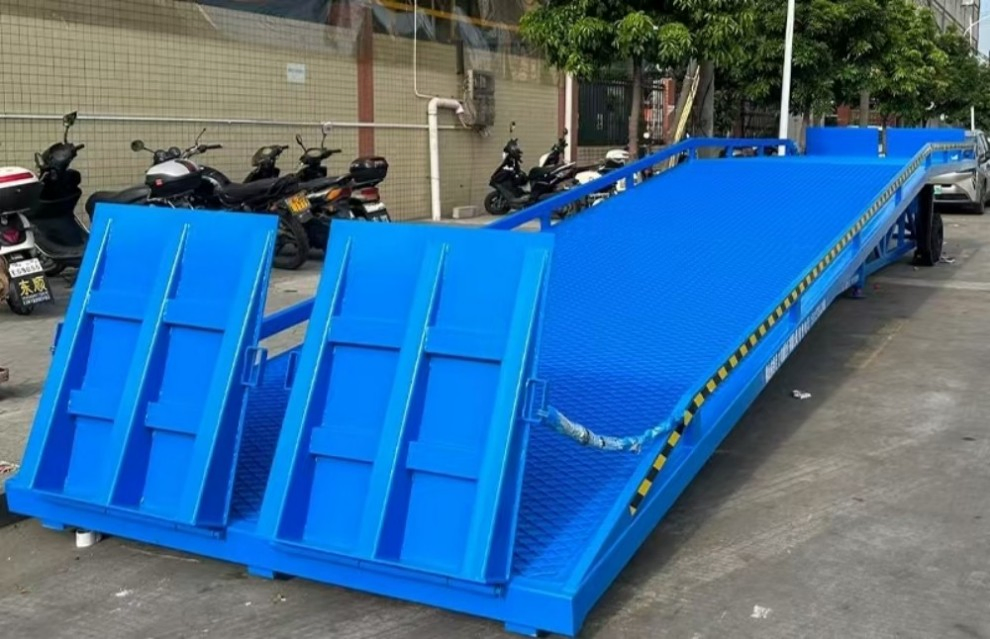

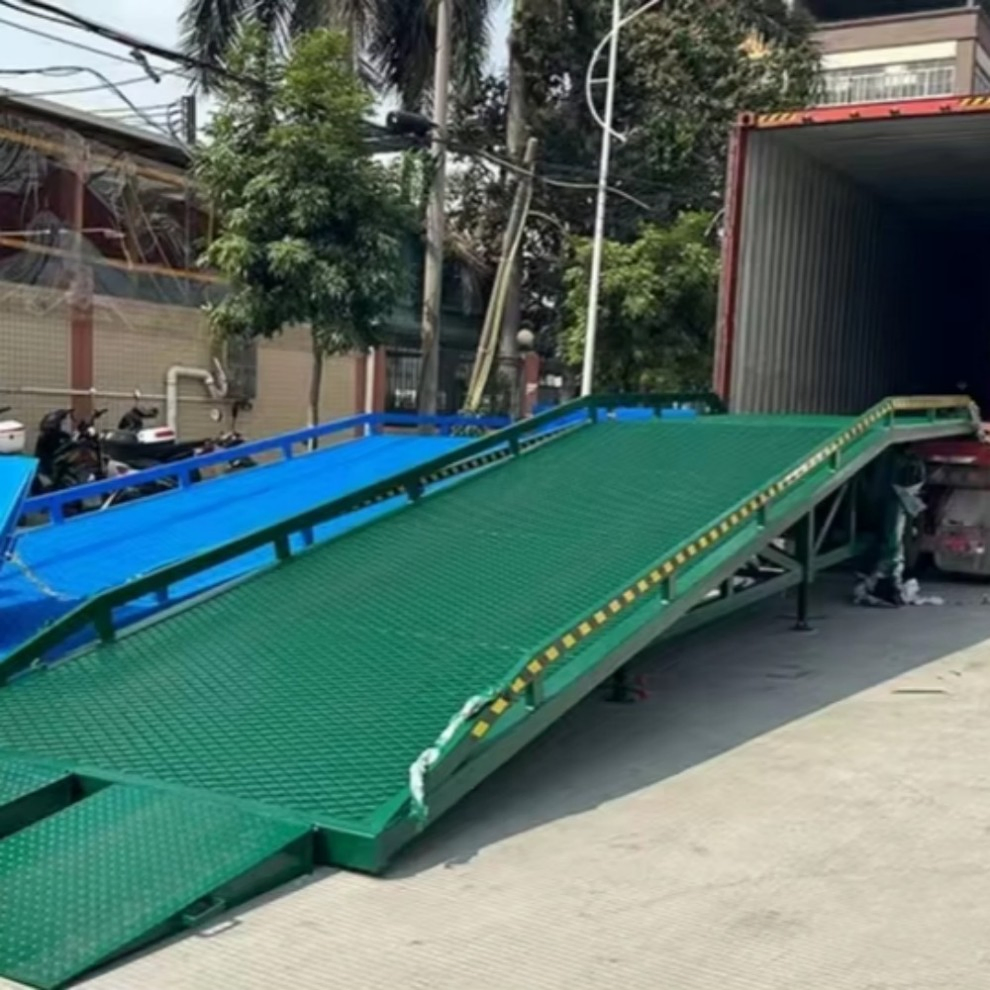

Container Portable Loading Dock Ramp Platform High-Quality Mobile Boarding Bridge Mobile Loading Bridge

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year

Product Description

i

Basic Information

Model NO.
Mobile Loading Ramp
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Driven Type
Hydraulic
Certification
GS, CE
Material
Steel
Power Source
Manual
Load Capacity
6 - 15 Tons
P

Packaging & Delivery

Package Size
400.00cm * 200.00cm * 400.00cm
Gross Weight
1000.000kg
Lead Time
10 days (1 Unit), Negotiable (> 1 Unit)
D

Product Description

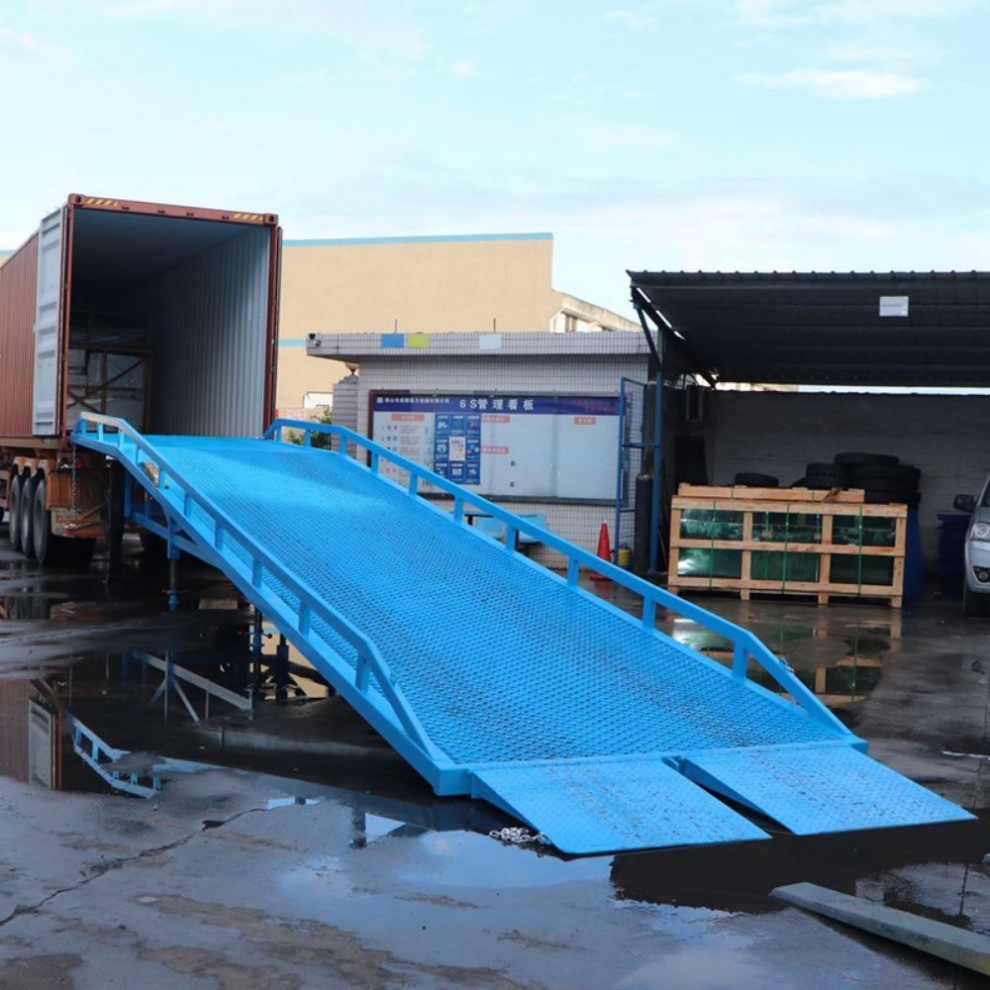

Mobile Boarding Bridge

A mobile boarding bridge, also known as a mobile loading dock, is a device that creates a temporary passage between the truck and the ground. It is made of high-strength materials and has a robust structure that can withstand the pressure of heavy loads. The design allows goods to be easily transported from the ground to the truck or unloaded efficiently.

Dock levelers ensure a seamless transition between the dock and the truck bed, enabling smooth movement of forklifts and other material handling equipment. They compensate for differences in height and potential unevenness, guaranteeing a stable and secure transfer of goods.

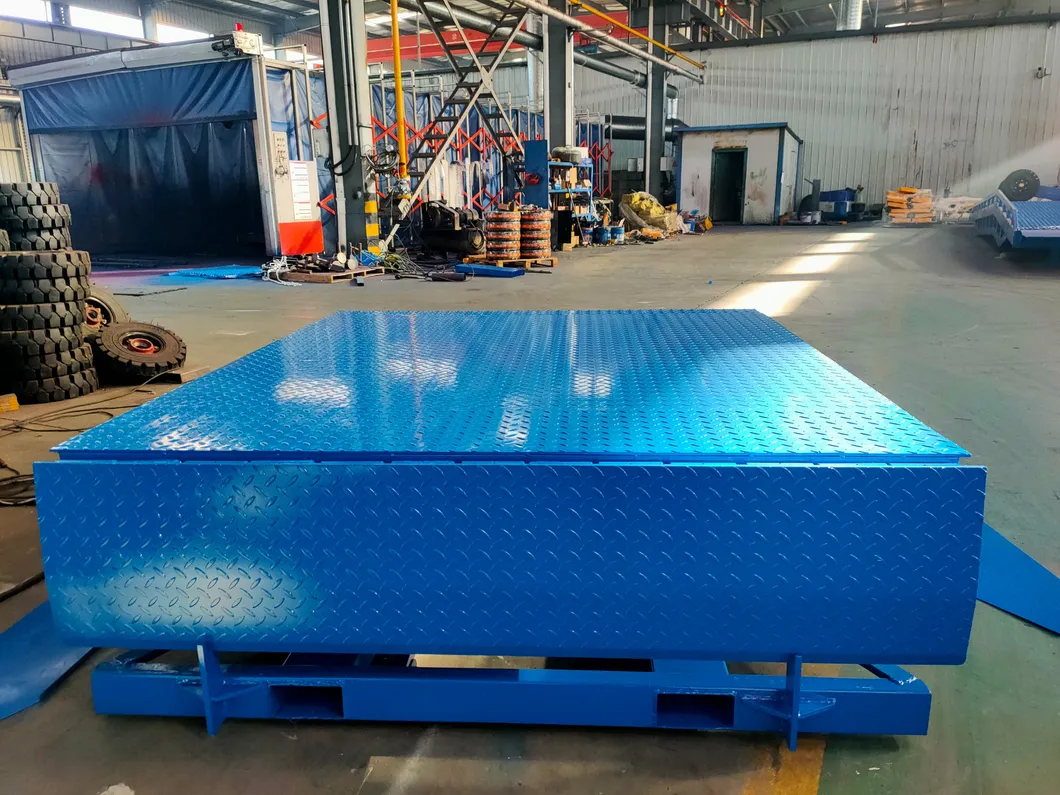

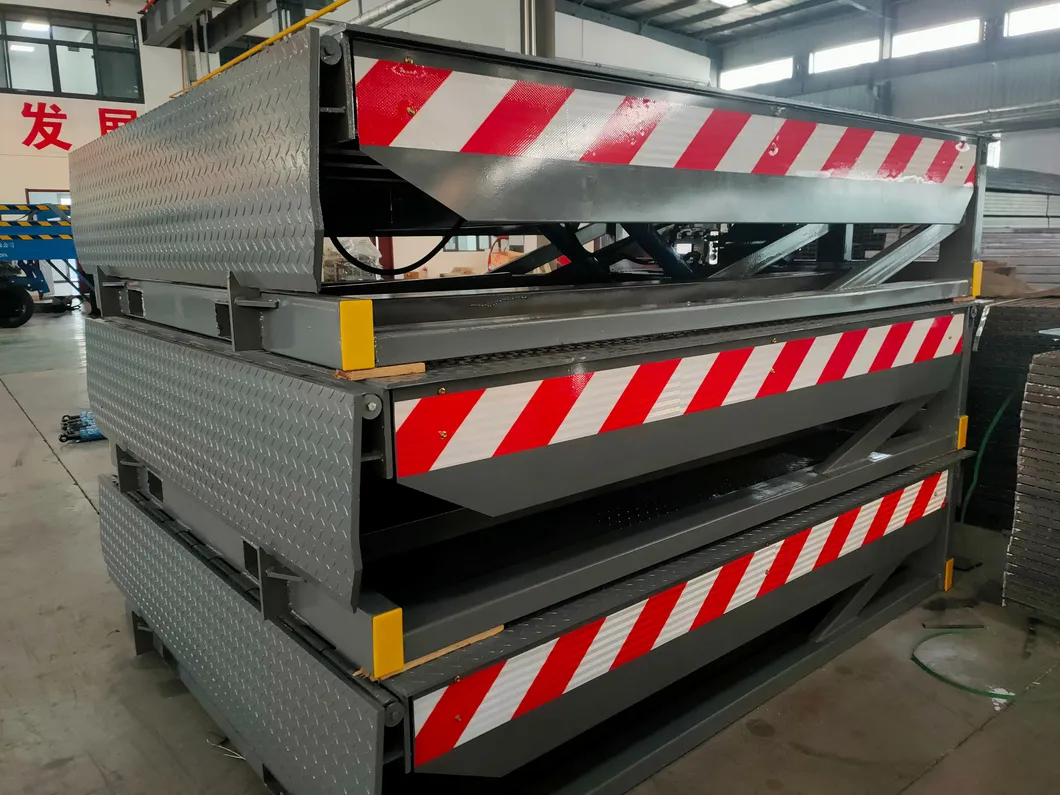

Loading Ramp Detail 1 Loading Ramp Detail 2
S

Specifications

Model MFQY-6 MFQY-8 MFQY-10 MFQY-12 MFQY-15
Overall Size11300*210011300*210011300*210011300*210011300*2100
Slope Length7150mm7150mm7150mm7150mm7150mm
Platform Length3000mm3000mm3000mm3000mm3000mm
Width2100mm2100mm2100mm2100mm2100mm
Load6t8t10t12t15t
PowerManualManualManualManualManual
Adjustable Range1100-1800mm1100-1800mm1100-1800mm1100-1800mm1100-1800mm
Weight±2200kg±2400kg±2600kg±3300kg±4000kg
V

Visual Overview

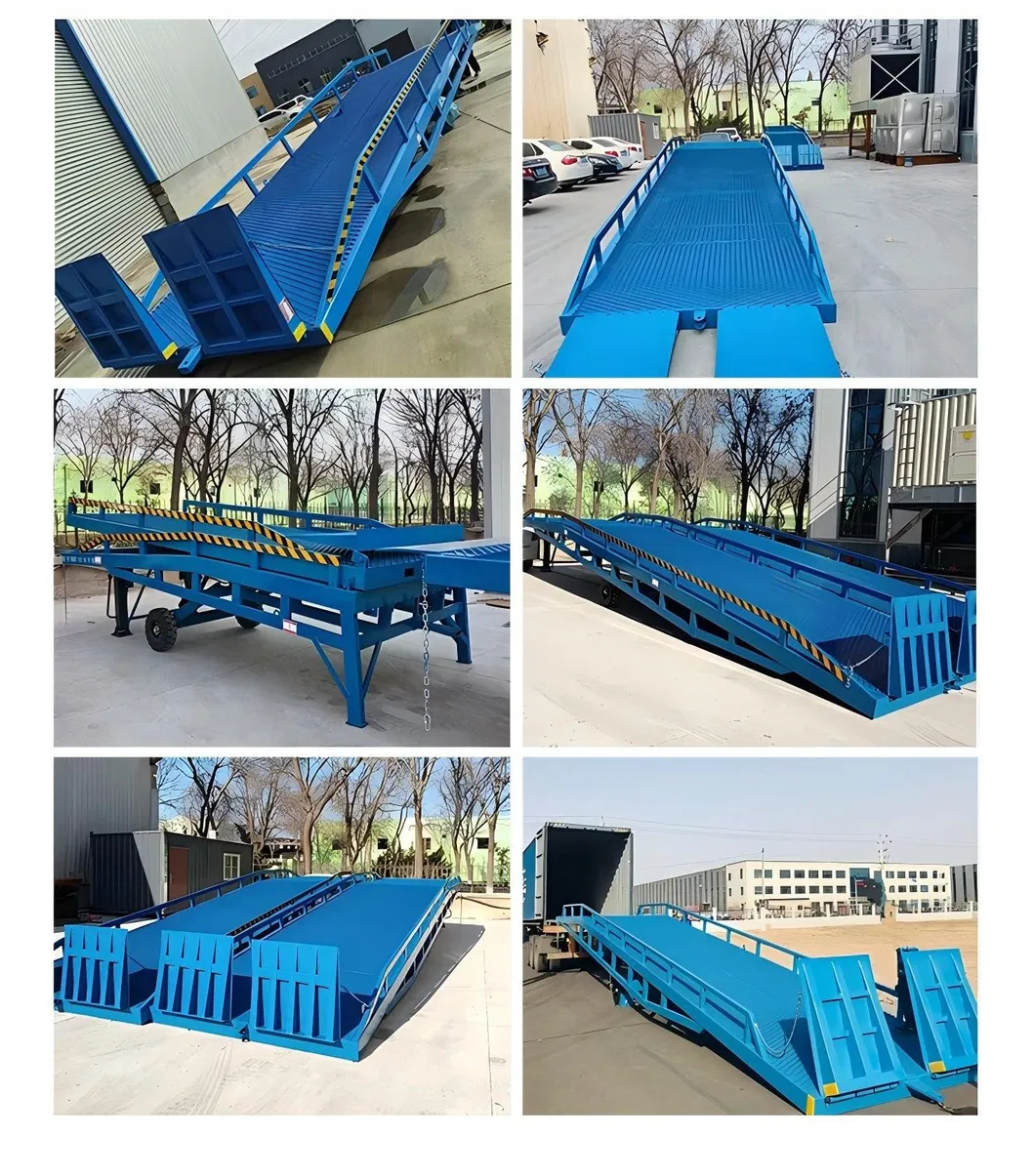

Structure Analysis

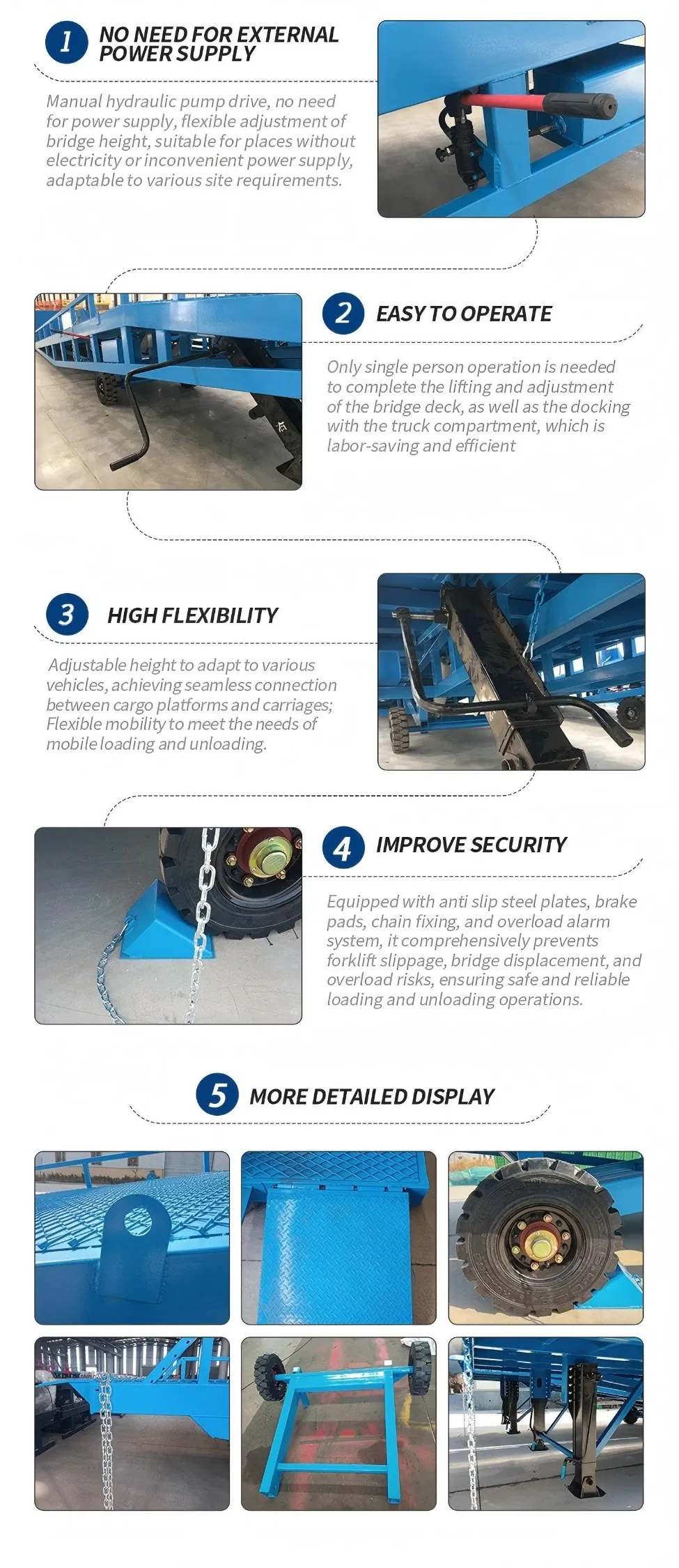

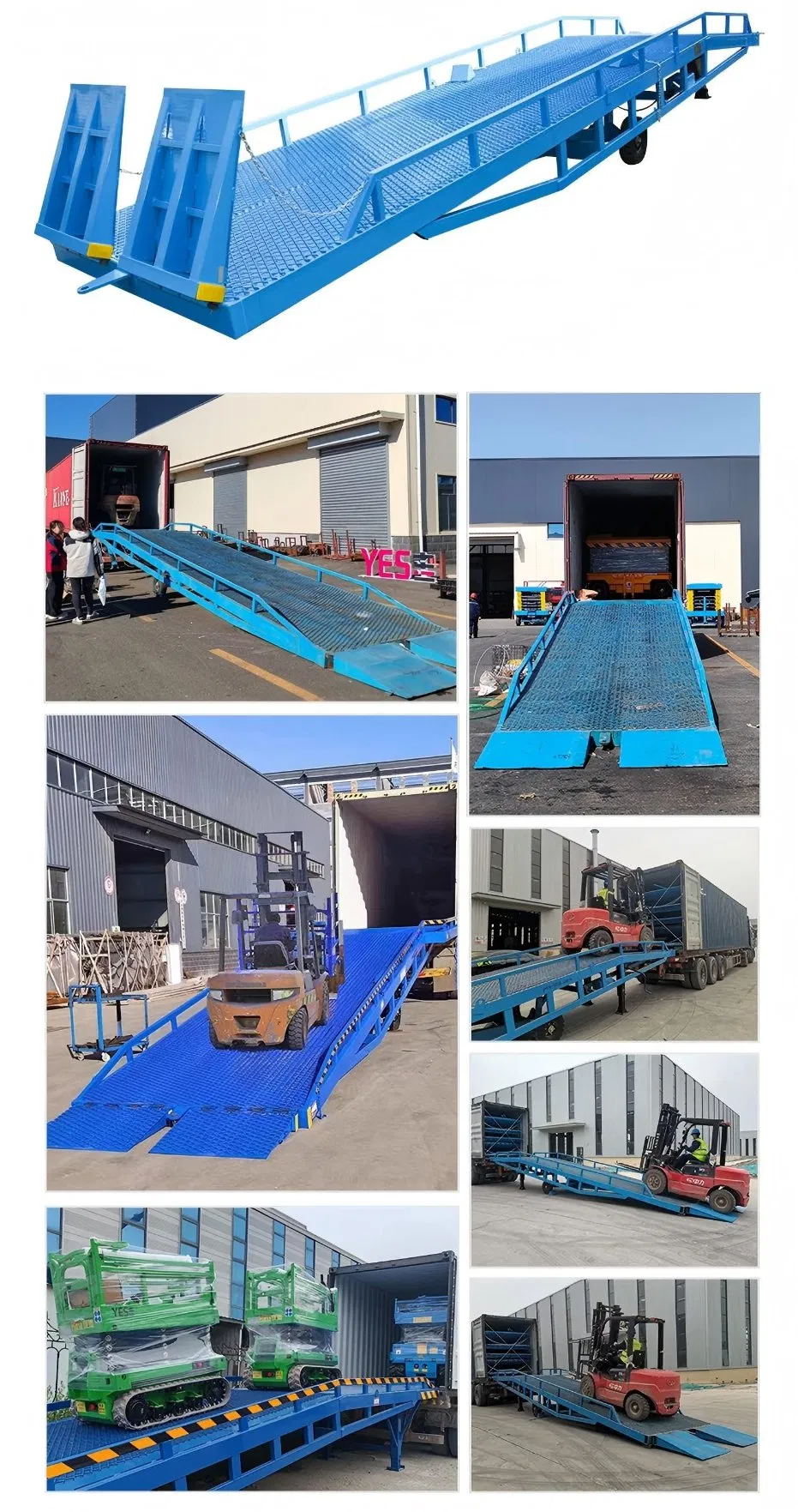

Operational View 1 Operational View 2
Recommended Series Production Process Shipping Info
?

FAQ

FAQ Header
Q: What information should I provide for an inquiry?
A: Please provide load capacity, span, lift height, traveling distance, and power source for a more detailed quote.
Q: What is your minimum order quantity (MOQ)?
A: Our minimum order is 1 set.
Q: How is the product packaged for shipping?
A: The main body is packaged with plywood boxes or plastic woven fabrics; spare parts are secured inside plywood boxes.
Q: What is the typical delivery cycle time?
A: Usually within 10 to 40 days after receiving advance payment, depending on the specific requirements.
Q: Do you provide lifting accessories?
A: Yes, we can provide hooks, grab buckets, magnets, pulley blocks, locks, wire ropes, and fiber ropes.
Q: Do you offer custom services?
A: Yes, we support both OEM and ODM services based on your specific operational needs.
