Stainless Mobile Weighing Pallet Truck-ZFS20

1 / 2

Stainless Mobile Weighing Pallet Truck-ZFS20

Customization:	Available
After-sales Service:	YES
Warranty:	1 YEAR

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZFS20, ZFSP20

Type

Manual Pallet Truck

Power

None

Load Capacity

1T - 5T

Fuel

None

Load center

500mm

Lift height

205mm

Condition

New

Capacity

2000kg

Transport Package

2PCS/Pallet

Specification

HS Code

8427900000

Production Capacity

500 Pieces Per Month

Product Key Features

✔

Premium Construction: 100% stainless Grade 316 for maximum durability and corrosion resistance.

✔

Advanced Electronics: Small and compact electronics specially developed for mobile weighing with a robust housing to withstand impacts and vibration.

✔

Waterproof Performance: Highest level of water and humidity resistance, featuring a totally sealed design to IP 65 (NEMA 4) norms for easy wash down.

✔

Enhanced Reliability: Single electronic board without connectors ensures years of reliability in the hardest applications.

✔

Energy Efficient: Lower power consumption; new batteries are typically required only once per year when weighing 10 pallets per day. Auto shut-off prevents battery discharge.

✔

Verification System: Summation of weights with sequence number allows for total load verification.

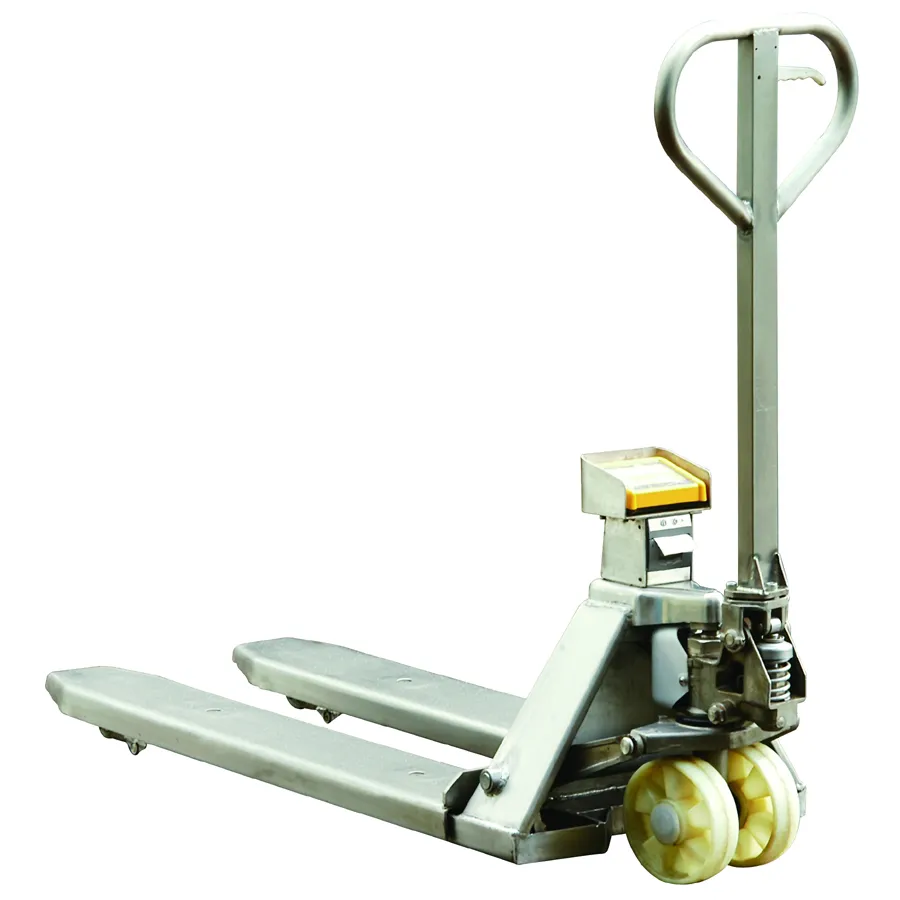

Stainless Mobile Weighing Pallet Truck With Printer

ZFS Series With Printer

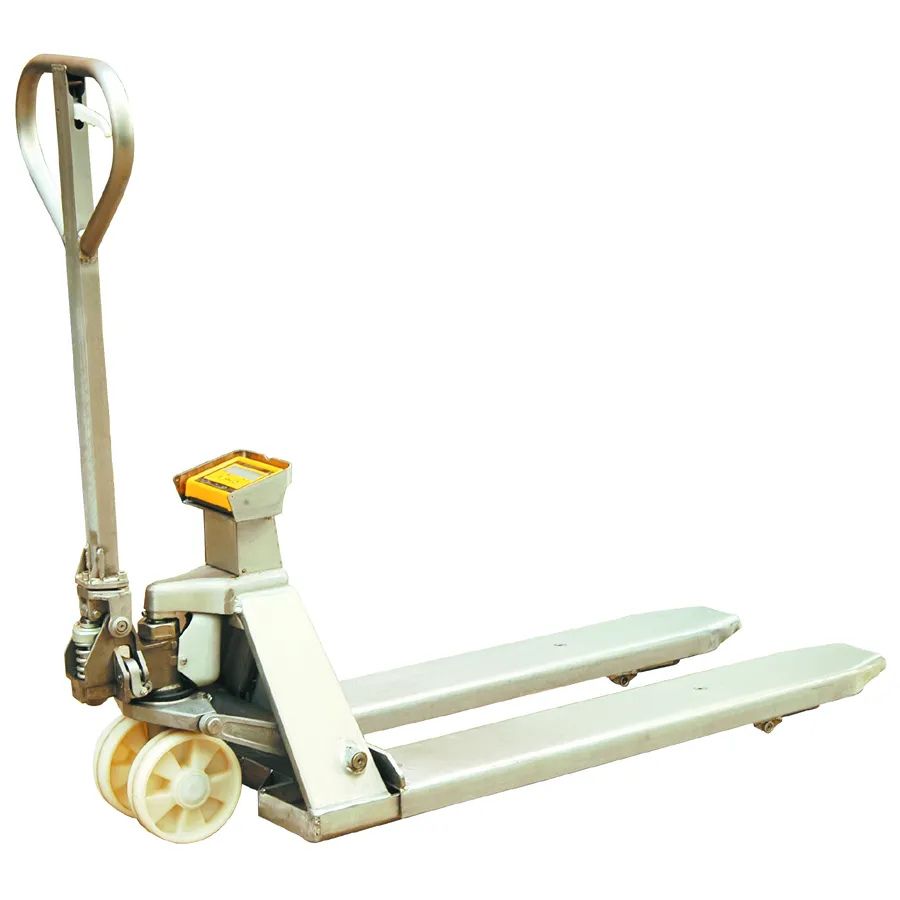

Stainless Mobile Weighing Pallet Truck Without Printer

ZFS Series Without Printer

Technical Specifications

⚙

Capacity: 2000kg | Accuracy: 0.1% of applied weight | Graduation: 1kg

⚙

Display: High contrast display with segment height of 18 mm.

⚙

Interface: Touch panel with push buttons and metal dome tactile feel.

⚙

Temperature Range: Operating temperature -10° to +40° C. RoHS compliant and EN1752-2 conformity.

⚙

Printer Data (Optional): Thermal type, manual paper feed, 13 lines/second print speed, low battery/no paper LED indicators.

Model	Unit	ZFS20S	ZFS20L	ZFSP20S	ZFSP20L
Capacity	(kg)	2000		2000
Printer	-	without		with
Max. Fork Height	(mm)	205		205
Min. Fork Height	(mm)	85		85
Fork Length	(mm)	1150		1150
Width Overall Forks	(mm)	555	690	555	690
Fork Width	(mm)	180		180
Net Weight	(kg)	117	120	118	121
* 3" (75mm) lowered fork height available.

Detailed Views

Frequently Asked Questions

What material is the ZFS20 series made of?

The series is constructed from 100% stainless Grade 316, making it ideal for corrosive environments and mobile weighing.

How accurate is the weighing system?

The system provides high accuracy of 0.1% of the weight applied to the scale, with a graduation of 1kg.

Can the equipment be used in wet environments?

Yes, it features a totally sealed design conforming to IP 65 (NEMA 4) norms, making it resistant to humidity and easy to wash down.

What is the battery life of the weighing unit?

Due to low power consumption, 4 penlight batteries can last up to one year when weighing 10 pallets per day. It also features an auto shut-off function.

Does this model support thermal printing?

The ZFSP20 models (ZFSP20S and ZFSP20L) come equipped with an integrated thermal printer for weight documentation.

What is the operating temperature range?

The standard operating temperature range for the weighing system is from -10° to +40° C.
