Basic Product Information
Type

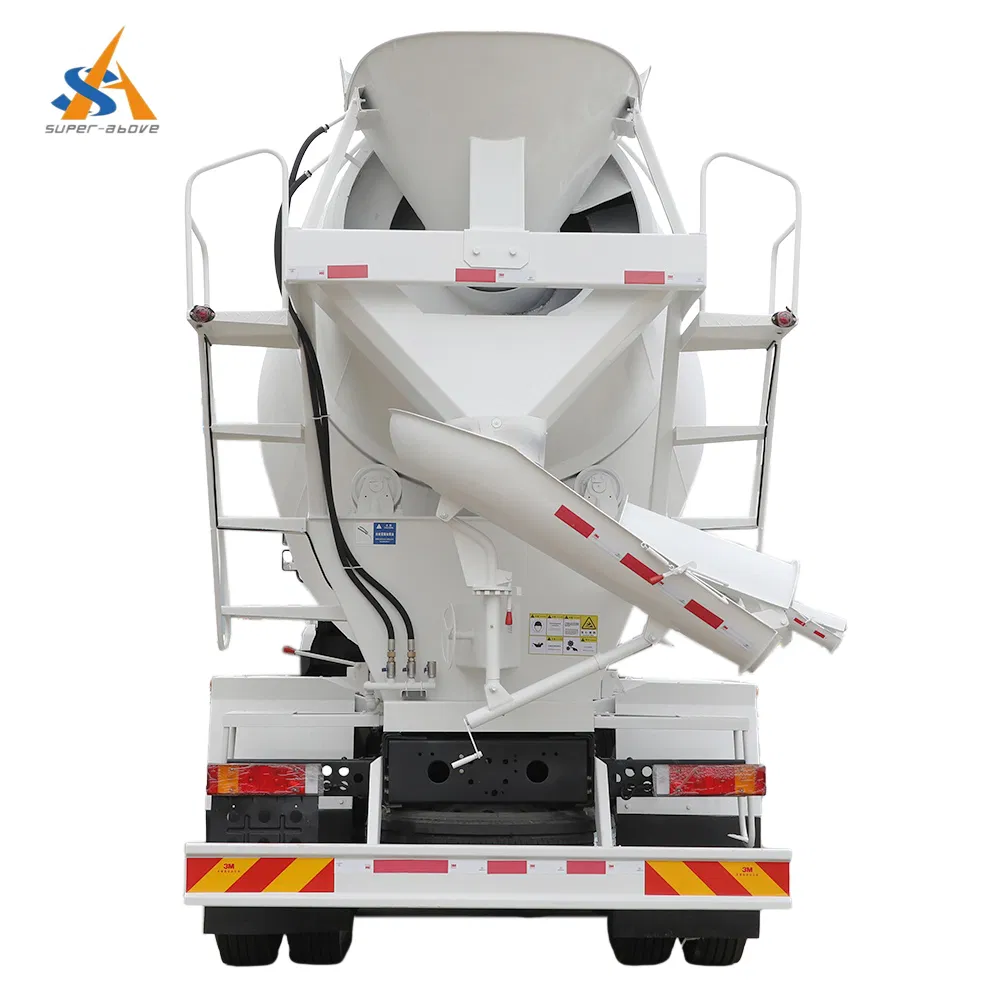

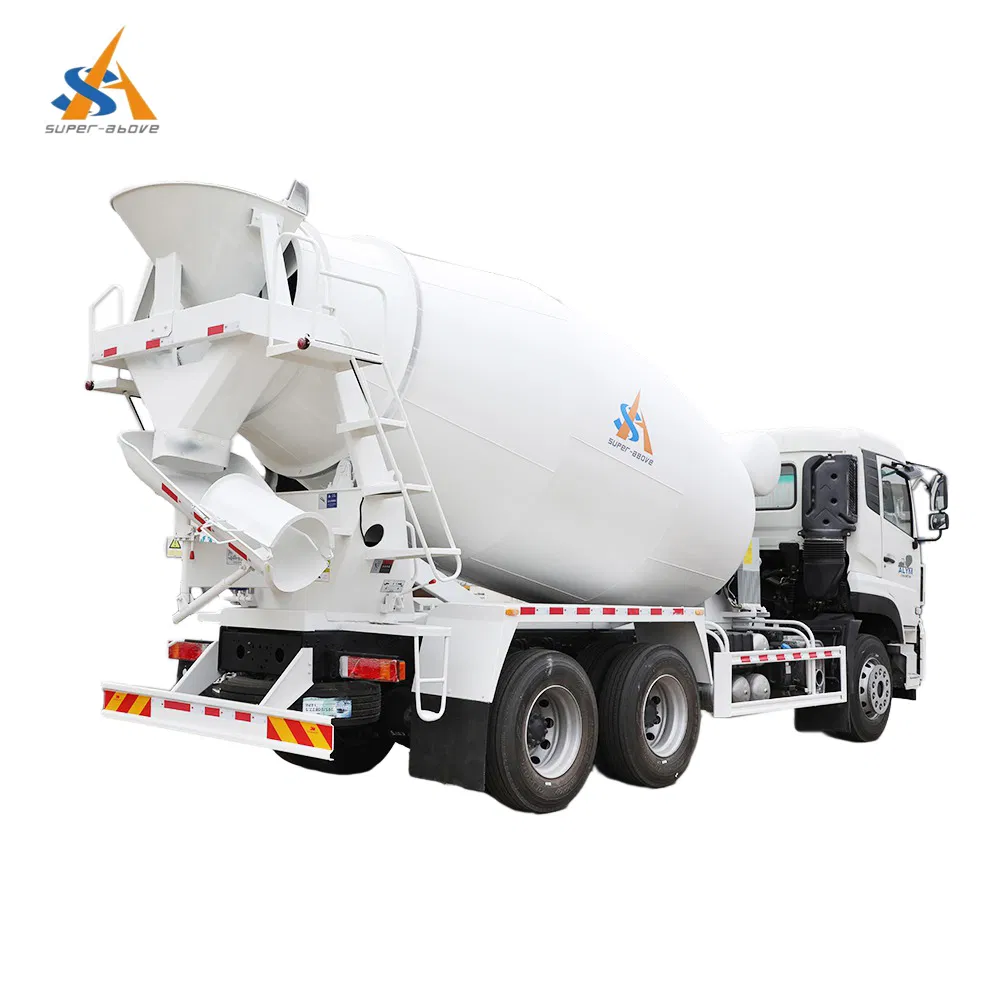

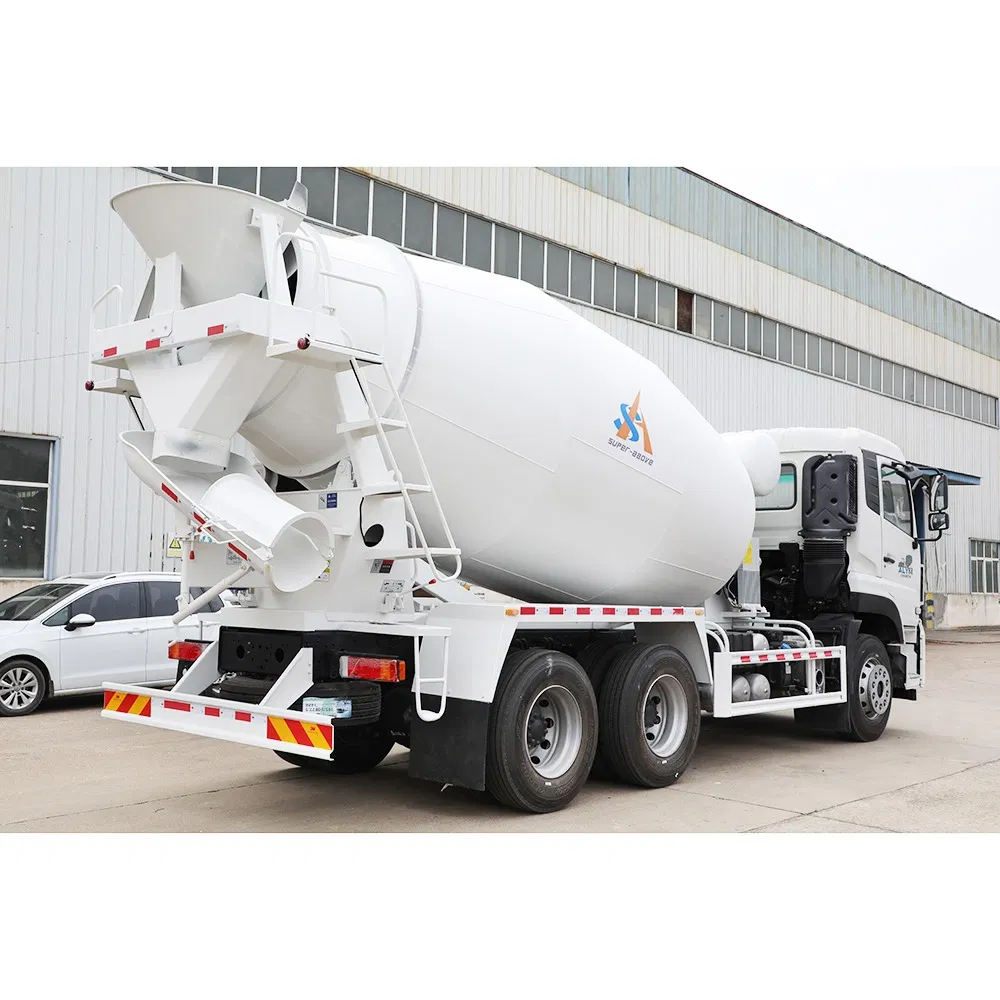

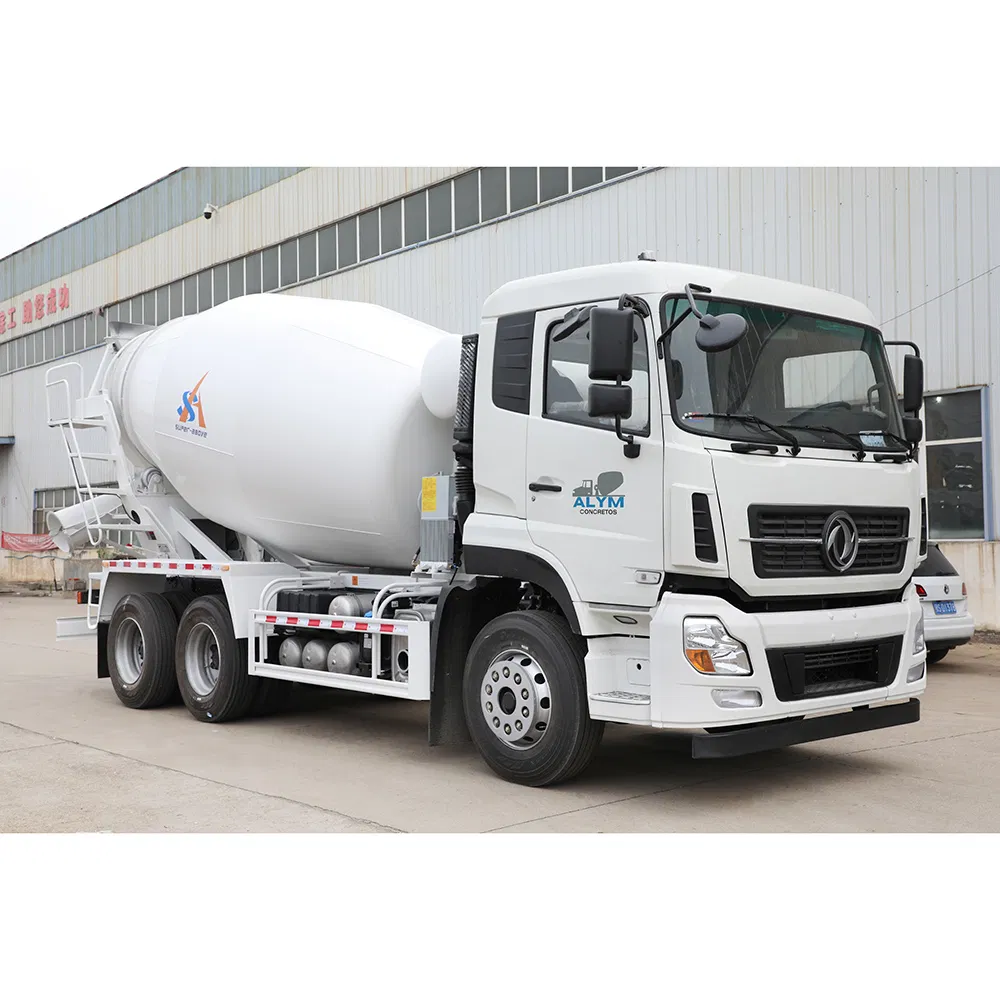

Concrete Mixing Truck
Machining Process
Hydraulic
Production Capacity
1000PCS/Year
Product Overview

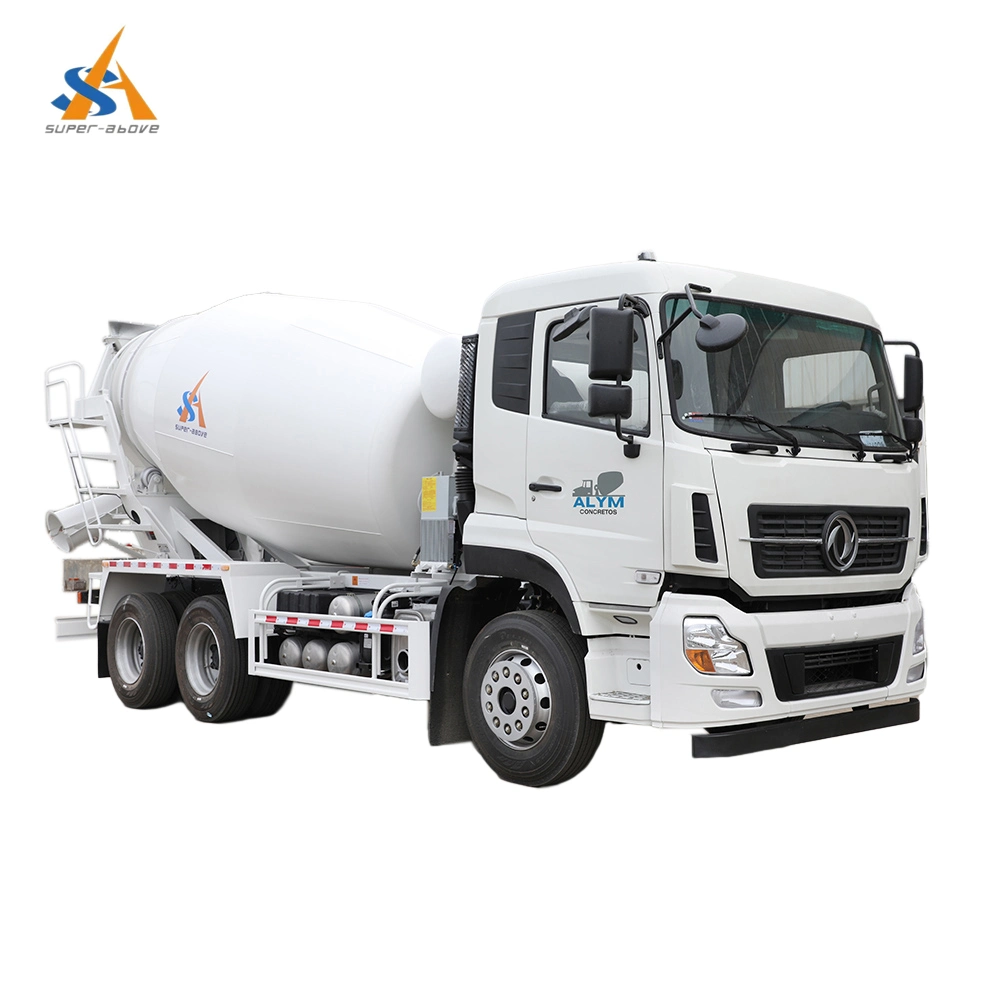

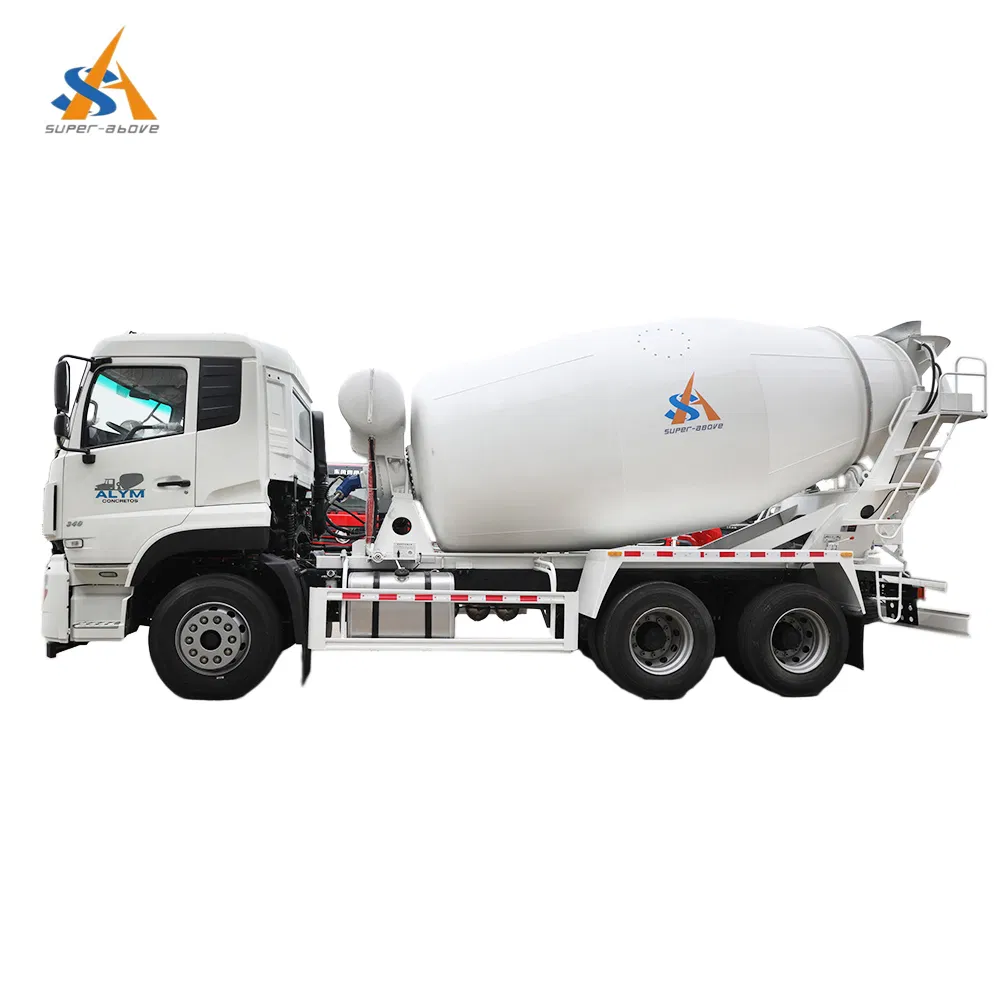

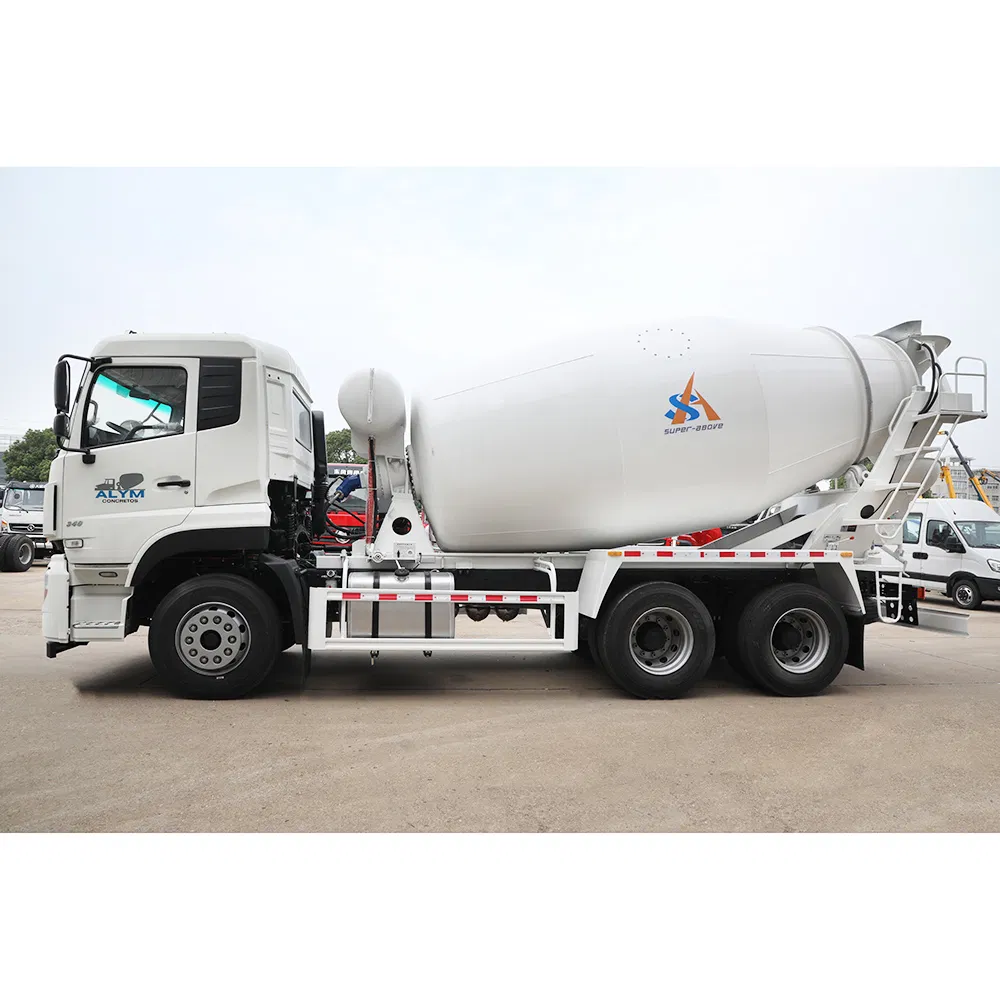

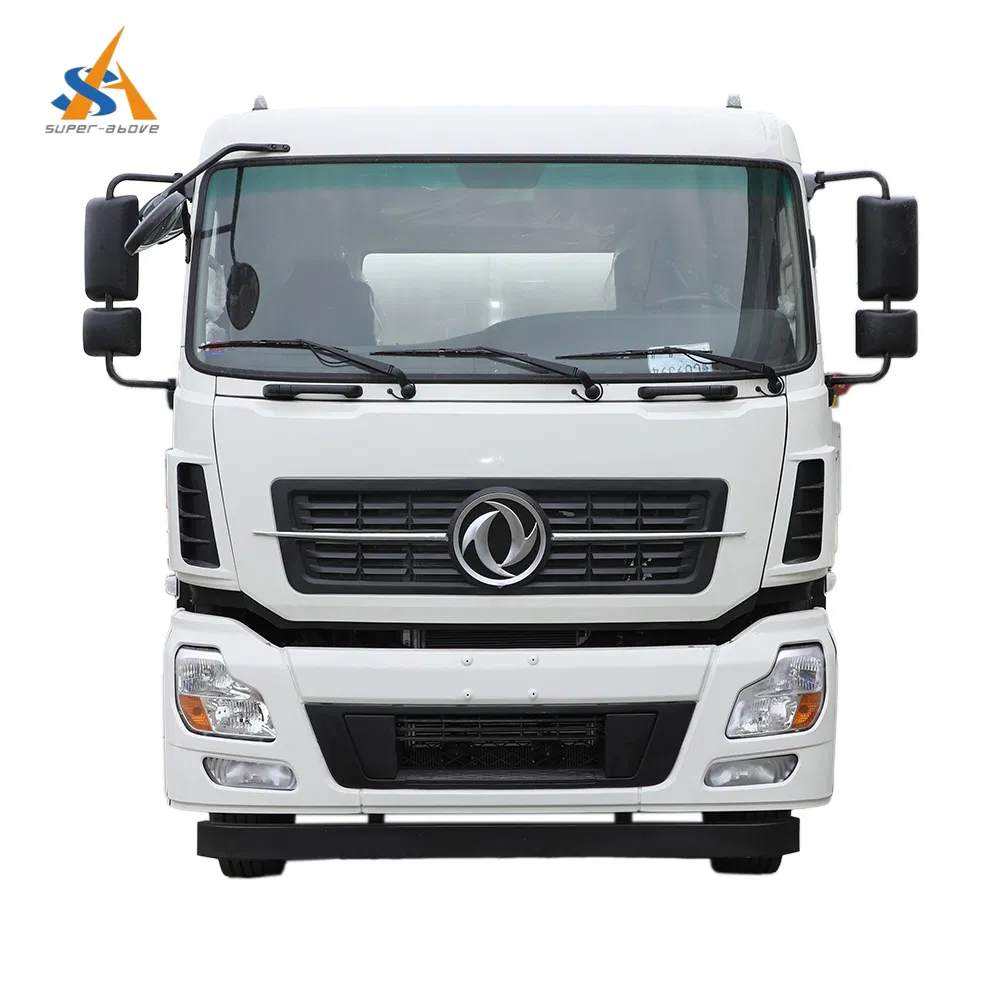

Concrete Mixer Truck solutions ranging from 6-20cbm capacity, designed for efficient cement transportation and mixing.
Technical Specifications
| Parameter Item |
Details (SACMT24) |
| Dimension (LxWxH) (unloaded) (mm) | 8560X2496X3048 |
| Approaching/Departure angle (°) | 16/24 |
| Wheelbase (mm) | 3825+1350 |
| Max speed (km/h) | 90 |
| Curb weight (kg) | 10580 |
| Total Weight (kg) | 25000 |
| Engine | Model | WD615.69 Water-cooled, 6 cylinders |
| Horse Power | 336HP |
| Emission | EURO4 |
| Fuel tanker capacity (L) | 400L |
| Transmission | Model | HW19710, 10 Forward, 2 Reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Steering system | Model | 8118 |
| Tyre Size | 12.00R20 |
Key Features & Introduction
System: Schwing Technology

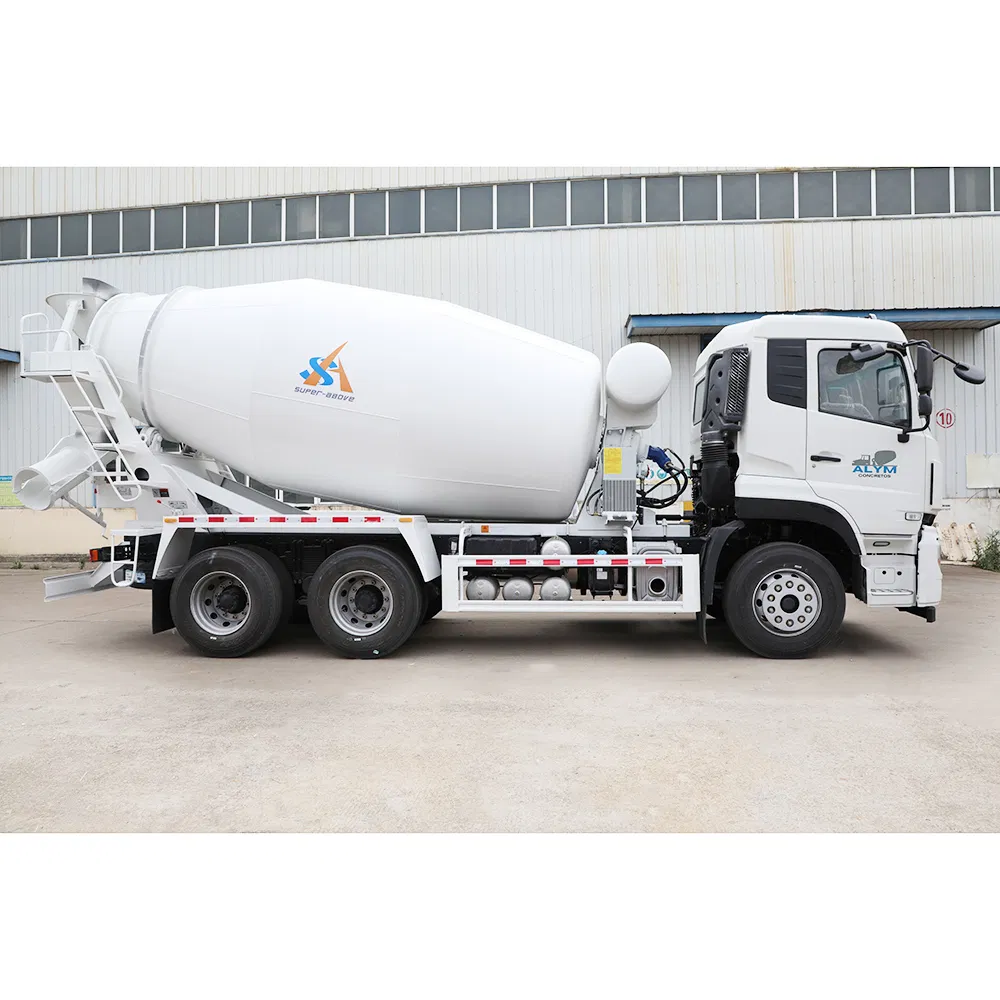

Chassis Options: Compatible with major international brands (4x2, 4x4, 6x4, 6x6, 8x4, 8x8).
- Double helical blades in tank body ensure moderate density and symmetrical mixing.
- Advanced guiding blades for faster and more even discharge.
- Low angle mixing drum extends the service life of hydraulic pumps, motors, and reducers.
- High intensity square tube sub-frame with damping for stability under full load and bad road conditions.
- Flexible configurations: 3m3, 5m3, 6m3, 8m3, 10m3, 12m3, up to 18m3 available.
Packaging & Delivery Details
Package Size
950.00cm * 235.00cm * 245.00cm
Transport Package
Roro / Shipping Container
Frequently Asked Questions (FAQ)
Q1: What are the available drum capacities for these mixer trucks?
We offer a wide range of capacities including 3m3, 5m3, 6m3, 8m3, 9m3, 10m3, 12m3, 14m3, and up to 18m3 to suit different project requirements.
Q2: Which chassis brands are compatible with the mixing equipment?
The system is highly versatile and can be mounted on various chassis brands such as DONGFENG, SINOTRUK, SHACMAN, FOTON, HINO, HYUNDAI, and JMC.
Q3: What technology is utilized in the mixing system?
Our trucks utilize advanced Schwing Technology, featuring double helical blades for uniform mixing and high-efficiency discharge.
Q4: Does the truck support both Left Hand and Right Hand Drive?
Yes, the concrete mixer trucks can be configured with either left-hand drive (LHD) or right-hand drive (RHD) depending on your local traffic regulations.
Q5: How does the low-angle design benefit the vehicle?
The low angle of the mixing drum helps lower the center of gravity for better stability and extends the operational lifespan of the hydraulic motor and reducer.

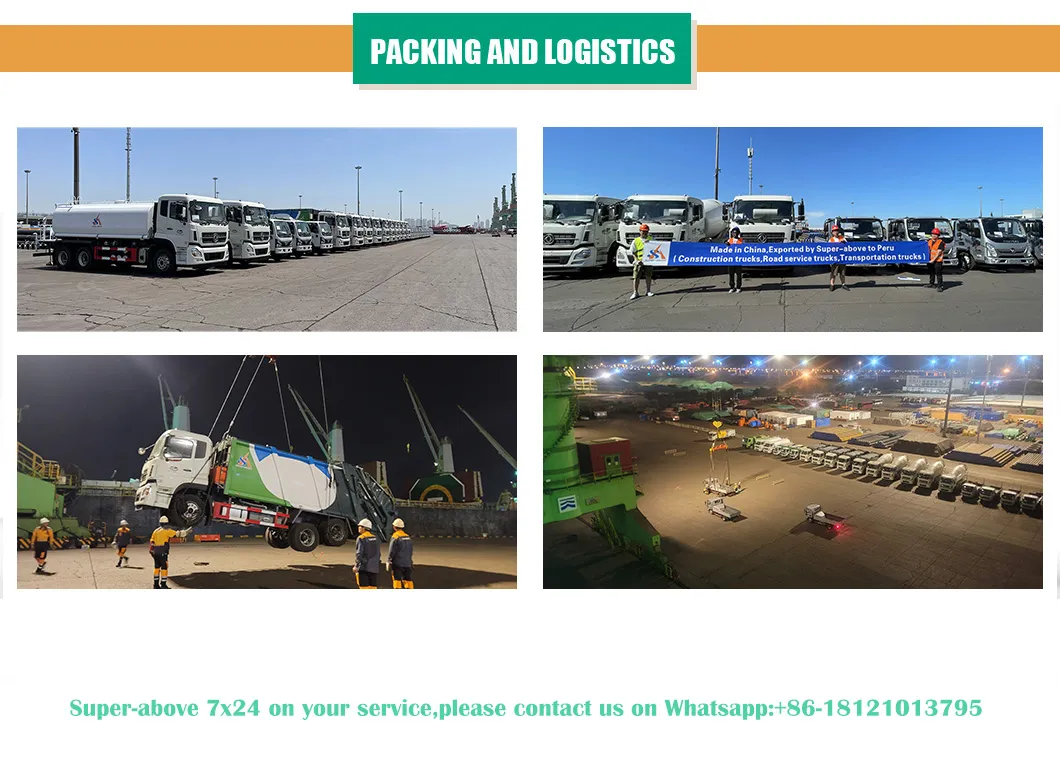

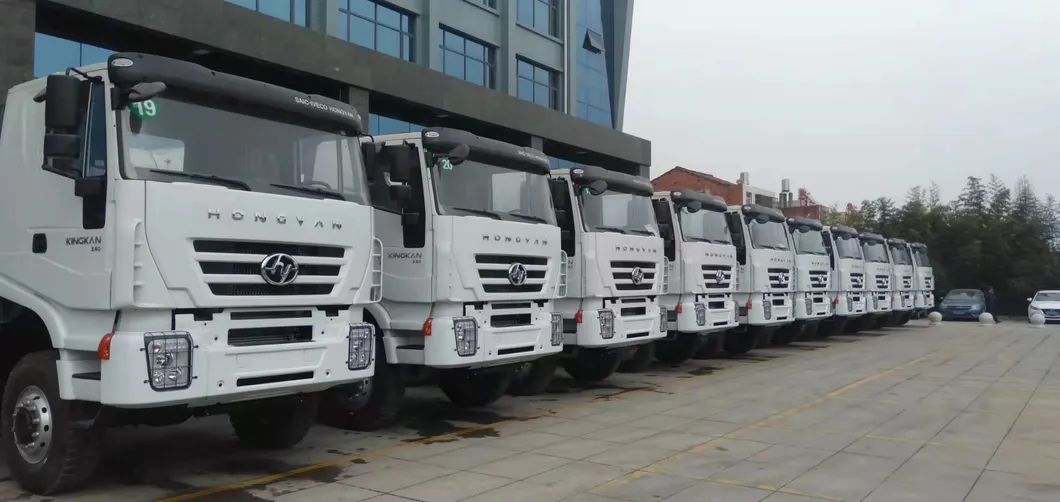

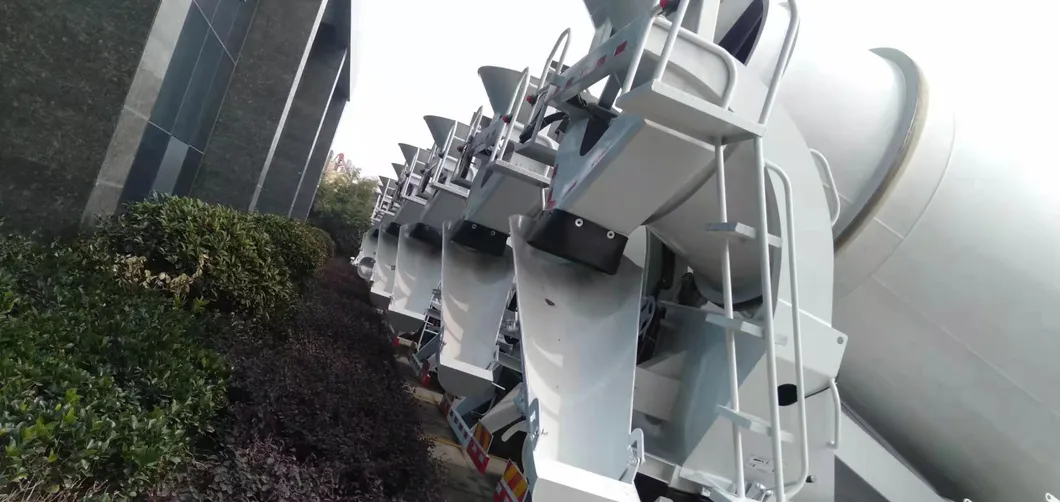

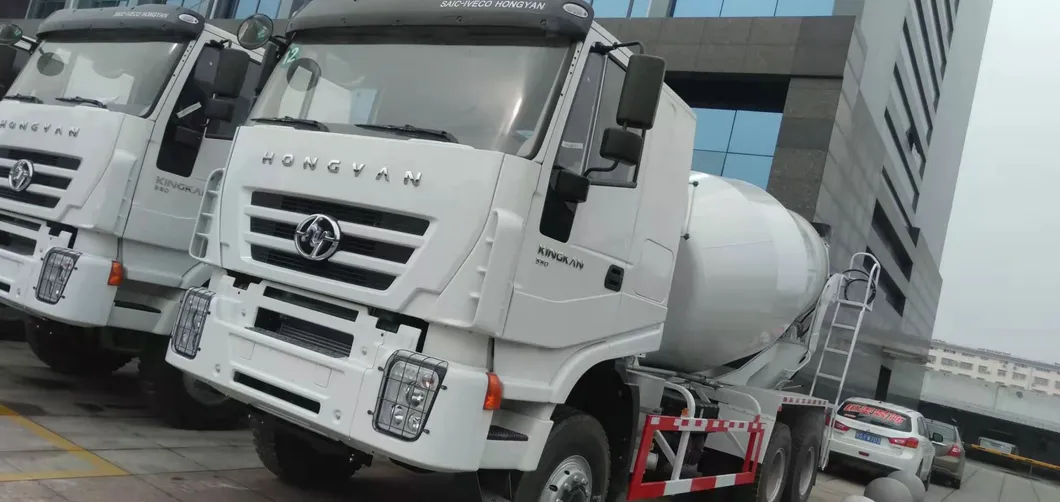

Q6: What are the primary shipping methods for overseas delivery?
Most trucks are shipped via Roro (Roll-on/roll-off) vessels or special containers to ensure safe and efficient international transportation.
