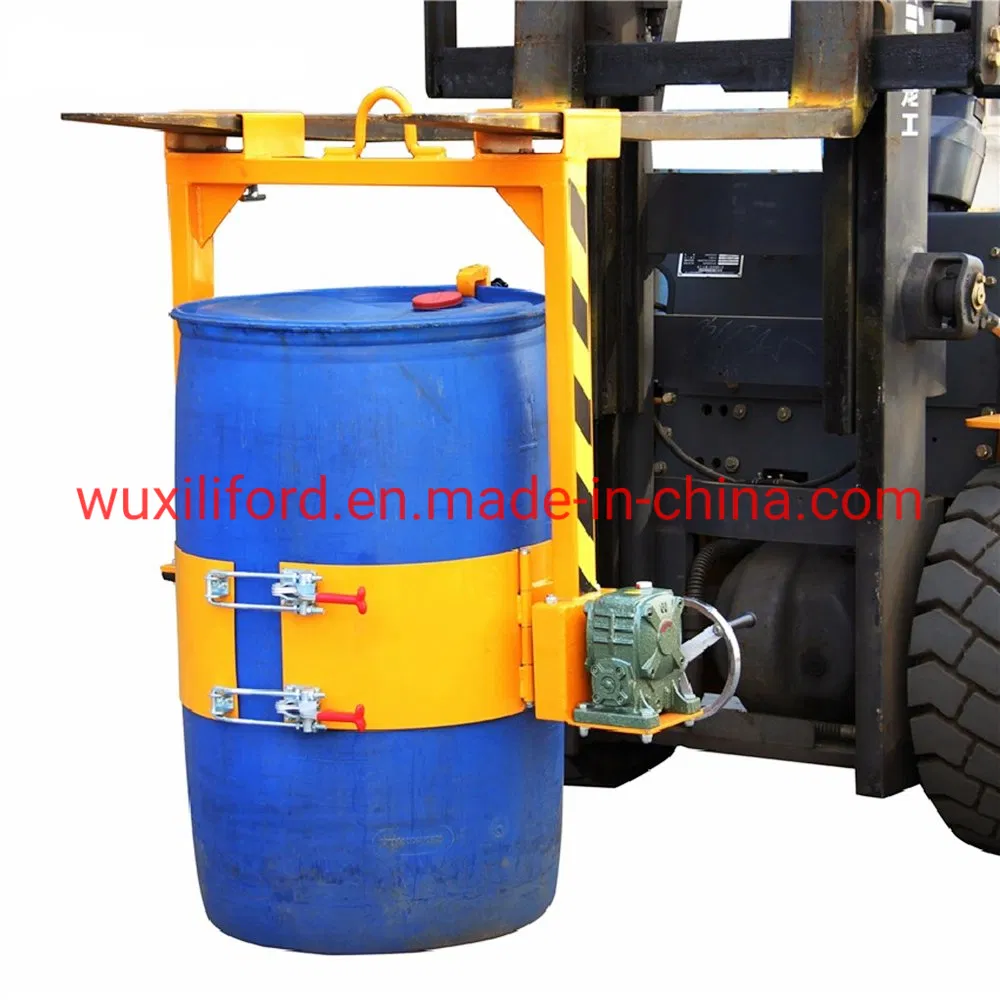

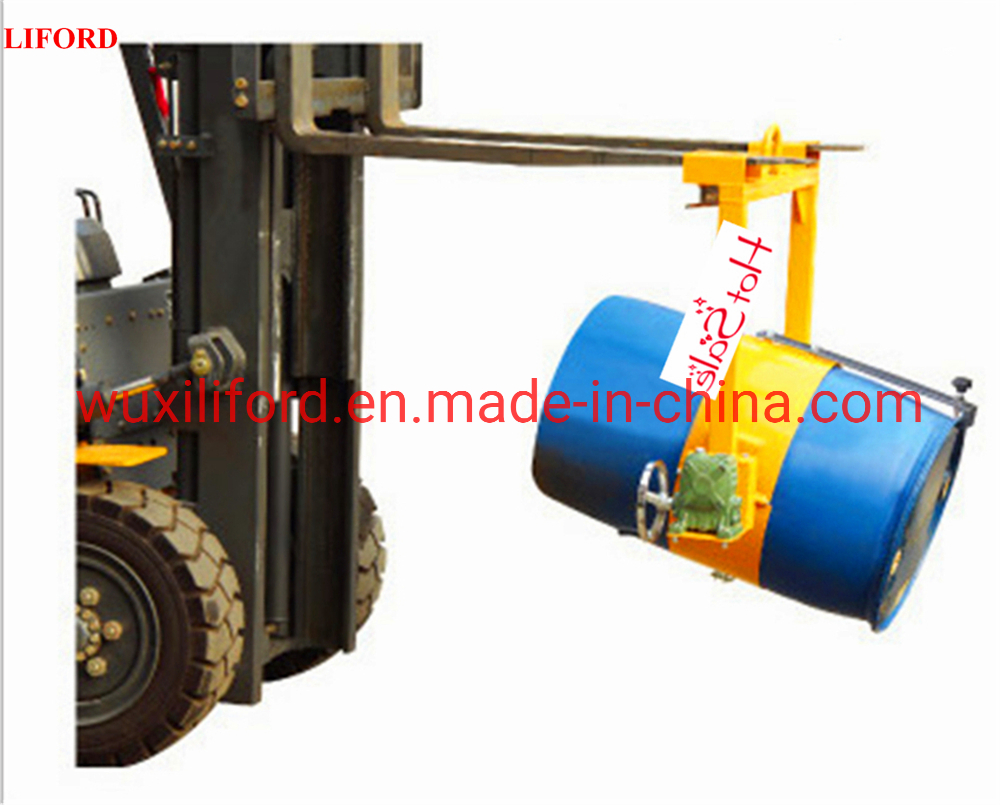

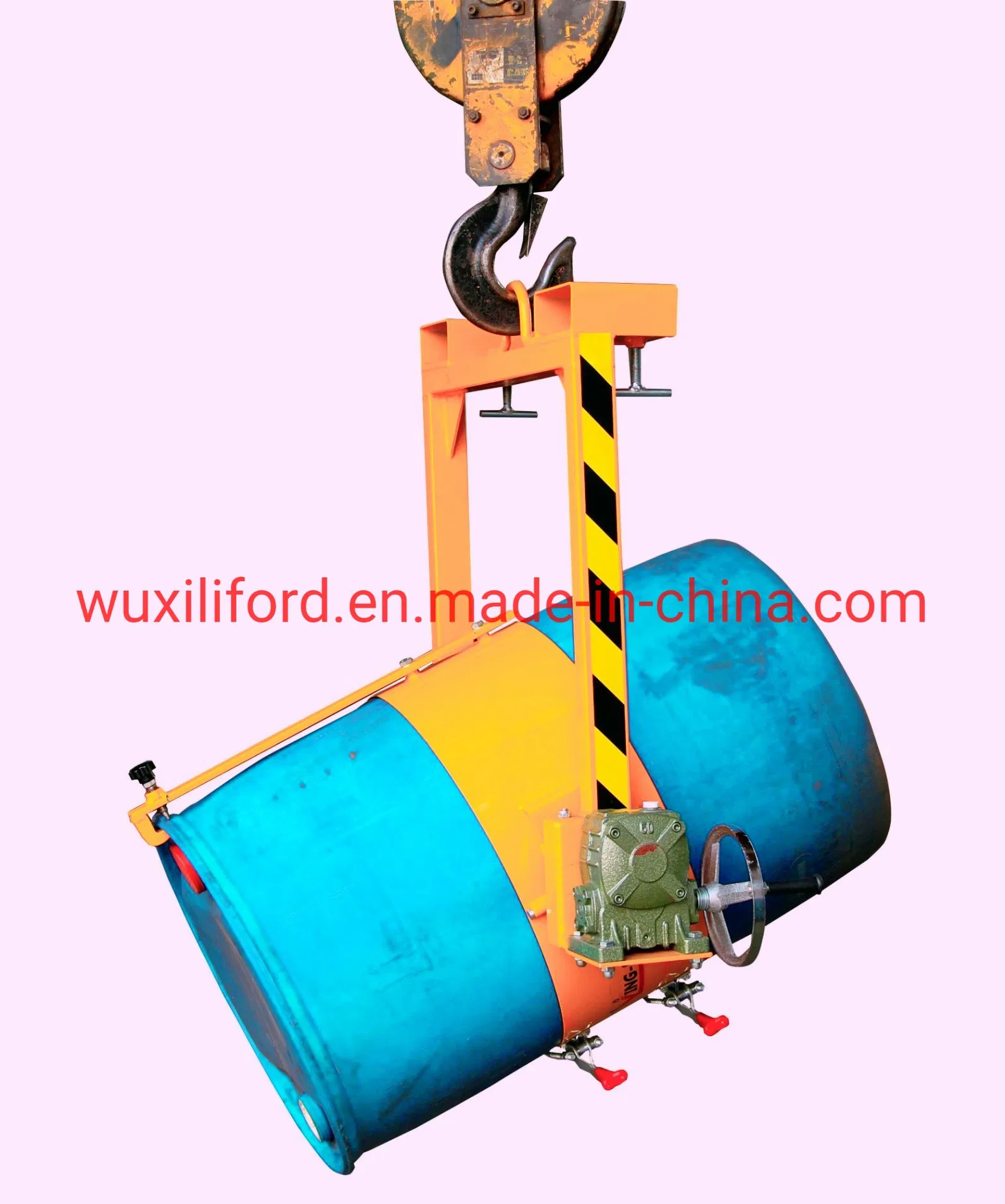

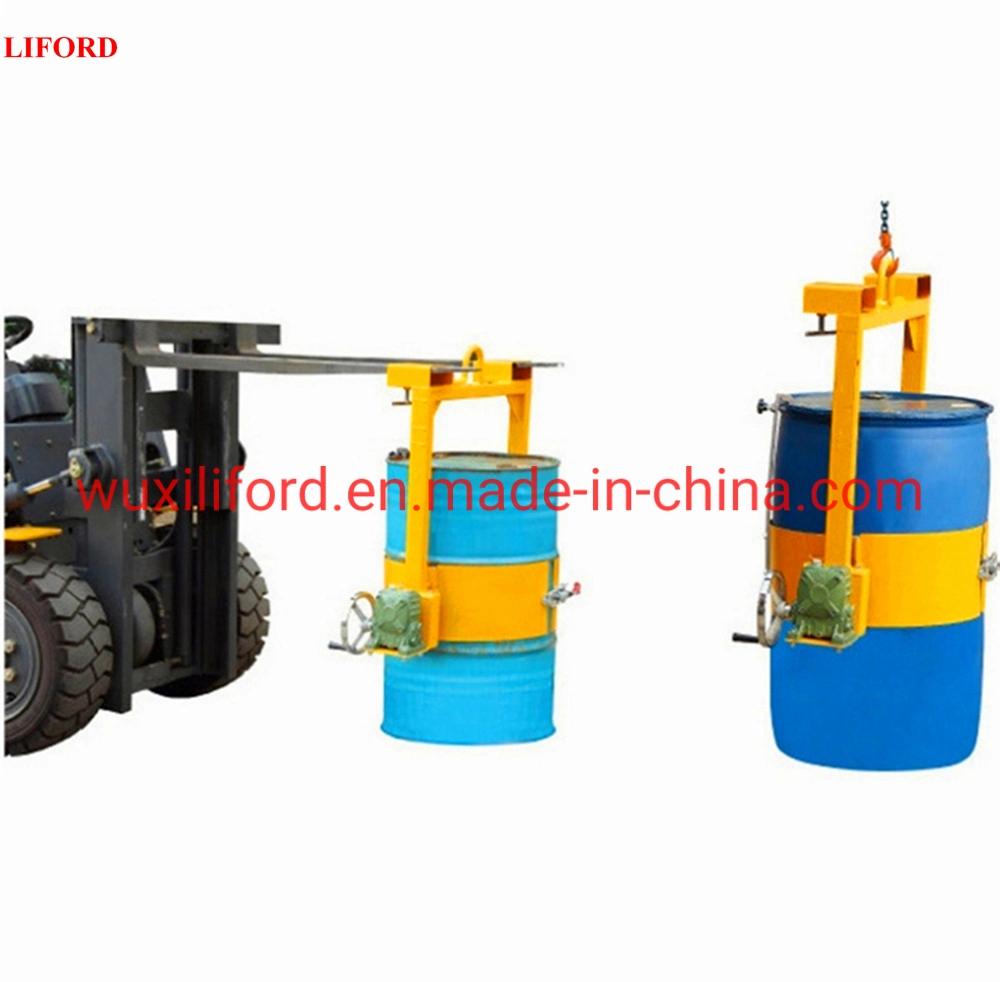

400kg Forklift Drum Lifter Drum Tilter with Manual Type Tilting Lm800

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
LM800
Material
Carbon Steel
Surface Treatment
Powder Coating
Lifting Capacity
400kg
Name
Below-Hook Tilting Drum Dispenser
Type
Drum Handling Equipment
Advantage

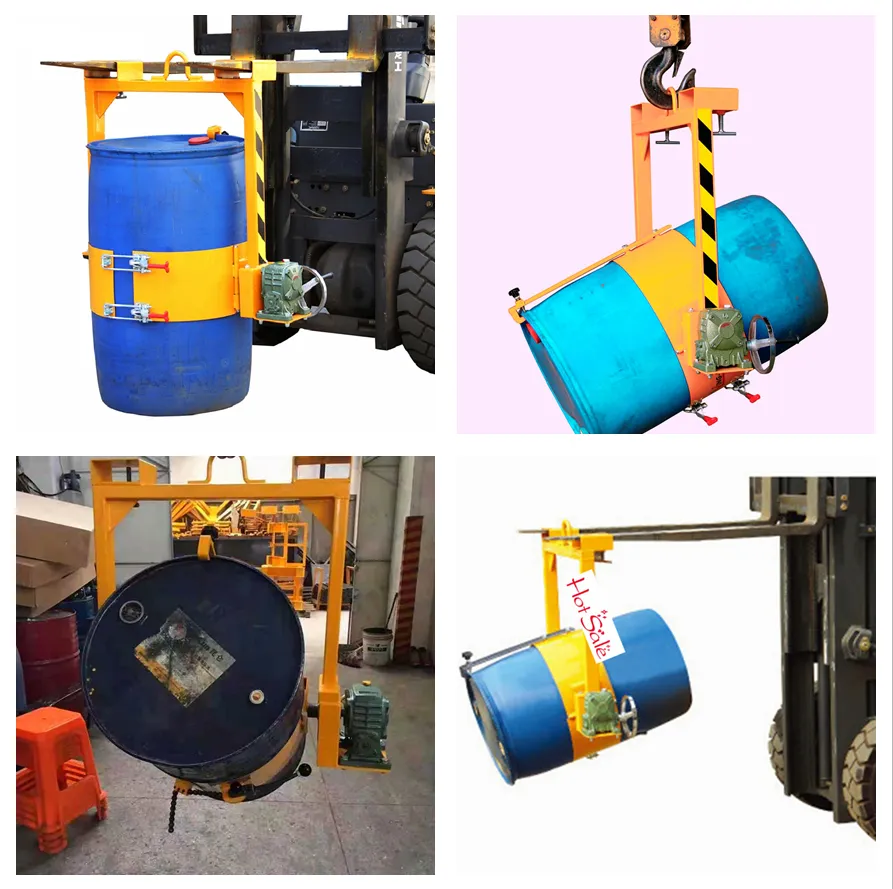

Forklift Mounted and Crane Mounted Type
Colour
Yellow or Customized
Specification
900*600*950mm
HS Code
84289090
Product Description

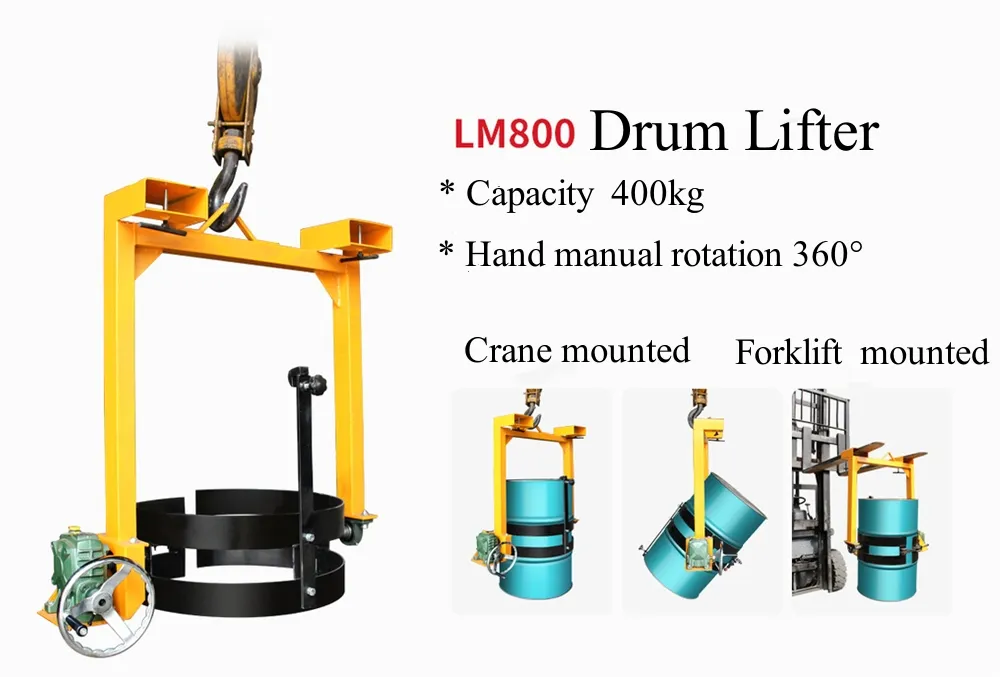

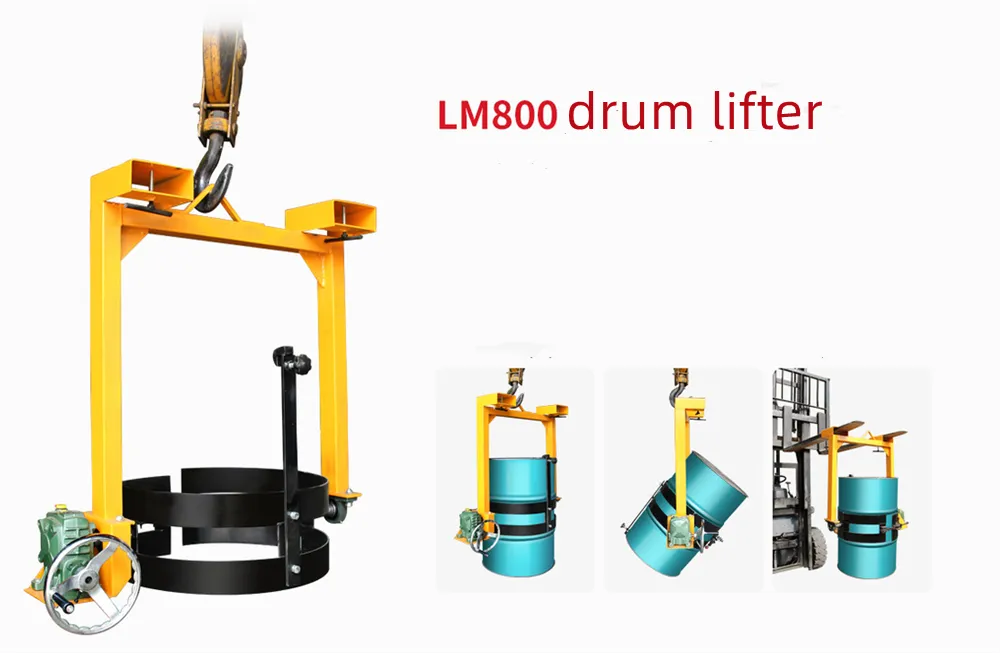

Drum Lifter LM800
400kg Warehouse Drum Tilter Manual Drum Lifter LM800
Vertical Drum Lifter

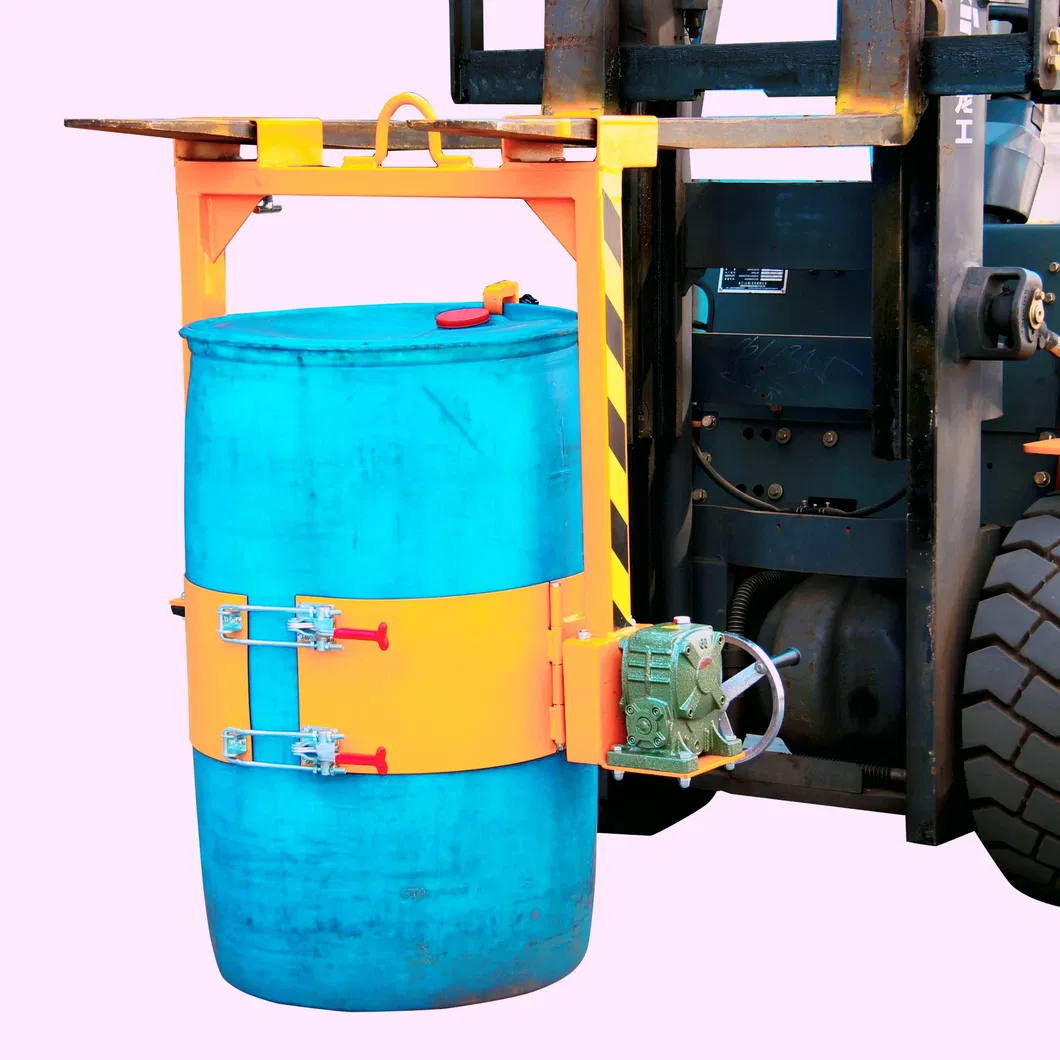

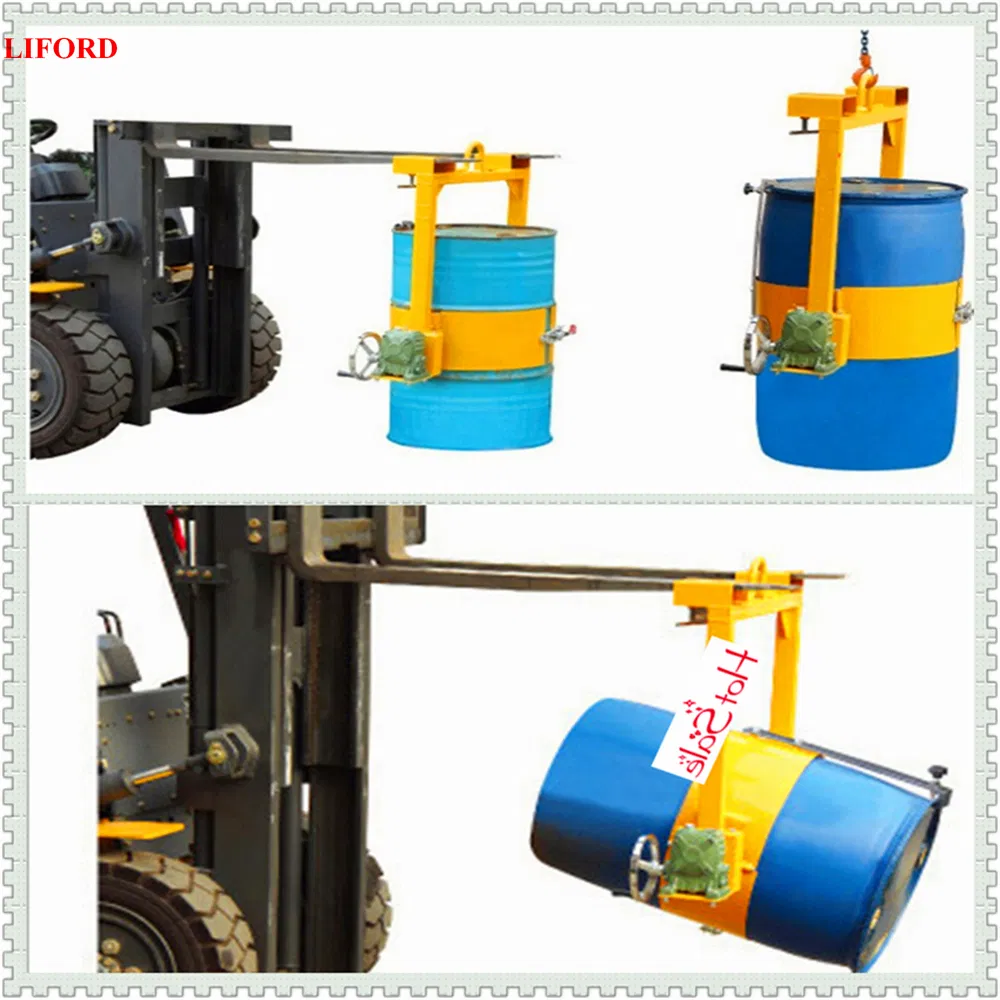

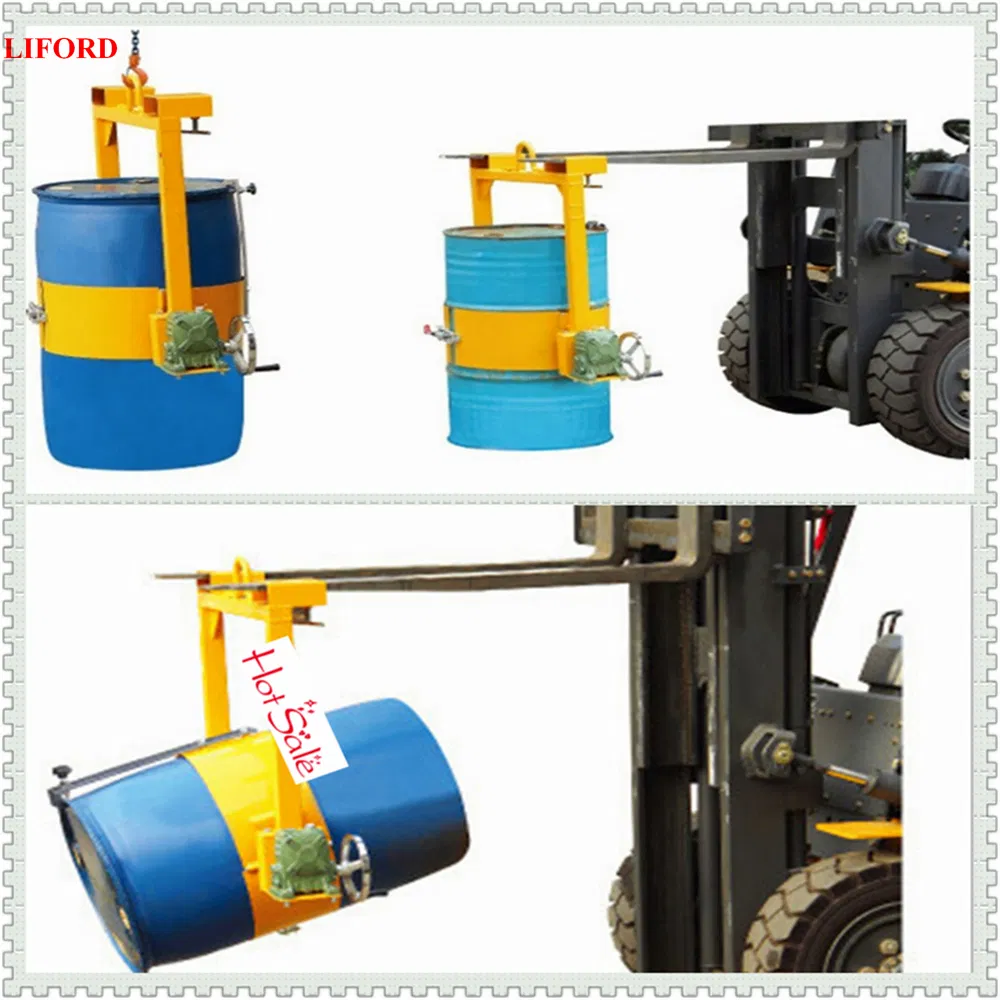

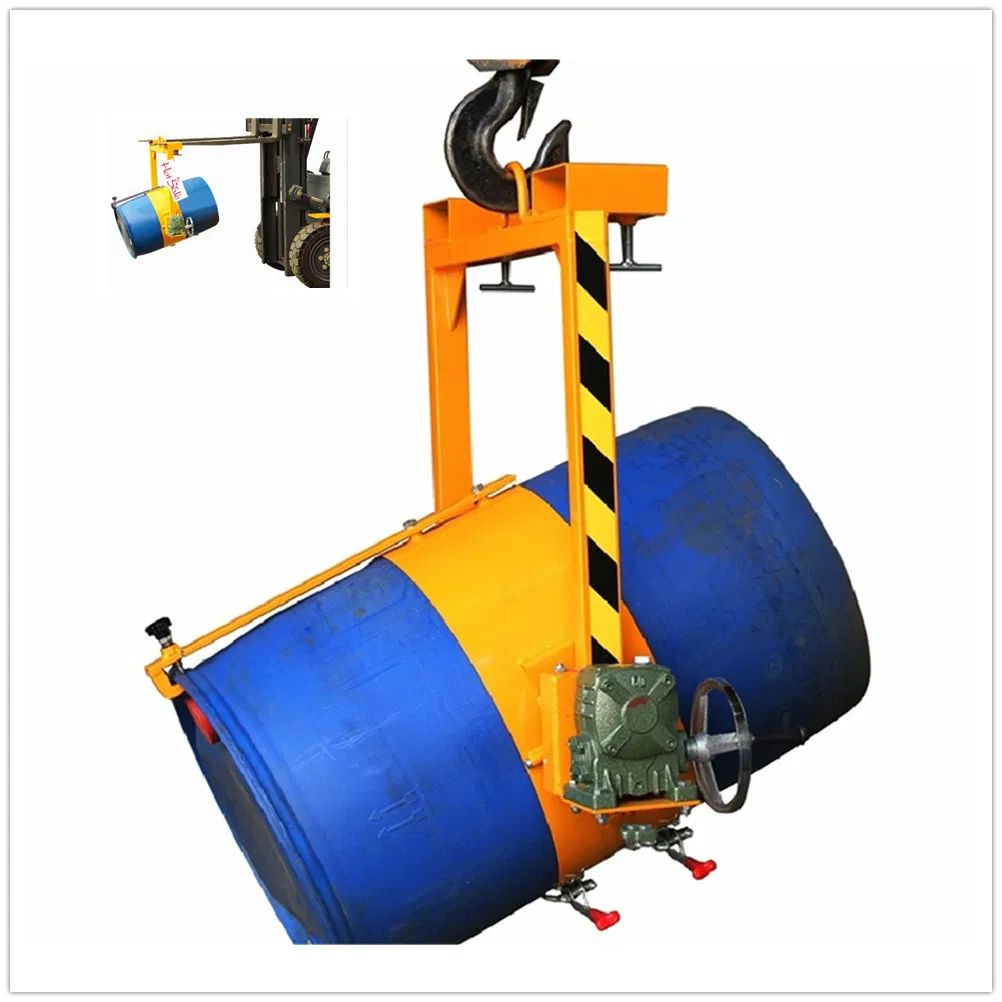

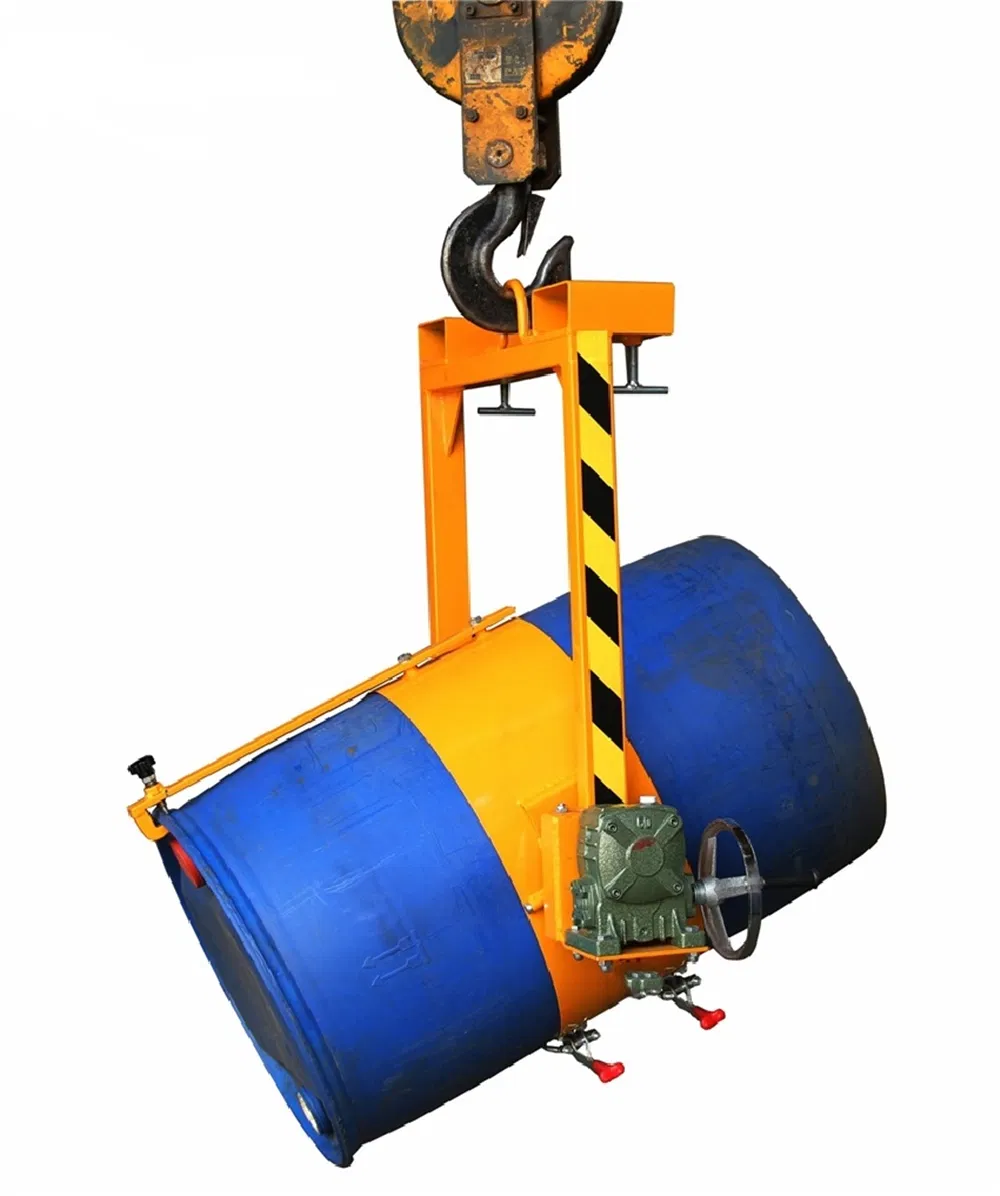

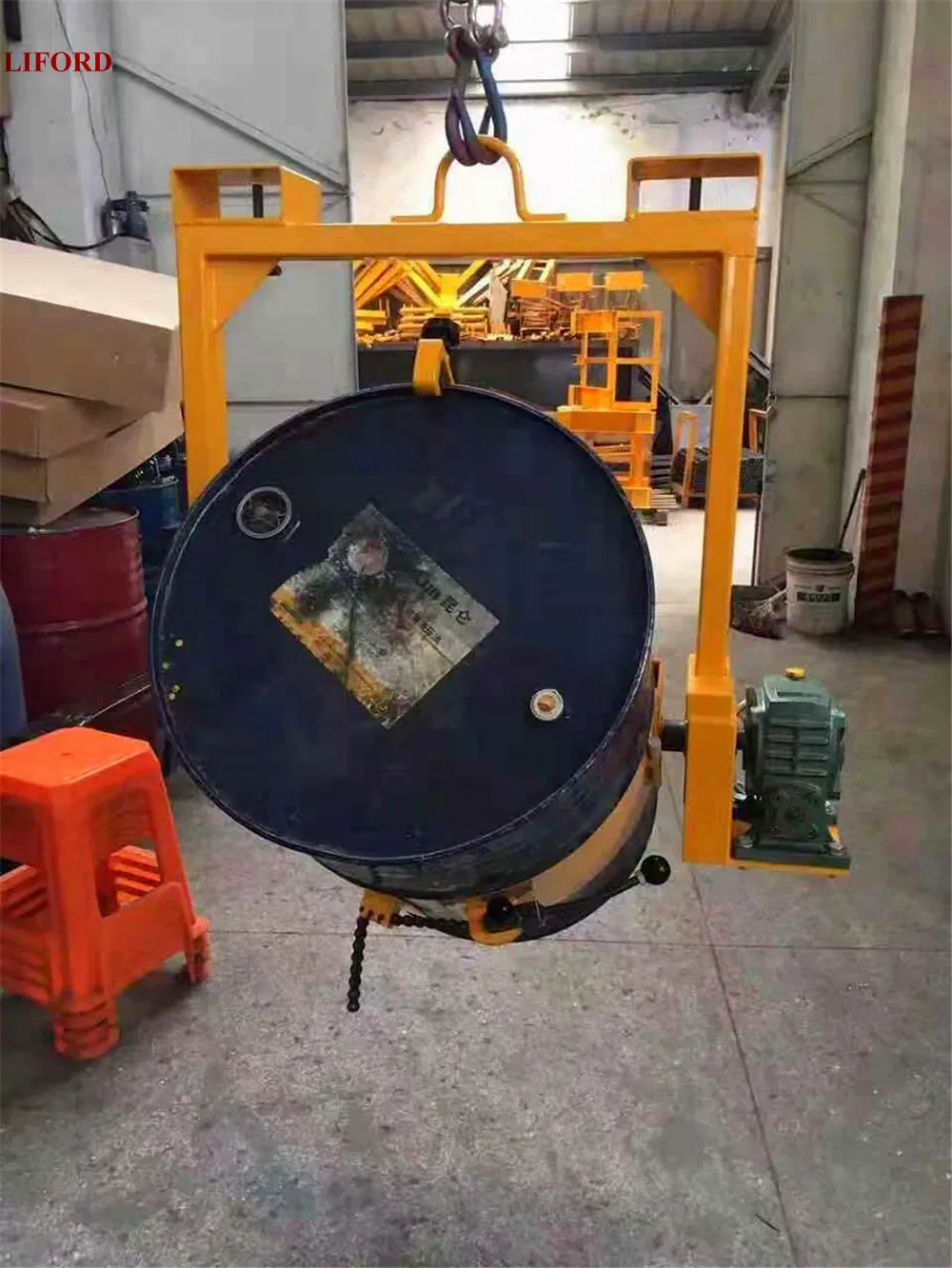

Vertical Drum Lifter, Drum Dispenser LM800 can be easily mounted on forklift and crane to lift steel and plastic drums, and dispense contents. This simple structure drum lifter is a type of One-person Operated drum handlers, which can greatly save time, reduce spilling waste, and improve productivity. Simply attach or hang lifter on hook from an overhead hoist or crane, cinch saddle around drum, and raise to desired height and position.

Key Features
Lift, transport, and pour from open and closed head drum.
Suitable for 55 gallon steel or 200 liter double closed plastic drums.
Positive tilt lock on drum saddle to hold drum upright in transit.

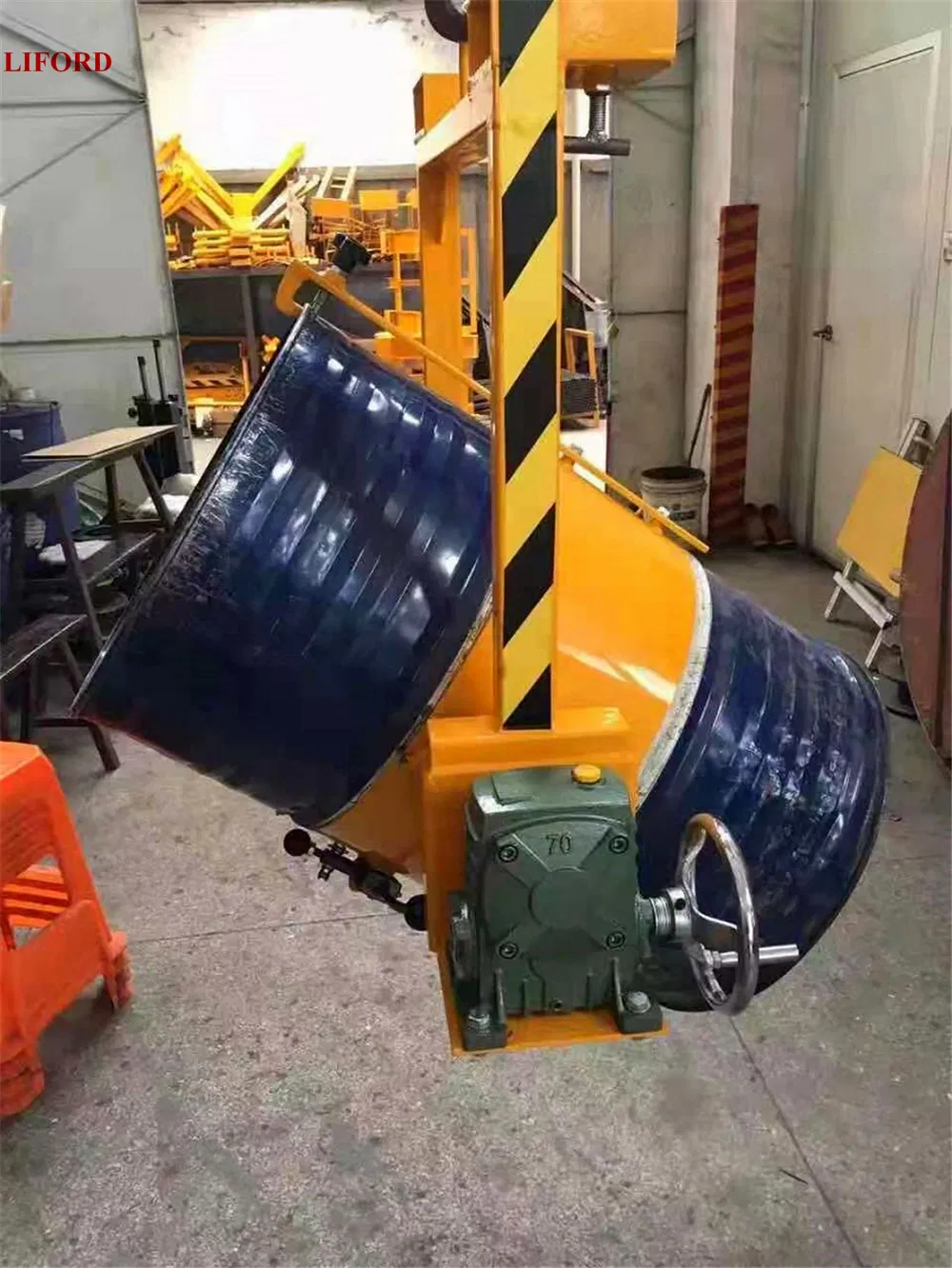

Manual 360-degree rotation in either direction for controlled pouring.
One-person operation saves time and reduces spilling waste.
Product Detail
Technical Data
Specification Item Unit Data (LM800)
Rated Load Capacitykg400
Net Weightkg44
Inner Diameter of Supporting Legmm150*55
Inside Width of Supporting Legsmm420
Outside Width of Supporting Legsmm720
Overall Sizemm900*600*950

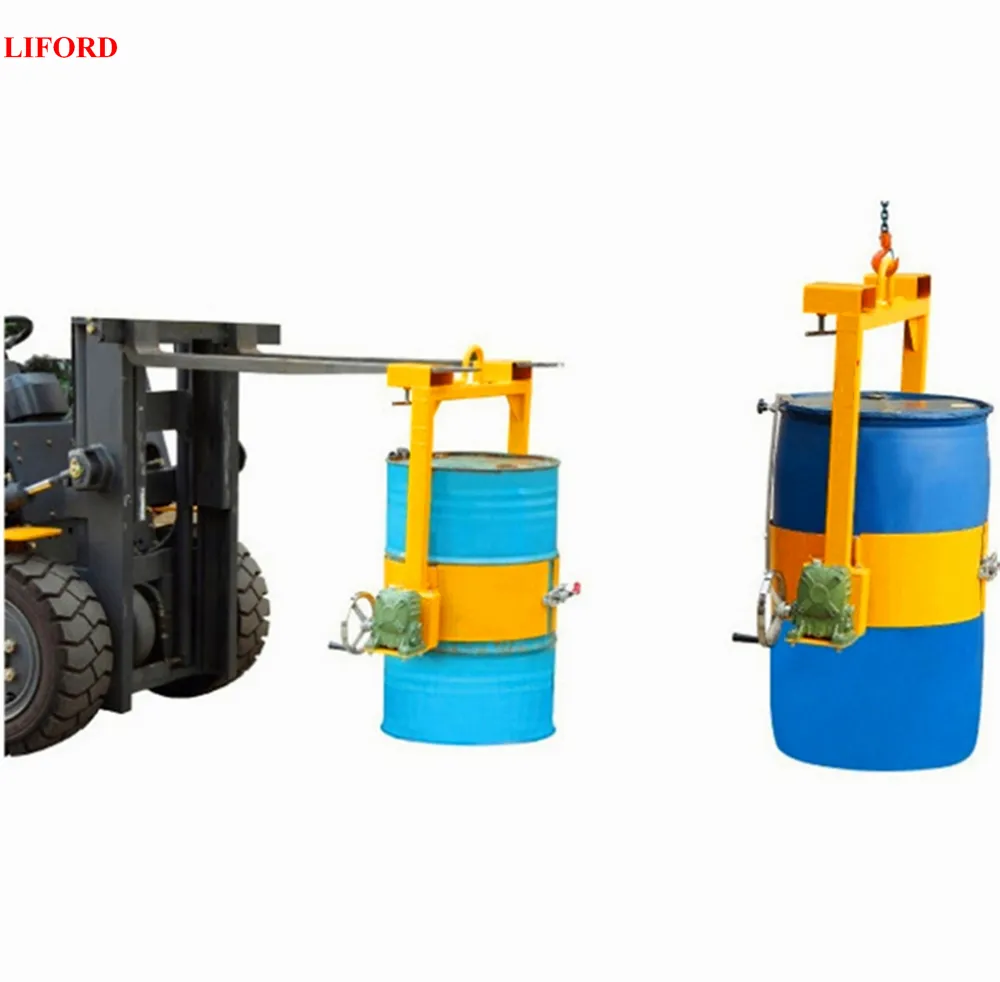

Applications

Applicable for handling drums in chemical plants and food plants for transferring, loading & unloading, charging and compounding materials of fluids, such as dyes, paintings, adhesives, petrol and edible oils, etc.

Global Quality & Feedback

Implementation of quality in every detail by strictly arranging production and inspection. Trusted by numerous enterprises worldwide across more than 20 countries.

Global Cooperation
Packing & Delivery
FAQ
Q1: What is the maximum lifting capacity of the LM800?
A1: The LM800 is rated for a maximum load capacity of 400kg.
Q2: Can it be used with both steel and plastic drums?
A2: Yes, it is suitable for 55-gallon steel drums and 200-liter double-closed plastic drums.
Q3: How many people are needed to operate this lifter?
A3: The LM800 is designed for efficient one-person operation.
Q4: Does the drum stay secure during transit?
A4: Yes, it features a positive tilt lock on the drum saddle to hold the drum upright or in a horizontal position during transit.
Q5: How is the LM800 mounted?
A5: It is highly versatile and can be mounted on both forklifts and cranes using an overhead hoist or hook.
Q6: What is the range of rotation for pouring?
A6: The operator can manually tilt and rotate the drum 360 degrees in either direction for precise pouring control.
