China Manufacturer Drum Truck 450kg Drum Stacker & Tilter with Weighing

i

Basic Specifications

Model NO.

DA450, DA450-1

Capacity

450kg

Lifting Height

1500mm

Pouring Height

1580mm

Type

Hydraulic Drum Lifter

Accuracy

±3‰

★

Product Description

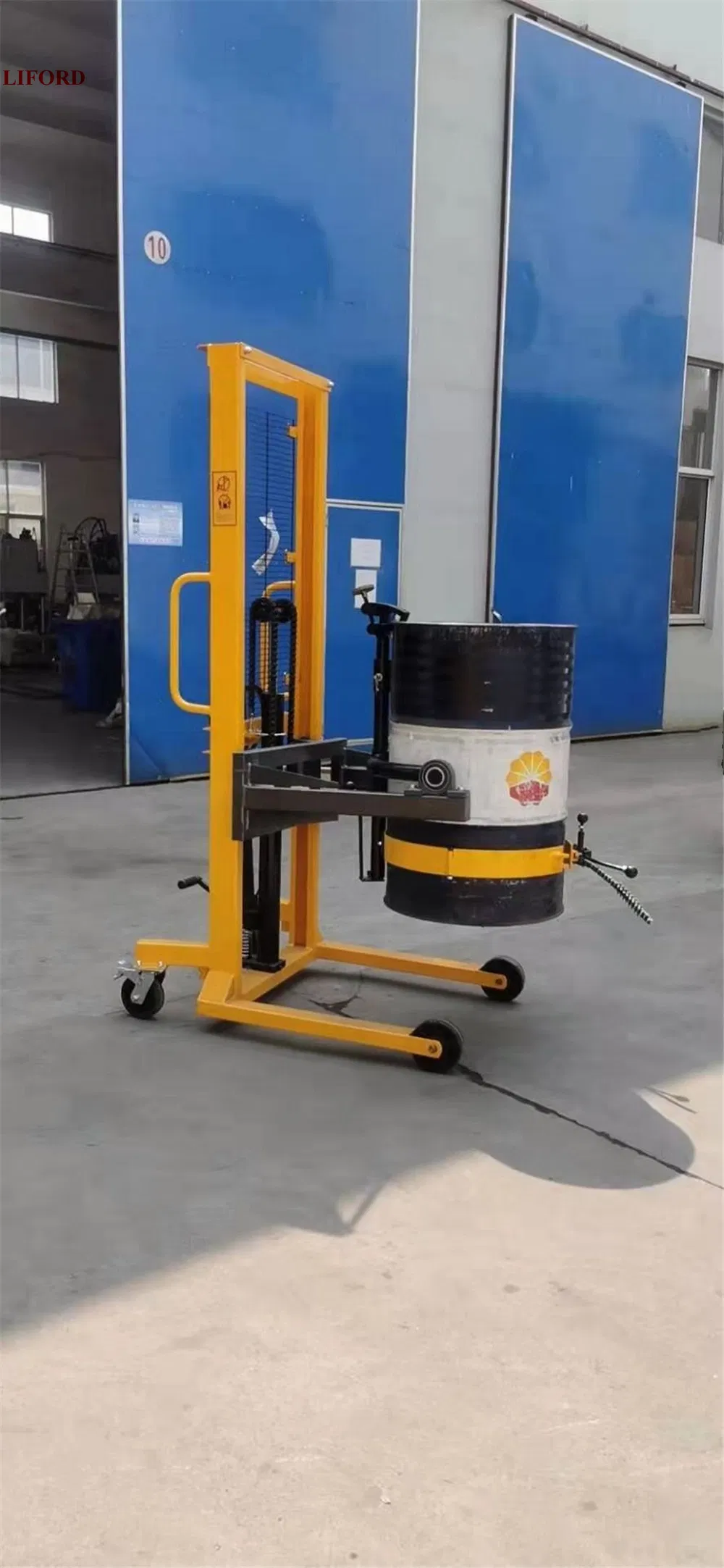

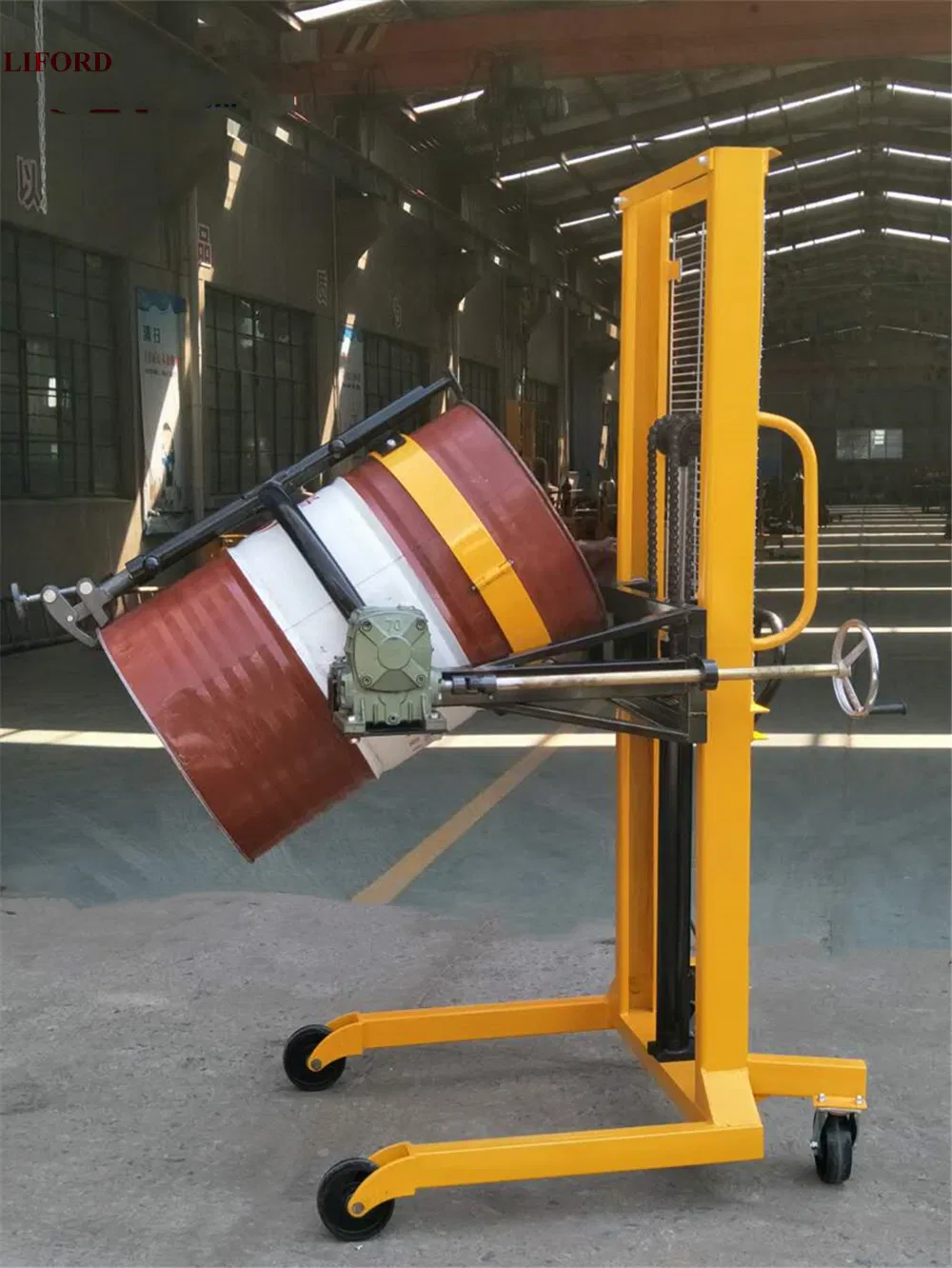

Scale-equipped drum handlers allow you to weigh your drum while you pour to dispense precise amounts as needed. No need for a separate weighing station. You control the drum pouring angle and height while you dispense.

Versatile Compatibility: Works with 55 and 30-gallon plastic, steel and fiber drums. All-steel construction designed for drums weighing up to 450kg.

⚙

Key Features

Load capacity: 450kg

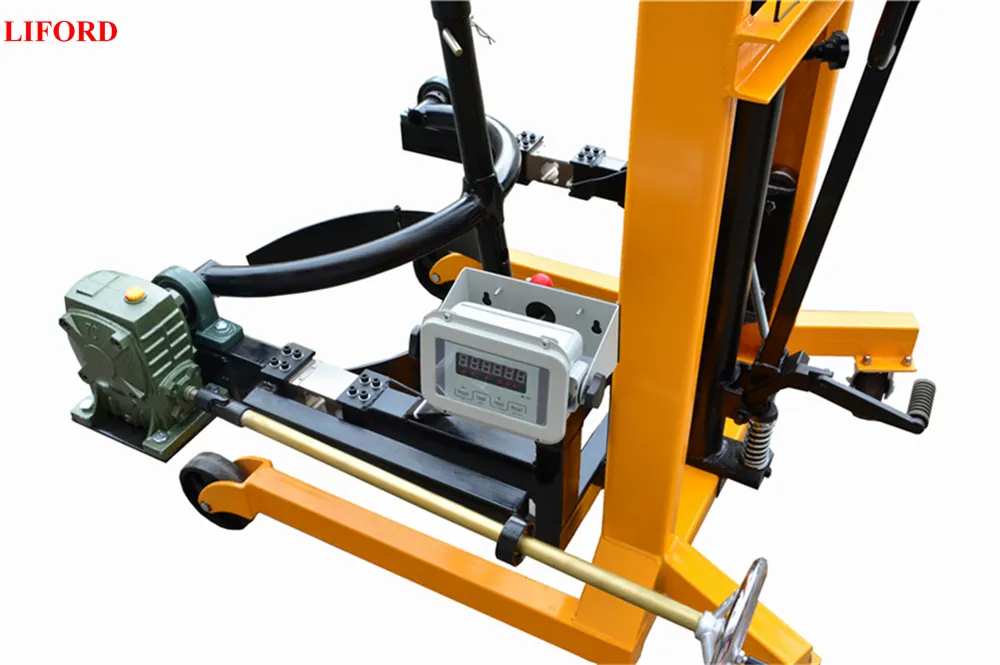

Combined Eagle-grip and Anchorear structure
Manually rotate drums 180 degrees
Controlled measuring accuracy range: ±3‰
Four casters (Ø150*50mm) with floor lock
Strong C-frame construction for stability

📊

Technical Data

Specifications	Unit	Model DA450-1
Load capacity	kg	450
Net weight	kg	191
Lifting height	mm	1500
Pouring height	mm	1580
Caster dimension	mm	Ø150*50
Overall size	mm	140010002100

✔

Industrial Applications

Popularly used to lift, transport and tilt steel and plastic drums in fields such as chemical, food processing, dye, paint workshops, adhesives, and oil handling.

❤

Quality Control & Service

100% inspection before shipment. Strong packing for sea and air delivery to ensure perfect condition upon arrival.

?

Frequently Asked Questions

Q1: What is the maximum load capacity of the DA450 series? The maximum load capacity for both DA450 and DA450-1 models is 450kg.

Q2: What types of drums are compatible with this lifter? It is designed for 55 and 30-gallon drums, including plastic, steel, and fiber rimmed drums.

Q3: How accurate is the built-in electronic scale? The weighing system features a controlled measuring accuracy range of ±3‰.

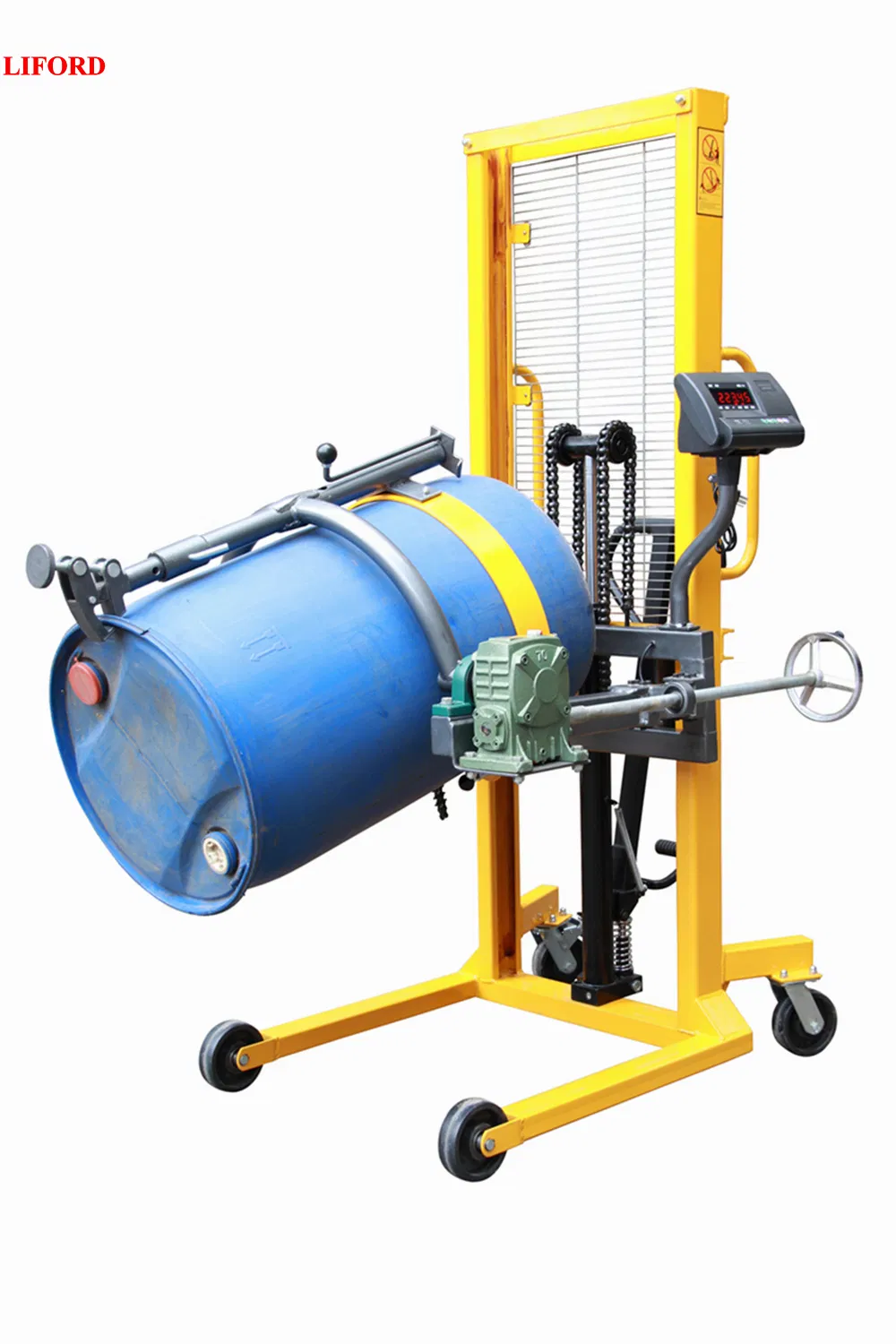

Q4: Can the drum be rotated for pouring? Yes, the device allows for manual 180-degree rotation and can hold the drum at any angle for precise pouring.

Q5: What is the maximum lifting and pouring height? The unit offers a lifting height of 1500mm and a pouring height of 1580mm.

Q6: Is it easy to move in a workshop environment? Yes, it is equipped with two rigid and two swivel casters (Ø150*50mm) and includes floor lock screws for safety during transit.
